Juice Goose RX50 User guide

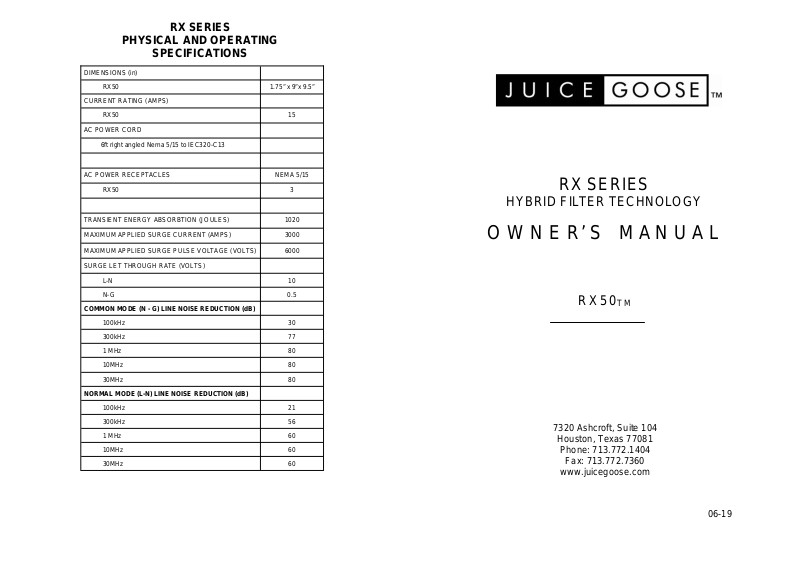

RX SERIES

PHYSICAL AND OPERATING

SPECIFICATIONS

DIMENSIONS (in)
RX50 1.75” x 9”x 9.5”
CURRENT RATING (AMPS)
RX50 15

AC POWER CORD
6ft right angled Nema 5/15 to IEC320-C13

AC POWER RECEPTACLES NEMA 5/15
RX50 3

TRANSIENT ENERGY ABSORBTION (JOULES) 1020
MAXIMUM APPLIED SURGE CURRENT (AMPS) 3000
MAXIMUM APPLIED SURGE PULSE VOLTAGE (VOLTS) 6000
SURGE LET THROUGH RATE (VOLTS)
L-N 10

N-G 0.5
COMMON MODE (N - G) LINE NOISE REDUCTION (dB)
100kHz 30
300kHz 77
1 MHz 80
10MHz 80

30MHz 80
NORMAL MODE (L-N) LINE NOISE REDUCTION (dB)
100kHz 21
300kHz 56
1 MHz 60
10MHz 60
30MHz 60

RX SERIES

HYBRID FILTER TECHNOLOGY

O W N E R’ S M A N U A L

RX50

7320 Ashcroft, Suite 104

Houston, Texas 77081

Phone: [phone]

Fax: [phone]

www.juicegoose.com

TM

06-19

The Juice Goose RX Series products are AC power conditioners
that protect against AC line surges and line noise. These devices
use an advanced, patented Hybrid Filter Technology which protects
against high voltage electric power surges and disruptive, high fre­quency line noise on the hot, neutral and ground power leads.

GENERAL SAFE USE PROCEDURES

A. Use indoors only. Do not expose to moisture.
B. Avoid dropping the unit. Do not use if any part of the
product appears damaged.
C. Only plug the RX product into a three pronged grounded
outlet. This unit is not to be used with any type of ground “lift” or pin
eliminator. The safety circuitry in the RX Series product prevents
power from flowing if the unit is not properly grounded.
D. Do not open the RX product. There are no user service­able parts inside. Opening the unit will void your warra nty
create a significant safety hazard.

and could

APPLICATION DISCLAIMER

Juice Goose shall under no circumstances be held responsible for
any losses, damage, or injury resulting directly or indirectly from
the use of a RX Series device in a manner contrary with accepted,
safe operating methods or any instructions contained in this docu­ment. The user should determine prior to use whether this product
is adequate, suitable or safe for the application intended. Since indi­vidual applications can be subject to extreme variation, Juice
Goose makes no representation or guarantee as to the suitability of
a RX product for any generally described application.

CONNECTION AND OPERATION

1. Turn off and un-plug electronic equipment.

2. Plug the equipment into the RX unit.

3. Plug the RX unit into a grounded wall outlet.

4. Observe the monitoring LEDs on the RX device.
POWER LED indicates the unit is plugged in and operational.
PROTECTION LED confirms properly connected equipment is
fully protected.
FAULT LED indicates a fault with site wiring which needs to be
inspected. This fault relates to the wiring connected to the wall out­put. Fault conditions that would be indicated include reverse hot
and neutral leads, missing safety ground and voltage in excess of
165 volts for over 3 seconds.

Important: if the FAULT LED comes on the RX unit will not provide

power to connected equipment. Once the fault has been corrected
the PROTECTION LED will come on and power will be applied to
connected equipment. Do not attempt to repair faulty wiring.

Contact a licensed electrician.

SURGE PROTECTION

The RX50 includes components that absorb or divert hig h speed, high en­ergy normal and common mode surges that can cause immediate or even­tual damage to electronic components. Energy impulses as great as 6,000
volts are reduced to no more than 10 volts between hot and neutral and
only 0.5 volts between neutral and ground.

While ground line surges and disturbances don’t typically cause catastro­phic damage, they can result in operating failures and im proper perform­ance of digital processing equipment. For that reason RX Series ground
line interference pas through is limited to a very low level.

RX SERIES MODELS

RX30 - 10 Amp Filtercord

RX50 - 15 Amp Slim Line
CQ1515 RX - 15 Amp Sequencer
CQ1520 RX - 20 Amp Sequencer

iP1515 RX - 15 Amp Web Based Power Control
iP1520 RX - 20 Amp Web Based Power Control
