RX100-15
&
RX100-20
Hybrid AC Power Filter
and
Surge Suppressor
OWNERS MANUAL
Houston, Texas
p: 713.772.1404
info@juicegoose.com
www.juicegoose.com
08-18
FEATURES SUMMARY
RX100 features include:
Less than 1 volt surge potential between neutral and ground
Less than 10 volt surge potential between neutral and line
Over voltage and wiring fault shut down
An all steel Tour Class
Eight 120 volt power outputs (6 switched 2 unswitched)
Fifteen amp, 1800 watt current rating
The RX100 is designed to operate with 120VAC, 60 Hz. Operation
with 220 or 240 volts will damage the unit and possibly cause
personal injury.
CAUTIONS
1. The RX100 must be grounded to operate. Defeating the
unit’s grounding capability could create a hazard.
2. There are no user serviceable parts inside the RX100. Do
not attempt service yourself. Contact Juice Goose as directed in
this manual if service is required.
3. Do not expose the RX100 to moisture. Avoid severe
physical impacts to the unit.
Juice Goose shall under no circumstances be held responsible for
any loss, damage or injury resulting from the use of the RX100 in
a manner inconsistent with any of the procedures outlined in this
document. The user is responsible for determining whether this
product is appropriate for the intended application.
Juice Goose is not responsible for any indirect, secondary or ancillary loss or damage, including personal injury, loss of or damage
to property or loss of income resulting from the operation or failure of this unit.
(tm)
SAFETY PRECAUTIONS
DISCLAIMER
chassis
RX100 SPECIFICATIONS
DIMENSIONS (INCHES) 1.72 x 19.00 x 7.00
WEIGHT (LBS) 12
POWER INPUT 120 VAC, 60Hz
POWER OUTLETS RX100-15
RX100-20
CURRENT CAPACITY 15 or 20 AMPS
POWER CORD 8ft FOOT, 14/3 SJT or 8ft 12/3SJT
TRANSIENT ENERGY ABSORBTION (JOULES) 1020
MAXIMUM APPLIED SURGE CURRENT (AMPS) 3000
MAXIMUM APPLIED SURGE PULSE VOLTAGE
(VOLTS)
SURGE LET THROUGH RATE (VOLTS)
L-N 10
N-G 0.5
COMMON MODE (N-G) LINE NOISE REJECTION
(dB)
100 kHz 30
300 kHz 77
1 MHz 80
10MHz 80
30MHz 80
8 NEMA 5-15R (2 unswitched)
8 NEMA 5-20R (2 unswitched)
6000
NORMAL MODE (L-N) LINE NOISE REJECTION
(dB)
100 kHz 21
300 kHz 56
1 MHz 60
10MHz 60
30MHz 60
CHASSIS DESIGN TOUR CLASS – UNIBODY
CHASSIS FINISH POWDER COAT ENAMEL
FRONT PANEL
Power On/Off Switch – This lighted rocker switch is located on the left
hand side of the chassis. The switch will light when the RX100 is on.
AC Outlets – ONE unswitched NEMA 5-15R OR NEMA 5-20R rated for
current loads up to 15 amps OR 20 amps at 120 volts.
Indicator Lights
Power – This blue light indicates the RX100 is connected to mains
power and the ON switch is engaged.
Protection OK – This blue light indicates the RX100 protection circuit is
functioning and the main AC power source is correct.
External Fault – In the event of continuous high voltage or incorrect
wiring of the line, neutral or ground leads supplying the RX100, the unit
will disconnect equipment plugged into it. The blue Protection OK light
will be OFF and the white External Fault indicator will light.
REAR PANEL
AC Outlets –
Seven NEMA 5-15R OR 5-20R outlets (one unswitched) rated for current loads up to 15 amps or 20 amps at 120 volts.
Breaker
current overloads. If the breaker trips check for a malfunction in equipment plugged into the RX100. Also check to be certain the total current
requirement of the equipment plugged into the RX100 does not exceed
15 amps or 20 amps depending on the model.
The circuit breaker may be reset. Wait 30 seconds after the breaker
trips, turn off the main unit power switch and push the center button
on the breaker back into its original position. Then turn on the main
power switch.

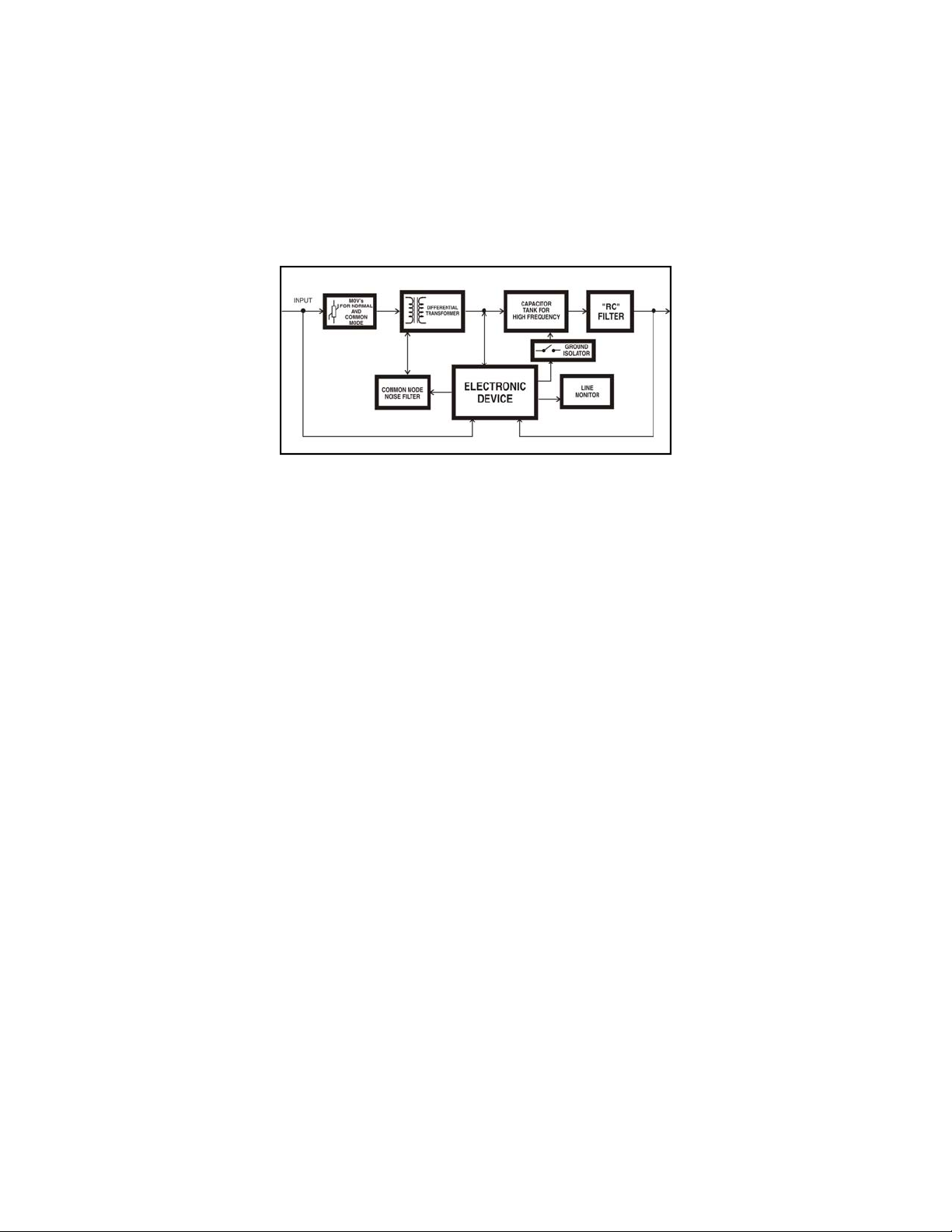

The RX100 is one of the RX Series products which featured patented
Hybrid AC Filter technology to clean up both Normal Mode and Common
Mode noise without contaminating the ground. Normal Mode noise occurs between the line and neutral leads of an electric power circuit.
Common Mode noise occurs between either the line or neutral and the
safety ground lead.
UL 1449 limits the amount of current that can pass between line and
safety ground to 0.5 milli amperes. This is called " leakage current". The
Hybrid AC Filter process control board, by using a differential transformer and capacitors, acts as a low pass, "line conditioning" filter
which performs in the same way as a series mode inductor. These components, along with a capacitor between neutral and ground comprise
– A resettable, thermal circuit breaker protects the unit from
INTERNAL PROTECTION COMPONENTS
the foundation of the Hybrid AC Filter design which conditions incoming AC power, removing normal and common mode noise without
adversely affecting the ground line.
TROUBLESHOOTING
The RX100 is ruggedly designed and constructed from high quality
components to give years of dependable power for your equipment.
It requires neither maintenance nor adjustment. It is unlikely to malfunction. However, there is one potential event to note:
The RX100 will not come on or turns itself off.
a. Check the status of the power supplied to the unit. If line
voltage exceeds 165 volts for 3 seconds protection circuitry will disconnect power to the AC power outputs. This will also occur if the
line and neutral leads are reversed or if there is no ground connection. Use a voltage meter and/or polarity tester to examine the
status of incoming power.
b. Check that the circuit breaker is not tripped and that the
current load on the unit does not exceed its rated 15 amp or 20 amp
capacity. If the breaker is tripped, remove sufficient current load to
reduce the total to no more than 15 amps or 20 amps (depending on
the RX100 model). Wait approximately 30 seconds after the tripping.
Turn off the main power switch and push in the circuit breaker button.
If an observed problem can not be remedied, particularly if the problem seems severe or dangerous, discontinue use of the RX100 and
contact Juice Goose directly.
REPAIR
Should your RX100 need service contact Juice Goose for assistance
and authorization to return the unit. PLEASE NOTE: a return authorization number is required in order for the service personnel to
correctly and promptly identify, repair and return your unit. You may
obtain a Return Authorization Number by calling: 713-772-1404 or
sending email to info@juicegoose.com.
OTHER HIGH QUALITY PRODUCTS FROM
JG SERIES – Rack mountable power distribution in a 19” con-
figuration. Five models to choose from. Feature options include
rack lighting and voltage meter. The JG11-20A has a 20 amp capacity, 2 unswitched outlets and a 15 foot power cord. All units
contain a basic level of power conditioning.
PD SERIES – Custom configured power strips with up to 12 cir-
cuits per unit. The PD1A, PD1B and PD3 offer various options regarding size, number and arrangement of circuits, length and location of wire harness and mounting configuration. Select exact configuration with a features menu.
CQ SERIES – Power sequencing and remote control products.
No master controller is required. Very flexible, economical and easy
to install. Models include rack mount, four circuit and 30 amp designs. Optional remote controls include key or rotary switch and
secure keypad.
IP SERIES – The iP Series models offer web based remote con-
trol and monitoring of AC power. An on board web server provides
immediate functionality. UDP or TCP communications allow text
based commands over the Internet. RS232 connection is available.
Remote control modules are available from Crestron, Symetrix and
other third party companies.
UPS MODELS – When protection against power outage is
needed, Juice Goose is a source for 16 models of UPS products,
rack or tower mount, line interactive or on line. Call or email for
any specification or application ssistance.
