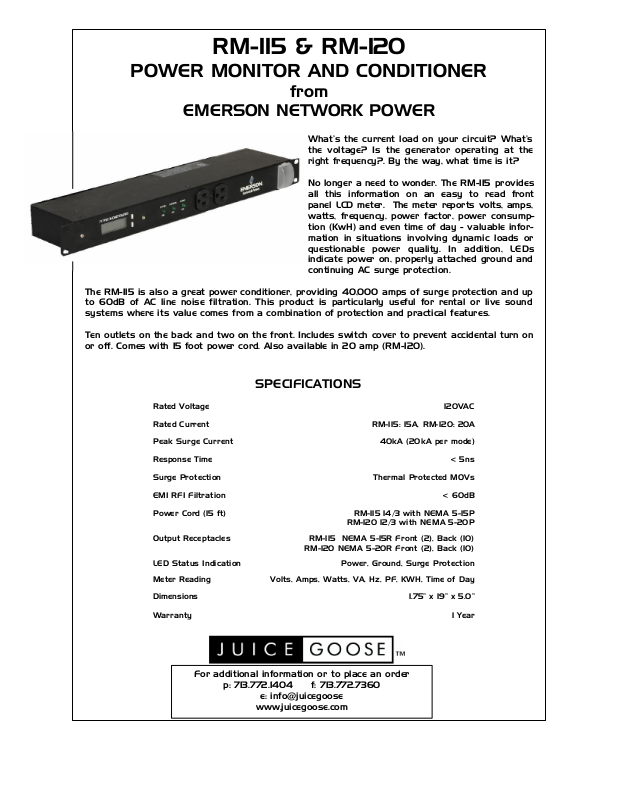

Juice Goose RM-120 Datasheet

RM-115 & RM-120

POWER MONITOR AND CONDITIONER

from

EMERSON NETWORK POWER

What’s the current load on your circuit? What’s
the voltage? Is the generator operating at the
right frequency?. By the way, what time is it?

No longer a need to wonder. The RM-115 provides
all this information on an easy to read front
panel LCD meter. The meter reports volts, amps,
watts, frequency, power factor, power consump­tion (KwH) and even time of day - valuable infor­mation in situations involving dynamic loads or
questionable power quality. In addition, LEDs
indicate power on, properly attached ground and
continuing AC surge protection.

The RM-115 is also a great power conditioner, providing 40,000 amps of surge protection and up
to 60dB of AC line noise filtration. This product is particularly useful for rental or live sound
systems where its value comes from a combination of protection and practical features.

Ten outlets on the back and two on the front. Includes switch cover to prevent accidental turn on
or off. Comes with 15 foot power cord. Also available in 20 amp (RM-120).

SPECIFICATIONS

Rated Voltage 120VAC

Rated Current RM-115: 15A, RM-120: 20A

Peak Surge Current 40kA (20kA per mode)

Response Time < 5ns

Surge Protection Thermal Protected MOVs

EMI RFI Filtration < 60dB

Power Cord (15 ft)

Output Receptacles RM-115 NEMA 5-15R Front (2), Back (10)

RM-120 NEMA 5-20R Front (2), Back (10)

LED Status Indication Power, Ground, Surge Protection

Meter Reading Volts, Amps, Watts, VA, Hz, PF, KWH, Time of Day

Dimensions 1.75” x 19” x 5.0”

Warranty 1 Year

For additional information or to place an order

p: 713.772.1404 f: 713.772.7360

e: info@juicegoose

www.juicegoose.com

RM-115 14/3 with NEMA 5-15P

RM-120 12/3 with NEMA 5-20P
