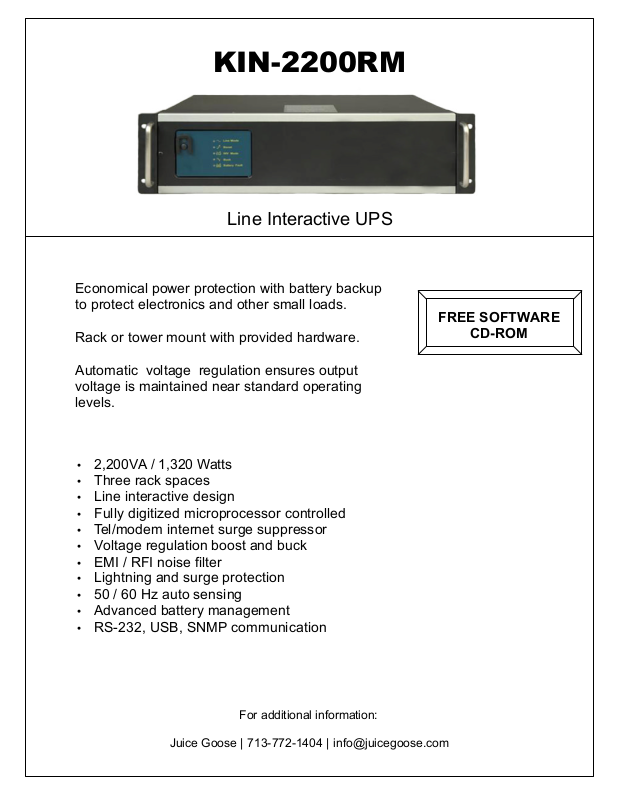

Juice Goose KIN-2200RM Data Sheet
KIN-2200RM
Line Interactive UPS
Economical power protection with battery backup
to protect electronics and other small loads.
Rack or tower mount with provided hardware.
Automatic voltage regulation ensures output
voltage is maintained near standard operating
levels.
FREE SOFTWARE
CD-ROM
• 2,200VA / 1,320 Watts
• Three rack spaces
• Line interactive design
• Fully digitized microprocessor controlled
• Tel/modem internet surge suppressor
• Voltage regulation boost and buck
• EMI / RFI noise filter
• Lightning and surge protection
• 50 / 60 Hz auto sensing
• Advanced battery management
• RS-232, USB, SNMP communication
For additional information:
Juice Goose | 713-772-1404 | info@juicegoose.com
SPECIFICATIONS
KIN-2200RM
INPUT
OUTPUT
PROTECTION
BATTERY
Capacity 2,200 VA
1,320 Watt
Voltage + / - 25% of line input
Frequency 50 or 60 Hz + / - 10% (auto sensing)
Voltage (on battery) Simulated sine wave 120V
Frequency (on battery) 50 or 60 Hz + / - 0.5%
Automatic
Voltage
Regulation
Transfer time to battery 24 milliseconds
Spike protection 320 Joules
EMI / RFI filter 10dB @ 0.15MHz, 50dB @ 30MHz
Current overload protection 60 seconds @ 110%, 3 seconds @130%
Type Sealed lead acid, maintenance free
Quantity (4) 12V, 9AH
Recharge time (typical) 8 hours to 90% of capacity
Increases output voltage 15% when input voltage drops 9% to 25% below standard. Decreases output voltage 10% when voltage rises
9% to 25% above standard
PHYSICAL
ENVIRONMENT
INDICATORS
Protection Automatic self test. Replace battery indicator.
Backup time 3 - 180 minutes, depending on load
Dimensions (W x D x H) 16.9 x 13.8 x 5.1 (3RU)
Weight 62.6 lbs (68.5 lbs shipping weight)
Line cord 6 ft, 5-20P
Receptacles (6) NEMA 5-15R
Operating temperature 32 - 104 degrees F
Audible noise < 40 dBA
Max altitude 11,500 ft above sea level
Load on battery power Slow beeping
Battery low Rapid beeping
Overload Continuous alarm sound
