JSW Pacific CCD 401SA Users manual

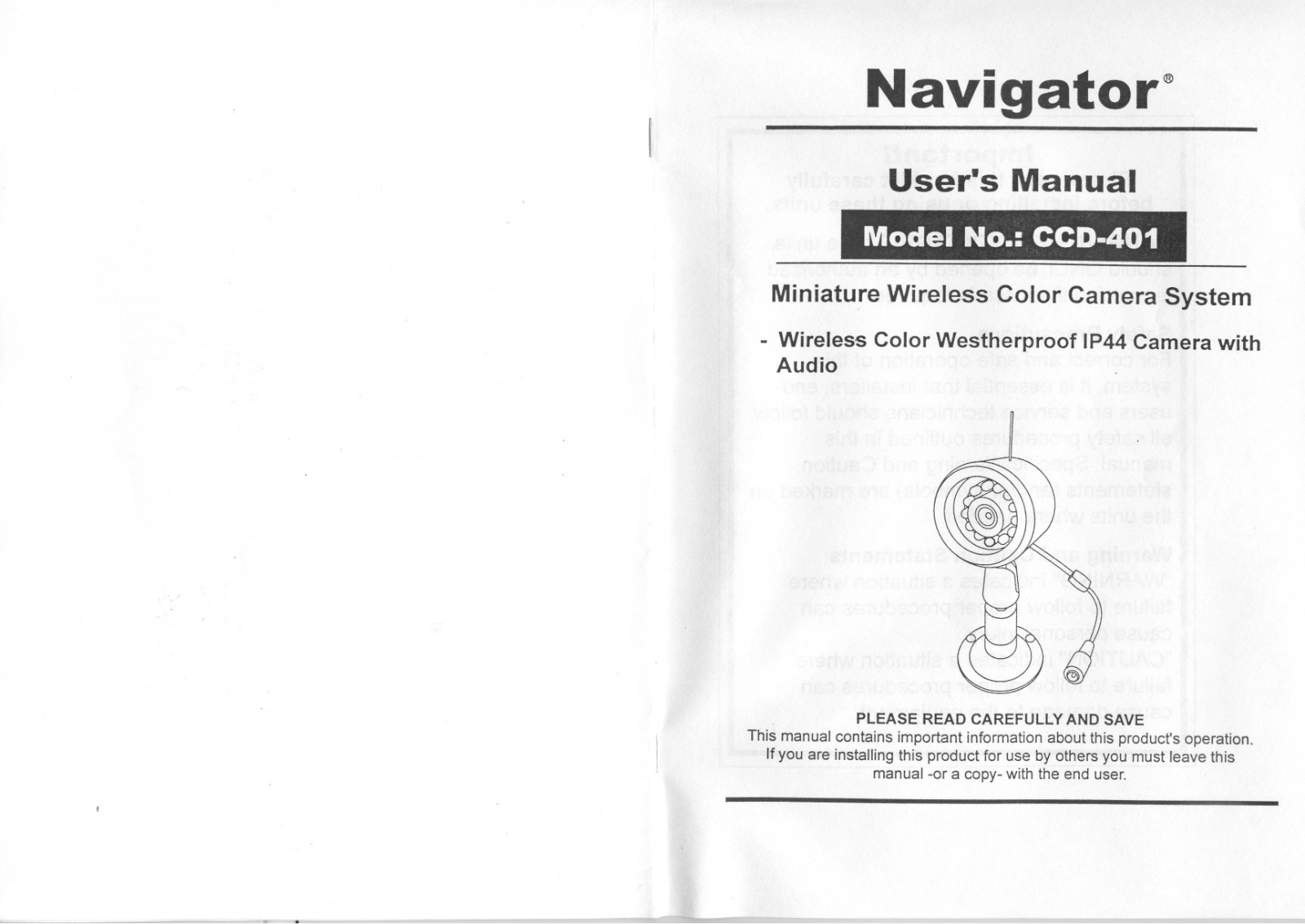

Navigator"

II

User's Manual

Model No.: CCD-401

Miniature Wireless Color Camera System

- Wireless Color Westherproof IP44 Camera with
Audio

-

PLEASE READ CAREFULLYAND SAVE

This manual contains important informationaboutthis product'soperation.

If you are installing this product for use by others you must leavethis

manual-or a copy-with the end user.

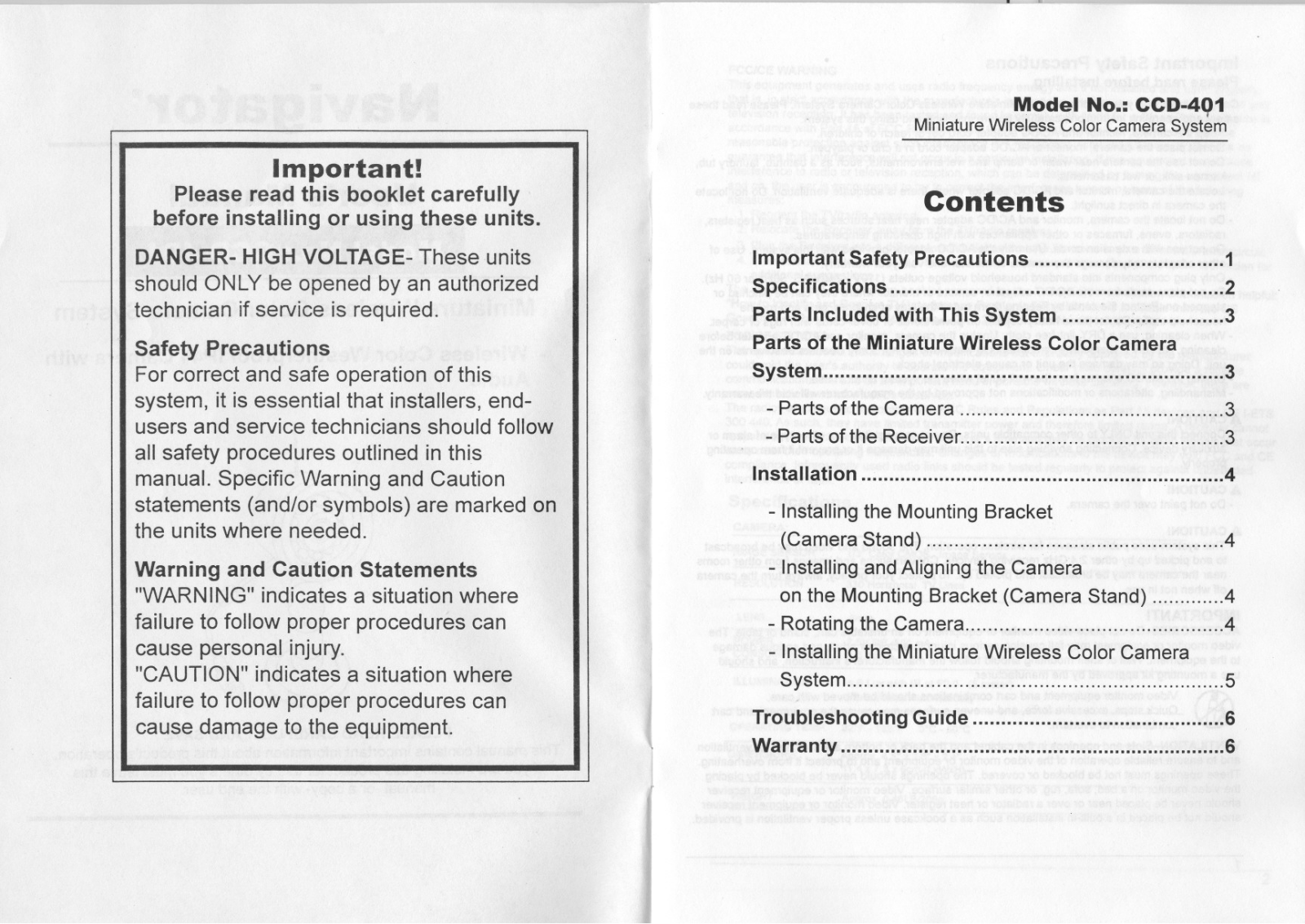

Important!

Please read this booklet carefully

before installing or using these units.

Model No.: CCD-4Q1

Miniature Wireless Color Camera System

Contents

DANGER-HIGHVOLTAGE-These units

shouldONLYbe opened by an authorized

technician if service is required.

Safety Precautions

For correct and safe operation of this
system, it is essential that installers, end-

users and service technicians should follow
all safety procedures outlined in this

manual. Specific Warning and Caution
statements (and/or symbols) are marked on

the units where needed.

Warning and Caution Statements

"WARNING" indicates a situation where

failure to follow proper procedures can

cause personal injury.
"CAUTION" indicates a situation where

failure to follow proper procedures can

cause damage to the equipment.

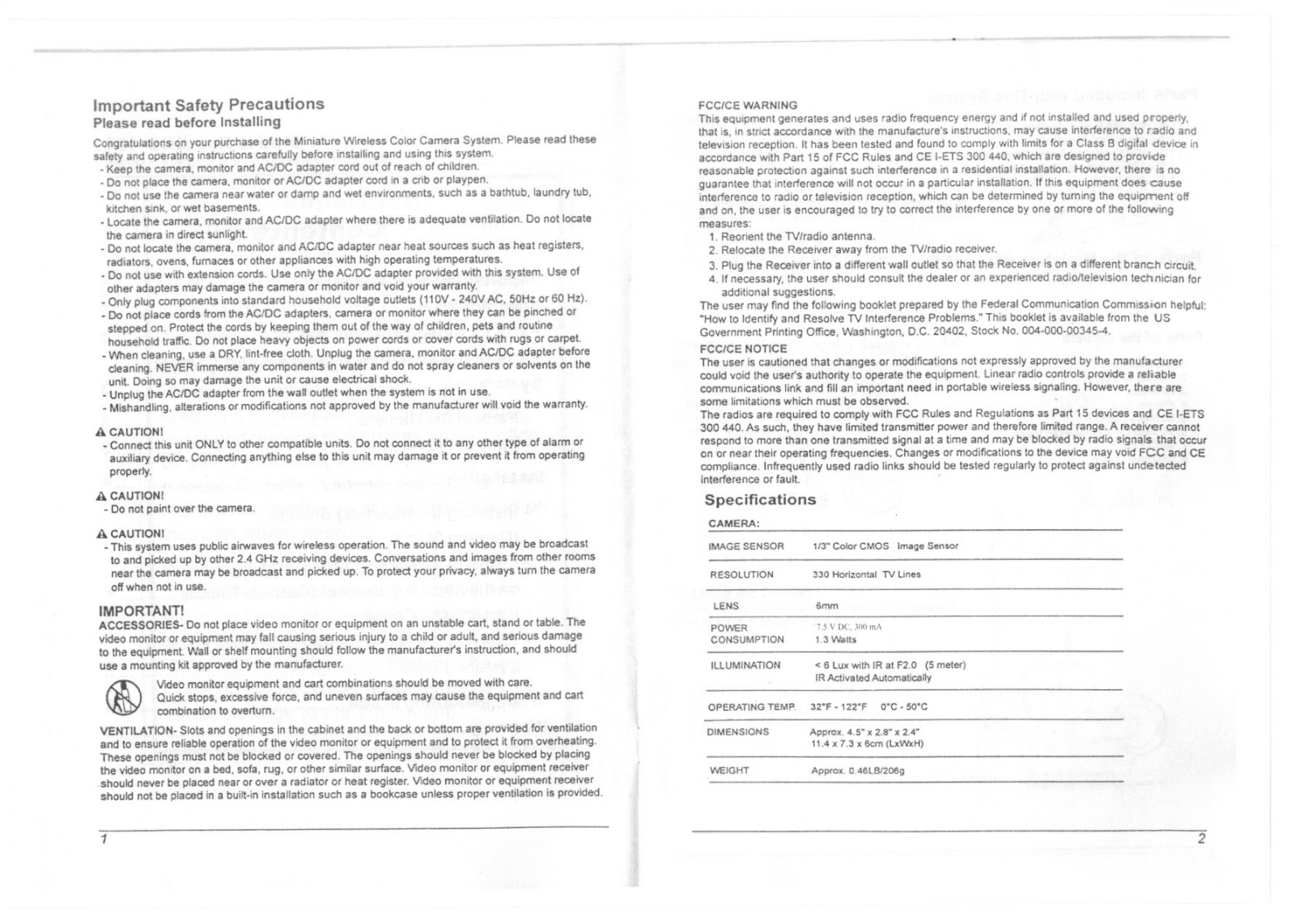

Important Safety Precautions 1
Specifications ..2

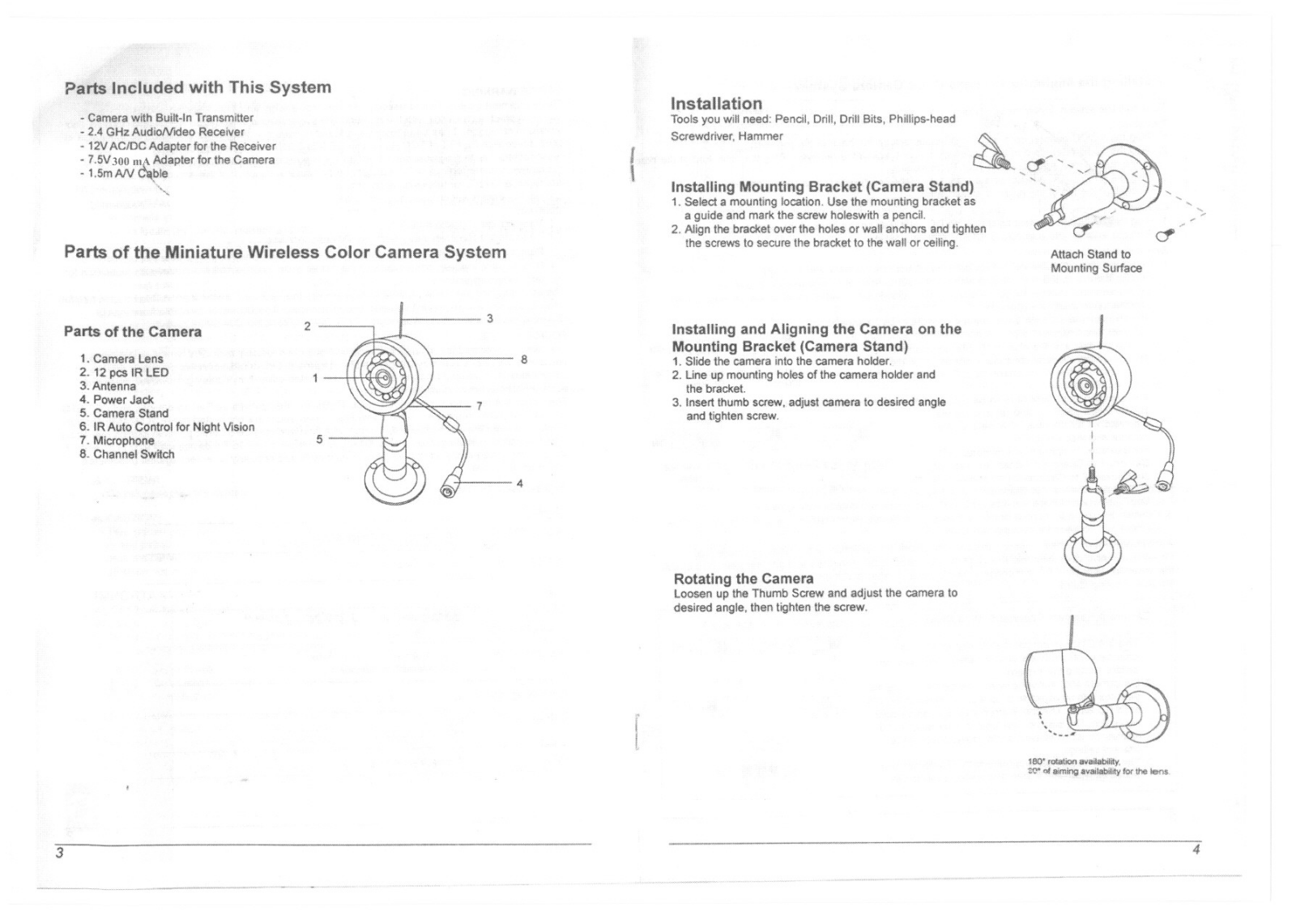

Parts IncludedwithThis System ~.~ 3

Parts of the Miniature Wireless Color Camera

System :...... ..3

- Parts ofthe Camera 3

- Parts ofthe Receiver 3

. Installation 4

- Installing the Mounting Bracket
(Camera Stand) 4

- Installing and Aligningthe Camera
on the Mounting Bracket (Camera Stand) 4

-Rotating the Camera 4

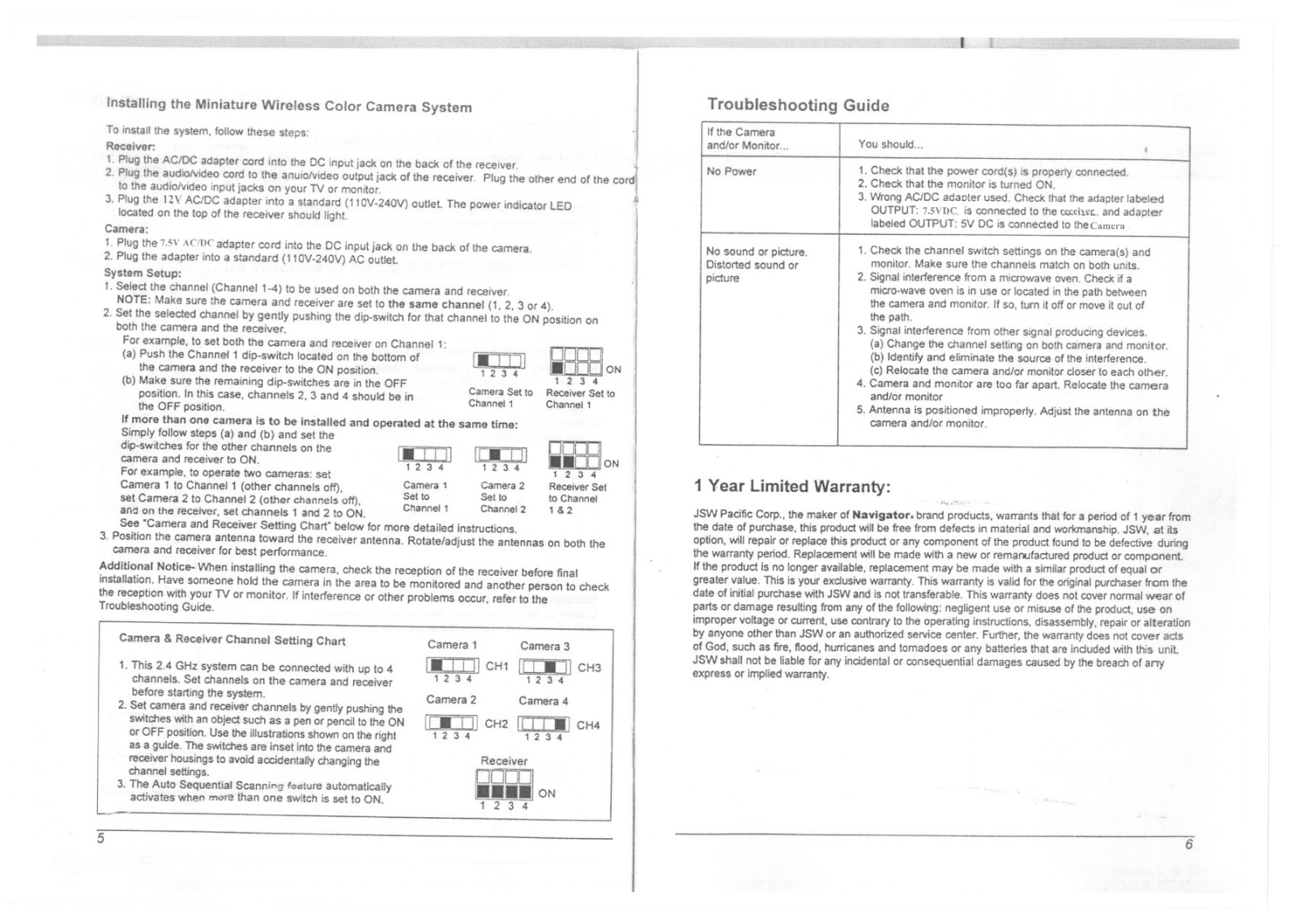

-Installing the Miniature Wireless Color Camera

System 5

Troubleshooti n9 Guide 6

Warranty 6
