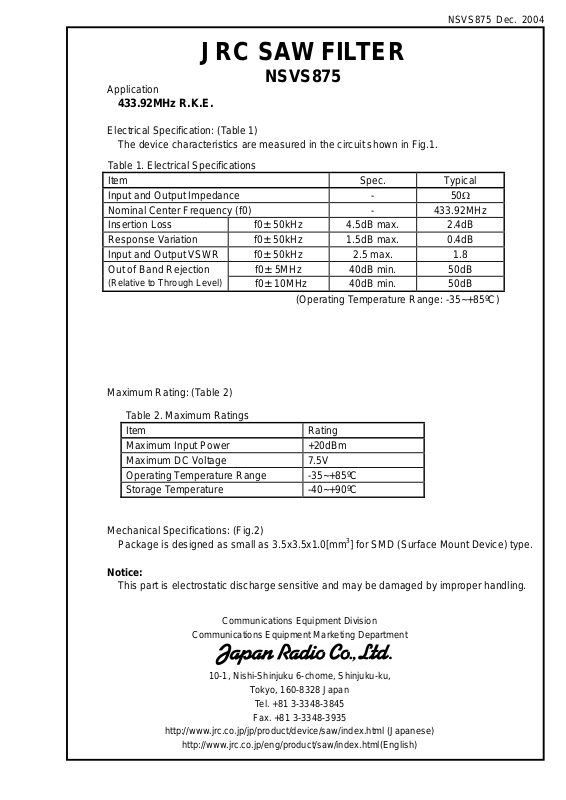

NSVS875 Dec. 2004
JRC SAW FILTER
NSVS875
Application
433.92MHz R.K.E.
Electrical Specification: (Table 1)
The device characteristics are measured in the circuit shown in Fig.1.
Table 1. Electrical Specifications
Item |
|
Spec. |
Typical |
|
Input and Output Impedance |
|
- |
50Ω |
|
Nominal Center Frequency (f0) |
|
- |
433.92MHz |
|
Insertion Loss |
|
f0±50kHz |
4.5dB max. |
2.4dB |
Response Variation |
|
f0±50kHz |
1.5dB max. |
0.4dB |
Input and Output VSWR |
|
f0±50kHz |
2.5 max. |
1.8 |
Out of Band Rejection |
|
f0±5MHz |
40dB min. |
50dB |
(Relative to Through Level) |
|
f0±10MHz |
40dB min. |
50dB |
(Operating Temperature Range: -35~+85ºC)
Maximum Rating: (Table 2)
Table 2. Maximum Ratings
Item |
Rating |
Maximum Input Power |
+20dBm |
Maximum DC Voltage |
7.5V |
Operating Temperature Range |
-35~+85ºC |
Storage Temperature |
-40~+90ºC |
Mechanical Specifications: (Fig.2)
Package is designed as small as 3.5x3.5x1.0[mm3] for SMD (Surface Mount Device) type.
Notice:
This part is electrostatic discharge sensitive and may be damaged by improper handling.
Communications Equipment Division
Communications Equipment Marketing Department
10-1, Nishi-Shinjuku 6-chome, Shinjuku-ku,
Tokyo, 160-8328 Japan
Tel. +81 3-3348-3845
Fax. +81 3-3348-3935 http://www.jrc.co.jp/jp/product/device/saw/index.html (Japanese) http://www.jrc.co.jp/eng/product/saw/index.html(English)
NSVS875 Dec. 2004
IN |
1 |
8 |
7 |
OUT |
|
50Ω |
50Ω |
||||
2 SAW 6 |
|||||
|
|
||||
|
3 |
4 |
5 |
|
(a) |
Fig.1 Measuring circuit |
|
(1) |
3.5±0.2 |
(b) |
|
|
3 . 5 ± 0 . 2
J22
KE (2)
|
|
|
|
(3) |
|
|
1 . 0 ± 0 . 2 |
|
|
|
|
|
(0.95) |
4 |
|
(0.8) |
|
|
|
|
[5x] |
|
|
|
3 |
|
|
.0(6 ) |
x8[ ] |
|
|
|
|
5 |
|
|
(0.6) |
|
|
|
|
5 4 ) |
2 |
|
|
6 |
|
|
|
|
|
||
2 . |
) |
|
|
|
|
( |
7 |
|
|
|
|
|
|
|
|
|
|
|
2 |
|
|
|
|
|
. |
|
|
|
|
|
1 |
|
|
|
|
|
( |
|
( 1 . 0 ) [ 2 x ] |
7 |
|
|
1 |
|
|
8
Fig.2 Package dimensions (in mm)
4.3
0.6
1.2
[6x]
0.6 [6x]
1.27 |
|
4.3 |
|
1.27 |
Via-Hole(Φ0.3) |
|
Marking
(1)Manufacture’s Mark
(2)Lot Number
(a)Year
(b)Month
*Oct.--- X
Nov.--- Y
Dec.--- Z
(3) Part number Mark
Pin no. Connection
1GND
2IN/OUT
3GND
4GND
5GND
6OUT/IN
7GND
8GND
Fig.3 Desirable land area (in mm)
