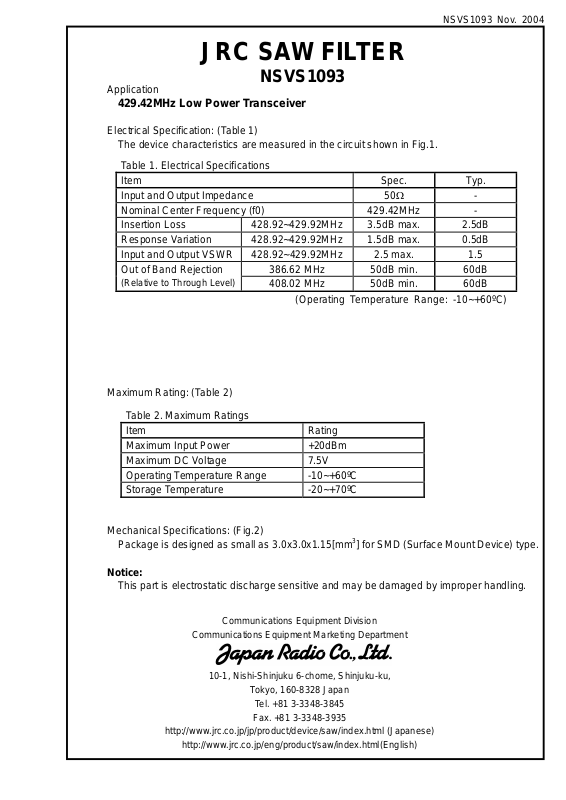

JRC NSVS1093 User Manual

NSVS1093 Nov. 2004

Application

Electrical Specification: (Table 1)
The device characteristics are measured in the circuit shown in Fig.1.

Maximum Rating: (Table 2)

Mechanical Specifications: (Fig.2)
Package is designed as small as 3.0x3.0x1.15[mm

Notice:

This part is electrostatic discharge sensitive and may be damaged by improper handling.

429.42MHz Low Power Transceiver

Table 1. Electrical Specifications
Item Spec. Typ.
Input and Output Impedance
Nominal Center Frequency (f0) 429.42MHz ­Insertion Loss 428.92~429.92MHz 3.5dB max. 2.5dB
Response Variation 428.92~429.92MHz 1.5dB max. 0.5dB
Input and Output VSWR 428.92~429.92MHz 2.5 max. 1.5

(Relative to Through Level)

Table 2. Maximum Ratings
Item Rating
Maximum Input Power +20dBm
Maximum DC Voltage 7.5V
Operating Temperature Range -10~+60ºC
Storage Temperature -20~+70ºC

http://www.jrc.co.jp/jp/product/device/saw/index.html (Japanese)

JRC SAW FILTER

NSVS1093

50Ω

386.62 MHz 50dB min. 60dB Out of Band Rejection

408.02 MHz 50dB min. 60dB
(Operating Temperature Range: -10~+60ºC)

3

] for SMD (Surface Mount Device) type.

Communications Equipment Division

Communications Equipment Marketing Department

10-1, Nishi-Shinjuku 6-chome, Shinjuku-ku,

Tokyo, 160-8328 Japan

Tel. [phone]

Fax. [phone]

http://www.jrc.co.jp/eng/product/saw/index.html(English)

-
