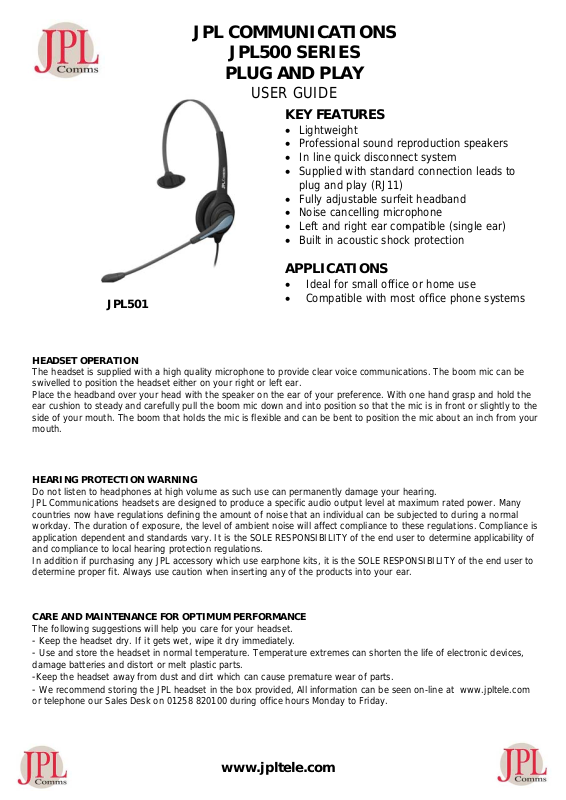

JPL JPL500 Series, JPL501 User Manual

JPL COMMUNICATIONS

A

JPL501

JPL500 SERIES

PLUG AND PLAY

USER GUIDE

KEY FEATURES

• Lightweight

• Professional sound reproduction speakers

• In line quick disconnect system

• Supplied with standard connection leads to

plug and play (RJ11)

• Fully adjustable surfeit headband

• Noise cancelling microphone

• Left and right ear compatible (single ear)

• Built in acoustic shock protection

PPLICATIONS

• Ideal for small office or home use

• Compatible with most office phone systems

HEADSET OPERATION

The headset is supplied with a high quality microphone to provide clear voice communications. The boom mic can be
swivelled to position the headset either on your right or left ear.
Place the headband over your head with the speaker on the ear of your preference. With one hand grasp and hold the
ear cushion to steady and carefully pull the boom mic down and into position so that the mic is in front or slightly to the
side of your mouth. The boom that holds the mic is flexible and can be bent to position the mic about an inch from your
mouth.

HEARING PROTECTION WARNING

Do not listen to headphones at high volume as such use can permanently damage your hearing.
JPL Communications headsets are designed to produce a specific audio output level at maximum rated power. Many
countries now have regulations defining the amount of noise that an individual can be subjected to during a normal
workday. The duration of exposure, the level of ambient noise will affect compliance to these regulations. Compliance is
application dependent and standards vary. It is the SOLE RESPONSIBILITY of the end user to determine applicability of
and compliance to local hearing protection regulations.
In addition if purchasing any JPL accessory which use earphone kits, it is the SOLE RESPONSIBILITY of the end user to
determine proper fit. Always use caution when inserting any of the products into your ear.

CARE AND MAINTENANCE FOR OPTIMUM PERFORMANCE

The following suggestions will help you care for your headset.

- Keep the headset dry. If it gets wet, wipe it dry immediately.

- Use and store the headset in normal temperature. Temperature extremes can shorten the life of electronic devices,

damage batteries and distort or melt plastic parts.

-Keep the headset away from dust and dirt which can cause premature wear of parts.

- We recommend storing the JPL headset in the box provided, All information can be seen on-line at www.jpltele.com

or telephone our Sales Desk on 01258 820100 during office hours Monday to Friday.

www.jpltele.com

JPL COMMUNICATIONS

g

g

g

JPL500 SERIES

PLUG AND PLAY

SAFETY INSTRUCTIONS - PLEASE READ BEFORE USE

- Do ensure that all electrical connections (including the mains plug, extension leads and interconnections between

pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and
withdraw the mains plug when making or changing connections.

- Do not continue to operate the equipment if you are in any doubt about it workin

way – switch off, withdraw the mains plug and consult your dealer.

- Do not allow electrical equipment to be exposed to rain or moisture.

- Never push anything into holes, slots or any other opening as this could result in fatal electrical shock.

- Never guess or take chances with electrical equipment.

TROUBLESHOOTING

The caller cannot hear you

- For clear tube models determine if the tube is positioned correctly. Try various other positions.

- To determine if the clear sound tube is clogged, remove the tube and see if the caller can hear you. If they can

then the tube is clogged. For a temporary solution, gently rinse warm water through the tube for a minute them
manually swing or shake it dry. Make sure the tube is completely dry before reattaching.

- For noise cancelling models make sure the boom is facing your mouth and positioned correctly.

- Verify that the volume control is set properly.

- Ensure the phone and lines are operating correctly.

USER GUIDE

normally, or if it is damaged in any

The fit is uncomfortable

- For over the ear types, determine if the ear loop is properly positioned on your ear. For over the head types make

sure the headband length is correct so the stabilizer bars rest gently above your ear.

- Try all possible adjustments in all configurations.

LIMITED WARRANTY

Damaged caused by, or performance problems resulting from, using this product with a non JPL Communications
amplifier and/or connector cable, accident, misuse, or an act of God are not covered. Implied warranties, includin
those of merchantability, fitness for a particular purpose and non-infringement shall (a) have no duration greater
than one years from the date of purchase, (b) terminate automatically at the end of that period, and (c ) to the
extent permitted by law, be excluded.
Consequential and incidental damages, including without limitation, loss of property and those arisin
of any express or implied warranty, are not the responsibility of JPL Communications and to the extent permitted
by law, are excluded.

from breach

www.jpltele.com
