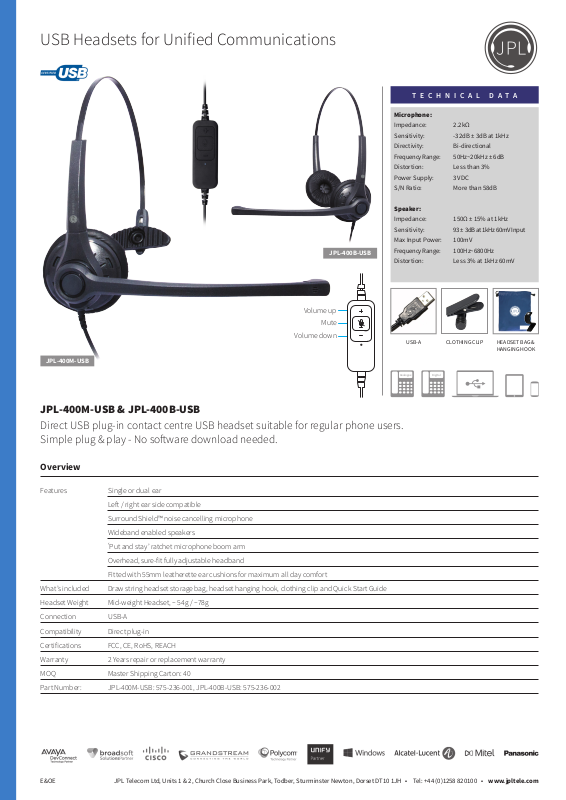

JPL JPL-400M-USB, JPL-400B-USB Datasheet

USB Headsets for Unied Communications

Volume up

Mute

Volume down

JPL-400M-USB

JPL-400B-USB

TECHNICAL DATA

Microphone:

Impedance: 2.2kΩ

Sensitivity: -32dB ± 3dB at 1kHz

Directivity: Bi-directional

Frequency Range: 50Hz~20kHz ± 6dB

Distortion: Less than 3%

Power Supply: 3V DC

S/N Ratio: More than 58dB

Speaker:

Impedance: 150Ω±15%at1kHz

Sen siti vity : 93 ± 3dB at 1kHz 60mV Input

Max Input Power: 100mV

Frequency Range: 100Hz~6800Hz

Distortion: Less 3% at 1kHz 60mV

USB-A

Analogue Digital

CLOTHING CLIP

HEADSET BAG &
HANGING HOOK

JPL-400M-USB & JPL-400B-USB

Direct USB plug-in contact centre USB headset suitable for regular phone users.
Simple plug & play - No soware download needed.

Overview

Features Single or dual ear

Le / right ear side compatible

Surround Shield™ noise cancelling microphone

Wideband enabled speakers

‘

Overhead, sure-t fully adjustable headband

Fitted with 55mm leatherette ear cushions for maximum all day comfort

What’s included Draw string headset storage bag, headset hanging hook, clothing clip and Quick Start Guide

Headset Weight Mid-weight Headset, ~ 54g / ~78g

Connection USB-A

Compatibility Direct plug-in

Certications FCC, CE, RoHS, REACH

Warranty 2 Years repair or replacement warranty

MOQ Master Shipping Carton: 40

Part Number: JPL-400M-USB: 575-236-001, JPL-400B-USB: 575-236-002

Put and stay’ ratchet microphone boom arm

E&OE JPL Telecom Ltd, Units 1 & 2, Church Close Business Park, Todber, Sturminster Newton, Dorset DT10 1JH • Tel: [phone] • www.jpltele.com
