NEMA14-01
Bipolar Stepper Motor

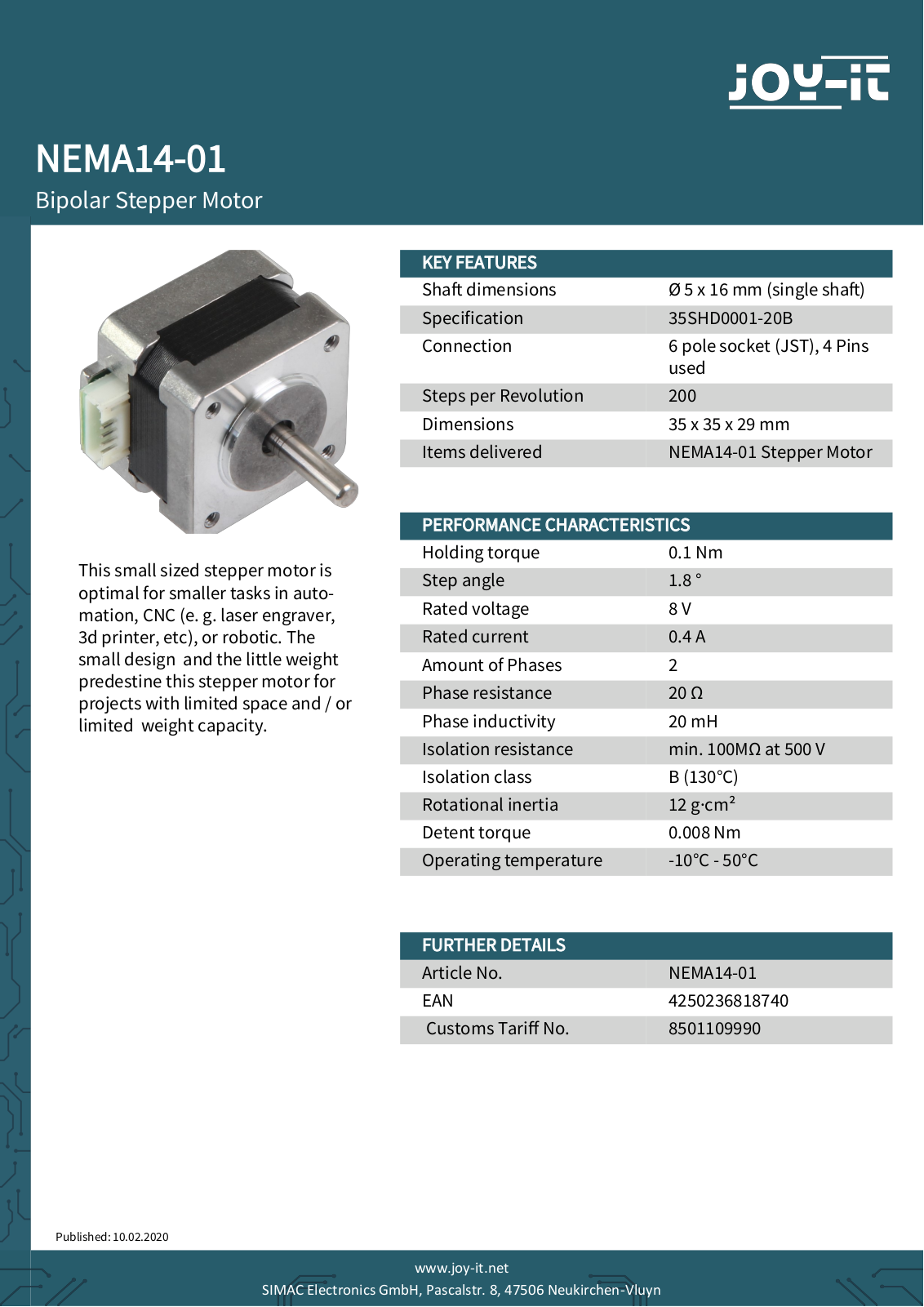

KEY FEATURES
Sha dimensions Ø 5 x 16 mm (single sha)
Specification 35SHD0001-20B
Connection 6 pole socket (JST), 4 Pins
used
Steps per Revolution 200
Dimensions 35 x 35 x 29 mm
Items delivered NEMA14-01 Stepper Motor
PERFORMANCE CHARACTERISTICS
Holding torque 0.1 Nm
Step angle 1.8 °
Rated voltage 8 V
Rated current 0.4 A
Amount of Phases 2
Phase resistance 20 Ω
Phase inductivity 20 mH
Isolation resistance min. 100MΩ at 500 V
Isolation class B (130°C)
Rotational inertia 12 g·cm²
Detent torque 0.008 Nm
Operating temperature -10°C - 50°C
FURTHER DETAILS
Article No. NEMA14-01
EAN 4250236818740
Customs Tari No. 8501109990
This small sized stepper motor is
optimal for smaller tasks in automation, CNC (e. g. laser engraver,
3d printer, etc), or robotic. The
small design and the little weight
predestine this stepper motor for
projects with limited space and / or
limited weight capacity.
www.joy-it.net
SIMAC Electronics GmbH, Pascalstr. 8, 47506 Neukirchen-Vluyn
Published: 10.02.2020
NEMA14-01
Bipolar Stepper Motor

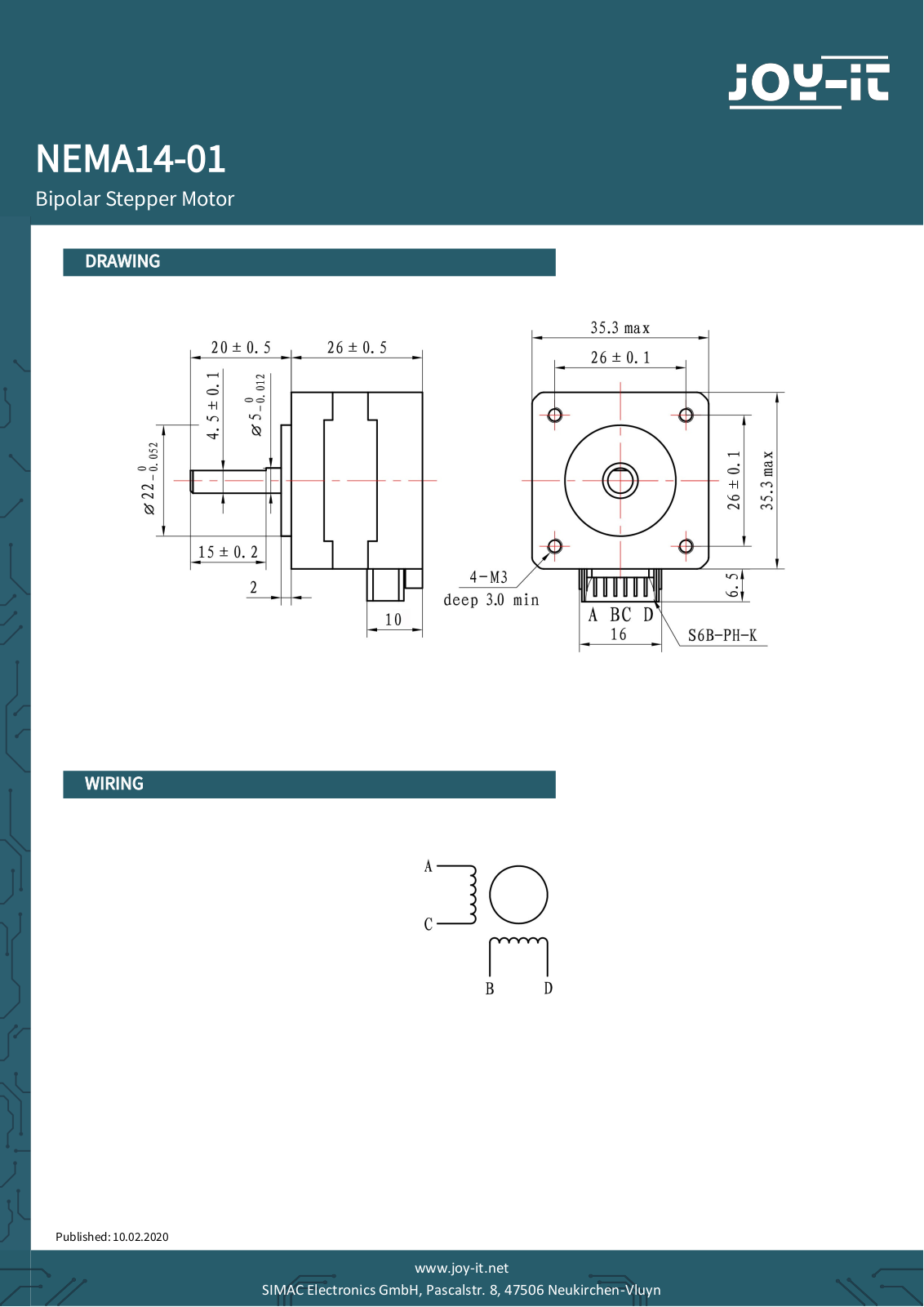

WIRING
DRAWING
