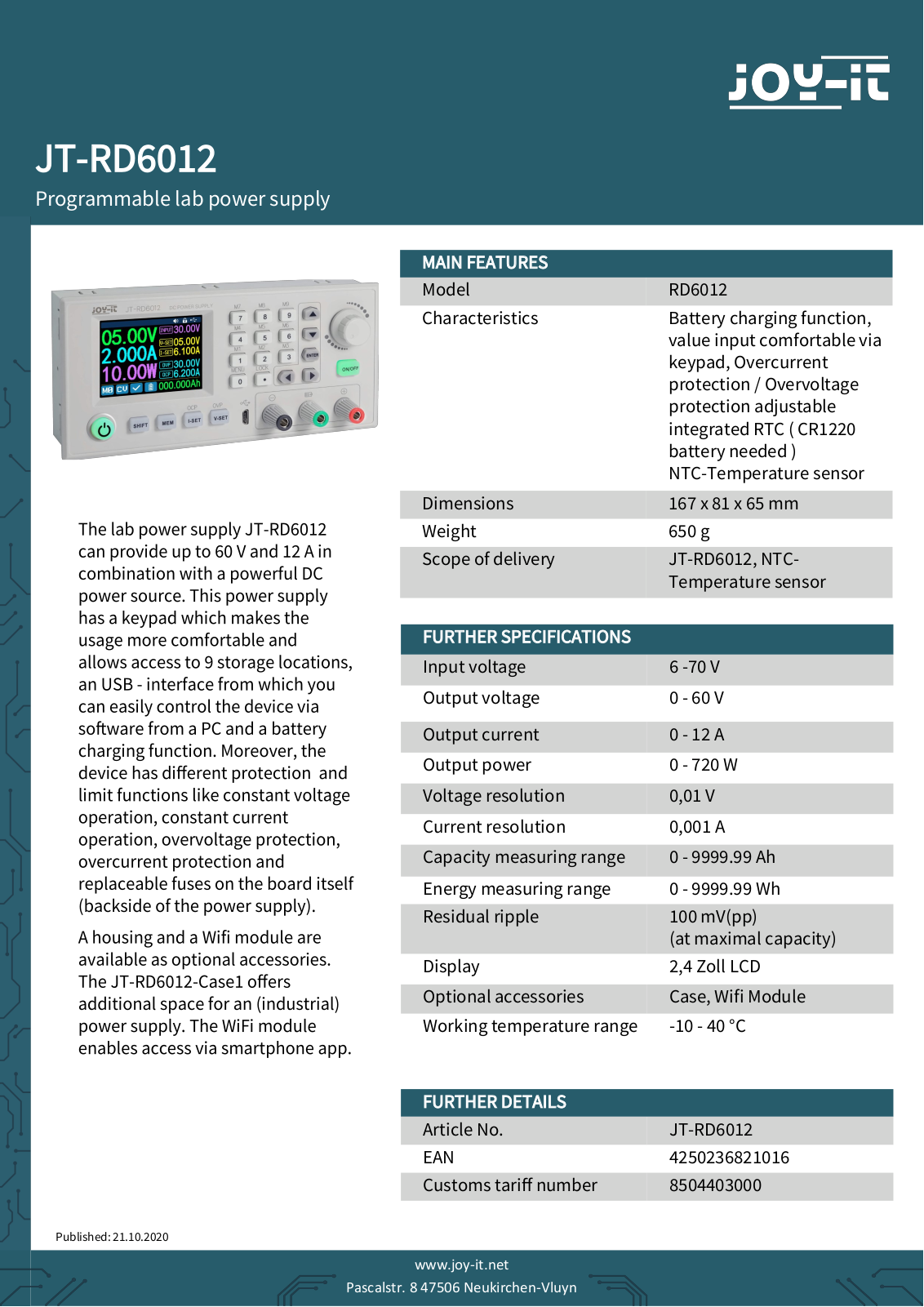

JOY-IT JOY-IT RD6012 Datasheet

www.joy-it.net

Pascalstr. 8 47506 Neukirchen-Vluyn

Published: 21.10.2020

JT-RD6012

Programmable lab power supply

MAIN FEATURES

Model RD6012
Characteristics Battery charging function,

value input comfortable via
keypad, Overcurrent
protection / Overvoltage

protection adjustable

integrated RTC ( CR1220
battery needed )
NTC-Temperature sensor

Dimensions 167 x 81 x 65 mm
Weight 650 g
Scope of delivery JT-RD6012, NTC-

Temperature sensor

FURTHER SPECIFICATIONS

Input voltage 6 -70 V

Output voltage 0 - 60 V

Output current 0 - 12 A
Output power 0 - 720 W
Voltage resolution 0,01 V
Current resolution 0,001 A
Capacity measuring range 0 - 9999.99 Ah
Energy measuring range 0 - 9999.99 Wh

Residual ripple 100 mV(pp)

(at maximal capacity)

Display 2,4 Zoll LCD

Optional accessories Case, Wifi Module

Working temperature range -10 - 40 °C

FURTHER DETAILS

Article No. JT-RD6012
EAN 4250236821016
Customs tari number 8504403000
