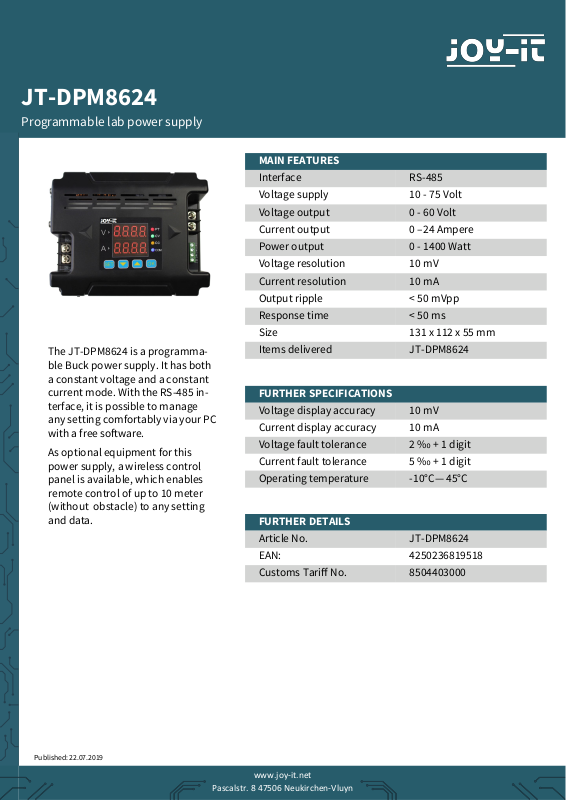

JOY-IT JOY-IT DPM8624 Datasheet

Page 1
www.joy-it.net
Pascalstr. 8 47506 Neukirchen-Vluyn
Published: 22.07.2019
JT-DPM8624
Programmable lab power supply
MAIN FEATURES
Interface RS-485 Voltage supply 10 - 75 Volt Voltage output 0 - 60 Volt Current output 0 24 Ampere
Power output 0 - 1400 Watt
Voltage resolution 10 mV Current resolution 10 mA Output ripple < 50 mVpp Response time < 50 ms Size 131 x 112 x 55 mm Items delivered JT-DPM8624
FURTHER DETAILS
Article No. JT-DPM8624 EAN: 4250236819518 Customs Tari No. 8504403000
The JT-DPM8624 is a programma­ble Buck power supply. It has both a constant voltage and a constant current mode. With the RS-485 in­terface, it is possible to manage any setting comfortably via your PC
with a free soware.
As optional equipment for this power supply, a wireless control panel is available, which enables remote control of up to 10 meter (without obstacle) to any setting and data.
FURTHER SPECIFICATIONS
Voltage display accuracy 10 mV
Current display accuracy 10 mA
Voltage fault tolerance 2 ‰ + 1 digit Current fault tolerance 5 ‰ + 1 digit Operating temperature -10°C— 45°C
