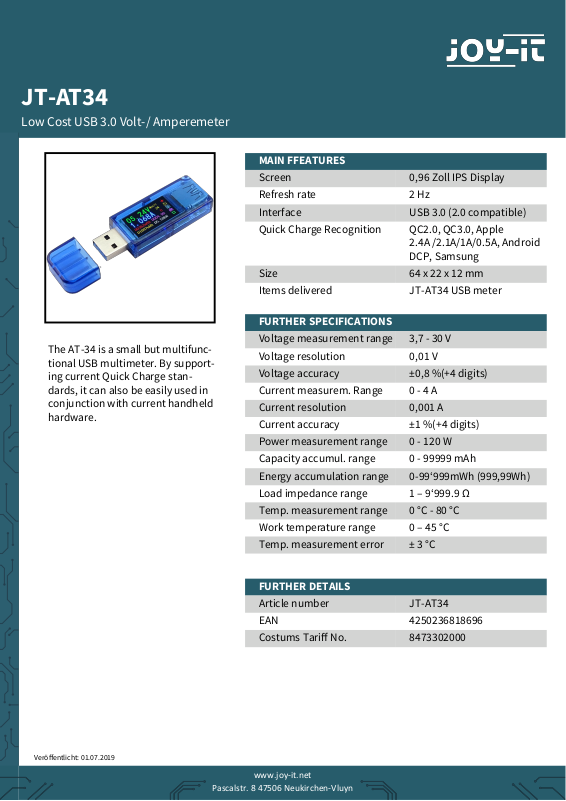

JOY-IT JOY-IT AT34 Datasheet

www.joy-it.net

Pascalstr. 8 47506 Neukirchen-Vluyn

Veröentlicht: 01.07.2019

JT-AT34

Low Cost USB 3.0 Volt-/ Amperemeter

MAIN FFEATURES

Screen 0,96 Zoll IPS Display
Refresh rate 2 Hz
Interface USB 3.0 (2.0 compatible)
Quick Charge Recognition QC2.0, QC3.0, Apple

2.4A /2.1A/1A/0.5A, Android

DCP, Samsung

Size 64 x 22 x 12 mm
Items delivered JT-AT34 USB meter

FURTHER SPECIFICATIONS

Voltage measurement range 3,7 - 30 V
Voltage resolution 0,01 V
Voltage accuracy ±0,8 %(+4 digits)
Current measurem. Range 0 - 4 A
Current resolution 0,001 A
Current accuracy ±1 %(+4 digits)
Power measurement range 0 - 120 W
Capacity accumul. range 0 - 99999 mAh
Energy accumulation range 0-99‘999mWh (999,99Wh)
Load impedance range 1 – 9‘999.9 Ω
Temp. measurement range 0 °C - 80 °C
Work temperature range 0 – 45 °C
Temp. measurement error ± 3 °C

FURTHER DETAILS

Article number JT-AT34
EAN 4250236818696
Costums Tari No. 8473302000

The AT-34 is a small but multifunc­tional USB multimeter. By support­ing current Quick Charge stan­dards, it can also be easily used in
conjunction with current handheld
hardware.
