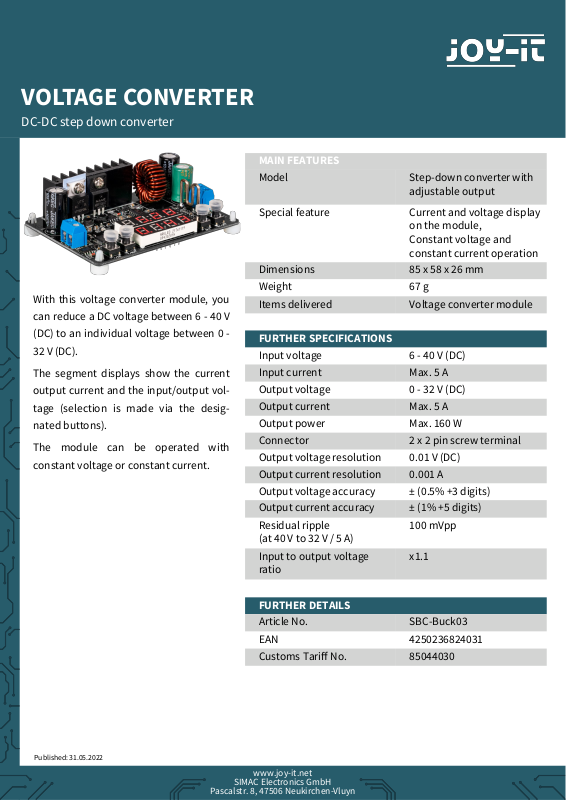

JOY-IT DEBO DCDC DOWN 7 Datasheet

Published: 31.05.2022

www.joy-it.net

SIMAC Electronics GmbH

Pascalstr. 8, 47506 Neukirchen-Vluyn

VOLTAGE CONVERTER

DC-DC step down converter

MAIN FEATURES

Model Step-down converter with

adjustable output

Special feature Current and voltage display

on the module,
Constant voltage and

constant current operation

Dimensions 85 x 58 x 26 mm
Weight 67 g
Items delivered Voltage converter module

With this voltage converter module, you
can reduce a DC voltage between 6 - 40 V
(DC) to an individual voltage between 0 ­32 V (DC).

The segment displays show the current
output current and the input/output vol­tage (selection is made via the desig­nated buttons).

The module can be operated with
constant voltage or constant current.

FURTHER SPECIFICATIONS

Input voltage 6 - 40 V (DC)
Input current Max. 5 A
Output voltage 0 - 32 V (DC)
Output current Max. 5 A
Output power Max. 160 W
Connector 2 x 2 pin screw terminal
Output voltage resolution 0.01 V (DC)
Output current resolution 0.001 A
Output voltage accuracy ± (0.5% +3 digits)
Output current accuracy ± (1% +5 digits)
Residual ripple

(at 40 V to 32 V / 5 A)

100 mVpp

Input to output voltage
ratio

x1.1

FURTHER DETAILS

Article No. SBC-Buck03
EAN 4250236824031
Customs Tari No. 85044030
