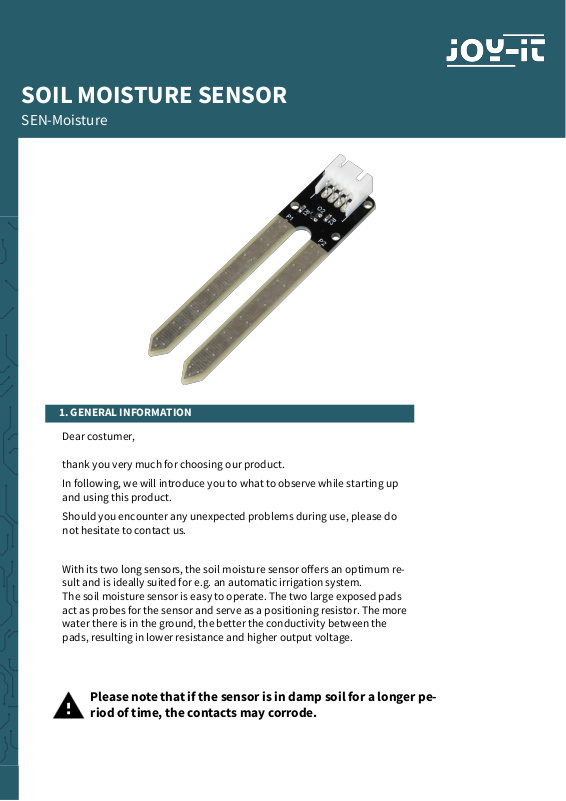

SOIL MOISTURE SENSOR

SEN-Moisture

1. GENERAL INFORMATION

Dear costumer,

thank you very much for choosing our product.
In following, we will introduce you to what to observe while starting up

and using this product.
Should you encounter any unexpected problems during use, please do

not hesitate to contact us.

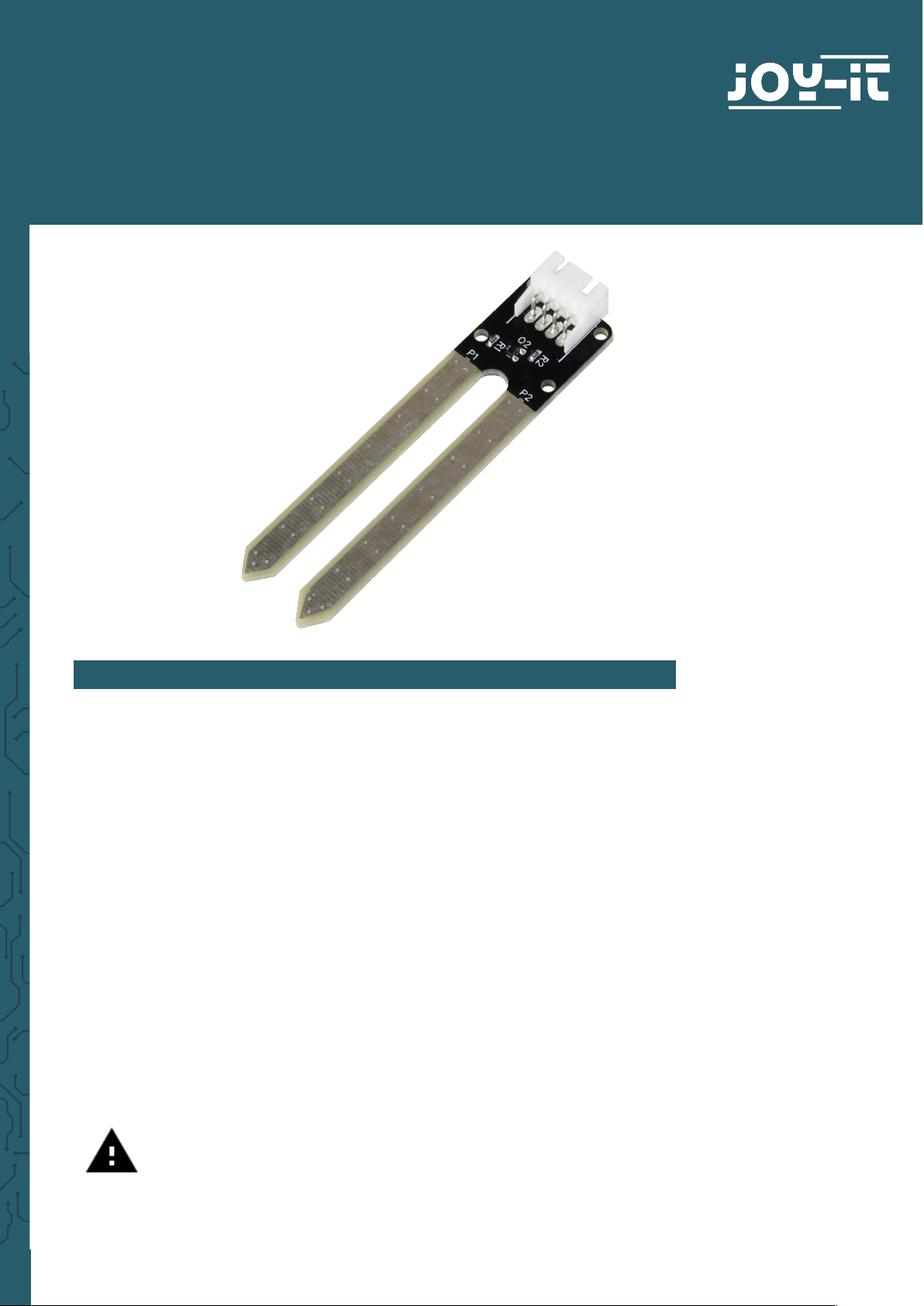

With its two long sensors, the soil moisture sensor oers an optimum re­sult and is ideally suited for e.g. an automatic irrigation system.
The soil moisture sensor is easy to operate. The two large exposed pads

act as probes for the sensor and serve as a positioning resistor. The more

water there is in the ground, the better the conductivity between the
pads, resulting in lower resistance and higher output voltage.

Please note that if the sensor is in damp soil for a longer pe­riod of time, the contacts may corrode.

www.joy-it.net

Pascalstr. 8 47506 Neukirchen-Vluyn

2. COMMISSIONING WITH THE RASPBERRY PI

Raspberry Pi Moisture ADC

GND (Pin 6, 14) GND (Pin 1) GND

3v3 (Pin 1, 17) VCC (Pin 2) VDD

- NC (Pin 3) -

- Signal (Pin 4) A0

SCL (Pin 5) SCL -

SDA (Pin 3) SDA -

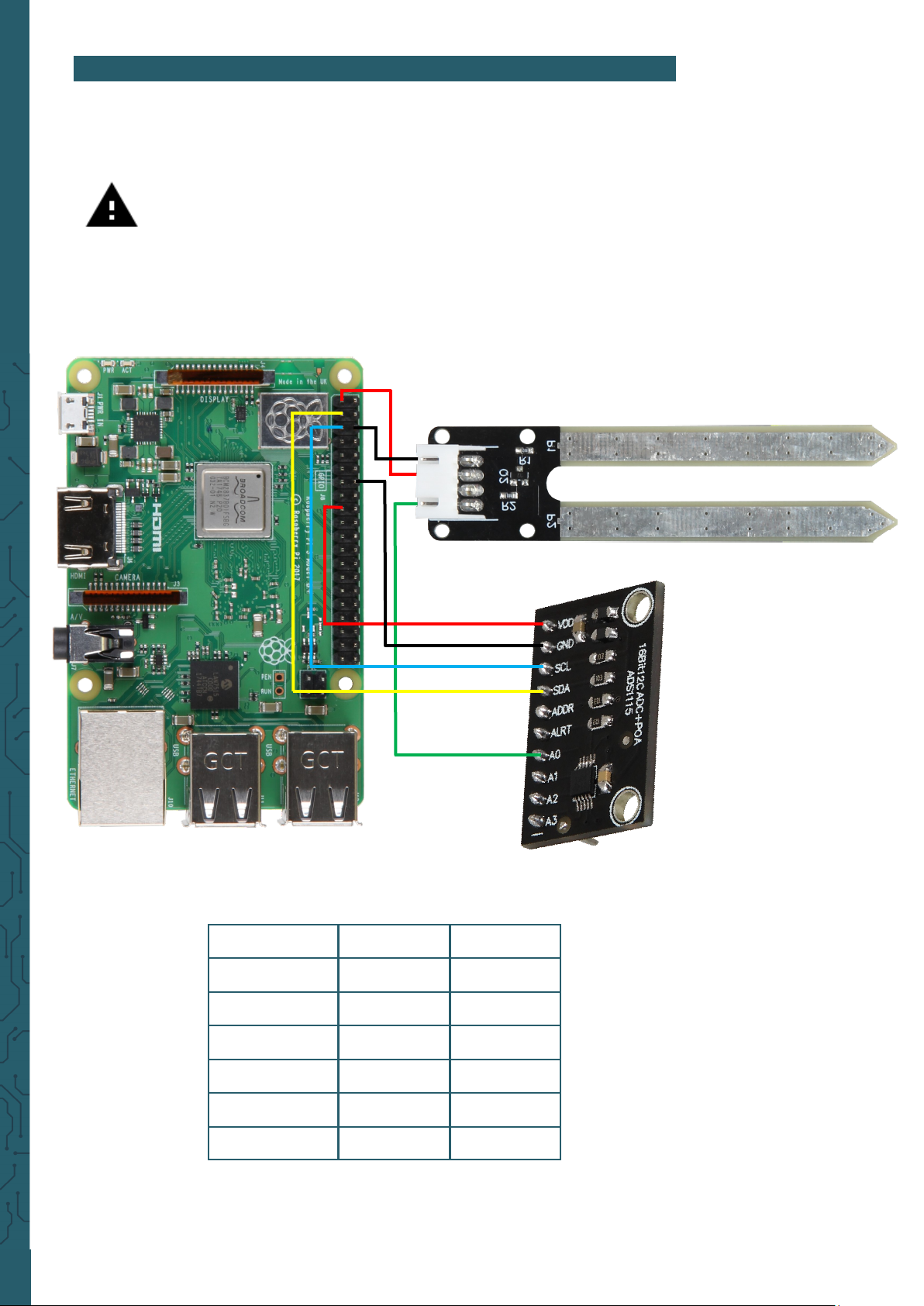

Wiring:

This soil moisture sensor is an analog sensor.
Since the Raspberry Pi has no analog inputs, you must use an an-

alog-to-digital converter.
In this example the ADC COM-KY053 from Joy-it is used.

www.joy-it.net

Pascalstr. 8 47506 Neukirchen-Vluyn

2. INBETRIEBNAHME MIT DEM RASPBERRYPI

Code example:

The higher the analog input voltage, the higher the measured humidity.
The range of values is from 0 to 3.3
In the following code example, the analog value of the sensor is read out every 5 seconds

and output in the console.

from time import sleep
import board
import busio
import adafruit_ads1x15.ads1115 as ADS
from adafruit_ads1x15.analog_in import AnalogIn
import RPi.GPIO as GPIO

# Create the I2C bus

i2c = busio.I2C(board.SCL, board.SDA)

# Create the ADC object using the I2C bus

ads = ADS.ADS1115(i2c)

# Create single-ended input on channels

chan0 = AnalogIn(ads, ADS.P0)
chan1 = AnalogIn(ads, ADS.P1)
chan2 = AnalogIn(ads, ADS.P2)
chan3 = AnalogIn(ads, ADS.P3)

try:

while True:
print("{:>5.3f}".format(chan0.voltage))
sleep(5)

except KeyboardInterrupt:

GPIO.cleanup()

Installation:

To be able to use the ADC, you must first enable I2C.
Enter the following command:

Navigate to Interfacing Options -> I2C and enable the I2C interface.

You must also install the Python library of the ADC.
Enter the following command:

sudo raspi-config

sudo pip3 install adafruit-circuitpython-ads1x15

2. COMMISSIONING WITH THE RASPBERRY PI

www.joy-it.net

Pascalstr. 8 47506 Neukirchen-Vluyn

3. COMMISSIONING WITH THE ARDUINO

Arduino Moisture

GND GND (Pin1)

5V VCC (Pin2)

NC NC (Pin3)

Analog Pin A0 Signal (Pin4)

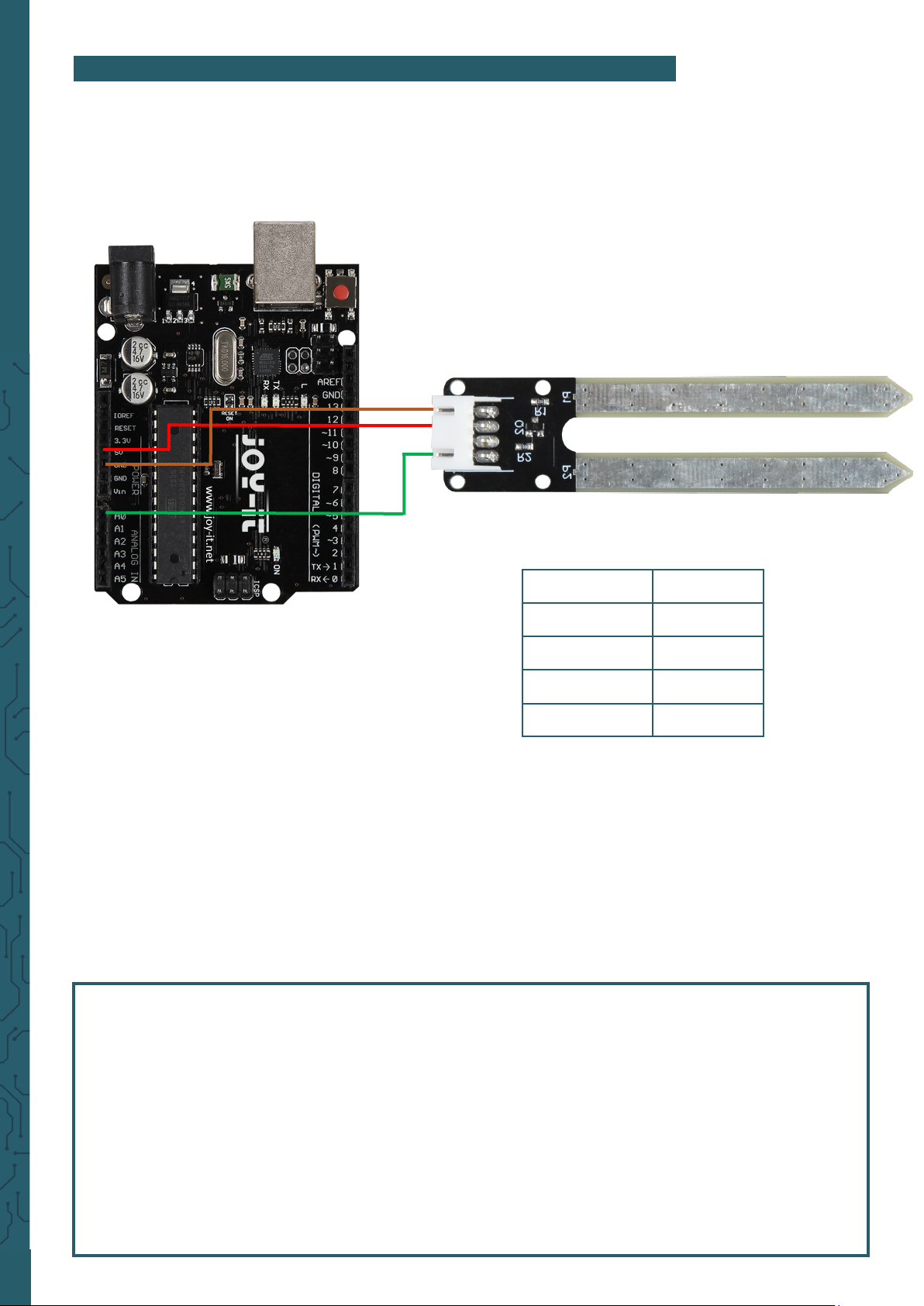

Wiring:

Code example:

The higher the analog input signal, the higher the measured humidity.
The range of values is from 0 to 1023
In the following code example, the analog value of the sensor is read out every 5 seconds and displayed

in the serial monitor.
Before uploading, make sure that you have set the correct board and port in your Arduino IDE.

void setup() {

Serial.begin(9600);
pinMode(A0, INPUT);
}

void loop() {

Serial.println(analogRead(A0));
delay(5000);
}

www.joy-it.net

Pascalstr. 8 47506 Neukirchen-Vluyn

PR

Published: 30.12.2019

www.joy-it.net

SIMAC Electronics GmbH

Pascalstr. 8, 47506 Neukirchen-Vluyn

4. ADDITIONAL INFORMATION

Our informaon and take-back obligaons according to the

Electrical and Electronic Equipment Act (ElektroG)

Symbol on electrical and electronic equipment:

This crossed-out dustbin means that electrical and electronic appliances do
not belong in the household waste. You must return the old appliances to a
collecon point.
Before handing over waste baeries and accumulators that are not en­closed by waste equipment must be separated from it.

Return opons:

As an end user, you can return your old device (which essenally fulls the

same funcon as the new device purchased from us) free of charge for dis-

posal when you purchase a new device.
Small appliances with no external dimensions greater than 25 cm can be
disposed of in normal household quanes independently of the purchase
of a new appliance.

Possibility of return at our company locaon during opening hours:

Simac GmbH, Pascalstr. 8, D-47506 Neukirchen-Vluyn, Germany

Possibility of return in your area:

We will send you a parcel stamp with which you can return the device to
us free of charge. Please contact us by e-mail at [e-mail] or by
telephone.

Informaon on packaging:

If you do not have suitable packaging material or do not wish to use your
own, please contact us and we will send you suitable packaging.

5. SUPPORT

If there are still any issues pending or problems arising aer your purcha­se, we will support you by e-mail, telephone and with our ticket support
system.

E-Mail: [e-mail]

Ticket system: http://support.joy-it.net

Telephone: [phone] (10-17 o‘clock)
