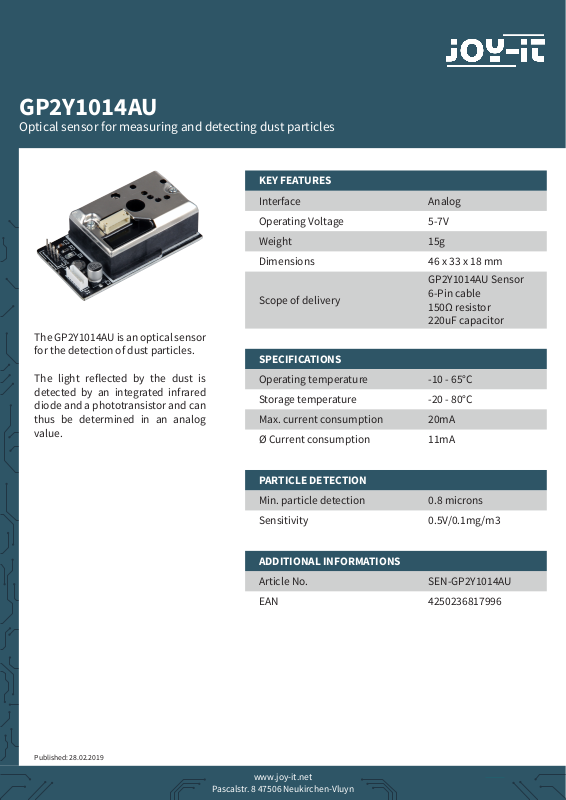

JOY-IT ARD SENS DUST Datasheet

GP2Y1014AU

Optical sensor for measuring and detecting dust particles

KEY FEATURES

Interface Analog

Operating Voltage 5-7V

Weight 15g

Dimensions 46 x 33 x 18 mm

Scope of delivery

The GP2Y1014AU is an optical sensor
for the detection of dust particles.

SPECIFICATIONS

GP2Y1014AU Sensor

6-Pin cable
150Ω resistor

220uF capacitor

The light reected by the dust is
detected by an integrated infrared

diode and a phototransistor and can
thus be determined in an analog
value.

Operating temperature -10 - 65°C

Storage temperature -20 - 80°C

Max. current consumption 20mA

Ø Current consumption 11mA

PARTICLE DETECTION

Min. particle detection 0.8 microns

Sensitivity 0.5V/0.1mg/m3

ADDITIONAL INFORMATIONS

Article No. SEN-GP2Y1014AU

EAN 4250236817996

Published: 28.02.2019
