JOY-IT ARD SEN PRESSURE Instructions

www.joy-it.net

Pascalstr. 8 47506 Neukirchen-Vluyn

1. GENERAL INFORMATION

Dear customer,

thank you very much for choosing our product.
In following, we will introduce you to what to observe while starting up

and using this product.
Should you encounter any unexpected problems during use, please do

not hesitate to contact us.

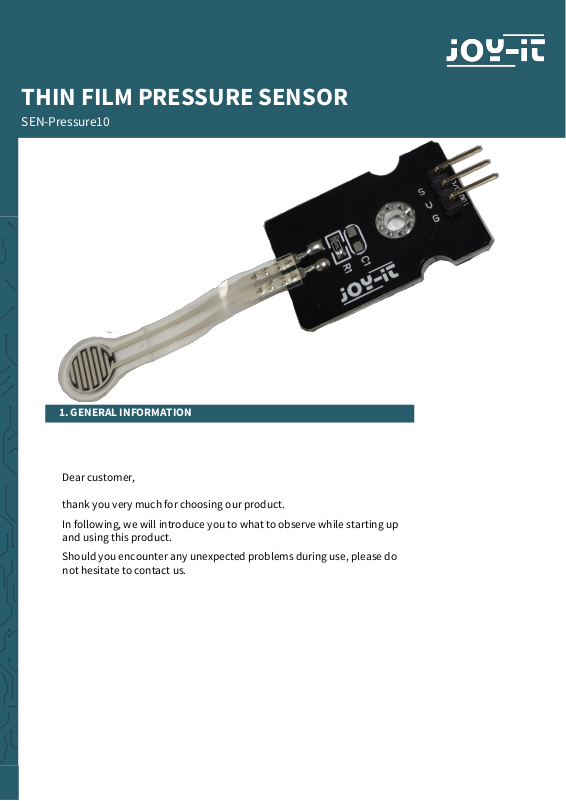

THIN FILM PRESSURE SENSOR

SEN-Pressure10

www.joy-it.net

Pascalstr. 8 47506 Neukirchen-Vluyn

2. COMMISSIONING WITH THE RASPBERRY PI

Wiring:

This pressure sensor is an analog sensor.
Since the Raspberry Pi has no analog inputs, you have to use an analog-to-

digital converter.
In this example, the ADC COM-KY053 from Joy-it is used.

Raspberry Pi ADC Pressure

GND (Pin 6, 14, 9...) GND G

3V (Pin 1, 17) VDD V

- A0 S

SCL (Pin 5) SCL -

SDA (Pin 3) SDA -
