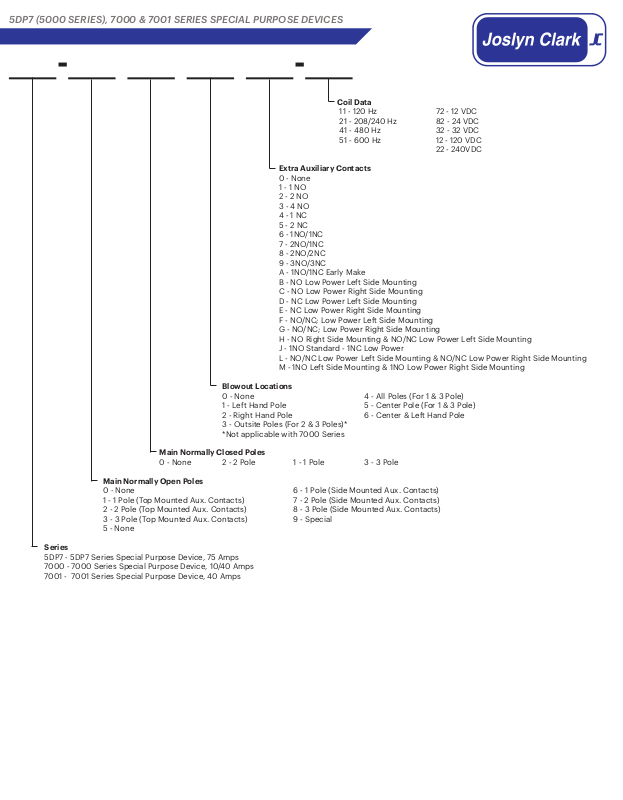

Joslyn Clark 5000 SERIES, 7000 SERIES, 7001 SERIES Part Numbering Designation
5DP7 (5000 SERIES), 7000 & 7001 SERIES SPECIAL PURPOSE DEVICES
- -
Coil Data
11 - 120 Hz 72 - 12 VDC
21 - 208/240 Hz 82 - 24 VDC
41 - 480 Hz 32 - 32 VDC
51 - 600 Hz 12 - 120 VDC
22 - 240VDC
Extra Auxiliary Contacts
0 - None
1 - 1 NO
2 - 2 NO
3 - 4 NO
4 - 1 NC
5 - 2 NC
6 - 1NO/1NC
7 - 2NO/1NC
8 - 2NO/2NC
9 - 3NO/3NC
A - 1NO/1NC Early Make
B - NO Low Power Left Side Mounting
C - NO Low Power Right Side Mounting
D - NC Low Power Left Side Mounting
E - NC Low Power Right Side Mounting
F - NO/NC; Low Power Left Side Mounting
G - NO/NC; Low Power Right Side Mounting
H - NO Right Side Mounting & NO/NC Low Power Left Side Mounting
J - 1NO Standard - 1NC Low Power
L - NO/NC Low Power Left Side Mounting & NO/NC Low Power Right Side Mounting
M - 1NO Left Side Mounting & 1NO Low Power Right Side Mounting
Blowout Locations
0 - None 4 - All Poles (For 1 & 3 Pole)
1 - Left Hand Pole 5 - Center Pole (For 1 & 3 Pole)
2 - Right Hand Pole 6 - Center & Left Hand Pole
3 - Outsite Poles (For 2 & 3 Poles)*
*Not applicable with 7000 Series
Main Normally Closed Poles
0 - None 2 - 2 Pole 1 - 1 Pole 3 - 3 Pole
Main Normally Open Poles
0 - None 6 - 1 Pole (Side Mounted Aux. Contacts)
1 - 1 Pole (Top Mounted Aux. Contacts) 7 - 2 Pole (Side Mounted Aux. Contacts)
2 - 2 Pole (Top Mounted Aux. Contacts) 8 - 3 Pole (Side Mounted Aux. Contacts)
3 - 3 Pole (Top Mounted Aux. Contacts) 9 - Special
5 - None
Series
5DP7 - 5DP7 Series Special Purpose Device, 75 Amps
7000 - 7000 Series Special Purpose Device, 10/40 Amps
7001 - 7001 Series Special Purpose Device, 40 Amps
5000 SERIES SPECIAL PURPOSE DEVICES
- -5DP
Coil Data
11 - 120 Hz 72 - 12 VDC
21 - 208/240Hz 82 - 24 VDC
41 - 480 Hz 32 - 32 VDC
51 - 600 Hz 12 - 120 VDC
22 - 240VDC
Auxiliary Contacts
0 - 1NO
1 - None
2 - 2 NO
3 - 3 NO
4 - 1 NC
5 - 2 NC
6 - 1NO/1NC
7 - 2NO/1NC
8 - 2NO/2NC
9 - 3NO/3NC
A - 3NC
B - NO Low Power Left Side Mounting
C - NO Low Power Right Side Mounting
D - NC Low Power Left Side Mounting
E - NC Low Power Right Side Mounting
F - NO/NC Low Power Left Side Mounting
G - NO/NC Low Power Right Side Mounting
H - NO Right Side Mounting & NO/NC Low Power Left Side Mounting
J - NO/NC Early Make, Right Side Mounting
K - 2NO/2NC Low Power (One on Each Side)
L - NO/NC Low Power Left Side Mounting &
NO/NC Low Power Right Side Mounting
M - NO/NC Early Make, Left Side Mounting
N - 1NO Standard & 1NC Low Power, Late Break
Main Pole Types
0 - 1NC 5 - 2NO/1NC (NC on right hand side)
1 - 1NO 6 - 1NO/2NC
2 - 2NO 7 - 2NC
3 - 3NO 8 - 3NC
4 - 1NO/1NC 9 - 2NO/1NC (NC in center)
Enclosure
Blowout Location
0 - None 5 - All Poles (For 2 & 3 Pole)
1 - Left Hand Pole 6 - Center and Left Hand Pole
2 - Right Hand Pole 7 - Center and Right Hand Pole
3 - Outside Poles (For 2 & 3 Pole) 9 - Special
4 - Center Pole (For 1 & 3 Pole)
Series (Optional)
A - Upgraded, red, size
Size
1 - 30 Amps 5 - 360 Amps
2 - 56 Amps 8 - 535 Amps
3 - 110 Amps 9 - 260 Amps
4 - 180 Amps
Series
5DP - 5000 Series
