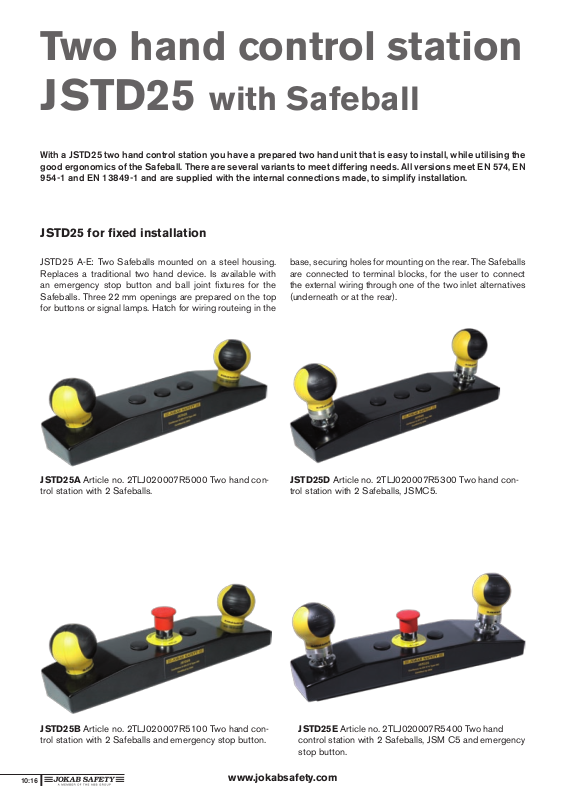

Two hand control station

JSTD25 with Safeball

With a JSTD25 two hand control station you have a prepared two hand unit that is easy to install, while utilising the
good ergonomics of the Safeball. There are several variants to meet differing needs. All versions meet EN 574, EN
954-1 and EN 13849-1 and are supplied with the internal connections made, to simplify installation.

JSTD25 for fixed installation

JSTD25 A-E: Two Safeballs mounted on a steel housing.
Replaces a traditional two hand device. Is available with
an emergency stop button and ball joint fixtures for the
Safeballs. Three 22 mm openings are prepared on the top
for buttons or signal lamps. Hatch for wiring routeing in the

JSTD25A Article no. 2TLJ020007R5000 Two hand con­trol station with 2 Safeballs.

base, securing holes for mounting on the rear. The Safeballs
are connected to terminal blocks, for the user to connect
the external wiring through one of the two inlet alternatives
(underneath or at the rear).

JSTD25D Article no. 2TLJ020007R5300 Two hand con­trol station with 2 Safeballs, JSMC5.

JSTD25B Article no. 2TLJ020007R5100 Two hand con­trol station with 2 Safeballs and emergency stop button.

JSTD25E Article no. 2TLJ020007R5400 Two hand
control station with 2 Safeballs, JSM C5 and emergency
stop button.

www.jokabsafety.com

10:17

For mobile installation

1

2

JSTD25F/JSTD25H

Article no. 2TLJ020007R6000/2TLJ020007R6300 Two
hand control unit with 2 Safeballs.Two Safeballs mounted
on the ends of an aluminium profile, shielded by over hand
guards. Replaces a traditional two hand device. Installed with
the aid of grooves in the aluminium profile. Connection to
an M12 connector underneath, JSTD25F with 5 pole M12
connection and JSHD25H with 8 pole M12 Connection. Can
be equipped with an external emergency stop (SMILE) and
an EDEN sensor for position control. Its low weight makes
this particularly suitable for frequent repositioning.

JSTD25G Article no. 2TLJ020007R6200 Similar to JSTD25F
but the dimensions additional equipment and type of con­nection can, to a large extent, be customised before delivery.
Can also be equipped with doubled protection plates for use
in particularly severe conditions.

For mobile installation with a built-in Eden sensor

3

4

5

6

7

JSTD25P-1 Article no. 2TLJ020007R6500 Two hand
control unit, portable. Two Safeballs mounted on the ends
of an aluminium profile, shielded by over hand guards. With
built-in Eva sensor for position control. Developed as a port­able two hand device, where the response of the machine

Accessories - JSTD25

JSTS31

Article no. 2TLJ020007R4100
Stand with spacer ring for JSTD25 A-E
(JSTS30 without spacer ring).

Height
850-1100 mm

JSM C5

Article no. 2TLJ020007R0900
Angled ball joint for installation
of a Safeball on a table or a steel
housing.

to operation can vary at different operating stations, since
each station can be connected separately. Connection via
an 8+1 Zylin connector. Accessories are a connector, spi­ral cable with connector and suspension shelf. (article no.
2TLJ020007R8000).

JSTK40S

Article no. 2TLJ020007R6700
4 m long spiral cable for JSTD25P-1

JSTK80S

Article no. 2TLJ020007R6800
8 m long spiral cable for JSTD25P-1

ø43

8

9

10

11

12

32

23

23

13

14
