Page 1

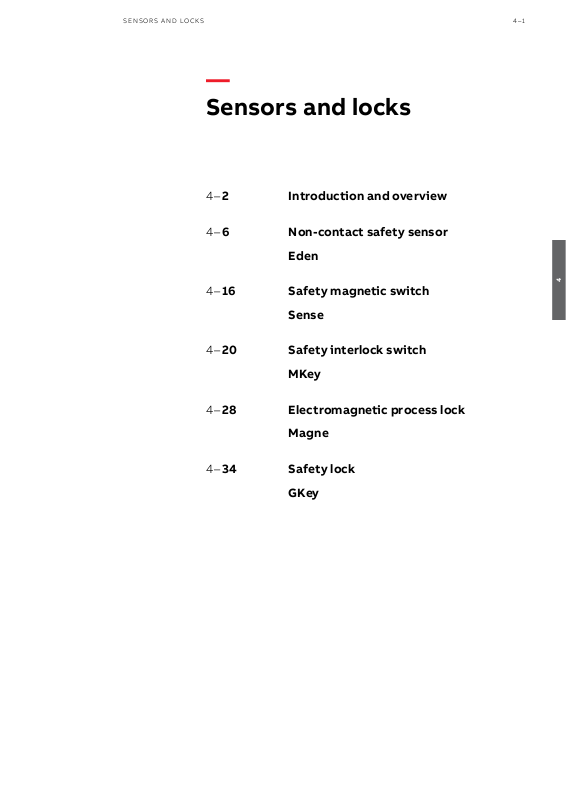

SENSORS AND LOCKS 4– 1

—

Sensors and locks

4– 2 Introduction and overview

4– 6 Non-contact safety sensor

Eden

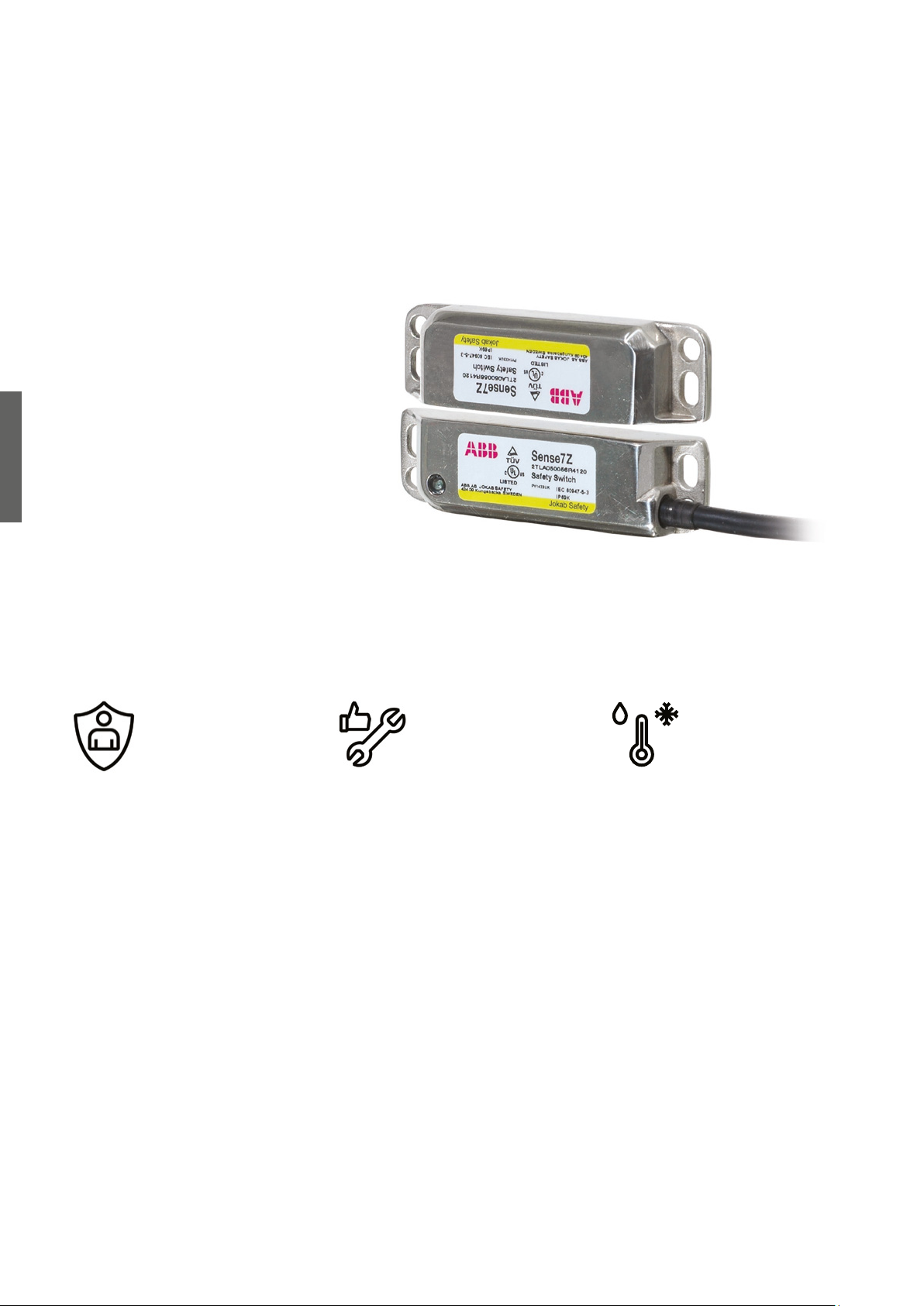

4– 16 Safety magnetic switch

Sense

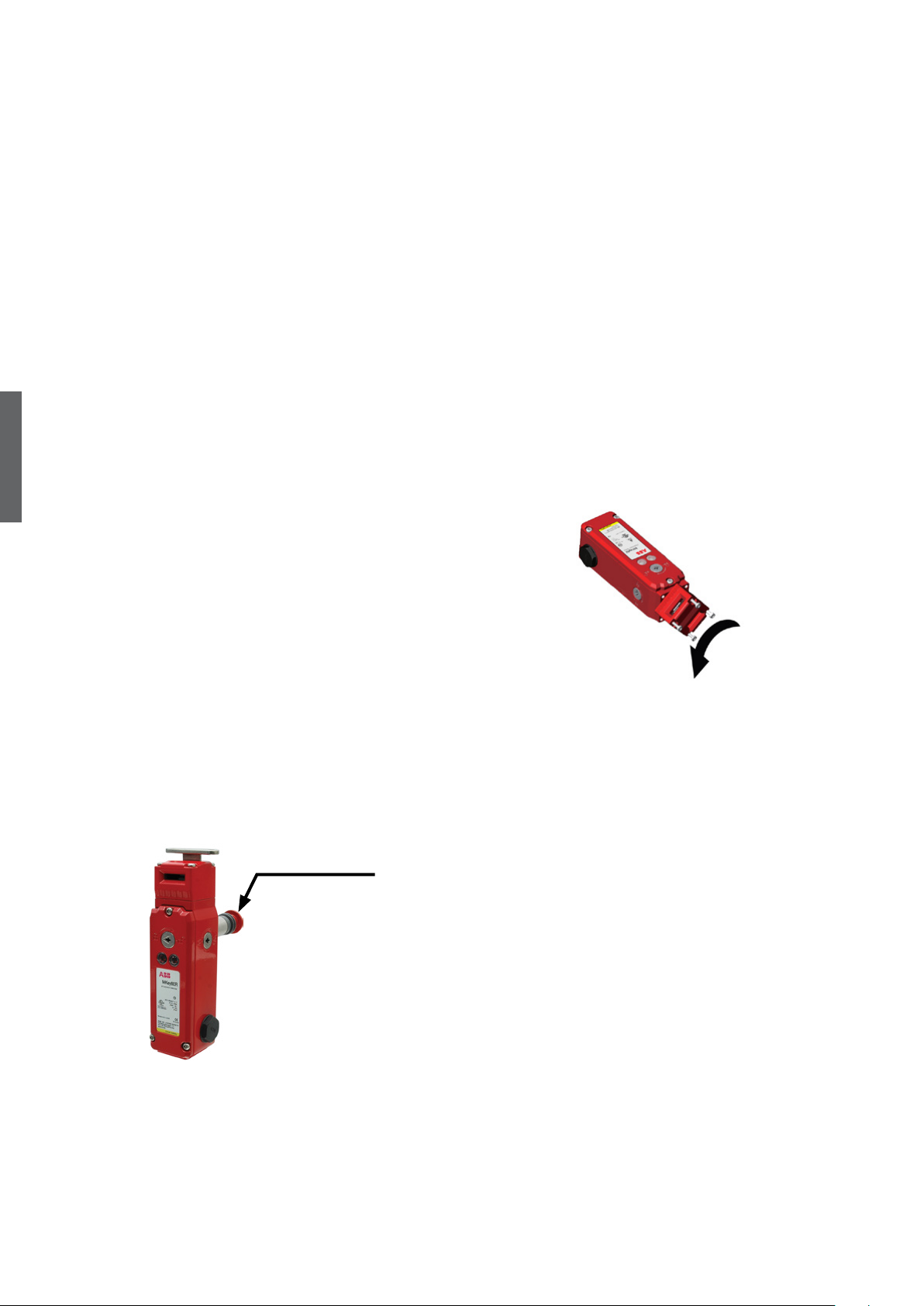

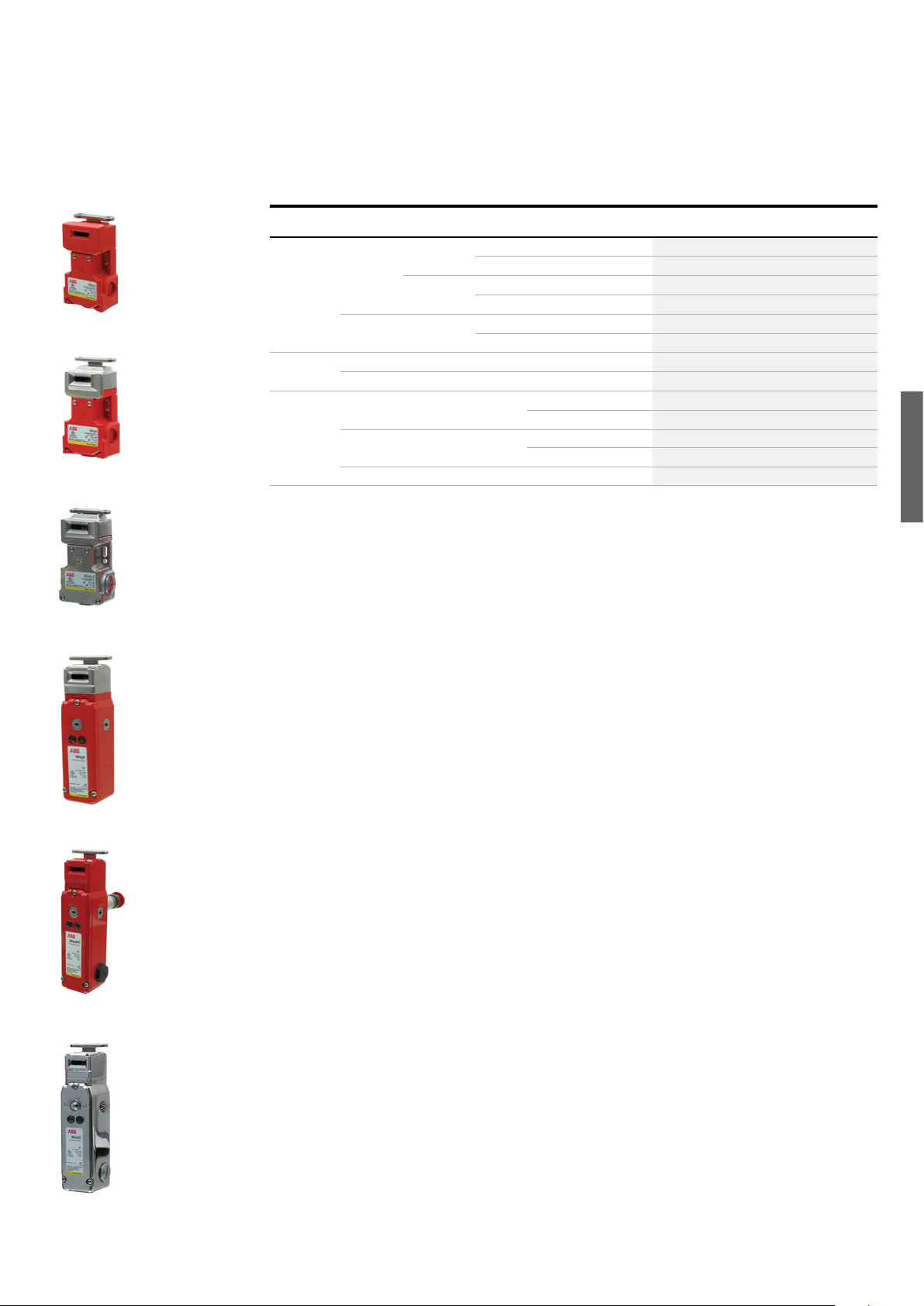

4– 20 Safety interlock switch

MKey

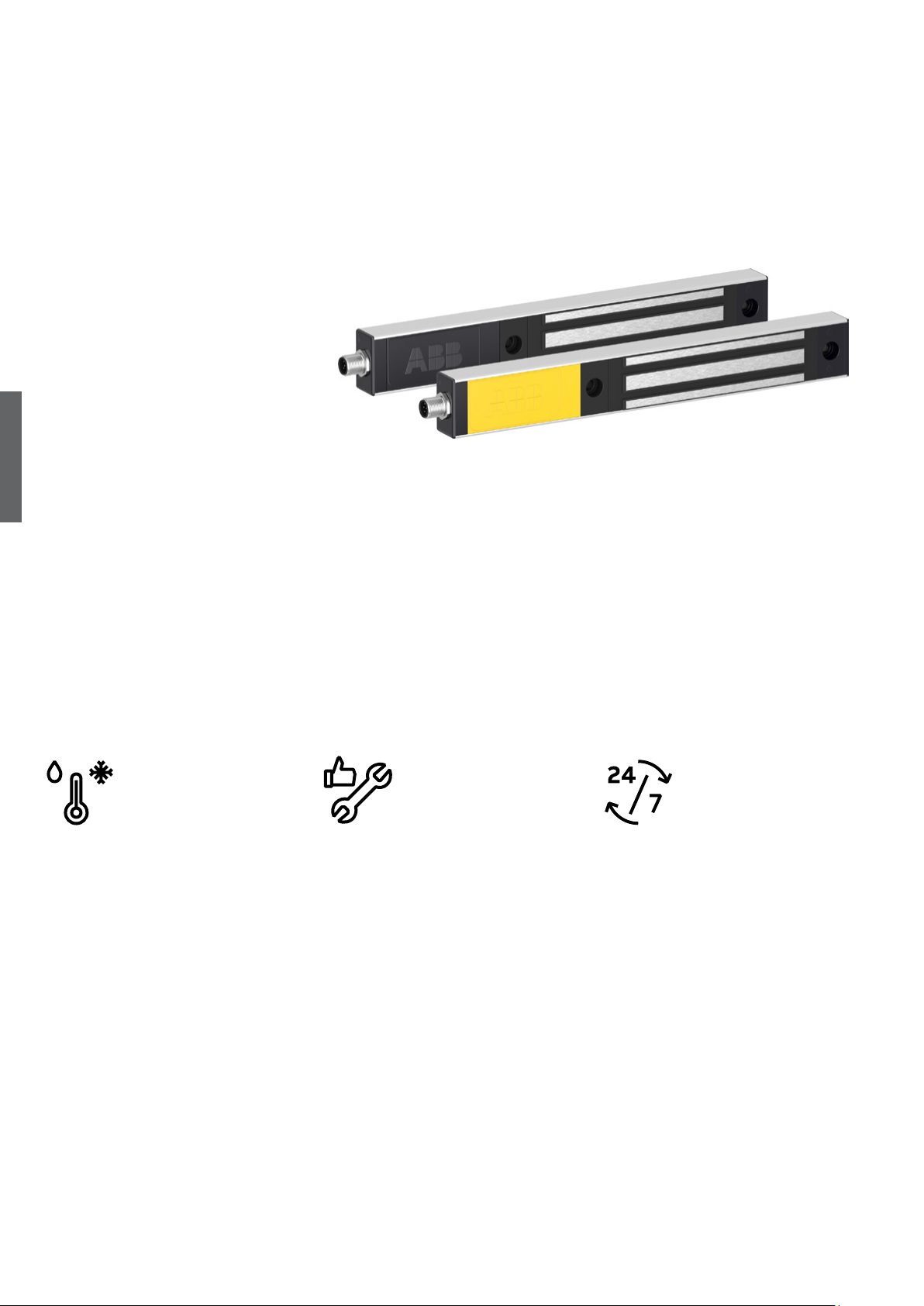

4– 28 Electromagnetic process lock

Magne

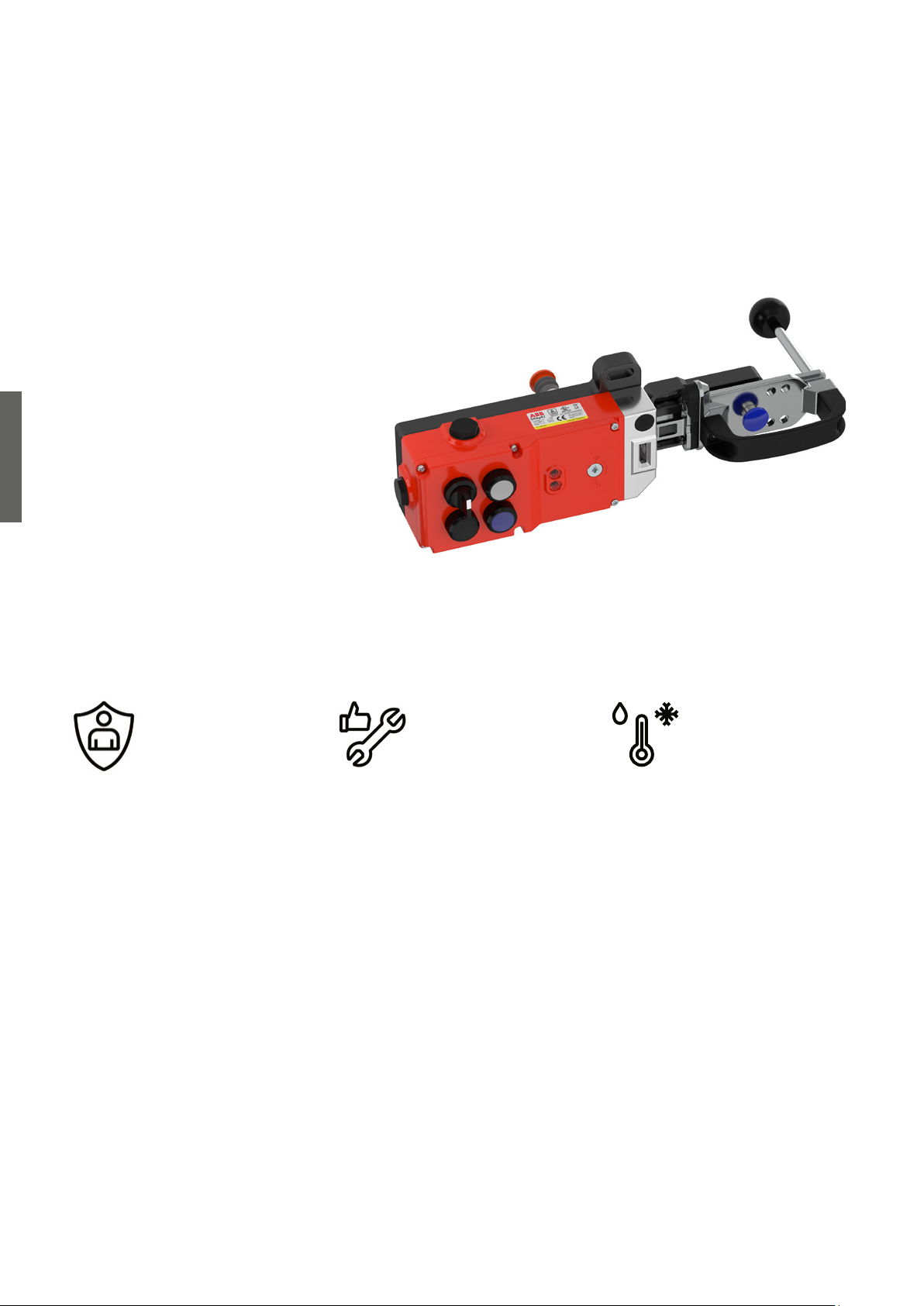

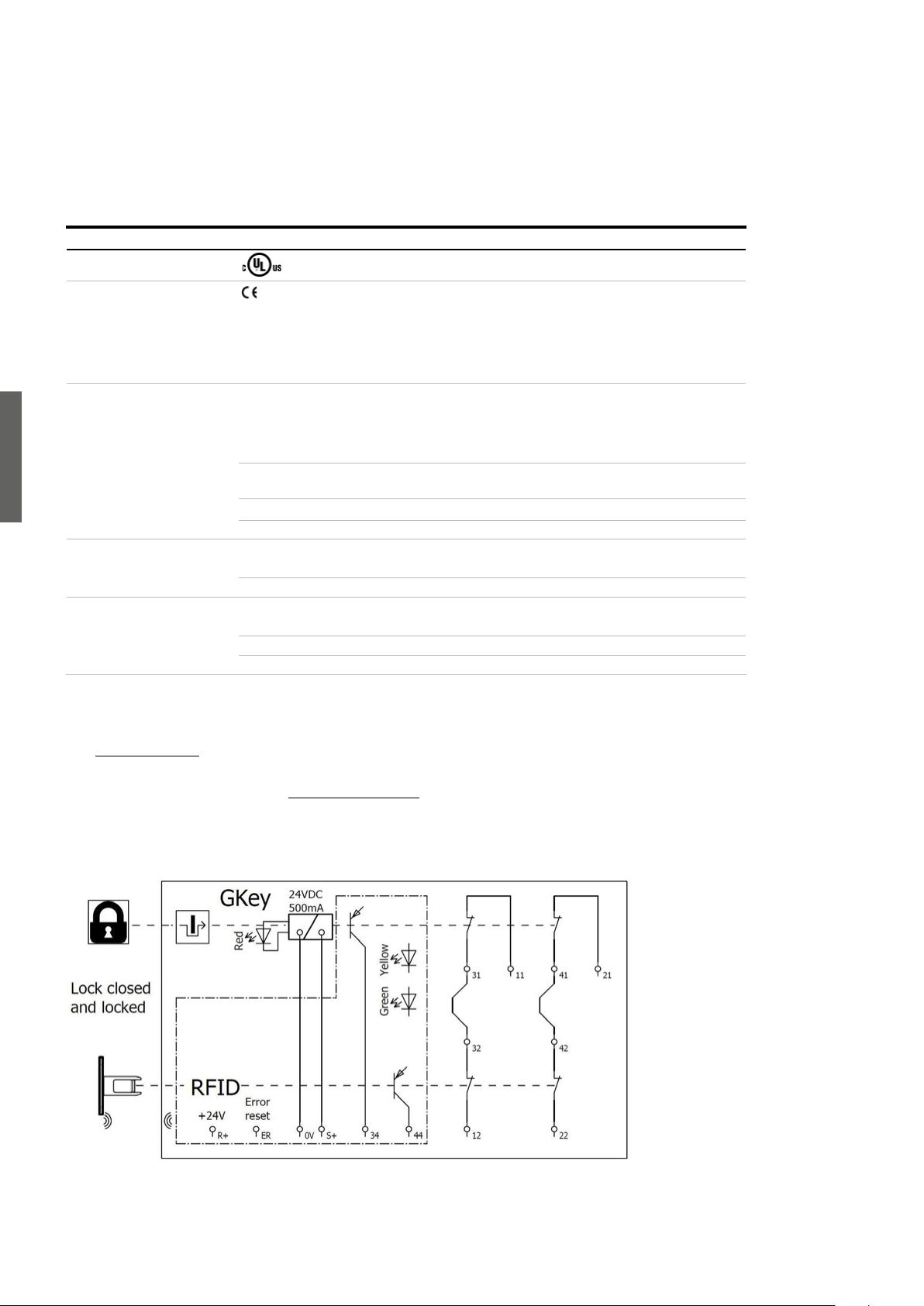

4– 34 Safety lock

GKey

Page 2

4– 2 SAFETY PRODUCTS CATALOG ABB JOKAB SAFETY

—

Introduction and overview

Selection guide

ABB has a full range of switches for monitoring doors and hatches, both with and without locking function.

Eden Sense MKey Magne GKey

Image Image

Function

Type

Description

Applications

Advantage

Interlock Interlock Interlock and process/safety lock

Non-contact switch Magnetic non-contact

switch The original non-contact sensor with unique fault-detection capabilities.

Monitoring doors and hatches. Ideal for use in harsh environments such as food and beverage. Also for monitoring of end positions of e.g. an overhead crane.

- Flexible mounting

- M12 connectors

- IP69K for harsh environments

- One switch to reach Cat. 4

- Unique coding to prevent defeat

- Local reset minimizes cabling

- Non-contact eliminates wear

Coded magnetic switch in

stainless steel for harsh

environments.

Monitoring doors and

hatches in applications

where a stainless steel

product is required.

- Stainless steel

- IP69K for harsh environ-

ments

- Extreme temperature

range

- Coded sensor

- Non-contact eliminates

wear

Mechanical switch

A classic and well-tried solution.

Monitoring doors and hatches. Also available with safe locking.

- Holds the door closed

- Possible to lock

Page 3

SENSORS AND LOCKS 4– 3

Function

Type

Description

Applications

Advantage

Interlock and process lock Interlock and safety lock

Electromagnetic lock Mechanical safety lock

A robust magnetic lock with strong holding

A robust safety lock with die cast housing.

force.

Locking doors and hatches to prevent interruption of machines with short stopping time

Safe locking of hinged and sliding doors for machines with a long stopping time.

e.g. robotics applications.

- Robust design with good sealing

- M12 connectors.

- Safe locking

- Robust design

- Room to integrate 22 mm pilot devices

- Rear escape release

- High level coding

- Lockout function

- Manual unlocking (auxiliary release)

Page 4

4– 4 SAFETY PRODUC TS CATALOG ABB JOKAB SAFETY

—

Introduction and overview

Selection orientation

The difference between locking and interlocking functions

Interlocking function

An interlocking function indicates if a door is open or closed. When the door is open the interlocking function also prevents dangerous machine functions, but it does not prevent the door from being opened.

Locking function

A locking function prevents the door from being opened until an unlocking signal has been sent.

Interlocking function e.g. Eden

Locking function e.g. Magne

When to use interlocking and locking functions

An interlocking function is required if the dangerous machine functions needs to be stopped when someone enters the dangerous area.

A locking function is required if a user can open a door/hatch and reach the dangerous machine parts before the dangerous machine functions have ceased. It is also required if the process needs to be protected from unwanted stops that would occur if a person could open a door in the middle of a critical stage of the process..

The difference between a process lock and a safety lock

All locks of the ABB Jokab Safety range can be used as process locks but only GKey and the models of MKey that uses power to unlock can be used as safety locks. Here is why:

A process lock protects the process. One example of an application is a lock on a door giving access to a machine with short stopping time, e.g. a welding machine. The door should not be unlocked before the end of the welding cycle. Should the door be unlocked before the end of the cycle (as a consequence of a fault in the installation like a loss of power or a short-circuit) the door could be opened, which would result in a process stop. It might take a long time to restart the process, but no person would have had time to come close to the danger or get injured. Since the lock only protects the process there is no need for a safe locking signal.

Process lock e.g. Magne

A safety lock protects people. One example of an application is a lock on a door giving access to a dangerous machine with a long stopping time, e.g. a circular saw. The door should never be unlocked before the dangerous movement has stopped, not even as a consequence of a fault in the installation like a loss of power or a short-circuit. Should the door be unlocked before the machine has stopped, a person could open the door and have time to get close to the dangerous movement and get injured. Since the lock is protecting the person, the unlocking signal should be safe. Since a loss of power should not unlock a safety lock, only locks that require power to unlock (e.g. +24 VDC) can be used as safety locks.

Safety lock e.g. GKey

Page 5

SENSORS AND LOCKS 4– 5

Page 6

4– 6 SAFETY PRODUCTS CATALOG ABB JOKAB SAFETY

—

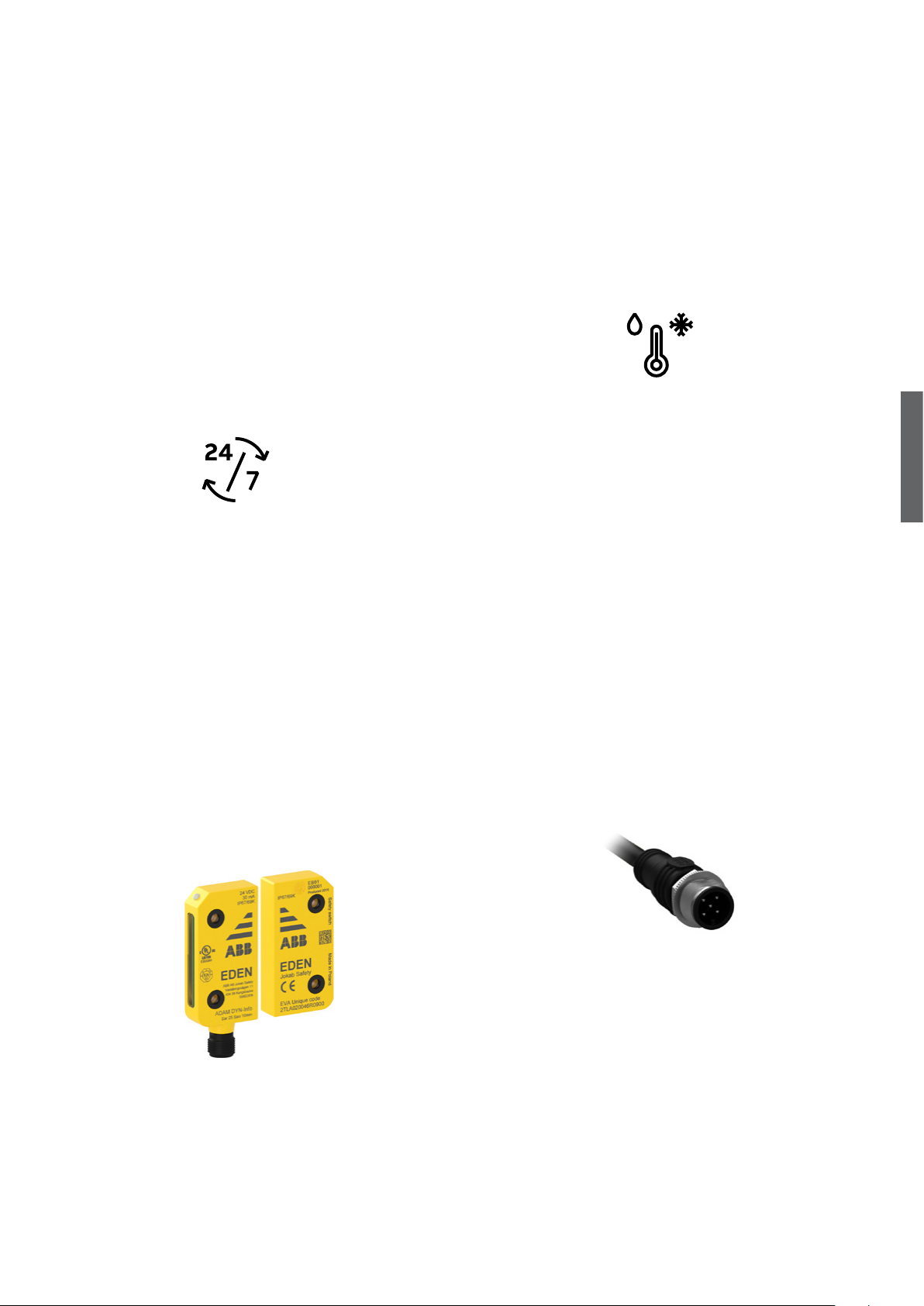

Non-contact safety sensor

Eden

Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring.

Eden consists of two parts: Adam and Eva. Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°

mounting possibility make it easy to use in most applications.

Different models of Eden are available for different types of control modules. All Eden models make it very easy to reach PL e, often using fewer components than other solutions.

All Eden models have an IP67/IP69K sealing.

Continuous operation

Easier troubleshooting

Extensive LED indication and status information reduce downtime.

Affordable range Easy to install

Local reset function

The integrated reset function reduces the number of cables and PLC inputs.

Large mounting tolerance

A 360° mounting possibility with generous tolerances facilitates mounting.

Suitable in harsh environments

IP67/IP69K and a temperature range of

-40 to +70°C offer an excellent resistance in demanding environments.

No wear, no mechanical breakage

Non-contact sensing means no mechanical wear and the large sensing tolerance gives a better tolerance to vibrations, resulting in fewer unwanted process stops.

PL e with fewer components

Series connection with PL e, local reset and DYNlink signal allow to considerably reduce the number of components needed to reach PL e.

Fast connection

M12 connectors, local reset and accessories speed up installation.

Page 7

—

Applications

Eden

Applications

SENSORS AND LOCKS 4 – 7

Doors and hatches

Eden monitors whether the hatch is open or closed. The dangerous movement is stopped as soon as the hatch is opened.

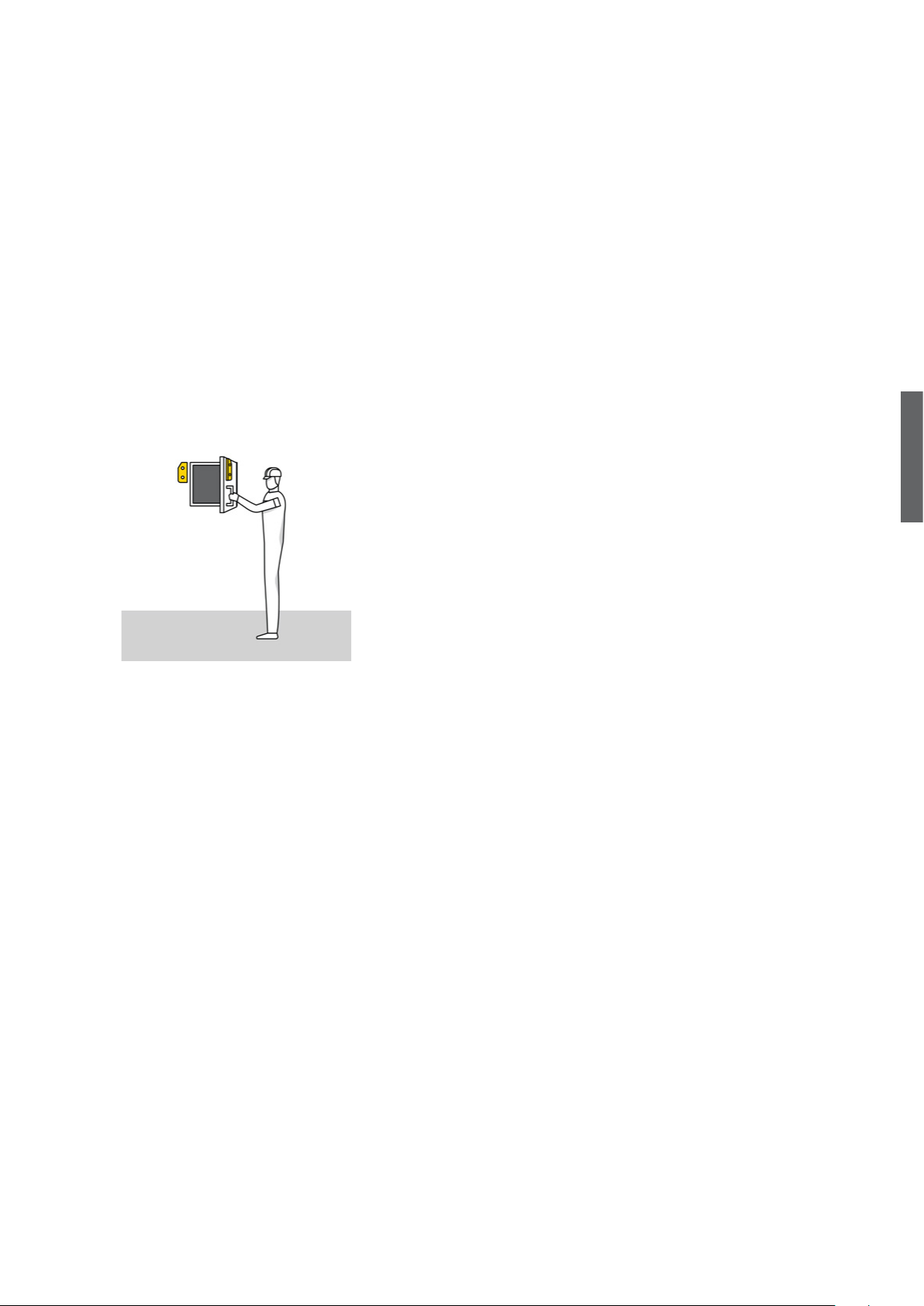

Position control

Eden can be used to monitor the position of a machine when someone is in the work area. This can be useful when removing power to the machine causes problems like a long restart time. As long as the machine remains in the safe position monitored by Eden, a person can be allowed to enter the hazardous area even though the machine is still powered. If the machine leaves the safe position while the person is still in the hazardous area, power is removed from the machine.

Page 8

4– 8 SAFETY PRODUC TS CATALOG ABB JOKAB SAFETY

—

Features

Eden

Features

Easy PL e with Eden safety sensor

- Eden sensors can be connected in series while maintaining Cat. 4.

- Only one Eden per guard is necessary to reach PL e (instead of two key switches).

- Eden reaches PL e without any need for periodic checks (see ISO/TR 24119).

Low or high level coded sensor

Eva is available with General code or Unique code. If a new Adam is paired with an Eva general code at start up, Adam will accept all Eva with general code as a valid actuator. Eden will then classify as a low level coded sensor. If a new Adam is paired with an Eva Unique code at startup (or Eva AS-i), Adam will only accept this specific Eva as a valid actuator. In this case Eden is classified as a high level coded sensor. A high level coded sensor should be used when the motivation to defeat a sensor cannot be eliminated (see EN ISO 14119:2013).

360° mounting possibility

Eden offers 360° mounting possibility with generous tolerances.

Local reset button

A local reset button with integrated LED can be connected directly to Adam Reset instead of to the safety control module. In this way, each Eden can easily have its own reset button, which saves cable length and safety relays/PLC inputs. Adam Reset monitors the reset function and manages the LED in the reset button in the following way:

on - Adam and Eva are not in contact flashing - Adam and Eva in contact, waiting for reset off - Adam and Eva in contact and reset

Info signal and extensive indication facilitate troubleshooting

All Eden models offer extensive LED indication to help troubleshooting and localizing which doors/hatches are opened. The LED on Adam lights in green or red depending on status:

green - valid Eva within range red - valid Eva out of range flashing red/green - valid Eva within range, but no valid

safety signal received (loop broken “upstream”)

The LED on Adam AS-i has slightly different default settings and can be programmed to light in any behaviour.

Simple status information with StatusBus

StatusBus is a simple and cost effective way to collect the status information of safety sensors. The StatusBus functionality is available with some DYNlink devices and allows to collect the status of each individual safety device, even when connected in series. A single input on Pluto safety PLC can collect the status of up to 30 safety devices. The devices are connected using standard cable and M12-5 connectors. No specific bus cable or extra communication module is necessary.

Page 9

—

Models

Eden

Models

SENSORS AND LOCKS 4– 9

Eden DYN

Eden DYN consists of an Adam DYN and an Eva (general or unique code). Adam DYN uses the ABB Jokab Safety DYNlink signal that allows to connect several safety products in series while maintaining PL e using only one channel. DYNlink signals must be used with Vital safety controller or Pluto safety PLC. Up to 30 Adam DYN can be connected in series to Vital and up to 10 Adam DYN can be connected in series to one input of Pluto. All products using the DYNlink signal can easily be connected in series and mixed in the same loop with a maintained PL e. Tina adapters allow to use other products in a DYNlink loop, and a wide range of connection accessories simplifies the cabling.

Eden AS-i

Eden AS-i consists of an Adam AS-i and an Eva AS-i (Eva AS-i has a unique code). Eden AS-i can be used with any AS-i monitor. AS-i is a bus system that offers a very simple connection of up to 31 safety devices to one monitor according to PL e and makes it easy to move, remove and add safety devices. When Eden AS-i is used with Pluto programmable safety controller, no other AS-i master or monitor is necessary, and no specific knowledge of AS-i is required.

Eden AS-i

Eden DYN

Eden OSSD

Eden OSSD consists of an Adam OSSD and an Eva (general or unique code). Adam OSSD can be used with all safety relays and safety PLCs compatible with OSSD signals (commonly used for light guards). Up to 30 Adam OSSD can be connected in series, and since OSSD devices monitor their own outputs for short circuits, a Cat. 4/PL e can still be reached.

Eden OSSD

Page 10

4– 10

SAFETY PRODUCTS CATALOG ABB JOKAB SAFETY

—

Ordering information

Eden

— Adam

Adam DYN-Info M12-5

Eva General code

2TLC010045V0201

2TLC010061V0201

Type of safety controller

Pluto x x

StatusBus Info signal Local reset Series

connection

x M12-5 Adam DYN-Status M12-5 2TLA020051R5200

Connector male

Typ e Order code

Pluto or Vital x x M12-5 Adam DYN-Info M12-5 2TLA020051R5100

x x M12-5 Adam DYN-Reset M12-5 2TLA020051R5300

OSSD compatible (incl. Pluto and Sentry)

x M12-5 Adam OSSD-Info M12-5 2TLA020051R5400 x x M12-8 Adam OSSD-Info M12-8 2TLA020051R5700

x M12-5 Adam OSSD-Reset M12-5 2TLA020051R5600

x x x M12-8 Adam OSSD-Reset M12-8 2TLA020051R5900

AS-i safety monitor (incl. Pluto AS-i and

N/A

M12-4 Adam AS-i 2TLA020051R6000

B42 AS-i)

1) Pin 5 can be used as a standard info signal or StatusBus.

2) AS-i offers the same advantages using another technology.

— Eva

Compatible Adam Code description Code level Ty p e Order code

Adam DYN and OSSD General code. (Eva is interchangeable) Low level Eva General code 2TLA020046R0800

Unique code. (Prevents defeat/fraud) High level Eva Unique code 2TLA020046R0900

Adam AS-i Unique code. (Prevents defeat/fraud) High level Eva AS-i 2TLA020051R8000

— Accessories

JSM D20 Eden slide lock

2TLC010040F0201

FIXA

Distance plate

2TLC010040F0201

2TLC172727F0201

Description Typ e Order code

Mounting plate for conventional door/hatch and folding door. Two pieces are needed for

JSM D4H 2TLA040033R3600

a complete set. Mounting plate for folding doors. Used together with one piece of JSM D4H. JSM D4J 2TLA042020R4000 Sliding lock for Eden on conventional doors. (Eden is not included.) JSM D20 2TLA020302R1000 Mounting converting plate from Eden E to Eden OSSD or Eden DYN DA 3A 2TLA020053R0600 Heat shrinking tubes for M12 connectors. Protects M12 connectors in harsh environments

M12 Safety seal 2TLA020053R0800

and provides extra protection against tampering. Wrench for tightening of M12 connectors according to specified torque: 0.6 Nm. M12 Torque wrench 2TLA020053R0900 Handheld terminal for addressing, configuration and testing of AS-i devices, StatusBus

FIXA 2TLA020072R2000

devices, DYNlink devices and conventional PNP devices.

— Spare parts (included with main product on deliver y)

Description Typ e Order code

Distance plate in yellow PBT (4 pcs). DA 1B 2TLA020053R0700 Black distance rings to be mounted in Adam and Eva mounting holes (4 pcs). DA 2B 2TLA020053R0300

— Reset buttons for local reset

Description Typ e Order code

Reset button for Adam with 5 pins Smile 12RF 2TLA030053R2600 Reset button for Adam with 8 pins Smile 12RG 2TLA030053R2700

Smile 12RG Reset button

2TLC172575F0201

Page 11

SENSORS AND LOCKS 4– 1 1

—

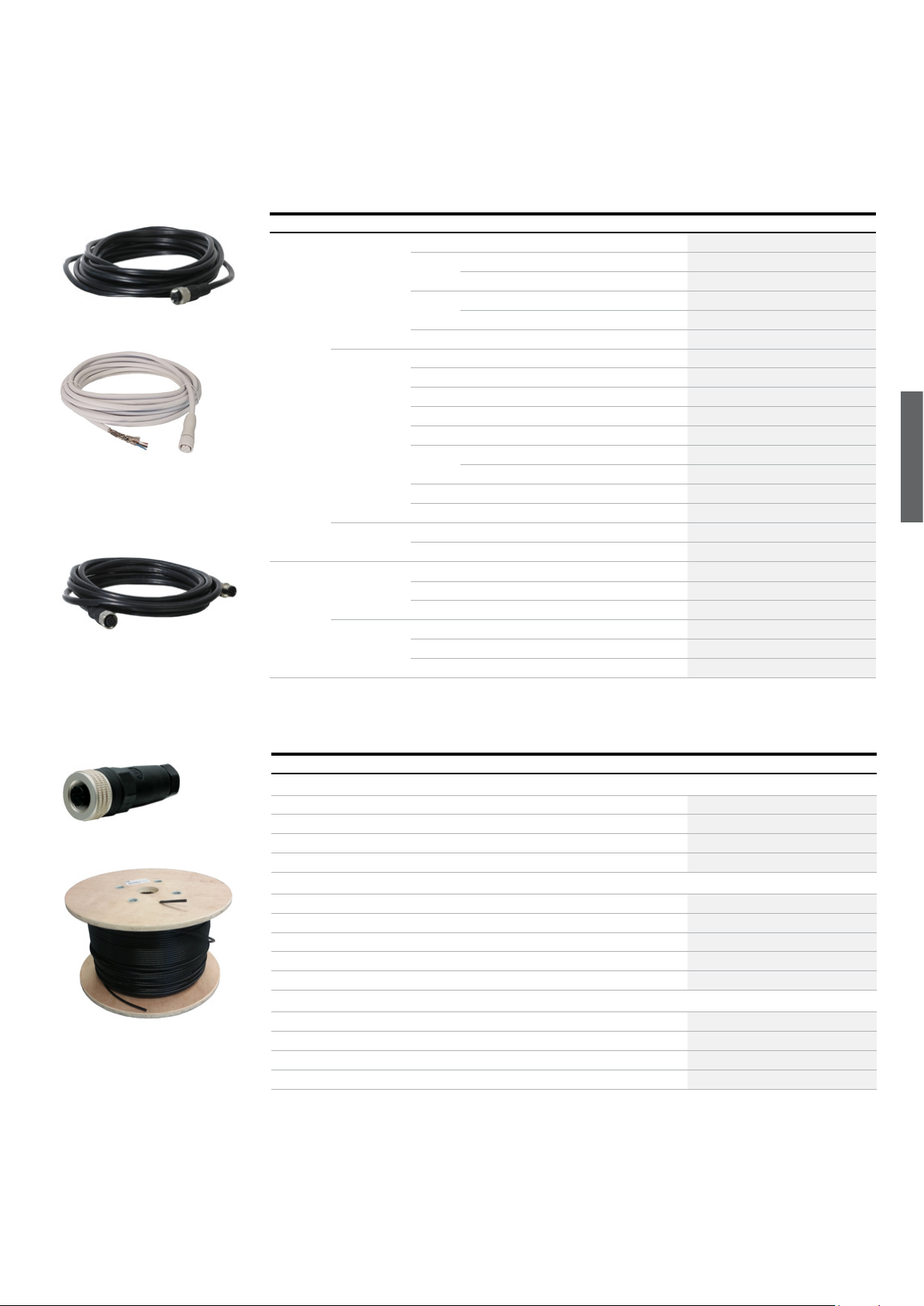

Cables and connectors

Eden

2TLC172951F0201

M12-C61

2TLC010003F0201

M12-C61HE

2TLC172931F0201

M12-C334

— Cable with connectors

Connector Female/male Length Special feature Typ e Order code

M12-5 * Female 3 m M12-C31 2TLA020056R0500

6 m M12-C61 2TLA020056R0000

Harsh environment, halogen free M12-C61HE 2TLA020056R8000

10 m M12-C101 2TLA020056R1000

Harsh environment, halogen free M12-C101HE 2TLA020056R8100

20 m M12-C201 2TLA020056R1400

Female + male 0.3 m M12-C0312 2TLA020056R5800

0.06 m M12-C00612 2TLA020056R6300 1 m M12-C112 2TLA020056R2000 3 m M12-C312 2TLA020056R2100 6 m M12-C612 2TLA020056R2200 10 m M12-C1012 2TLA020056R2300

Angled female connector M12-C1012V2 2TLA020056R6700 16 m M12-C1612 2TLA020056R5400 20 m M12-C2012 2TLA020056R2400

Male 6 m M12-C62 2TLA020056R0200

10 m M12-C102 2TLA020056R1200

M12-8 Female 6 m M12-C63 2TLA020056R3000

10 m M12-C103 2TLA020056R4000 20 m M12-C203 2TLA020056R4100

Female + male 0.06 m M12-C00634 2TLA020056R6400

1 m M12-C134 2TLA020056R5000 3 m M12-C334 2TLA020056R5100

* Compatible with Adam AS-i

M12-C01

C5 cable

2TLC172657F0201

— Separate cables and connectors

Description Typ e Order code

Connectors

M12-5 pole female, straight M12-C01 2TLA020055R1000 M12-5 pole male, straight M12-C02 2TLA020055R1100 M12-8 pole female, straight M12-C03 2TLA020055R1600 M12-8 pole male, straight M12-C04 2TLA020055R1700

Cable with 5 conductors

10 m cable with 5 x 0.34 shielded conductors C5 cable 10 m 2TLA020057R0001 50 m cable with 5 x 0.34 shielded conductors C5 cable 50 m 2TLA020057R0005 100 m cable with 5 x 0.34 shielded conductors C5 cable 100 m 2TLA020057R0010 200 m cable with 5 x 0.34 shielded conductors C5 cable 200 m 2TLA020057R0020 500 m cable with 5 x 0.34 shielded conductors C5 cable 500 m 2TLA020057R0050

Cable with 8 conductors

2TLC010038F0201

50 m cable with 8 x 0.34 shielded conductors C8 cable 50 m 2TLA020057R1005 100 m cable with 8 x 0.34 shielded conductors C8 cable 100 m 2TLA020057R1010 200 m cable with 8 x 0.34 shielded conductors C8 cable 200 m 2TLA020057R1020 500 m cable with 8 x 0.34 shielded conductors C8 cable 500 m 2TLA020057R1050

Page 12

4– 1 2 SAFETY PRODUCTS CATALOG ABB JOKAB SAFETY

—

Connection Accessories

Eden

2TLC010008F0201

JSOP-2 Terminator

— Connection accessories

Description Typ e Order code

Y-connector for series connection of DYNlink devices with M12-5 connectors, e.g. Eden. M12-3A 2TLA020055R0000 Y-connector for series connection of DYNlink devices with the StatusBus function. M12-3S 2TLA020055R0600 Y-connector for series connection of Adam OSSD M12-8 with M12-8 cables M12-3G 2TLA020055R0700 Y-connector for series connection of Adam OSSD M12-8 with M12-5 cables M12-3H 2TLA020055R0800 Termination plug M12-5. For Adam OSSD with M12-3H. Connects pin 1 with pin 2 and 4. JSOP-1 Terminator 2TLA020053R7000 Termination plug M12-8. For Adam OSSD with M12-3G. Connects pin 2 with pin 3 and 4. JSOP-2 Terminator 2TLA020053R7100 M12-5 female connector with vampire connector for AS-i flat cable AS-i T-connector M12 2TLA020073R0000

Page 13

—

Technical data

Eden

— Technical data

SENSORS AND LOCKS 4– 1 3

Eden DYN Eden OSSD

Eden AS-i

Approvals

Conformity

2006/42/EC - Machinery 2014/30/EU - EMC 2011/65/EU - RoHS

EN ISO 12100:2010, EN ISO 13849-1:2015, EN 62061:2005/A2:2015, EN 602041:2006+A1:2009, EN 60664-1:2007, EN 61000-62:2005, EN 61000-6-4:2007, EN 60947-5-3:2013, EN ISO 14119:2013, EN 61508:2010

EN ISO 12100:2010, EN ISO 13849-1:2015, EN 62061:2005/A2:2015, EN 60204-1:2006+A1:2009, EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007, EN 60947-5-3:2013,

EN ISO 12100:2010, EN ISO 13849-1:2008, EN 62061:2005, EN 60204-1:2006+A1:2009, EN 60664-1:2007, EN 61000-6-4:2007

EN ISO 14119:2013, EN 61508:2010

Functional safety data

EN/IEC 61508:2010 SIL3, PFH

= 4.5 x 10

-9

EN/IEC 62061:2005+A1:2013 SILCL3, PFHD = 4.5 x 10 EN ISO 13849-1:2008 PL e, Cat. 4, PFHD = 4.5 x 10

Electrical data +24 VDC

Tolerance: +14.4...+27.6 VDC

-9

SILCL3, PFHD = 4.5 x 10 PL e, Cat. 4, PFHD = 4.5 x 10 +24 VDC

Tolerance: +14.4...+27.6 VDC

SIL3, PFHD = 4.5 x 10

-9

SIL3, PFHD = 6.0 x 10 SILCL3, PFHD = 6.0 x 10 PL e, Cat. 4, PFHD = 6.0 x 10

-10

+30 VDC (AS-i bus) Tolerance: +26.5...+31.6 VDC

Mechanical data

Operating temperature -40 °C...+70 °C (storage/operation) -40°C...+70 °C (storage/operation) -40 °C...+85 °C (storage), -25 °C...+55 °C

(operation)

Protection class IP67 and IP69K Humidity range 35 to 85% (no icing, no condensation)

Material

Housing Polybutylene terephthalate (PBT) Moulding Epoxy

Weight Eva: 70 g, Adam: 80 g

Assured release distance (S

Assured operating distance (S

Rated operating distance (S

Recommended distance between

) 25 mm 25 mm 45 mm

) 10 mm 10 mm 7.5 mm

) 15 ± 2mm

7 mm

Adam and Eva Min distance between two Eden 100 mm

More information

For more information, e.g. the complete technical information, see product manual for: Eden DYN 2TLC172271M0201 Eden OSSD 2TLC172272M0201 Eden AS-i 2TLC172230M0201

Page 14

4– 14 SAFETY PRODUCTS CATALOG ABB JOKAB SAFETY

—

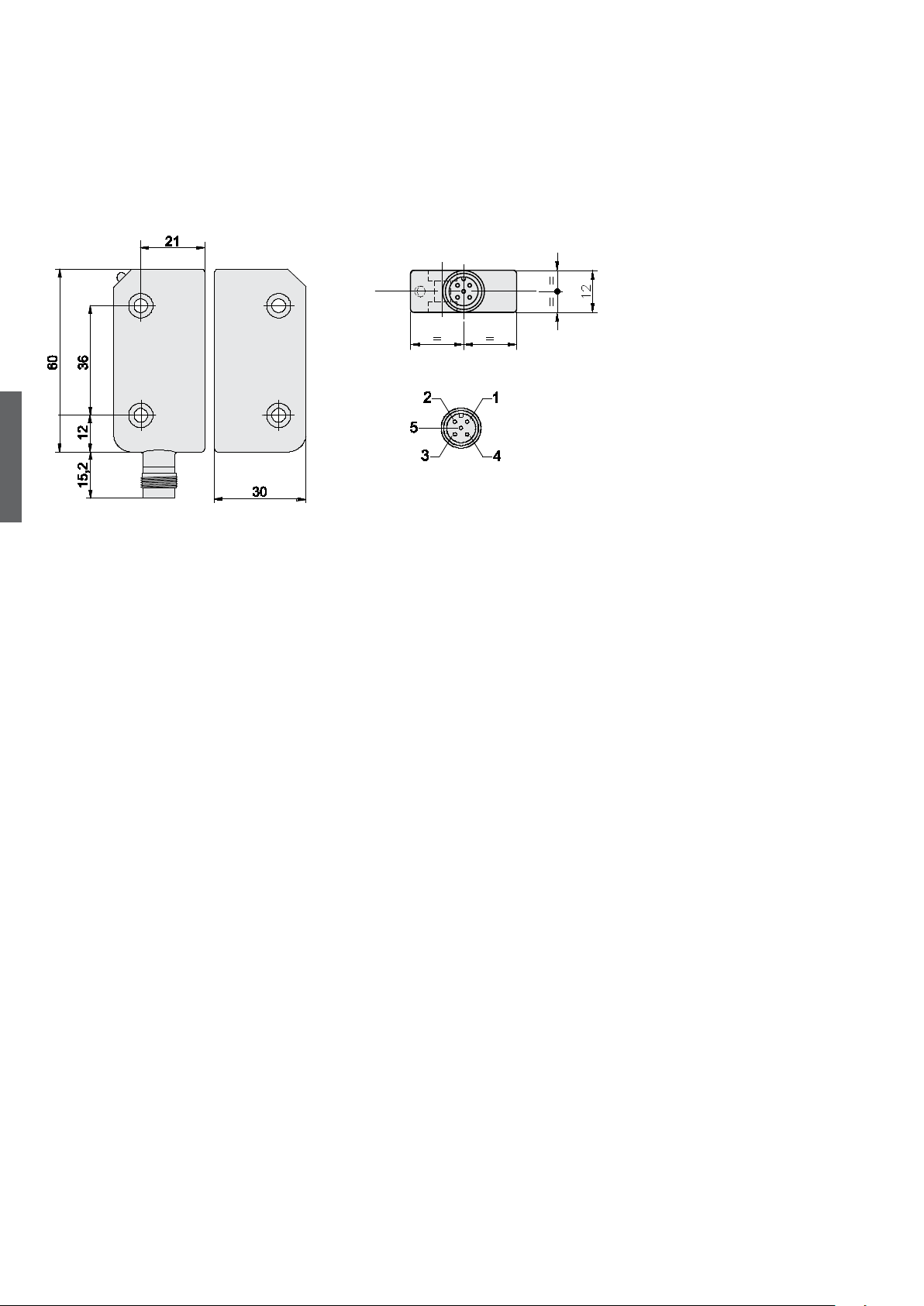

Dimension drawings

Eden

Dimension drawings

All dimensions in mm

Adam M12-5 male connector. (Note that some models have 4 or 8 pins instead.)

Page 15

SENSORS AND LOCKS 4– 1 5

Page 16

4-16 SAFET Y PRODUCTS CATALOG ABB JOKAB SAFETY

—

Safety magnetic switch

Sense7

Sense7 is a coded magnetic non-contact switch for interlocking gates and hatches.

Sense7 has a stainless steel housing that is designed for harsh environments and extreme temperatures.

Sense7 offers and interlocking function reaching PL e/SIL3 with low level coding.

Safety and protection Reliable in extreme

Easy to install

conditions

High safety level

Sense7 has two closing and one opening solid state contacts. Two of these needs to be monitored to achieve PL e/SIL3.

LED indication

An integrated LED shows the status of the sensor.

Compact size

Sense7 is compact in size to make it easy to position and hide on gates and hatches.

Large sensing distance

With a large sensing distance and a high tolerance for misalignment Sense7 is easy to install.

Stainless steel

With a stainless steel 316 body and a IP67/IP69K rating, Sense7 is resistant to harsh environments with both dirt and water.

Hygienic design

Sense7 has no dust collecting cavities, and the stainless steel has a mirror polished finish (Ra4) suitable for CIP cleaning - food splash zones acording to EHEDG guidelines.

High temperatures

Sense7 can be used at temperatures from -25 °C up to 105 °C.

Page 17

—

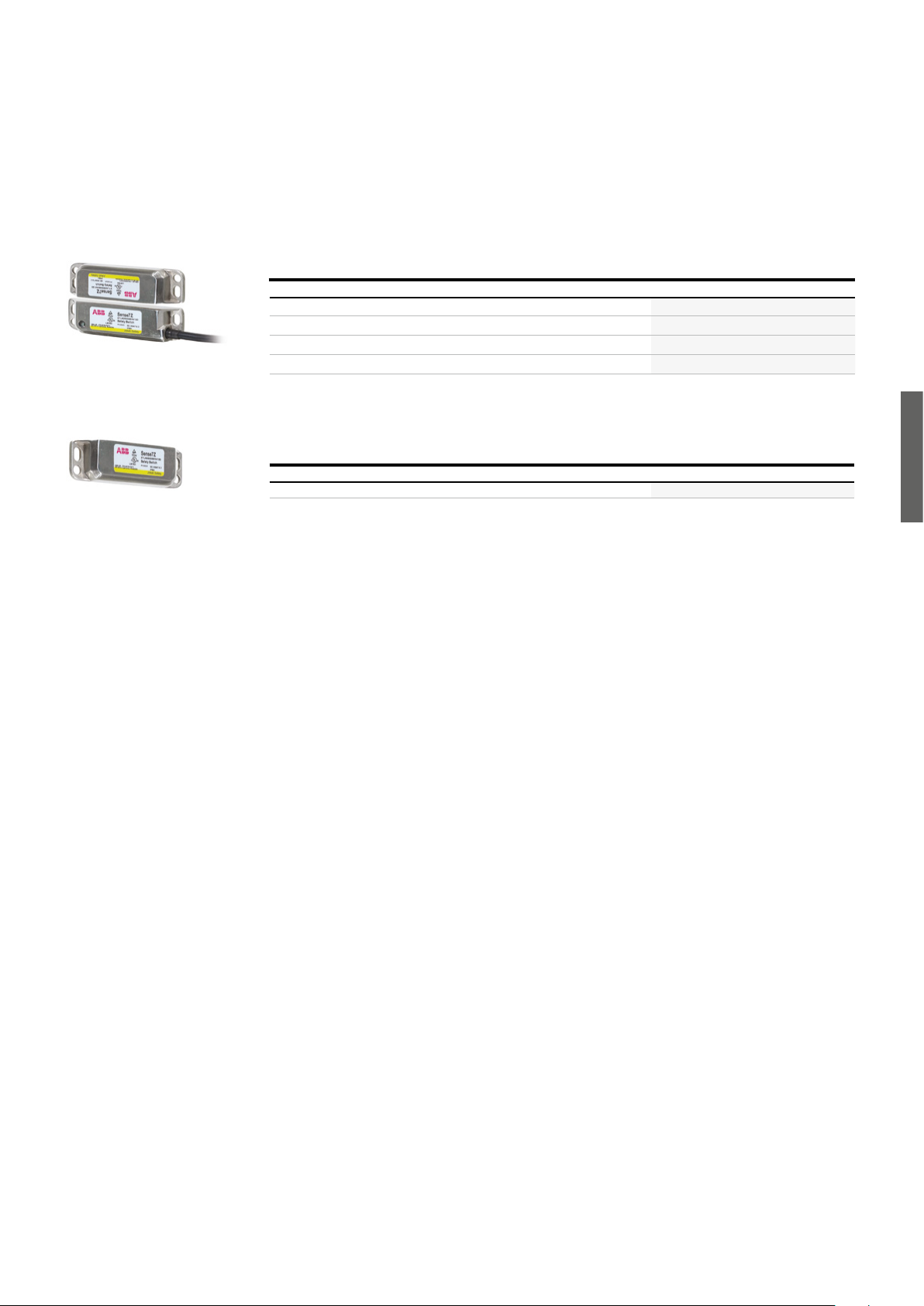

Ordering details

Sense7

Sense7Z 2M

Sense7Z Key SS

SENSORS AND LOCKS 4-17

— Ordering details

Sense7 is always delivered with both switch and actuator.

Description Connector Cable length (m) Contacts Type Order code

Safety magnetic switch Safety magnetic switch Safety magnetic switch Safety magnetic switch

— Spare part

Type of handle Typ e Order code

Actuator to safety magnetic switch Sense7Z, stainless steel. Sense7Z Key SS 2TLA050040R0212

M12-8 male 0,25 2NC+1NO Sense7Z M12 2TLA050056R2120

- 2 2NC+1NO Sense7Z 2M 2TLA050056R4120

- 5 2NC+1NO Sense7Z 5M 2TLA050056R5120

- 10 2NC+1NO Sense7Z 10M 2TLA050056R6120

Page 18

4-18 SAFETY PRODUCTS CATALOG ABB JOKAB SAFETY

—

Technical data

Sense7

— Technical data

Approvals

Conformity

2006

/42/EC 2014/30/EU 2011/65/EU EN ISO 12100:2010, EN ISO 14119:2013, EN ISO 13849-1:2008+AC:2009, EN 60947-5-3:1999+A1:2005, EN 60947-5-2:1998+A1:1999+A2:2004

Functional safety data

EN/IEC 61508:2010 Up to SIL3 (depending on system architecture)

EN/IEC 62061:2005+A1:2013 Up to SILCL3 (depending on system architecture)

EN ISO 13849-1:2008 Up to PL e, Cat 4 (depending on system architecture)

If the product usage differs from these assumptions (different load, operating frequency, etc.) the values must be adjusted accordingly.

Electrical data

Operating voltage +24 VDC ± 10% Minimum switched current 10 VDC 1 mA Safety channel output (NC/NO) 24 VDC 0.2 A max. rating

Mechanical data

Material Protection class IP67 and IP69K Operating temperature -25 °C ... + 105 °C

Cable type

Mounting bolts (tightening torque)

Assured release distance (Sar)

Assured operating distance (Sor)

Recommended distance

= 2.52 x 10-8

PFH

= 2.52 x 10-8

Proof test interval T

= 470 a (8 cycles per hour/24 hours per day/365 days)

MTTF

= 3 300 000 operations at 100 mA load

10d

= 2.52 x 10

PFH

= 47 a

-8

Stainless steel 316

PVC 8 core 6 mm 2 x M4 (1.0 Nm) 10 mm 20 mm 5 mm

More information

For more information, e.g. the complete technical information,see product manual: Sense 2TLC172249M0201

Page 19

SENSORS AND LOCKS 4-19

—

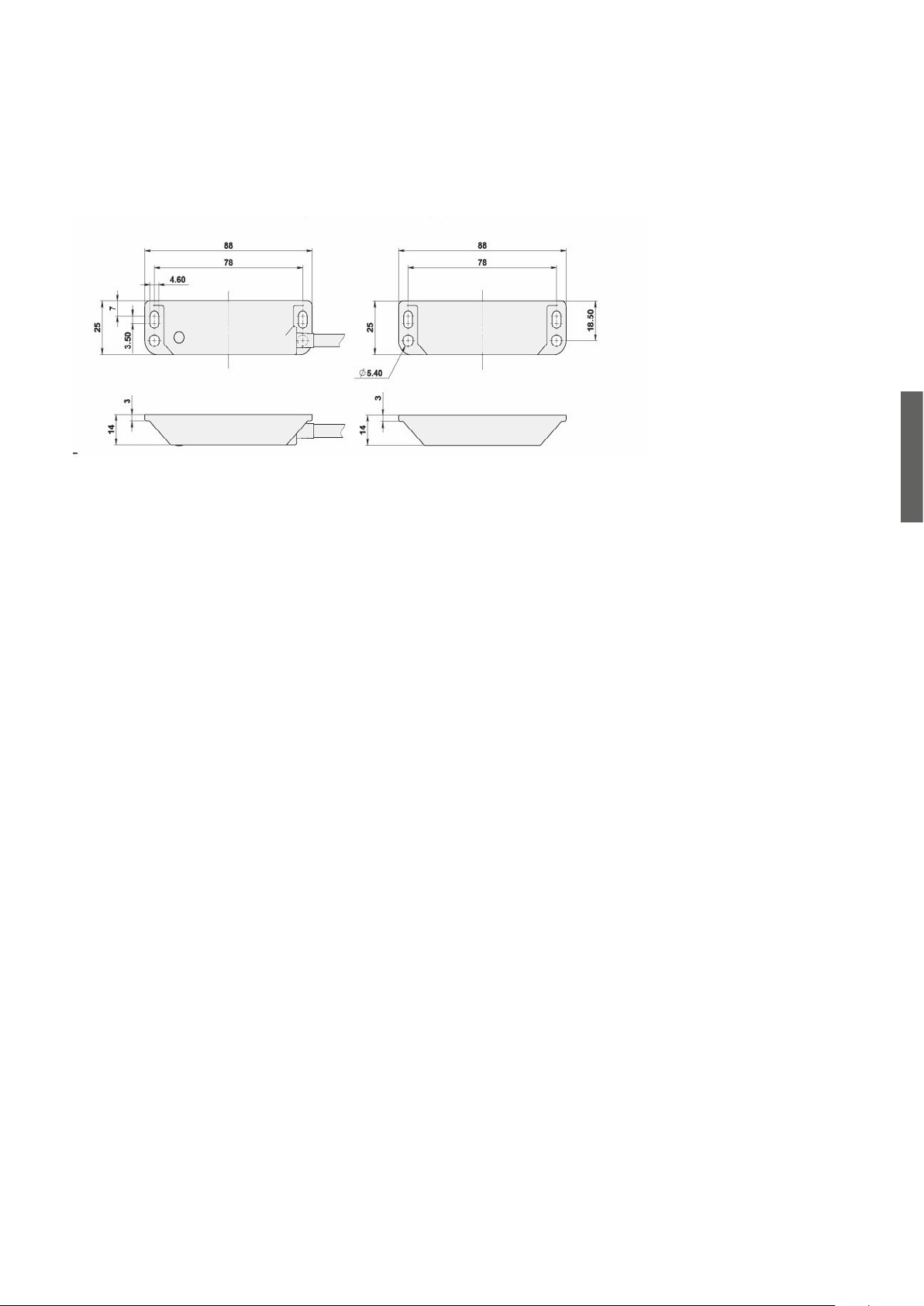

Dimension drawings

Sense7

Dimensions - Sense7Z

All dimensions in mm

Page 20

4– 2 0 SAFETY PRODUCTS CATALOG ABB JOKAB SAFETY

—

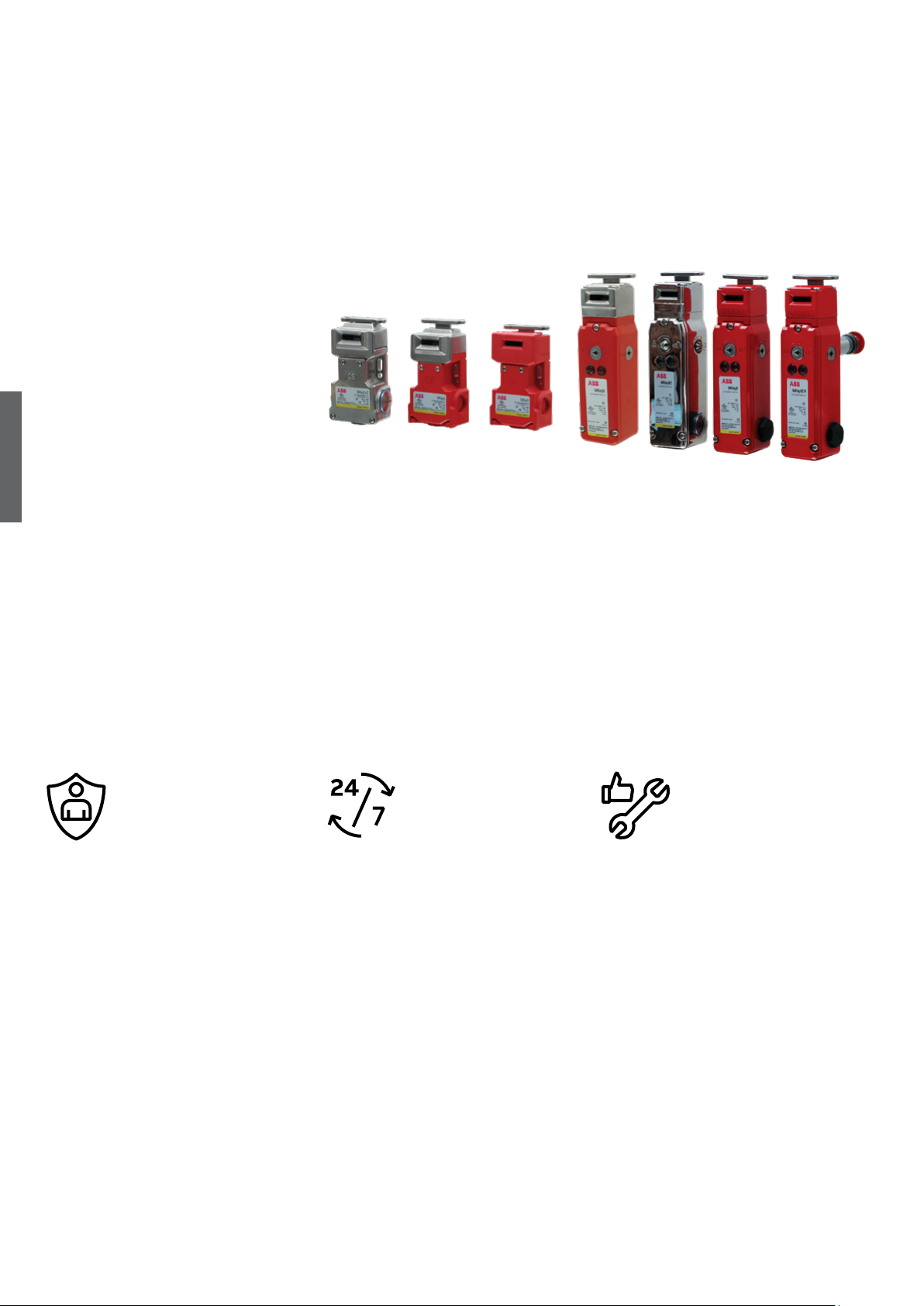

Safety interlock switch

MKey

MKey are mechanical safety switches used for monitoring doors and hatches. The switch is mounted on the frame and the actuator key on the moving part of the guard.

All MKey models have a safe interlocking function. Some MKey models can be locked and depending on the lock-

ing signal they can be used either as process locks or safety locks (with a safe unlocking function).

MKey switches are available in different material and sizes in order to meet the requirements of different applications.

Safety and protection

Highest level of safety

PL e/SIL3 can be reached when using two switches on a door.

Safety lock

Models that use power to unlock can be used as safety locks.

Emergency escape button

Using MKey8ER with an integrated emergency escape button, it is always possible to open the door from inside the dangerous zone.

Continous operation

Strong holding force

A holding force of up to 2000 N prevents unwanted process stops.

Robust design

Models are available with full stainless steel housing with IP69K, suitable for most applications in food processing and chemical industries.

Status information

Auxiliary contacts give status information.

Easy to install

Easy mounting with rotating head

The head of the switch can be mounted in up to 8 actuating positions to allow different mounting positions.

Flexible keys

Flexible keys are available to minimize mechanical wear and allow a smaller movement radius and use in reduced spaces.

Page 21

—

Applications

MKey

SENSORS AND LOCKS 4 – 21

Doors and hatches

MKey is used to monitor the position of doors and hatches. The models with locking function are usually used for: – Processes which should not be interrupted, such as

welding.

– Machinery with a long stopping procedure, such as paper

machinery that requires a long braking operation.

– Prevention of unauthorized access to a particular area.

Please note that all safety key switches (including MKey) normally need two switches per door/hatch in order to reach PL e/SIL3. (See EN ISO 13849 and EN ISO 14119.)

Locking and interlocking

An interlocking function indicates if a door is open or closed and prevents movement when the door is open, but it does not prevent the door from being opened. A locking function makes sure the door is kept closed.

Process lock with safe interlocking

All MKey models offer a safe interlocking function that will stop the process if the door/hatch is opened. All lockable models of MKey can also be used as a process lock to prevent the process from being interrupted. An example of an application where a process lock could be used is a welding robot where the stopping time is short, but the welding should not be interrupted once it has started.

Safety lock with safe interlocking and safe unlocking

The MKey models that uses power to unlock can be used as safety locks. They have a safe unlocking function, which means that the loss of power for these locks will not result in the release of the locking element, and the door will remain locked even during a power failure. An example of an application where a safety lock should be used is a circular saw that would have a long stopping time after a power failure.

Page 22

4– 2 2 SAFETY PRODUCTS CATALOG ABB JOKAB SAFETY

—

Features

MKey

Different models

MKey5 are simple mechanical interlocks while MKey8 and MKey9 also have locking functions. – MKey5: plastic body with plastic or stainless steel head,

or full stainless steel body and head.Holding force 12 N or 40 N.

– MKey8: robust design in die cast metal or stainless steel

body and head. Holding force of 2000 N.

– MKey9: plastic body with stainless steel head. Holding

force of 1800 N.

Different materials and protection classes

The housing and head of the key switches are available in

different material in order to meet the requirements of different applications. Metal heads are more resistant to mechanical wear. The choice between plastic, die cast or stainless steel depends on the environment and the chemicals used. Models ending with -Z are completely made of stainless steel 316 and offers an IP69K protection class. They can be high pressure hosed with detergent at high temperature and can be used in harsh applications, e.g. the food processing and chemical industries. All other models offer IP67.

Emergency escape button

MKey8ER has a manual release button at the rear of the housing. It is used for emergency exit by a person locked inside the dangerous zone by mistake. It is a non-latching manual escape, and can be used when the risk assessment requires it. The switch must be mounted so that the release button is reachable from inside the dangerous zone, but not reachable from outside. Pressing and holding the button will release the locking mechanism allowing to open the door/ guard.

Manual release button

Power to lock or power to unlock

Two different types of locking function are available:

– Spring lock (power to unlock) models are automatically

locked when closing the door. An active signal (+24 VDC) must be supplied to unlock the switch, which makes these models suitable as safe locks.

– Electro-magnetic lock (power to lock) models are locked

when an active signal (+24 VDC) is supplied, which makes these models suitable only as process locks.

Rotatable head

Depending on model, the head of MKey can be set in two or four directions with two entrance holes each, thus providing four or eight different mounting positions. The leading edges of the actuator key are reinforced and beveled in order to guide it properly into the hole.

Constructed for safety

All MKey switches have double positively operated forcedguided contacts controlled by the actuator key. This means that the contacts that are closed when the actuator key is in the switch will be forced to open, and the ones that are opened will be forced to close, when the actuator key is removed. It also means that it is not possible to have, e.g. NO and NC contacts opened at the same time due to a fault like one welded contact. The actuator key is designed to prevent tampering with the safety switch using a tool, a magnet or any similar object. The lockable models also have forced-guided contacts controlled by the locking mechanism. MKey8 and MKey9 have auxiliary contacts giving status information (not MKey5, MKey8M or MKey9M).

Page 23

SENSORS AND LOCKS 4– 23

—

Ordering information

MKey

— MKey ordering information

MKey5

MKey5 SSH

MKey5Z

2TLC172403F0201

2TLC172409F0201

2TLC172503F0201

Locking function

Material housing

Material head

Holding force

Special feature Ty pe Order code

— Plastic Plastic 12 N MKey5 2TLA050003R0100

40 N MKey5+ 2TLA050003R0101

Stainless steel 12 N MKey5 SSH 2TLA050003R0110

40 N MKey5+ SSH 2TLA050003R0111

Stainless steel

Stainless steel 12 N IP69K MKey5Z 2TLA050003R0120

40 N IP69K MKey5+Z 2TLA050003R0121

Process lock (power to lock)

Safety lock (power to unlock)

Plastic Stainless steel 1800 N MKey9M 24VDC 2TLA050009R0112 Die cast Die cast 2000 N MKey8M 24VDC 2TLA050013R0132 Plastic Stainless steel 1800 N MKey9 24VDC 2TLA050007R0112

No key supplied MKey9 24VDC, No Key 2TLA050007R0012

Die cast Die cast 2000 N MKey8 24VDC 2TLA050011R0132

With escape release button MKey8ER 24VDC 2TLA050015R0132

Stainless steel

Stainless steel 2000 N IP69K MKey8Z 24VDC 2TLA050011R0122

MKey9

MKey8ER

MKey8Z

2TLC172421F0201

2TLC172417F0201

2TLC172415F0201

Page 24

4– 24

—

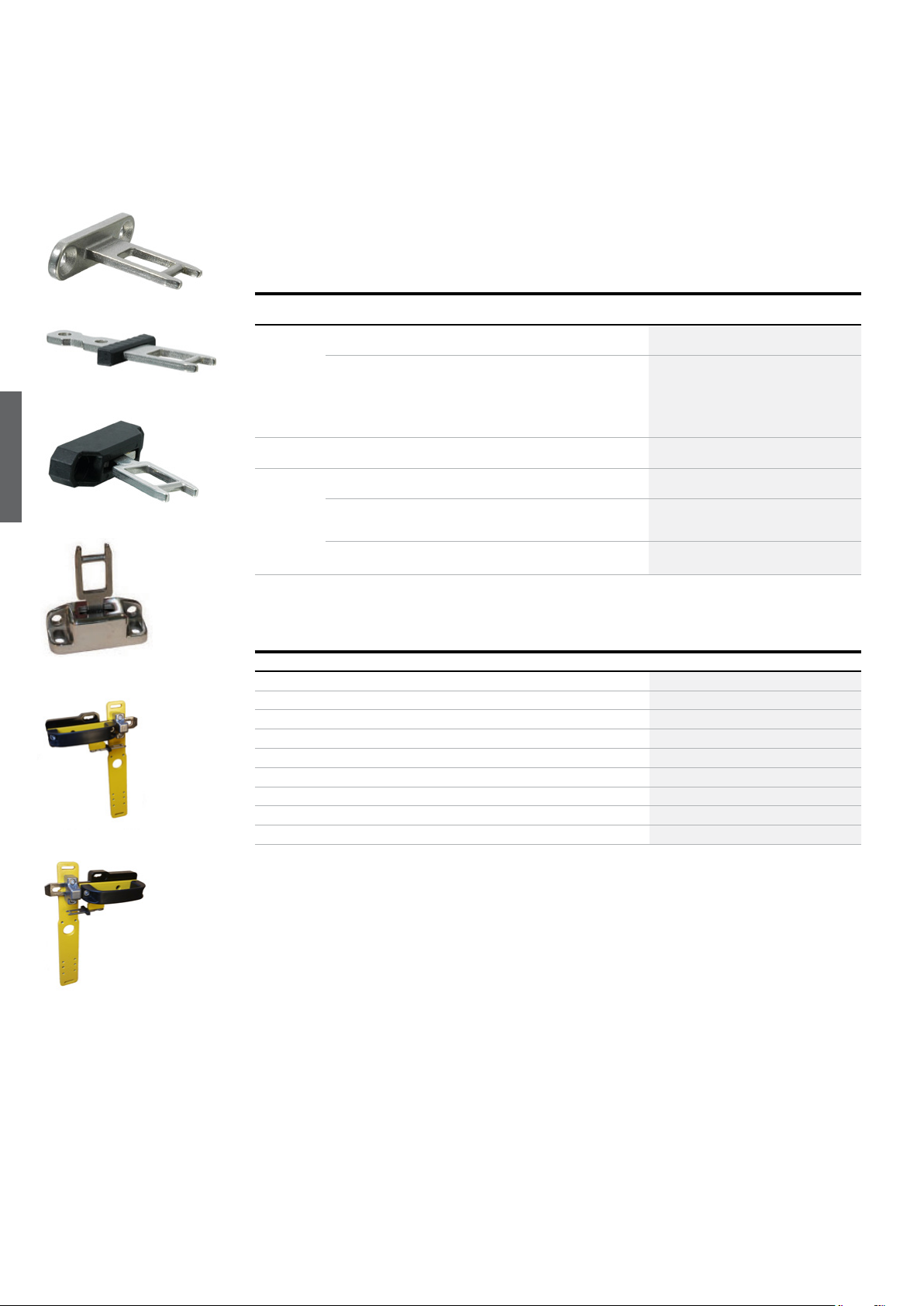

Accessories

MKey

MKey Key 2

MKey Key 3

MKey Key 4

SAFETY PRODUCTS CATALOG ABB JOKAB SAFETY

— Actuator keys

All MKey safety switches are supplied with the appropriate standard key, except MKey 9 24VDC , No key. Choose

standard key or flat key depending on suitable mounting direction, e.g. standard door or sliding door. Flexible keys

are suitable for doors/hatches w ith a smaller opening radius (i.e. 100-175 mm).

2TLC172627F0201

Type of key Compatible

Key housing Description Typ e Order code

MKey models

Standard key MKey5

2TLC172631F0201

MKey5+ MKey5 SSH

MKey5+ SSH MKey5Z

None Standard key for MKey safety switches

with plastic head. Stainless steel key.

None Standard key for MKey safety switches

with metal head. Stainless steel key.

MKey5+Z All MKey8 All MKey9

Flat key All Plastic shroud Flat key for MKey safety switches. Stain-

less steel key with plastic shroud.

Flexible key All MKey5 Plastic Flexible key for MKey5 safety switches.

2TLC172628F0201

Stainless steel key with plastic housing.

All Die cast Flexible key for MKey safety switches.

Stainless steel key with black die cast metal housing.

All Stainless steel

Flexible key for MKey safety switches. Stainless steel key with stainless steel housing.

MKey Key 1 2TLA050040R0201

MKey Key 2 2TLA050040R0202

MKey Key 3 2TLA050040R0220

MKey Key 4 2TLA050040R0221

MKey Key 5 2TLA050040R0203

MKey Key 6 2TLA050040R0204

MKey Key 6

MKey slide lock left

MKey slide lock right

— Other accessories

Description Typ e Order code

Bit for manual unlocking of MKey8Z. Stainless steel. MKey8Z Manual release 2TLA050040R0400 Maintenance lockout actuator key. Compatible with all MKey switches. MKey Lockout key 2TLA050040R0401 Slide Lock for MKey8 and MKey9, left. MKey slide lock left 2TLA050040R0500 Slide Lock for MKey8 and MKey9, right. MKey slide lock right 2TLA050040R0501 Fitting in stainless steel for mounting MKey5 on a Quick-Guard conventional door. JSM D29A 2TLA040033R6000 Fitting in stainless steel for mounting MKey5 on a Guick-Guard sliding door. JSM D29B 2TLA040033R6100 Fitting in stainless steel for mounting Mkey8 and Mkey9 on a Quick-Guard conventional door. JSM D29C 2TLA040033R6200 Fitting in stainless steel for mounting Mkey8 and MKey9 on a Quick-Guard sliding door. JSM D29D 2TLA040033R6300 Spacer in stainless steel for flexible keys. Required when using JSM D29A and JSM D29C. JSM D29E 2TLA040033R6400

Page 25

—

Technical data

MKey

— Technical data

SENSORS AND LOCKS 4– 2 5

MKey5

Approvals

Conformity

Functional safety data

2,500,000 operations at 100 mA load

10d

EN/IEC 62061 Up to SILCL3 (depending on system architecture) EN ISO 13849-1 Up to PL e (depending on system architecture)

Electrical data

Contact block configuration with guard open and unlocked

For actuator key 2 NO + 1 NC MKey8, Mkey8Z, MKey8ER: 2 NO + 1 NC

For solenoid/locking - MKey8, Mkey8Z, MKey8ER: 2NO + 1NC

Solenoid voltage - +24 VDC ± 10% +24 VDC ± 10%

DC-13 +24 VDC / 3 A AC-15 230 VAC / 3 A

Mechanical data

Travel for positive opening 6 mm 10 mm 10 mm Actuator key entry minimum radius 175 mm Standard Key, 100 mm Flexible Key Material Body: Polyester or stainless steel 316

Conduit entries 3 x M20 x 1.5 3 x M20 x 1.5 1 x M20 x 1.5 Operating temperature -25...+80 °C -25...+40 °C -25...+40 °C Protection class MKey5, MKey5+, MKey5 SSH, MKey5+

1) Please see EN/IEC 62061, EN ISO 13849, EN ISO 14119 and ISO/TR 24119 to see how fault exclusions and serial connection impacts the reliability of the safety related parts of control systems.

2) For MKey9, the pair of contacts for the actuator key and the pair of contacts for the locking cannot be used independently of each other. See the manual for more

information.

2006/42/EC - Machinery 2014/30/EU - EMC 2011/65/EU - RoHS EN ISO 12100:2010, EN ISO 14119:2013, EN 60204-1:2006:+A1:2009, EN 60947-1:2007:+A1:2011, EN 60947-5-1:2004:+A1:2009

Head: Polyester or stainless steel 316

SSH: IP67 MKey5Z, MKey5+Z: IP67, IP69K

MKey8 MKey9

MKey9: 2 NO + 1 NC

MKey8M: 1 NO + 1 NC

MKey8M: 2 NO

MKey8, MKey8M, MKey8ER: Die cast painted red MKey8Z: Stainless steel 316

MKey8, MKey8M, MKey8ER: IP67 MKey8Z: IP67, IP69K

1 NO + 1 NC MKey9: 2 NO + 1 NC

MKey9M: 2 NO

Body: Glass filled polyester Head: Stainless steel 316

IP67

More information

For more information, e.g. the complete technical information, see product manual: MKey5 2TLC172244M0201 MKey8 2TLC172245M0201 MKey9 2TLC172246M0201

Page 26

32124

FRONT ENTRY

4– 2 6 SAFET Y PRODUCTS CATALOG ABB JOKAB SAFETY

—

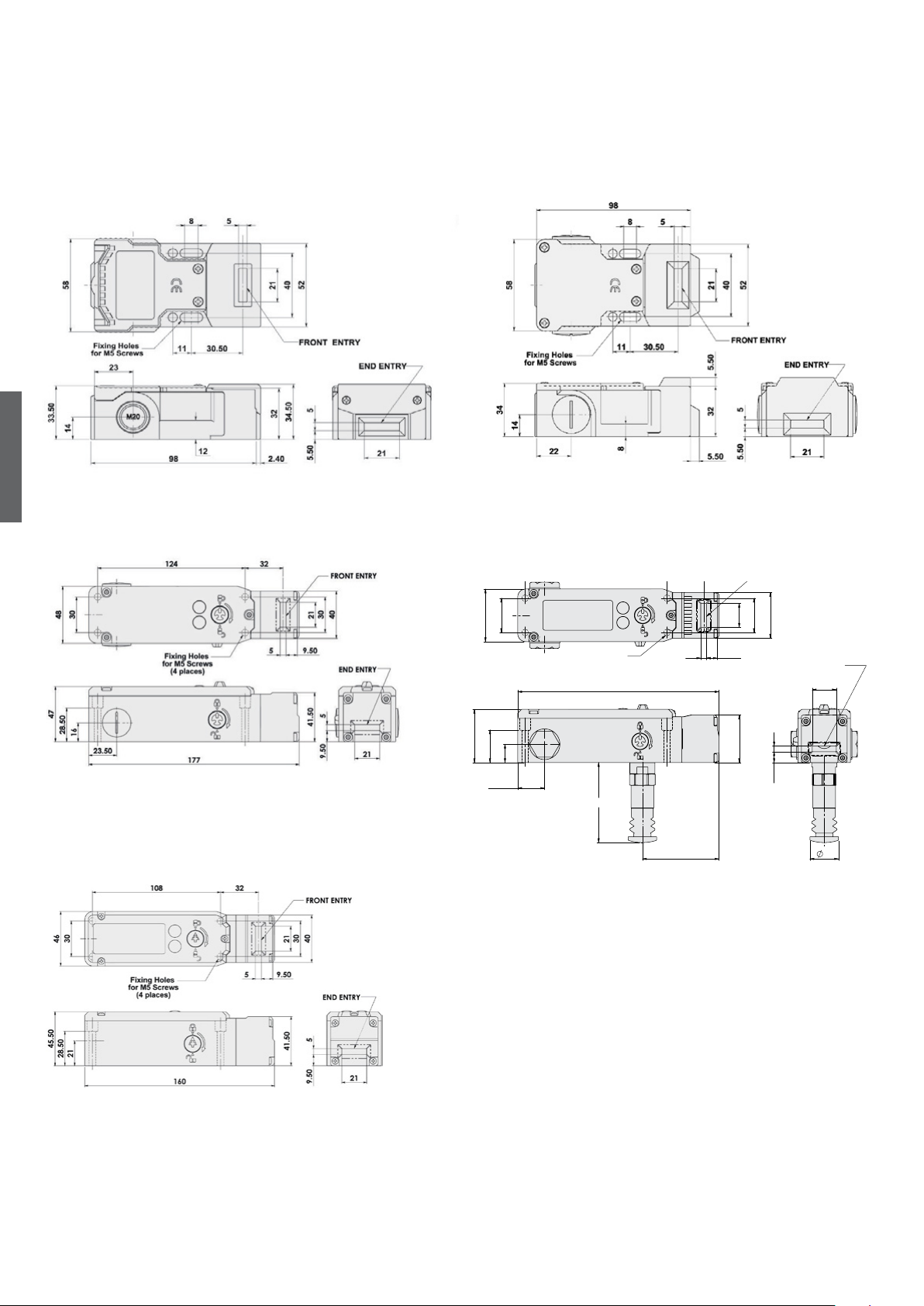

Dimension drawings

MKey

MKey5

MKey8 and MKey8M MKey8ER

MKey5Z

Fixing Holes

for M5 Screws

176

9.50

21540

END ENTRY

MKey9 and MKey9M

All dimensions in mm

28.50

23.50

41.50

9.50 5

Page 27

SENSORS AND LOCKS 4 – 27

Page 28

4– 2 8 SAFET Y PRODUCTS CATALOG ABB JOKAB SAFETY

—

Electromagnetic process lock

Magne

Magne is an electromagnetic process lock intended for locking doors and hatches.

Magne is usually used to prevent unwanted process interruptions, e.g. during a welding operation.

Magne models with inte grated Adam

safety sensor make it easy to achieve the highest safety level for the interlocking function.

Reliable in extreme conditions

Sealed aluminium housing

IP67 sealing makes Magne suitable for humid environments.

Robust design

The electromagnetic lock without mechanical moving parts is a robust design with fewer parts that are subject to wear.

Hygienic design

Flat surfaces without cavities or screws sticking out minimize the risk of accumulating dirt on the surface.

Easy to install

M12 connectors

Quick and easy cabling with M12 connectors.

Magnets simplify installation

Electromagnets offer larger mounting tolerances than mechanical locks.

Continuous operation

LED diagnostics

Integrated LED diagnostics reduce down time when troubleshooting.

Strong holding force

A holding force of up to 1500 N prevents unwanted process stops.

Page 29

SENSORS AND LOCKS 4– 29

—

Applications and features

Magne

Applications

Protect the process

Magne 4 is a process lock, with a safe interlocking function. This means that the interlocking function reaches PL e/SIL3 but the unlocking signal is not a safe signal. A typical application is to prevent unintentional/unnecessary interruptions of a sensitive process when the dangerous movement has a very short stop time.

Magne 3 is a simple lock without any interlocking function/ safety function.

Features

PL e in a simple and cost effective way

Magne 4 has an integrated Adam sensor. Models are available with either Adam DYN or Adam OSSD. Eva General code or Eva Unique code is ordered separately. The use of the Eden safety sensor makes it easy to reach PL e/SIL3 for the interlocking function, and enables serial connection of several Magne 4 locks to the Pluto safety PLC using only one input for Eden DYN and two for Eden OSSD. Tina 12A can be used for the serial connection of two Magne 4 locks in order to simplify connection, reduce cabling and risk of connection errors.

Good sealing

With a hygienic enclosure in anodized aluminum and IP67 protection class, Magne is well suited for humid environments.

M12 connectors

Since the Adam sensor is integrated in Magne 4, the amount of cables is reduced so that only one cable is necessary for both the locking of Magne and the interlocking with Eden. The M12 connectors speed up connection and reduce the risk of connection errors.

Optional permanent magnet

Anchor plates for Magne are ordered separately and are available with or without permanent magnet. A permanent magnet holds the door closed when Magne is unlocked, or if there is a power loss. Without the permanent magnet, Magne has no magnetic field when unlocked, which avoids the accumulation of metallic particles on the magnet.

Status indication

Most models offer an info signal indicating whether the Magne is locked or not, which simplifies troubleshooting and improves user friendliness.

Locking and interlocking

An interlocking function indicates if a door is open or closed and prevents movement when the door is open. But it does not prevent the door from being opened. A locking function makes sure the door is kept closed.

Page 30

4– 3 0 SAFETY PRODUCTS CATALOG ABB JOKAB SAFETY

—

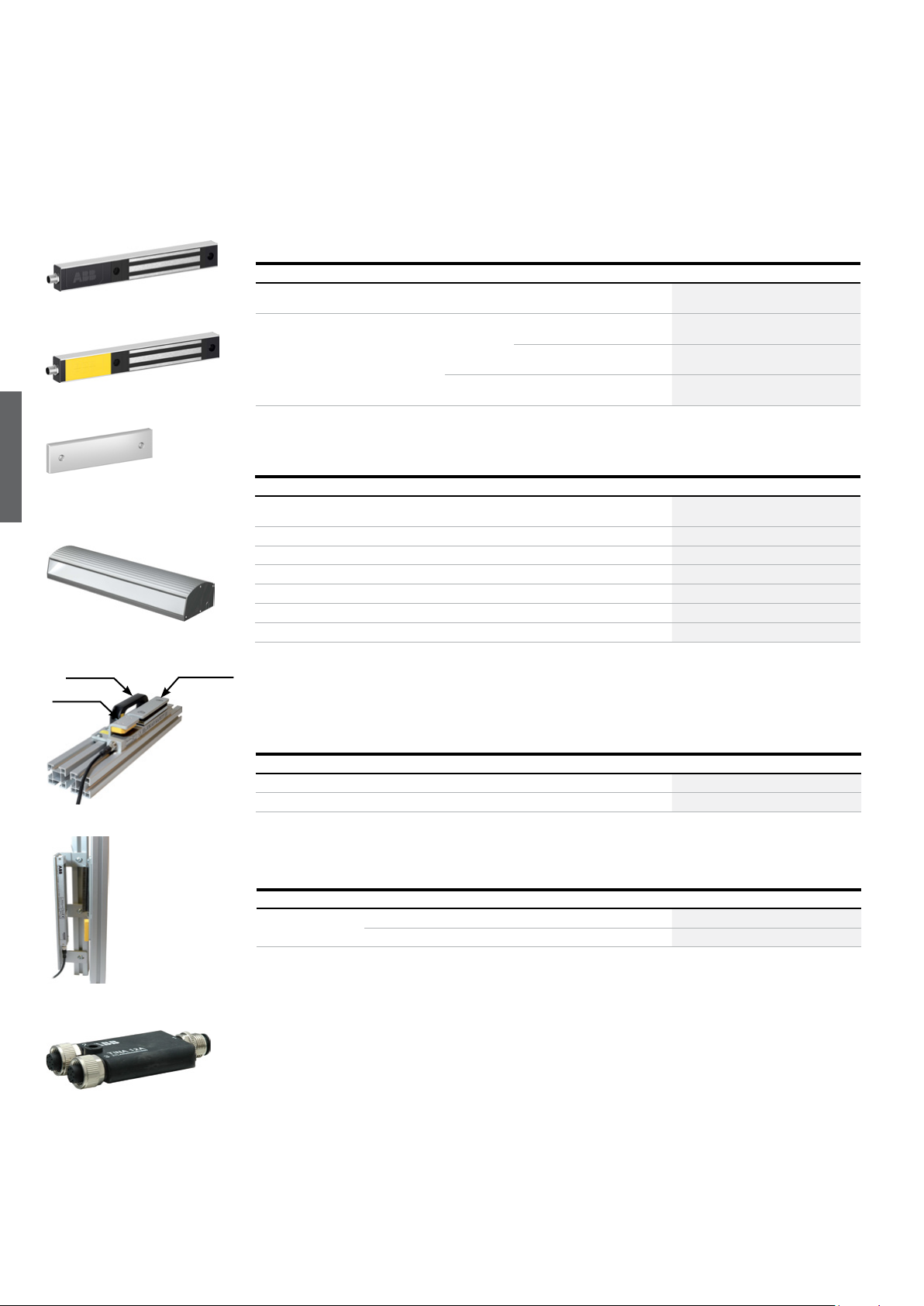

Ordering information

Magne

— Ordering details

For a complete Magne lock both door part and frame parts are

necessary. Magne 4 also requires a separate Eva sensor.

Safe interlocking with integrated Adam Safety signal Extra function Connector Type Order code

2TLC010070V0201

Magne 3

Magne 4

No - - M12-5 male Magne 3X M12-5 2TLA042022R2700

Yes DYNlink - M12-5 male Magne 4X

2TLC010072V0201

OSSD

"Locked" and "Closed" information outputs

DYN M12-5

2TLA042022R3000

M12-8 male Magne 4 DYN-Info 2TLA042022R3400

M12-8 male Magne 4 OSSD-Info 2TLA042022R4600

Anchorplate

JSM D28

JSM D27

JSM D24

2TLC010085V0201

JSM D21B

— Accessories

Description Typ e Order code

Aluminium profile for door handle that completely covers a Magne unit when the door is closed. For

JSM D28 2TLA042023R0100

conventional door (5–15 mm door gap) Mounting kit for Magne. For conventional door (5 -15 mm door gap) * JSM D21B 2TLA042023R0500 Mounting kit for Magne. For sliding door * JSM D23 2TLA042023R0200 Mounting kit for Eva. For conventional door* JSM D24 2TLA042023R0300 Door handle for JSM D21B JSM D27 2TLA042023R1000 Connection block for serial connection of two Magne (M12-8) Tina 12A 2TLA020054R1800

2TLC172167F0201

Cellular rubber, 10 mm thick. Spare part for anchor plate. Cellular rubber 2TLA042023R3600

* All mounting kits include the bolts and nuts necessary to mount Magne on ABB Quick-Guard® fencing system

— Door part

Description Typ e Order code

Anchor plate with permanent magnet. Delivered with cellular rubber. Magne Anchor 32B 2TLA042023R0400 Anchor plate without permanent magnet. Delivered with cellular rubber. Magne Anchor 32A 2TLA042023R1300

—

Eva sensor for Magne 4 models

JSM D23

Tina 12A

Compatible Adam Code description Code level Ty pe Order code

Adam DYN and OSSD General code. (Eva is interchangeable) Low level Eva General code 2TLA020046R0800

Unique code. (Prevents defeat/fraud) High level Eva Unique code 2TLA020046R0900

2TLC172483F0201

Page 31

SENSORS AND LOCKS 4 – 31

—

Cables and connectors

Magne

2TLC172951F0201

M12-C61

2TLC010003F0201

M12-C61HE

2TLC172931F0201

M12-C334

— Cable with connectors

Connector Female/male Length Special feature Typ e Order code

M12-5 Female 3 m M12-C31 2TLA020056R0500

6 m M12-C61 2TLA020056R0000

Harsh environment, halogen free M12-C61HE 2TLA020056R8000

10 m M12-C101 2TLA020056R1000

Harsh environment, halogen free M12-C101HE 2TLA020056R8100

20 m M12-C201 2TLA020056R1400

Female + male 0.3 m M12-C0312 2TLA020056R5800

0.06 m M12-C00612 2TLA020056R6300 1 m M12-C112 2TLA020056R2000 3 m M12-C312 2TLA020056R2100 6 m M12-C612 2TLA020056R2200 10 m M12-C1012 2TLA020056R2300

Angled female connector M12-C1012V2 2TLA020056R6700 16 m M12-C1612 2TLA020056R5400 20 m M12-C2012 2TLA020056R2400

Male 6 m M12-C62 2TLA020056R0200

10 m M12-C102 2TLA020056R1200

M12-8 Female 6 m M12-C63 2TLA020056R3000

10 m M12-C103 2TLA020056R4000 20 m M12-C203 2TLA020056R4100

Female + male 0.06 m M12-C00634 2TLA020056R6400

1 m M12-C134 2TLA020056R5000 3 m M12-C334 2TLA020056R5100

M12-C01

C5 cable

2TLC172657F0201

— Separate cables and connectors

Description Type Order code

Connectors

Cable with 5 conductors

Cable with 8 conductors

2TLC010038F0201

Page 32

4– 3 2 SAFET Y PRODUCTS C ATALOG ABB JOKAB SAFETY

—

Technical data

Magne

— Technical data

Magne 3 Magne 4

Approvals

Conformity

2014/35/EU - Low voltage 2011/65/EU - RoHS EN 60204-1:2006+A1:2009, EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011

2006/42/EC - Machinery 2014/30/EU - EMC 2011/65/EU - RoHS EN ISO 12100:2010, EN ISO 13849-1:2015, EN 62061:2005/A2:2015, EN 60204-1:2006+A1:2009, EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011, EN 60947-5-3:2013, EN ISO 14119:2013, EN 61508:2010

Functional safety data

Electrical data

Mechanical data

EN 61508:2010

EN 62061:2005

EN ISO 13849-1:2008

Operating voltage +24 VDC ± 15%

Holding force

+24 VDC Min 1500 N 0 V, Anchor plate 32A 0 N 0 V, Anchor plate 32B 30 N

Mechanical life >10

switch operations

Operating temperature -20…+50 °C Humidity range 35 to 85% (with no icing or condensation) Protection class IP67

Weight

610 g 700 g

Anchor plate 32A/B 290 g

Material

Anchor plate Iron with nickel coating Electromagnet Iron with zinc-nickel coating Housing Anodized aluminum with parts in polycarbonate Potting PUR, epoxy

Interlocking function: SIL3, PFH Interlocking function: SILCL3, PFH

= 4.50 x 10

Interlocking function: PL e, Cat. 4, PFH

-9

= 4.50 x 10

-9

More information

For more information, e.g. the complete technical information, see product manual for: Magne 2TLC172315M0201

Page 33

158

260

123

6,6(2x)

11 DEEP 7(2x)

91 18,5

11,75

20,75

21,65

Permanent magnet

SENSORS AND LOCKS 4– 3 3

—

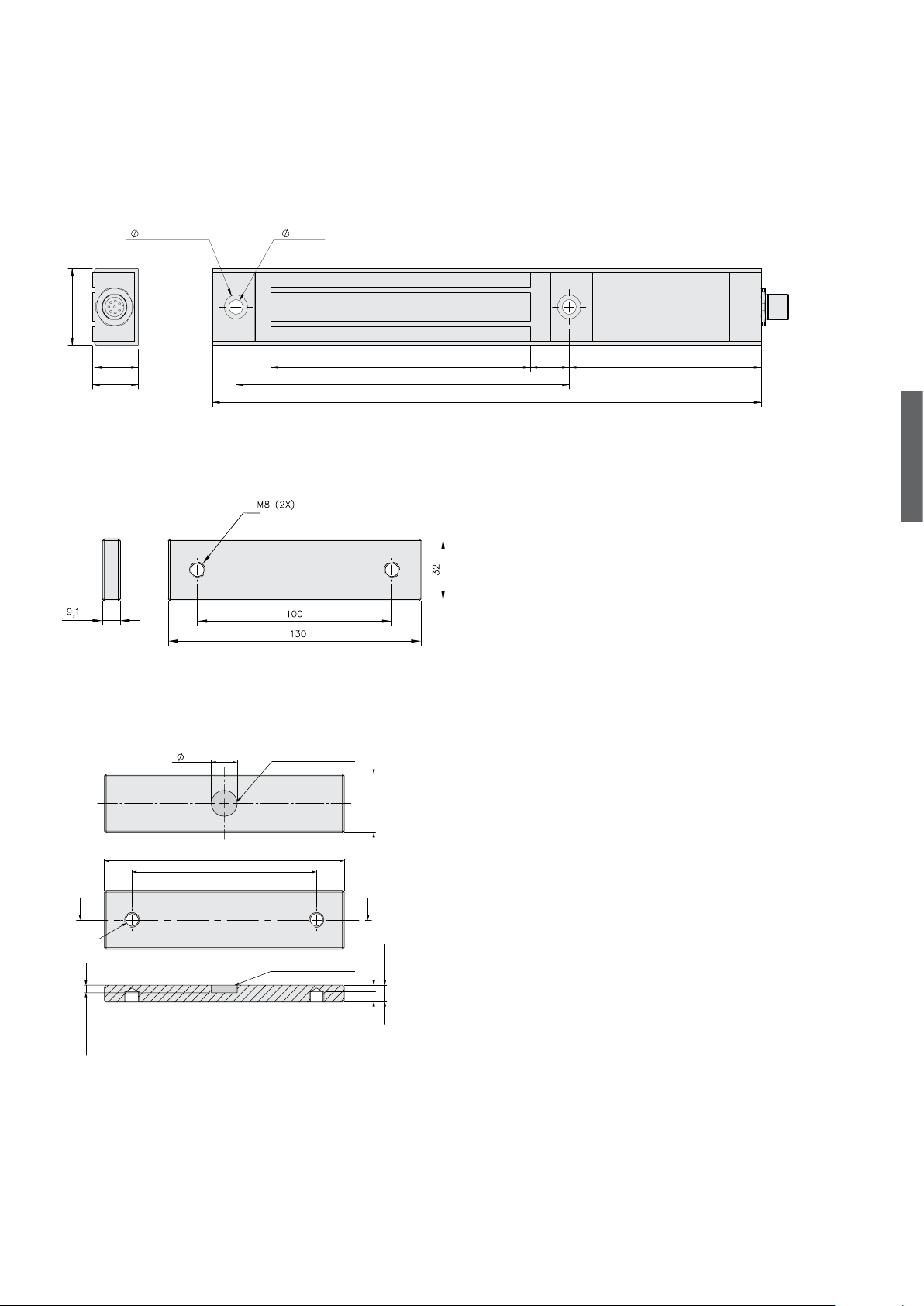

Dimension drawings

Magne

Anchor plate 32A

Anchor plate 32B

M8(2x)

+0,10

4,10 0

All dimensions in mm

130

100 ±0,20

SECTION A-A

Permanent magnet

±0,10

5,50

9,10

Page 34

4-34 SAFETY PRODUCTS CATALOG ABB JOKAB SAFETY

—

Safety lock

GKey

GKey is a robust safety lock with a die cast housing for hinged and sliding doors.

GKey offers an interlocking function reaching PL e/SIL 3 with high level coding. Power is needed to unlock

GKey which makes GKey a safety lock.

GKey is fitted with a rear escape release button and manual unlocking (auxiliary release).

GKey offers four positions for 22 mm pilot devices.

Safety and protection Reliable in extreme

Easy to install

conditions

Escape release

The door can always be opened from inside the danger zone using the escape release button.

High level coding

A standard mechanical interlock combined with RFID coding offers high level coding.

Integrated buttons

There are four positions in the key housing that can be used for integrating push buttons, switches or pilot lights.

Robust design

Made of die cast aluminum alloy with a robust construction, GKey is ideal for use in mechanically demanding environments.

Lockout function

GKey can be padlocked off for safe working.

Page 35

—

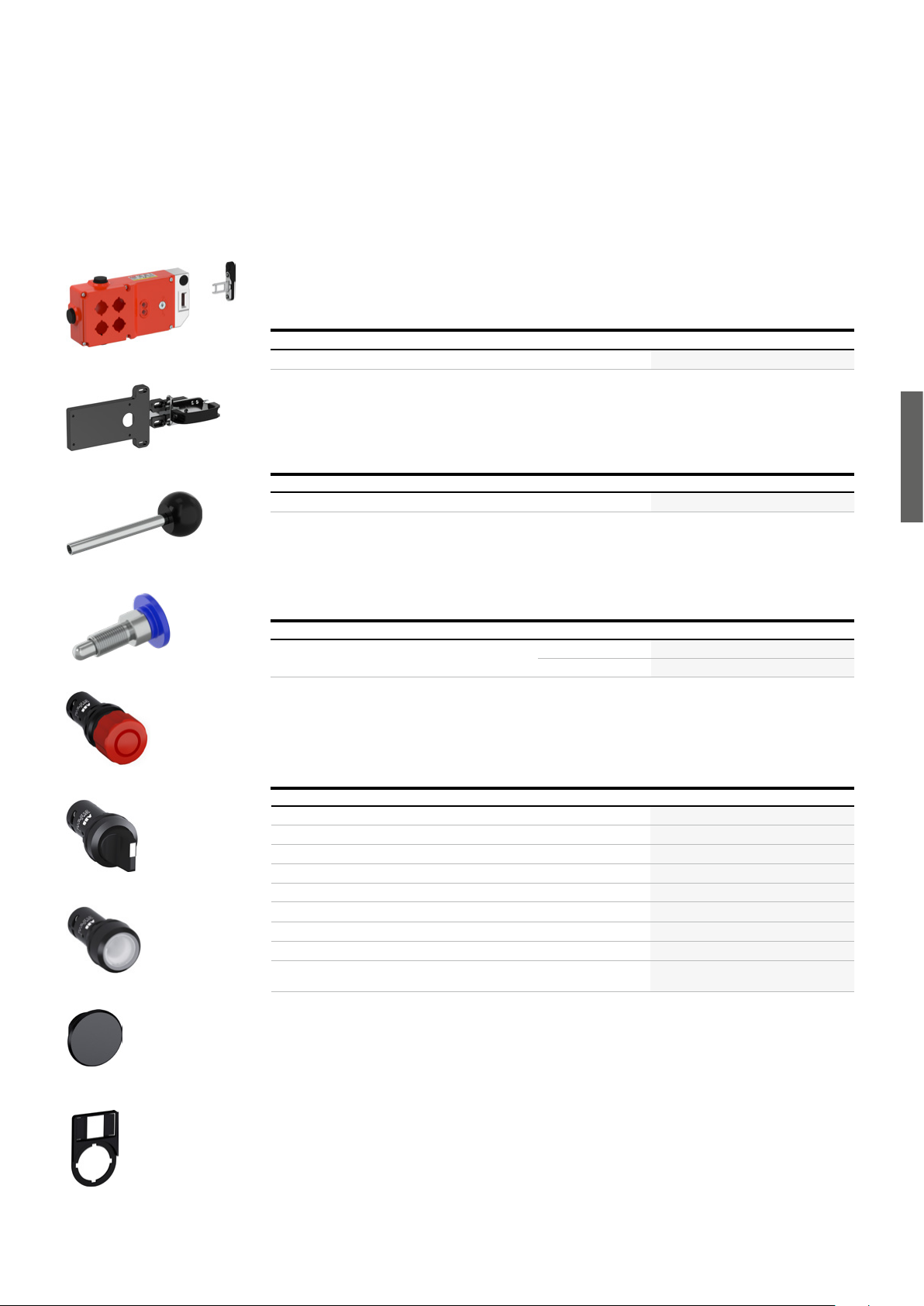

Ordering details

GKey

GKey4 RU

FHS GKey4

SENSORS AND LOCKS 4 -35

— Ordering Details

For a complete safety lock, a switch and a mounting plate with front handle must be ordered separately. Rear handle, spring catch, pilot dev ices and blanking plugs for the unused positions are available and also ordered separately.

— Switches

All models are fitted with an escape release button and delivered with a high level coded RFID actuator.

Material (body) Positions for pilot devices Manual unlock Ty pe Order code

Die cast 4 Yes GKey4 RU 2TLA050304R0002

— Mounting plate with front handle

The handle can be mounted on hinged doors and sliding doors, on the left or on the right. Note that door and frame must be aligned when the door is closed. Each order code includes a mounting plate for the switch and a front handle.

Type of handle Material (mounting plates and sliding bolt) Typ e Order code

Sliding Die cast FHS GKey4 2TLA050310R0032

RHS GKey MKey

SCS GKey MKey

CE3P-10R-02

C2SS1-10B-20

CP1-11C-10

— Accessories - Rear handle and spring loaded catch

The spring loaded catch prevents from closing the door by mistake. When the sliding handle is in open position, the catch must be pulled in order to be able to push back the handle to closed position.

Type of handle Material Description Type Order code

Sliding Die cast Rear handle RHS GKey MKey 2TLA050040R0510

Spring catch SCS GKey MKey 2TLA050040R0511

— Accessories - Pilot devices

Pilot devices and blanking plugs must be ordered separately. Make sure that the total amount is 4, so that all holes in GKey4 are covered.

Description Contacts Illuminated Voltage Type Order code

Emergency stop button Selector switch Push button Green Push button Yellow Push button Blue Push button White/Clear Push button Black Blanking plug Black

Legend plate holder (without insert)

2NC No 24 V AC/DC CE3P-10R-02 1SFA619501R1051 2NO No 24 V AC/DC C2SS1-10B-20 1SFA619200R1026 1NO Ye s 24 V AC/DC CP1-11G-10 1SFA619100R1112 1NO Ye s 24 V AC/DC CP1-11Y-10 1SFA619100R1113 1NO Ye s 24 V AC/DC CP1-11L-10 1SFA619100R1114 1NO Ye s 24 V AC/DC CP1-11C-10 1SFA619100R1118 1NO No 24 V AC/DC CP2-10B-10 1SFA619101R1016

MA1-8130 1SFA611920R8130 KA1-8120 1SFA616920R8120

MA1-8130

KA1-8120

Page 36

4-36 SAFET Y PRODUCTS C ATALOG ABB JOKAB SAFETY

—

Technical data

GKey

— Technical data

Approvals

Conformity

2006/42/EC – Machinery 2014/53/EU – RED 2011/65/EU – RoHS2 2015/863 – RoHS3 EN ISO 12100:2010, EN ISO 14119:2013, EN ISO 13849-1:2015, IEC 62061:2005+A2:2015, IEC 60947-5-3:2013, IEC 609471:2014, EN 60204-1:2018, EN 301 489-1 V2.1.1, EN 301 489-3 V1.6.1

Functional safety data

EN 62061:2005+A1:2013 SIL3

PFH = 4.77 x 10

PFD = 4.18 x 10 Proof test interval T

EN ISO 13849-1:2008 PL e (if both channels are used in conjunction with a SIL3/PL e control device),

Category 4, MTTF

Assumptions d

= 365d, hop = 24h

If the product usage differs from these assumptions (different load, operating frequency, etc.) the values must be adjusted accordingly.

Electrical data

Operating voltage +24 VDC ± 10% Holding force 3000 N

Mechanical data

Connection M20 (x3) Operating temperature -25 °C ... +40 °C Protection class IP65.

-10

(corresponds to 4.8% of SIL3),

-5

(corresponds to 4.2% of SIL3)

= 20 a

= 1100 a, DC high

More information

For more information, e.g. the complete technical information,see product manual: GKey 2TLC0100 48 M0201

Connection diagrams

For GKey connection diagrams please see https://library.abb.com/

Electrical connection

Actuator must be in place and RFID coding verified for the safety contacts to close.

Page 37

SENSORS AND LOCKS 4-37

—

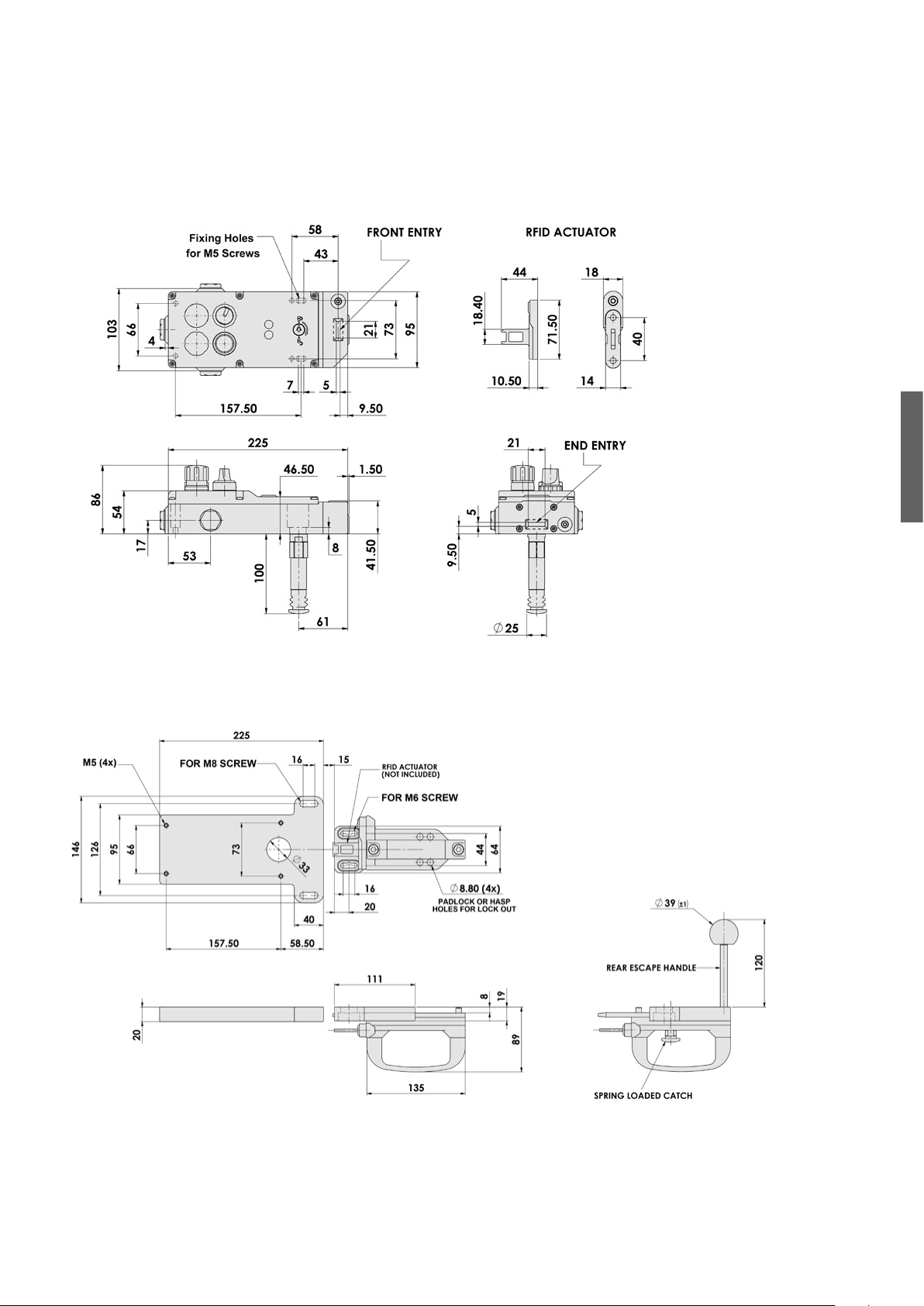

Dimension drawings

GKey

Dimensions - GKey4 switch and actuator

Dimensions - FHS GKey4 with rear handle and spring loaded catch

All dimensions in mm

Page 38

SAFETY PRODUCTS CATALOG ABB JOKAB SAFETY
