Page 1

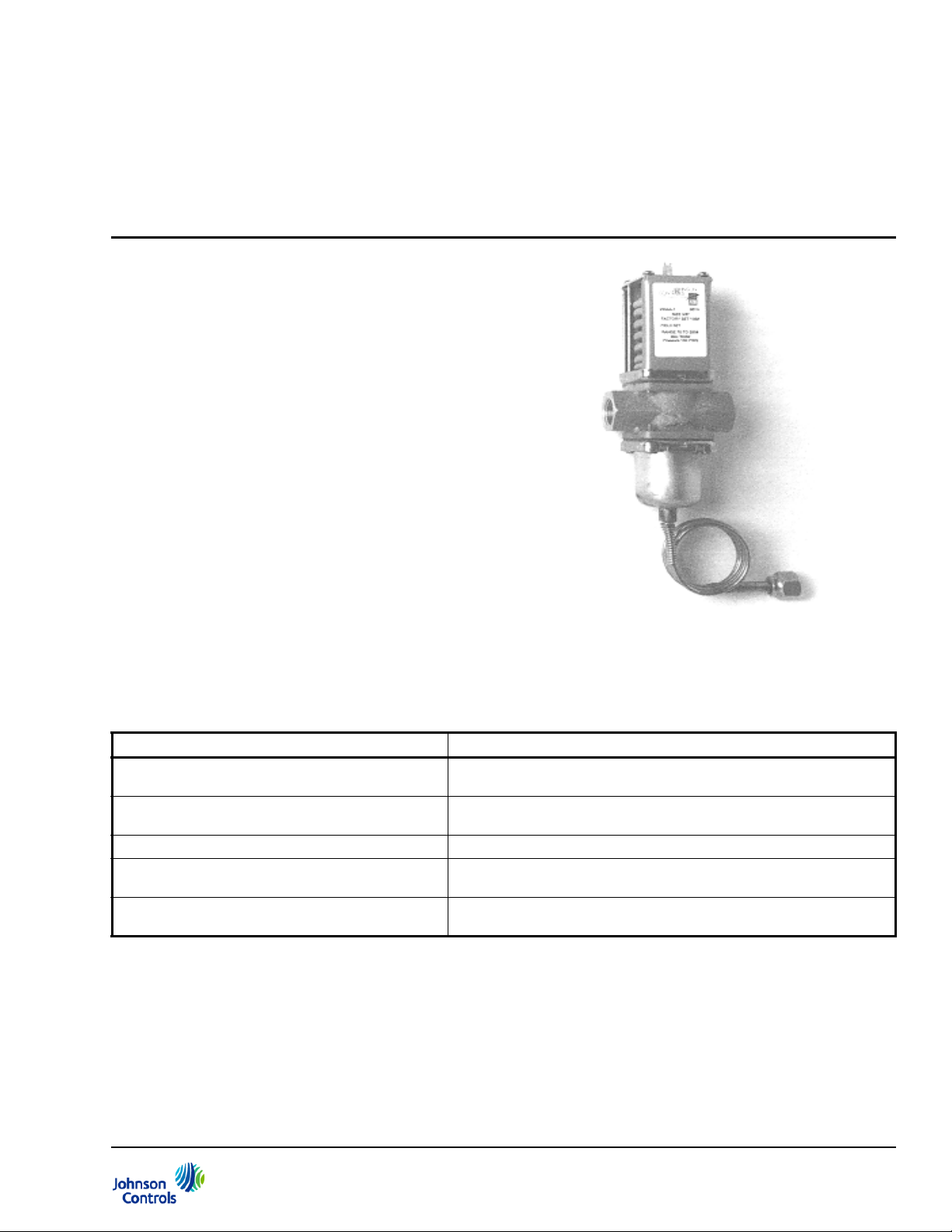

Figure 1: V46 Pressure-Actuated Water-

Regulating Valve

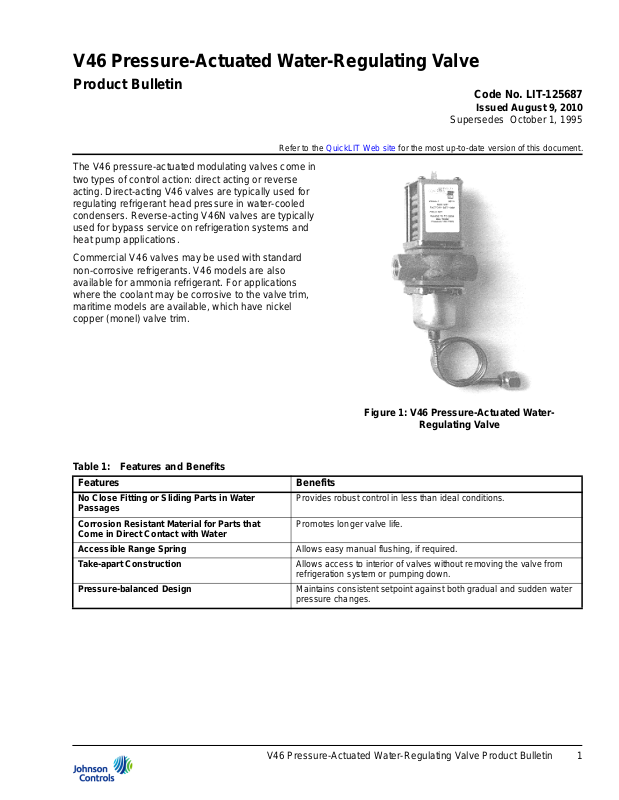

V46 Pressure-Actuated Water-Regulating Valve

Product Bulletin

Refer to the QuickLIT Web site for the most up-to-date version of this document.

The V46 pressure-actuated modulating valves come in two types of control action: direct acting or reverse acting. Direct-acting V46 valves are typically used for regulating refrigerant head pressure in water-cooled condensers. Reverse-acting V46N valves are typically used for bypass service on refrigeration systems and heat pump applications.

Commercial V46 valves may be used with standard non-corrosive refrigerants. V46 models are also available for ammonia refrigerant. For applications where the coolant may be corrosive to the valve trim , maritime models are available, which have nickel copper (monel) valve trim.

Code No. LIT-125687

Issued August 9, 2010

Supersedes October 1, 1995

Table 1: Features and Benefits

Features Benefits

No Close Fitting or Sliding Parts in Water Passages

Corrosion Resistant Material for Parts that Come in Direct Contact with Water

Accessible Range Spring Allows easy manual flushing, if required. Take-apart Construction Allows access to interior of valves without removing the valve from

Pressure-balanced Design Maintains consistent setpoint against both gradual and sudden water

Provides robust control in less than ideal conditions.

Promotes longer valve life.

refrigeration system or pumping down.

pressure changes.

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin 1

Page 2

Application Overview

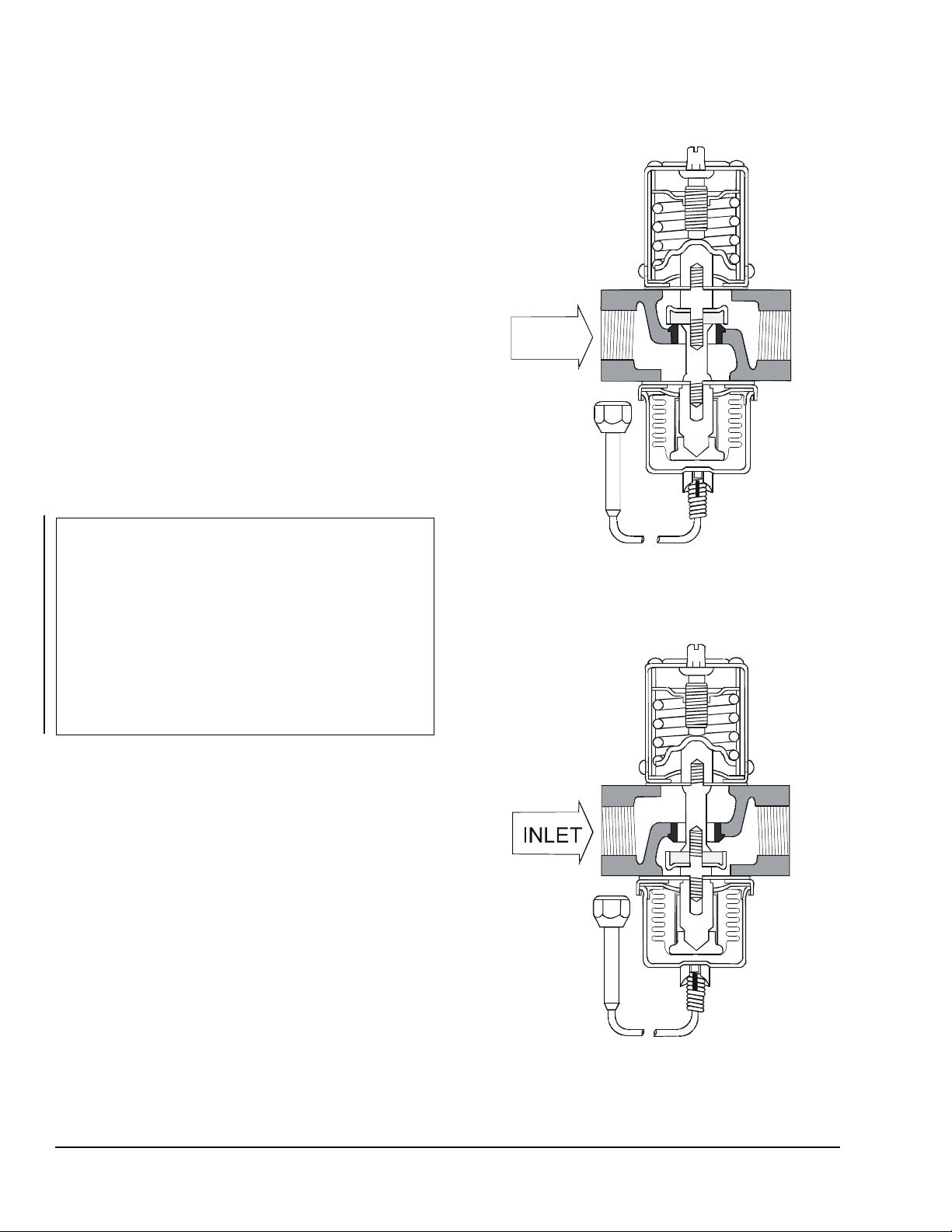

Figure 2: Threaded Type Direct-Acting Valve

Cross Section

INLET

FIG:thd_da_crss

Figure 3: Threaded Type Reverse-Acting Valve

Cross Section

FIG:thd_ra_crss

The V46 direct-acting models open on an increase in pressure. Models A, B, and C are typically used for regulating water-cooled condensers, while the low flow D model is generally used in ice machines. The reverse-acting V46N valve model closes on an increase in pressure and is typically used for bypass service on refrigeration systems and heat pumps that control water temperature.

Commercial V46 valves are available in 3/8 in. through 2-1/2 in. sizes. Commercial all range models (3/8 through 1-1/2 in.), may be used with standard non-corrosive refrigerants, or ammonia refrigerant applications, depending on the model.

V46 Series valves also come in models designed for Navy or maritime salt water applications. These valve bodies are constructed of bronze, and any metal part s that come into contact with salt water are constructed of nickel copper (monel), which withstands the corrosive action of salt water.

IMPORTANT: The V46 Pressure-Actuated WaterRegulating Valve is intended to control water flow under normal operating conditions. Where failure or malfunction of the V46 valve could lead to personal injury or property damage to the controlled equipment or other property, addition a l pr e cau tio n s must be designed into the control system. Incorporate and maintain other devices, such as supervisory or alarm systems or safety or limit controls, intended to warn of or protect against failure or malfunction of the V46 valve.

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin2

Page 3

Valve Sizing

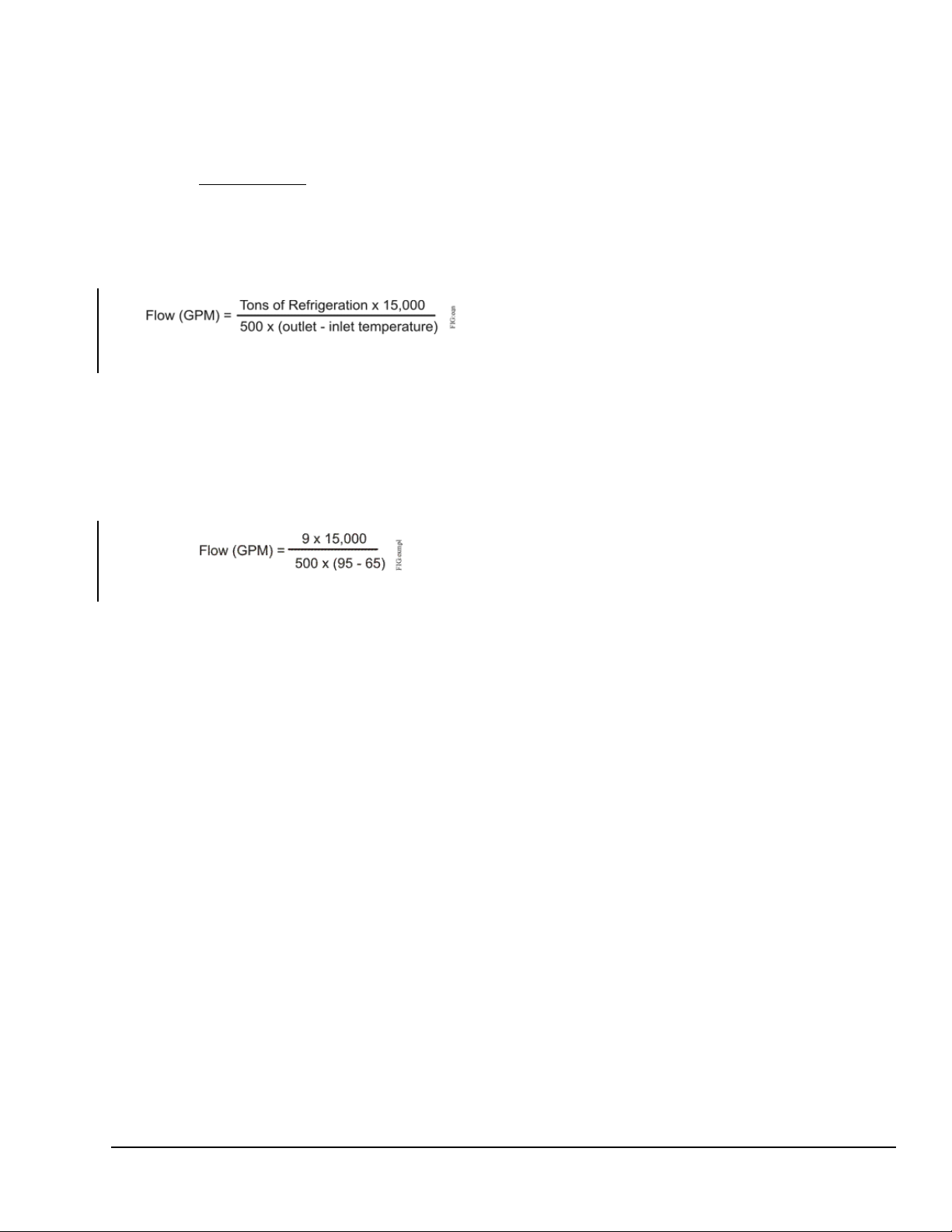

Figure 4: Flow Equation

Figure 5: Example

Follow Step s 1 through 3, and use the information obtained to locate a point on one of the flowcharts found under V46 Flowcharts steps.

1. Determine maximum water flow required using tables provided by the manufacturer of the condensing unit, or calculate the flow using the following formula:

Note: If the outlet water temperature is unknown, assume it to be 10°F below the condensing temperature.

Example: A 9-ton capacity system has an inlet water temperature of 65°F and an outlet water temperature of 95°F. The maximum required water flow is:

2. Determine refrigerant head pressure rise above the valve opening point.

a. V alve closing po int (to assure closure under all

conditions) must be the refrigerant pressure equivalent to the highest ambient air temperature the equipment will be subjected to in the off cycle. Read this in psig from a Saturated Vapor Table for the refrigerant selected.

b. To determine the valve opening point, add

about 7 psig (48 kPa) to the closing point.

c. From the same table, read the operating head

pressure corresponding to the selected condensing temperature.

d. Subtract the valve opening point from the

operating head pressure. This gives the head pressure rise.

that satisfies all three

3. Determine water pressure drop across the valve. This is the pressure actually available to force water through the valve.

a. Determine minimum water pressure available

from city mains or other sources.

b. From condensing unit manufacturer’s tables,

read the pressure drop through cond en se r corresponding to the required flow.

c. To the value found in 3b, add the estimated or

calculated drop through installed piping.

d. Subtract the total condenser, piping, and static

head (if applicable) pressure drop from the available water pressure found in 3a. This is the available pressure drop across the valve.

4. Select the proper valve size from the V46 flowcharts by locating a point on a chart that will satisfy the flow, the head pressure rise above opening point, and the pressure drop across the valve.

Example: The required flow for a low-range system is found to be 27 GPM. Condensing pressure is 125 psig, and the maximum ambient temperature is estimated at 86°F. City water pressure is 40 psig and the manufacturer’s table give s a pressure drop through the condenser and the accompanying piping and valves at 15 psi. Drop through the installed piping is approximately 4 psi.

Step 1: 27 GPM Step 2: Closing point is pressure of refrigerant

corresponding to 86°F = 93 psig Opening point = 93+7 = 100 psig Operating head pressure = 125 psig Head pressure rise = 125-100 = 25 psi

Step 3: Minimum pressure = 40 psig Pressure drop through condenser = 15 psi Combined pressure drop = 15+4 = 19 psi Pressure drop across valve = 40-19 = 21 psi

Using a flow of 27 GPM, a head pressure rise of 25 psi, and a pressure drop across the valve of 21 psi, the only valve that satisfies all three criteria is a 1-1/4 in. valve. See the 1-1/4 in. V46 - All Range chart on the next page.

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin 3

Page 4

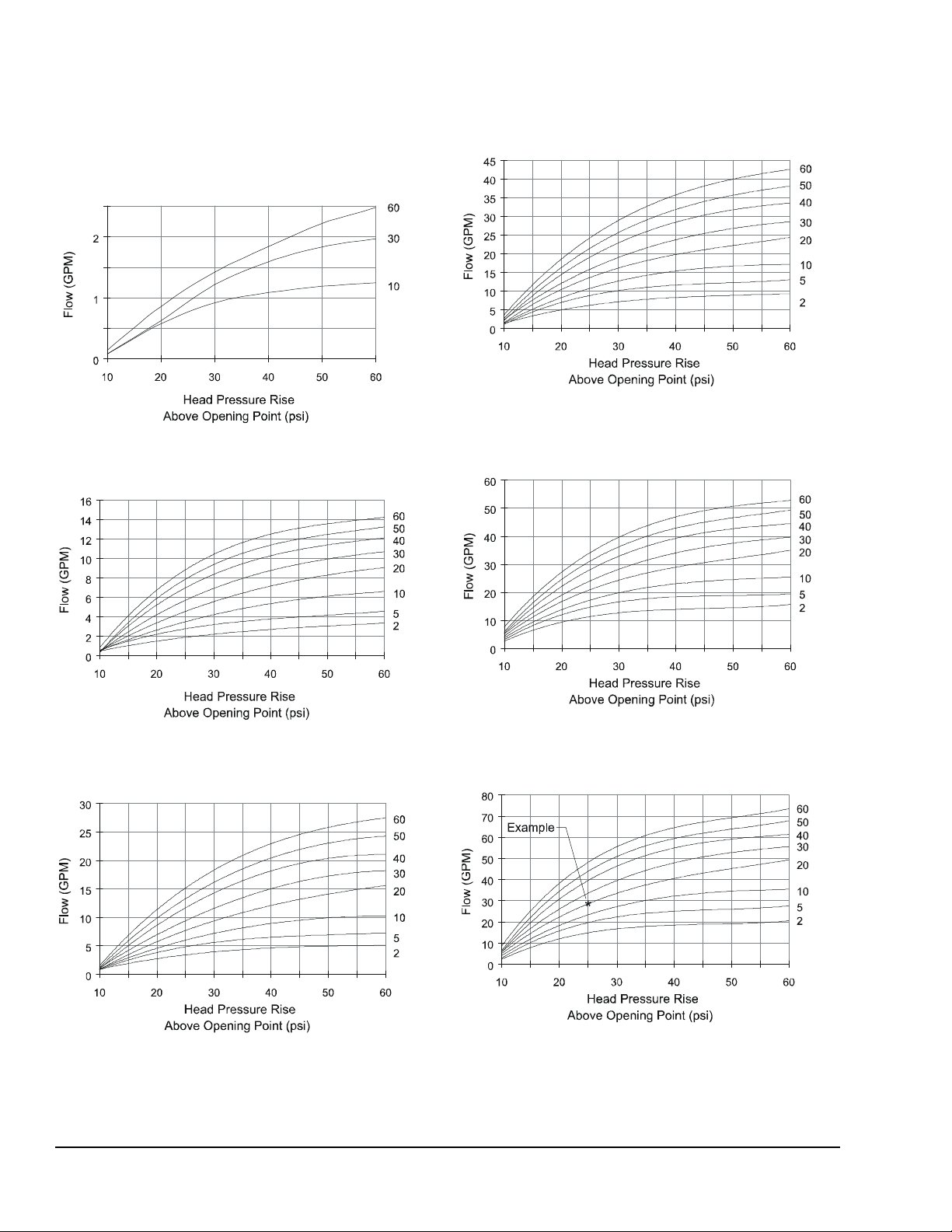

V46 Flowcharts

0.5

1.5

2.5

FIG:3_8_DA_LF

Figure 6: 3/8 in. V46 Direct-Acting Low Flow Valve

FIG:3_8_V46_AR

Figure 7: 3/8 in. V46 All Range Valve

FIG:1_2_V46_AR

Figure 8: 1/2 in. V46 All Range Valve

3/4 in. V46 - All Range

FIG:3_4_V46_AR

Figure 9: 3/4 in. V46 All Range Valve

FIG:1_V46_AR

Figure 10: 1 in. V46 All Range Valve

ssu

e D

Across

lve

(psi

)

FIG:1_1_4_V46_AR

Figure 11: 1-1/4 in. V46 All Range Valve

The maximum differential water pressure across a valve is 60 psi.

3/8 in. V46DA - Low Flow

3/8 in. V46 - All Range

Pressure Drop Acro s s Valve (psi)

Pressure Drop Across Valve (psi)

1 in. V46 - All Range

1/2 in. V46 - All Range

Pressure Drop Across Valve (psi)

Pressure Drop A cro ss Valve (psi)

1- 1/4 in. V46 - All Range

Pressure Drop Across Valve (psi)

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin4

Page 5

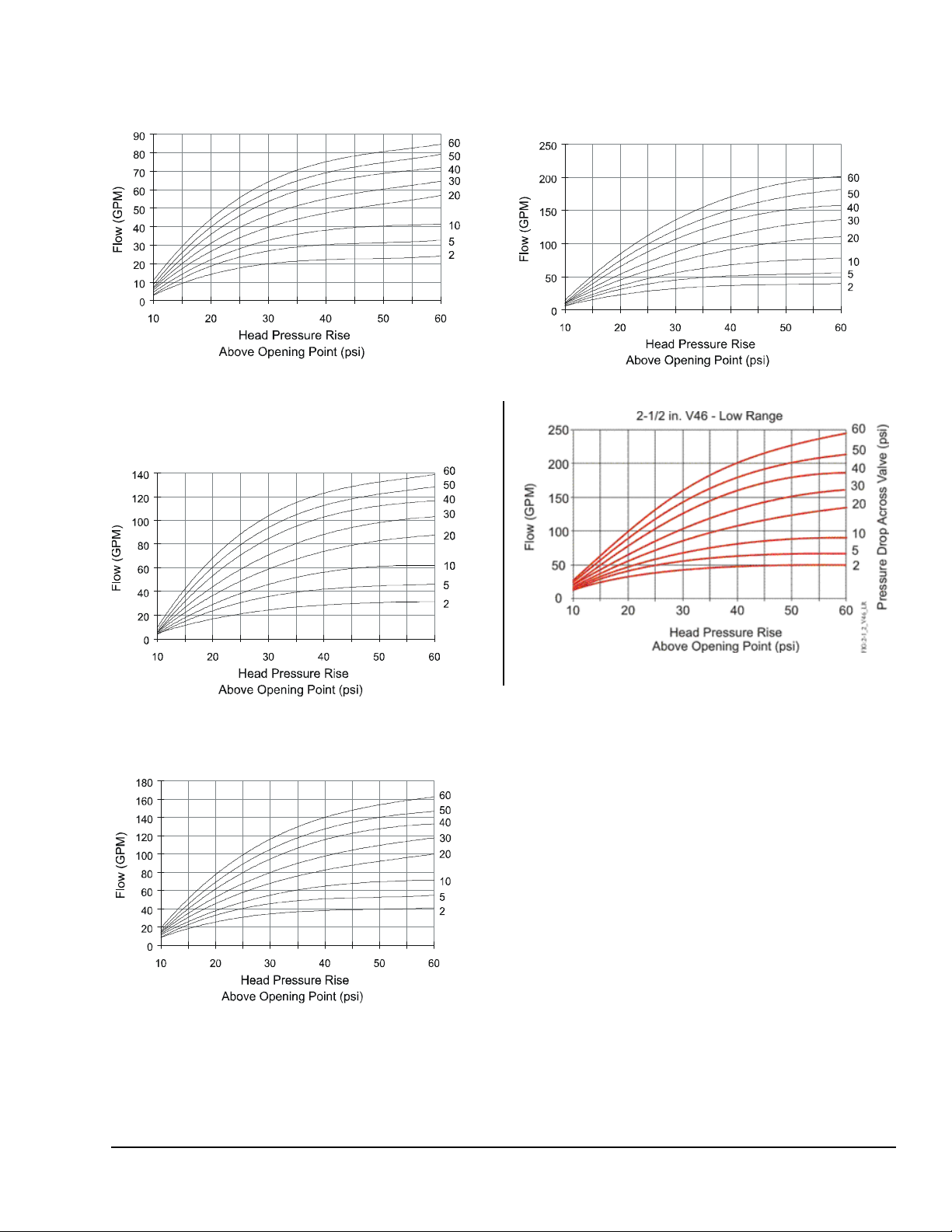

1-1/2 in. V46 - All Range

FIG:1_1_2_V46_AR

Figure 12: 1-1/2 in. V46 All Range Valve

Pressure Drop

Across

Valve (psi

)

2 in. V46 - High Range

FIG:2_V46_HR

Figure 13: 2 in. V46 High Range Valve

Figure 14: 2 in. V46 Low Range Valve

2-1/2 in. V46 - High Range

FIG:2_ 1_2_V46 _HR

Figure 15: 2-1/2 in. V46 High Range

Figure 16: 2-1/2 in. V46 Low Range

Pressure Drop A cross Valve (psi)

Pressure Drop Across Valve (psi)

2 in. V46 - Low Range

Pressure Drop Across Valve (psi)

FIG:2_V46_LR

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin 5

Page 6

Dimensions

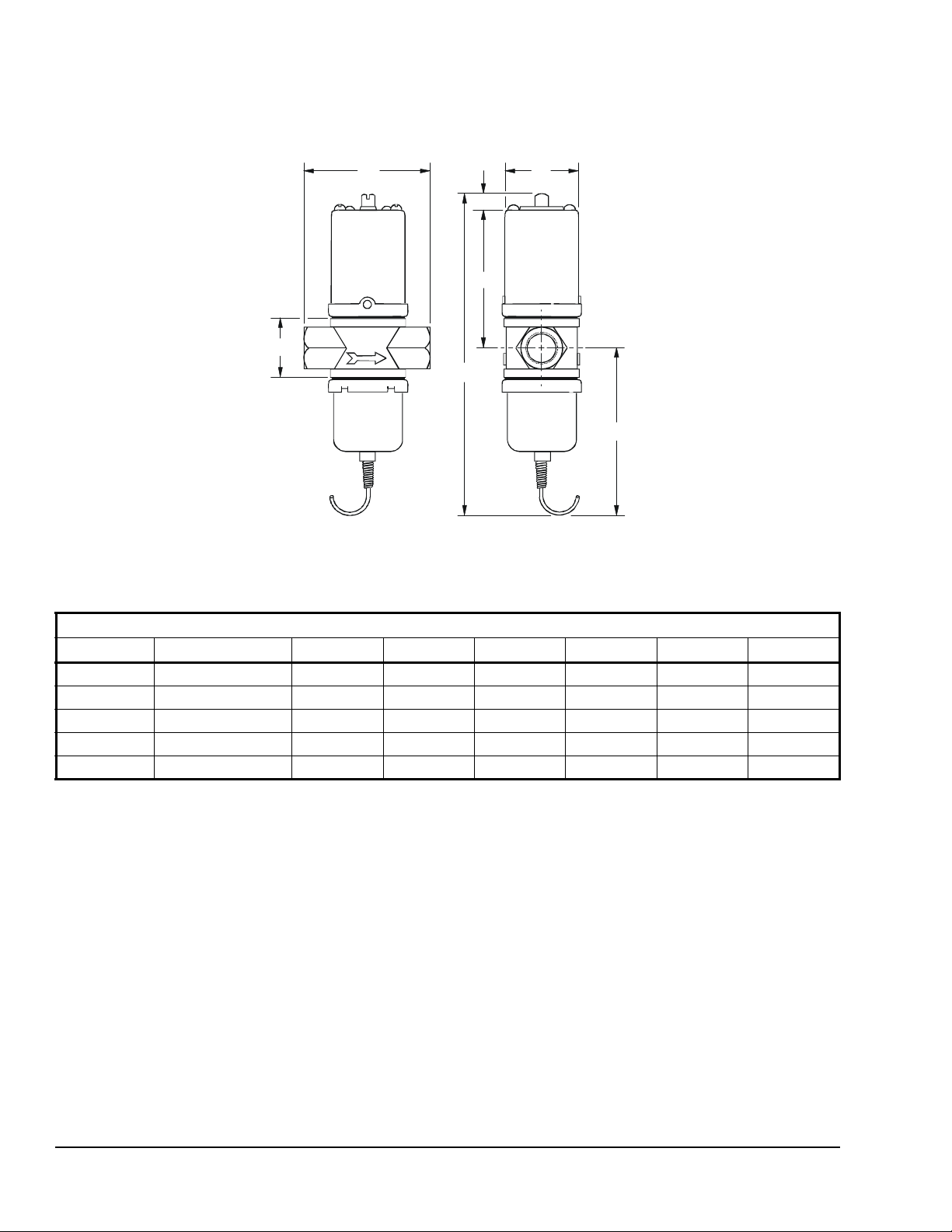

Figure 17: Threaded Type Valves

(E)

(A)

(F)

(C)

(B)

(D)

FIG:V46_thd_dim

(G)

Table 2: Commercial Service V46 Threaded Connection Dimensions

Dimensions in Inches

Valve Size A B C D E F G

3/8 in. 2-5/8 6-3/4 3-1/8 1-1/2 1-1/4 13/32 3-7/32 1/2 in. 3-1/8 (3-1/4) 3/4 in. 3-3/8 (3-5/8) 1 in. 4-1/2 (4-7/8)

1 1 1

1-1/4 in. 4-7/8 11-1/8 5-3/4 2-5/8 2-3/8 1/2 4-29/32

7-13/32 3-3/8 1-27/32 1-1/2 13/32 3-5/8 7-7/8 3-7/8 2-1/32 1-3/4 13/32 3-21/32 10-3/4 5-1/2 2-25/32 2 1/2 4-3/4

1. Values in parenthesis are for maritime valves. All other dimensions remain the same.

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin6

Page 7

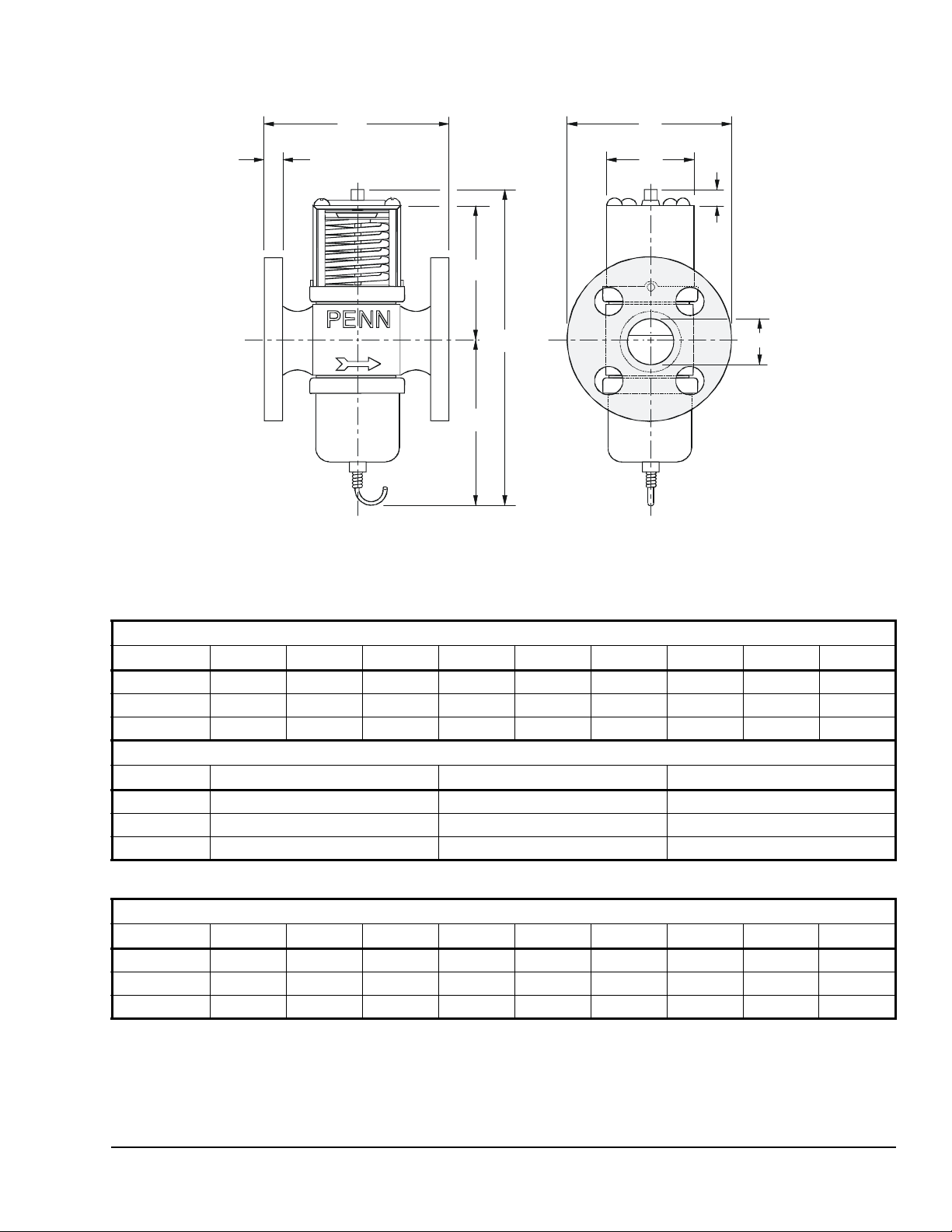

Figure 18: Flange Type Valves

(A)

(D)

(C)

(I)

(E)

(G)

(H)

(B) (F)

FIG:V46_flng_dim

Table 3: Commercial Service: V46 Flange Connection Dimensions

Dimensions in Inches

Valve SizeABCDEFGH I

1-1/2 in. 5-5/16 11-1/8 5-3/4 9/16 5 1-7/8 2-5/8 1/2 4-29/32 2 in. 6-5/8 13 6-15/32 5/8 6 2-1/4 3-1/2 1/2 6-1/8 2-1/2 in. 6-3/4 13-1/2 6-3/8 3/4 7 2-23/32 3-1/2 1-1/32 6-3/32

Flange Specifications

Valve Size Number of Holes Hole Size Bolt Circle

1-1/2 in. 4 5/8 3-7/8 2 in. 4 3/4 4-3/4 2-1/2 in. 4 3/4 5-1/2

Table 4: Maritime Service: ASME Flange Connection Dimensions

Dimensions

Valve SizeABCDEFGH I

1-1/2 in. 5-5/16 10-1/2 5-5/8 9/16 5 1-7/8 2-5/8 1/2 5 2 in. 6-3/8 13-1/8 6-1/2 1/2 6 2-3/4 3-1/2 5/8 6 2-1/2 in. 6-3/4 13-1/8 6-1/2 11/16 7 2-3/4 3-1/2 5/8 6

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin 7

Page 8

Table 4: Maritime Service: ASME Flange Connection Dimensions

Maritime Service: ASME Flange Specifications

Valve Size Number of Holes Hole Size Bolt Circle

1-1/2 in. 4 5/8 3-7/8 2 in. 4 3/4 4-3/4 2-1/2 in. 4 3/4 5-1/2

Table 5: Navy BuShips Service: Navy Flange Connection Dimensions

Dimensions in Inches

Valve SizeABCDEFGH I

3/4 in. 4-3/16 7-3/4 4 7/16 3-13/16 1-1/8 2-1/32 1/2 3-5/16 1 in. 5-5/16 9 4-1/2 1/2 4-1/4 1-1/4 2-5/8 1/2 4 1-1/4 in. 5-5/16 9-11/32 4-11/16 1/2 4-1/2 1-5/8 2-5/8 1/2 4-5/32 1-1/2 in. 5-5/16 10-7/32 5-3/4 1/2 5-1/16 1-7/8 2-5/8 1/2 4 2 in. 6-3/8 14-1/8 6-13/32 1/2 5-9/16 2-3/4 3-1/2 7/16 7-9/32 2-1/2 in. 6-3/8 14-5/16 6-1/2 1/2 6-1/8 2-3/4 3-1/2 5/8 7-3/16

Navy Flange Specifications

Valve Size Number of Holes Hole Size Bolt Circle

3/4 in. 4 9/16 2-11/16 1 in. 49/163-1/8 1-1/4 in. 49/163-3/8 1-1/2 in. 6 9/16 3-15/16 2 in. 6 9/16 4-7/16 2-1/2 in. 69/165

Mounting

CAUTION: Risk of Environmental and Property Damage.

Coil and secure excess capillary tubing away from contact with sharp or abrasive objects or surfaces. Vibration or sharp or abrasive objects in contact with capillary tubes can cause damage that may result in loss of element charge, which may result in damage to the environment or property.

CAUTION: Risk of Environmental and Property Damage.

Avoid sharp bends in the capillary tubes. Sharp bends can weaken or kink capillary tubes, which may result in refrigerant leaks or restrictions of flow.

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin8

Flush water lines to clear any foreign matter that may interfere with valve operation. Mount valves vertically on the inlet side of the condenser with spring housing up. If it is necessary to keep the condenser flooded with coolant, the valve can be mounted on the outlet side. When mounting the valve in a position other than vertical, follow the instructions of the equipment in which the valve will be installed. Make refrigerant head pressure connection to bellows. If additional capillary tubing is required, use 1/4 in. O.D. tubing or larger.

Page 9

Adjustment

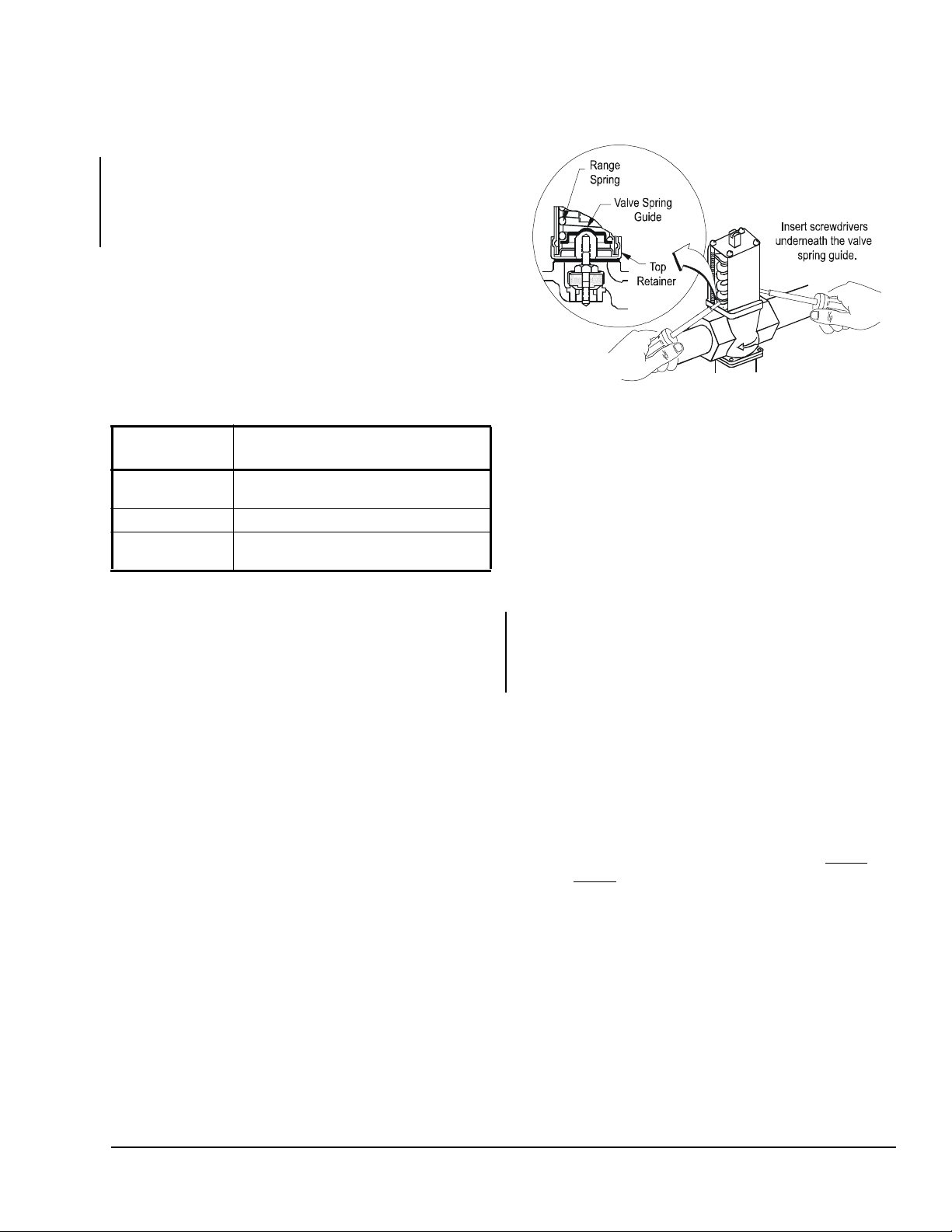

Figure 19: Manual Flushing

FIG:V46_mnl_f lsh

Valves may be adjusted with standard service valve wrenches or screwdrivers; see Table 6. All range valve settings can be changed quickly from low-range refrigerants, such as R134, to high-range refr igerants, such as R22, or from high range refrigerants to lowrange refrigerants. To raise the valve opening point, turn the adjusting screw, located at the top of range spring housing, counterclockwise. See Table 6 and Figure 19. Turn the adjusting screw clockwise to lower the opening point. Exact settings can be made using a pressure gauge in the refrigerant line to determine the throttling point. Put the system under normal operating load and adjust to the desired operating pressure. See Table 15 for pressure range specifications.

Table 6: Range Adjustment Screw

Valve Size

Range Adjusting Screw

(in.)

3/8, 1/2, 3/4 1/4 in. square head adjusting screw

with a screwdriver slot

1, 1-1/4, 1-1/2 5/16 in. square head adjusting screw 2, 2-1/2 1/2 in. square head adjusting screw and

a slotted cam

If the compressor operates in high ambient temperatures, head pressures may remain high enough during off cycles to prevent the valve from closing completely. In such instances, the opening point of the valve should be raised just enough to cause the valve to close during compressor standby periods. This will also raise the throttling point.

Manual Flushing

To clear any sediment that might accumulate, valves may be manually flushed. Insert screwdrivers under both sides of the valve spring guide and lift upwards to flush the valve. See Figure 19. Manual flushing does not affect valve adjustment.

Repair Data

Replacement of the sensing element, internal parts, and the rubber diaphragm can be made. For a replacement valve or replacement part s kit, cont act the nearest Johnson Controls/PENN® distributor. For replacement part kit numbers, see Table 9 through Table 14. For replacement kit instructions and details refer to the following bulletins:

• V46, V47, V48, and V49 Sensing Element Replacement Technical Bulletin, LIT-121700

• V46, V47, 246, and 247 Repair Parts and Service Instructions Repair Bulletin, LIT-121695

Ordering Information

When ordering water valves, specify the following:

1. Complete product number.

2. If product number is not known, answer the following questions and select a valve using Table 10 through Table 14.

a. What is the valve size needed? See Valve

Sizing section.

b. What refrigerant will be used in the system?

See Ta ble 15.

Note: 3/8 in. through 1-1/2 in. valves are supplied with all range construction, allowing a single valve to be used for either low or high range refrigerants.

c. Is a standard open high, or reverse action

close high valve required? See Table 8.

d. Is a commercial, maritime, or Navy service

valve needed? Maritime and Navy valves have bronze bodies and monel internal parts.

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin 9

Page 10

3. Companion flange kit by part number, if required.

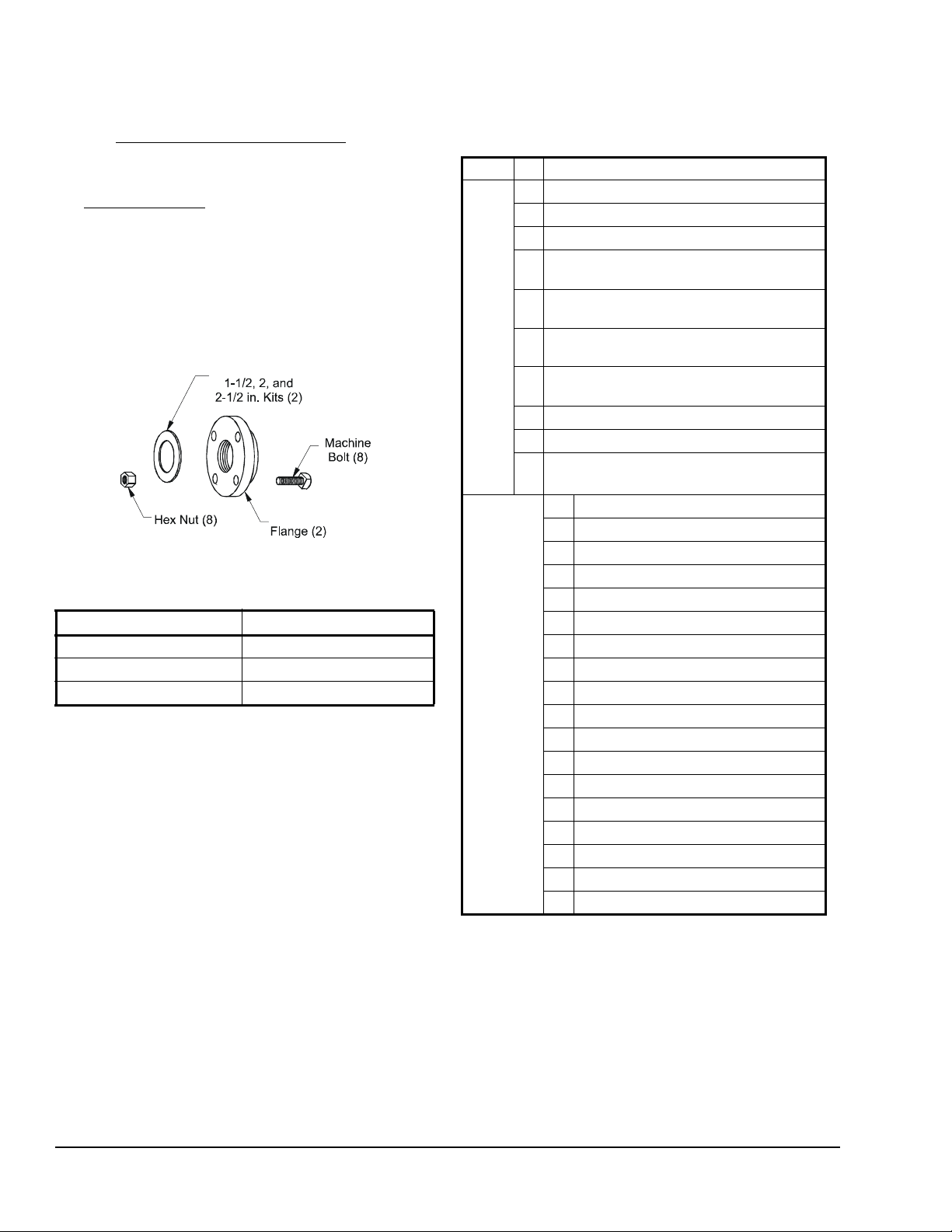

Figure 20: Flange Kit

See Companion Flanges and Gaskets

4. Mounting bracket (3/8 in. and 1/2 in. valve sizes only) if required, and its position on valve. See

Mounting Bracket

Companion Flanges and Gaskets

Kits are available, at additional cost, for 1-1/2, 2, and 2-1/2 in. flange connection (ASME specifications) valves only. Each flange kit contains two ring gaskets, two cast iron flanges, eight machine bolts, and eight hex nuts.

Ring Gasket for

FIG:flng _kt

Cast Iron

Table 7: Companion Flange Kits

Kit Number Water Valve Size

KIT 14A-612 1-1/2 in. KIT 14A-613 2 in. KIT 14A-614 2-1/2 in.

Product Number Selection

For applications that call for valves not listed in Table 10 through Table 14, Table 8 can be used to specify a custom valve. For example, to order a direct-acting, commercial valve with a 1-1/4 in. NPT threaded connection, specify a V46AE. For m ore information, contact Application Engineering at (414) 274-5535.

Table 8: Type Number Selection Matrix

V46 A Open on Rise, Commercial

B Open on Rise, Maritime C Open on Rise, Navy D Open on Rise, Commercial Low Flow E Open on Rise, Commercial with

High Pressure Bellows

F Open on Rise, Maritime with

High Pressure Bellows

G Open on Rise, Navy with

High Pressure Bellows

L Open on Rise, Commercial Low Flow

No-Repair

N Open on Fall, Commercial P Open on Fall, Maritime Q Open on Fall, Commercial Low Flow with

High Pressure Bellows

A 3/8 in. NPT Threaded B 1/2 in. NPT Threaded C 3/4 in. NPT Threaded D 1 in. NPT Threaded E 1-1/4 in. NPT Threaded F 1-1/2 in. NPT Threaded G 9/16–18 Threaded H 3/8 in. Sweat J 1/2 in. Sweat K 3/4 in. Sweat L 1 in. Sweat M 1-1/4 in. Sweat N 3/4 in. Flange P 1 in. Flange Q 1-1/4 in. Flange R 1-1/2 in. Flange S 2 in. Flange T 2-1/2 in. Flange

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin10

Page 11

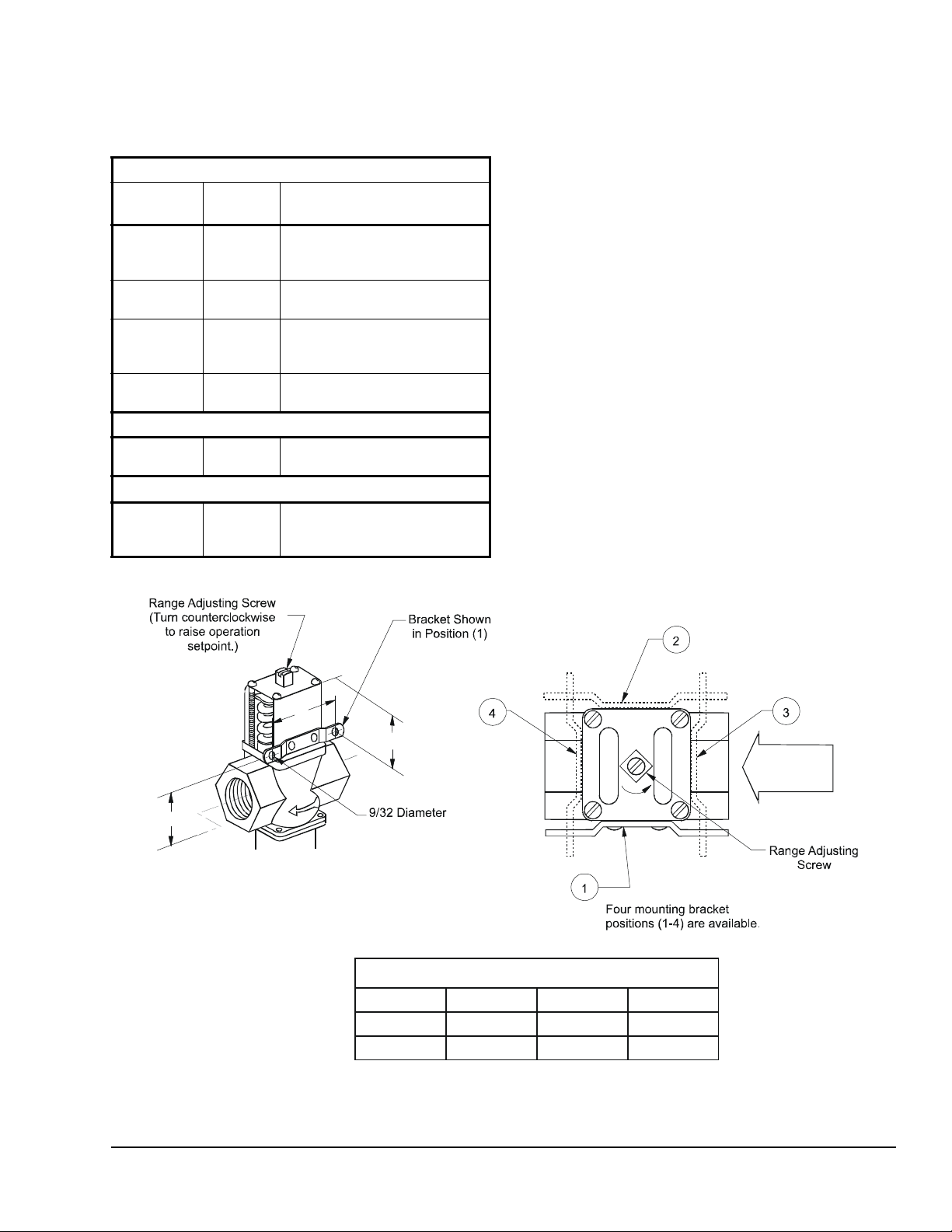

Figure 21: Mounting Bracket for 3/8 in. and 1/2 in. Valves

HIGHER

INLET

Holes (2)

Valve Size A B C

FIG:mtg_brkt

Table 9: Pressure Connection Styles

Commercial Service: Non-corrosive Refrigerant Valve Style

Description

No.

45 30 in. (762 mm) copper

1-1/2 in. and

Smaller 34

2 in. and 2-1/2 in.

5 1/4 in. male flare fitting

capillary with 1/4 in. flare nut and valve depressor

1/4 in. male flare fitting

30 in. (762 mm) copper capillary with 1/4 in. section for sweat or flare connection

Commercial Service: Ammonia

1/2 in. to 2-1/2 in.

15 1/4 in. female NPT

Navy and Marine Service

All Sizes 34 30 in. (762 mm) copper

capillary with 1/4 in. section for sweat or flare connection

Options

Capillary Tubing Length

Standard length is 30 in. on valves 1-1/2 in. and smaller. Optional 48 in. (1,219 mm) capillary can be furnished at additional cost, when specified.

Mounting Bracket

A mounting bracket as illustrated in Figure 2 1, is available on 3/8 in. and 1/2 in. valves only when specified. Desired bracket position must also be specified.

Other styles of brackets on 3/8 in. and 1/2 in. valves available on quantity orders. For more information, contact Application Engineering at (414) 274-5535.

1. Optional, quantity orders only.

Dimensions: in. (mm)

3/8 1/2

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin 11

2 (51) 1.25 (32) 1.38 (35) 2 (52) 1.85 (47) 1.52 (39)

Page 12

Table 10: Direct-Acting Commercial Typ e - Non-corrosive Re frigerant s

Product Size (in .) Inlet and

Outlet

V46AA-1 3/8 NPT Threaded All Range 45 2.3 (1.0) STT14A-600R SEP91A-600R and

V46DA-2 3/8 NPT Threaded Extended

V46AB-1 1/2 NPT Threaded All Range 45 3.3 (1.5) STT15A-602R SEP91A-602R and

V46AC-1 3/4 NPT Threaded All Range 45 4.3 (2.0) STT16A-601R SEP91A-601R and

V46AD-1 1 NPT Threaded All Range 45 9.3 (4.0) STT17A-609R SEP91A-603R and

V46AE-1 1-1/4

Threaded All Range 45 10.0 (4.5) STT17A-610R SEP91A-603R and

NPT

V46AR-1 1-1/2

NPT

4 Hole ASME Flange

V46AS-1 2 4 Hole

ASME Flange

V46AS-2 2 4 Hole

ASME Flange

V46AT-1 2-1/2 4 Hole

ASME Flange

V46AT-2 2-1/2 4 Hole

ASME Flange

Service Element

Style

Shipping

Weight

Seat Repair

Kit

Replacement Power

Element

lb (kg)

SEC37A-601R

45 2.3 (1.0) STT14A-603R SEP91A-600R and

All Range

SEC37A-601R

SEC37A-602R

SEC37A-600R

All Range 45 13.1 (6.0) STT17A-610R SEP91A-603R and

SEC37A-600R

Low Range 5 25.5

STT18A-600R SEP81A-602R

1 3

(11.6)

High Range 5 25.5

STT18A-600R SEP81A-601R

(11.6)

Low Range 5 29.5

STT18A-601R SEP81A-602R

(11.6)

High Range 5 29.5

STT18A-601R SEP81A-601R

(11.6)

1. Replacement element supplied with 1/4 in. SAE connector. Order SEC37A capillary kit with flare nuts separately, if needed. Use only on valves specified.

2. Maximum opening point of 70 to 300 psi (483 to 2,068 kPa), maximum permissible refrigerant pressure of 440 psi (3,034 kPa).

3. Non-stock item, built to order.

Table 11: Commercial Type - Ammonia

Product Size (in.) Inlet and

Outlet

V46AB-11 V46AC-8 V46AD-4 V46AE-4

V46AR-2

1/2 NPT Threaded Ammonia 15 3.2 (1.5) STT15A-602R SEP70A-603R

3/4 NPT Threaded Ammonia 15 4.2 (1.9) STT16A-601R SEP70A-601R

1 NPT Threaded Ammonia 15 7.7 (3.5) STT17A-609R SEP70A-604 R

1-1/4

Threaded Ammonia 15 9.2 (4.2) STT17A-610R SEP70A-604R

NPT

1-1/2 4 Hole

ASME Flange

V46AS-3 2 4 Hole

ASME Flange

V46AT-3 2-1/2 4 Hole

ASME Flange

1. Non-stock item, built to order.

Service Element

Style

Shipping Weight

Seat Repair Kit Replacement

Power Element

lb (kg)

Ammonia 15 12.3 (5.6) STT17A-610R SEP70A-604R

Ammonia 15 25.5

STT18A-600R SEP70A-605R

(11.6)

Ammonia 15 29.5

STT18A-601R SEP70A-605R

(11.6)

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin12

Page 13

Table 12: Reverse Acting Commercial Type - Non-corrosive Refrigerants

Product Size (in.) Inlet and

Outlet

V46NA-1

V46NB-1

3/8 NPT Threaded All Range 45 2.3 (1.0) STT14A-600R SEP91A-600R and

1/2 NPT Threaded All Range 45 3.6 (1.6) STT15A-602R SEP91A-602R and

V46NB-2 1/2 NPT Threaded Low Range 45 3.6 (1.6) STT15A-602R SEP91A-602R and

V46NC-1

3/4 NPT Threaded All Range 45 4.5 (2.0) STT16A-601R SEP91A-601R and

V46NC-2 3/4 NPT Threaded Low Range 45 4.5 (2.0) STT16A-601R SEP91A-601R and

V46ND-1

1 NPT Threaded All Range 45 7.5 (3.4) STT17A-609R SEP91A-603R and

V46ND-2 1 NPT Threaded Low Range 45 7.5 (3.4) STT17A-609R SEP91A-603R and

V46NE-1

V46NE-2

1-1/4 NPT

Threaded All Range 45 8.8 (4.0) STT17A-610R SEP91A-603R and

Threaded Low Range 45 8.8 (4.0) STT17A-610R SEP91A-603R and

1. Non-stock item, built to order.

2. Maximum bellows pressure is 320 psig (2,206 kPa). Replacement element supplied with 1/4 in. SAE connector. Order SEC37A capillary kit with flare nuts separately, if needed. Use only on valves specified.

Service Element

Style

Shipping

Weight

lb (kg)

Seat Repair

Kit

Replacement Power

Element

SEC37A-601R

SEC37A-602R

SEC37A-600R

Table 13: Maritime Type - Non-corrosive Refrigerants

Product Size (in.) Inlet and

Outlet

V46BA-2 V46BB-2

3/8 NPT Threaded All Range 34 2.3 (1.0) STT14A-601R SEP13A-602R

1/2 NPT Threaded All Range 34 3.3 (1.5) STT15A-603R1SEP13A-600R

V46BC-2 3/4 NPT Threaded All Range 34 4.3 (2.0) STT17A-613R SEP13A-603R V46BD-2 1 NPT Threaded All Range 34 9.5 (4.3) STT17A-611R V46BE-2 1-1/4

Threaded All Range 34 10.3 (4.7) STT17A-612R SEP50A-600R

NPT

V46BS-4 2 4 Hole

ASME Flange

V46BT-4

2-1/2 4 Hole

ASME Flange

1. Non-stock item, built to order.

Service Element

Style

Shipping

Weight

lb (kg)

High Range 34 25.5

(11.6)

High Range 34 29.5

(13.4)

Seat Repair Kit Replacement Power

Element

SEP50A-600R

STT18A-602R SEP50A-601R

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin 13

Page 14

Table 14: Navy Type - Non-corrosive Refrigerants

Product Size (in.) Inlet and

Outlet

V46CJ-2

V46CN-2

V46CP-2

V46CQ-2

V46BR-2

V46CR-2

V46BS-3

V46CS-3

V46CS-4

V46BT-3

V46CT-3

V46CT-4

1/2 Sweat

Connector

3/4 4 Hole

Navy Flange

14 Hole

Navy Flange

1-1/4 4 Hole

Navy Flange

1-1/2 6 Hole Navy

Flange

1-1/2 6 Hole Navy

Flange

2 6 Hole Navy

Flange

2 6 Hole Navy

Flange

2 6 Hole Navy

Flange

2-1/2 6 Hole Navy

Flange

2-1/2 6 Hole Navy

Flange

2-1/2 6 Hole Navy

Flange

Service Element

All Range 34 3.6 (1.6) STT15A-603R1SEP13A-600R

All Range 34 7.1 (3.2) STT17A-613R SEP13A-603R

All Range 34 12.0 (5.4) STT17A-611R1SEP50A-600R

All Range 34 10.3 (4.7) STT17A-612R SEP50A-600R

All Range 34 13.5 (6.1) STT17A-612R SEP50A-600R

All Range 34 13.8 (6.3) STT17A-612R SEP50A-600R

Low Range 34 25.5

Low Range 34 24.4

High Range 34 24.4

Low Range 34 29.5

Low Range 34 25.5

High Range 34 25.5

Style

Shipping Weight lb (kg)

(11.6)

(11.1)

(13.4)

(11.6)

Seat Repair Kit Replacement Power

Element

STT18A-602R SEP50A-601R

1. Non-stock item, built to order.

Table 15: Pressure Range Specifications

Refrigerant Maximum Opening

Point, psig (kPa)

Modulation Start

Point, psig (kPa)

Maximum Permissible Pressure

psig (kPa)

V46A, B, C, D V46N Water Refrigerant

All Range R12, R22, R134a, R502, R404a, R507

All Range with High Overpressure

3/8 in. Extended All Range 70 to 300 (483 to 2,068) — 150 (1,034) 440 (3,034) 2 and 2-1/2 in. Low Range

R12, R134a 2 and 2-1/2 in. High Range

R22, R502, R404a, R507 Ammonia

R717

1. V46A, B, C direct acting valve ranges indicate the valve opening point. V46N reverse acting valve ranges indicates the modulation start point.

2. For heat pump applications (3/8 in. through 1-1/2 in. sizes only).

70 to 260 (483 to 1,793) 90 to 280 (621 to 1,931)

40 to 100 (276 to 690)

150 (1,034) 320 (2,206)

70 to 260 (483 to 1,793) — 150 (1,034) 370 (2,551)

70 to 170 (483 to 1,172) 100 to 200

150 (1,034) 230 (1,586)

(690 to 1,379)

160 to 260 (1,103 to 1,793)

100 to 200 (690 to 1,379)

180 to 280 (1241 to 1,931)

130 to 230 (896 to 1,586)

150 (1,034) 320 (2,206)

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin14

Page 15

Metasys® and Johnson Controls® are registered trademarks of Johnson Controls, Inc.

Building Efficiency

507 E. Michigan Street, Milwaukee, WI 53202

Technical Specifications

V46 Pressure-Actuated Water-Regulating Valve

Product V46 Series Pressure Actuated Valve Body Material Commercial: 3/8, 1/2, or 3/4 in. Sizes Have Cast Brass Bodies, Other Commercial Types

Have Cast Iron Bodies with Rust Resisting Finish

Navy and Maritime: Cast Naval Bronze Extension Sleeve, Disc, Commercial: Brass; Monel is Available at Additional Cost Stud, Disc Holder Material Navy and Maritime: Monel Valve Seat Material Commercial: Aluminum Bronze; Monel is Available at Additional Cost

Navy and Maritime: Monel Valve Disc Buna-N Diaphragm Nylon Reinforced Buna-N Water Supply Pressure 150 psig (1034 kPa) Maximum Water Supply Temperature 170 Sensing Element Non-corrosive Refrigerants: Brass and Phosphor Bronze Bellows in Brass Cup

Pressure Range See Table 15. Shipping Weight See Table 10 through Ta ble 14.

The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products.

°F (77°C) Maximum

Navy and Maritime: Monel Bellows in Brass Cup

2 and 2-1/2 in. High Range Service: Monel Bellows in Brass Cup

Ammonia Service: Stainless Steel Bellows in Brass Cup

V46 Pressure-Actuated Water-Regulating Valve Product Bulletin 15

Published in U.S.A. www.johnsoncontrols.com
