Johnson Controls T8580 User Guide

model T8580
Wi-Fi accesso
Screen
High Resolution Touch Screen
Residential
Digital
Thermostat
Compatible with Wi-Fi accessories
Code No. LIT-12011966 Issued July 2, 2014
Owner's Manual
and Installation Instructions
'
CAUTION
IMPORTANT
Follow the Installation Instructions before proceeding. Set the thermostat mode to “OFF” prior to changing settings in setup or restoring Factory Defaults.
North American Emissions Compliance
United States Canada
Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
Warning (Part 15.21)
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This color touch screen has the ability to receive updates to its firmware. Periodically firmware updates are released by the manufacturer to add features and/or performance enhancements. This manual was produced reflecting the most current firmware/feature set at the time of publication, firmware rev.
3.12. Firmware releases after rev. 3.12 may not be adequately depicted in this manual. Please refer to the appropriate website or contact your place of purchase to learn about changes to the thermostat after firmware release 3.12.
Industry Canada Statement
The term IC before the certification/ registration number only signifies that the Industry Canada technical specifications were met.
Le terme “IC” précédant le numéro d’accréditation/inscription signifie simplement que le produit est conforme aux spécifications techniques d’Industry Canada.
T8580
i
Glossary of Terms
Auto-Changeover: A mode in which the thermostat will turn on the
heating or cooling based on room temperature demand.
Cool Setpoint: The warmest temperature that the space should rise
to before cooling is turned on (without regard to deadband).
Deadband: The number of degrees the thermostat will wait, once a
setpoint has been reached, before energizing heating or cooling.
Differential: The forced temperature difference between the heat
setpoint and the cool setpoint.
Heat Setpoint: The coolest temperature that the space should drop
to before heating is turned on (without regard to deadband).
Icon: The word or symbol that appears on the thermostat display.
Mode: The current operating condition of the thermostat
(i.e. Off, Heat, Cool, Auto, Program On).
Non-Programmable Thermostat: A thermostat that does not have
the capability of running Time Period Programming.
Programmable Thermostat: A thermostat that has the capability of
running Time Period Programming.
Temperature Swing: Same as Deadband.
Time Period Programming: A program that allows the thermostat
to automatically adjust the heat setpoint and/or the cool setpoint based on the time of the day. Same as Schedule.
ii
Table of Contents
GET TO KNOW YOUR THERMOSTAT
Home Screen ..............................................................................................1
Menu Screens .............................................................................................1
Dropdown Dashboard ................................................................................2
Care and Use of your Thermostat ............................................................3
QUICK START
Selecting your desired temperature and mode ......................................4
Using the Fan button ................................................................................4
Setting the time ........................................................................................6
Setting the date.........................................................................................7
Daylight Savings setup ..............................................................................7
MAIN MENU BUTTONS
SCHEDULE ..................................................................................................8
View My Schedule .....................................................................................9
Edit My Schedule .......................................................................................9
SMART FAN ...............................................................................................11
Smart Fan On/Off .................................................................................... 12
Smart Fan Minimum Runtime ................................................................ 12
Start/Stop Times ...................................................................................... 12
Days to allow Smart Fan operation ....................................................... 12
SCREENSAVER ......................................................................................... 13
Screensaver On/Off ................................................................................. 14
Screensaver Setup ................................................................................... 14
Screensaver Preview ................................................................................ 14
ALERTS ...................................................................................................... 15
View Current Alerts ................................................................................. 16
Reset Alerts .............................................................................................. 16
Set/Edit Reminders .................................................................................. 16
Service Information (Who To Call For Service) .................................... 16
iii
Table of Contents
DISPLAY .................................................................................................... 17
Active Brightness ..................................................................................... 18
Idle Brightness ......................................................................................... 18
Night Dimmer .......................................................................................... 18
Maintenance ............................................................................................ 19
PREFERENCES .......................................................................................... 20
User Interface Themes ............................................................................. 21
Custom Wallpaper ................................................................................... 21
Heat/Cool Indicator ................................................................................. 21
Backdrop On/Off ...................................................................................... 21
Sound Options .......................................................................................... 21
VACATION/AWAY .................................................................................... 22
Vacation Mode On/Off ............................................................................ 23
Schedule ................................................................................................... 24
Modes & Setpoints .................................................................................. 24
SECURITY .................................................................................................. 25
Auto Screenlock ....................................................................................... 26
Setpoint Limits......................................................................................... 26
INFORMATION ......................................................................................... 27
My Thermostat ......................................................................................... 28
View Runtime Graphs .............................................................................. 28
Who to Call for Service .......................................................................... 28
SETTINGS .................................................................................................. 29
Thermostat Name .................................................................................... 33
Available Modes ....................................................................................... 33
SD Card (Import and Export).................................................................. 33
iv
Table of Contents
GENERAL SETUP ...................................................................................... 33
Units (F or C) ....................................................................................... 33
Language .............................................................................................. 34
Smart Recovery On/Off ...................................................................... 34
Simple Thermostat On/Off ................................................................. 34
INSTALLATION SETTINGS........................................................................ 35
Heat & Cool Stages ............................................................................. 35
Heat & Cool Stages ........................................................................ 35
Compressor Stages ......................................................................... 35
Aux Heat Stages ............................................................................. 35
Timers & Deadbands ................................................................................ 35
Free Cooling ............................................................................................. 37
HEAT PUMP SETTINGS ............................................................................ 38
Heat Pump Lockout - Enabled/Disabled ....................................... 38
Heat Pump Lockout Outdoor Temp ............................................... 38
Aux Heat Lockout Enabled/Disabled ............................................. 38
Aux Heat Lockout Temp ................................................................. 38
DUAL FUEL SETTINGS ............................................................................. 38
Dual Fuel On/Off ............................................................................. 38
Changeover With Outdoor Temp On/Off ...................................... 38
Adjust Balance Point ....................................................................... 38
Fan Off Delay ........................................................................................... 39
Sensor Settings ........................................................................................ 39
Control Sensor ......................................................................................... 39
Wired Sensor ............................................................................................ 39
Calibrate Sensors ..................................................................................... 38
Test Outputs ............................................................................................. 38
Dealer Information .................................................................................. 39
Upgrade Firmware ................................................................................... 39
Delete Custom Images ............................................................................. 39
Reset to Factory Default Settings ......................................................... 39
Restart Thermostat .................................................................................. 39
v
Table of Contents
ACCESSORIES ........................................................................................... 41
Accessory Info .......................................................................................... 42
Setup ......................................................................................................... 42
EMERGENCY HEAT .................................................................................. 43
COLORDISPLAY ASSISTANT ................................................................... 44
Installing the ColorDisplay Assistant Software .................................... 44
Uploading Photos .................................................................................... 45
INSTALLATION INSTRUCTIONS .............................................................. 46
Remove & Replace the Old Thermostat ................................................ 46
Wire Connections .................................................................................... 47
The ColorDisplay Thermostat Backplate ................................................ 48
Explanation Of the Thermostat Dip Switches ...................................... 49
Sample Wiring Diagrams ........................................................................ 50
TROUBLESHOOTING ................................................................................ 53
INDEX ........................................................................................................ 54
WARRANTY .............................................................................................. 59
vi
Get To Know Your Thermostat
Home Screen
Backlit Color Touch Screen Display
Connectivity Symbol Table
Not connected to Wi-Fi
Connected to local access point w/IP address without Skyport access
Connected to local access point w/IP address, but not yet connected to Skyport
Connected to Skyport
No Wi-Fi Key detected
Fan Button
Date & Time
Dropdown
Dashboard Button
Main Menu Screen
Menu
Back
Button
Buttons
Scrolling
Buttons
Outdoor Temperature
With high & low temps for the day
Connectivity Symbol
(if optional accessory is installed)
SD Card
Mode Buttons
Away Button
Sub Menu Screen
Sub Menu Buttons
Indicates
Options
Available
Home Button
Warmer Button
Slot
Cooler Button
Menu Button
Scrolling Buttons
1
Get To Know Your Thermostat
Dropdown Dashboard
The Dropdown Dashboard displays temperature and other readings. It will also show the high and low readings of the day.
(The contents of your Dashboard may vary)
Room Temp
Dropdown
Dashboard Button
Dropdown Dashboard
Wi-Fi
Connection
Icon
(The Skyport Wi-Fi Key is required for Wi-Fi connections. Model # ACC-WIFI)
Weather
Display
Outdoor Temp
Press the HOME button to return to the Home Screen
2
Get To Know Your Thermostat
Care and Use of Your Thermostat
Pencils, pens and other sharp objects should never be used on your thermostat; these may damage your touch screen. Only use your finger tip to press the screen buttons.
Use a soft, damp cloth to clean the screen.
CAUTION
DO NOT USE ABRASIVE CLEANERS OR CLEANERS THAT CONTAIN SOLVENTS. DO NOT SPRAY ANYTHING DIRECTLY ONTO THE THERMOSTAT.
ATTENTION
NE PAS UTILISER UN NETTOYANT ABRASIF OU UN NETTOYANT QUI CONTIENT DES SOLVANTS. NE PAS VAPORISER DIRECTEMENT SUR LE THERMOSTAT.
3
Quick Start - Temperature, Modes and Fan
Selecting Your Desired Temperature and Mode
Press or to adjust temperature setpoint.
Cool Setpoint
The Heat or Cool Setpoint is the temperature the room has to reach before heating or cooling will turn off.
Fan
Heat Setpoint
Warmer
Button
Cooler
Button
Press
HEAT will allow only heat operation.
COOL will allow only cool operation.
AUTO will allow both Heat and Cool operation.
OFF - heating and cooling systems are turned off.
AUTO-CHANGEOVER MODE - Pressing the WARMER or
COOLER buttons in Auto mode will adjust both the heat and cool setpoints simultaneously. To adjust heat and cool setpoints individually, choose HEAT mode to adjust the heat setpoint and COOL mode to adjust the cool setpoint, then return to AUTO mode.
HEAT OR COOL MODE - Pressing the WARMER or COOLER buttons in Heat or Cool mode will adjust only the heat or cool setpoints.
or the MODE Icon
Using the Fan Button
Press the FAN Icon
FAN ON fan runs constantly even in OFF Mode.
FAN AUTO fan only runs with a heating or cooling demand.
4
Quick Start - Set Time and Date
NOTE: When the thermostat is connected to the Skyport, the Time & Date are automatically synchronized to the Skyport
Set Time & Date
Set Current Time
Use AM/PM - ON
Set Current Date
Daylight Savings Setup
Cloud, including automatic Daylight Savings adjustments.
Daylight Savings Time - OFF
Start Schedule
Starts On
Day
Month
Stop Schedule
Ends On
Day
Month
(2nd)
(Sun)
(March)
(1st)
(Sun)
(November)
5
Quick Start - Set Time and Date
Setting the Time
Press
Press
MENU
then
Set Time & Date
Set Current Time
Press
Press
Choose
For 12 hour AM/PM clock
For 24 hour clock
Press
hr +
and
hr -
BACK
when finished.
Use AM/PM - ON
Use AM/PM - OFF
BACK
when finished.
to scroll down.
NOTE: If the Skyport Wi-Fi Key is installed on the thermostat, the Time and Date settings will not be accessible.
(12:00 AM)
min +
to set the current time.
min -
Press
6
Quick Start - Set Time and Date
Press
Setting the Date
Set Current Date
Press
or
Press the day on the calendar
Su Mo Tu We Th Fr Sa
27 28 29 30 1 23
45678910
1211
13
18
19 20 21 22 23 24
1234567
Daylight Savings Setup
Tu rn Daylight Savings Time on or off.
Adjust when Daylight Savings Time begins.
Adjust when Daylight Savings Time ends.
Press
after making a change to a selection.
Press
or the Home button when finished.
BACK
BACK
6/1/2013
to set the current month and year.
17161514
31302928272625
Press
when finished.
Daylight Savings Time - OFF
Daylight Savings Time - ON
Start Schedule
Starts On
Day
Month
Stop Schedule
Ends On
Day
Month
(2nd)
(Sun)
(March)
(Sun)
(November)
7
(1st)
BACK
Main Menu Buttons - Schedule
Schedule
View My Schedule
Edit My Schedule
8
Main Menu Buttons - Schedule
Evening,
This thermostat features up to four programmable time periods per 24 hour day: Morning, Day, and Night. The start time for each time period is
Schedule
View My Schedule
Press a day of the week to view its settings. This may be repeated for each day.
Edit My Schedule
Press and select days to program
Select individual days
Select groups of days
Then press NEXT
or
adjustable. The stop time for each time period is the start time for the next period.
Continued
9
Main Menu Buttons - Schedule
Edit My Schedule
Press and select a Time Period (Morning, Day, Evening, or Night) to edit.
Adjust Mode, Start Time, and Heat and Cool Setpoints to desired settings. The Time Period may also be Enabled or Disabled. Un-check the Enabled box for Time Periods you don’t want to use. Press DONE when finished.
Mode
Start Time
When you are finished editing the four time periods press
Review your program. Press SAVE to keep your program. Press EDIT to make further changes.
TIP:
For a simpler schedule that only uses 2 time periods, un-check Enabled for Day and Evening Time Periods.
Heat and Cool Setpoints
NEXT
Edit
Done
(Continued)
Next
Enable/Disable
Time Period
Save
10
Main Menu Buttons - Smart Fan
Smart Fan
Who To Call For Service
Smart Fan - OFF
View Runtime Graphs
Smart Fan Min Runtime
Who To Call For Service
Start/Stop Times
View Runtime Graphs
Days To Run Fan
11
Main Menu Buttons - Smart Fan
The fan may be programmed to turn on automatically for a specified
Smart Fan
Press to turn fan schedule on or off
Smart Fan - OFF
Smart Fan - ON
period during the day.
Smart Fan Min Runtime
Set the minimum number of minutes the fan will run from the top of each hour. Set runtime to 60 minutes to be on continuously from Start Time to Stop Time. (5 - 60 mins.)
Start/Stop Times
Set when the Smart Fan schedule will start and stop. For example, you may not want Smart Fan to run during sleeping hours.
Days To Run Fan
Choose which days of the week Smart Fan will run.
(7:00AM - 9:00PM)
(10m)
12
Main Menu Buttons - Screensaver
Screensaver
Who To Call For Service
Screensaver - OFF
View Runtime Graphs
Screensaver Setup
Screensaver Turn On Delay
Screensaver Type
Slideshow
Digital Clock
Analog Clock
Change Image After...
Use Theme Images - OFF
Randomize Slideshow - OFF
Show Clock - OFF
Home Screen Info - OFF
View Runtime GraphsScreensaver Preview
13
Main Menu Buttons - Screensaver
The Screensaver allows you
Screensaver
Screensaver - OFF
Screensaver - ON
Screensaver Setup
Screensaver Turn On Delay
How long after a button press for the Screensaver to appear. 1, 3, 5, or 30 minutes
Screensaver Type
Slideshow, Digital Clock, Analog Clock
Change Image After...
15, 30 seconds -
Use Theme Images - OFF
Slideshow uses included Theme Images. Off or On
Randomize Slideshow - OFF
Shuffles slideshow photos in random order
Show Clock - OFF
Shows the time and date every 5 photos. Off or On
Home Screen Info - OFF
Shows the mode, setpoints, and temperature after every 10 photos. Off or On
Screensaver Preview
Press this button to preview your screensaver operation before returning to the Home Screen.
After the preview, press anywhere on the screen to return to the sub menu.
to create custom slideshows.
(5m)
(Slideshow)
1, 5, or 10 minutes
14
Main Menu Buttons - Alerts
Alerts
View Current Alerts
Reset Alerts
Reset Air Filter Alert
Reset UV Lamp Alert
Set/Edit Reminders
Service Call - OFF
Days Until Service Call
Air Filter Reminder - OFF
Set Max Filter Runtime
Set Max Filter Days
UV Lamp Reminder - OFF
Max UV Lamp Runtime
Service Information...
(0 days)
(300 hrs)
(0 days)
(360 days)
15
Main Menu Buttons - Alerts
The alerts let you know when
Alerts
View Current Alerts
View and reset current service alerts here.
Reset Alerts
Clear and reset current service alerts.
Set/Edit Reminders
Set service alert runtimes and turn reminders on or off.
Service Call Reminder - OFF
Days Until Service Call
Air Filter Reminder - OFF
Set Max Filter Runtime
Set Max Filter Days
UV Lamp Reminder - OFF
Set Max UV Lamp Runtime
your system needs service.
Alerts will appear on the bottom bar of the Home Screen.
Press to view and reset current alerts.
(0 days)
(500 hrs)
(300 days)
(300 days)
Dealer’s
Logo
here
Service Information...
View your service company’s contact information.
16
Main Menu Buttons - Display
Display
Active Brightness
Idle Brightness
Night Dimmer
Auto Night Dimmer - OFF
Set Idle Brightness
Set Dimmer Schedule
Maintenance
Screen Cleaning
To uch Calibration
17
Main Menu Buttons - Display
The display brightness options may be adjusted in this menu.
Display
Active Brightness
You may select how bright the backlight is while the thermostat is active. The display is active for 3 minutes after last touch, it then goes idle.
Idle Brightness
You may select how bright the backlight is while the thermostat is idle.
(80%)
(30%)
Night Dimmer
You may dim the brightness of the screen at night.
Auto Night Dimmer - OFF
The screen can be set to dim automatically at night. Dimming the display can prolong the life of the backlight.
Set Idle Brightness
Set the screen brightness for the Night Dimmer. When Night Dimmer is On, the display will go idle 8 seconds after last touch.
Set Dimmer Schedule
Set the schedule for the Night Dimmer.
(20%)
18
Main Menu Buttons - Display
Maintenance
Maintenance allows you to clean and calibrate the touch screen.
Screen Cleaning
Screen Cleaning Mode disables the touch feature for 15 seconds so the screen may be cleaned without altering any settings.
Use a soft cloth without solvents or abrasive cleaners
To uch Calibration
Under normal circumstances, the touch screen should not need to be calibrated.
Touch the center of the targets as they appear on the screen.
To uch Screen Calibration
Press when done.
FINISH
When calibration is complete, the thermostat will automatically restart and return to the Home Screen.
19
Main Menu Buttons - Preferences
Preferences
User Interface Themes
Custom Wallpaper
Heat/Cool Indicator
Heat/Cool Indicator OFF
Taskbar red/white OFF
Room Temp red/blue OFF
Mode Status red/blue OFF
Backdrop OFF
Sound Options
Beep - OFF
Beep Sound
20
Main Menu Buttons - Preferences
You may set the type of background that appears on the thermostat
Preferences
Home Screen.
User Interface Themes
This thermostat has several high quality background themes to choose from. NOTE: At 7 PM, the background will ch ange to an evening scene and the moon will replace the sun. At 7 AM it will return to a daytime scene.
(ocean)
Custom Wallpaper
You may choose your own background image by selecting a photo that you have uploaded from an SD memory card.
Heat/Cool Indicator
You may choose an enhanced indicator of the current status of the HVAC equipment.
Heat/Cool Indicator - ON/OFF Taskbar Red/White - ON/OFF
Room Temp Red/Blue - ON/OFF Mode Status Red/Blue - ON/OFF
Backdrop - OFF
Backdrop- ON
The Backdrop makes numbers and words easier to read, and may be needed on certain background images.
Sound Options
Beep - ON
Beep - OFF
Turn the beep sound on or off.
Beep Sound
(Beep 1)
Choose from different beep sounds.
21
Main Menu Buttons - Vacation/Away
Va cation/Away
Clear Vacation Schedule
Set Vacation Schedule
Start Date
Start Time
Return Date
Return Time
Settings while away
Mode
OFF
Auto
Heat
Cool
Heat Setpoint
Cool Setpoint
22
Main Menu Buttons - Vacation/Away
Pressing the VACATION /AWAY button will
use temporary, energy saving settings without
Vacation/Away
Clear Vacation Schedule
Removes the stored vacation schedule.
Set Vacation Schedule
Set your Vacation Schedule.
changing the regular schedule. Pressing the HOME button will return the thermostat to normal comfort settings.
BACK
Tue Sep 07 2010
Start Date
Select the day Vacation Mode will start.
Then press
BACK
Start Time
Select the time Vacation Mode will start.
Then press
BACK
(9:00 AM)
Continued
23
Main Menu Buttons - Vacation/Away
Schedule
Return Date
Tue Sep 21 2010
(Continued)
Select the day Vacation Mode will end.
Then press
Return Time
BACK
BACK
(3:00 PM)
Select the time Vacation Mode will end.
Then press
BACK
Settings while away
Select the desired Mode and setpoints to be used in Vacation/Away Mode.
Mode
Heat Setpoint
Cool Setpoint
(Auto)
(50˚)
(85˚)
24
Main Menu Buttons - Security
Security
Auto Screenlock
Auto Screenlock - OFF
Set Passcode
Lock After...
Allow fan/mode changes - NO
Allow setpoint changes - NO
Allow Home/Away - NO
Setpoint Limits
Setpoint Limits - OFF
Minimum Cool Setpoint
Maximum Heat Setpoint
25
Main Menu Buttons - Security
Security settings may be set to limit or prevent changes to
Security
Auto Screenlock
Auto Screenlock - OFF
Auto Screenlock - ON
Set Passcode
Use keypad to enter and confirm passcode.
Press UNLOCK then enter passcode to access thermostat settings.
Lock After...
Set the time the screen will automatically lock after the last button press.
Allow fan/mode changes - NO
Choose to allow fan/mode changes when Auto Screenlock is on.
Allow setpoint changes - NO
Choose to allow setpoint changes when Auto Screenlock is on.
Allow Home/Away - NO
Choose to allow use of the Home and Away button when Auto Screenlock is on.
Setpoint Limits
Limits how high or low heating and cooling may be adjusted.
your thermostat.
(code not set )
When the thermostat is locked, the bottom bar of the display will show:
(5 m)
NOTE: Code must be set before Auto Screenlock can be turned on.
* If you forget your passcode, enter 6736 for access.
26
Main Menu Buttons - Information
Information
My Thermostat
View Runtime Graphs
Last 7 Days - Cooling
Last 7 Days - Heating
Delete Runtime Data
Who To Call For Service
27
Main Menu Buttons - Information
This button contains valuable service and system runtime
Information
My Thermostat
View your thermostat dip switch settings, equipment status, runtimes, and other settings.
View Runtime Graphs
Track your system’s runtime/energy usage.
Last 7 Days - Cooling
Last 7 Days - Heating
Delete Runtime Data
Press to delete your current equipment runtime information.
Who To Call For Service
Your service company’s contact information is displayed here.
ColorDisplay assistant is needed to update these settings.
information.
Press the information icon to learn more about each graph.
*NOTE: The runtime graphs are updated at 12:00 AM each day.
Press anywhere on the screen to return to the submenu.
Dealer’s
Logo here
28
Main Menu Buttons - Settings
Settings
Thermostat Name
Available Modes
All Modes Including Auto Heat and Cool Heat Only Cool Only
SD Card
Import Settings from SD Card Export Settings to SD Card
General Setup
Units
Fahrenheit
Celsius
Language
English Spanish/Espanol French/Francais
Smart Recovery - ON/OFF
Simple Thermostat - ON/OFF
Installation Settings
Continued
Heat & Cool Stages
Heat & Cool Stages Compressor Stages Aux Heat Stages
29
Availability depends on Heat Pump dip switch settings.
}
Main Menu Buttons - Settings
Settings
Installation Settings
Timers & Deadbands
Cycles Per Hour
Min Heat/Cool Difference Compressor Min Off Time 1st Stage Deadband 2nd Stage Deadband
2nd Stage Deadband 2nd Stage Timer 2nd Stage Turnoff Point
Deadband
3rd Stage Deadband
4th Stage Deadband
Free Cooling
Free Cooling - On/Off Usable Outdoor Te mp Mechanical Cooling? - Yes/No
Setpoint
3rd Stage Deadband 3rd Stage Timer 3rd Stage Turnoff Point
Deadband Setpoint
4th Stage Deadband 4th Stage Timer 4th Stage Turnoff Point
Deadband Setpoint
(Continued)
Continued
30
Main Menu Buttons - Settings
Settings
Installation Settings
Heat Pump Settings
Heat Pump Lockout - Enabled/Disabled HP Lockout Outdoor Temp Aux Heat Lockout - Enabled/Disabled Aux Heat Lockout Temp
Dual Fuel Settings
Dual Fuel - On/Off Changeover With Outdoor - On/Off Adjust Balance Point
Fan Off Delay
Sensor Settings
Control Sensor
Thermostat Sensor Only Wired Sensor Only Average Wired/Thermostat
Wired Sensor Use
Use as Outdoor Sensor Use as Remote Sensor Use as Supply Sensor Use as Return Sensor
Calibrate Sensors
Thermostat
Wired Sensor
(Continued)
Continued
31
Main Menu Buttons - Settings
Settings
Installation Settings
Te st Outputs
Dealer Information
Dealer Name Contact Name Dealer Phone Dealer Email Dealer Website
Upgrade Firmware
Delete Custom Images
Calibrate Clock
Factory Defaults
Restart Thermostat
(Continued)
32
Main Menu Buttons - Settings
Thermostat heating and cooling options are found
Settings
Thermostat Name
Use keypad to name your thermostat. The name is displayed on the Home Screen.
(Up to 14 characters)
Name appears here
in this menu
Available Modes
Choose the desired modes the thermostat will use: Heat, Cool, Heat & Cool, or Auto (All). For example, if you only have a heater, choose Heat, and only Heat & Off modes will be available. This will simplify the operation for the user.
(all)
SD Card
Import and export files to and from the thermostat. See the ColorDisplay Assistant instructions for further details.
Import Settings from SD Card
Upload files from ColorDisplay Assistant or another thermostat.
Export Settings to SD Card
Export files from one thermostat and import them into others.
General Setup
Units
Fahrenheit (F)
Celsius (C)
*NOTE: A 2GB SD card is recommended. To import and export files, the SD card must contain the same version of the firmware as the thermostat.
(F)
33
Main Menu Buttons - Settings
General Setup
Language
English Spanish/Español French/Français
Smart Recovery - OFF
Smart Recovery - ON
Smart Recovery turns on the heat before the Morning start time to bring the room temperature to the Morning setpoint at the start of the Morning time period. Please allow 4-8 days for Smart Recovery time to adjust. When used with a heat pump, electric strip heat will be disabled while Smart Recovery is active.
Simple Thermostat - OFF
Simple Thermostat - ON
(en)
(Continued)
Tu rn on Simple Thermostat for the most basic user interface.
When Simple Thermostat is on, alerts will appear in the top bar of the main screen. Press on the top yellow alert bar to view alerts.
Top Bar
Room
Temperature
Press
to
turn
Off
Press
for
Cooling
Press
to turn
Fan
On or Auto
Press
for
Heat
Note: When using the Simple Thermostat Home Screen; the program schedule along with the HOME and AWAY features are unavailable.
Warmer Button
Single Setpoint
Cooler Button
Menu Button
34
Main Menu Buttons - Settings
Installation Settings
(2˚)
(1h1c)
Only available when dip switch is set for Heat Pump operation.
}
Heat & Cool Stages
Heat & Cool Stages
Up to 2 Stages Cooling and 4 stages Heating.
Compressor Stages
Up to 2 compressors.
Aux Heat Stages
0 to 2 stages of Aux Heating.
Timers & Deadbands
Cycles Per Hour
At 6 cycles per hour, the HVAC unit will only be allowed to energize once every 10 minutes. The Cycles Per Hour limit may be overridden and reset by pressing the WARMER or COOLER buttons. (2, 3, 4, 5, 6, No Limit)
Min Heat/Cool Difference
The minimum gap between Heat and Cool setpoints. (0 - 6 deg. F)
Compressor Min OFF Time
None, 1 minute, or 5 minutes.
(1h1c)
(1h1c)
(1h1c)
(6)
(5m)
35
Main Menu Buttons - Settings
Installation Settings
Timers & Deadbands
The Deadband is the number of degrees or minutes that the thermostat waits before it initiates the stages of heating or cooling.
(Continued)
(Continued)
1st Stage Deadband Specifies the minimum temperature difference between the room temperature and the desired setpoint before the first stage of heating or cooling is allowed to turn on. For example, if the heat setpoint is 68˚ and the 1st Stage deadband is set to 2 degrees, the room temperature will need to drop to 66 degrees before the heat turns on.
1st Stage Deadband
(1 - 6 deg. F)
2nd Stage Deadband
2nd Stage Deadband
Number of degrees past 1st stage before 2nd stage turns on. (0 - 10 deg. F)
2nd Stage Timer
Number of minutes past 1st stage before 2nd stage turns on. (0 - 60 mins.) (The 2nd stage deadband must also be met)
2nd Stage Turnoff Point
Deadband or Setpoint.
3rd Stage Deadband
4th Stage Deadband
(2˚)
(2mins )
(Deadband )
(2˚)
The 3rd and 4th stage deadband settings have the same adjustable steps as 2nd stage deadband.
36
Main Menu Buttons - Settings
Installation Settings
Free Cooling
(Continued)
Free Cooling is an energy saving way to boost the efficiency of your air conditioning system by bringing in cool air from the outside. The installation of a Free Cooling damper(s) and outdoor temperature sensor is required.
Free Cooling - DISABLED
Free Cooling - ENABLED
Turns on Free Cooling.
Usable Outdoor Temp
(65˚)
Free Cooling shuts off above this outdoor temperature. (40 - 80 degrees F)
Mechanical Cooling? - NO
Mechanical Cooling? - YES
If you don’t have a compressor, set Mechanical Cooling to “NO”. Y1 will then be used to control the Free Cooling Damper(s) and Y2 will be disabled. If set to “YES,” mechanical (compressor) cooling will be controlled by the Y2 terminal. (See page 52 for wiring diagram)
Mechanical air conditioning is turned on with a 2nd stage demand for cooling and the Free Cooling, outdoor air damper is closed.
Supply Grilles
Return Grille
AirFlow
AirFlow
Supply Plenum
AirFlow
Return Air Grill
Barometric Vent to Attic
Barometric
AirFlow
Damper
(To relieve building pressure)
HVAC Unit
Furnace
Coil
Outdoor Air Grille
Free Cooling
Damper
Damper1
Open
Return
Plenum
Damper2
Closed
Air
Filter
Return
Damper
Outdoor
AirGrill
AirFlow
Free Cooling
37
Main Menu Buttons - Settings
Installation Settings
Heat Pump Settings
Heat Pump Lockout - DISABLED
Heat Pump Lockout - ENABLED
Turns on Heat Pump Lock out.
HP Lockout Outdoor Temp
Heat Pump will not run below this temp. (20 - 75 deg. F)
Aux Heat Lockout - DISABLED
Aux Heat Lockout - ENABLED
Turns on Aux Heat Lockout.
Aux Heat Lockout Temp
Aux Heat will not run above this temp. (20 - 75 deg. F) GAS/EL or HP dip switch must be set for HP and GAS or ELEC dip switch must be set for ELEC.
Dual Fuel Settings
This feature is for heat pump applications only.
This will only appear if the GAS/EL or HP dip switch is set for HP and the GAS or ELEC dip switch is set for Gas.
When Dual Fuel is ON, an outdoor temperature or, if Change With Outdoor is set to OFF a demand for third stage heat will be used to stop running the heat pump and switch to a fossil fuel source of heat. NOTE: Once the change to fossil fuel is made, the heat demand must finish with fossil fuel. Additional heat demands within 10 minutes will also use fossil fuel, regardless of outdoor temperature or stage demand.
(Continued)
(65˚)
(65˚)
(Only available when dip switch is set for Heat Pump operation.)
Dual Fuel - ON/OFF
Changeover With Outdoor - ON/OFF
ON: Uses an outdoor sensor for changeover. OFF: Uses a third stage heat demand for changeover.
Adjust Balance Point
Choose the temperature for changeover to fossil fuel. (5 - 60 deg. F)
38
Main Menu Buttons - Settings
Installation Settings
Fan Off Delay
Runs the fan for a short time after Cooling or electric strip heat turns off to increase system efficiency. (0 - 120 Secs.)
(Continued)
(0s)
Sensor Settings
Control Sensor
When a remote sensor is connected to the thermostat, the user may choose which sensor source is used to measure room temperature.
Thermostat sensor only
Remote Sensor only
Average remote/thermostat
Wired Sensor Use
The wired sensor may be used as follows:
Outdoor sensor
Remote Sensor
Supply Sensor
Return Sensor
Calibrate Sensors
The thermostat and wired sensor may be calibrated -7 to +7 degrees F.
(thermostat )
(remote)
(0˚)
Test Outputs
The installer or service technician can use this feature to test the functions without any time delays of the thermostat.
With a 1st stage cooling call, Y1 and G are active
39
Main Menu Buttons - Settings
Dealer Information
A Dealer may enter their company contact information for the customer to use when they need service. This will appear when the “Who To Call For Service” button is pressed in the Information Menu.
Use the keyboard to enter your information.
Dealer Name
Contact Name
Dealer Phone
Dealer Email
Dealer Website
Please use ColorDisplay Assistant to add Dealer’s logo.
(See Page 44)
Upgrade Firmware
Press to upgrade the thermostat firmware. The SD Card must be in the thermostat SD Card reader and contain the valid firmware. If an error message appears, confirm with ColorDisplay Assistant that firmware is up to date or simply try reinserting the SD card.
If you are connected to Skyport Wi-Fi and you receive an Alert that new firmware is available, simply press the Upgrade Firmware button to upgrade wirelessly.
Note: Occasionally an update that requires a large amount of data is not possible
to do wirelessly. In this case an update using an SD card will be required.
Delete Custom Images
Press to delete the custom photos you uploaded to the thermostat.
Calibrate Clock
If needed, the clock may be calibrated up to -10 to +10 minutes per month.
Factory Defaults
Press to reset the thermostat back to the factory settings.
Restart Thermostat
If needed, press here to restart the thermostat.
Dealer’s
Logo
(0 mins)
here
40
Main Menu Buttons - Accessories
Accessories
Accessory Info
Setup
Choose Network
Password Entry
Network Options
Skyport Service - ON
Local API - OFF
41
Main Menu Buttons - Accessories
Accessory Info
It is here that you will find helpful information regarding the connectivity status of your thermostat, including the thermostat’s ID.
Setup
Upon pressing setup, the thermostat will search for available local networks with which to connect. After identifying local access points, you will be prompted to choose a network, enter a password and other network options.
Skyport Service - ON
Enable the thermostat to connect to the Skyport Cloud for remote monitoring and control features.
Local API - OFF
Enabling the local API allows 3rd party software to interface with your thermostat, such as a home automation system.
42
Main Menu Buttons - Emergency Heat
The Emergency Heat function is only available if your thermostat
Emergency Heat
To initiate the Emergency Heat feature, press the Emergency Heat button. During Emergency Heat operation, the thermostat will turn on the fan and auxiliary stages of heat when there is a demand for heat. The 1st stage of heating and all stages of cooling will be unavailable. To exit Emergency Heat, press the Emergency Heat button.
is set to control a Heat Pump.
43
The ColorDisplay Assistant
ColorDisplay Assistant may be downloaded at no charge at:
jcithermostats.com
Every time the user runs the ColorDisplay Assistant software,
it automatically connects to Johnson Controls
website in the background and updates the software and firmware
(the operating system for ColorDisplay) at no cost.
The ColorDisplay Assistant allows you to use your computer to:
• Upload photos for background and slideshow images
• Configure installation settings
• Program a time period schedule
• Upload dealer and service contact information and company logo
• Update thermostat firmware
®
ColorDisplay
44
The ColorDisplay Assistant
Uploading Photos and Settings to your thermostat

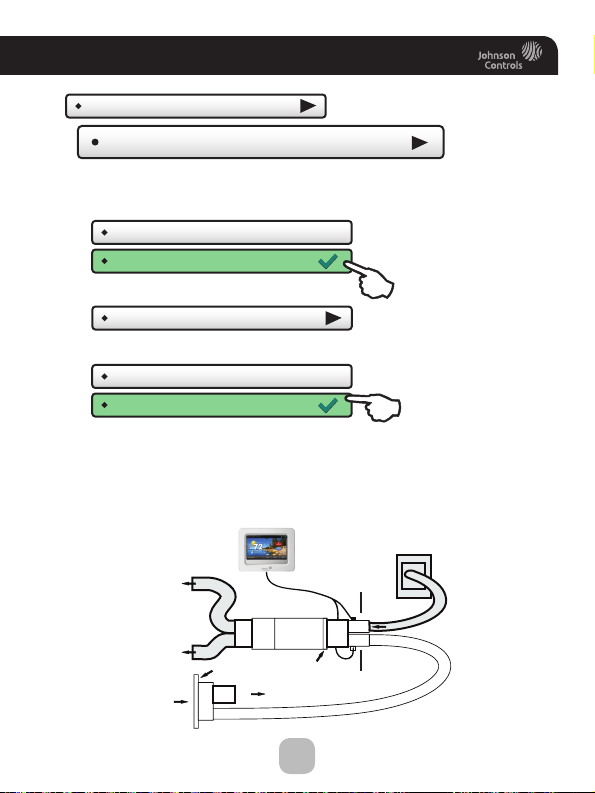

When you are finished adding and editing photos and settings, click on Save to SD. When prompted, remove the SD card from the SD card reader on your computer.
Save to SD
*NOTE: A 2GB SD card is recommended.
At the thermostat:
Insert the SD card into the SD Card Slot.
MENU
Press
Next, press
then
Settings
SD Card Slot
Press
SD Card
Then press
Import Settings from SD Card
Select the items to import into your thermostat then press
Yo ur thermostat will automatically save your new photos and settings in it’s internal memory. When finished, you may remove the SD card. It is not needed for normal thermostat operation.
NEXT
45
Installation Instructions
Remove and Replace the old thermostat
To install the thermostat properly, please follow these step by step instructions. If you are unsure about any of these steps, call a qualified technician for assistance.
Assemble tools: Flat blade screwdriver, wire cutters and wire
strippers.
Make sure your Heater/Air Conditioner is working properly
before beginning installation of the thermostat.
Carefully unpack the thermostat. Save the screws, any brackets,
and instructions.
Turn off the power to the Heating/Air Conditioning system at
the main fuse panel. Most residential systems have a separate breaker for disconnecting power to the furnace.
Remove the cover of the old thermostat. If it does not come off
easily, check for screws.
Loosen the screws holding the thermostat base or subbase to
the wall and lift away.
Disconnect the wires from the old thermostat. Tape the ends of
the wires as you disconnect them, and mark them with the letter of the terminal for easy reconnection to the new thermostat.
Keep the old thermostat for reference purposes, until your new
thermostat is functioning properly.
46
Installation Instructions
Wire Connections
If the terminal designations on your old thermostat do not match those on the new thermostat,
diagrams that follow.
Wire from the Install on the old thermostat Function new thermostat terminal marked connector marked
G or F Fan G
Y1, Y or C Cooling Y1
W1, W or H Heating W1/0/B
Rh, R, M, Vr, A Power R
C Common C
O/B Rev. Valve W1/O/B*
W2 2nd Stage Heat W2
Y2 2nd Stage Cooling Y2
W3 3rd Stage Heat W3
OUT - Outdoor Sensor SENSOR
OUT + Outdoor Sensor SENSOR
* O/B is used if your system is a Heat Pump.
refer to the chart below or the wiring
47
Installation Instructions
The T8580 Thermostat Backplate
NOTE:
The backplate does not fully cover a full size vertical junction box. The ACC-WALLPLT touch screen wallplate or a single-gang, horizontally
W3W2W1/O/BY2Y1
SENSOR
mounted junction box would be needed for that type of installation.
To remove the thermostat backplate:
Using the Finger Pull Areas, pull the front housing away from the backplate.
Look for these tabs to locate
the pull areas
W3 3rd stage heat circuit W2 2nd stage heat circuit W1/O/B 1st stage heat circuit Y2 2nd stage compressor relay Y1 1st stage compressor relay G fan relay R 24 VAC return C 24 VAC common SENSOR remote/outdoor/supply/return sensor connections
Backplate
Pull out with thumbs in these areas
Front Housing
IMPORTANT: This thermostat requires both R (24 VAC Return) and C (24 VAC Common) be connected to the backplate terminals.
48
Installation Instructions

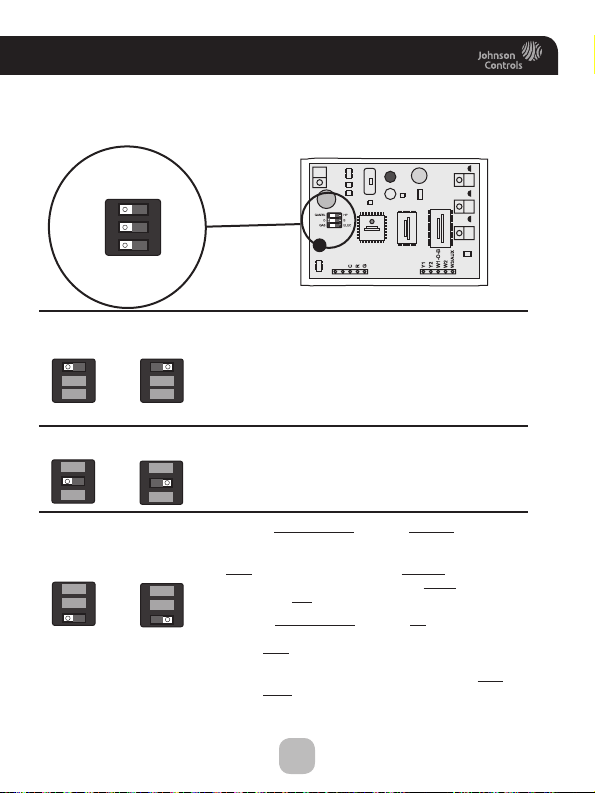

Explanation of Thermostat Dip Switches
Dip switches are located on the back of the thermostat
GAS/EL
O
GAS
HP
B
ON
123
ELEC
GAS/EL HP HPGAS/EL
OR
ON
O O BB
ON
ON
123
1 2 3
1 23
OR
OR
ON
ON
ON
GAS ELEC GAS ELEC
SENSOR
This dip switch configures the thermostat to control a conventional gas/electric system or a heat pump. If your system is anything other than a heat pump, leave this switch set for GAS/EL.*
*For some commercial heat pumps, this switch may need
123
to be set for GAS/EL. Consult the commercial heat pump literature.
When the GAS/EL or HP dip switch is configured for HP, this dip switch (O or B) must be set to control the appropriate reversing valve. If O is chosen, the W1/O/B terminal will energize in cooling. If B is chosen, the
1 2 3
W1/O/B terminal will energize in heating.
1. When GAS/EL or HP is set for GAS/EL: This switch (GAS or ELEC) controls how the thermostat will control the Fan (G) terminal in heating mode. When GAS is chosen, the thermostat will not energize the Fan (G) terminal in heating. When ELEC is chosen the thermostat will energize the fan in heating.
1 23
2. When GAS/EL or HP is set for HP: This switch (GAS or ELEC) defines the Aux Heat type. When GAS is chosen, the auxiliary heat will not be allowed to run during heat pump operation. When using a Dual Fuel system, set this switch for GAS. When ELEC is chosen, up to two stages of auxiliary strip heat will be allowed to run.
49
Installation Instructions
Sample Wiring Diagrams with Dip Switch Positions
Conventional Heating and Cooling Systems
2 Wire, Heat Only
Residential & Commercial 1 Stage Heating with no Fan.
The thermostat will not work with 2 wires. Pull new wire.
GAS/EL HP
GAS
ON
O
123
B ELEC
3 Wire, Heat Only
Residential & Commercial 1 Stage Heating with no Fan.
GAS
O
24VAC Power 24VAC Common 1st Stage Heat
ON
B
123
ELEC
R C W1/O/B
GAS/EL HP
4 Wire, Cool Only
Residential & Commercial 1 Stage Cooling.
R C Y1 G
GAS/EL HP
5 Wire, 1 Stage Cooling, 1 Stage Heat
R C W1/O/B Y1 G
GAS/EL
24VAC Power 24VAC Common 1st Stage Cool Fan
ON
O
GAS
Residential & Commercial 1 Stage Cooling, with 1 stage Electric Heat.
O
GAS
B
123
ELEC
24VAC Power 24VAC Common 1st Stage Heat 1st Stage Cool Fan
HP
ON
ON
B
123
123
ELEC
5 Wire, 1 Stage Cooling, 1 Stage Heat
Residential & Commercial 1 Stage Cooling, with 1 stage Gas Heat.
R C W1/O/B Y1 G
GAS/EL HP
8 Wire, 2 Stage Cooling, 3 Stage Heat
R C W1/O/B W2 W3/AUX Y1 Y2 G
GAS/EL HP
24VAC Power 24VAC Common 1st Stage Heat 1st Stage Cool Fan
ON
O
GAS
Residential & Commercial 2 Stage Cooling, with 3 stage Gas Heat.
O
GAS
B
123
ELEC
24VAC Power 24VAC Common 1st Stage Heat 2nd Stage Heat 3rd Stage Heat 1st Stage Cool 2nd Stage Cool Fan
ON
B
123
ELEC
50
Installation Instructions
Sample Wiring Diagrams with Dip Switch Positions
Heat Pump Systems
5 Wire, 1 Stage Cooling, 1 Stage Heat
Residential & Commercial Heat Pump with ‘OReversing Va lve
R 24VAC Power C 24VAC Common W1/O/B Reversing Valve Y1 1st Stage Compressor (Cool or Heat) G Fan
GAS/EL
O
GAS
HP
ON
B
123
ELEC
6 Wire, 1 Stage Cooling, 2 Stage Heat
Residential & Commercial Heat Pump with ‘O’ Reversing Valve
R 24VAC Power C 24VAC Common W1/O/B Reversing Valve Y1 1st Stage Compressor (Cool or Heat) W2 Aux Heat G Fan
GAS/EL
O
GAS
HP
ON
B
123
ELEC
7 Wire, 2 Stage Cooling, 3 Stage Heat
Residential & Commercial Heat Pump with ‘O’ Reversing Va lve.
R 24VAC Power C 24VAC Common W1/O/B Reversing Valve W2 3rd Stage Heat Y1 1st Stage Compressor (Cool or Heat) Y2 2nd Stage Compressor (Cool or Heat) G Fan
GAS/EL
O
GAS
(Number of Compressor Stages set to 2)
HP
ON
B
123
ELEC
8 Wire, 2 Stage Cooling, 4 Stage Heat
Residential & Commercial Heat Pump with ‘O’ Reversing Va lve.
R 24VAC Power C 24VAC Common W1/O/B Reversing Valve W2 3rd Stage Heat W3 4th Stage Heat Y1 1st Stage Compressor (Cool or Heat) Y2 2nd Stage Compressor (Cool or Heat) G Fan
GAS/EL
O
GAS
(Number of Compressor Stages set to 2)
HP
ON
B
123
ELEC
51
Installation Instructions
Sample Wiring Diagrams with Dip Switch Positions
Heat Pump Systems with Dual Fuel
7 Wire, 2 Stage Cooling, 3 Stage Heat
Residential & Commercial Heat Pump with ‘O’ Reversing Va lve and Fossil Fuel furnace.
R 24VAC Power C 24VAC Common W1/O/B Reversing Valve W2 3rd Stage Heat (connected to furnace) Y1 1st Stage Compressor (Cool or Heat) Y2 2nd Stage Compressor (Cool or Heat) G Fan
GAS/EL HP
Number of Compressor Stages set to 2
(see Compressor Stages, pg. 33)
Dual Fuel set to On
(see Dual Fuel Settings, pg. 36)
GAS
ON
O
123
B
ELEC
Free Cooling
Free Cooling
Damper
10K Thermistor
Outdoor Sensor
ACC-RSEN
Free Cooling utilizes the Y1 terminal for the operation of 1st stage cooling. If mechanical (compressor) cooling is also present, the mechanical cooling is connected to the Y2 terminal in this instance.
Free Cooling may be used with a Gas/Electric or Heat Pump system.
Temperature Sensor: ACC-RSEN Temperature Sensor 10K ohm sensor at 77F/25C. Negative Temperature Coefficient.
Use 16-24 gauge thermostat wire.
SENSOR
W2
W3/AUX
Y1Y2W1/O/B
CRG
52
Troubleshooting
• SYMPTOM: The thermostat touch screen buttons are not responsive. CAUSE: The touch screen is out of calibration. REMEDY: Remove the thermostat from the backplate. Push the
thermostat back onto the backplate, while keeping your finger pressed firmly against the center of the touch screen, until the Calibration screen appears. Re-calibrate the touch screen.
• SYMPTOM: The display is blank. CAUSE: Lack of proper power. REMEDY: Make sure the power is on to the HVAC and that you have 24vac between R & C.
• SYMPTOM: The air conditioning does not attempt to turn on. CAUSE: The cooling setpoint is set too high. REMEDY: Lower the cooling setpoint or lower the cooling set-point
limit. See Setpoint Limits (page 28).
• SYMPTOM: The heating does not attempt to turn on. CAUSE: The heating setpoint is set too low. REMEDY: Raise the heating setpoint or raise the heating set-point limit.
See Setpoint Limits (page 28).
• SYMPTOM: When controlling a residential heat pump, and asking for cooling, the heat comes on.
CAUSE: The thermostat reversing valve dip switch is set for “B”. REMEDY: Set the reversing valve jumper for “ O ”.
• SYMPTOM: When calling for cooling, both the heat and cool come on. CAUSE: The thermostat equipment dip switch is configured for “HP”
and the HVAC unit is a Gas/Electric. REMEDY: Set the equipment dip switch for “Gas”.
• SYMPTOM: Air handler control board fuse blows when thermostat is attached to backplate with power on, but does not blow until the thermostat is placed onto the backplate.
CAUSE: The Outdoor sensor and/or sensor wiring is shorted. REMEDY: Check/replace Outdoor sensor and/or sensor wiring.
53
Index
A C
Accessories, 41, 42 Active Brightness, 18 Alerts, 15
view current, 16 reset, 16 set/edit reminders, 16
See also Runtime
Aux Heat Lockout, 38 Auto
adjust temperature, 4 changeover, 4 fan, 4 mode, 4
Auto Screenlock, 26 Available Modes, 33
C, 47 Calibration, 39 Celsius, 33 Choose Network, 41, 42 Cleaning, 2, 19 Clock
ColorDisplay Assistant, 44 Compressor Lockout, 35 Cool
B
B Reversing Valve, 47 Backdrop, 21 Backlight, 18 Backplate, 48 Balance Point, 38 Beep, 21 Buttons,
Back, 1 Cooler, 1, 4 Fan, 1, 4 Home, 1 Mode, 1, 4 Menu, 1, 6
Custom Wallpaper, 21 Cycles Per Hour, 35 Daylight Savings, 7 Deadband
Warmer, 1
Display 1 Setting, 6
1st stage deadband, see Deadband 2nd stage deadband, see Deadband Minutes of runtime, 28
D
1st stage, 36 2nd stage, 36 3rd stage, 36 4th stage, 36
54
Dealer Information, 28, 40
Delay
Fan-off, see Fan Time between stages, see Time Delay
Differential
Heat and cool, 35
Dimmer, 18 Dip Switches
ELEC, 49 electric heat, 49 GAS/EL, 49 GAS, 49 HP, 49 heat pump, 49 O, 49 B, 49
Disabled Buttons
see Security
Display, 18 Dual Fuel
changeover balance point, 38 control two heat sources, 38 operation, 38 outdoor sensor, 38, 48
E
Electric Heating
Aux heat, 33 Dip switch setting, 49 Lockout, 38
Index
Emergency Heat, 43 Energy Usage
Cool, 27 Heat, 27 Aux heat, 27
F
Factory Defaults
resetting, 40
Fahrenheit, 33 Fan
button function, see Buttons off time delay, 39 on during heat, see Electric Heat runtime, 27 2nd stage heat, see
Emergency Heat
Free Cooling, 37, 48
G
Gas/Electric Furnace
dip switch, 47
General Setup, 33
H I
Heat
1st stage deadband, see Deadband emergency heat, 43 minutes of runtime, 28 2nd stage deadband,
see Deadband electric strip heat, see Aux Heat minutes of
runtime, 28 3rd stage deadband,
see Deadband
4th stage deadband,
see Deadband timer, 36
turnoff point, 36 electric/heat pump, 38 mode, 4 program, see Schedule runtime, see Runtime setpoint, 4
Heat/Cool Indicator, 20 Heat Pump
aux heat, 35, 38 aux heat lockout, 38 emergency heat, 43 heat pump lockout, 38 dip switch setting, 49 multi-stage, 35, 38
Idle Brightness, 17 Information, 27 Installation Settings, 33 Installation, 42
K
Keypad, 25
L
Language, 32 Lock
see Security
Logo, 38
55
Index
M
Main Menu, 1, 8 Maintenance, 19 Manual
changeover, 32 cool, 4 heat, 4
Mode, 1, 4 Mode Restrictions, 25 Morning Warm-up,
see Smart Recovery
Multi-Stage Operation, 4
N
Network Password, 41 Night Dimmer, 18 Non-Programmable
Thermostat, ii
O
O Reversing Valve, 47 Off Mode, 4
Outdoor
calibrate, 39 high and low temp, 1 sensor, 48 viewing temp, 1
P
Passcode, 25 Photos, 20, 45 Preferences, 20 Program
daily schedule, 8
R
Reset
alert messages, 15 thermostat settings, see Factory Defaults runtime, fan/filter, 15 UV light, 15
Reversing Valve, 47 Runtime
resetting, see Reset service filter, 16 UV light, 16 viewing, 16, 27
S
Schedule
turn on/off, 8 view, 8 edit, 8
Screen Cleaning, 19 Screensaver
turn on/off, 13 setup, 13 preview, 13
SD Card, 33 2nd stage turn off temperature, 36 Security, 25 Service
alerts, 15 information, 15, 27
Set Clock, see Clock Setpoint
balance point, 38 cool, 3 heat, 3 limits, 25 vacation, 23
Settings, 29 Simple Thermostat, 34 Skyport Service ON/OFF,
41, 42 Smart Fan, 11 Smart Recovery, 34 Sound Options, 20 Stages, 35
56
Index
T V
Terminals,
see Backplate
Test Outputs, 39 Themes, 30 Thermostat Sensor
calibrate, 37
Three Stage Heat, 33 Time, see Clock Timers, 35 Time Delay,
compressor lockout, 35 cycles per hour, 35
1st stage to 2nd stage, 36 2nd stage to 3rd stage, 36 3rd stage to 4th stage, 36
Time schedule,
see Schedule
Touch Calibration, 19
U
Upgrade Firmware, 40 User Interface Themes, 21 UV Light,
resetting, 16 runtime, see Runtime setting, see Runtime
Vacation, 22
modes, 23 schedule, 23 setpoints, 23
W
W1, 47 W2, 47 W3, 47 Wallpaper, 20 Warranty, 59 Wiring, 47
dual fuel, 48 free cooling, 48 gas/electric, 46 heat pump, 47
Y
Y1, 47 Y2, 47
57
Notes
58
Warranty
Three-Year Warranty - This Product is warranted to be free from defects in material and workmanship. If it appears within three years from the date of original installation, whether or not actual use begins on that date, that the product does not meet this warranty, a new or remanufactured part, at the manufacturer’s sole option to replace any defective part, will be provided without charge for the part itself provided the defective part is returned to the distributor through a qualified servicing dealer.
THIS WARRANTY DOES NOT INCLUDE LABOR OR OTHER COSTS incurred for diagnosing, repairing, removing, installing, shipping, servicing or handling of either defective parts or replacement parts. Such costs may be covered by a separate warranty provided by the installer.
THIS WARRANTY APPLIES ONLY TO PRODUCTS IN THEIR ORIGINAL INSTALLATION LOCATION AND BECOMES VOID UPON REINSTALLATION.
LIMITATIONS OF WARRANTIES – ALL IMPLIED WARRANTIES (INCLUDING IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY) ARE HEREBY LIMITED IN DURATION TO THE PERIOD FOR WHICH THE LIMITED WARRANTY IS GIVEN. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE MAY NOT APPLY TO YOU. THE EXPRESSED WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON WHATSOEVER.
ALL WORK UNDER THE TERMS OF THIS WARRANTY SHALL BE PERFORMED DURING NORMAL WORKING HOURS. ALL REPLACEMENT PARTS, WHETHER NEW OR REMANUFACTURED, ASSUME AS THEIR WARRANTY PERIOD ONLY THE REMAINING TIME PERIOD OF THIS WARRANTY.
THE MANUFACTURER WILL NOT BE RESPONSIBLE FOR:
1. Normal maintenance as outlined in the installation and servicing instructions or owner’s manual, including filter cleaning and/or replacement and lubrication.
2. Damage or repairs required as a consequence of faulty installation, misapplication, abuse, improper servicing, unauthorized alteration or improper operation.
3. Failure to start due to voltage conditions, blown fuses, open circuit breakers or other damages due to the inadequacy or interruption of electrical service.
4. Damage as a result of floods, winds, fires, lightning, accidents, corrosive environments or other conditions beyond the control of the Manufacturer.
5. Parts not supplied or designated by the Manufacturer, or damages resulting from their use.
6. Manufacturer products installed outside the continental U.S.A., Alaska, Hawaii, and Canada.
7. Electricity or fuel costs or increases in electricity or fuel costs for any reason whatsoever including additional or unusual use of supplemental electric heat.
8. ANY SPECIAL INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL DAMAGE OF ANY NATURE WHATSOEVER. Some states do not allow the exclusion of incidental or consequential damages, so the above may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which may vary from state to state.
59
Technical Specifications
ColorDisplay Series Thermostat Controllers
ColorDisplay Series Thermostat Controllers
Power Requirements
Output Rating
Local Temperature Sensor Type
Remote Temperature Sensor Type
Wire Size
Temperature Setpoint Adjustment Range
Temperature Sensor Accuracy
Deadband
Ambient Conditions
Compliance
Dimensions
Shipping Weight
North American Emissions Compliance
United States
This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when this equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area may cause harmful interference, in which case the users will be required to correct the interference at their own expense.
Canada
This Class (B) digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numerique de la Classe (B) respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.
Operating
Storage
20 - 30 VAC 50/60 Hz, 4.8 VA @ 24V nominal.
W1, W2, W3 = 0.4A max, 0.01A min, 3A inrush, 20 - 30 VAC Y1, Y2, G = 0.8A max, 0.01A min, 3A inrush, 20 - 30 VAC
Thermistor, NTC 10K @ 25C
Thermistor, NTC 10K @ 25C
16 AWG (100 ft max) to 24 AWG (36 ft max)
35 to 99 deg F (2 to 36 degC)
35 to 65 deg F +/- 3 degF, greater than 65 to less than 80 degF +/- 2 degF, 80 to 99 degF +/_ 3 degF, greater than 99 to 104 degF +/- 5 degF
Adjustable 1 to 6 deg first stage, 0 - 10 deg 2nd & 3rd stages
35 to 104 degF (2 o 40 degC), 5 - 95% RH non-condensing, 86 degF max dew point
-22 to 122 degF (-30 to 50 degC), 5-95% RH non-condensing, 86 degF max dew point
UL/cUL listed, file E107041, NEC Class 2
4.0” H x 5.2” W x 1.1”D
0.34 kg
60
Patent Pending
Printed on recycled paper. LIT-12011966 Rev. 2 1/15
Loading...
