T8200-TB20-9JF0 Series Touch Screen Thermostat (Fan Coil and Floor Heating) - Installation Instructions
T8200-TB20-9JF0系列触摸屏温控器（风机盘管及地板采暖）- 安装说明
1 2 3 4 5
Application
T8000 Touch Screen Thermostat is applicable to the system of central air-conditioner
and floor heating two-in-one. In summer, comfortable environment is reached by
controlling the fan coil of air condition system with local temperature. In winter, both
quick warm air heating from air-conditioner and floor heating are available.
T8000 features with microcomputer control, large LCD screen
display, and displays the
status of work modes (cooling/floor heating/heating/floor heating&heating/air venting),
fan speed, indoor temperature and set temperature etc.. Capacitance touch screen
enhances the fluency on operation. Keypad includes: Power on/off (
), Mode selection
(
M
), Fan Speed selection ( ), Clock/Timer (
) and two Adjustment buttons (∧&∨).

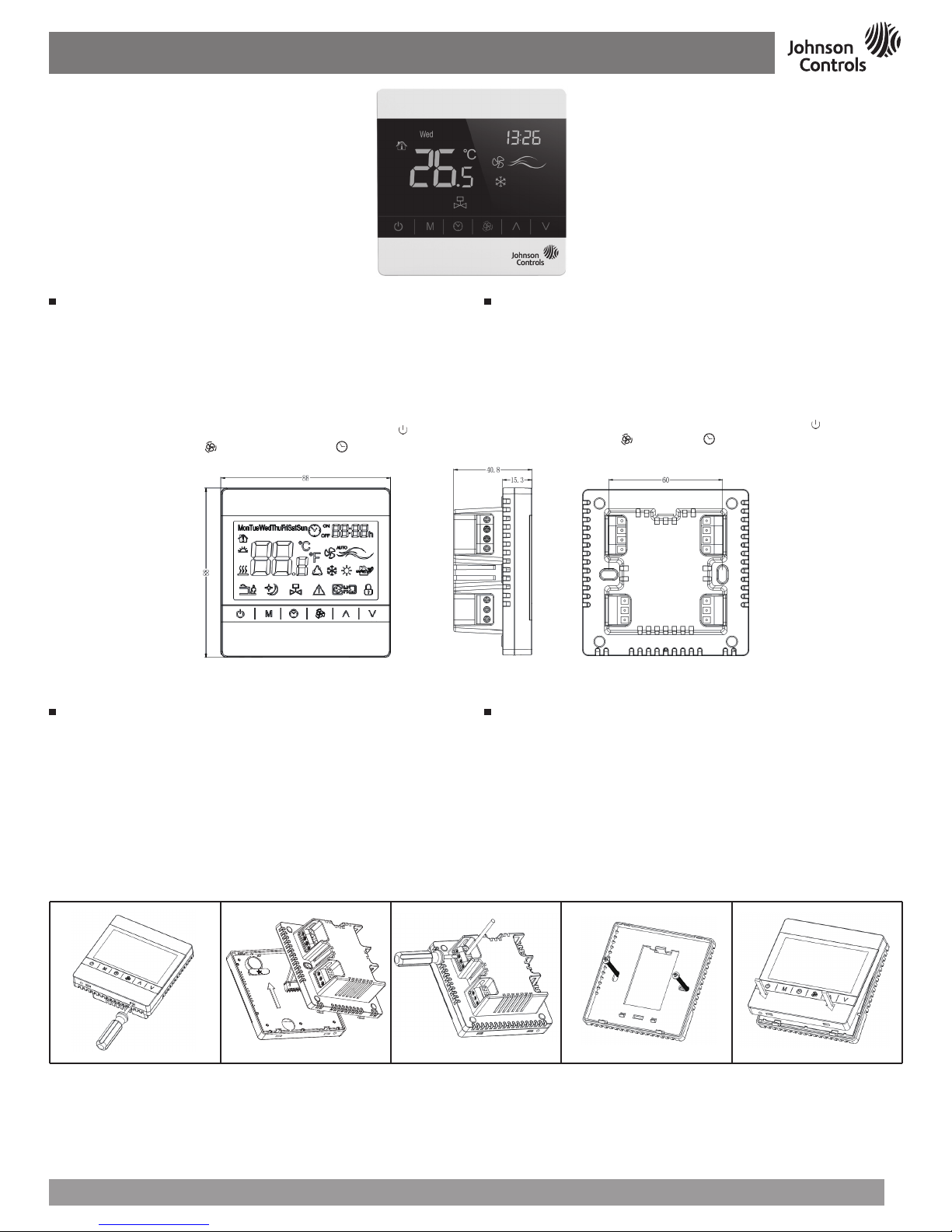

图 2
:
T8000-TB20-9JF0触摸屏温控器尺寸（mm）
Figure 2:
T8000-TB20-9JF0 Touch Screen Thermostat Dimensions (mm)
安装
T8000温控器安装在用户容易观看屏幕和调节温度设定点的地方。并使温控器
位于能代表房间总体环境温度的地方。避免将温控器安装于冷热源附近，如通
风口、加热器、室外或阳光照射到的地方。
安装
T8000系列温控器设计为标准75x75x 5mm墙装接线盒安装。 (见图3)
按照指示打开后盖底座，把它安装在墙上并接线。
注意
:
所有T8000系列温控器型号，需要两枚Mx5安装螺钉 (盒中自带，如遗
失，需采用PWT2.5X5X5.5螺钉)
Installation
Install the T8000 where the occupant can read the display and adjust the setpoint
easily. Situate the thermostat where the temperature is representative of the general
room conditions. Avoid installing the T8000 near cold or warm air drafts, radiant heat,
on an outside wall, or in direct sunlight.
Mounting
Mount the T8000 Series thermostat to a 75x75x 5mm standard electrical wallbox. (See
Figure
3
)
Follow the instructions in removing the base and then proceed to the wall box
Mounting and the Wiring sections.
Note:
All T8000 Series models require two No. Mx5 mounting screws (Included in the
box, screw PWT .5X5X5.5 is required if missing).
应用
T8000触摸屏温控器适用于中央空调和地板采暖二合一的系统中，夏季开启中
央空调，利用现场温度来控制风机盘管的启停，使用户得到舒适的环境。在冬
季既可以通过空调内机实现快速风暖制热，也可驱动地暖系统，享受地暖的舒
适宁静。
T8000采 用微电 脑控制 技术 ，大屏 幕液晶 显示 ，液晶 显示状 态有 ：工作 状态
（制冷、地暖 、制热、地暖+制热、通风）、风机风速 、室内温度、设置温度
等。采用容式触摸技术，使操作更加方便，按键有：电 源开关（
）、模式转
换键（M）、风速选择键（
）、时钟及定时按键（ ）和温度设置键（∧和
∨
）。
602Q-B02A-NB-Issue Date 12 2013
This document is subject to change without notice 本文档如有变化，恕不另行通知
图 1
:
T8000-TB20-9JF0触摸屏温控器
Figure 1:
T8000-TB20-9JF0 Touch Screen Thermostat
图 3
:
安装说明图
Figure 3:
Installation diagram
注意：
给T8000系列温控器接线时，使用接线螺帽完成和绝缘每个接线端。根据接线
图4
接线
Note:
When wiring the T8000 Series Thermostat, use wire nuts to finish and isolate
each connection, wire according to
Figure
4
.
* Remove the insulating strip before installation 请安装前移除绝缘片
T8200-TB20-9JF0 Series Touch Screen Thermostat (Fan Coil and Floor Heating) - Installation Instructions
T8200-TB20-9JF0系列触摸屏温控器（风机盘管及地板采暖）- 安装说明
602Q-B02A-NB-Issue Date 12 2013
2
图 4
:
T8200-TB20-9JF0接线图
Figure 4:
Wiring Diagram for T8200-TB20-9JF0
检查步骤
温控器安装完毕，在离开之前要检查制冷和加热完整的操作循环。这样可以确
保所有控制设备功能正常。如果接线正确，而设备又不能正常工作，请参考下
面故障排除进行简单的检查，如果温控器显示故障代码或者经过下面故障排除
设备依然不能正常工作，请就近联系Johnson Controls办事处来替换温控器。
使用说明
开关机设置：
按“ ”键一次开机；再按一次关机，同时关闭风机盘管、采暖
阀和盘管阀。
模式调节：
在开机状态下，按“M”键进行工作模式切换。液晶显示“ ”表
示制冷，“
”表示地暖，显示“ ”表示空调制热，显示
“ ”和“ ”
表示同时开启地暖和空调制热（当设定温度与室内温度差值大于1度，小于3
度时开启地暖，
“ ”
闪烁；当差值大于3度时同时开启地暖和空调，
“ ”
和“
”
同时闪烁），显示
“ ”
表示通风。
温度设置：
在开机状态下，按“∧”或“∨”可进行设置温度的调节，每按
一次，温度变化0.5℃。
风速调节：
空调制冷制热模式下操作
温控器有4种风机速度，自动“
”、高“ ”、中“ ”、
低“
”风速。按“ ”按钮，将循环显示。
仅风机操作
温控器有3种风机速度，高“
”、中“ ”、低“ ”风
速。按“
”按钮，将循环显示。
注意：
在地暖模式下，风机不启动。
时钟和定时开关机设置：
时钟调整：
按“
”键，直至出现“
hh:mm
”的“mm”闪烁，按“∧”或
“∨”键调整分钟。再 按“ ”键，“
hh:mm
”的“hh”闪烁，按“∧”
或“∨”键调整小时。 再 按 “ ”键，星期的显 示 符 闪 烁 ， 按 “∧”或
“∨”键调整星期。
定时开关机设置：
开机状态下，按“
”键，直至出现“
hh:mm
”、“ ”、
“ON”符号，并且“
”、“ON”闪烁，按“∧”或“∨”键调整，每按
一次变化30分钟。再按“ ”键，直至出现“ ”、“
OFF
”符号闪烁， 用
上述方法，设置定时关机的时间。设定一次定时开关机时间只能执行一次，
即只在一天内有效。
取消定时开关 机设置：
开机状态 下， 按“
”键，直 至出 现“
hh:mm
”、
“ ”、“ON”符号，并且“ ”、“ON”闪烁，按“∧”或“∨”键调整
定时开机的时间调至“
00:00
”；再按“ ”键，直至出现“ ”、“
OFF
”
符号闪烁，用上述方法，将定时关机的时间调整为“
00:00
”。
按键锁功能
:
锁按键功能：
如果温控器开启了锁按键功能，在没有人使用的情况下30秒后
会自动把按键锁上，禁止其他人员对温控器进行操作。
按键解锁：
按风速按键5秒即可解锁。（在没有人使用的情况下30秒后会自动
把按键锁上）
Check-Out Procedure
After the installation, observe the complete operation cycles for cooling and heating
control.
This is to make sure that all control devices are functioning correctly. If the device is
not working properly and the wiring is correct, the thermostat should be replaced by
contacting your nearest Johnson Controls
®
Representative.
Instructions
On/Off Setting:
Press " " to turn on, press again to turn off, close the fan and
valve.
Mode Selection:
Press "M" to change the working mode, "" or Cooling, " " for
Floor Heating, "
"
for Air-conditioner Heating, "" & " " for Air-conditioner
Heating & Floor Heating (When the difference of Temperature Setting and indoor
is over 1℃ and below 3℃, Floor heating is turn on and "
" blinks; When the
difference is over 3℃, Floor heating and Air-conditioner are turn on simultaneously,
"
"
and " " both blink), Vent " ".
Temperature Setting:
Press either "∧" or "∨" button to increase or decrease by 0.5℃.
Fan Speed Adjustment:
Cooling or Heating Mode Operation
T8000, has 4 speeds fan control: Auto "
", High " ", Middle " ",
Low "
" fan. Short press the " " button switches through the sequence.
Fan only Operation
T8000, has 3 speeds fan control; High "
", Middle " ", Low
"
" fan. Short press the " "button switches through the sequence.
Note:
Fan stops at Floor Heating Mode.
Time Adjustment and Time-On/Off Operation:
Time Adjustment:
Continuously press "
" button until "mm" in "
hh:mm
" blinks,
then press "∧" or "∨" to adjust the minute. Press "
" button again until "hh" in
"
hh:mm
" blinks, then press "∧" or "∨" to adjust the hour. Press "
" button again
and adjust the weekday by the same method.
Time-On/Off Operation:
Continuously press "
" button until the ''
hh:mm
'', " ",
"ON" appear, and "
", "ON" blink. Press either "∧" or "∨" key to adjust the Time-On
by 30 minutes. Press "
" button again until " ", "
OFF
" blink. Then adjust the Time-Off
by the same method. Time-On/Off setting performs only once within one day.
Time-On/Off Cancel:
Continuously press "
" button until the ''
hh:mm
'', " ",
"ON" appear, and "
", "ON" blink. Press either "∧" or "∨" key to adjust the Time-
On ''
00:00
''. Press "
" button again until " ", "
OFF
" blink. Then adjust the Time-
Off ''
00:00
'' by the same method.
Lock function:
Lock function:
If Lock function is enabled, the thermostat will be locked
automatically after 30 seconds unused.
Unlock function:
Hold down the fan key 5 seconds to unlock.
T8200-TB20-9JF0
中 Med
高 Hi
低 Low
火 L
阀 2Val2
零 N
阀 1Val1
采暖阀 Hea
t
盘管阀 Coil
风机
Fan
AC85～260 V 50/60Hz
零线 N L 火线
