John Lewis SBSKITC Instruction Manual

SBSKITC
Side by Side

Instruction manual

2

Important information

• Do not install the unit on your own or have unqualified personnel install it.

• Improper installation may result in damage, malfunctioning or risk of electric shock.

• This Side by Side unit must have the cooler section on the right side, the beverage storage section in the
middle and the freezer section on the left side; the positions are not reversible.

• The power cords must be connected separately to a suitable socket.

• All information regarding each section of this equipment is given in the user instructions to be found inside
the cooler section. Please read the instructions carefully before carrying out any operation.

• Removal and reinstallation of this unit must only be carried out by authorized personnel.

• Please keep these installation instructions for future reference or further installation.

3

Tools required for installation

(not supplied)

4

5

6

7

• Carefully place the unit on the floor, following the instructions on the packaging to make sure the unit is
facing upwards.

• Open the bottom part of packaging and remove the corner protection.

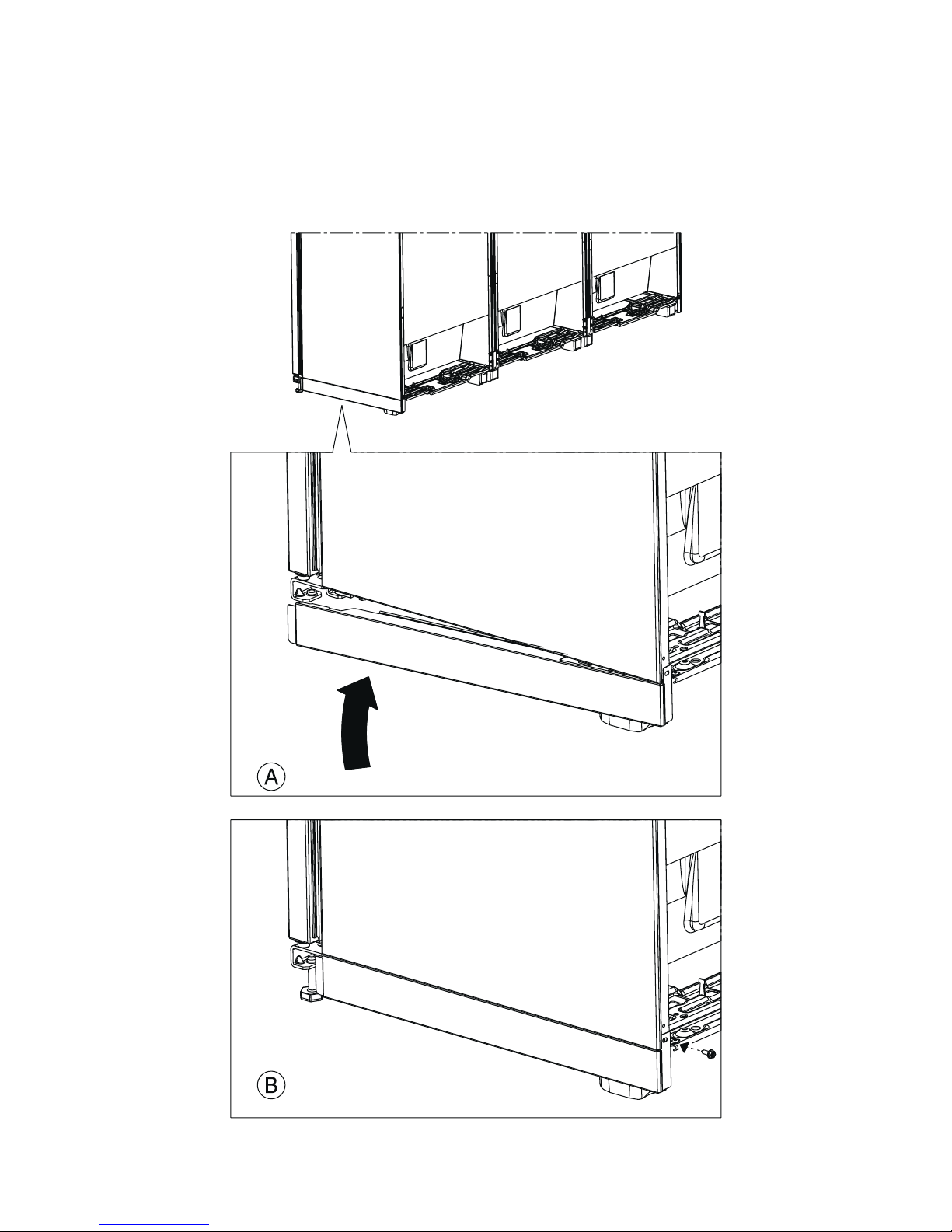

• Screw the M8 nuts (4) (bag 4) on the respective front feet , see Fig. (A).

• Screw the front feet (15) on the bracket of the unit see Fig. (B) using the dimension indicated in Fig. (C).

• Position the rear feet (14) on the compressor support plate, see Fig. (C).

• Insert the pin (13), using a hammer, so that it does not protrude outside the foot see Fig. (D).

• Carefully reposition the appliance in the upright position and remove the packaging completely.

• Operation to be carried out on each unit.

8

• Glue two spacer spongers on the right side of the freezer.

• Glue two spacer spongers on both sides of the wine cooler.

• Glue two spacer spongers on the left side of the cooler.

Use the distances indicated in the fig. under neath.
