John Lewis JLWD 1408 User Manual

End

60°

40°

Economy 40°

Easy iron 40°

1400

900

700

500

Start/
Pause

Spin

Prewash

Wash

Rinse

Rinse hold

Drain

Spin

Drying

Prewash

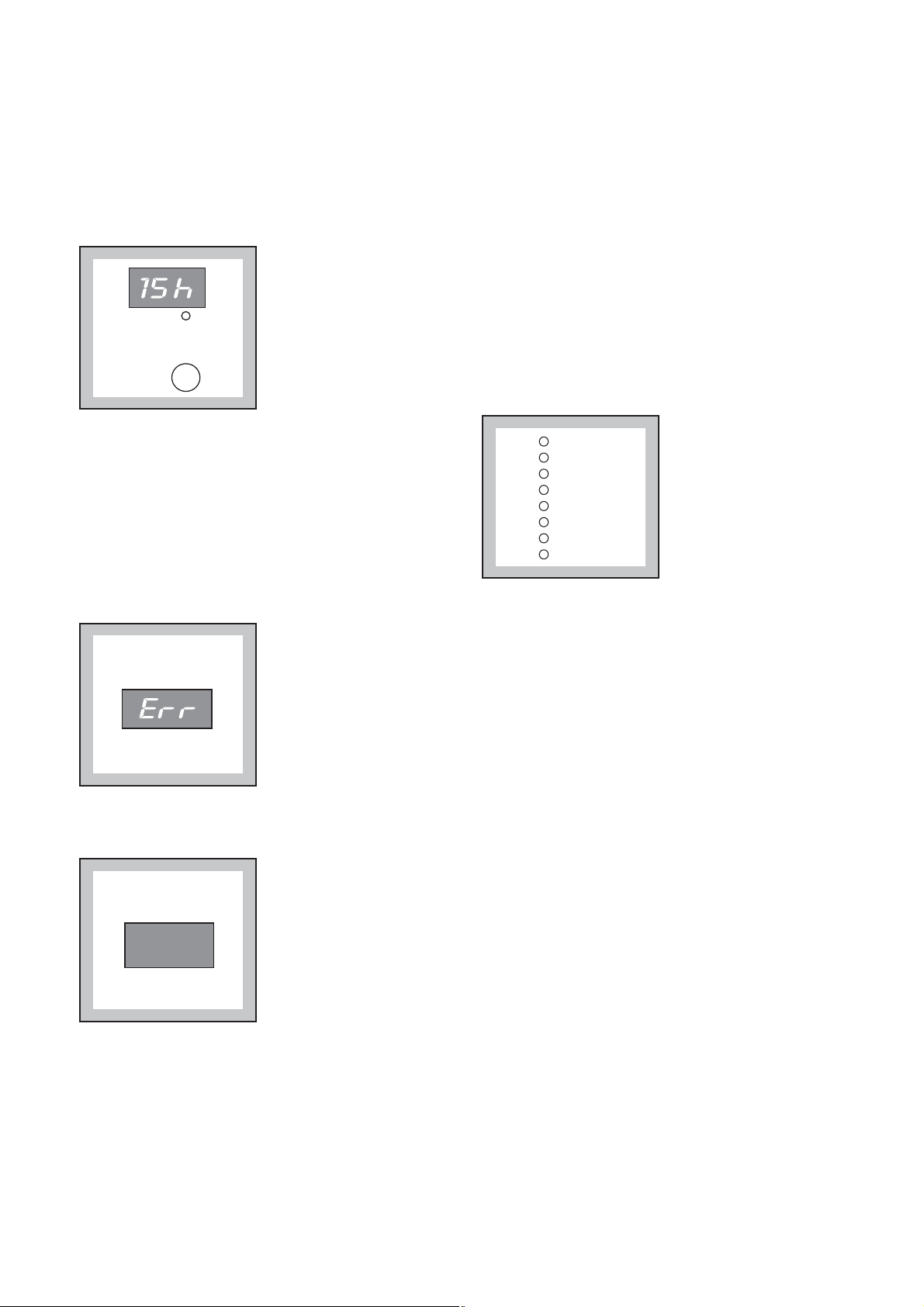

Delay
start

Quick

Automatic

dry

Programme time

Rinse
hold

Time

dry

Extra dry

Store dry

Iron dry

Cold

30°
40°

90°

Economy 60°

Economy 40°

60°

40°
30°

Drying

30 Minute wash

Spin

Drain
Softeners

Rinse
Soak 30°

Delicates 30°

Off

Drying

JLWD1408

Extra
rinse

Delicates 40°

Wool

Synthetics

Cottons

JLWD 1408
1400 spin washer-dryer

Instruction manual

2

Installation

●

This appliance is heavy. Care should be taken when
moving it.

●

It is dangerous to alter the specifications or attempt
to modify this product in any way.

●

All packing and transit bolts must be removed before
use. Serious damage can occur to the product and to
property if this is not adhered to. See relevant section
in instructions.

●

Care must be taken to ensure that the appliance does
not stand on the electrical supply cable.

●

If the machine is situated on a carpeted floor, please
adjust the feet in order to allow air to circulate freely.

Child Safety

●

This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the product.

●

Pets and children have been known to climb into
washer-dryers. Please check your drum before use.

●

The glass door becomes very hot during the washing
cycle. Keep children away from the vicinity of the
appliance whilst it is in operation.

●

Keep all packaging well away from children.

●

Keep all detergents in a safe place out of children’s
reach.

●

When the appliance is to be scrapped, cut off the
electrical supply cable. Disable the door catch in
order to prevent children form becoming trapped
inside while playing.

Use

●

Always unplug the appliance and turn off the water
supply after use.

●

Do not overload the appliance. See relevant section in
the instruction book.

●

Only wash and dry fabrics which are designed to be
machine washed and dried. If in doubt, consult the
care label on the clothes.

●

Before washing, ensure that all pockets are empty and
buttons and zips are fastened. Avoid washing frayed or
torn articles and treat stains such as paint, ink, rust,
and grass before washing. Underwired bras must
NOT be machine washed.

●

Any objects such as coins, safety pins, nails, screws,
stones or any other hard, sharp material can cause
extensive damage and must not be placed into the
machine.

●

Garments which have been in contact with volatile
petroleum products should not be machine washed. If
volatile cleaning fluids are used, care should be taken
to ensure that the fluid is removed from the garment
before placing in the machine.

●

Wash small items such as socks, laces, washable belts
etc in a washing bag or pillow case as it is possible for
such items to slip down between the tub and the
inner drum.

●

Only use the advised quantities of fabric softener.
Damage to the fabric can ensue if you over-fill. Refer
to the manufacturer’s recommendations of quantities.

●

As some duvets and eiderdowns should be
washed/dried in large commercial machines because
of their bulk, please check with the manufacturer of
the item before washing in a domestic machine.

●

The users should always check that they have not left
their gas lighters (disposable or otherwise) in their
clothing.

●

Never tumble dry items that have had contact with
chemicals such as dry cleaning fluid.These are of a
volatile nature and could cause an explosion.
Only tumble dry items which have been washed in
water or require airing.

●

Plastic detergent dispensers should not remain in the
drum during the drying cycle, as the plastic used is not
designed to withstand the heat. If you wish to wash­through-to-dry you should use the conventional
detergent dispenser drawer.

Important Safety Information

It is most important that this instruction book should be retained with the appliance for future reference.
Should the appliance be sold or transferred to another owner, or should you move house and leave the
appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to
know the functioning of the appliance and the relevant warnings.

These warnings have been provided in the interest of safety. You MUST read them carefully before use or
installation by a qualified person.

If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased
the appliance.

3

Maintenance and Cleaning

●

Leave the porthole door slightly ajar between washes
to preserve the door seal.

●

For information on maintenance and cleaning your
washing machine see page 25 of this instruction
manual.

Service

●

This product should only be repaired or serviced by
an authorised Service Engineer and only genuine
approved spare parts should be used.

Ecological hints

To save water and energy and help protect the
environment, we recommend that you follow these
hints:

●

Normally soiled laundry may be washed without
prewashing in order to save detergent, water and
time (the environment is protected too!).

●

The machine works more economically if it is fully
loaded.

●

With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature.

●

Measure out detergent according to the water
hardness, the degree of soiling and the quantity of
laundry being washed.

●

Try to load the maximum drying capacity of the
machine as small loads are uneconomical.

●

Save energy and reduce drying time by ensuring the
laundry load has been thoroughly spun before
attempting to machine dry.

●

Materials marked with the symbol are
recyclable.

●

Check with your local Council or Environmental
Health Office to see if there are facilities in your
area for re-cycling this appliance.

●

When the appliance is to be scrapped, cut off the
power supply cable and make the door lock device
unusable to prevent young children from being
trapped inside.

●

Help to keep your country tidy - use authorised
disposal sites for your old appliance.

Environmental Information

The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it should be taken to the
appropriate collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local council, your
household waste disposal service or the shop where
you purchased the product.

WARNING:

A cut off plug inserted into a 13 amp

socket is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of
safely.

4

Contents

For the User

Important Safety Information 2-3
Description of the Appliance 5
The Control Panel 11-14
Programme information 15
Using your washing machine 16-18
Drying 19
Hints & Tips on Washing and Drying 20
Wash Care Symbols 21
Washing Programmes 22-23
Drying Programmes 24
Maintenance and Cleaning 25

Descaling 25
After each wash 25
Maintenance Wash 25
External cleaning 25
Cleaning the dispenser drawer 25
Cleaning the drawer recess 25
Cleaning the pump 25-26
Cleaning the water inlet filter 26
The dangers of freezing 26
Emergency emptying out 27

Something Not Working 28-29
Repairs - After Sales Service 30
Spare parts 30

For the Installer

Installation 6
Technical Specifications 6

Unpacking 7
Positioning 7
Installation on a suspended floor 8
Water inlet 8
Water drainage 8/9
Levelling 9
Special conditions 9
In the interest of the environment 9-10

Electrical connection 10

Guide to use the Instruction
Manual

The following symbols will be found in the text to guide
you throughout the instructions:

Safety instructions

Hints and tips

Environmental information

This appliance complies with the following E.E.C.
Directives:

- 73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent modifications;

- 89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.

5

Description of the Appliance

1 Detergent dispenser drawer

2 Control panel

3 Door locked light

4 Door opening handle

5 Drain pump

6 Adjustable feet

Door locked light

It stays on during the whole programme indicating that
the door is locked.
When the light goes out, the door can be opened.

Detergent dispenser drawer

Prewash

Main wash

Fabric softener

Child safety feature

This machine incorporates a special child safety feature
to prevent small children from being trapped inside the
machine.
To activate this device, rotate the button (without
pressing it) inside the door clockwise until the groove is
horizontal. If necessary use a coin. This prevents the
door being closed.
To disable this device and close the door, rotate the
button anti-clockwise until the groove is vertical.

1

30 Minute wash

Spin

Drain
Softeners

Rinse
Soak 30°

Cold

30°

Wool

40°
Delicates 30°
Delicates 40°

2

Programme time

1400

Off

90°

Economy 60°

900

60°

700

Cottons

Economy 40°

500

40°

Rinse
hold

30°

Spin

Prewash

Drying

60°

Economy 40°

40°

Easy iron 40°

Synthetics

Drying

Prewash

Extra dry

Wash

Store dry

Rinse

Iron dry

Rinse hold

Drain

Start/

Delay

Automatic

Time

Extra

Spin

Pause

start

dry

dry

rinse

Quick

Drying

End

JLWD1408

3

4

5

6

C0110

P1131

6

Installation

It is dangerous to alter the specifications or
attempt to modify this product in any way.

Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.

Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.

Any plumbing work required to install this
appliance should be carried out by a qualified
plumber or competent person.

Technical Specifications

DIMENSIONS Height 85 cm

Width 60 cm
Depth 63 cm

POWER SUPPLY VOLTAGE 230-240 V/50 Hz
TOTAL POWER ABSORBED 2050 W (10 A)

WATER PRESSURE Minimum 0.05 MPa (0.5 bar)

Maximum 0.80 MPa (8. bar)

Washing

MAXIMUM RECOMMENDED LOAD Cotton, linen 7.0.kg

Synthetics 3.5 kg
Delicate fabrics 3.5.kg
Wool/Hand wash 2.0 kg

Drying

Cotton, linen 3.5.kg
Synthetics 2.0.kg

SPIN SPEED MaximumZ 16 S 1400 rpm

CONSUMPTION DATA FOR WASHING Energy 1.19 kWh
7 KG NORMALLY SOILED COTTON Water 57 litres
ITEMS WITH PROGRAMME ”
“Cottons Economy 60°” (White Cottons):

7

Unpacking

All transit bolts and packing must be removed
before using the appliance.

You are advised to keep all transit devices so that the
they can be refitted if the machine ever has to be
transported again.

1. Using the supplied spanner unscrew and remove the
two rear bottom screws. Slide out the two plastic
pins. Lay the machine gently on its back, making sure
that the hoses are not squashed.

2. Remove the polystyrene block from the bottom of
the machine and release the two plastic bags.

3. Very carefully slide out the left polythene bag,
removing it towards the right and then downwards.
Repeat the operation for the right polythene bag,
removing it towards the left and then upwards.

4. Remove the polystyrene base.

5. Set the machine upright and unscrew the remaining
rear screw. Slide out the relevant pin.

6. Fill all the holes with the plastic plugs supplied with
the instruction booklet.

Important !
You are advised to keep all the packaging for re-

use in case the machine is to be transported
again. In case of moving out the same
precautions as per paragraph “The dangers of
freezing” must be taken i.e. the residual water
in the hoses must be pumped out.

Positioning

Install the machine on a flat hard floor.
Make sure that air circulation around the machine is
not impeded by carpets, rugs etc. Check that the
machine does not touch the wall or other kitchen
units.
Never place cardboard, wood or similar materials
under the machine to compensate for any unevenness
in the floor.

Your new washer-dryer has been designed to be
permanently plumbed in to your home’s water supply
and drainage system. However, if this is not possible, it
may be connected to a suitable existing tap with the
drain hose discharging into a sink.
The appliance has an inlet hose, with female 3/4” BSP
thread connector. If this connection is not compatible
with the plumbing of the existing installation, a variety
of connectors are available from good hardware stores
and plumbers merchants to suit most domestic
plumbing. Any alteration to your existing plumbing
must be carried out by a competent person, or
qualified plumber.

P1129

P0001

1

2

3

P1124

P1126

P1128

P0002

P1127

8

Installation on a Suspended
Floor

Suspended wooden floors are particularly susceptible
to vibration. To help prevent vibration we recommend
you place a waterproof wood panel, at least 15 mm
thick under the appliance, secured to at least 2 floor
beams with screws. If possible install the appliance in
one of the corners of the room, where the floor is
more stable.

Water inlet

Connect the hose to a tap with a 3/4” thread.
Always use the hose supplied with the appliance to
connect to the water supply.
Do not use previously used hoses for water
connection.

Installation should comply with local water authority
and building regulations’ requirements.

The appliance must be connected to a cold
water supply.

A minimum water pressure of 0.05 MPa (0.5 bar) is
required for safe operation of the appliance.

If you cannot make the cold water connection direct
from the rising mains, you may be able to operate the
appliance from your cold water storage system.

There should be a minimum distance of 5.02m
(16.5 ft) between the appliance’s inlet and the bottom
of the water storage tank.

Set the hose correctly by loosening the ring nut. After
positioning the inlet hose, be sure to tighten the ring
nut again to prevent leaks.

Water drainage

This appliance is designed to be permanently plumbed
into your home's drainage system using one of the
following methods.

1. Into a drainage standpipe.

Firstly form a hook in the end of the drain hose using
the “U” piece” supplied.

Place the drain hose into your standpipe, which should
have an internal diameter of approximately 38mm thus
ensuring there is an air break between the drain hose
and standpipe.

When discharging into a standpipe ensure that the top
of the standpipe is no more than 90cm (35.4'') and no
less than 60cm (23.6'') above floor level.

The drain hose may be extended to a maximum of 4
metres. An additional drain hose and joining piece is
available from your local Service Force Centre.
The joining piece must have an internal diameter of
18 mm.

If your drain hose looks like this (see below) you do
not require the “U” piece”. Just push the hose firmly
into the standpipe.

U piece

supplied

P1199

P1088

38 mm (11.2)

standpipe

diameter

30 cm (12")

P1074

3 pin

Max. 90 cm (35.4)

Min. 60 cm (23.6)

P1039

P0021

9

2. Onto a sink outlet spigot.

If the outlet spigot has not been used before, remove
any blanking plug that may be in place.

Push the drain hose onto the spigot and secure with a
clip if required, ensure a loop is formed in the drain
hose (see diagram) to prevent waste from the sink
entering the washing machine.

Important

●

Before connecting the machine to new pipework or
to pipework that has not been used for some time,
run off a reasonable amount of water to flush out
any debris that may have collected in the pipes.

Levelling

Level the washing machine by raising or lowering the
feet. The feet may be tight to adjust as they incorporate
a self locking nut, but the machine MUST be level and
stable (check diagonally).

P1212

Any necessary adjustment can be made with a spanner.
Accurate levelling prevents vibration, noise and
displacement of the machine during operation.
Some vibration is inevitable, especially if mounted on a
wooden floor.
Sprung wooden floors are particularly susceptible to
vibration. For advice, consult a builder. If possible,
always place the machine on a solid floor.

Special conditions

If the floor is carpeted or covered with crumbly or soft
material, insert a rigid support base under the feet to
prevent noise, vibration or displacement. The base
should protrude a few centimetres beyond the edges of
the machine.

Warning

The machine should NOT be placed on deep pile

carpeting.

Note

Please ensure that when the appliance is installed it is
easily accessible for the engineer in the event of a
breakdown.

In the interest of the environment

Washing machines and dishwashers should be
connected to the FOUL drainage system, the water will
then be taken to a sewage works for treatment before
being discharged safely into a river.

It is essential that these appliances are not connected
to the surface water drainage system as this water is
discharged directly into a river or stream and may
cause pollution.
If you require any further advice please contact your
local water authority.

P1197

Loop

P1198

P1051

SHOWER

SINK TOILET

P0987

RAINWATER

'RUN-OFF'

SURFACE WATER

DRAINS & SEWERS

UNTREATED

DISCHARGE

RIVER

BATH

WASHING
MACHINE

DISHWASHER

BIDET

FOUL DRAIN

FOUL SEWERS

SEWAGE

TREATMENT

WORKS

TREATED

DISCHARGE

RIVER

Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.

WARNING: THIS APPLIANCE MUST BE
EARTHED.

The manufacturer declines any liability
should this safety measure not be
observed.

Should the appliance power supply cable
need to be replaced, this must be carried
out by a Service Force agent (see page 28).

Before switching on, make sure the electricity supply
voltage is the same as that indicated on the appliance’s
rating plate. The rating plate is located at the top of the
rim of the open door.

The appliance is supplied with a 13amp plug fitted.
In the event of having to change the fuse in the plug
supplied, a 13amp ASTA approved (BS1363/A) fuse
must be used.

Should the plug need to be replaced for any reason,
proceed as described below.

The wires in the mains lead are coloured in accordance
with the following code:

Green and Yellow - Earth
Blue - Neutral
Brown - Live

If you fit your own plug, the colours of the wires in

themains lead of your appliance may not correspond
with themarkings identifying the terminals in your
plug.

Proceed as follows:

1.The wire coloured green and yellow must be
connected to the terminal marked with the letter
«E» or by the earth symbol or coloured green
and yellow.

2.The wire coloured blue must be connected to the
terminal marked «N» or coloured black.

3.The wire coloured brown must be connected to the
terminal marked «L» or coloured red.

4.Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must be
secure over the outer sheath.

WARNING:

A cut off plug inserted into a 13 amp

socket is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of
safely.

The power supply cable must be easily

accessible after installing the appliance.

The appliance should not be connected to

the electrical supply by means of an

extension cable.

Permanent connection

In the case of permanent connection it is necessary
that you install a double pole switch between the
appliance and the electricity supply (mains), with a
minimum gap of 3mm between the switch contacts and
of a type suitable for the required load in compliance
with the current electrical regulations.

The switch must not break the yellow and green earth
cable at any point.

10

Electrical connection

GREEN & YELLOW

E

13A

L

N

BROWN

BLUE

P1041

CORD CLAMP
