John Lewis JLTDH15 User Manual
JLTDH15
Tumble dryer
Instruction manual
Important safety information
It is most important that this instruction book should be retained with
the appliance for future reference. Should the appliance be sold or
transferred to another owner, or should you move house and leave the
appliance, always ensure that the book is supplied with the appliance in
order that the new owner can get to know the functioning of the
appliance and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST
read them carefully before installing or using the appliance. If you are
unsure of the meanings of these warnings contact the John Lewis
branch from which you purchased the appliance.
- Please read the instruction book
before using this appliance.
General safety
• It is dangerous to alter the specifications
or attempt to modify this product in any
way.
• This appliance is not intended for use by
persons (including children) with reduced
physical and sensory conditions or lack of
experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
• Make sure that small children and pets do
not climb inside the drum. To avoid this,
please check into the drum before using.
• Any objects such as coins, safety pins,
nails, screws, stones or any other hard,
sharp material can cause extensive
damage and must not be placed into the
machine.
• In order to avoid danger of fires caused by
excessive drying, do not use appliance to
dry the following items: Cushions, quilts
etc. (these items accumulate heat).
• Items such as foam rubber (latex foam),
shower caps, waterproof textiles, rubber
backed articles and clothes or pillows
fitted with foam rubber pads should not
be dried in the tumble dryer.
• Always unplug the appliance after use,
cleaning and maintenance.
• Under no circumstances should you
attempt to repair the machine yourself.
Repairs carried out by inexperienced
persons may cause injury or serious
malfunctioning. Contact your local Service
Centre. Always insist on genuine spare
parts.
• Items that have been soiled with
substances such as cooking oil acetone,
petrol, kerosene, spot removers,
turpentine, waxes and wax removers
should be washed in hot water with an
extra amount of detergent before being
dried in the tumble dryer.
•
Danger of explosion: Never tumble
dry items that have been in contact with
inflammable solvents (petrol, methylated
spirits, dry cleaning fluid and the like). As
these substances are volatile, they could
2
cause an explosion. Only tumble dry
items washed with water.
•
Risk of fire: items that have been
spotted or soaked with vegetable or
cooking oil constitute a fire hazard and
should not be placed in the tumble dryer.
• If you have washed your laundry with
stain remover you must execute an extra
rinse cycle before loading your tumble
dryer.
• Please make sure that no gas lighters or
matches have accidentally been left in
pockets of garments incase they are
loaded into appliance
Warning!
•
Risk of fire! Never stop a
tumble dry before the end of
the drying cycle unless all
items are quickly removed
and spread out so that the
heat is dissipated.
•
Lint must not be allowed to
accumulate around the
tumble dryer.
Installation
• This appliance is heavy. Care should be
taken when moving it.
• When unpacking the appliance, check that
it is not damaged. If in doubt, do not use it
and contact the Service Centre.
• All packaging must be removed before
use. Serious damage can occur to the
product and to property if this is not
adhered to. See relevant section in the
user manual.
• Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.
• If the machine is situated on a carpeted
floor, please adjust the feet in order to
allow air to circulate freely under the
appliance.
• After having installed the appliance, check
that it is not pressing or standing on its
electrical supply cable.
• If the tumble dryer is placed on top of a
washing machine, it is compulsory to use
the stacking kit (optional accessory).
•
Risk of electric shock! Do not spray
down the appliance with jets of water.
• The final part of a tumble dryer cycle
occurs without heat ( cool down cycle )
to ensure that the items are left at a
temperature that ensures that items will
not be damaged.
• The tumble dryer is not to be used if
industrial chemicals have been used for
cleaning.
• Ensure you have good ventilation in the
installation room to avoid the back flow of
gases into the room from appliances
burning other fuels, including open fires.
Use
• This appliance is designed for domestic
use. It must not be used for purposes
other than those for which it was
designed.
• Only wash fabrics which are designed to
be machine dried. Follow the instructions
on each garment label.
• Do not dry unwashed items in the tumble
dryer.
• Do not overload the appliance. See the
relevant section in the user manual.
• Clothes which are dripping wet should
not be placed in the dryer.
3
• Garments which have been in contact
with volatile petroleum products should
not be machine dried. If volatile cleaning
fluids are used, care should be taken to
ensure that the fluid is removed from the
garment before placing in the machine.
• Never pull the power supply cable to
remove the plug from the socket; always
take hold of the plug itself.
• Never use the tumble dryer if the power
supply cable, the control panel, the
working surface or the base are damaged
so that the inside of the tumble dryer is
accessible.
• Fabric softeners, or similar products
should be used as specified by the fabric
softener instructions.
•
Caution - hot surface : Do not touch
the door light cover surface when the light
is switched on.
(Only dryers equipped with internal drum
light)
Child safety
• This machine is not intended for use by
young children or infirm persons without
supervision.
• Children often do not recognise the
hazards associated with electrical
appliances. Children should be supervised
to ensure that they do not play with the
appliance.
Warning!
• Danger of suffocation! The
packaging components (e.g. plastic
film, polystyrene) can be
dangerous to children - Keep them
out of children’s reach.
• Keep all detergents in a safe place out of
children’s reach.
• Make sure that children or pets do not
climb inside the drum.
Environmental tips
• In the dryer, laundry becomes fluffy and
soft. Fabric softeners are not therefore
needed when washing.
• Your dryer will function most
economically if you:
– Always keep the ventilation slots on the
base of the dryer unobstructed;
– Use the loading volumes specified in
the programme overview;
– Ensure you have good ventilation in the
installation room;
– Clean the micro-fine filter and fine
strainer after each drying cycle;
– Spin the laundry well before drying.
Energy consumption depends on
spinning speed set in washing
machine. Higher spinning speed lower energy consumption.
Environmental
information
The packaging materials are environmentally
friendly and can be recycled. The plastic
components are identified by markings, e.g.
>PE<, >PS<, etc. Please dispose of the
packaging materials in the appropriate
container at the community waste disposal
facilities.
Important! The heat pump of your tumble
dryer contains a closed refrigerant circuit
filled with a refrigerant which is free from
fluoro-chloro-hydrocarbons. The refrigerant
circuit in the heat pump must not be
damaged.
4
Warning! When a unit is no longer
being used:
• Pull the plug out of the socket.
• Cut off the cable and plug and
dispose of them.
• Dispose of the door catch. This
prevents children from trapping
themselves inside and endangering
their lives.
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.
5
Contents
For the user
Important safety information
Description of the appliance
Control panel
Before first use
Programme chart
Sorting and preparing laundry
Daily use
Switching machine on 11
Door opening and laundry loading 11
Selecting the programme 11
Delicate 11
Intensive 12
Anti-crease 12
Alarm 12
Time 13
Delay start 13
Setting child lock 13
Starting the programme 14
Changing programme 14
Putting in extra items or taking items out
before end of programme 14
Drying cycle complete / removing laundry 15
Drying rack
Maintenance and cleaning
Cleaning fluff filter 17
Cleaning the door seal 18
Emptying the water reservoir 18
Cleaning heat exchanger filters 19
Cleaning the drum 21
Clean operating screen and housing 21
2
7
8
8
9
10
11
15
17
For the installer
Technical information
Installation

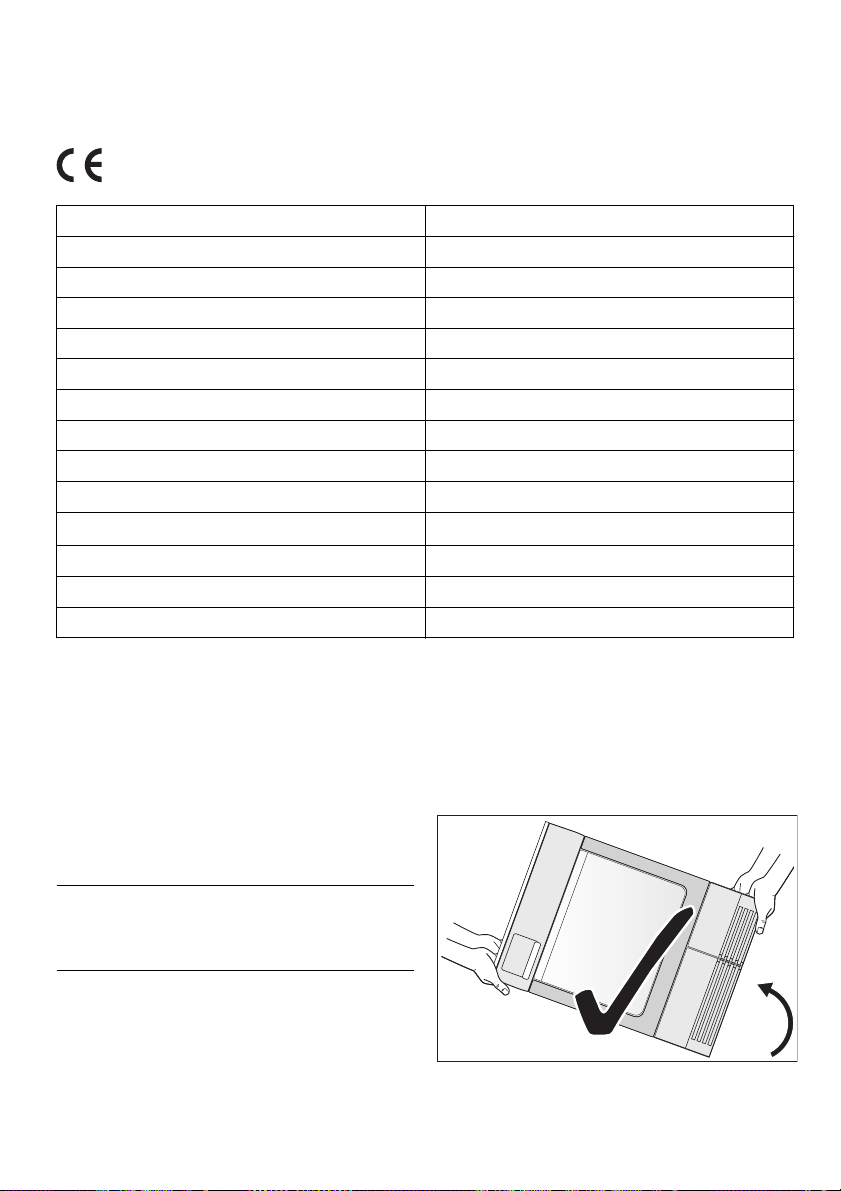

Transporting the appliance 24
Appliance positioning 25
Removing transport safety packaging 25
Electrical connection 26
Door reversal 27
Drying rack unpacking 28
Repairs - after sales service
24
24
29
Guide to use the
instruction manual
The following symbols will be found in the
text to guide you throughout the instructions:
Safety instructions
Hints and tips
What to do if ...
Machine settings
21
Environmental information
23
6
Description of the appliance
1 2
13
12
11
10
9
8
1 Water reservoir
2 Control panel
3 Fine fluff filter
4 Loading door (reversible)
5 Course fluff filter
6 Ventilation grille
7 Adjustable feet
3
4
5
6
7
8 Push button for base door opening
9 Heat exchanger cover
10 Rating plate
11 Fluff filter
12 Drying rack
13 Drum light
7
Control panel
1 2345678910
1
Programme selector and Off switch
2
Delicate button
3
Intensive button
4
Anti-crease button
5
Alarm button
6
Time button
Before first use
In order to remove any residues which may
have been produced during production,
wipe the dryer drum with a damp cloth or
carry out a brief drying cycle (ca. 30 min.)
with damp cloths in the machine.
7
Display (Dry time)
8
Start/Pause button
9
Warning lights: Condenser, Filter,
Full tank
10
Delay start button
At the beginning of drying cycle (3-5 min.)
there could be a slightly higher sound level. It
is because of start of the compressor that is
normal for compressor powered appliances
such: refrigerators, freezers .
8
Programme chart
Additional
functions/options
Programmes
max. load
Delicate
(weight when dry)
Cottons Extra
dry
Cottons Store
dry
Cottons
Cupboard dry
Cottons Damp
dry
Cottons Iron dry 7 kg - • • • - •
Synthetics Extra
dry
Synthetics
Cupboard dry
Synthetics Iron
dry
Mix 3 kg - •••-•
Time 7 kg - - • • • • To dry the laundry with the time set by the user.
Heavy cotton 7 kg - •••-•
Easy iron
Delicate 2 kg - • • • - • To dry baby clothes e. g. jumpers.
7 kg - •••-•
7 kg - •••-•
7 kg - •••-•
7 kg - •••-•
3 kg ••••-•
3 kg ••••-•
3 kg ••••-•
1 kg
(or 5
shirts)
Intensive
-•••-•
Anti-crease
Time
Alarm
Delay start
To dry thick or multi- layered fabrics, e.g. terry
towelling items, bathrobes, cottons.
To dry thick fabrics, e.g. terry towelling items,
towels, cottons.
To dry fabrics of even thicknesses, e.g. terry
towelling items, knitwear, towels, cotton shirts.
To dry thin textiles which are still to be ironed,
e.g. knitted item, cotton shirts.
To dry normal thickness cotton or linen laundry,
e.g. bedding, table linen.
To dry thick or multi-layered fabrics, e.g.
pullovers, bedding, table linen.
To dry thin fabrics which are not ironed, e.g.
easy care shirts, table linen, socks, lingerie with
bones or wires.
To dry thin fabrics which are also to be ironed,
e.g. knitwear, cotton shirts.
To dry cotton and synthetic fabrics, uses low
temperature.
To dry leisure clothes, such as jeans, sweatshirts, etc., of different material thicknesses (e.g.
at the neck, cuffs and seams).
To dry easy care cloths such as shirts and
blouses. After this programme the cloths iron
easiest. To have good result, we recommend to
shake the wet cloths and put straight in the
tumble dryer. After the programme end,
remove the cloths and put on the cloths hanger.
Application/properties
9
Additional
functions/options
Programmes
max. load
1)
Wool
1) To dry with the rack only.
1 kg -- -•••
Intensive
Alarm
Anti-crease
Delicate
(weight when dry)
Time
Delay start
To dry the cloths made of wool. With this
programme you must set the time with the Time
function. We recommend to remove the cloths
immediately after the programme end.
Application/properties
Sorting and preparing laundry
Sorting laundry
• Sort by fabric type:
– Cotton/linen for programmes in
Cottons programme group.
– Mixtures and synthetics for
programmes in Synthetics programme
group.
• Sort by care label: The care labels mean:
Drying in the tumble dryer possible in
principle
Drying at normal temperature
Drying at reduced temperature
Drying in the tumble dryer not
possible
Important! Do not place in the appliance
any wet laundry which is not specified on the
care label as being suitable for tumbledrying.
This appliance can be used for all wet
laundry items which are labelled as suitable
for tumble-drying.
• Do not dry new, coloured textiles
together with light-coloured laundry
items. Textile colours may bleed.
• Do not dry cotton jersey and knitwear
with the Extra programme. Items may
shrink!
• Wool and wool-like textiles can be dried
using the Wool care programme.
Preparing laundry
• To avoid laundry becoming tangled: close
zips, button up duvet covers and tie loose
ties or ribbons (e.g. of aprons).
• Empty pockets. Remove metal items
(paper clips, safety pins, etc).
• Turn items with double-layered fabrics
inside out (e.g. with cotton-lined anoraks,
the cotton layer should be outermost).
These fabrics will then dry better.
Important! Do not overload the appliance.
Observe max. loading volume of 7 kg.
10
Loading...
