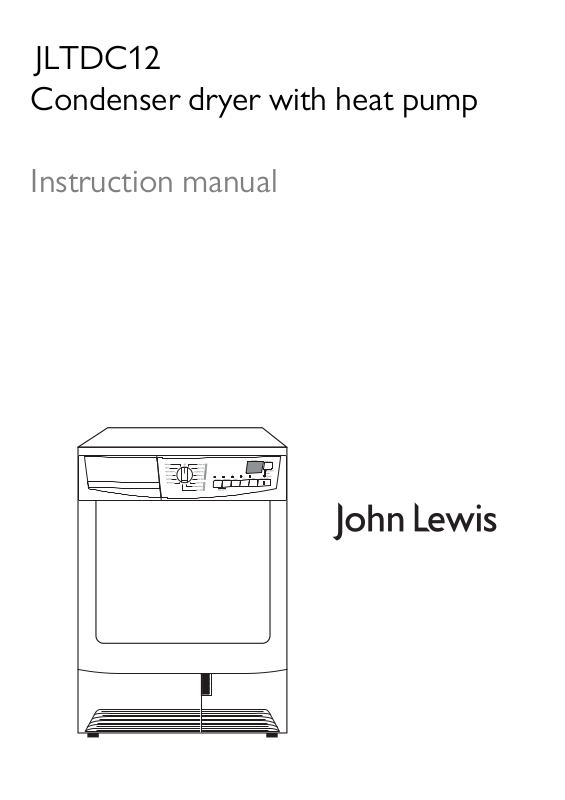

Page 1
JLTDC12
Condenser dryer with heat pump
Instruction manual
Page 2
Important safety information
It is most important that this instruction book should be retained with
the appliance for future reference. Should the appliance be sold or
transferred to another owner, or should you move house and leave the
appliance, always ensure that the book is supplied with the appliance in
order that the new owner can get to know the functioning of the
appliance and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST
read them carefully before installing or using the appliance. If you are
unsure of the meanings of these warnings contact the John Lewis
branch from which you purchased the appliance.
• Items such as foam rubber (latex foam),
- Please read the instruction book
before using this appliance.
General safety
• It is dangerous to alter the specifications
or attempt to modify this product in any
way.
• This appliance is not intended for use by
persons (including children) with reduced
physical and sensory conditions or lack of
experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
• Make sure that small children and pets do
not climb inside the drum. To avoid this,
please check into the drum before using.
• Any objects such as coins, safety pins,
nails, screws, stones or any other hard,
sharp material can cause extensive
damage and must not be placed into the
machine.
• In order to avoid danger of fires caused by
excessive drying, do not use appliance to
dry the following items: Cushions, quilts
etc. (these items accumulate heat).
shower caps, waterproof textiles, rubber
backed articles and clothes or pillows
fitted with foam rubber pads should not
be dried in the tumble dryer.
• Always unplug the appliance after use,
cleaning and maintenance.
• Under no circumstances should you
attempt to repair the machine yourself.
Repairs carried out by inexperienced
persons may cause injury or serious
malfunctioning. Contact your local Service
Centre. Always insist on genuine spare
parts.
• Items that have been soiled with
substances such as cooking oil acetone,
petrol, kerosene, spot removers,
turpentine, waxes and wax removers
should be washed in hot water with an
extra amount of detergent before being
dried in the tumble dryer.
•
Danger of explosion: Never tumble
dry items that have been in contact with
inflammable solvents (petrol, methylated
spirits, dry cleaning fluid and the like). As
these substances are volatile, they could
2
Page 3
cause an explosion. Only tumble dry
items washed with water.
•
Risk of fire: items that have been
spotted or soaked with vegetable or
cooking oil constitute a fire hazard and
should not be placed in the tumble dryer.
• If you have washed your laundry with
stain remover you must execute an extra
rinse cycle before loading your tumble
dryer.
• Please make sure that no gas lighters or
matches have accidentally been left in
pockets of garments incase they are
loaded into appliance
Warning!
• Risk of fire! Never stop a
tumble dry before the end of
the drying cycle unless all
items are quickly removed
and spread out so that the
heat is dissipated.
•
Lint must not be allowed to
accumulate around the
tumble dryer.
Installation
• This appliance is heavy. Care should be
taken when moving it.
• When unpacking the appliance, check that
it is not damaged. If in doubt, do not use it
and contact the Service Centre.
• All packaging must be removed before
use. Serious damage can occur to the
product and to property if this is not
adhered to. See relevant section in the
user manual.
• Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.
• If the machine is situated on a carpeted
floor, please adjust the feet in order to
allow air to circulate freely under the
appliance.
• After having installed the appliance, check
that it is not pressing or standing on its
electrical supply cable.
• If the tumble dryer is placed on top of a
washing machine, it is compulsory to use
the stacking kit (optional accessory).
•
Risk of electric shock! Do not spray
down the appliance with jets of water.
• The final part of a tumble dryer cycle
occurs without heat ( cool down cycle )
to ensure that the items are left at a
temperature that ensures that items will
not be damaged.
• The tumble dryer is not to be used if
industrial chemicals have been used for
cleaning.
• Ensure you have good ventilation in the
installation room to avoid the back flow of
gases into the room from appliances
burning other fuels, including open fires.
Use
• This appliance is designed for domestic
use. It must not be used for purposes
other than those for which it was designed.
• Only wash fabrics which are designed to
be machine dried. Follow the instructions
on each garment label.
• Do not dry unwashed items in the tumble
dryer.
• Do not overload the appliance. See the
relevant section in the user manual.
• Clothes which are dripping wet should
not be placed in the dryer.
• Garments which have been in contact
with volatile petroleum products should
not be machine dried. If volatile cleaning
3
Page 4
fluids are used, care should be taken to
ensure that the fluid is removed from the
garment before placing in the machine.
• Never pull the power supply cable to
remove the plug from the socket; always
take hold of the plug itself.
• Never use the tumble dryer if the power
supply cable, the control panel, the
working surface or the base are damaged
so that the inside of the tumble dryer is
accessible.
• Fabric softeners, or similar products
should be used as specified by the fabric
softener instructions.
•
Caution - hot surface : Do not touch
the door light cover surface when the light
is switched on.
(Only dryers equipped with internal drum
light)
Child safety
• This machine is not intended for use by
young children or infirm persons without
supervision.
• Children often do not recognise the
hazards associated with electrical
appliances. Children should be supervised
to ensure that they do not play with the
appliance.
Warning!
• Danger of suffocation! The
packaging components (e.g. plastic
film, polystyrene) can be
dangerous to children - Keep them
out of children’s reach.
• Keep all detergents in a safe place out of
children’s reach.
• Make sure that children or pets do not
climb inside the drum.
Environmental tips
• In the dryer, laundry becomes fluffy and
soft. Fabric softeners are not therefore
needed when washing.
• Your dryer will function most
economically if you:
– Always keep the ventilation slots on the
base of the dryer unobstructed;
– Use the loading volumes specified in
the programme overview;
– Ensure you have good ventilation in the
installation room;
– Clean the micro-fine filter and fine
strainer after each drying cycle;
– Spin the laundry well before drying.
Energy consumption depends on
spinning speed set in washing
machine. Higher spinning speed lower energy consumption.
Environmental
information
The packaging materials are environmentally
friendly and can be recycled. The plastic
components are identified by markings, e.g.
>PE<, >PS<, etc. Please dispose of the
packaging materials in the appropriate
container at the community waste disposal
facilities.
Important! The heat pump of your tumble
dryer contains a closed refrigerant circuit
filled with a refrigerant which is free from
fluoro-chloro-hydrocarbons. The refrigerant
circuit in the heat pump must not be damaged.
4
Page 5
Warning! When a unit is no longer
being used:
• Pull the plug out of the socket.
• Cut off the cable and plug and
dispose of them.
• Dispose of the door catch. This
prevents children from trapping
themselves inside and endangering
their lives.
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.
5
Page 6
Contents
For the user
Important safety information
Description of the
appliance
Control panel
Before first use
Programme chart
8
9
9
10
Sorting and preparing
laundry
Daily use
Switching machine on 12
Door opening and laundry loading 12
Selecting the programme 12

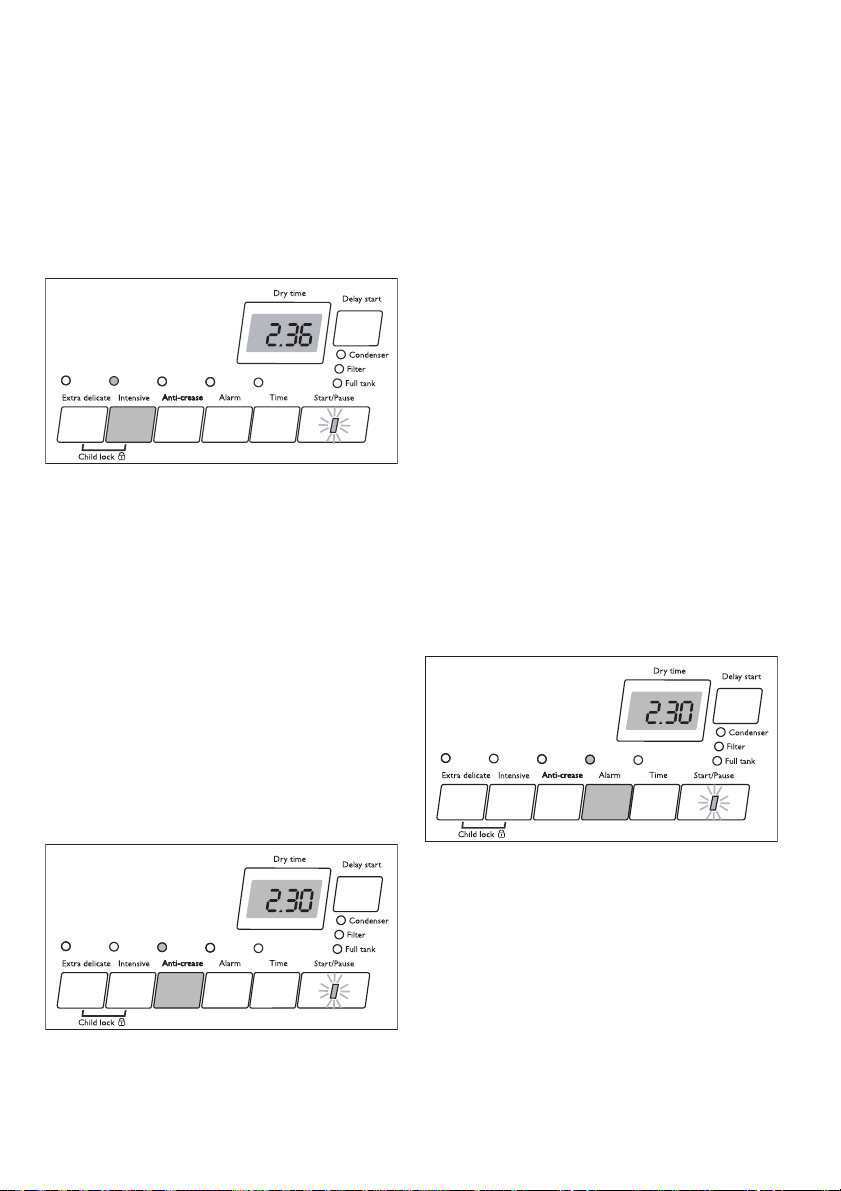

Extra delicate 12
Intensive 13
Anti-crease 13
Alarm 13

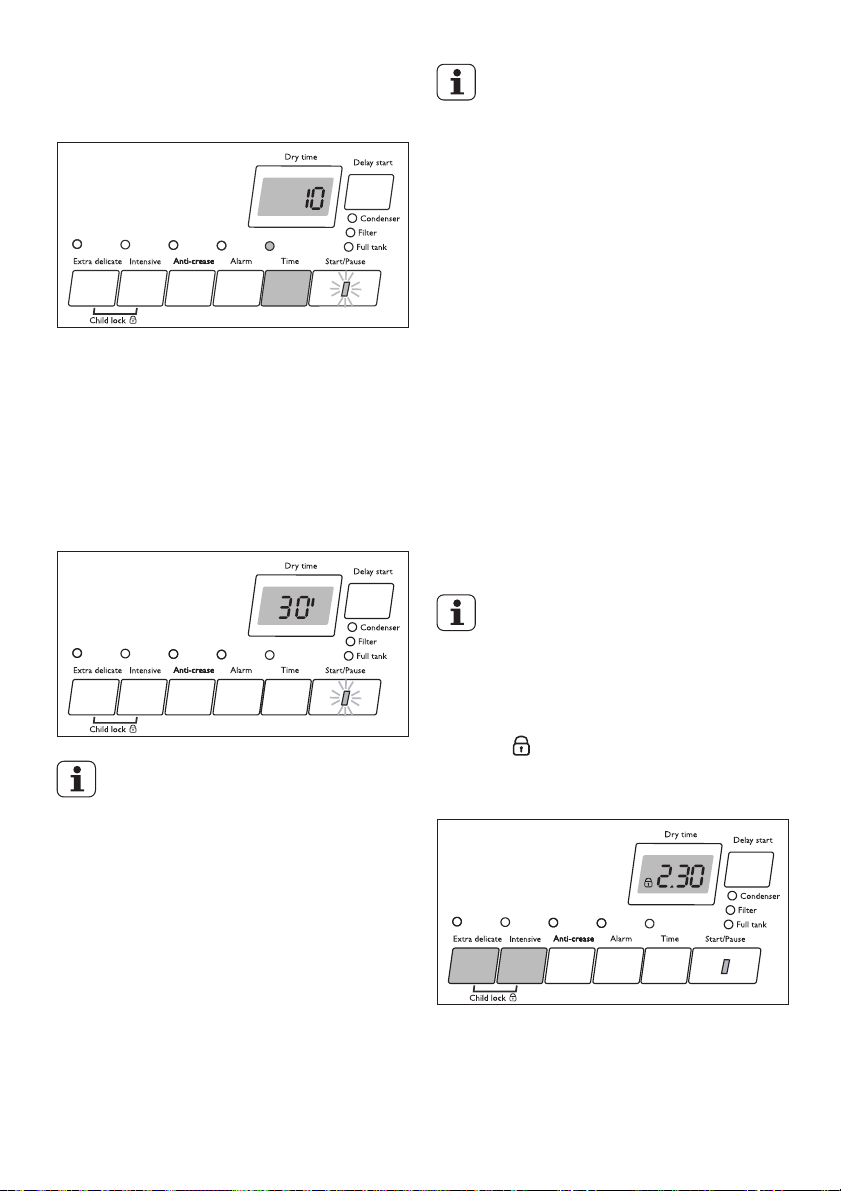

Time 13
Delay start 14
Setting child lock 14

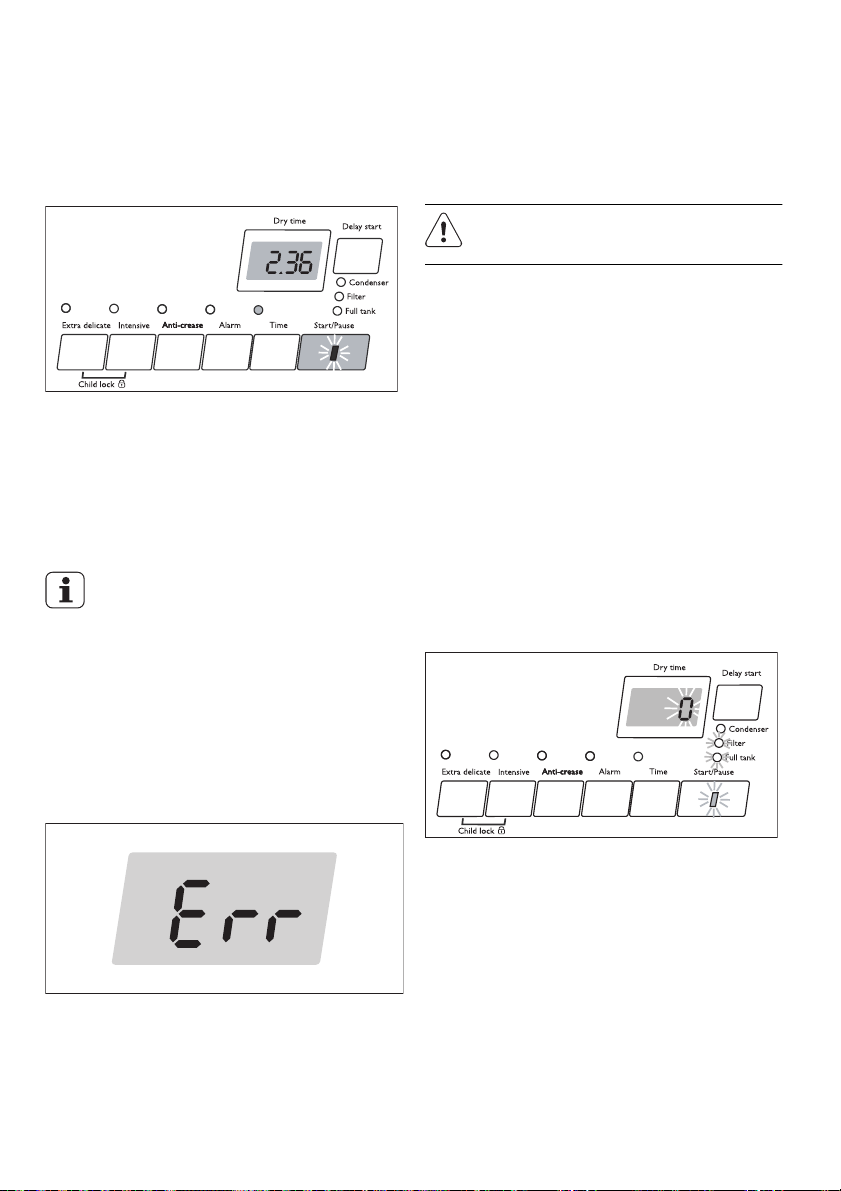

Starting the programme 15
Changing programme 15
Putting in extra items or taking items out
before end of programme 15
Drying cycle complete / removing
laundry 15
11
12
Maintenance and cleaning
Cleaning fluff filter 16
Cleaning the door seal 18
Emptying the water reservoir 18

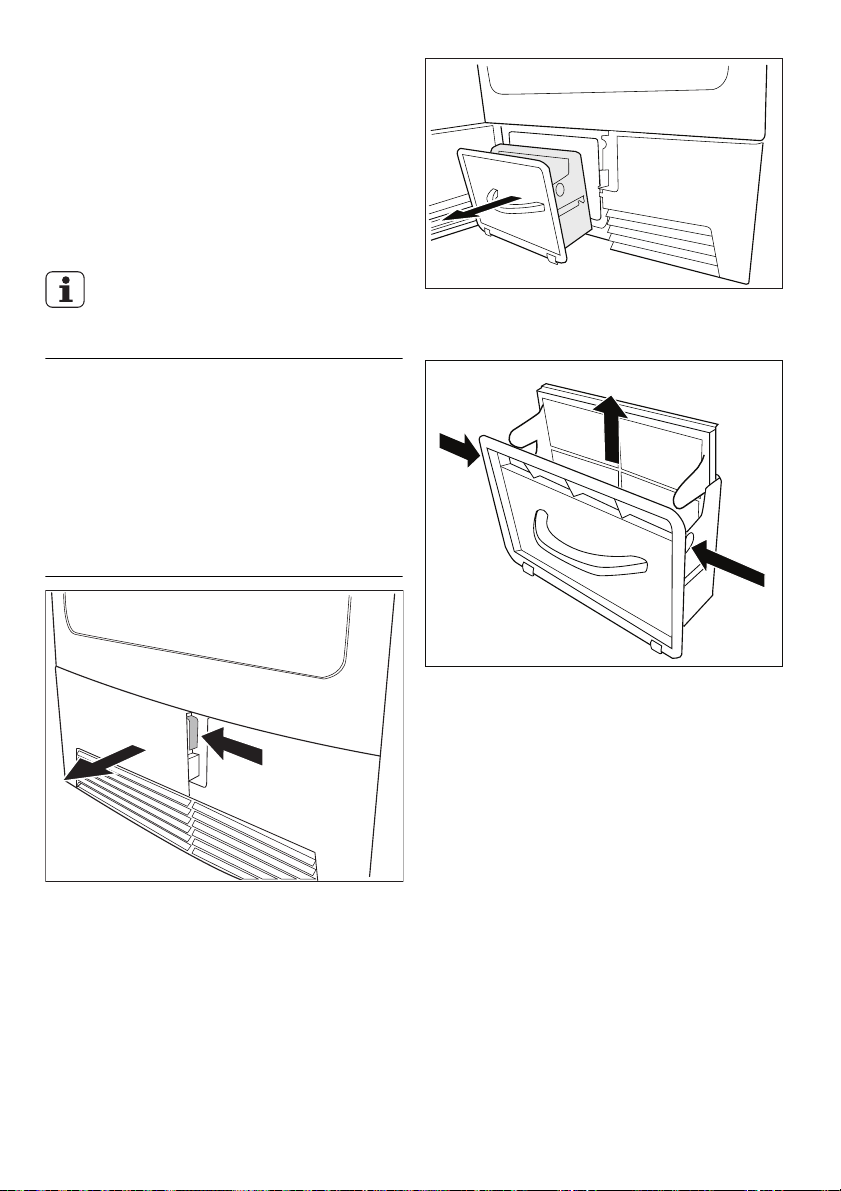

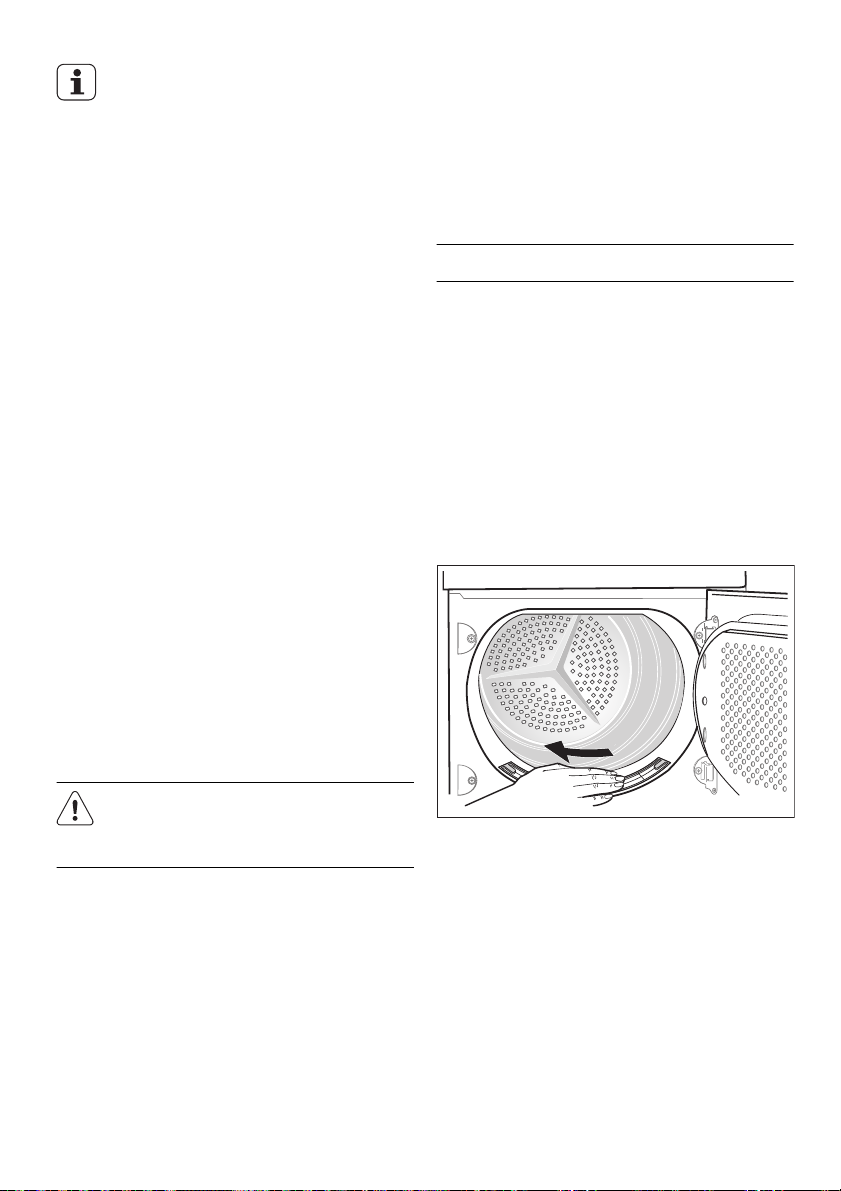

Cleaning heat exchanger filters 19
Cleaning the drum 20
Clean operating screen and housing 21
What to do if ...
21
2
16
For the installer
Technical specifications
Installation

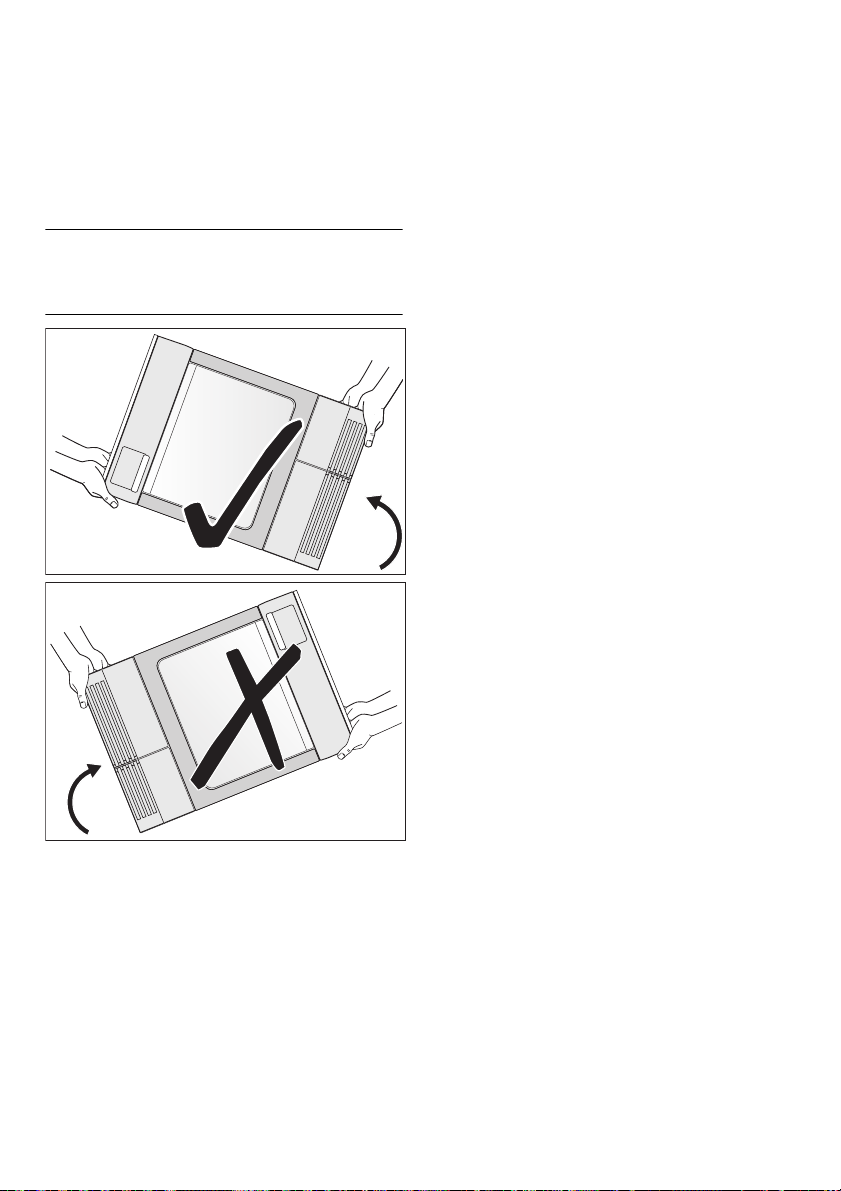

Transporting the appliance 25
Appliance positioning 25

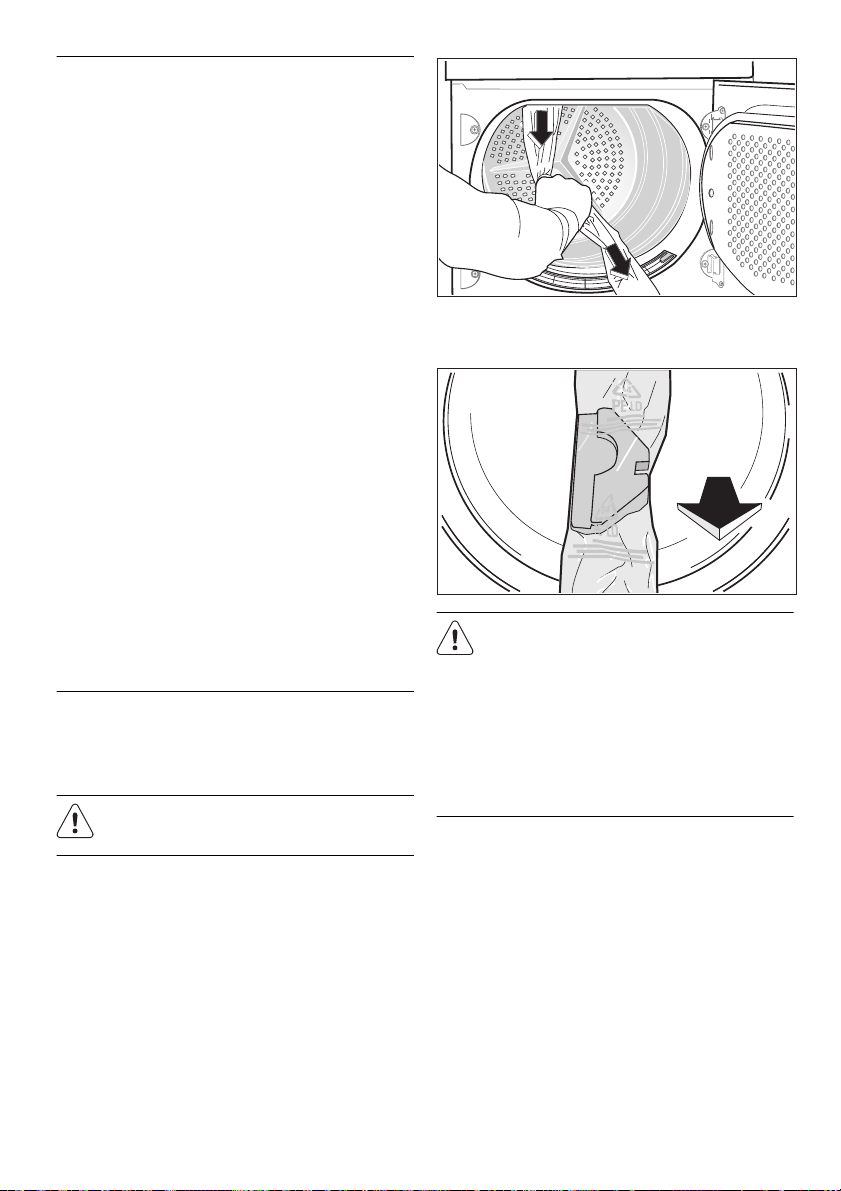

Removing transport safety packaging 26
Electrical connection 26
Door reversal 28
25
Repairs - after sales service
24
28
Guide to use the
instruction manual
The following symbols will be found in the
text to guide you throughout the instructions:
Safety instructions
Hints and tips
6
Page 7
Machine settings
22
Environmental information
7
Page 8
Description of the appliance
2
3
5
7
9
10
1 Control panel
2 Water reservoir
3 Drum light
4 Fine fluff filter
5 Fluff filter
6 Loading door (reversible)
1
4
6
8
11
12
7 Rating plate
8 Course fluff filter
9 Heat exchanger cover
10 Push button for base door opening
11 Ventilation grille
12 Adjustable feet
8
Page 9

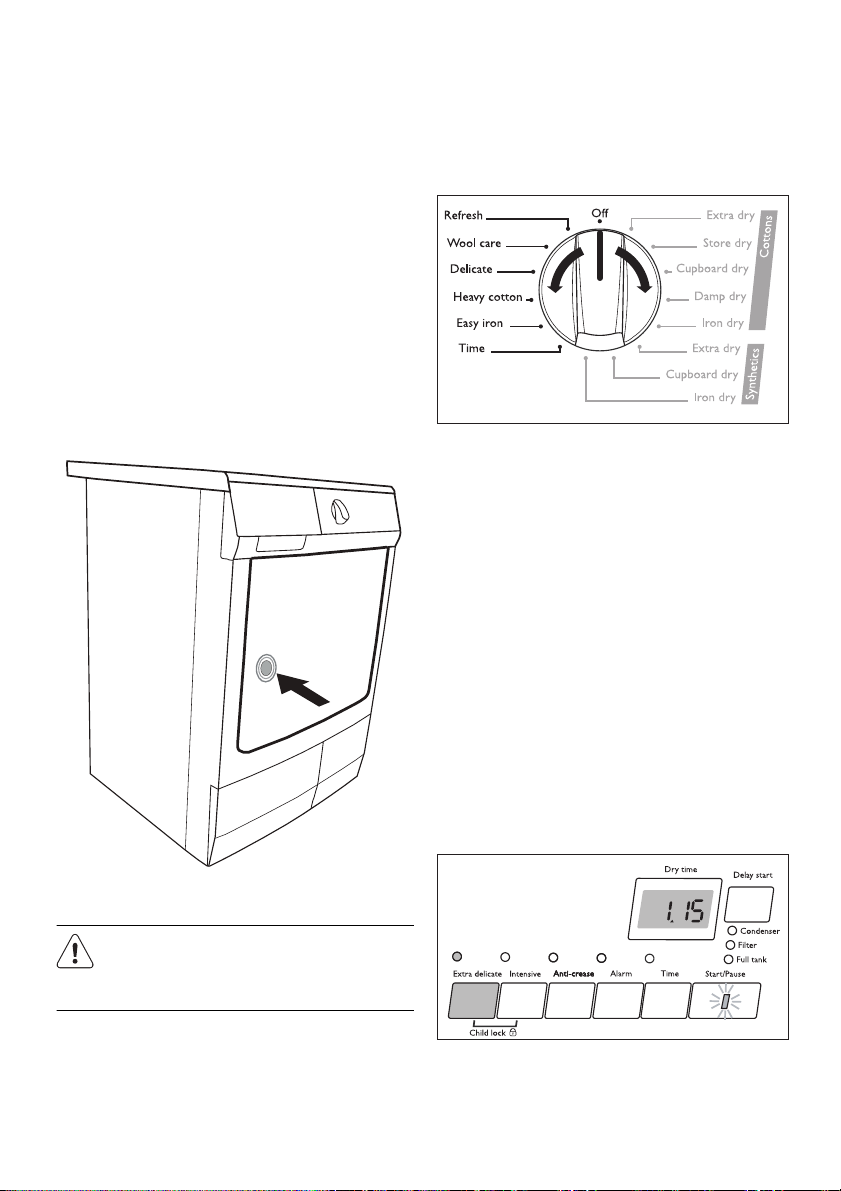

Control panel
1 2345678910
1
Programme selector and Off switch
2
Extra delicate button
3
Intensive button
4
Anti-crease button
5
Alarm button
6
Time button
Before first use
In order to remove any residues which may
have been produced during production,
wipe the dryer drum with a damp cloth or
carry out a brief drying cycle (ca. 30 min.)
with damp cloths in the machine.
7
Display ( Dry time )
8
Start/Pause button
9
Warning lights: Condenser , Filter ,
Full tank
10
Delay start button
At the beginning of drying cycle (3-5 min.)
there could be a slightly higher sound level. It
is because of start of the compressor that is
normal for compressor powered appliances
such: refrigerators, freezers .
9
Page 10
Programme chart
Additional
functions/options
Programmes
max. load
(weight when dry)
Cottons Extra dry 7 kg - • • • - •
Cottons Store
dry
Cottons
Cupboard dry
Cottons Damp
dry
Cottons Iron dry 7 kg - • • • - •
Synthetics Extra
dry
Synthetics
Cupboard dry
Synthetics Iron
dry
Time 7 kg - - • • • • To dry the laundry with the time set by the user.
Easy iron
Heavy cotton 7 kg - • • • - •
Delicate 2 kg - • • • - • To dry baby clothes e. g. jumpers.
7 kg - •••-•
7 kg - •••-•
7 kg - •••-•
3 kg ••••- •
3 kg ••••- •
3 kg ••••- •
1 kg
(or 5
shirts)
Intensive
Extra delicate
-•••-•
Alarm
Anti-crease
Time
Delay start
To dry thick or multi- layered fabrics, e.g. terry
towelling items, bathrobes, cottons.
To dry thick fabrics, e.g. terry towelling items,
towels, cottons.
To dry fabrics of even thicknesses, e.g. terry
towelling items, knitwear, towels, cotton shirts.
To dry thin textiles which are still to be ironed,
e.g. knitted item, cotton shirts.
To dry normal thickness cotton or linen laundry,
e.g. bedding, table linen.
To dry thick or multi-layered fabrics, e.g.
pullovers, bedding, table linen.
To dry thin fabrics which are not ironed, e.g.
easy care shirts, table linen, socks, lingerie with
bones or wires.
To dry thin fabrics which are also to be ironed,
e.g. knitwear, cotton shirts.
To dry easy care cloths such as shirts and
blouses. After this programme the cloths iron
easiest. To have good result, we recommend to
shake the wet cloths and put straight in the
tumble dryer. After the programme end,
remove the cloths and put on the cloths hanger.
To dry leisure clothes, such as jeans, sweatshirts, etc., of different material thicknesses (e.g.
at the neck, cuffs and seams).
Application/properties
10
Page 11
Additional
functions/options
Programmes
max. load
(weight when dry)
Wool care 1 kg - - - • - •
Refresh 1 kg - - • • - • To refresh the clothes.
Intensive
Extra delicate
Anti-crease
Time
Alarm
Delay start
To refresh the clothes made of wool . The
cloths become soft and cosy. We recommend
to remove the cloths immediately after the
programme end.
Application/properties
Sorting and preparing laundry
Sorting laundry
• Sort by fabric type:
– Cotton/linen for programmes in
Cottons programme group.
– Mixtures and synthetics for
programmes in Synthetics programme
group.
• Sort by care label: The care labels mean:
Drying in the tumble dryer possible in
principle
Drying at normal temperature
Drying at reduced temperature
Drying in the tumble dryer not possible
Important! Do not place in the appliance
any wet laundry which is not specified on the
care label as being suitable for tumble-drying.
This appliance can be used for all wet
laundry items which are labelled as suitable
for tumble-drying.
• Do not dry new, coloured textiles
together with light-coloured laundry
items. Textile colours may bleed.
• Do not dry cotton jersey and knitwear
with the Extra programme. Items may
shrink!
• Wool and wool-like textiles can be dried
using the Wool care programme.
Preparing laundry
• To avoid laundry becoming tangled: close
zips, button up duvet covers and tie loose
ties or ribbons (e.g. of aprons).
• Empty pockets. Remove metal items
(paper clips, safety pins, etc).
• Turn items with double-layered fabrics
inside out (e.g. with cotton-lined anoraks,
the cotton layer should be outermost).
These fabrics will then dry better.
Important! Do not overload the appliance.
Observe max. loading volume of 7 kg.
11
Page 12
Daily use
Switching machine on
Turn the programme selector to any
programme. The machine switches on.
When the loading door is open, the internal
lamp illuminates the drum.
Door opening and
laundry loading
1. Open loading door:
Push against the loading door (push point)
Selecting the programme
Use the programme selector to set the
programme you require. The estimated time
to end of the programme appears in the
LCD in h:mm format (hours:minutes).
During the cycle time elapses by steps of
one minute; less than 1 hour the leading
zero is not shown (e.g. “59”, “5”, “0”).
Extra delicate
Extra delicate cycle is a programme specially
designed for drying sensitive fabrics with the
care label and for temperature-sensitive
textiles (e.g. acrylic, viscose). The
programme is executed with reduced heat.
To activate it:
1. Choose the drying programme.
2. Load your laundry (do not force it in).
Caution! Do not jam laundry in
between the loading door and rubber
seal.
3. Close loading door securely. Lock must
audibly lock.
2. Press the Extra delicate button - the LED
above is on.
12
Page 13
To deselect the function press the Extra
delicate button again. LED above is off.
Intensive
If the laundry is still damp after a standard
drying programme, you can increase the
drying result by using the Intensive function.
1. Choose the drying programme.
2. Press the Intensive button - the LED
above is on.
To deselect the function press the Intensive
button again. The LED above is off.
Anti-crease
This function prolongs the anti-crease phase
to 90 mins in total. The drum rotates in
intervals during this phase. The laundry
therefore remains relaxed and free of creases.
To activate it:
1. Choose the drying programme.
2. Press the Anti-crease button - the LED
above is on.
be removed at any time during the anticrease phase.
To deselect the function press the Anti-
crease button again. The LED above is off.
Press the Anti-crease button. A 90 minute anticrease phase is set. The display now shows
the anti-crease icon. If this additional
function is selected, the anti-crease phase at
the end of the drying cycle is lengthened by
60 minutes. The laundry can be removed at
any time during the anti-crease phase.
Alarm
The appliance is supplied with the Alarm
function deactivated.
When activated, the buzzer sounds:
– At the end of the cycle
– When the anti-crease phase starts or ends
– When the cycle is interrupted
To activate it:
1. Choose the drying programme.
2. Press the Alarm button - the LED above
is on.
If this additional function is selected, the anticrease phase at the end of the drying cycle is
lengthened by 60 minutes. The laundry can
To deselect the function press the Alarm
button again. The LED above is off.
Time
Use the Time button to select the
programme duration after setting the Time
programme. You can select a programme
duration from 10 mins to 2 hrs in 10-minute
steps.
13
Page 14
1. Turn the programme selector to the
Time programme. The flashing 10' above
the Time button is on.
If the display is showing 20h and you
press the button again, the time delay
will be cancelled. The display will
show 0'and then the duration of the
selected programme.
3. To activate the delay timer, press the
Start/Pause button. The amount of time
remaining until the programme is set to
start is continuously displayed (e.g. 15h,
14h, 13h, … 30' etc).
2. Press the Time button repeatedly until
the desired programme duration is
shown in the display, e.g. 20 for a
programme of 20 minutes.
If the programme duration is not selected,
the duration is automatically set to 10 mins.
Delay start
With the Delay start button, you can
delay the start of a programme by
between 30 minutes (30') and a
maximum of 20 hours (20h).
1. Select the programme and additional
functions.
2. Press the Delay start button as many
times as necessary until the required
Delay start appears on the display, e.g.
12h if the programme is to be started in
12 hours.
Setting child lock
The child lock can be set to prevent a
programme being accidentally started or a
programme in operation being accidentally
changed. The child lock function locks all
buttons and the programme selector. The
child lock can be activated or deactivated by
holding down the Extra delicate and Intensive
buttons simultaneously for 5 seconds.
– Before programme is started:
Appliance cannot be used
– After programme is started:
Programme in operation cannot be
changed
The icon
indicate that the child safety device is
activated.
The child safety device is not deactivated
once the programme comes to an end.
If you want to set a new programme, you
must first deactivate the child safety device.
appears in the display to
14
Page 15
Starting the programme
Press the Start/Pause button. The
programme starts.
The programme progress is shown by
elapsing Dry time on LCD.
Putting in extra items or
taking items out before
end of programme
1. Open loading door.
Warning! Laundry and drum can
become hot. Risk of burns!
2. Load or remove laundry items.
3. Close loading securely. Lock must
audibly lock.
4. Press the Start/Pause button to continue
the drying cycle.
Changing programme
To change a programme which has been
selected by mistake once the programme
has started, first turn the programme
selector to Off and then reset the programme.
The programme can no longer be
changed directly once the
programme has started. If however
there is an attempt to change the
programme on the programme knob,
the programme progress display and
the maintenance indicators flash. If an
option button (excluding the Alarm
button) is pressed, Err appears in the
multidisplay.
Drying cycle complete /
removing laundry
Once the drying cycle is complete, the
display shows the anti-crease icon and
flashing "0" as well as warning lamps: Filter
and Full tank . If the Alarm button has been
pressed, an acoustic signal sounds
intermittently for about one minute.
The drying programme is not
however affected by this (laundry
protection).
15
Page 16
The drying cycles are automatically
followed by an anti-crease phase
which lasts around 30 minutes. The
drum rotates at intervals during this
phase. This keeps the laundry loose
and free of creases. The laundry can
be removed at any time during the
anti-crease phase. (The laundry
should be taken out towards the end
of the anti-crease phase at the latest
to prevent creases from forming.) If
Anti-crease function has been
selected, the anti-crease phase is
lengthened by 60 minutes.

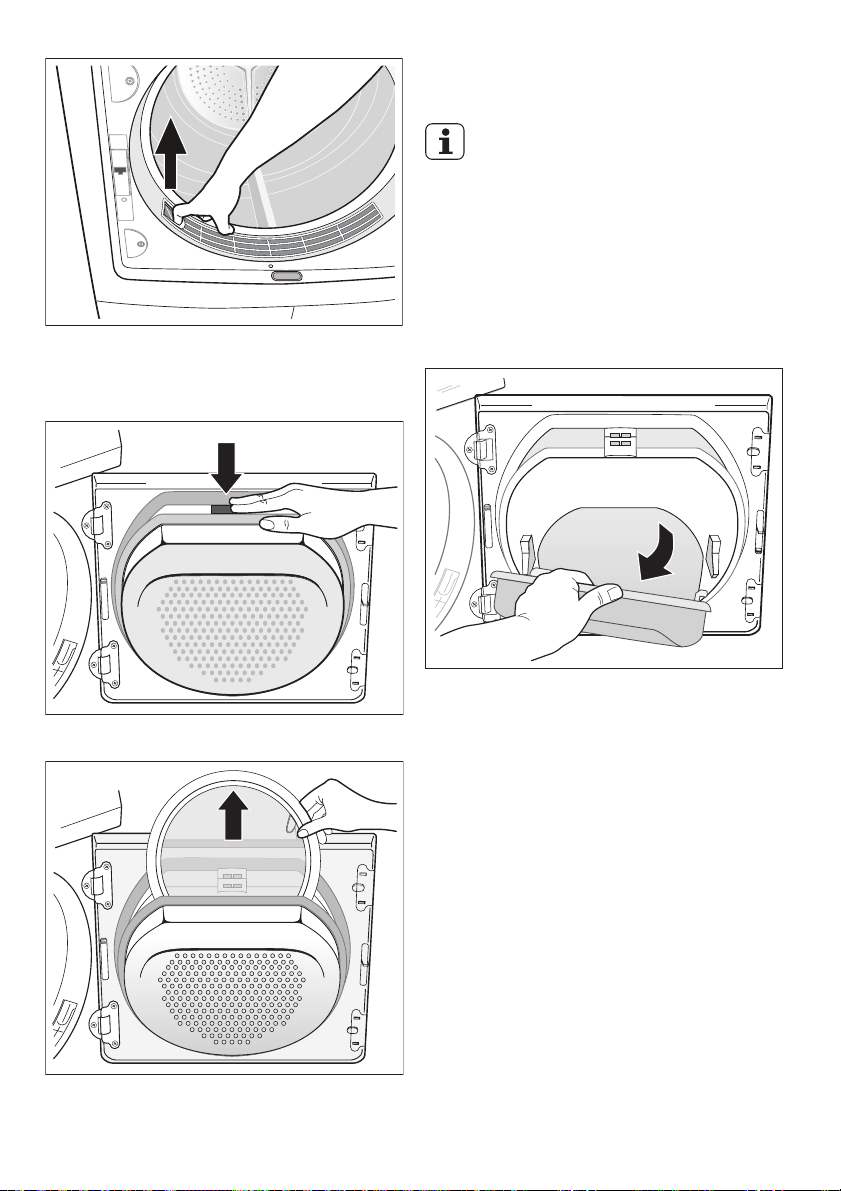

1. Open door.
2. Before removing the laundry, remove
fluff from the micro-fine filter. It is best
to use a damp hand for this purpose.
(See “Maintenance and cleaning”
chapter.)
3. Remove laundry.
4. Turn the programme selector to Off .
Important! After each drying cycle:
- Clean the micro-fine filter and fine filter

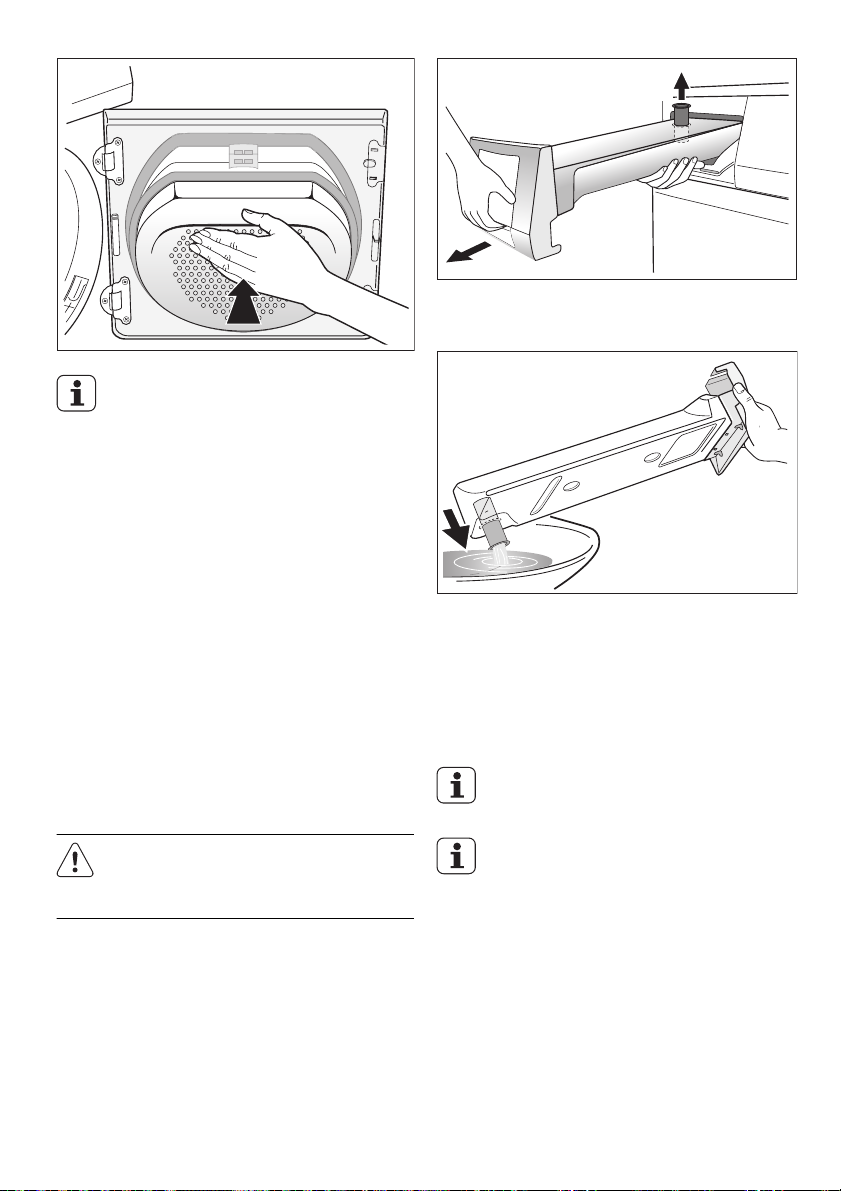

- Drain the condensed water container
(See chapter “Maintenance and
cleaning ”.)
5. Close the door.
Maintenance and cleaning

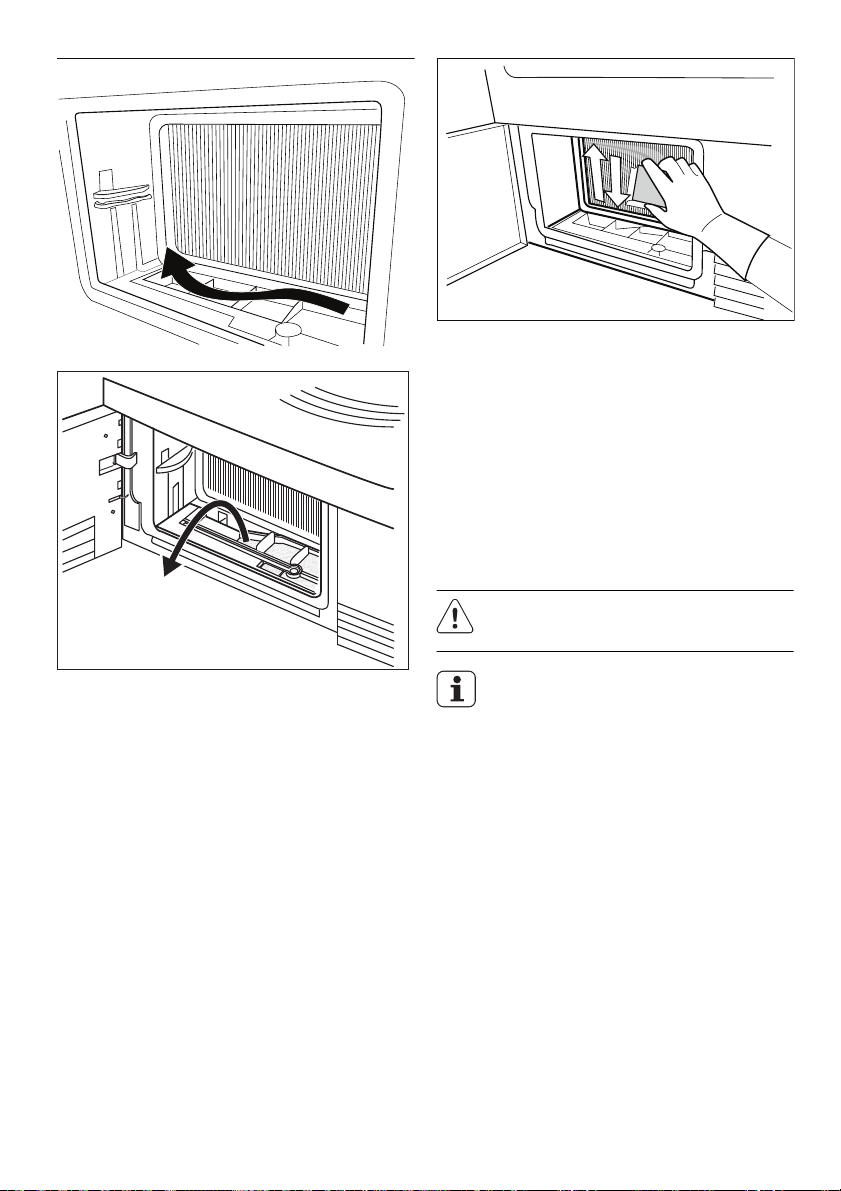

Cleaning fluff filter
The filters collect all the fluff which
accumulates during drying. To ensure that
the dryer works perfectly, the fluff filters
(micro-fine filter and fine strainer) must be
cleaned after every drying cycle.
The warning lamp Filter lights to remind you
of this operation at the end of each cycle.
Caution! Never operate the dryer
without fluff filters or with damaged
or blocked fluff filters.
1. Open loading door
2. Use a damp hand to clean the microfine filter, which is built into the lower
part of the loading aperture.
3. After a period of time, a gleam due to
detergent residue on laundry forms on
the filters. When this occurs, clean the
filters with warm water using a brush.
Remove the filter from the door pulling
it out. (It can be positioned with the
locating spur facing to the left or to the
right).
After cleaning do not forget to put it back.
16
Page 17
4. Push down the unlock button on the
large mesh filter.
The large mesh filter pops up.
6. Remove the fluff from fine filter. It is
best to use a damp hand for this purpose.
Clean the entire filter area
The filter area does not have to be
cleaned after every drying cycle, but
should be checked regularly and cleaned
of fluff if necessary.
7. To do this, grip the top of the large
mesh filter and pull it forwards until it
comes loose from the two brackets.
5. Take out fine filter.
8. Remove fluff from the entire filter area.
It is best to use a vacuum cleaner for
this purpose.
9. Press both journals of the large mesh
filter into the brackets on the loading
door until they snap into place.
10. Re-insert fine filter.
11. Press against the large mesh filter until it
locks into the interlock.
17
Page 18
If the fine filter is not fitted, the large
mesh filter will not snap into place
and the loading door cannot be closed.
Cleaning the door seal
Wipe the door seal with a damp cloth
immediately after the drying cycle has finished.
2.
1.
2. Pour the condensed water out into a
basin or similar receptacle.
Emptying the water
reservoir
Empty the water reservoir after every drying
cycle.
If the water reservoir is full, an active
programme will break off automatically and
the warning lamp Full tank lights. In order to
continue the programme, the water
reservoir must first be emptied.
Warning! The condensed water is
not suitable for drinking or for
preparing foodstuffs.
1. Take out drawer containing water
reservoir completely 1 and pull up the
water reservoir's drainage pipe as far as
it will go 2 .
3. Slide the outlet connections in and refit
the water reservoir.
If the programme has been interrupted
as a result of the water reservoir being
full: Press the Start/Pause button to
continue the drying cycle.
The water reservoir has a volume of
approx. 4 litres.
The condensed water can be used as
distilled water, e.g. for steam ironing.
However it must first be filtered (e.g.
with a coffee filter) to remove any
residue and small pieces of fluff.
18
Page 19
Cleaning heat exchanger
filters
If the warning lamp Condenser lights, the heat
exchanger fluff filters in the base of the
appliance must be cleaned, i.e. after each 3
drying cycles. Both filters are located in the
appliance base.
Water can collect in the filter housing
therefore it is normal for the heat
exchanger fluff filters to become wet.
Important!
• Never operate the dryer without the fluff
filters.
• Clogged filters cause higher energy
consumption (drying cycle elongation) and
dryer damage.
• A dirty heat pump can only be cleaned up
by means of a costly process.
2. Pull the filter housing out of the base by
the handle.
1
2
1
1. Open door in plinth: To do this, press
the release button on the right and open
the door in the plinth to the left.
3. To clean the fluff filter: Remove filter
from filter housing. To do this, press the
pressure points on the sides and pull the
filter frame up and out of the housing.
Remove fluff from the fluff filter with a
damp hand.
19
Page 20
6. When necessary, approx. once every 6
months, remove the fluff from the heat
exchanger using the sponge supplied.
When doing this, please use rubber
gloves.
Tip: The fluff can be removed more easily if
it is first dampened (e. g. with a laundry
dampener) or with help of vacuum cleaner.
Cleaning the drum
Caution! Do not use abrasives or
steel wool to clean the drum.
4. Use a damp hand to remove the fluff
from the filter in the base . If necessary
pull out and clean the filter with warm
water using a wiper or brush. Clean the
inside of the door, the fluff filter chamber
and the rubber seals of fluff. Insert the
fluff filter to the base.
5. Insert the fluff filter into the filter housing
(it has to audibly lock) and slide it inside
the filter chamber. Close the door in
plinth. Note: If the fluff filter is not
inserted in the filter housing, the filter
housing cannot slide into the appliance
base.
Lime in the water or cleaning agents
may form a barely visible lining on the
inside of the drum. The degree to
which the laundry has been dried is
then no longer detected reliably. The
laundry is damper than expected
when removed from the dryer.
Use a standard domestic cleaner (e.g.
vinegar-based cleaner) to wipe down
the inside of the drum and drum ribs.
20
Page 21
Clean operating screen
and housing
Caution! Do not use furniture
cleaners or aggressive cleaning agents
to clean the machine.
Use a damp cloth to wipe down the
operating screen and housing.
What to do if ...
Problem
Dryer does
not work.
Unsatisfactor
y drying
results.
Loading door
does not
close
Err ( Error )
on the LCD.
No drum light
Abnormally
elapsing time
on LCD
Programme
inactive
1)
Possible cause Remedy
Dryer not connected to mains supply.
Loading door opened. Close loading door
The Start/Pause button not pressed. Press the Start/Pause button.
Incorrect programme set.
Fluff filters clogged.
Heat exchanger clogged.
Max. loading exceeded. Respect max. loading volume.
Covered ventilation grill. Uncover ventilation grill in base area.
Residue inside the drum. Clean the drum inside.
High water hardness.
Filters not locked in place.
Attempt to change parameters after start
of the programme.
Programme selector in Off position. Turn it to any programme.
Defective light bulb. Replace light bulb (see next section).
Time to end is calculated on the basis of:
type, volume and dampness of laundry.
Full water reservoir.
Plug in at mains socket. Check fuse in
fuse box (domestic installation).
3)
2)
3)
4)
.
3)
, press Start/
Set suitable programme.
Clean fluff filters.
Clean heat exchanger.
Set suitable water hardness
Install fine filter and/or snap course filter
into place.
Turn the dryer off and on. Set requested
parameters.
Automatic process; this is not a machine
fault.
Empty water reservoir
Pause button.
21
Page 22
Drying cycle
to short
Drying cycle
to long
1) In case of error message on the LCD (e.g. E51 ): Switch the dryer off and on. Set programme. Press the Start/
Pause button. Does not work? - inform local service and quote the error code.
2) follow program recommendation - see Programme chart chapter
3) see Maintenance and cleaning chapter
4) see Machine settings chapter
5) Note: After around 5 hours the drying cycle ends automatically (see Drying cycle complete section).
Small laundry volume./Too dry laundry
for selected programme.
Fluff filters clogged. Clean fluff filters.
To high loading volume. Respect max. loading volume.
Laundry insufficiently spun. Spun adequately the laundry.
5)
Particularly high room temperature - no
machine fault.
Select time programme or higher drying
level (e.g. Extra dry ).
Lower the room temperature if possible.
Replacing the drum light
Only use a special bulb which is designed
specially for dryers. The special bulb can be
obtained from your local Service Force
Centre.
Important! When the appliance is
switched on, the interior lighting switches
itself off after 4 minutes when the door is
open.
Warning! Do not use standard
bulbs! These develop too much heat
and may damage the machine!
Warning! Before replacing the bulb,
disconnect the mains plug; with a
permanent connection: fully unscrew
or deactivate the fuse.
Machine settings
1. Unscrew the cover above the bulb (this
can be found directly behind the loading
aperture, at the top; refer to
“Description of machine” section.)
2. Replace the defective bulb.
3. Screw cover back down.
Check the correct positioning of o-ring
gasket before screwing back the door light
cover. Do not operate the dryer when
missing o-ring gasket on door light cover.
Warning! For safety reasons, the
cover must be screwed down tightly.
If this is not done, the dryer must not
be operated.
Alarm permanent on/off
The alarm is by default always off. To set
permanent alarm on (off):
1. Turn the programme selector to any
programme.
22
Page 23
2.
Press simultaneously the Intensive and
Anti-crease buttons and hold down for
approx. 5 seconds.

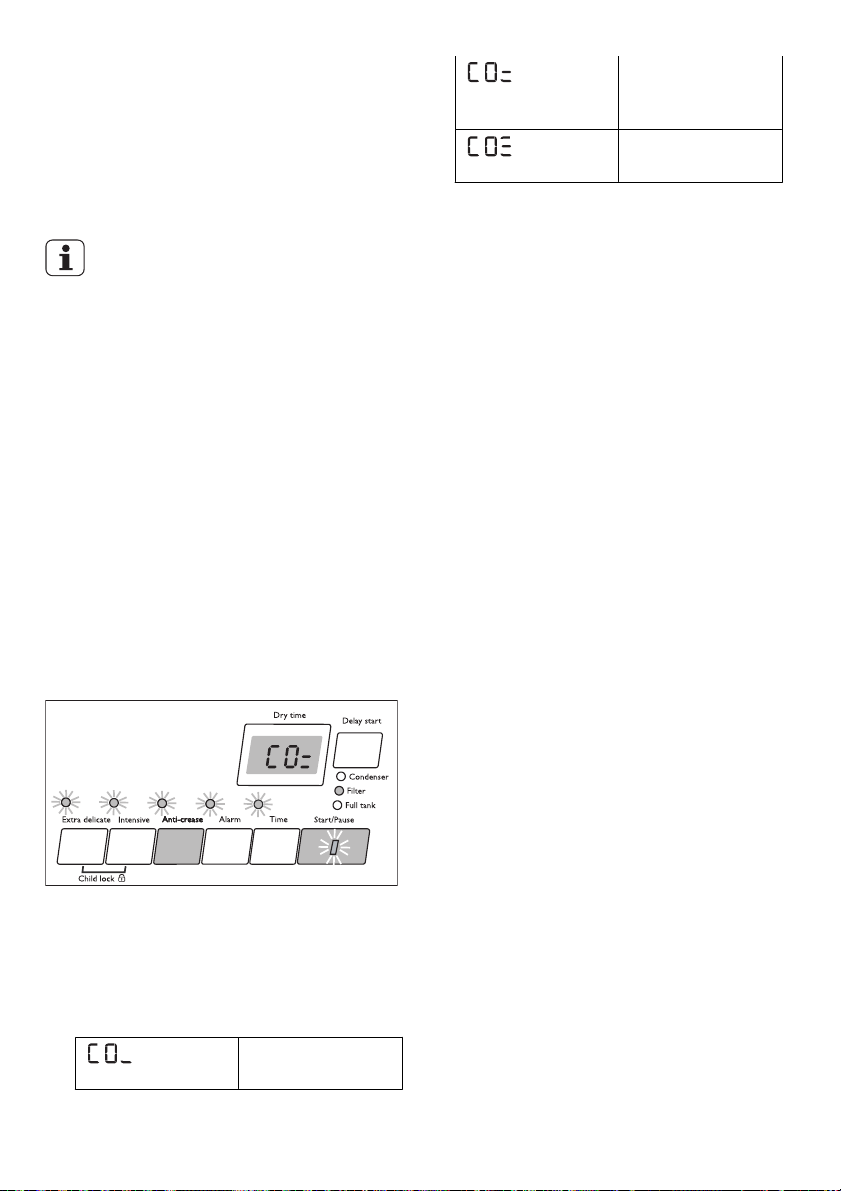

Adjusting the level of
conductivity
Water contains, a variable quantity of
limestone and mineral salts of which
quantities vary according to
geographical locations thus varying its
conductivity values.
Relevant variations of the conductivity
of the water compared to those
prefixed by the factory could slightly
influence the residual humidity of the
laundry at the end of the cycle. Your
dryer allows you to regulate the
sensitivity of the drying sensor based on
conductivity values of the water.
In order to establish the conductivity of
the water in your area please contact
your water board.
medium
conductivity
300-600 µS/cm
high conductivity
>600 µS/cm
4. To memorize setting press
simultaneously the Anti-crease and
Start/Pause buttons or turn knob to
Off position
1. Turn the programme selector to any
programme.
2.
Press simultaneously the Anti-crease
and Start/Pause buttons and hold
down for approx. 5 seconds.
3.
Press the Start/Pause button until you
set desired level:
low conductivity
<300 µS/cm
23
Page 24
Technical specifications
Height x width x depth 85 x 60 x 58 cm
Drum volume 108 l
Depth with loading door open 109 cm
Height can be adjusted by 1.5 cm
Weight when empty approx. 52 kg
Loading volume (depends on programme)
Voltage 230-240 V
Required fuse 13 A
Total power 1050 W
Energy efficiency class A
Energy consumption (7 kg of cotton, pre-drained
at 1000 rpm)
Average annual energy consumption 124.2 kWh
Use Domestic
Permissible ambient temperature + 5°C to + 35°C
The consumption values have been established under standard conditions. They may deviate when the
COTTON STORAGE DRY
COTTON IRON DRY
EASY CARE STORAGE DRY
1) different loading volume data may be needed in some countries as a result of different measuring methods
2) in accordance to EN 61121
3) hints for test institutes: cycle has to be checked in accordance to EN 61121
2)
machine is operated in domestic circumstances.
Programme
3)
3)
3)
1)
Consumption values
max. 7 kg
1.85 kWh
Energy consumption in kWh / average
drying time in min.
1.85/ 140 (7 kg load pre-drained at 1000 rpm)
1.57 (7 kg load pre-drained at 1400 rpm)
1.39/ 110 (7 kg load pre-drained at 1000 rpm)
0.58/ 45 (3 kg load pre-drained at 1200 rpm)
24
Page 25
Installation
Transporting the
appliance
Important! Only tip the appliance on its
left side to transport (see illustration), if it
cannot be transported in an upright position.
• Air must be able to circulate freely all
round the appliance. Do not obstruct the
front ventilation grille or the air intake
grilles at the back of the machine.
• To keep vibration and noise to a
minimum when the dryer is in use, it
should be placed on a firm, level surface.
• Once in its permanent operating position,
check that the dryer is absolutely level
with the aid of a spirit level. If it is not,
raise or lower the feet until it is.
• The feet must never be removed. Do not
restrict the floor clearance through
deeppile carpets, strips of wood or
similar. This might cause heat built-up
which would interfere with the operation
of the appliance.
Appliance positioning
• It is recommended that, for your
convenience, the machine is positioned
close to your washing machine.
• The tumble dryer must be installed in a
clean place, where dirt does not build up.
25
Page 26
Important!
• The appliance should not be installed in an
environment such as a unheated garage or
outbuilding. The combination of high
humidity and low ambient temperatures
could affect the performance or the
appliance and therefore invalidate your
guarantee.
• The hot air emitted by the tumble dryer
can reach temperatures of up to 60°C.
The appliance must therefore not be
installed on floors which are not resistant
to high temperatures.
• When operating the tumble dryer, the
room temperature must not be lower
than +5°C and higher than +35°C, as it
may affect the performance of the
appliance.
• Should the appliance be moved, it must
be transported vertically.
• The appliance must not be installed
behind the lockable door, a sliding door a
door with a hinge on the opposite side to
that of the appliance in such a way that a
full opening of the dryer is restricted.
Removing transport
safety packaging
Caution! Before use all parts of the
transport packaging must be removed.
1. Open loading door
2. Pull off adhesive strips from inside
machine on top of drum.
3. Remove foil hose and polystyrene
padding from the machine.
Warning! If the appliance was not
transported in an upright position,
leave it to stand for 12 hours before
connecting it to the electricity supply
and using it for the first time, so that
the oil can flow back to the
compressor. Otherwise the
compressor could be damaged.
Electrical connection
Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.
26
Page 27

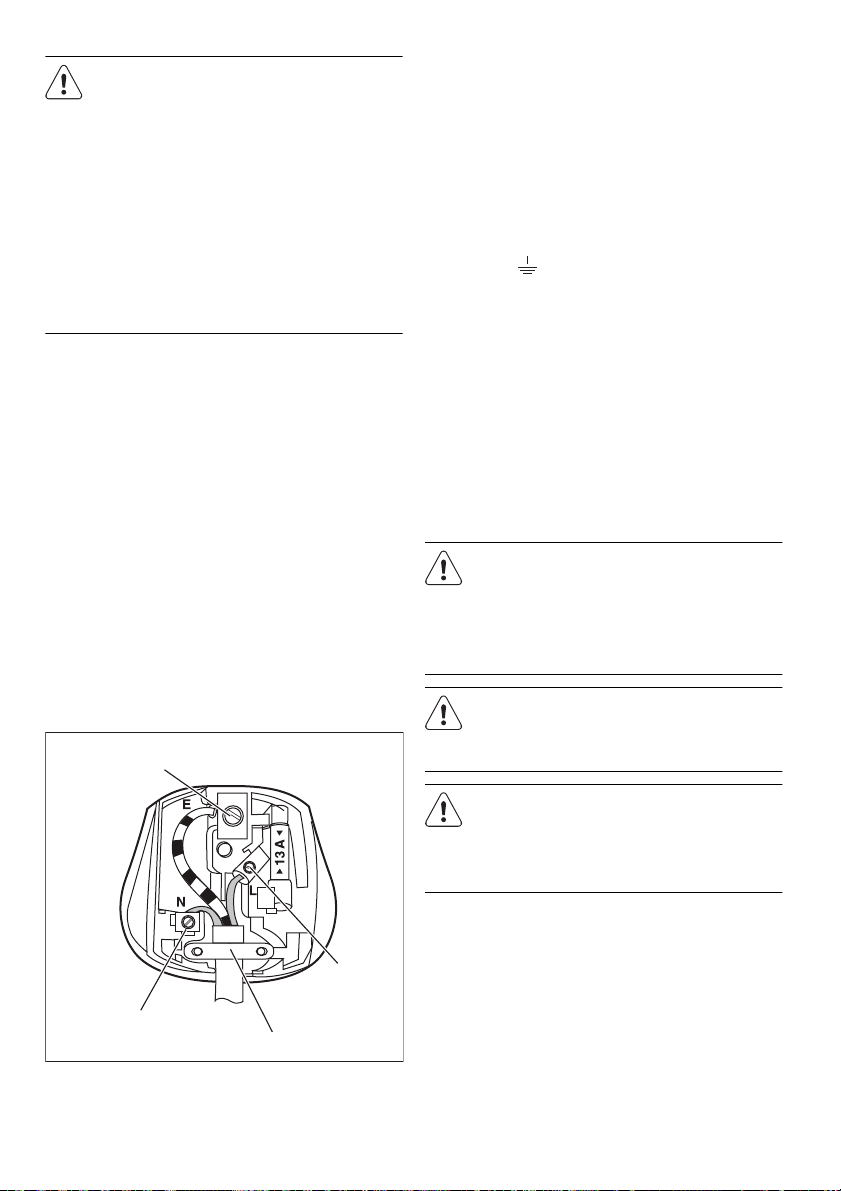

Warning! THIS APPLIANCE
MUST BE EARTHED.
Should the appliance power
supply cable need to be
replaced, this must be carried
out by a Service Force agent
(see chapter: Repairs - after
sales service).
The manufacturer declines any
liability should this safety
measure not be observed.
Before switching on, make sure the
electricity supply voltage is the same as that
indicated on the appliance’s rating plate.
(See picture on page 6).
The appliance is supplied with a 13amp plug
fitted. In the event of having to change the
fuse in the plug supplied, a 13amp ASTA
approved BS 1363/A fuse must be used.
Should the plug need to be replaced for any
reason, proceed as described below. The
wires in the mains lead are coloured in
accordance with the following code:
• Green and Yellow - Earth
•Blue - Neutral
•Brown - Live
GREEN & YELLOW
If you fit your own plug, the colours of the
wires in the mains lead of your appliance
may not correspond with the markings
identifying the terminals in your plug.
Proceed as follows:
1. Connect the Green and Yellow (earth)
wire to the terminal in the plug which is
marked with the letter "E" or the earth
symbol
or coloured green and yellow.
2. Connect the Blue (neutral) wire to the
terminal in the plug which is marked with
the letter "N" or coloured black.
3. Connect the Brown (live) wire to the
terminal in the plug which is marked with
the letter "L" or coloured red.
4. Upon completion there must be no cut,
or stray strands of wire present and the
cord clamp must be secure over the
outer sheath.
Warning! A cut off plug
inserted into a 13 amp socket is
a serious safety (shock) hazard.
Ensure that the cut off plug is
disposed of safely.
Warning! The plug must still be
accessible after the appliance
has been installed.
BLUE
Warning! The appliance should
not be connected to the
electrical supply by means of an
extension cable.
BROWN
CORD CLAMP
27
Page 28
Warning! The manufacturer
declines any responsibility for
damage or injury through
failure to comply with the
above safety precautions.
Should the appliance power
supply cable need to be
replaced, this must be carried
out by our Service Centre.
Warning! The power supply
cable must be accessible after
installing the machine.
gap of 3mm between the switch contacts
and of a type suitable for the required load
in compliance with the current electrical
regulations.
The switch must not break the yellow and
green earth cable at any point.
Door reversal
To make it easier to load or unload the
laundry, the door can be reversed.
Warning! The door must only be
reversed by an authorised service
engineer.
Permanent connection
In the case of permanent connection it is
necessary that you install a double pole
switch between the appliance and the
electricity supply (mains), with a minimum
Please contact your nearest John Lewis
branch who will give you details of your local
Service Force Centre. The engineer will
carry out the door reversal at your cost.
Repairs - after sales service
Your appliance comes with a three year
warranty. If it is not working correctly;
consult the fault finding guides within this
instruction book (Something not working). If
a fault occurs which you can not resolve
through following the advice and information
contained within this instruction manual, the
next step is to contact our extended
warranty administrators on:
0844 871 7771
They will give you details for your local
Service engineer. Before calling out an
engineer, please ensure you have read the
details under the heading “Something not
working”.
When you contact your local service
engineer you will need to give the following
details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of fault
4. The purchase date as found on your
receipt
5. The model and serial number of the
appliance. So that you always have these
numbers at hand, we recommend you to
make a note of them here:
• Mod.......................................
• P.N.C.....................................
• S.N.........................................
28
Page 29
IMPORTANT : If you call out an
engineer to a fault listed below, or to
repair a fault caused by incorrect use
or installation, a charge will be made
even if the appliance is under
guarantee.
Spare parts
Always insist on genuine spare parts.
An authorised service engineer should
service this product, and only genuine spare
parts should be used. Under no
circumstances should you attempt to repair
the appliance yourself. Repairs carried out
by inexperienced persons may cause injury
or serious malfunctioning. Contact your
local John Lewis branch.
29
Page 30
30
Page 31
31
Page 32
John Lewis Partnership
171 Victoria Street
London SW1E 5NN
www. johnlewis.com
136912010-00-052010
Loading...
