JLDWS 1208

Dishwasher

Instruction manual

Important safety information

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings. These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance.

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance.

Installation

• This appliance is heavy. Care should be taken when moving it.

• Check your dishwasher for any transport damage. Never connect a damaged machine. If your dishwasher is damaged contact your supplier.

• All packaging must be removed before use.

• Any electrical and plumbing work required to install this appliance must be carried out by a qualified and competent person.

• For safety reasons it is dangerous to alter the specifications or attempt to modify this product in any way.

• Never use the dishwasher if the electrical supply cable and water hoses are damaged; or if the control panel, work top or plinth area are damaged such that the inside of the appliance is freely accessible. Contact your local repair agent, in order to avoid hazard.

• All sides of the dishwasher must never be drilled to prevent damage to hydraulic and electric components.

For electrical and water connection carefully follow the instructions given in the specific paragraphs.

Child safety

• This appliance is designed to be operated by adults. Do not allow children to use the dishwasher unsupervised.

• Keep all packaging well away from children. There is a risk of suffocation.

• Keep all detergents in a safe place out of children’s reach.

• Keep children well away from the dishwasher when the door is open.

Correct use

• This dishwasher is only intended for washing household utensils suitable for machine washing.

• Do not put any solvents in the dishwasher. This could cause an explosion.

• Knives and other items with sharp points must be loaded in the cutlery basket with their points down or placed in a horizontal position in the upper basket.

• Only use products (detergent, salt and rinse aid) suitable for dishwashers.

• Avoid opening the door whilst the appliance is in operation, hot steam may escape.

• Do not take any dishes out of the dishwasher before the end of the washing cycle.

• After use, isolate the appliance from the power supply and turn off the water supply.

• This product should be serviced only by an authorized service engineer, and only genuine spare parts should be used.

• Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons could cause injury or serious malfunctioning. Contact your local repair agent. Always insist on genuine spare parts.

General safety

• Dishwasher detergents can cause chemical burns to eyes, mouth and throat. Could endanger life! Comply with the safety instructions of the dishwasher detergent manufacturer.

• The water in your dishwasher is not for drinking. Detergent residues may still be present in your machine.

• Ensure that the door of the dishwasher is always closed when it is not being loaded or unloaded. In this way you will avoid anybody tripping over the open door and hurting themselves.

• Do not sit or stand on the open door.

Maintenance and cleaning

• For information on maintenance and cleaning your dishwasher see the specific chapter in this instruction manual.

Service

• This product should be serviced by an authorized service engineer, and only genuine spare parts should be used.

Ecological hints

To save water and energy and help protect the environment, we recommend that you follow these hints:

• Ensure that the water softener is correctly adjusted.

• Do not prewash under running water.

• Select the wash programme to suit the nature and degree of the soiling on the dishes.

• Do not use more detergent, dishwasher salt and rinse aid than is recommended in these operating instructions and by the manufacturer of the respective product.

•

Delay start: When possible programme your dishwasher to run over night, to enable, for example, the use of economical overnight electricity tariffs.

•

Automatic Wash Programme: This machine is fitted with a turbidity sensor which intelligently adjusts the temperature and rinsing cycles during the wash programme, depending on the degree of soiling on the dishes. This helps to reduce energy and water consumption on lightly soiled loads.

Environmental information

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

When a unit is no longer being used:

• Pull the plug out of the socket.

• Cut off the cable and plug and dispose of them.

• Dispose of the door catch. This prevents children from trapping themselves inside and endangering their lives.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Contents

For the user

Important safety information

Description of the appliance

The control panel

The digital display 8 Function buttons (A, B, C, D and E) 8 Audible signals 8

Washing programmes

When the dishwasher is first installed

The water softener 10 Filling with dishwasher salt 12 Filling with rinse aid 12 Adjusting the rinse aid dosage 13

Daily use

Loading cutlery and dishes 14 The lower basket 15 The cutlery basket 15 The upper basket 16 Adjusting the height of the upper basket 17 Use of detergent 18

For the installer

Technical data

Installation

Unpacking 27 Fitting under a counter 27 Levelling 28

Water connections

Water inlet connection 28 Water drain connection 29

Electrical connection

Repairs - After sales service

Multi tab function

Activation/deactivation of the rinse aid dispenser 20

Select and start a washing programme

Unloading the dishwasher

Maintenance and cleaning

Cleaning the filters 22 External cleaning 23 Internal cleaning 23

Something not working

Guide to use the instruction manual

The following symbols will be found in the text to guide you throughout the instructions:

Safety instructions

Hints and tips

Environmental information

Description of the appliance

1. Upper basket

2. Water hardness dial

3. Salt container

4. Detergent dispenser

5. Rinse aid dispenser

6. Rating plate

7. Filters

8. Lower spray arm

9. Upper spray arm

10. Worktop

The control panel

1. Digital display

2. Delay start button

3. Programme selection buttons

4. Indicator lights

5. On/Off button

6. Function buttons

Indicator lights

In addition to the programme indicator lights that allow you to see which programme is running or has been selected, other indicator lights will help you in the use and maintenance of your dishwasher.

Indicator lights

Salt

Rinse aid

Comes on when the special salt has run out.

Comes on when the rinse aid has run out.

Multi tab Indicates the activation/

1) The salt and rinse aid indicator lights are never on while a washing programme is running even if filling with salt and/or rinse aid is necessary.

Indicator lights

deactivation of the Multi tab function (See 'Multi tab function').

The digital display

The digital display indicates:

• The level of hardness to which the water softener is set,

• The approximate remaining time of the running programme,

• Activation/deactivation of the rinse aid dispenser (ONLY with Multi tab function active),

• The end of a washing programme (the digital display shows zero),

• The countdown of the delay start,

• Fault codes concerning malfunction of the dishwasher,

• Activation/deactivation of the audible signals.

Function buttons (A, B, C, D and E)

The following functions can be set using these buttons:

• Setting the water softener level,

• Cancelling a washing programme or a delay start in progress,

• Activation/deactivation of the Multi tab function,

• Activation/deactivation of the rinse aid dispenser when Multi tab function is active,

• Activation/deactivation of the audible signals.

Always remember that when performing the following operations:

• Selecting a washing programme,

• Setting the water softener,

• Activating/deactivating the rinse aid dispenser,

• Activating/deactivating the audible signals,

the appliance MUST be in setting mode.

Press the On/Off button; if a programme button light comes on the last performed or selected programme is still set. In this case, to return to setting mode, the programme has to be cancelled.

To cancel a set programme or a programme in progress

Simultaneously press and hold the two function buttons B and C until all the programme button lights come on. The programme has been cancelled and the appliance is now in setting mode.

Audible signals

Audible signals have been introduced to help indicate which operations the dishwasher is performing:

–

Setting of the water softener,

–

End of programme

–

Intervention of an alarm due to malfunction.

Factory setting: audible signals activated.

Setting mode

Press the On/Off button; if ALL programme button lights come on the appliance is in setting mode.

It is possible to deactivate the audible signals, using the function buttons on the control panel.

1. Press the On/Off button. The dishwasher must be in setting mode.

2. Simultaneously press and hold function buttons B and C, until the lights of function buttons A, B and C start flashing.

Press function button C, the lights of function buttons A and B go off while the light of function button C continues to flash. The digital display shows the current setting.

Audible signals deactivated

Audible signals activated

4. To change the setting, press again function button C. Each time the button is pressed the level changes, the digital display shows the new setting.

5. To memorize the operation, switch off the dishwasher by pressing the On/Off button.

Washing programmes

Programme Degree of soil Type of load Programme description

Prewash

Crockery,

70° Intensive Heavy soil

Automatic

50° Economy

Quick wash

Rinse hold Any.

1) During the "Automatic" washing programme the level of soiling on the dishes is determined by how cloudy the water is. The programme duration , water and energy consumption levels can vary; this depends upon if the appliance is fully or partially loaded and if the dishes are lightly or heavily soiled. The temperature of the water is automatically adjusted between 45° C and 70° C.

2) Test programme for test institute.

3) Ideal for washing a partially loaded dishwasher. This is the perfect daily programme, made to meet the needs of a family of 4 persons who only wish to load breakfast and dinner crockery and cutlery.

Any

Normal soil

Normal/light soil

cutlery, pots and

pans

Crockery,

cutlery, pots and

pans

Crockery and

cutlery

Crockery and

cutlery

Partial load (to be completed later in the day).

Main wash 1 intermediate rinse Final rinse Drying

Prewash Main wash 1 or 2 intermediate rinses Final rinse Drying

Prewash Main wash 1 intermediate rinse Final rinse Drying

Main wash Final rinse

1 cold rinse (to avoid food scraps from sticking). This programme does not require the use of detergent.

Consumption values

Programme Programme

duration

(in minutes)

70° Intensive

Automatic

50° Economy

Quick wash

Rinse hold

1) The consumption values are intended as a guide and depends on the pressure and the temperature of the water and also by the variations of the power supply and the amount of dishes.

2) The digital display shows the programme duration.

3) Test programme for test institutes.

- 1,4 - 1,6 16 - 18

- 1,1 - 1,7 12 - 23

- 1,0 - 1,1 12 - 13

- 0,9 9

- 0,1 4

Energy

consumption

(in kWh)

Water consumption

(in litres)

When the dishwasher is first installed

Before using your dishwasher for the first time:

• Ensure that the electrical and water

connections comply with the installation instructions

• Remove all packaging from inside the

appliance

• Set the water softener level

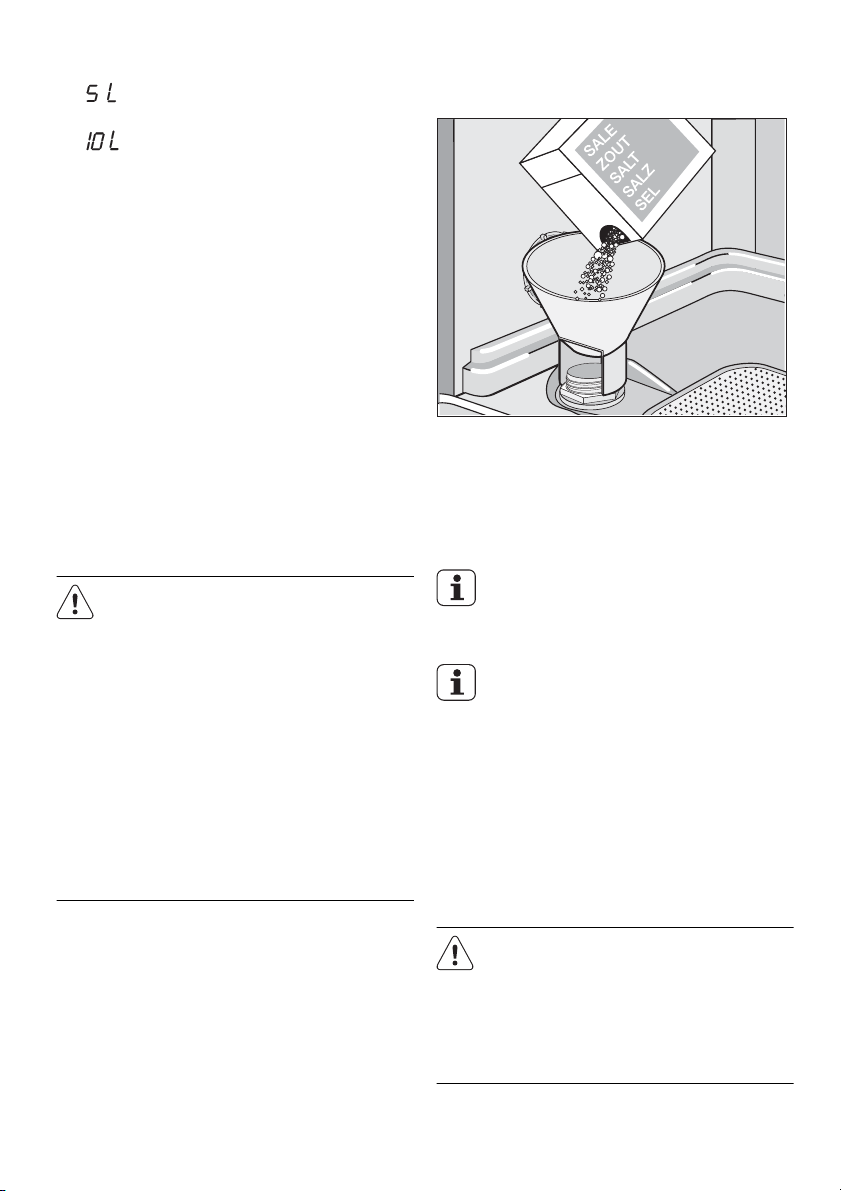

• Pour 1 litre of water into the salt container

and then fill with dishwasher salt

• Fill the rinse aid dispenser

If you want to use combi detergent tablets such as "3 in 1", "4 in 1", "5 in 1" etc... set the Multi tab function (see "Multi tab function").

The water softener

The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance. The higher the content of these minerals and salts, the harder your water is. Water hardness is measured in equivalent scales, Clarke degrees, French degrees (°TH) and mmol/l (millimol per litre - international unit for the hardness of water). The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Water hardness

Clarke °TH mmol/l manually electronically

64 - 88 91 - 125 9,1 - 12,5 2 level 10 yes

53 - 63 76 - 90 7,6 - 8,9 2 level 9 yes

46 - 52 65 - 75 6,5 - 7,5 2 level 8 yes

36 - 45 51 - 64 5,1 - 6,4 2 level 7 yes

28 - 35 40 - 50 4,0 - 5,0 2 level 6 yes

23 - 27 33 - 39 3,3 - 3,9 2 level 5 yes

18 - 22 26 - 32 2,6 - 3,2 1 level 4 yes

13 - 17 19 - 25 1,9 - 2,5 1 level 3 yes

5 - 12 7 - 18 0,7 - 1,8 1 level 2 yes

< 5 < 7 < 0,7 1 level 1 no

Adjusting the water hardness

setting

Setting the water softener

The water softener must be set in two ways: manually, using the water hardness dial and electronically.

Use of salt

Setting manually

The dishwasher is factory set at position 2.

1. Open the dishwasher door.

2. Remove the lower basket from the dishwasher.

3. Turn the water hardness dial to position 1 or 2 (see table above).

4. Replace the lower basket.

Setting electronically

The dishwasher is factory set at level

1. Press the On/Off button. The dishwasher must be in setting mode.

2. Simultaneously press and hold function buttons B and C, until the lights of function buttons A, B and C start flashing.

Press function button A, the lights of function buttons B and C go off while the light of function button A continues to flash. The digital display shows the current level and a sequence of intermittent audible signals can be heard.
