Important safety information
It is most important that this instruction book should be retained with
the appliance for future reference. Should the appliance be sold or
transferred to another owner, or should you move house and leave the
appliance, always ensure that the book is supplied with the appliance in
order that the new owner can get to know the functioning of the
appliance and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST
read them carefully before installing or using the appliance. If you are
unsure of the meanings of these warnings contact the John Lewis
branch from which you purchased the appliance.
In the interest of your safety and to
ensure the correct use, before
installing and first using the appliance,
read this user manual carefully,
including its hints and warnings. To
avoid unnecessary mistakes and
accidents, it is important to ensure
that all people using the appliance are
thoroughly familiar with its operation
and safety features. Save these
instructions and make sure that they
remain with the appliance if it is
moved or sold, so that everyone
using it through its life will be
properly informed on appliance use
and safety.
If you are unsure of the meanings of
these warnings contact the John
Lewis branch from which you
purchased the appliance.
Installation
• This appliance is heavy. Care should be
taken when moving it.
• Check the appliance r for any transport
damage. Never connect a damaged
machine. If the appliance is damaged
contact your supplier.
• All packaging must be removed before
use.
• Any electrical work required to install this
appliance must be carried out by a
qualified electrician.
• Any plumbing work required to install this
appliance must be carried out by a
qualified plumber.
• For safety reasons it is dangerous to alter
the specifications or attempt to modify
this product in any way.
• Never use the appliance if the electrical
supply cable and water hoses are
damaged; or if the control panel, work
top or plinth area are damaged such that
the inside of the appliance is freely
accessible. Contact your local repair
agent, in order to avoid hazard.
• All sides of the appliance must never be
drilled to prevent damage to hydraulic and
electric components.
2
For electrical and water connection
carefully follow the instructions given
in the specific paragraphs.
Child safety
• This appliance is designed to be operated
by adults. Children should not be allowed
to tamper with the controls or play with
the appliance.
• Keep all packaging well away from
children. There is a risk of suffocation.
• Keep all detergents in a safe place out of
children’s reach.
• Keep children well away from the
appliance when the door is open.
Correct use
• This appliance is only intended for
washing household utensils suitable for
machine washing.
• Do not put any solvents in the appliance.
This could cause an explosion.
• Knives and other items with sharp points
must be loaded in the cutlery basket with
their points down or placed in a
horizontal position in the upper basket.
• Only use products (detergent, salt and
rinse aid) suitable for dishwashers.
• Avoid opening the door whilst the
appliance is in operation, hot steam may
escape.
• Do not take any dishes out of the
appliance before the end of the washing
programme.
• After use, isolate the appliance from the
power supply and turn off the water
supply.
• This product should be serviced only by
an authorised service engineer, and only
genuine spare parts should be used.
• Under no circumstances should you
attempt to repair the appliance yourself.
Repairs carried out by inexperienced
persons could cause injury or serious
malfunctioning. Contact your local repair
agent. Always insist on genuine spare
parts.
General safety
• Persons (including children) with reduced
physical sensory, mental capabilities or
lack of experience and knowledge must
not use the appliance. They must have
supervision or instruction for the
operation of the appliance by a person
responsible for their safety.
• Dishwasher detergents can cause
chemical burns to eyes, mouth and throat.
Could endanger life! Comply with the
safety instructions of the dishwasher
detergent manufacturer.
• The water in your appliance is not for
drinking. Detergent residue may still be
present in the appliance.
• Ensure that the appliance door is always
closed when it is not being loaded or
unloaded. In this way you will avoid
anybody tripping over the open door and
hurting themselves.
• Do not sit or stand on the open door.
Maintenance and
cleaning
• For information on maintenance and
cleaning your appliance see the specific
chapter in this instruction manual.
Service
• This product should be serviced by an
authorised service engineer and only
genuine spare parts should be used.
3
Ecological hints
To save water and energy and help protect
the environment, we recommend that you
follow these hints:
• Ensure that the water softener is correctly
adjusted.
• Do not prewash under running water.
• Select the washing programme to suit the
nature and degree of the soil on the
dishes.
• Do not use more detergent, dishwasher
salt and rinse aid than is recommended in
these operating instructions and by the
manufacturer of the respective product.
•
Delay start: When possible set your
appliance to run over night, to enable, for
example, the use of economical overnight
electricity tariffs.
•
45° - 70° Auto Programme: This
appliance is fitted with a turbidity sensor
which intelligently adjusts the temperature
and rinsing phases during the washing
programme, depending on the degree of
soil on the dishes. This helps to reduce
energy and water consumption on lightly
soiled loads.
•
Energy save: This function decreases
the temperature in the drying phase. The
power consumption is reduced by 25%
Environmental
information
The packaging materials are environmentally
friendly and can be recycled. The plastic
components are identified by markings (e.g.
>PE<, >PS<) . Please dispose of the
packaging materials in the appropriate
container at the community waste disposal
facilities.
When a unit is no longer being used:
• Pull the mains plug out of the
mains socket.
• Cut off the mains cable and the
mains plug and dispose of them.
• Dispose of the door catch. This
prevents children from trapping
themselves inside and endangering
their lives.
4
Contents
For the user
Important safety information
Description of the appliance
Control panel
Washing programmes
When the appliance is first
installed
The water softener 10
Filling with salt 12
Filling with rinse aid 12
Daily use
Loading cutlery and dishes 13
Use of detergent 17
Multi tab function
Select and start a washing
programme
Unloading the appliance
Maintenance and cleaning
Cleaning the filters 22
Cleaning the appliance 23
Prolonged periods of non-operation 23
Frost precautions 23
Moving the appliance 23
Something not working
10
13
18
19
21
22
23
For the installer
2
Technical data
6
Installation
7
Water connection
9
Electrical connection
Repairs - after sales service
Guide to use the
instruction manual
The following symbols will be found in the
text to guide you throughout the instructions:
Safety instructions
Hints and tips
Environmental information
27
27
29
31
32
5
Description of the appliance
1. Upper basket
2. Water hardness dial
3. Salt container
4. Detergent dispenser
5. Rinse aid dispenser
6. Rating plate
7. Filters
8. Lower spray arm
9. Upper spray arm
10. Worktop
6
Control panel
Auto o
60°
45°- 70°
70°
Auto
Intensive
Rinse
55°
hold
One hour
Programmes Delay start
Reset
Quick
Multi tab
Economy
Rinse
50°
aid
Salt
Energy
save
Programme
time
One hour
1. On/off button
2. Programme buttons
3. Multi tab button
4. Energy save button
5. Delay start buttons
6. Display
7. Indicators
8. Function buttons
On/off button
Press this button to switch on or off the
appliance.
After ten minutes from the end of the
washing programme, the Auto off function
automatically switches off the appliance. This
helps to reduce energy consumption.
45°- 70 °
Auto
Intensive
Rinse
55°
Programmes Delay start
70°
hold
Reset
60°
Quick
Multi tab
50°
Economy
Energy
save
Rinse
aid
Salt
Programme
time
8
Programme buttons
To select a washing programme, press one
of these buttons until the indicator of the
programme comes on.
Multi tab button
Allows the use of combi detergent tablets
(e.g. 3 in 1, 4 in 1, 5 in 1). Refer to ''Multi tab
function''.
Energy save button
This function decreases the temperature in
the drying phase. The power consumption is
reduced by 25%.
7
Dishes can still be wet at the end of the
programme when you open the appliance
door. We recommend that you keep the
door ajar and let the dishes dry.
Press this button to switch on the option.
The related indicator comes on.
This function is available with all the washing
programmes but has no impact on some
programmes. Refer to ''Washing
programmes''.
Delay start buttons
Press one of these buttons to delay the start
of the washing programme from 1 to 24
hours. Refer to 'Select and start a washing
programme'.
The display
The display shows:
• The water hardness adjustment of the
water softener.
• The remaining time of the programme in
progress.
• The activation or deactivation of the rinse
aid dispenser (only with the Multi tab
function activated).
• The end of a washing programme (the
display shows a zero).
• The countdown of the delay start.
• The alarm codes related to a malfunction
of the appliance.
Function buttons
The following operations can be done with
these buttons:
• The electronic setting of the water
softener.
• The cancellation of a washing programme
in progress.
• The activation or deactivation of the rinse
aid dispenser (only with the Multi tab
function activated).
Indicators
In addition to the programme indicators
other indicators help you in the use of your
appliance.
Multi tab
Energy
save
Rinse aid
1)
Salt
1) The salt and rinse aid indicators are never on while a
washing programme is running even if filling with salt
and/or rinse aid is necessary.
The indicator comes on when you
activate the Multi tab function.
The indicator comes on when you
activate the Energy save function.
The indicator comes on when the
rinse aid has run out.
1)
The indicator comes on when the
salt has run out.
The salt indicator can remain on
for a few hours after that salt has
been replenished (assuming the
appliance remains switched on).
The operation of the appliance is
not affected.
Setting mode
The appliance must be in setting
mode for these operations:
• To start a washing programme.
• To start a delay start.
• To adjust electronically the level of the
water softener.
• To activate or deactivate the rinse aid
dispenser (only with the Multi tab function
active).
Switch on the appliance. The
appliance is in setting mode when:
• All the programme indicators come on.
8
Switch on the appliance. The
appliance is not in setting mode when:
• Only one programme indicator comes on.
• The display shows the time of the washing
– Cancel the programme or the delay
start to go back to the setting mode.
Refer to 'Select and start a washing
programme'.
programme or of the delay start.
Washing programmes
Programme Degree of soil and
type of load
45° - 70° Auto
70° Intensive Heavy soil.
60° Quick
50° Economy
55° One hour Light soil.
Rinse hold Any soil.
1) The appliance senses the type of soil and the quantity of items in the baskets. It automatically adjusts the
temperature and quantity of the water, the energy consumption and the programme time.
2) Ideal for washing a partially loaded dishwasher. This is the perfect daily programme, made to meet the needs of a
family of 4 persons who only wish to load breakfast and dinner crockery and cutlery.
3) This is the standard programme for test institutes. With this programme you have the most efficient use of water
and energy consumption for crockery and cutlery with normal soil.
1)
2)
3)
Any soil.
Crockery, cutlery,
pots and pans.
Crockery, cutlery,
pots and pans.
Normal or light soil.
Crockery and
cutlery.
Normal soil.
Crockery and
cutlery.
Crockery and
cutlery.
Partial load (to be
completed later in
the day). This
programme does not
require the use of
detergent.
Programme description Energy save
function
Prewash
Wash 45 °C or 70 °C
Rinses
Drying
Prewash
Wash 70 °C
Rinses
Drying
Wash 60 °C
Rinse
Prewash
Wash 50 °C
Rinses
Drying
Wash 55 °C
Rinses
Rinse YES (no impact on
YES (impact on
washing
programme).
YES (impact on
washing
programme).
YES (no impact on
washing
programme).
YES (impact on
washing
programme).
YES (no impact on
washing
programme).
washing
programme).
9
Consumption values
Programme
45° - 70° Auto 0.9 - 1.7 8 - 17
70° Intensive 1.4 - 1.6 15 - 16
60° Quick 0.9 9
50° Economy 1.0 - 1.1 10 - 11
55° One hour 1.0 - 1.2 10 - 11
Rinse hold 0.1 4
1) The display shows the programme duration.
1)
The consumption values are intended
as a guide. They depend on the
pressure and the temperature of the
water, on the variations of the power
supply and on the quantity of dishes.
Energy (kWh) Water (litre)
When the appliance is first
installed
Before using the appliance for the first time:
• Ensure that the electrical and water
connections comply with the installation
instructions
• Remove all packaging from inside the
appliance.
• Check if the factory set of the water
softener complies with the water
hardness in your area. If not, adjust the
level of the water softener.
• Pour 1 litre of water into the salt
container and then fill with dishwasher
salt.
• Fill the rinse aid dispenser.
If you want to use combi detergent
tablets (e.g. 3 in 1, 4 in 1, 5 in 1) set
the Multi tab function. Refer to 'Multi
tab function'.
The water softener
The appliance is equipped with a water
softener designed to remove minerals and
salts from the water supply, which would
have a detrimental or adverse effect on the
operation of the appliance.
The higher the content of these minerals and
salts, the harder your water is. Water
hardness is measured in equivalent scales,
Clarke degrees, French degrees (°TH) and
mmol/l (millimol per litre - international unit
for the hardness of water).
10
The softener should be adjusted according
to the hardness of the water in your area.
Your local Water Authority can advise you
on the hardness of the water in your area.
Water hardness
Clarke °TH mmol/l manually electronically
64 - 88 91 - 125 9.1 - 12.5 2 level 10 yes
53 - 63 76 - 90 7.6 - 8.9 2 level 9 yes
46 - 52 65 - 75 6.5 - 7.5 2 level 8 yes
36 - 45 51 - 64 5.1 - 6.4 2 level 7 yes
28 - 35 40 - 50 4.0 - 5.0 2 level 6 yes
23 - 27 33 - 39 3.3 - 3.9 2 level 5 yes
18 - 22 26 - 32 2.6 - 3.2 1 level 4 yes
13 - 17 19 - 25 1.9 - 2.5 1 level 3 yes
5 - 12 7 - 18 0.7 - 1.8 1 level 2 yes
< 5 < 7 < 0.7 1 level 1 no
Adjustment of the water
softener
The water softener must be set in
two ways, manually and
electronically.
Setting manually
The appliance is factory set at position 2.
1. Open the appliance door.
2. Remove the lower basket from the
appliance.
3. Turn the water hardness dial to position
1 or 2. Refer to the water hardness
table.
4. Replace the lower basket.
Setting electronically
The appliance is factory set at level 5.
1. Switch on the appliance. Make sure that
the appliance is in setting mode.
2.
Press and hold function button (B) and
function button (C) simultaneously until
the indicators above function buttons
(A), (B) and (C) start to flash.
3.
Release function button (B) and function
button (C).
Use of salt
11
4.
20
30
M
A
X
1
2
3
4
+
-
Press function button (A), the indicators
above function buttons (B) and (C) go
off while the indicator above function
button (A) continues to flash. The
display shows the current level (e.g.
displayed = level 5 ).
5. To change the level, go on pressing
function button (A) until the display
shows the required level. Refer to the
water hardness table.
6. Switch off the appliance to confirm the
operation.
Filling with salt
Caution! Only use salt specifically
designed for dishwasher use. All
other types of salt, especially table
salt, will damage the water softener.
Only fill with salt just before starting
one of the complete washing
programmes. This will prevent any
grains of salt or salty water, which
may have been spilt, to remain on the
bottom of the appliance for any
period of time and cause corrosion.

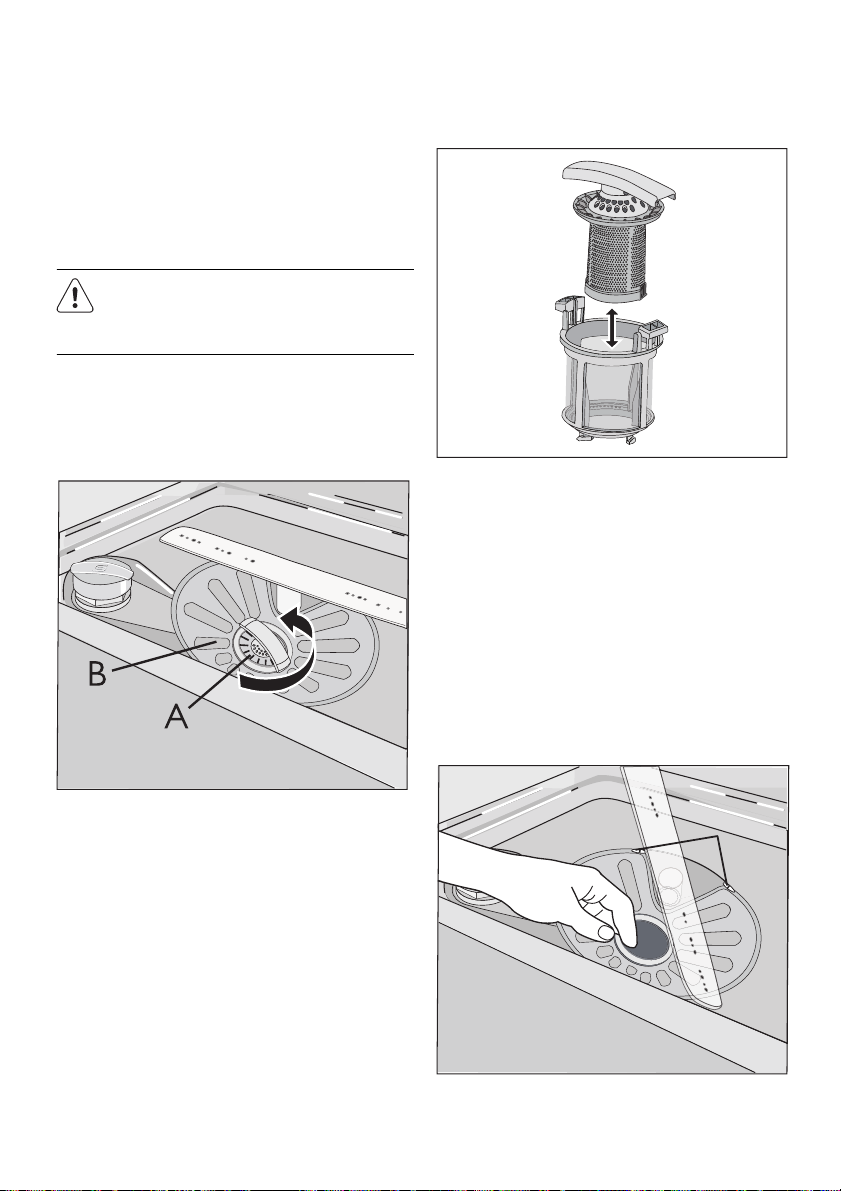

1. Open the appliance door and remove
the lower basket.
2. Unscrew the cap of the salt container by
turning it anticlockwise.
3. Pour 1 litre of water into the container
(this is necessary only before filling with
salt for the first time).

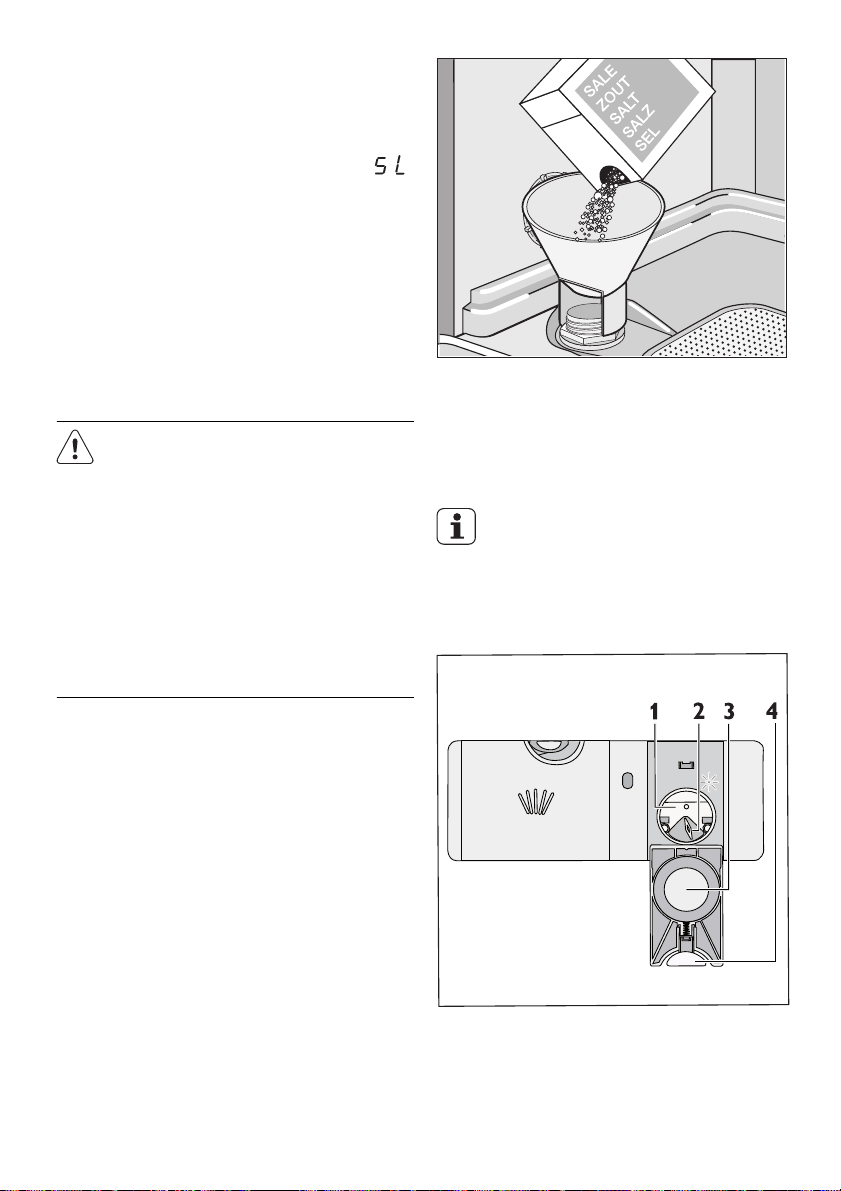

4. Using the funnel provided, pour in the
salt until the container is full.
5. Screw on the cap of the salt container by
turning it clockwise until it stops with a
click. Make sure that there is no trace of
salt on the screw thread or on the
gasket.
Do not worry if water overflows
from the unit when filling with salt,
this is quite normal.
Filling with rinse aid
12
Caution! Only use branded rinse aid
for dishwashers. Never fill the rinse
aid dispenser with any other
substances (e.g. dishwasher cleaning
agent, liquid detergent). This would
damage the appliance.
3. Clean up any rinse aid spilt during filling
with an absorbent cloth to avoid excess
foaming during the next washing
programme.
4. Close the rinse aid dispenser. Press the
lid until it locks into position.
Rinse aid ensures thorough rinsing,
and spot and streak free drying.
Rinse aid is automatically added
during the last rinse.

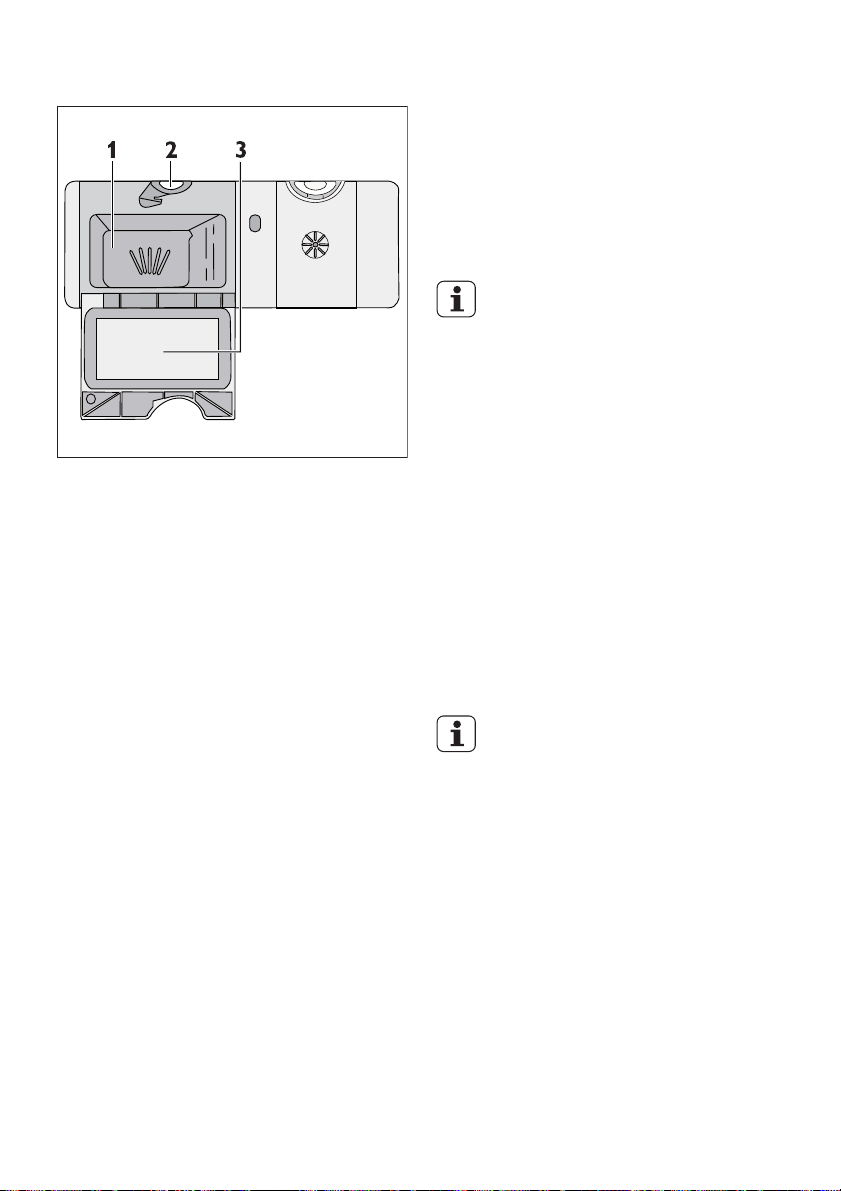

1.
Press the release button (4) to open the
lid (3) of the rinse aid dispenser.
2.
Fill the rinse aid dispenser (1) with rinse
aid. The maximum level for filling is
indicated by 'max'.
Daily use
• Check if it's necessary to refill with
dishwasher salt or rinse aid.
• Open the door, slide out the baskets and
load cutlery and dishes.
• Fill the detergent dispenser with
detergent.
• Select a washing programme suitable for
the degree of soil and the type of load.
• Start the washing programme.
Loading cutlery and
dishes
Sponges, household cloths and any object
that can absorb water must not be washed
in the appliance.
• Remove all left over food and debris from
dishes.
• Soften remnants of burnt food in pans.
Adjusting the rinse aid
dosage
The factory set in position 3.
You can set the rinse aid dosage between
position 1 (lowest dosage) and position 4
(highest dosage).
Turn the rinse aid selector (2) to increase or
reduce the dosage.
• Dishes and cutlery must not impede the
rotation of the spray arms.
• Load hollow items with the opening
downwards so that water cannot collect
in the container or a deep base.
• Dishes and items of cutlery must not lie
inside one another or cover each other.
• To avoid damage to glasses, they must
not touch.
• Lay small objects in the cutlery basket.
• Plastic items and pans with non stick
coatings have a tendency to retain water
drops. These items will not dry as well as
porcelain and steel items.
• Light items (e.g. plastic bowls) must be
loaded in the upper basket and arranged
so they do not move.

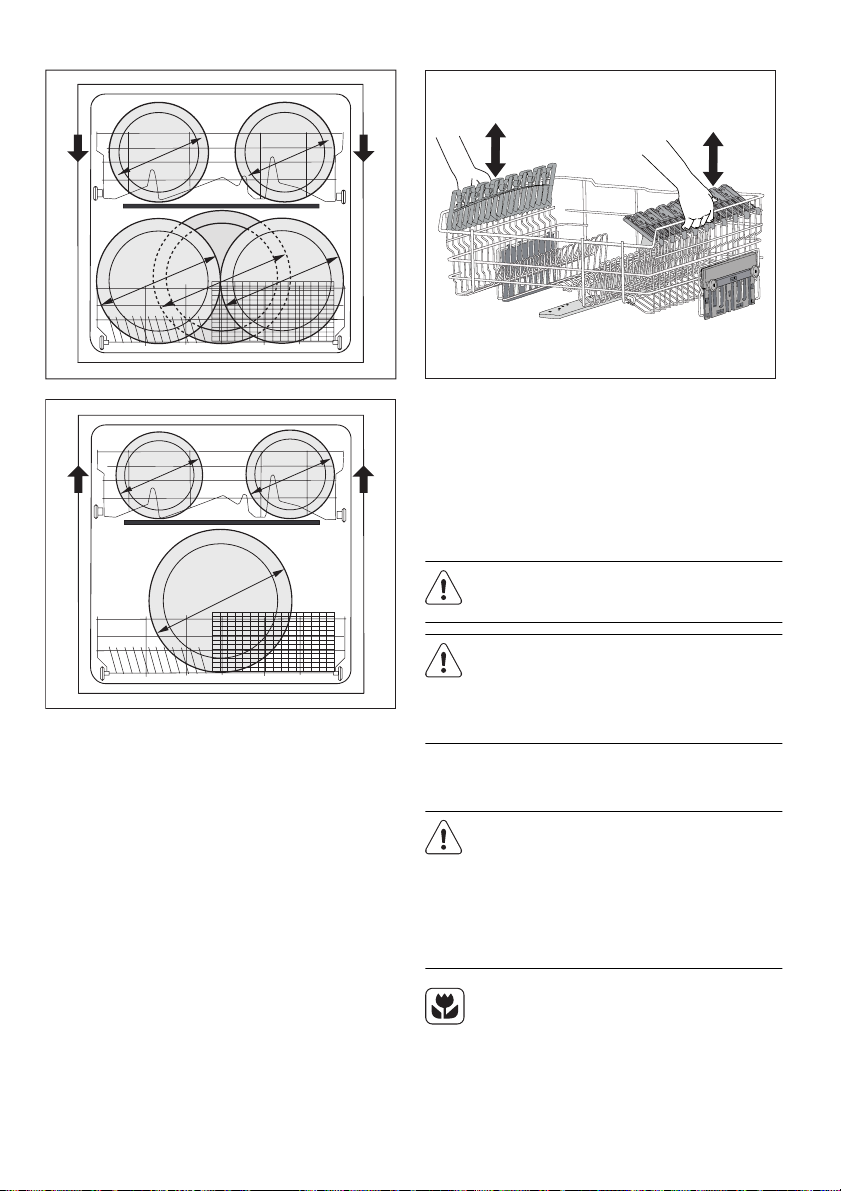

13
For washing in the dishwasher the following cutlery and dishes
are not suitable: are of limited suitability:
• Cutlery with wooden, horn, china or motherof-pearls handles.
• Plastic items that are not heat resistant.
• Older cutlery with glued parts that are not
temperature resistant.
• Bonded cutlery items or dishes.
• Pewter or copper items.
• Lead crystal glass.
• Steel items prone to rusting.
• Wooden platters.
• Items made from synthetic fibres.

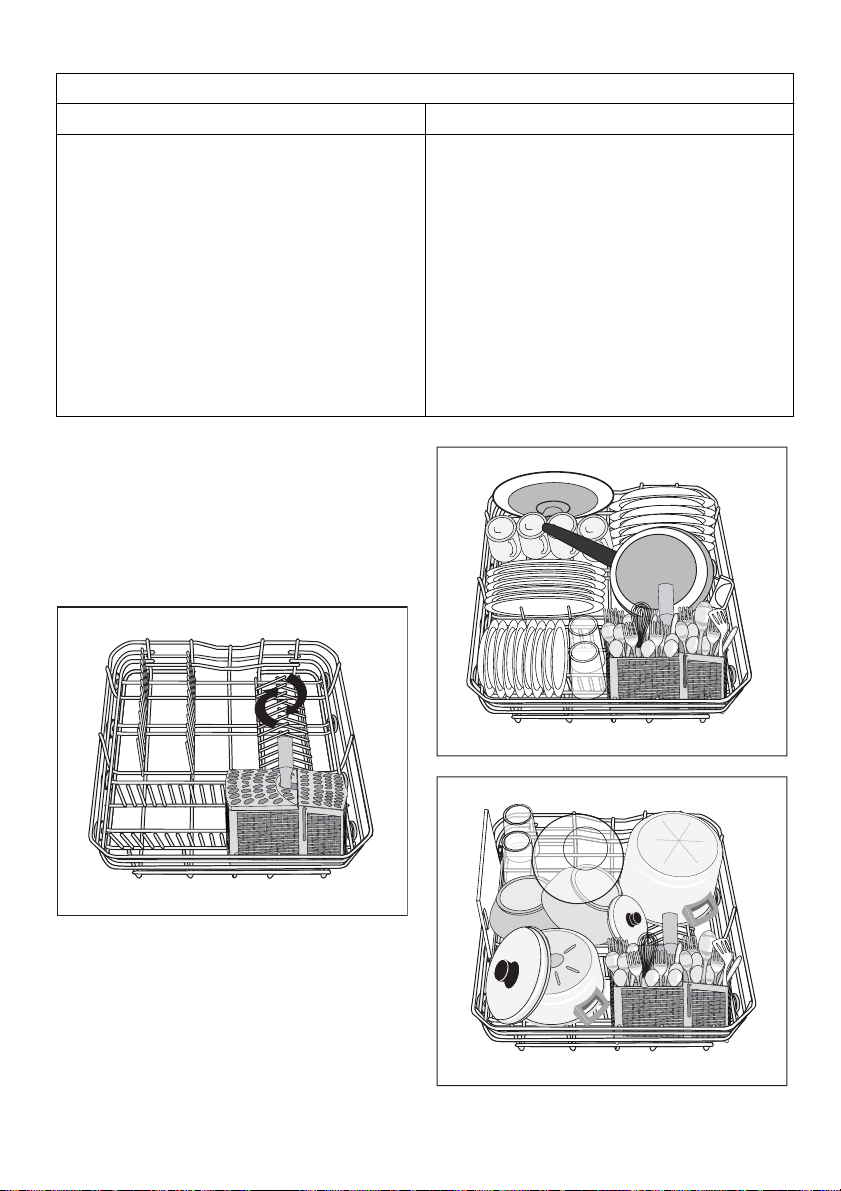

The lower basket
The lower basket is designed to take pots,
pans, lids, dishes, salad bowls and cutlery.
The two rows of prongs in the lower basket
can lie flat to allow you to load pots, pans
and bowls.
• Only wash stoneware if it is specially marked
as being dishwasher-safe by the manufacturer.
• Glazed patterns may fade if machine washed
frequently.
• Silver and aluminium parts have a tendency to
discolour during washing: Residue, e.g. egg
white, egg yolk and mustard often cause
discolouring and staining on silver. Therefore
always clean left-overs from silver
immediately, if it is not to be washed straight
after use.
14
XXL
9 x
34 cm
XXL

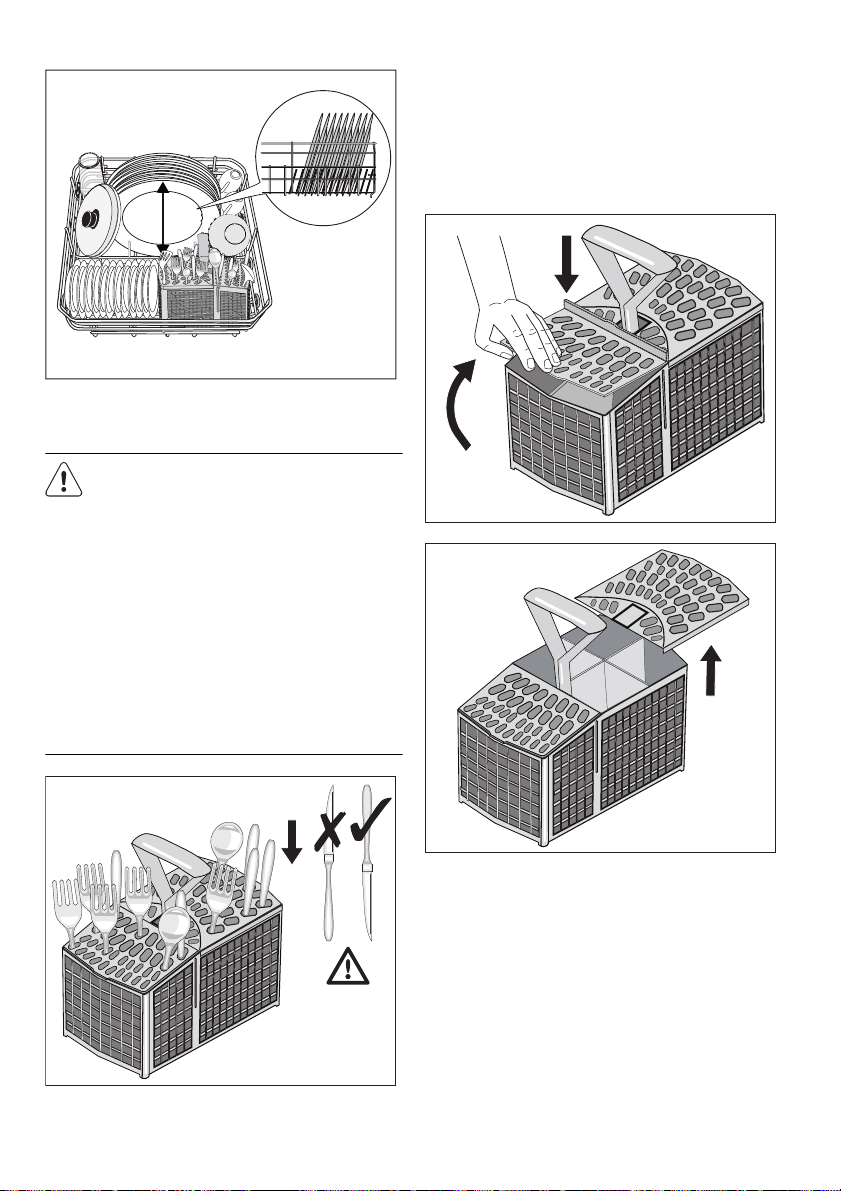

The cutlery basket
Warning! Knives with long blades,
stored in an upright position, are a
potential hazard. Long and/or sharp
items of cutlery such as carving knives
must be positioned horizontally in the
upper basket. Take care when
loading or unloading sharp items such
as knives. Forks and spoons should
be placed in the removable cutlery
basket with the handles facing
downwards and the knives with their
handles facing upwards
9 x
34 cm
Mix spoons with other cutlery to prevent
them from sticking together.
For best results we recommend you use the
cutlery grids. If the size and dimensions of
the cutlery do not allow the use of the grids,
they can be easily hidden or removed.
The upper basket

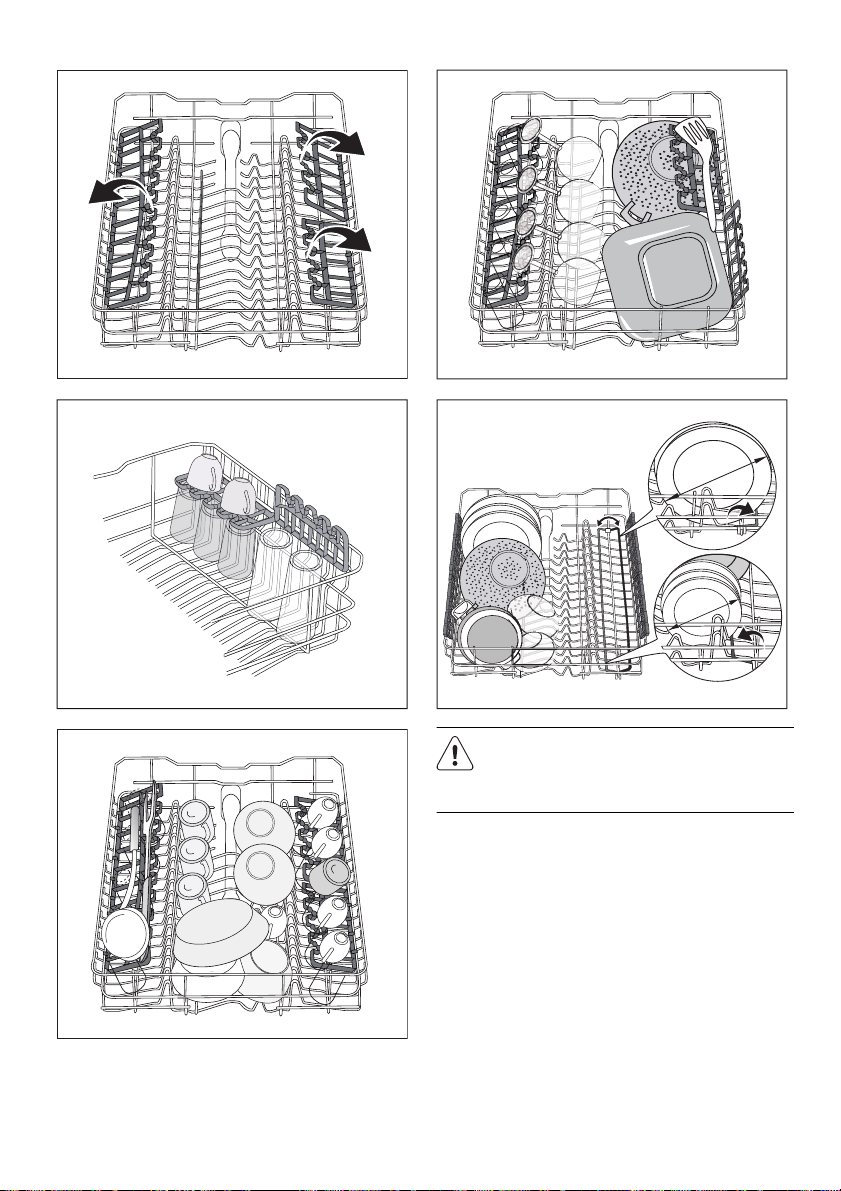

Arrange items on and underneath the cup
racks so that water can reach all surfaces.
15
25 cm
14 cm
Caution! Ensure that the spray arms
can rotate freely before you close the
appliance door.
Adjusting the height of
the upper basket
To load very large plates move the upper
basket to the higher position.
16
24 cm
25 cm
28 cm
21 cm
34 cm
30 cm
28 cm
22 cm
Moving the upper basket to the
higher position
1. Pull out the basket until it stops.
2. Carefully lift both sides upwards until the
mechanism is engaged and the basket is
stable.
Moving back the upper basket to the
lower position
1. Pull out the basket until it stops.
2. Carefully lift both sides upwards and
then allow the mechanism to drop back
down slowly, keeping hold of it.
Caution! Never lift or lower the
basket on one side only.
Warning! Always close the
appliance door after loading the
baskets. An open door can be a
hazard.
Use of detergent
Caution! Only use detergents
specifically designed for use in
dishwashers.
Please observe the dosing and
storage recommendations as stated
on the detergent packaging.
17
Using no more than the correct
amount of detergent contributes to
reducing pollution.
Fill with detergent
20
30
M
A
X
1
2
3
4
+
-
2.
3. If the washing programme has a prewash
4. If you use detergent tablets, put the
5. Close the lid. Make sure that it locks into
1.
Press the release button (2) to open the
lid (3) of the detergent dispenser.
Multi tab function
Put the detergent in compartment (1).
phase, put a small quantity of detergent
on the inner side of the appliance door.
tablet in compartment (1).
position.
Detergent tablets from different
manufacturers dissolve at different
rates. For this reason, some
detergent tablets do not attain their
full cleaning power during short
washing programmes. Therefore,
please use long washing programmes
when using detergent tablets, to
ensure the complete removal of
detergent residual.
This appliance is equipped with the Multi tab
function, that allows the use of combi
detergent tablets.
These products are detergents with a
combined cleaning, rinsing and salt functions.
They can also contain other different agents
depending on which kind of tablets you
choose (e.g. 3 in 1, 4 in 1, 5 in 1).
Check whether these detergents are suitable
for your water hardness. Refer to the
manufacturer's instructions.
The Multi tab function deactivates the inflow
of rinse aid and salt from each respective
supply container. Also the indicators for salt
and rinse aid are deactivated.
The Multi tab function can increase the
programme time that will automatically be
updated on the display.
Activate the Multi tab function before the
start of a washing programme.
Activate or deactivate the Multi tab
function before the start of a washing
programme. You cannot activate or
deactivate the function when a
washing programme is in progress.
To activate the Multi tab
function
• Press the Multi tab button, the Multi tab
indicator comes on. The function has
been activated.
– When the Multi tab function is
activated, it remains on until you
deactivate it.
18
To deactivate the Multi tab
function and use separately
detergent, salt and rinse aid
1. Press the Multi tab button, the Multi tab
indicator goes off. The function has been
deactivated.
2. Fill the salt container and the rinse aid
dispenser.
3. Adjust the water hardness to the highest
level.
4. Perform a washing programme without
loading any dishes.
5. When the washing programme is
completed, adjust the water softener to
the water hardness in your area.
6. Adjust the rinse aid dosage.
Select and start a washing
programme
Starting the washing
programme without
delay start
1. Open the appliance door.
2. Switch on the appliance. Make sure that
the appliance is in setting mode.
3. Select a washing programme. Refer to
'Washing programmes'.
• The related programme indicator
comes on while the other programme
indicators go off.
• The programme time flashes in the
display.
4. Close the appliance door. The washing
programme starts automatically.
• In the display the programme time is
no longer flashing but fixed with static
light,
You can select the washing
programme also with the door
closed. Once you set a washing
programme, you have only three
seconds to select a different
programme. After these three
seconds, the washing programme
starts automatically.
Starting the washing
programme with delay
start
1. Open the appliance door.
2. Switch on the appliance and select a
washing programme.
3. Press one of the delay start buttons until
the display shows the hours for the delay
start.
• The hours flash in the display.
4. Close the appliance door. The
countdown starts automatically.
• The hours are no longer flashing but
fixed with static light .
19
• When the countdown is completed,
the washing programme starts
automatically.
2. Close the appliance door. The
programme continues from the point at
which it was interrupted.
The opening of the appliance door
interrupts the countdown. When you
close the door, the countdown
continues from the point of
interruption.
You can select the delay start also
with the door closed. When you
select a washing programme, you
have only 3 seconds to select the
delay start. After these 3 seconds,
the washing programme starts
automatically.
Cancelling the delay
start
The countdown has not yet started
• Press the delay start button until the
display shows the time of the selected
washing programme.
The countdown is in progress
• Press the delay start button until the
display shows the time of the selected
washing programme. The washing
programme starts automatically.
Warning! Interrupt or cancel a
washing programme in progress only
if it’s absolutely necessary. Hot steam
may escape when the appliance door
is opened. Open the door carefully.
Interrupting a washing
programme in progress
1. Open the appliance door. The washing
programme stops.
Cancelling the washing
programme
If the washing programme has not yet
started, you can change the selection.
When a washing programme is in progress,
you cannot change the selection. You have
to cancel the programme to make a new
selection.
1. Press and hold at the same time,
function buttons (B) and (C) until all the
programme indicators come on.
2.
Release function buttons (B) and (C).
The washing programme has been
cancelled.
Make sure that there is detergent in
the detergent dispenser before you
start a new washing programme.
End of the washing
programme
When the washing programme is
completed, the display shows a zero and the
indicator of the ended programme remains
on.
1. Switch off the appliance.
2. Open the appliance door.
Leave the door ajar and wait a few
minutes before removing the dishes.
In this way they will be cooler and
the drying will be improved.
It is recommended that the appliance
is unplugged and the water tap
turned off when the washing
programme is completed.
20
Unloading the appliance
• Hot dishes are sensitive to knocks. The
dishes should therefore be allowed to
cool down before removing from the
appliance.
• Empty the lower basket first and then the
upper one; this will avoid water dripping
from the upper basket onto the dishes in
the lower one.
• Water may appear on the sides and the
door of the appliance as the stainless steel
will eventually become cooler than the
dishes.
21
Maintenance and cleaning
Cleaning the filters
The filters must be checked and cleaned
from time to time. Dirty filters will degrade
the washing result.
Warning! Before cleaning the filters
ensure that the appliance is switched
off.
1. Open the appliance door and remove
the lower basket.
2.
Turn the filter (A) anticlockwise and
remove it out from filter (B).
4. Thoroughly clean all parts under running
water.
5.
Put the two parts of the filter (A)
together and push. Make sure that they
engage correctly in each other.
6.
Remove the filter (B).
7.
Thoroughly clean filter (B) under running
water.
8.
Put back filter (B) in the original position.
Make sure that it engages correctly
under the two guides (C).
3.
Filter (A) has two parts. To disassemble
the filter, pull them apart.
C
22
9.
Put the filter (A) into position in filter
(B). Turn the filter (A) clockwise until it
locks.
Caution! Never use the appliance
without filters. Incorrect
repositioning and fitting of the filters
will produce poor washing results
and will result in damage to the
appliance.
Spray arms
Caution! Never try to remove the
upper spray arm.
If residue of soil has clogged the holes in the
spray arms, remove the debris with a sharp
pointed item (e.g. toothpick, cocktail stick).
Prolonged periods of
non-operation
If you are not using the appliance for a
prolonged period of time you are advised to:
• Unplug the appliance and then turn off the
water.
• Leave the door ajar to prevent the
formation of any unpleasant smells.
• Leave the inside of the appliance clean.
Frost precautions
Avoid placing the appliance in a location
where the temperature is below 0 °C. If this
is unavoidable, empty the appliance, close
the door, disconnect the water inlet pipe
and empty it.
Cleaning the appliance
External cleaning
Clean the external surfaces of the appliance
and control panel with a damp soft cloth. If
necessary use only neutral detergents.
Never use abrasive products, scouring pads
or solvents, since these can damage the
surfaces and plastic parts of the appliance.
Internal cleaning
Ensure that the seals around the door, the
detergent and rinse aid dispensers are
cleaned regularly with a damp cloth.
We recommend every 3 months you run
the washing programme for heavy soiled
dishes using detergent but without dishes.
Moving the appliance
If you have to move the appliance (e.g.
moving house):
1. Unplug the appliance.
2. Turn the water tap off.
3. Remove the water inlet and discharge
hoses.
4. Pull the appliance out together with the
hoses.
Avoid over tilting the appliance during
transportation.
Something not working
The appliance does not start or it stops
during operation.
Certain problems are due to the lack of
simple maintenance or oversights, which can
be solved with the help of the indications
23
described in the table, without calling out an
•
- The anti-flood device is on.
engineer.
With some malfunctions, the display
shows an alarm code:
•
- The appliance does not fill with
Warning! Switch off the appliance
before you carry out the following
suggested corrective actions.
water
•
- The appliance does not drain the
water
Malfunction Possible cause Possible solution
The appliance does not fill with
water.
The water pressure is too low. Contact your local Water
The water tap is closed. Open the water tap.
The filter in the water inlet hose
The connection of the water
The water inlet hose is
The appliance does not drain
the water.
The connection of the water
The water drain hose is
The anti-flood device is on. Close the water tap and
The start of the washing
programme does not occur.
The mains plug is not
The fuse in the fuse box is
The water tap is blocked or
there is limescale on it.
is blocked.
inlet hose is not correct.
damaged.
There is a blockage in the sink
spigot.
drain hose is not correct.
damaged.
The appliance door is open. Close the appliance door.
connected in the mains socket.
damaged.
Clean the water tap.
Authority.
Clean the filter.
Make sure that the connection
is correct.
Make sure that the water inlet
hose has no damages.
Clean the sink spigot.
Make sure that the connection
is correct.
Make sure that the water drain
hose has no damages.
contact our extended warranty
administrators. Refer to
'Repairs - after sales service'.
Connect the mains plug.
Replace the fuse.
24
Malfunction Possible cause Possible solution
The delay start is set. • Cancel the delay start.
• When the countdown is
completed, the washing
programme starts
automatically.
Once the checks have been carried out,
switch on the appliance. The programme
continues from the point at which it was
interrupted.
If the malfunction occurs again or the display
shows an alarm code that is not listed in the
table, please contact our extended warranty
administrators. Refer to 'Repairs - after sales
service'.
The washing and drying results are not satisfactory
The dishes are not clean. The washing programme was
not applicable for the type of
load and soil.
You did not put the items
correctly in the baskets, water
did not touch all surfaces.
The spray arms could not turn
freely. Incorrect position of the
items in the baskets.
The filters are dirty or not
assembled and installed
correctly.
The quantity of detergent was
not sufficient or missing.
Limescale particles on the
dishes.
Incorrect level of the water
The salt container cap is not
There are streaks, whitish
stains, or a bluish layer on
glasses and dishes.
Dry water drop stains on
glasses and dishes.
The salt container is empty. Fill the salt container with
softener adjustment.
closed correctly.
The rinse aid quantity is too
high.
The rinse aid quantity is too
low.
Make sure that the washing
programme is applicable for the
type of load and soil.
Put the items correctly in the
baskets.
Make sure that an incorrect
position of the items do not
cause the blockage of the spray
arms.
Make sure that the filters are
clean and correctly assembled
and installed.
Make sure that the quantity of
detergent is sufficient.
dishwasher salt.
Adjust the water softener with
the correct level.
Make sure that the salt
container cap is closed
correctly.
Decrease the rinse aid quantity.
Increase the rinse aid quantity.
25
The washing and drying results are not satisfactory
The detergent can be the
cause.
The dishes are wet. The washing programme was
without a drying phase or with
a decreased drying phase.
The dishes are wet and matt. The rinse aid dispenser is
empty.
The Multi tab function is on
(this function automatically
deactivates the rinse aid
dispenser).
Activating the rinse aid
dispenser
1. Switch on the appliance. The appliance
must be in setting mode.
2.
Press and hold function button (B) and
function button (C) simultaneously until
the indicators above function buttons
(A), (B) and (C) start to flash.
3.
Release function button (B) and function
button (C).
4. Press function button (B), the indicators
above function buttons (A) and (C) go
off while the indicator above function
button (B) continues to flash. The
display shows the current setting.
Use a different brand of
detergent.
For better drying results, keep
the door ajar for some minutes.
Fill the rinse aid dispenser with
rinse aid.
Activate the rinse aid dispenser.
Rinse aid dispenser
deactivated
Rinse aid dispenser
activated
5.
Press function button (B) again. The
display shows the new setting.
6. Switch off the appliance to confirm the
operation.
26
Technical data
Dimensions Width 596 mm
Height 850 mm
Depth 597 mm
Water supply pressure Minimum 0.5 bar (0.05 MPa)
Maximum 8 bar (0.8 MPa)
Electrical connection Information on the electrical connection (voltage, overall power
and fuse) is given on the rating plate on the inner edge of the
appliance door.
Capacity Place settings 12
Installation
Warning! It is dangerous to alter
the specifications or attempt to
modify the appliance in any way.
Warning! This appliance is heavy.
Care should be taken when moving
it.
Warning! Care must be taken to
ensure that the appliance does not
stand on the electrical supply cable.
Warning! Any electrical or
plumbing work required to install this
appliance must be carried out by a
qualified electrician or plumber.
Unpacking
• Remove all packaging before positioning
the appliance.
• Position the appliance next to a water tap
and a drain.

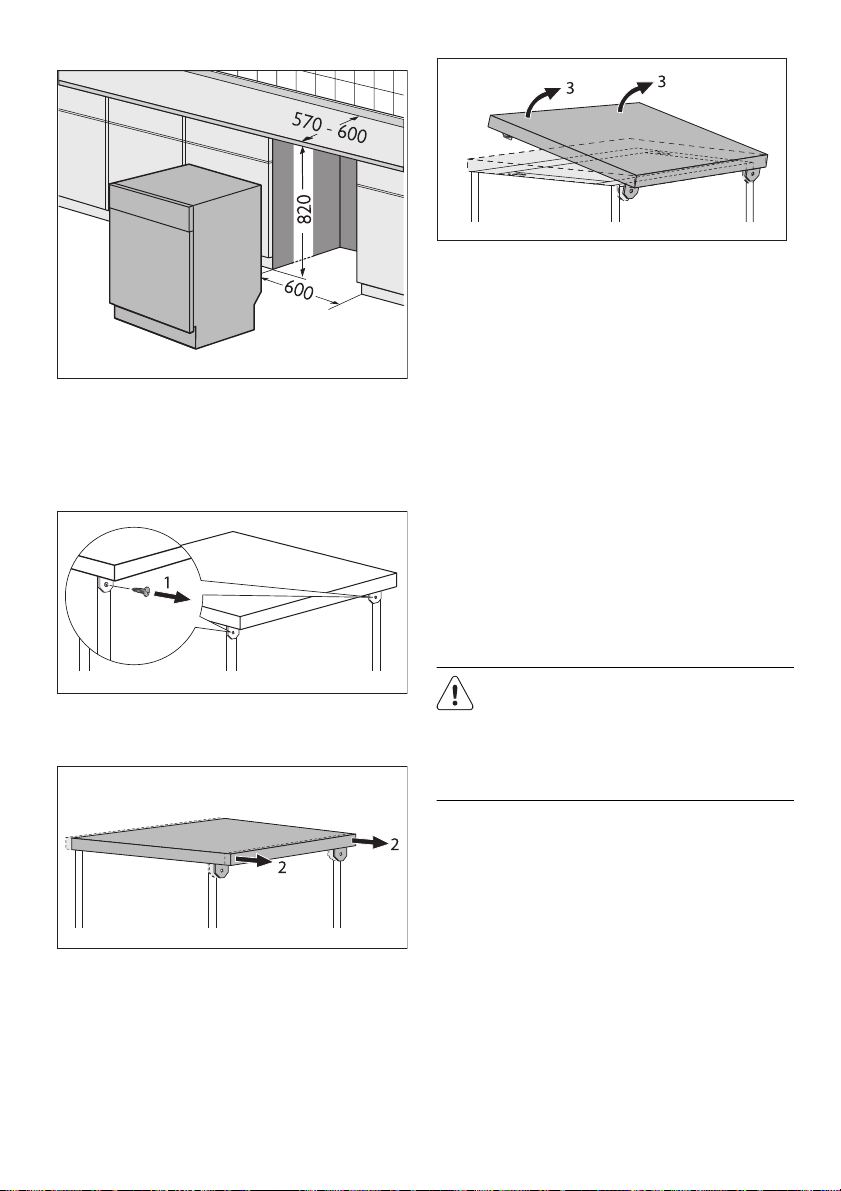

Fitting under the kitchen
worktop
By removing the worktop of the appliance ,
you can install it under the kitchen worktop
or a close fitting sink. The dimensions of the
recess must correspond to those shown in
the picture.
27
Removing the appliance worktop
1. Remove the appliance worktop by
unscrewing the two rear retaining
screws (1)
2. Pull the worktop from the back of the
appliance (2).
Insert the appliance once the levelling has
been done.
When inserting the appliance, ensure that
the water inlet and drain hoses are not
kinked or squashed.
During all operations that involve
accessibility to internal components the
appliance must be unplugged.
Be sure that once the appliance has been
installed, it is easily accessible for the service
engineer in the event that a repair is
required.
If the appliance is later used as a freestanding
appliance, the original worktop must be
reassembled.
The plinth on freestanding appliances is not
adjustable.
Caution! It is necessary to protect
the underside of the kitchen worktop
from condensation. A plastic top
cover can be purchased, contact your
local John Lewis branch.
3. Lift the worktop (3) and slide it out of
the front slots.
Levelling of the appliance
Good levelling is essential for correct closure
and sealing of the appliance door.
When the appliance is correctly levelled, the
door will not catch on either side of the
cabinet.
If the appliance door does not close
correctly, loosen or tighten the adjustable
feet until the level of the appliance is perfect.
28
Water connection
Water inlet connection
This appliance may be fed with either hot
(maximum 60 °C) or cold water.
Nevertheless we advise you use a cold
water supply. A hot water supply is not
always efficient with heavily soiled crockery
as it shortens the washing programmes a lot.
For making the connection itself, the
coupling nut fitted to the appliance inlet hose
is designed to screw onto a 3/4" gas thread
spout or to a purpose made quick-coupling
tap such as the Press-block.
The water pressure must be within the limits
given in the ‘Technical data’. Your local
Water Authority will advise you on the
average mains pressure in your area.
The water inlet hose must not be kinked,
crushed, or entangled when it is being
connected.
The appliance features inlet and drain hoses
which can be turned either to the left or the
right to suit the installation by means of the
locknut. The locknut must be correctly fitted
to avoid water leaks.
If the appliance is connected to new pipes or
pipes which have not been used for a long
time, you should run the water for a few
minutes before connecting the inlet hose.
This appliance has been fitted with safety
features which will prevent the water used in
the appliance from returning back into the
drinking water system. This appliance
complies with the applicable plumbing
regulations.
Caution! Do not use inlet and drain
hoses which have previously been
used on another appliance.

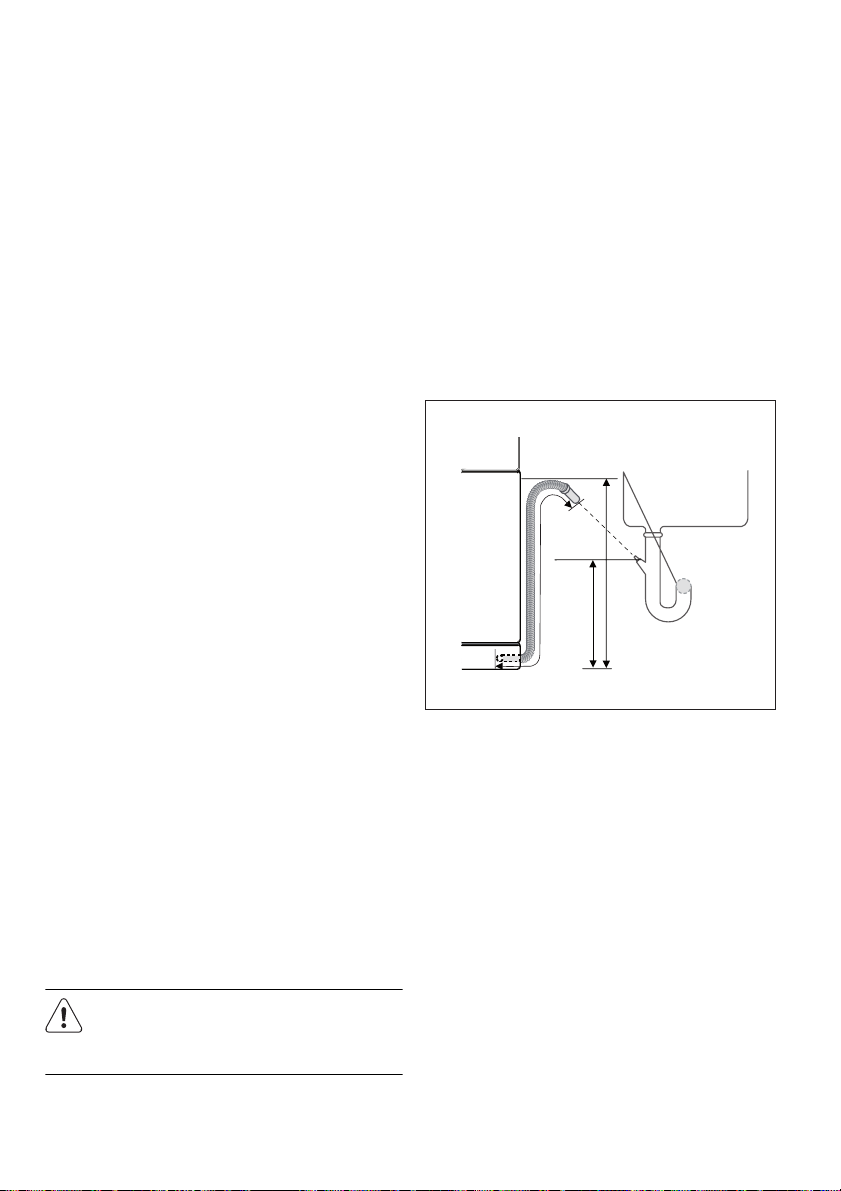

Water drain connection
The end of the drain hose can be connected
in the following ways:
• To the sink outlet spigot, securing it to the
underside of the work surface. This will
prevent waste water from the sink
running into the appliance.
• To a stand pipe provided with venthole,
minimum internal diameter 4 cm.
max 85 cm
min 40 cm
max 400 cm
The drain hose can face either to the right
or left of the appliance.
Ensure the drain hose is not bent or
squashed as this could prevent or slow
down the discharge of water.
The sink plug must not be in place when the
appliance is draining as this could cause the
water to syphon back into the appliance.
If you use a drain hose extension, the
internal diameter must be no smaller than
the diameter of the hose provided.
Likewise the internal diameter of the
couplings used for connections to the waste
outlet must be no smaller than the diameter
of the hose provided.
29
Our appliances are supplied with a security
device to protect against the return of dirty
water back into the appliance. If the spigot
of your sink has a "no return valve"
incorporated this can prevent the correct
draining of your appliance. We therefore
advise you to remove it.

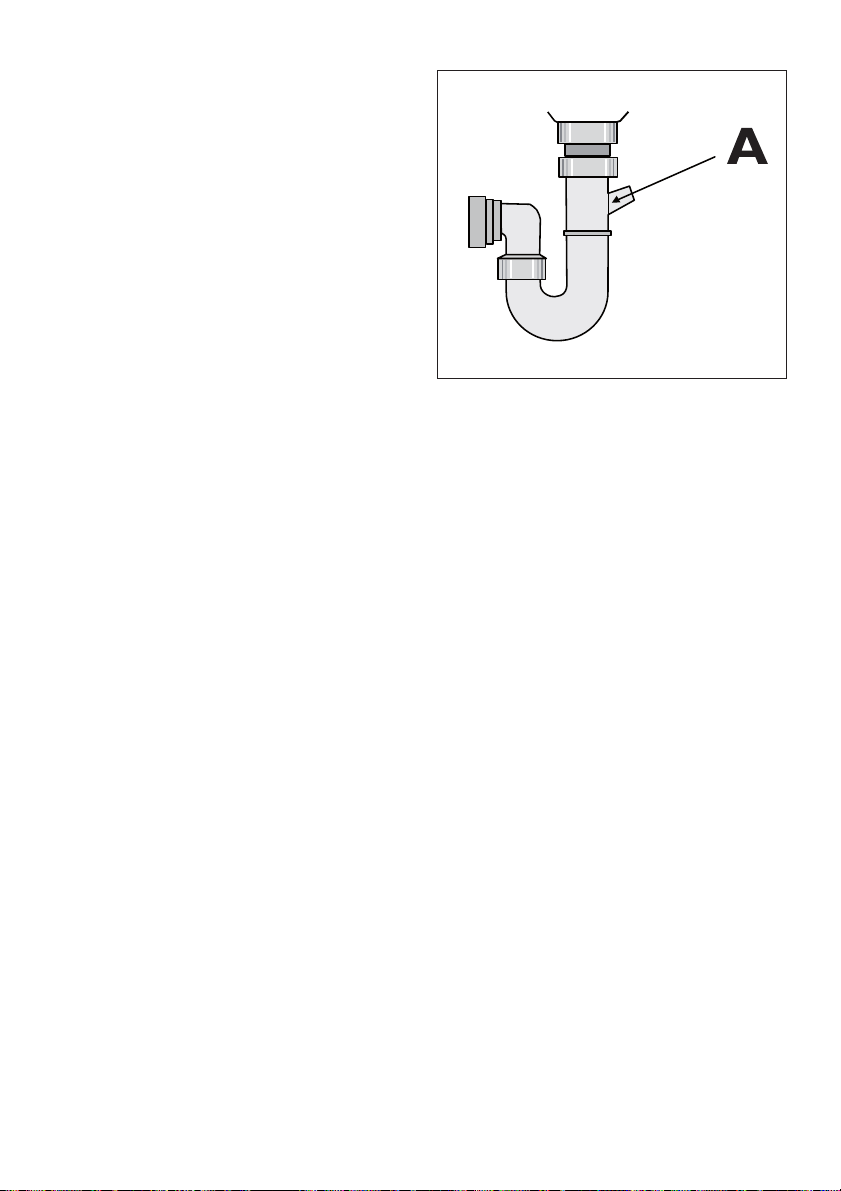

When connecting the drain hose to an
under sink trap spigot, the entire plastic
membrane (A) must be removed. Failure to
remove all the membrane will result in food
particles building up over time eventually
blocking the appliance drain hose spigot.
30
Electrical connection
The manufacturer accepts no liability
for failure to observe the following
safety precautions.
Warning! Safety standards require
the appliance to be earthed.
Prior to using the appliance for the
first time, ensure that the rated
voltage and type of supply on the
rating plate match that of the supply
where the appliance is to be installed.
The fuse rating is also to be found on
the rating plate.
Always plug the mains plug into a
correctly installed shockproof socket.
Multi-way plugs, connectors and
extension cables must not be used.
This could constitute a fire hazard
through overheating.
If necessary, have the domestic wiring
system socket replaced. In case that
the electrical cable has to be
replaced, contact your local repair
agent.
The plug must be accessible after the
appliance has been installed.
Never unplug the appliance by pulling
on the cable. Always pull the plug.
The appliance is supplied with a 13
amp plug attached. Use a 13 amp
ASTA approved (BS 1362) fuse if it is
necessary to change the fuse in the
plug supplied.
31
Repairs - after sales service
Your appliance comes with a three year
warranty. If it is not working correctly refer
to "Something not working". If a fault occurs
which you can not resolve through following
the advice and information contained within
this instruction manual, the next step is to
contact our extended warranty
administrators on:
0844 871 7771
They will give you details for your local
service engineer. Before calling out an
engineer, please ensure you have read the
details under the heading “Something not
working”.
When you contact your local service
engineer you will need to give the following
details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of fault
4. The purchase date as found on your
receipt
5. The model and serial number of the
appliance. So that you always have these
numbers at hand, we recommend you to
make a note of them here:
made even if the appliance is under
guarantee.
Spare parts
Always insist on genuine spare parts.
An authorised service engineer should
service this product, and only genuine spare
parts should be used. Under no
circumstances should you attempt to repair
the appliance yourself. Repairs carried out
by inexperienced persons may cause injury
or serious malfunctioning. Contact your
local John Lewis branch.
• Mod.......................................
• P.N.C.....................................
• S.N.........................................
IMPORTANT : If you call out an
engineer to a fault listed under the
heading ''Something not working'', or
to repair a fault caused by incorrect
use or installation, a charge will be
32
333435
John Lewis Partnership
171 Victoria Street
London SW1E 5NN
www.johnlewis.com
117938390-D-032011 (Subject to change without notice)
Loading...
