John Boos TC043 User Manual

A

S

e

t

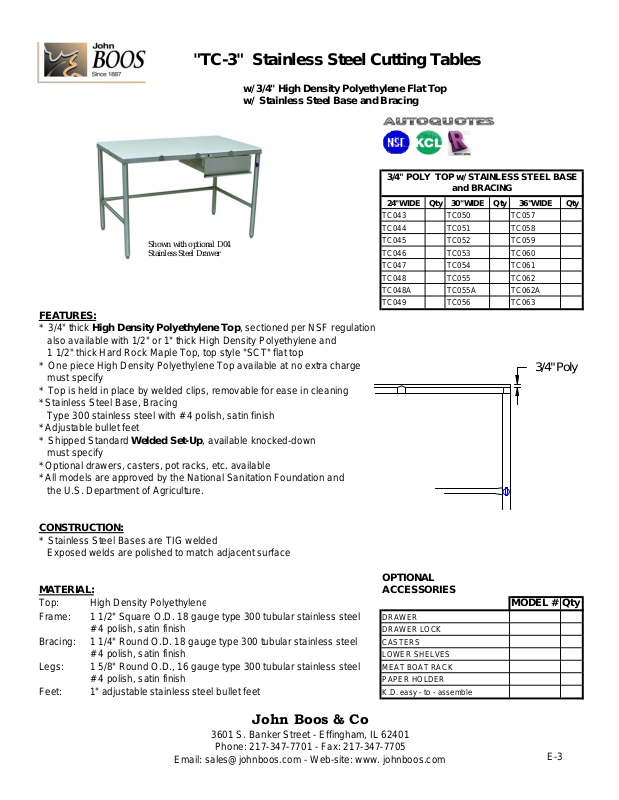

"TC-3" Stainless Steel Cutting Tables

w/ 3/4" High Density Polyethylene Flat Top
w/ Stainless Steel Base and Bracing

Shown with optional D04
Stain less St eel Draw er

FEATURES:

* 3/4" thick High Density Polyethylene Top, sectioned per NSF regulation
also available with 1/2" or 1" thick High Density Polyethylene and
1 1/2" thick Hard Rock Maple Top, top style "SCT" flat top
* One piece High Density Polyethylene Top available at no extra charge
must specify
* Top is held in place by welded clips, removable for ease in cleaning
* Stainless Steel Base, Bracing
Type 300 stainless steel with # 4 polish, satin finish
* Adjustable bullet feet
* Shipped Standard Welded Set-Up, available knocked-down
must specify
* Optional drawers, casters, pot racks, etc. available
* All models are approved by the National Sanitation Foundation and
the U.S. Department of Agriculture.

3/4" POLY TOP w/ STAINLESS STEEL BASE

and BRACING

24"WIDE Qty 30"WIDE Qty 36"WIDE Qty

TC043 TC050 TC057
TC044 TC051 TC058
TC045 TC052 TC059
TC046 TC053 TC060
TC047 TC054 TC061
TC048 TC055 TC062
TC048A TC055A TC062A
TC049 TC056 TC063

3/4" Pol y

CONSTRUCTION:

* Stainless Steel Bases are TIG welded
Exposed welds are polished to match adjacent surface

OPTIONAL

MATERIAL:

Top: High Density Polyethylen
Frame: 1 1/2" Square O.D. 18 gauge type 300 tubular stainless steel

CCESSORIE

MODEL # Qty

DRAWER

# 4 polish, satin finish DRAWER LOCK

Bracing: 1 1/4" Round O.D. 18 gauge type 300 tubular stainless steel CASTERS

# 4 polish, satin finish LOWER SHELVES

Legs: 1 5/8" Round O.D., 16 gauge type 300 tubular stainless steel MEAT BOAT RACK

# 4 polish, satin finish PAPER HOLDER

Feet: 1" adjustable stainless steel bullet fee

K.D. easy - to - assemble

John Boos & Co

3601 S. Banker Street - Effingham, IL 62401

Phone: [phone] - Fax: [phone]

Email: [e-mail] - Web-site: www. johnboos.com

E-3

DETAILED SPECIFICATIONS

L

W

L

CLEARANCE

L - 3.5"

35 3/4"

Shipped Standard Welded Set-Up
Units 7 ft. and larger are furnished with six legs.
All dimensions are typical.
Tolerance +/- .500".

3/4" HIGH DENSITY POLYETHYLENE TOP & BRACING

L 24" WIDE WT. 30" WIDE WT. 36" WIDE WT.

36 TC043 48 TC050 55 TC057 62
48 TC044 58 TC051 69 TC058 78
60 TC045 68 TC052 85 TC059 91
72 TC046 81 TC053 98 TC060 111
84 TC047 94 TC054 119 TC061 135

96 TC048 104 TC055 126 TC062 149
108 TC048A 117 TC055A 138 TC062A 160
120 TC049 129 TC056 150 TC063 170

12"

W

L

CLEARANCE

L - 5.125"

÷

2

John Boos & Co

3601 S. Banker Str- Effingham, IL 62401 Phone: [phone] - Fax: [phone]

Email: [e-mail] - Web-site: www.johnboos.com

July 2013

John Boos is constantly engaged in a program of improving products and therefore reserves the right to change specification without prior notice

E-4
