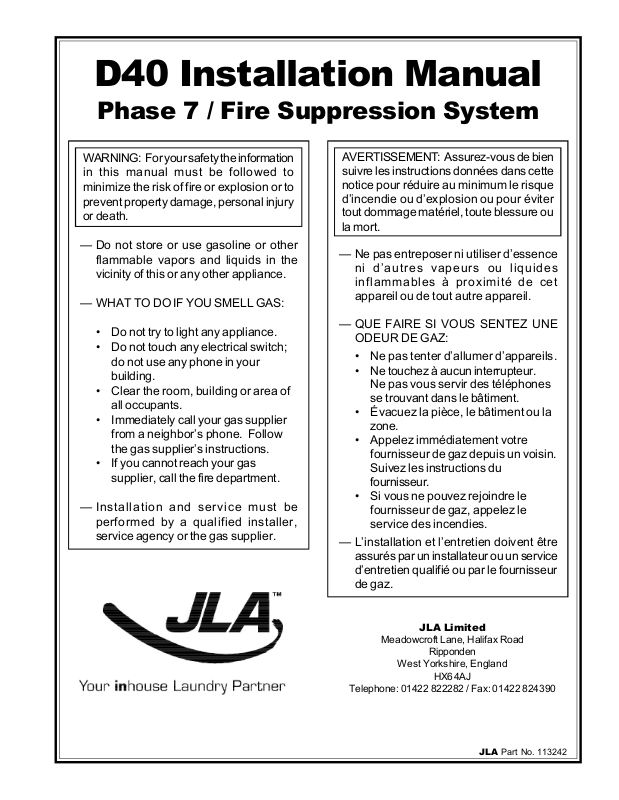

D40 Installation Manual

Phase 7 / Fire Suppression System

WARNING: For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or death.

— Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

— Installation and service must be

performed by a qualified installer, service agency or the gas supplier.

AVERTISSEMENT: Assurez-vous de bien suivre les instructions données dans cette notice pour réduire au minimum le risque d’incendie ou d’explosion ou pour éviter tout dommage matériel, toute blessure ou la mort.

— Ne pas entreposer ni utiliser d’essence

ni d’autres vapeurs ou liquides inflammables à proximité de cet appareil ou de tout autre appareil.

— QUE FAIRE SI VOUS SENTEZ UNE

ODEUR DE GAZ:

• Ne pas tenter d’allumer d’appareils.

• Ne touchez à aucun interrupteur. Ne pas vous servir des téléphones se trouvant dans le bâtiment.

• Évacuez la pièce, le bâtiment ou la zone.

• Appelez immédiatement votre fournisseur de gaz depuis un voisin. Suivez les instructions du fournisseur.

• Si vous ne pouvez rejoindre le fournisseur de gaz, appelez le service des incendies.

— L’installation et l’entretien doivent être

assurés par un installateur ou un service d’entretien qualifié ou par le fournisseur de gaz.

JLA Limited

Meadowcroft Lane, Halifax Road

Ripponden

West Yorkshire, England

HX6 4AJ

Telephone: 01422 822282 / Fax: 01422 824390

JLA Part No. 113242

Page 2

Retain this Manual in a Safe Place for Future Reference

This product embodies advanced concepts in engineering, design, and safety. If this product is properly maintained, it will provide many years of safe, efficient, and trouble free operation.

ONLY qualified technicians should service this equipment.

OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with the dryer.

The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

We have tried to make this manual as complete as possible and hope you will find it useful. The manufacturer reserves the right to make changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or discontinue models. The illustrations included in this manual may not depict your particular dryer exactly.

Ne pas entreposer ni utiliser d’essence ni d’autres vapeurs ou liquides inflammables à proximité de cet appareil ou de tout autre appareil.

POUR VOTRE SÉCURITÉ

IMPORTANT

For your convenience, log the following information:

DATE OF PURCHASE _____________________________ MODEL NO. _____________________________________________

RESELLER’S NAME _______________________________________________________________________________________

D40

Serial Number(s) ________________________________________________________________________________________

______________________________________________________________________________________________________

Replacement parts can be obtained from your reseller or JLA. When ordering replacement parts from JLA, you can FAX your order to JLA at 01422 824390 or telephone your order directly to the JLA Parts Department at 01422 822282. Please specify the dryer model number and serial number in addition to the description and part number, so that your order is processed accurately and promptly.

“IMPORTANT NOTE TO PURCHASER”

Information must be obtained from your local gas supplier on the instructions to be followed if the user smells gas. These instructions must be posted in a prominent location near the dryer.

Page 3

IMPORTANT

You must disconnect and lock out the electric supply and the gas supply or the steam supply before any covers or guards are removed from the machine to allow access for cleaning, adjusting, installation, or testing of any equipment per OSHA (Occupational Safety and Health Administration) standards.

Please observe all safety precautions displayed on the equipment and/or specified in the installation manual included with the dryer.

CAUTION

Dryer(s) should never be left unattended while in operation.

“Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper operation.”

«Attention: Lor des opérations d’entretien des commandes étiqueter tous filsnt de les déconnecter. Toute erreur de câblage peut étre une source de danger et de panne.»

Table of Contents

Safety Precautions ................................4

Specifications ........................................ 5

Installation Procedures .........................7

Unpacking/Setting Up ................................................. 7

Location Requirements ............................................... 7

Dryer Enclosure Requirements....................................7

Fresh Air Supply Requirements ...................................8

Exhaust Requirements................................................8

Electrical Information ................................................ 11

Gas Information ........................................................ 14

Steam Information ..................................................... 16

Water Information ..................................................... 19

Preparation for Operation/Start-Up ............................. 21

Preoperational Tests ................................................. 22

Preoperational Instructions........................................ 22

Shutdown Instructions............................................... 23

Service/Parts Information ..................24

Service ..................................................................... 24

Parts ........................................................................ 24

Warranty Information ..........................24

Returning Warranty Cards ......................................... 24

Warranty .................................................................. 24

WARNING

Children should not be allowed to play on or near the dryer(s). Children should be supervised if near dryer(s) in Operation.

Under no circumstances should the dryer door switch, lint drawer switch, or heat safety circuit ever be disabled.

The dryer must never be operated with any of the back guards, outer tops, or service panels removed. Personal injury or fire could result.

The dryer must never be operated without the lint filter/screen in place, even if an external lint collection system is used.

FOR YOUR SAFETY

Do not dry mop heads in the dryer. Do not use dryer in the presence of dry cleaning fumes.

Dryers must not be installed or stored in an area where it will be exposed to water and/or weather.

Routine Maintenance...........................24

Cleaning ................................................................... 24

Adjustments ............................................................. 25

Lubrication ............................................................... 25

Lint Drawer Removal ................................................. 25

Data Label Information .......................25

Procedure for Functional Check

of Replacement Components .............26

Manual Reset Burner Hi-Limit

Instructions ..........................................27

Phase 7 .................................................................... 27

Dual Timer ................................................................ 27

The wiring diagram for the dryer is located in the front electrical control box area.

Page 4

Safety Precautions __________________

Warning

For your safety, the information in this manual

must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury, or loss of life.

The dryer must never be operated with any of the back guards, outer tops, or service panels removed. Personal injury or fire could result.

Warning

The collection of lint in the burner area and

exhaust ductwork can create a potential fire

hazard.

For personal safety, the dryer must be electrically grounded in accordance with local codes and/or the National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION or in Canada, the Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Purchaser and user should consult the local gas supplier for proper instructions to be followed in the event the user smells gas. The instructions should be posted in a prominent location.

What To Do If You Smell Gas:

• Do not try to light any appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Clear the room, building, or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or gas supplier.

Dryers must be exhausted to the outdoors. Although the manufacturer produces a very versatile dryer,

there are some articles that, due to fabric composition or cleaning method, should not be dried in it.

Warning

Dry only water washed fabrics. Do not dry articles

spotted or washed in dry cleaning solvents, a combustible detergent, or “all purpose” cleaner. Explosion could result.

Do not dry rags or articles coated or contaminated with gasoline, kerosene, oil, paint, or wax. Explosion could result.

Do not dry mop heads. Contamination by wax or flammable solvents will create a fire hazard.

Note

Failure to electrically ground the dryer properly

will void the warranty.

Under no circumstances should the dryer door switch, lint drawer switch, or heat safety circuit ever be disabled.

Warning

Personal injury or fire could result should the

dryer door switch, lint drawer switch, or heat

safety circuit ever be disabled.

This dryer is not to be used in the presence of dry cleaning solvents or fumes.

Remove articles from the dryer as soon as the drying cycle has been completed.

Warning

Articles left in the dryer after the drying and

cooling cycles have been completed can create

a fire hazard.

Read and follow all caution and direction labels attached to the dryer.

For safety, proper operation, and optimum performance, the dryer must not be operated with a load less than sixty-six percent (66%) 19 lbs (8.61 kg) of its rated capacity.

Warning

You must disconnect and lock out the electric

supply and the gas supply or the steam supply before any covers or guards are removed from the machine to allow access for cleaning, adjusting, installation, or testing of any equipment per OSHA (Occupational Safety and Health Administration) standards.

Do not use heat for drying articles that contain plastic, foam, sponge rubber, or similarly textured rubber materials. Drying in a heated basket (tumbler) may damage plastics or rubber and also may be a fire hazard.

A program should be established for the inspection and cleaning of lint in the burner area, exhaust ductwork, and area around the back of the dryer. The frequency of inspection and cleaning can best be determined from experience at each location.

4 113242-3

Page 5

Specifications _______________________

MAXIMUM CAPACITY (DRY WEIGHT) 30 lbs

TUMBLER DIAMETER 32-3/4” TUMBLER DEPTH 25-5/8” TUMBLER VOLUME 12.5 cu ft TUMBLER/DRIVE MOTOR* 1/2 hp

DOOR OPENING (DIAMETER) 21-1/2” AIRFLOW 60 HZ 460 cfm AIRFLOW 50 HZ

382 cfm

EXHAUST CONNECTION (DIAMETER) 8”

13.6 kg

83.2 cm

65.1 cm

0.354 cu m

0.373 kW

54.61 cm

13 cmm

11 cmm

20.32 cm

WATER CONNECTION 3/4” M.N.P.T. DRYERS PER 20’/40’ CONTAINER 12/24 DRYERS PER 48’/53’ TRUCK 30/32

VOLTAGE AVAILABLE 120-480v 1, 3 ø 2, 3, 4 w 50/60 Hz APPROX. NET WEIGHT 517 lbs APPROX. SHIPPING WEIGHT 552 lbs

GasElectricSteam**

HEAT INPUT 95,000 Btu/hr

234.5 kg

250.38 kg kcal/hr

INLET PIPE CONNECTION 1/2” F.B.S.P.T. VOLTAGE AVAILABLE 208-460v 1, 3 ø 2, 3, 4 w 50/60 Hz

OVEN SIZE

kW Btu/hr

20 68,200 22 75,000 24 81,900

25.2 85,900

kcal/hr

17,200 18,900 20,600

21,700

VOLTAGE AVAILABLE 120-480v 1, 3 ø 2, 3, 4 w 50/60 Hz APPROX. NET WEIGHT 577 lbs APPROX. SHIPPING WEIGHT 612 lbs STEAM CONSUMPTION 104 lbs/hr OPERATING STEAM PRESSURE 125 psi max

261.72 kg

277.59 kg

47.17 kg/hr

8.6 bar

COMPRESSED AIR CONNECTION 1/8” F.N.P.T. COMPRESSED AIR VOLUME 0.5 cfh

0.014 cmh

BOILER HP (NORMAL LOAD) 3 SUPPLY CONNECTION 1” F.N.P.T. RETURN CONNECTION 1” F.N.P.T.

Shaded areas are stated in metric equivalents 2/19/04

* Reversing dryer available with 3-phase (3ø) 1/2 hp (0.373 kW) motors standard. ** Specify air-operated or electromechanical steam damper system. Air-operated steam damper system must be provided with clean, dry and

regulated 80 psi ± 10 psi (5.51 bar ± 0.68 bar) air supply.

Note

The manufacturer reserves the right to make changes in specifications at any time without notice or obligation.

113242-3 5

Page 6

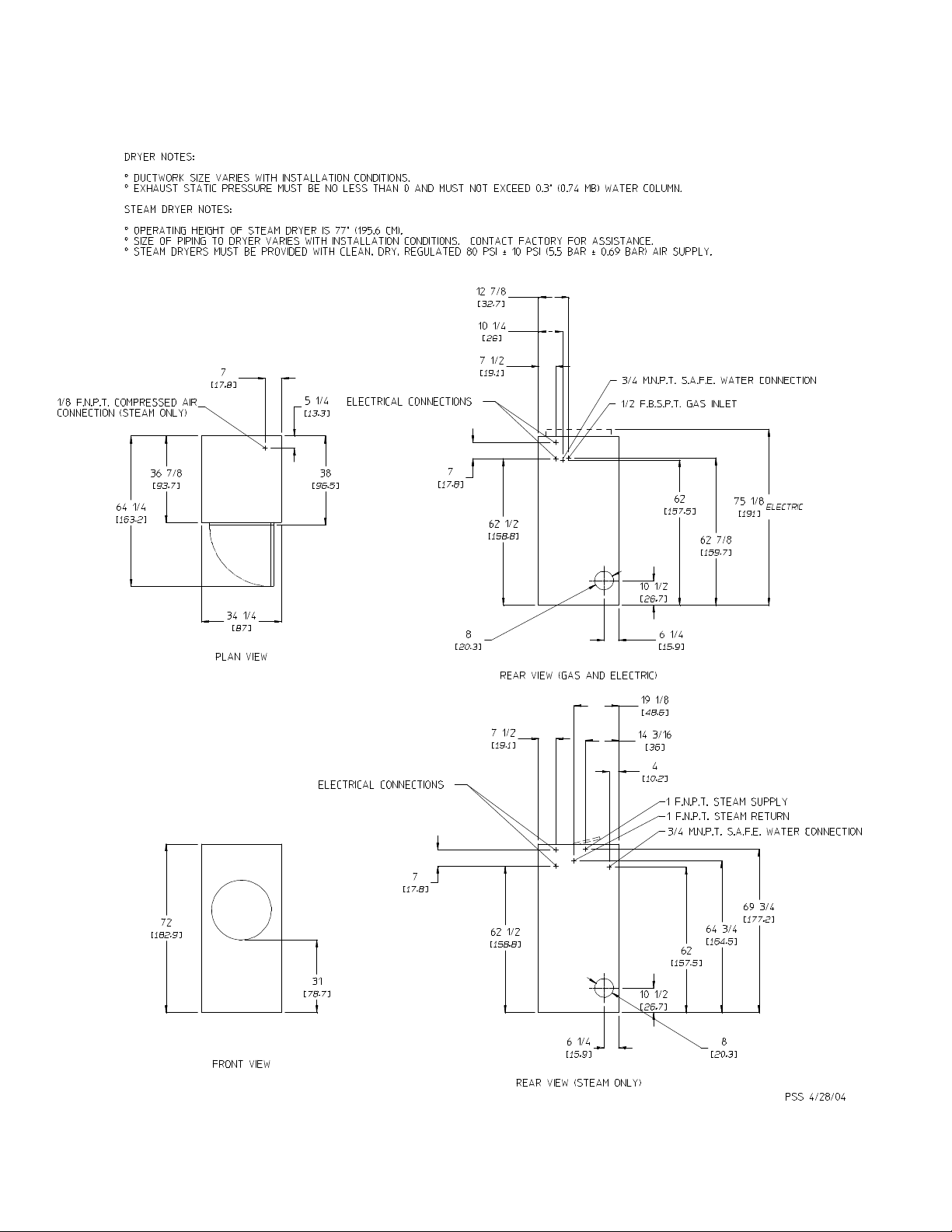

Specifications _______________________

6 113242-3

Page 7

Installation Procedures _____________

Installation should be performed by competent technicians in accordance with local and state codes. In the absence of these codes, the installation must conform to applicable American National Standards: ANSI Z223.1-LATEST EDITION (National Fuel Gas Code) or ANSI/NFPA NO. 70-LATEST EDITION (National Electrical Code) or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGA-B149.2M91 (Liquid Propane [L.P.] Gas) or LATEST EDITION (for General Installation and Gas Plumbing) or Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION (for Electrical Connections).

Unpacking/Setting Up _______________

Remove protective shipping material (i.e., plastic wrap and optional shipping box) from dryer.

Important

Dryer must be transported and handled in an

upright position at all times.

The dryer can be moved to its final location while still attached to the skid or with the skid removed. To unskid the dryer, locate and remove the four (4) bolts securing the base of the dryer to the wooden skid. Two (2) are at the rear base (remove the back panel for access), and two (2) are located in the bottom of the lint chamber. To remove the two (2) bolts located in the lint chamber area, remove the lint drawer.

With the skid removed, to make it easier to slide the dryer into its final position, slightly lower all four (4) leveling legs, so that the dryer will slide on the legs instead of the base frame.

Provisions for adequate air supply must be provided as noted in this manual (refer to Fresh Air Supply Requirements).

Clearance provisions must be made from combustible construction as noted in this manual (refer to Dryer Enclosure Requirements).

Provisions must be made for adequate clearances for servicing and for operation as noted in this manual (refer to Dryer Enclosure Requirements).

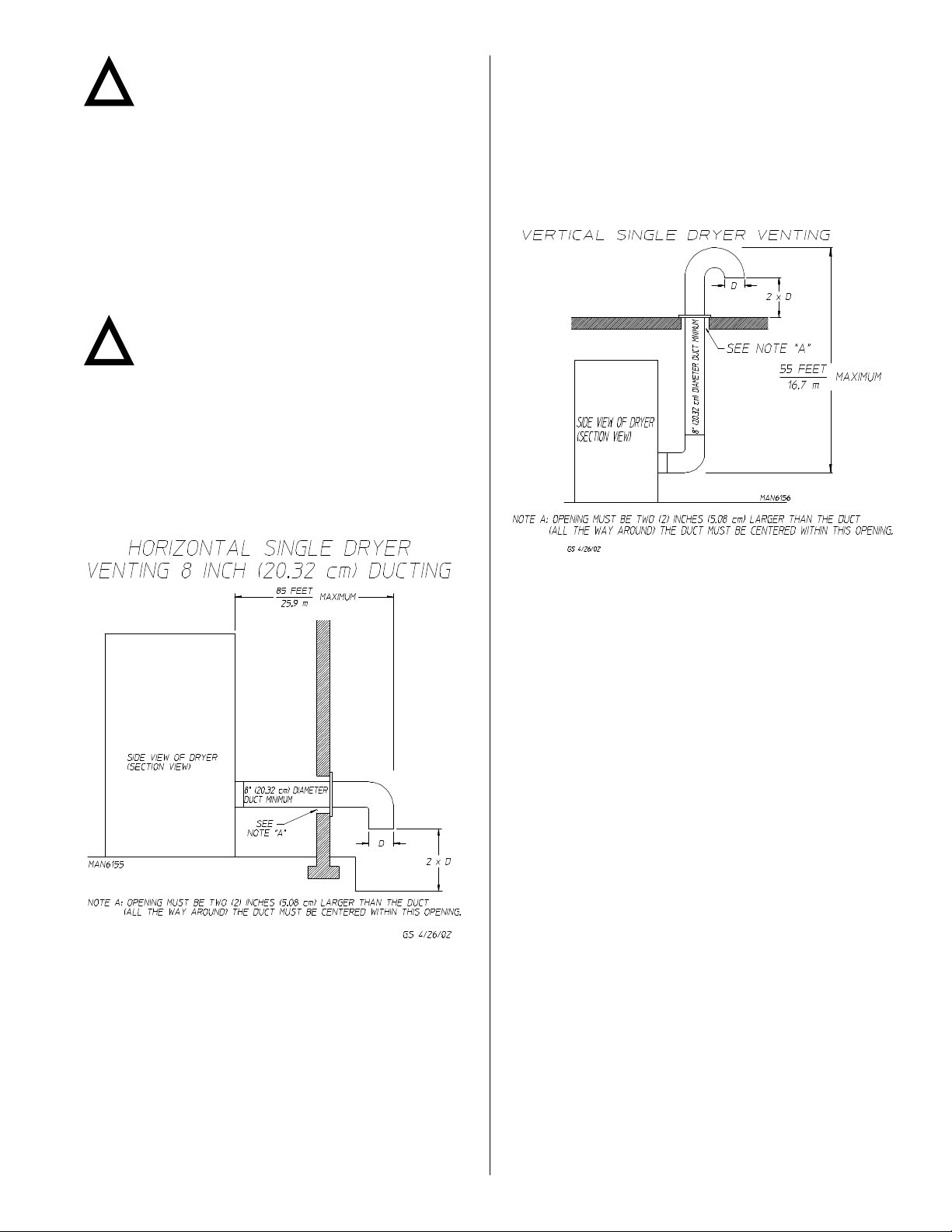

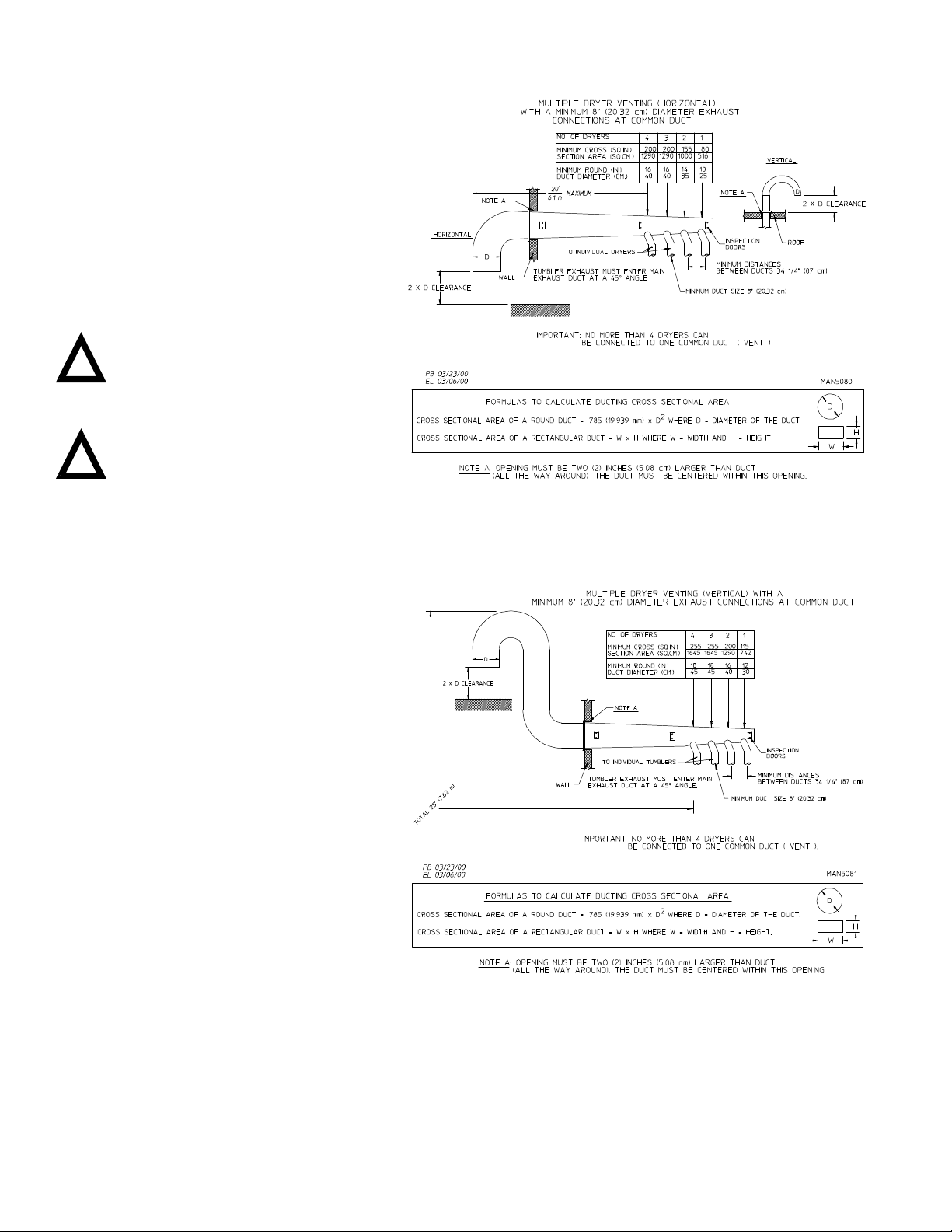

The dryer must be installed with a proper exhaust duct connection to the outside. as noted in this manual (refer to Exhaust Requirements).

The dryer must be located in an area where correct exhaust venting can be achieved as noted in this manual (refer to Exhaust Requirements).

Important

Dryer should be located where a minimum

amount of exhaust duct will be necessary.

The dryer must be installed with adequate clearance for air openings into the combustion chamber.

Caution

This dryer produces combustible lint and must

be exhausted to the outdoors. Every 6 months,

inspect the exhaust ducting and remove any lint buildup.

Dryer Enclosure Requirements ______

Bulkheads and partitions should be made of noncombustible material.

Leveling Dryer

The dryer is equipped with four (4) leveling legs, one (1) at each corner of the base. Two (2) are located at the rear of the dryer base, and two (2) are located in the lint chamber (coop). To increase bearing life and improve efficiency, the dryer should be tilted slightly to the rear.

Location Requirements ______________

Before installing the dryer, be sure the location conforms to local codes and ordinances. In the absence of such codes or ordinances the location must conform with the National Fuel Gas Code ANSI.Z223.1 LATEST EDITION, or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P.] Gas) or LATEST EDITION (for General Installation and Gas Plumbing).

The dryer must be installed on a sound level floor capable of supporting its weight. Carpeting must be removed from the floor area that the dryer is to rest on.

Important

“The dryer must be installed on noncombustible

floors only.”

The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.

The dryer is for use in noncombustible locations.

Note

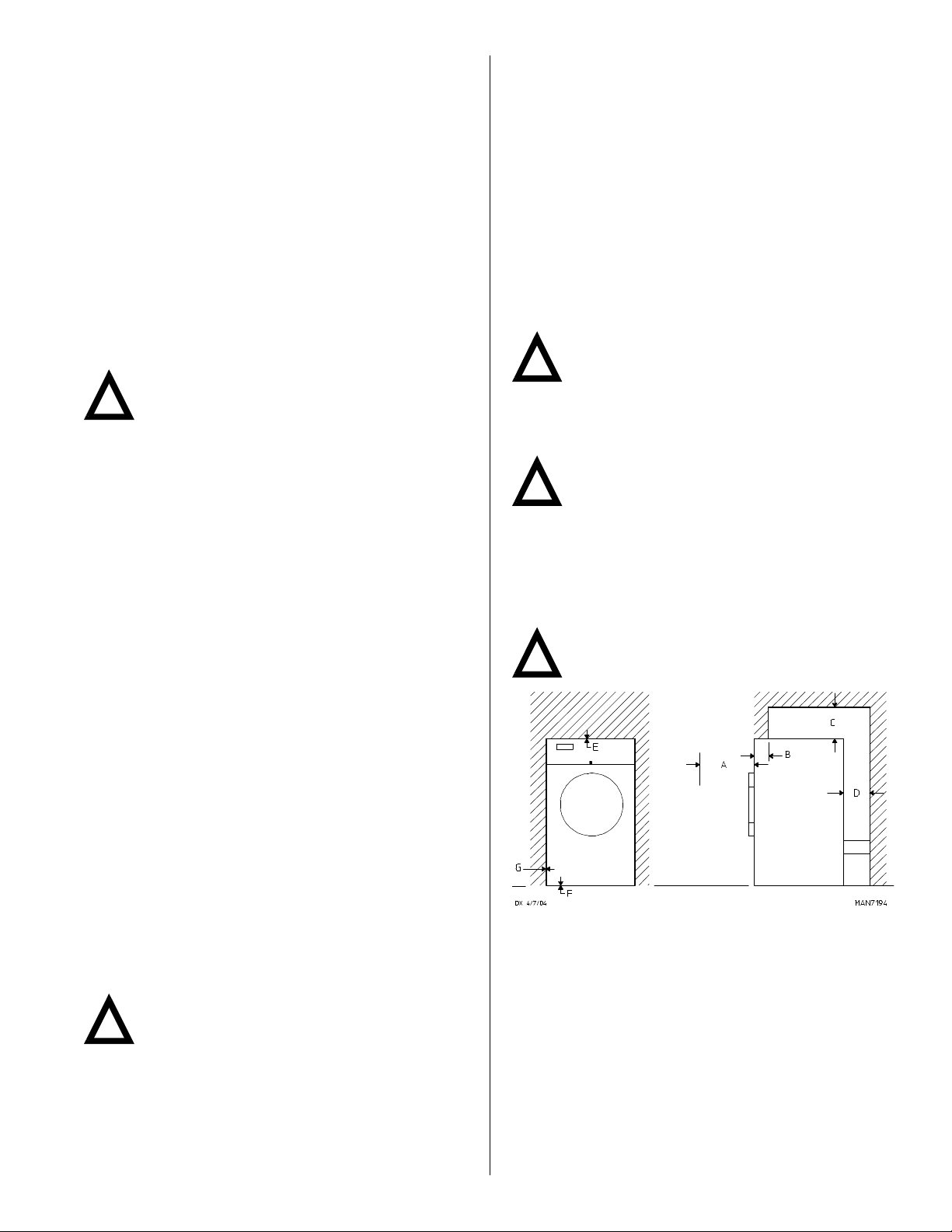

Allowances must be made for opening the control

door

A 30-inches (76.2 cm) for optimum opening of load door.

B The maximum thickness of the bulkhead is 4-inches (10.16 cm).

For electric dryers the maximum thickness of the bulkhead is 1-inch (2.54 cm) within 3-inches (7.62 cm) from the top of the control door.

C For gas and electric dryers a minimum overhead clearance of 12-

inches (30.48 cm) is required, providing no sprinkler is located above the dryer. For steam dryers or if a sprinkler is located above the dryer, 18-inches (45.72 cm) is required.

D Dryer should be positioned 12-inches (30.48 cm) away from the

nearest obstruction and 24-inches (60.96 cm) is recommended for

ease of installation, maintenance, and service. E 2-inch (5.08 cm) minimum is required for opening the control door. F Flooring should be level or below dryer cabinet for ease of removing

panels during maintenance. G Dryers may be positioned sidewall to sidewall, however a 1/16”

(1.5875 mm) minimum allowance must be made for the opening

and closing of the control door, along with the removal of panels

during maintenance.

113242-3 7

Page 8

Fresh Air Supply Requirements___

When the dryer is operating, it draws in room air, heats it, passes this air through the tumbler, and exhausts it out of the building. Therefore, the room air must be continually replenished from the outdoors. If the make-up air is inadequate, drying time and drying efficiency will be adversely affected. Ignition problems and sail switch “fluttering” problems may result, as well as premature motor failure from overheating. The dryer must be installed with provisions for adequate combustion and make-up air supply.

Air supply (make-up air) must be given careful consideration to ensure proper performance of each dryer. As a general rule, an unrestricted air entrance from the outdoors (atmosphere) measuring a minimum size of 8-inches by 12-inches (20.32 cm by 30.5 cm) is required for each dryer. (Based on 1 square inch per 1,000 Btus.)

To compensate for the use of registers or louvers used over the openings, this area must be increased by approximately thirty-three percent (33%). Make-up air openings should not be located in an area directly near where exhaust vents exit the building.

It is not necessary to have a separate make-up air opening for each dryer. Common make-up air openings are acceptable. However, they must be set up in such a manner that the make-up air is distributed equally to all the dryers.

Note

Component failure due to dry cleaning solvent

fumes will void the warranty.

Exhaust Requirements ______________

Exhaust ductwork should be designed and installed by a qualified professional. Improperly sized ductwork will create excessive back pressure, which results in slow drying, increased use of energy, and shutdown of the burner by the airflow (sail) switch, burner hi-limits, or lint chamber hi-limit protector thermostat. The dryer must be installed with a proper exhaust duct connection to the outside.

Where possible, it is suggested to provide a separate (single) exhaust duct for each dryer.

Caution

This dryer produces combustible lint and must

be exhausted to the outdoors.

Improperly sized or installed exhaust ductwork can create a potential fire hazard. Dryer must be exhausted to the outdoors.

The exhaust ductwork should be laid out in such a way that the ductwork travels as directly as possible to the outdoors with as few turns as possible. The shape of the ductwork is not critical so long as the minimum cross section area is provided. Single or independent dryer venting is recommended.

It is suggested that the use of 90° turns be avoided; use 30° or 45° angles instead.

The ductwork should be smooth inside with no projections from sheet metal screws or other obstructions, which will collect lint. When adding ducts, the ducts to be added should overlap the duct to which it is connected. All ductwork joints must be taped to prevent moisture and lint from escaping into the building. Additionally, inspection doors should be installed at strategic points in the exhaust ductwork for periodic inspection and cleaning.

Important

When connecting ductwork to the dryer exhaust

duct, be sure that when screws are used they do

not restrict the operation (both opening and closing) of the

A = 12-inches B = 15-inches

damper.

Note

When the exhaust ductwork passes through a

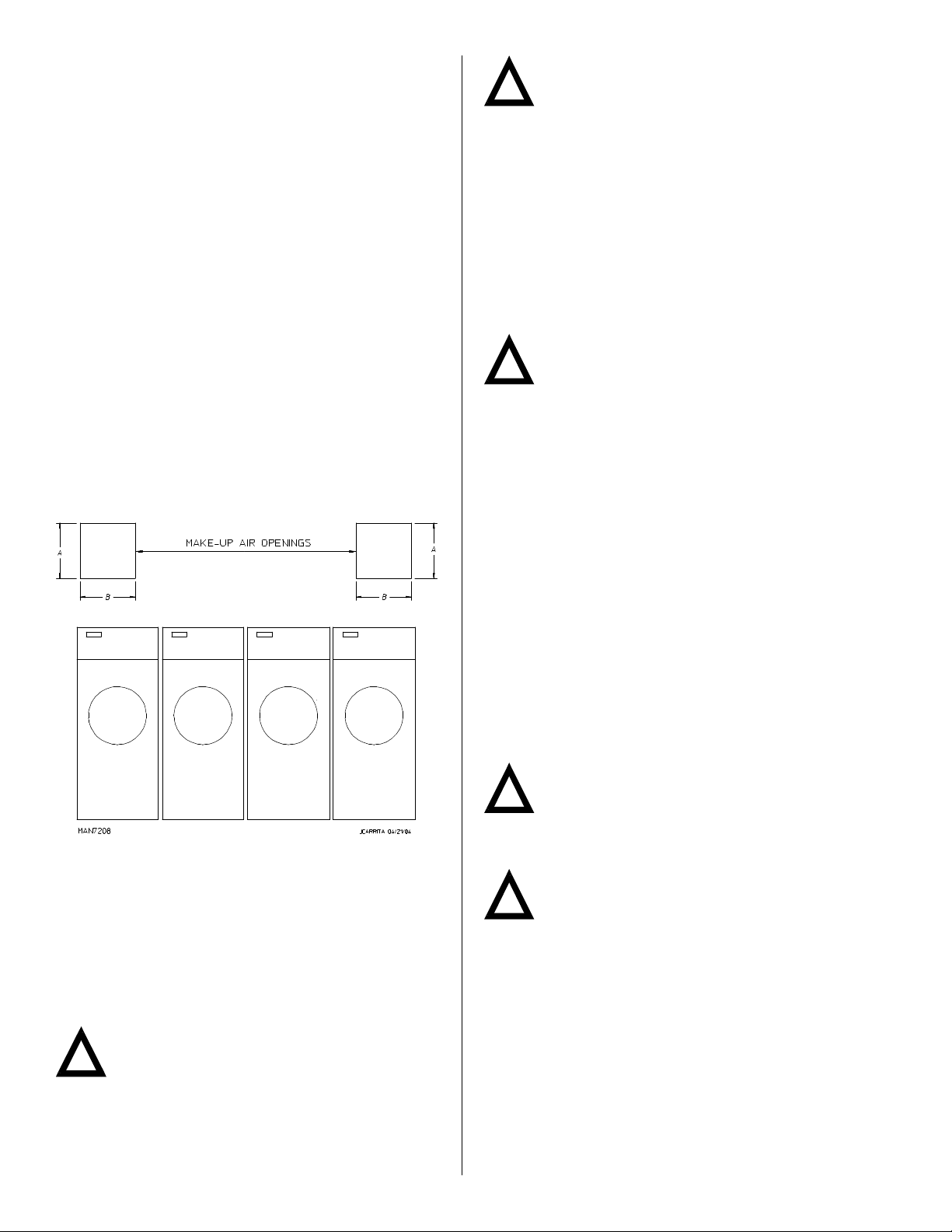

EXAMPLE: For a bank of 4 dryers, 2 unrestricted openings measuring 12-inches by 15-inches (30.5 cm by 38.1 cm) are acceptable.

Allowances must be made for remote or constricting passageways or where dryers are located at excessive altitudes or predominantly low pressure areas.

Important

Make-up air must be provided from a source free

of dry cleaning solvent fumes. Make-up air that is contaminated by dry cleaning solvent fumes will result in irreparable damage to the motors and other dryer components.

8 113242-3

wall, ceiling, or roof made of combustible materials, the opening must be 2-inches (5.08 cm) larger than the duct (all the way around). The duct must be centered within this opening.

To protect the outside end of the horizontal ductwork from the weather, a 90° elbow bent downward should be installed where the exhaust exits the building. If the ductwork travels vertically up through the roof, it should be protected from the weather by using a 180° turn to point the opening downward. In either case, allow at least twice the diameter of the duct between the duct opening and the nearest obstruction (i.e., roof or ground level).

Page 9

Important

Do not use screens, louvers, or caps on the

outside opening of the exhaust ductwork.

Exhaust back pressure measured by a manometer at the dryer exhaust duct area must be no less than 0 and must not exceed 0.3 inches (0.74 mb) of water column (W.C.).

For extended ductwork runs, the cross section area of the duct can only be increased to an extent. For extended ductwork runs, a professional heating, ventilating, and air-conditioning (HVAC) firm should be consulted for proper venting information.

Single Dryer Venting

Important

For exhaust duct runs over 85 feet (25.9 meters) a

Horizontal Venting

When a single 8-inch (20.32 cm) horizontal vent is used, the ductwork to the outlet cannot exceed 85 feet (25.9 meters), refer to Illus. A below. This calculation of 85 feet (25.9 meters) compensates or allows for the use of a maximum of only one (1) elbow, (which is the outside outlet protection).

minimum size of 10-inches (25.4 cm) must be used.

Vertical Venting

When vertical single 8-inch (20.32 cm) venting is used (refer to Illus. B below), the ductwork from the dryer to the outside outlet cannot exceed 55 feet (16.7 meters). This calculation compensates for the use of a maximum of three (3) elbows including the two (2) elbows creating the 180° (turned downward) outside outlet.

Illus. B

Illus. A

If the length of the duct run or quantity of elbows used exceeds the above noted specifications, the cross-sectional area of the ductwork must be increased in proportion to the number of elbows or duct run added.

113242-3 9

Page 10

Multiple Dryer (Common) Venting

If it is not feasible to provide separate exhaust ducts for each dryer, ducts for individual dryers may be channeled into a common main duct. Each dryer is provided with a back draft damper. The individual ducts should enter the bottom or side of the main duct at an angle not more than 45° in the direction of the airflow.

The main common duct may be any shape so long as the minimum cross-sectional area is provided. The main duct should be tapered with the diameter increasing before each individual 8-inch (20.32 cm) duct is added (refer to Illus. C for horizontal venting and Illus. D for vertical venting).

Important

No more than four (4) dryers

maximum should be connected to

one (1) main common duct with a vertical run.

Note

Distance between dryer single ducts

being connected to the main common duct must be a minimum width of 34-1/4” (87 cm).

Ductwork should be laid out in such a manner where allowances are made at rear area of the dryer for removal of rear service panels or guards.

Horizontal Venting

Illus. C

Vertical Venting

Illus. D

The illustrations show the minimum cross section area for multiple dryer venting. These figures must be increased in proportion if the main duct run from the last dryer to where it exhausts has numerous elbows or is unusually long.

10 113242-3

Page 11

Electrical Information _______________

Electrical Requirements

All electrical connections must be made by a properly licensed and competent electrician. This is to ensure that the electrical installation is adequate and conforms to local and state regulations or codes. In the absence of such codes, all electrical connections, materials, and workmanship must conform to the applicable requirements of the National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION or in Canada, the Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.

Important

Failure to comply with these codes or ordinances,

and/or the requirements stipulated in this manual

can result in personal injury or component failure.

Note

Component failure due to improper installation

will void the warranty.

Each dryer should be connected to an independently protected branch circuit. The dryer must be connected with copper wire only. Do not use aluminum wire, which could cause a fire hazard. The copper conductor wire/cable must be of proper ampacity and insulation in accordance with electric codes for making all service connections.

Gas and Steam Models Only

ELECTRICAL SERVICE SPECIFICATIONS (PER DRYER)

IMPORTANT:

NOTES: A.

SERVICE

VOLTAGE

380-400 3ø 4* – 2.2 15

460/480 3ø 3 2.1 – 15

380-400 3ø 4* – 3.4 15

* Dryers are built 4-wire, 3-wire is available. 8/12/04

208 VAC AND 240 VAC ARE NOT THE SAME. When ordering, specify exact voltage.

When fuses are used they must be dual element, time delay, current limiting, class RK1 or RK5 ONLY. Calculate/determine correct fuse value, by applying either local and/or National Electrical Codes to listed appliance amp draw data. Circuit breakers are thermal-magnetic (industrial) motor curve type ONLY. For others, calculate/verify correct breaker size according to appliance amp draw rating and type of breaker used. Circuit breakers for 3-phase (3ø) dryers must be 3-pole type.

PHASE

120 1ø 2 8.7 – 15 208 1ø 2 5.5 – 15 240 1ø 2 4.8 4.6 15 208 3ø 3 3.1 – 15 240 3ø 3 3.3 4.2 15

416 3ø 4* – 2.3 15

208 3ø 3 5.0 – 15 220 3ø 3 – 6.8 15 240 3ø 3 5.6 7.4 15

416 3ø 4* – 3.6 15

WIRE

SERVICE

Non-Reversing

Reversing

APPROX.

AMP DRAW

60 Hz 50 Hz

CIRCUIT

BREAKER

Note

The use of aluminum wire will void the warranty.

An individual ground circuit must be provided to

each dryer, do not daisy chain.

Component failure due to improper voltage application will void the warranty.

The manufacturer reserves the right to make changes in specifications at any time without notice or obligation.

Important

A separate protected circuit must be provided to

each dryer.

The dryer must be connected to the electric supply shown on the data label. In the case of 208 VAC or 240 VAC, the supply voltage must match the electric service specifications of the data label exactly.

The wire size must be properly sized to handle the related current.

Warning

208 VAC and 240 VAC are not the same. Any

damage done to dryer components due to improper voltage connections will automatically void the warranty.

Electrical Service Specifications

Important

Figures shown are for non-reversing models only.

For reversing models contact the factory.

Electric Models Only

All electrically heated dryers must be connected to the electric service shown on the dryer’s data label. The connecting wires must be properly sized to handle the rated current.

ELECTRICAL SERVICE SPECIFICATIONS (PER DRYER)

IMPORTANT:

NOTES: A.

SERVICE

VOLTAGE

380-400 3ø 4* – 2.2 15

460/480 3ø 3 2.1 – 15

380-400 3ø 4* – 3.4 15

* Dryers are built 4-wire, 3-wire is available. 8/12/04

208 VAC AND 240 VAC ARE NOT THE SAME . When ordering, specify exact voltage.

PHASE

120 1ø 2 8.7 – 15 208 1ø 2 5.5 – 15 240 1ø 2 4.8 4.6 15 208 3ø 3 3.1 – 15 240 3ø 3 3.3 4.2 15

416 3ø 4* – 2.3 15

208 3ø 3 5.0 – 15 220 3ø 3 – 6.8 15 240 3ø 3 5.6 7.4 15

416 3ø 4* – 3.6 15

WIRE

SERVICE

Non-Reversing

Reversing

APPROX.

AMP DRAW

60 Hz 50 Hz

CIRCUIT

BREAKER

113242-3 11

Page 12

Grounding

A ground (earth) connection must be provided and installed in accordance with state and local codes. In the absence of these codes, grounding must conform to applicable requirements of the National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION, or in Canada, the installation must conform to applicable Canada Standards: Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION. The ground connection may be to a proven earth ground at the location service panel.

For added personal safety, when possible, it is suggested that a separate ground wire (no. 18 minimum) be connected from the ground connection of the dryer to a grounded cold water pipe. Do not ground to a gas pipe or hot water pipe. The grounded cold water pipe must have metal-to-metal connection all the way to the electrical ground. If there are any nonmetallic interruptions, such as, a meter, pump, plastic, rubber, or other insulating connectors, they must be jumped out with no. 4 copper wire and securely clamped to bare metal at both ends.

Important

For personal safety and proper operation, the

dryer must be grounded.

Provisions are made for ground connection in each dryer at the electrical service connection area.

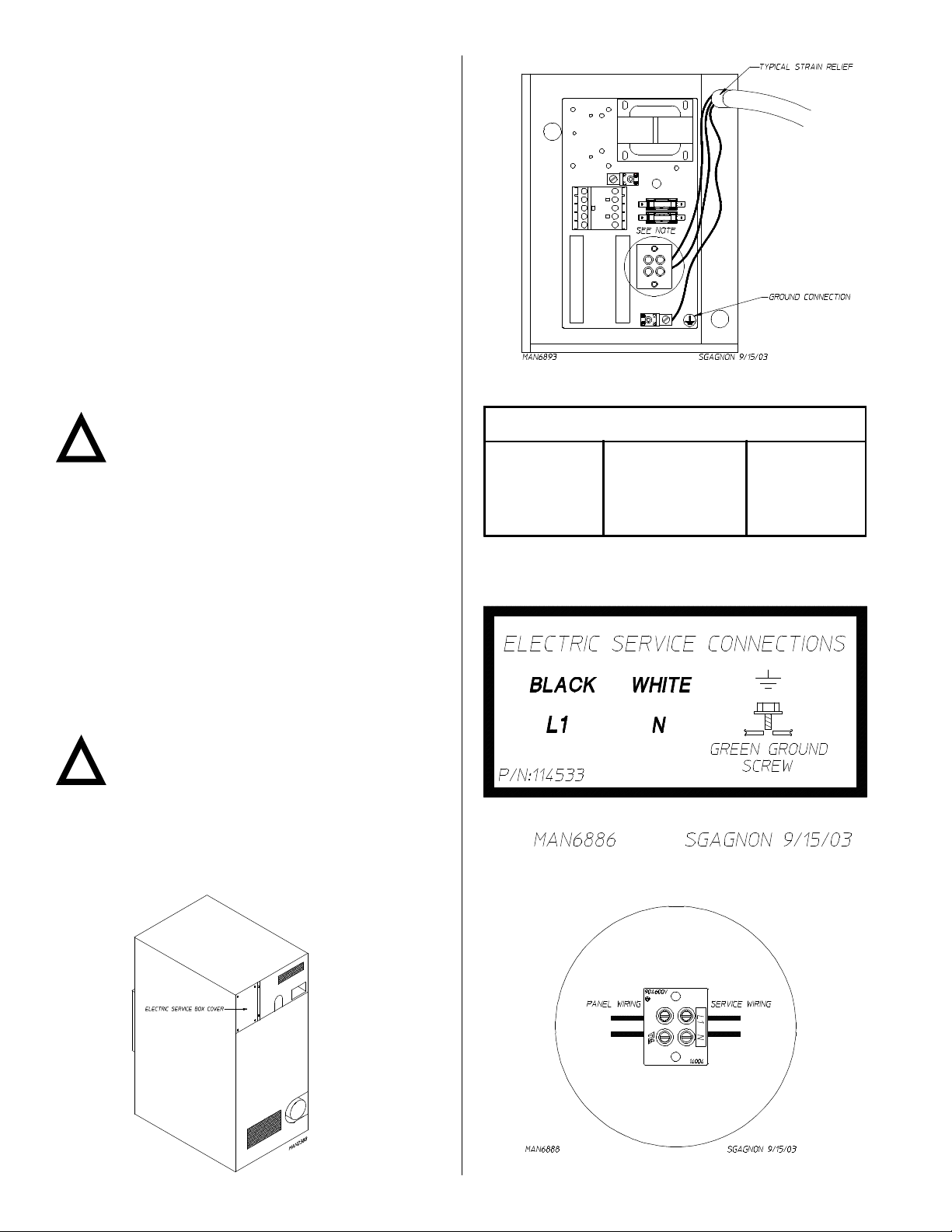

Electrical Connections

A wiring diagram is located inside the control box for connection data.

If local codes permit, power to the dryer can be made by the use of a flexible U.L. listed power cord/pigtail (wire size must conform to rating of dryer), or the dryer can be hard wired directly to the service breaker panel. In both cases, a strain relief must be installed where the wiring enters the dryer.

Gas and Steam Models only

Important

A separate protected circuit must be provided to

each dryer.

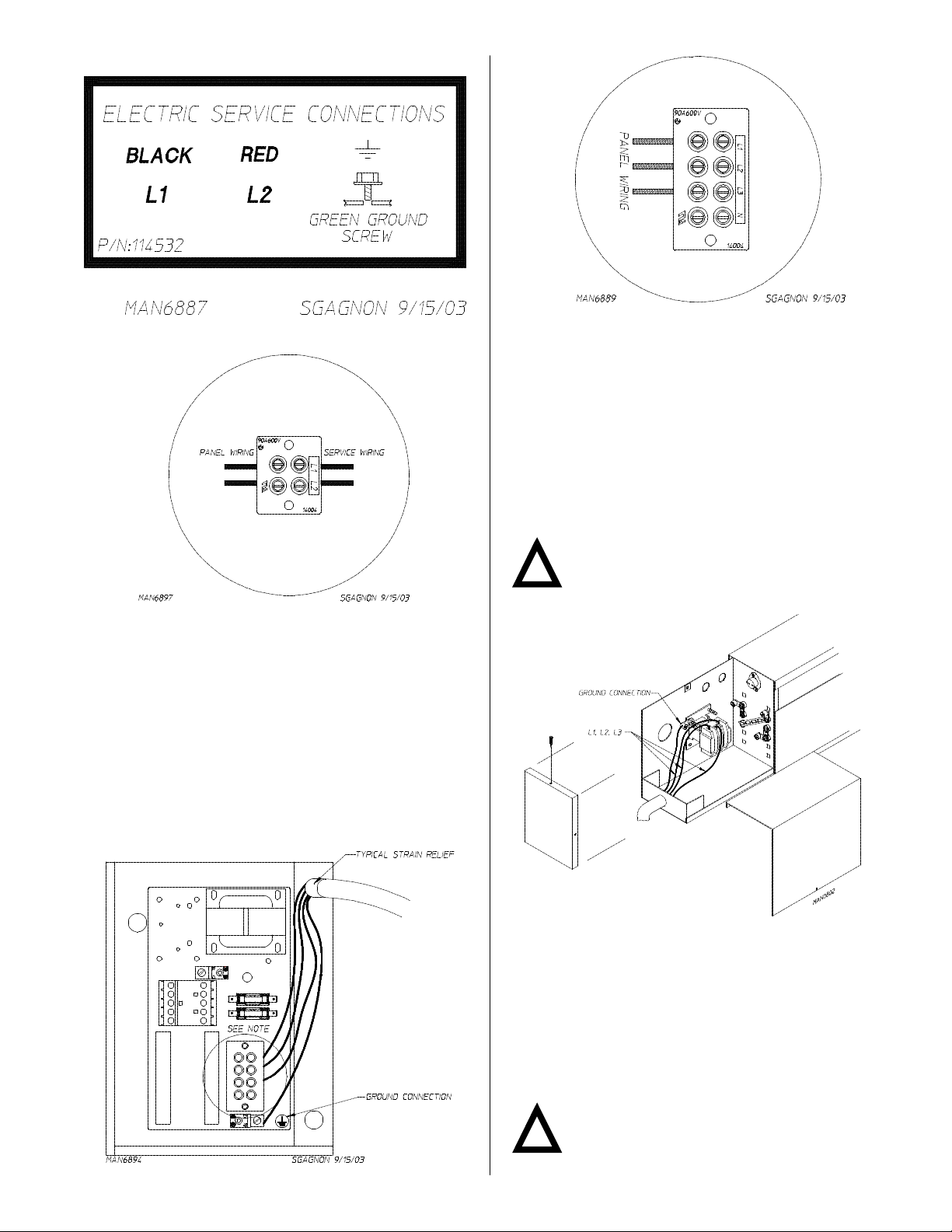

Single-Phase (1ø) Wiring Connections/Hookup

The electrical input connections on all single-phase (1ø) gas dryers and steam dryers are made into the rear service box located at the upper left area of the dryer.

Single-Phase Electrical Lead Connections

Black

Positive

White or Red

Neutral

or L2

Green

Ground

For 110V Applications

12 113242-3

Page 13

For 208-240V Applications

The neutral will only be used on 4-wire service. This is typical for 380-416V, 50 Hz.

Electrically Heated Models Only

The only electrical input connections to the dryer are the 3-phase (3ø) power leads (L1, L2, L3, and sometimes neutral) and ground. Single-phase (1ø) power for the control circuit and for any single-phase (1ø) motors (if present) is done internally to the dryer by the factory at the oven contactor. No single-phase (1ø) input connection is required on a 3-phase (3ø) dryer.

A ground lug is provided in the rear electrical box to connect your service ground.

3-Phase (3ø) Wiring Connections/Hookup

The electrical connections on all 3-phase (3ø) gas and steam dryers are made into the rear service box located at the upper left area of the dryer. The electrical connections are made at the power distribution block located in the service box. The ground connection is made to the copper lug, also provided in this box. To gain access, the service box cover must be removed.

Caution

The dryer must be grounded. A ground lug has

been provided for this purpose.

Input connection wiring must be sized properly to handle the dryer’s current draw. This information is printed on the dryer’s data label.

The electrical input connections are made at the electric oven contactor located inside the assembly at the rear center upper section of the dryer. The ground connection is made to a copper lug also provided in this area. To gain access, remove oven rear service cover.

Important

A strain relief must be used where the input

wiring enters the oven assembly.

113242-3 13

Page 14

Gas Information ______________________

It is your responsibility to have all plumbing connections made by a qualified professional to ensure that the gas plumbing installation is adequate and conforms to local and state regulations or codes. In the absence of such codes, all plumbing connections, materials, and workmanship must conform to the applicable requirements of the National Fuel Gas Code ANSI Z223.1-LATEST EDITION, or in Canada, the Canadian Installation Codes CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P.] Gas) or LATEST EDITION.

Important

Failure to comply with codes or ordinances,

and/or requirements in this manual, can result in

personal injury and improper operation of the dryer.

The dryer and its individual shutoff valves must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa). The dryer must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure test of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa).

Important

Failure to isolate or disconnect the dryer from

supply as noted can cause irreparable damage

to the gas valve, which will void the warranty.

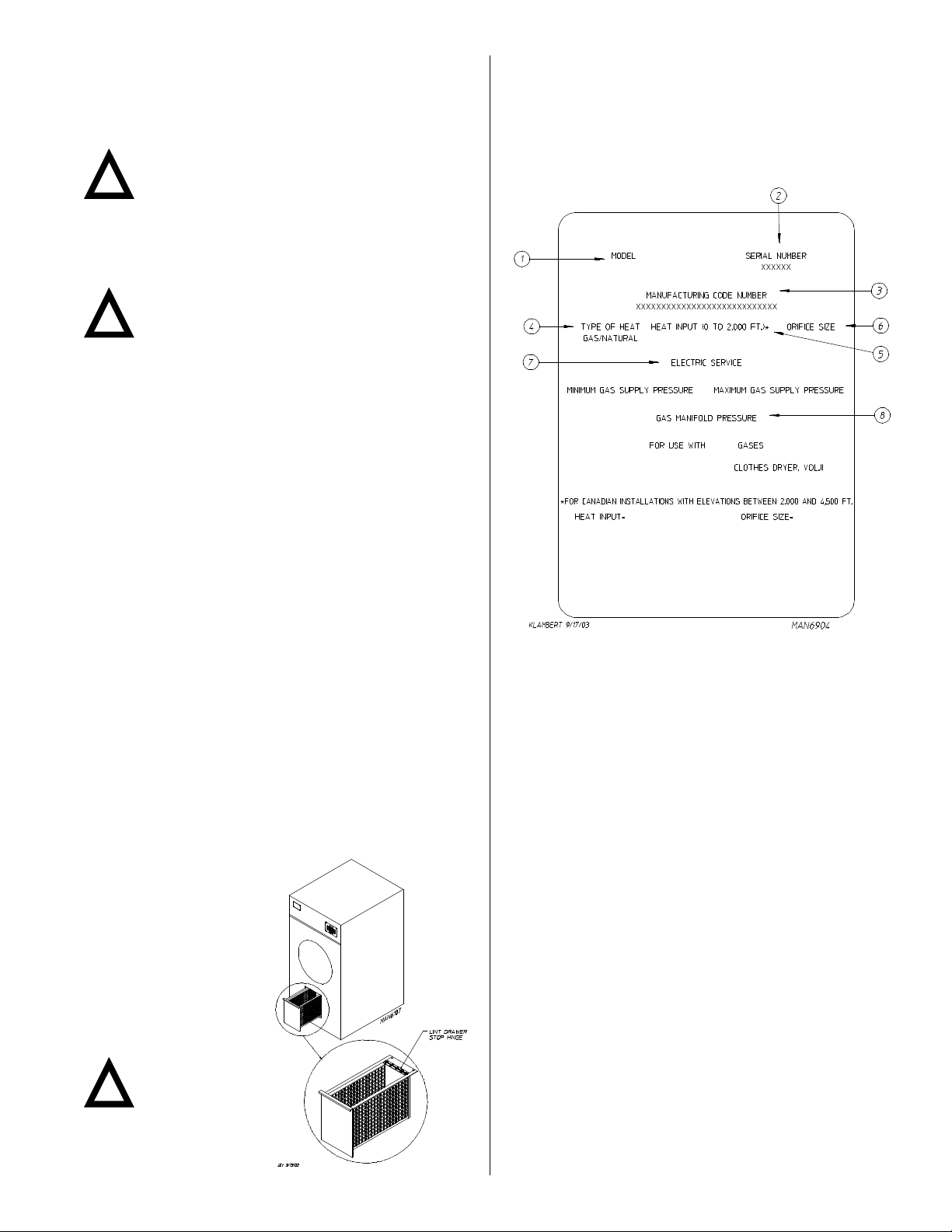

The input ratings shown on the dryer data label are for elevations up to 2,000 feet (610 meters), unless elevation requirements of over 2,000 feet (610 meters) were specified at the time the dryer order was placed with the factory. The adjustment or conversion of dryers in the field for elevations over 2,000 feet (610 meters) is made by changing each burner orifice. If this conversion is necessary, contact the reseller who sold the dryer or contact the factory.

Important

This gas dryer is not provided with an internal gas

supply shutoff and an external gas supply shutoff

must be provided.

Technical Gas Data

Gas Specifications

Type of Gas

Natural

Liquid

Propane

Shaded areas are stated in metric equivalents

*Measured at outlet side of gas valve pressure tap when gas valve is on.

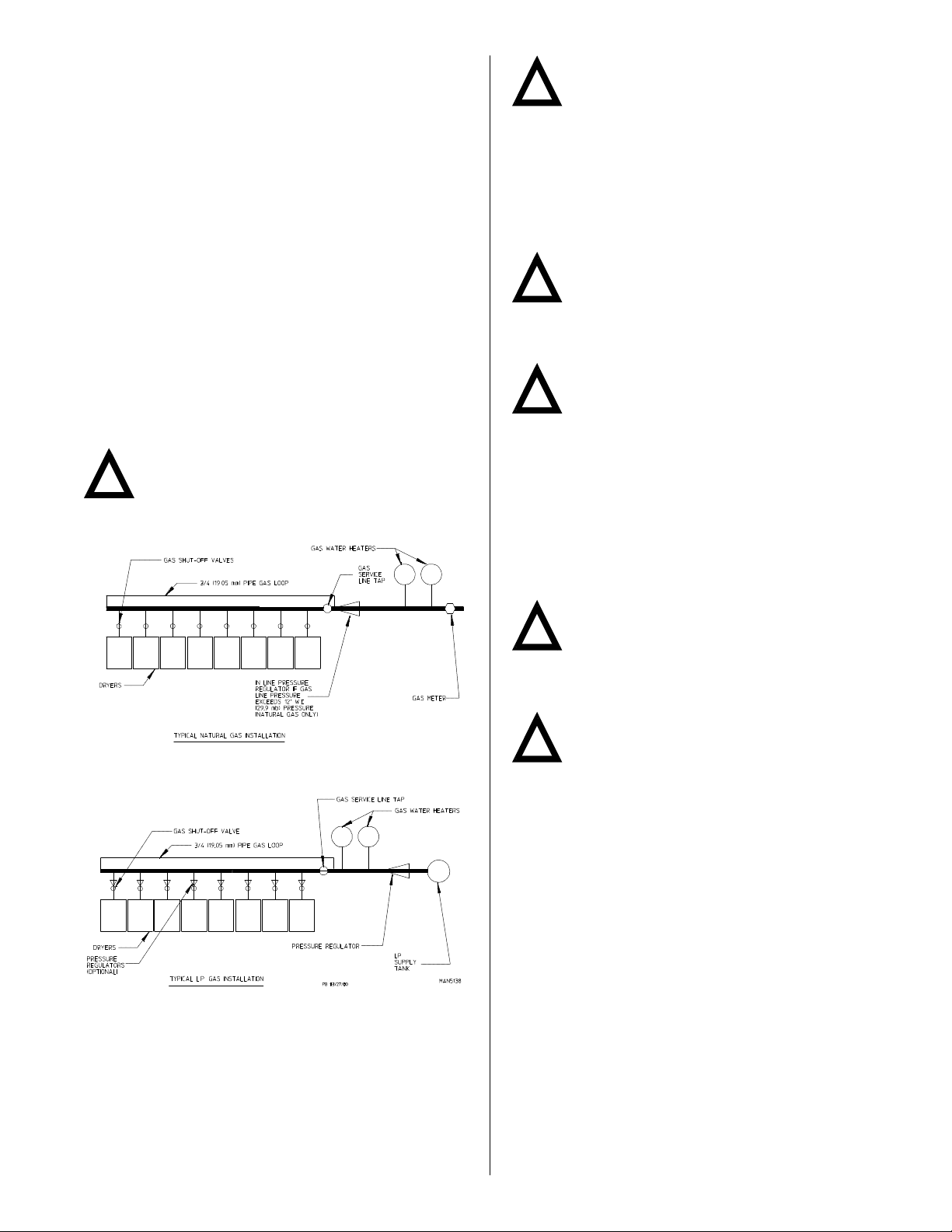

Gas Connections

Inlet connection ............ 1/2” N.P.T.

Inlet supply size ........... 1/2” Diameter Pipe (minimum)

Heat input (per dryer) .. 95,000 Btu/hr (23,940 kcal/hr)

Manifold Pressure* In-Line Pressure

3.5 inches W.C. 6.0-12.0 inches W.C.

8.7 mb 14.92 - 29.9 mb

10.5 inches W.C. 11.0 inches W.C.

26.1 mb 27.4 mb

Warning

Fire or explosion could result due to failure of

isolating or disconnecting the gas supply as

noted.

Gas Supply

The gas dryer installation must meet the American National Standard...National Fuel Gas Code ANSI Z223.1-LATEST EDITION, or in Canada, the Canadian Installation Codes CAN/ CGA-B149.1 M91 (Natural Gas) or CAN/CGA-B149.2-M91 (L.P. Gas) or LATEST EDITION, as well as local codes and ordinances and must be done by a qualified professional.

Note

Undersized gas piping will result in ignition

problems, slow drying, increased use of energy,

and can create a safety hazard.

The dryer must be connected to the type of heat/gas indicated on the data label. If this information does not agree with the type of gas available, do not operate the dryer. Contact the reseller who sold the dryer or contact the factory.

Important

Any burner changes or conversions must be

made by a qualified professional.

Natural Gas

Regulation is controlled by the dryer’s gas valve’s internal regulator. Incoming supply pressure must be consistent between a minimum of 6.0 inches (14.92 mb) and a maximum of 12.0 inches (29.9 mb) water column (W.C.) pressure.

Liquid Propane (L.P.) Gas

Dryers made for use with L.P. gas have the gas valve’s internal pressure regulator blocked open so that the gas pressure must be regulated upstream of the dryer. The pressure measured at each gas valve pressure tap must be a consistent 10.5 inches (26.1 mb) water column. There is no regulator or regulation provided in an L.P. dryer. The pressure must be regulated at the source (L.P. tank) or an external regulator must be added to each dryer.

TYPE OF GAS

Btu/hr

Rating

95,000

Shaded area is stated in metric equivalent

* Drill Measurement Size (D.M.S.) equivalents are as follows:

Natural Gas ........................... #29 = 0.1360” (3.4540 mm).

Liquid Propane Gas ............... #46 = 0.0810” (2.0574 mm).

kcal/hr Rating

23,940

LIQUID PROPANE CONVERSION KIT PART NUMBER 883306

Natural Liquid Propane

Qty. D.M.S.* Part No. Qty. D.M.S.* Part No.

2 #29 140820 2 #46 140806

14 113242-3

Page 15

Piping Connections

All components/materials must conform to National Fuel Gas Code Specifications ANSI Z223.1-LATEST EDITION, or in Canada, CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGAB149.2-M91 (Liquid Propane [L.P.] Gas) or LATEST EDITION (for General Installation and Gas Plumbing), as well as local codes and ordinances and must be done by a qualified professional. It is important that gas pressure regulators meet applicable pressure requirements, and that gas meters be rated for the total amount of all the appliance Btus being supplied.

The dryer is provided with a 1/2” N.P.T. inlet pipe connection extending out the back area of the burner box. The minimum pipe size (supply line) to the dryer is 1/2” diameter. For ease in servicing, the gas supply line of each dryer must have its own shutoff valve.

The size of the main gas supply line (header) will vary depending on the distance this line travels from the gas meter or, in the case of L.P. gas, the supply tank, other gas-operated appliances on the same line, etc. Specific information regarding supply line size should be determined by the gas supplier.

Note

Undersized gas supply piping can create a low or

inconsistent pressure, which will result in erratic

operation of the burner ignition system.

Note

A water column (W.C.) test pressure of 3.5 inches

(8.7 mb) for natural gas and 10.5 inches (26.1 mb) for liquid propane (L.P.) dryers is required at the gas valve pressure tap of each dryer for proper and safe operation.

A 1/8” N.P.T. plugged tap, accessible for a test gauge connection, must be installed in the main gas supply line immediately upstream of each dryer.

Important

Pipe joint compounds that resist the action of

natural gas and L.P. gas must be used. Test all connections for leaks by brushing on a soapy water

solution (liquid detergent works well).

Warning

All components/materials must conform to National Fuel Gas Code Specifications ANSI Z223.1-LATEST EDITION, or in Canada, CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGAB149.2-M91 (L.P. Gas) or LATEST EDITION (for General Installation and Gas Plumbing), as well as local codes and ordinances and must be done by a qualified professional. It is important that gas pressure regulators meet applicable pressure requirements, and that gas meters be rated for the total amount of all the appliance Btus being supplied.

Never test for leaks with a flame!!!

Consistent gas pressure is essential at all gas connections. It is recommended that a 3/4-inch (19.05 mm) pipe gas loop be installed in the supply line servicing a bank of dryers. An in-line pressure regulator must be installed in the gas supply line (header) if the (natural) gas pressure exceeds 12.0 inches (29.9 mb) of water column (W.C.) pressure. (Refer to the illustrations above.)

Important

The dryer and its individual shutoff valve must be

disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa).

Note

The dryer must be isolated from the gas supply

piping system by closing its individual manual shutoff valve during any pressure test of the gas supply system at test pressures equal to or less than 1/2 psig (3.5 kPa).

113242-3 15

Page 16

Steam Information ___________________

It is your responsibility to have all plumbing connections made by a qualified professional to ensure that the steam plumbing installation is adequate and conforms with local and state regulations or codes.

Care must be exercised when leveling steam dryers into final position. After leveling the dryer, check the downward pitch of the heat exchanger from front to rear with a level. Likewise, check the downward pitch of the return condensate manifold toward its outlet part. Absence of these downward pitches will result in probable water hammer and premature heat exchanger fracture and leakage.

The presence of condensate in the steam will cause water hammer and subsequent heat exchanger failure. The steam supply connection must be taken from the top of a well-dripped steam main. If the supply run-out to the dryer exceeds 20 feet (6.1 meters), it should be dripped just before the control valve with a proper trap and dirt pocket.

Important

Failure to comply with the requirements

stipulated in this manual can result in component

failure, which will void the warranty.

Important

Coil failure due to improper pH level will void the

warranty.

Steam Requirements

Operating Steam Pressure

Maximum 150 psig Recommended 100 psig* Heat Input (Normal Load) 3.0 bhp

Consumption (Approximate) @ 125 psi (8.6 bar)

Shaded areas are stated in metric equivalents

* The m inimum operating pressure is 100 psig (689.47 kPa) for optimum results.

Installation Instructions

To ensure an adequate supply of steam is provided, be sure that the steam supply lines and steam return lines are sized and laid out as stipulated in this manual. Inadequate steam supply lines and steam return lines or improper steam plumbing will result in poor performance and can cause component failure. Clean, dry steam must be provided to the dryer.

104 lbs/hr

862 kPa

689 kPa

47.17 kg/hr

Note

This dryer is manufactured with a pneumatic

(piston) damper system, which requires an

external supply of air (80 psi ± 10 psi [5.51 bar ± 0.68 bar]).

Steam Coil pH Level

The normal pH level for copper type steam coils must be maintained between a value of 8.5 to 9.5. For steel type steam coils the pH level must be maintained between a value of 9.5 to 10.5. These limits are set to limit the acid attack of the steam coils.

Important

Steam coil failure due to water hammer by wet

steam will void the warranty.

The pressure of the condensate in the steam supply line will cause water hammer and subsequent heat exchanger (steam coil) failure. The steam supply connection into the main supply line must be made with a minimum 10-inch (25.4 cm) riser. This will prevent any condensate from draining towards the dryer.

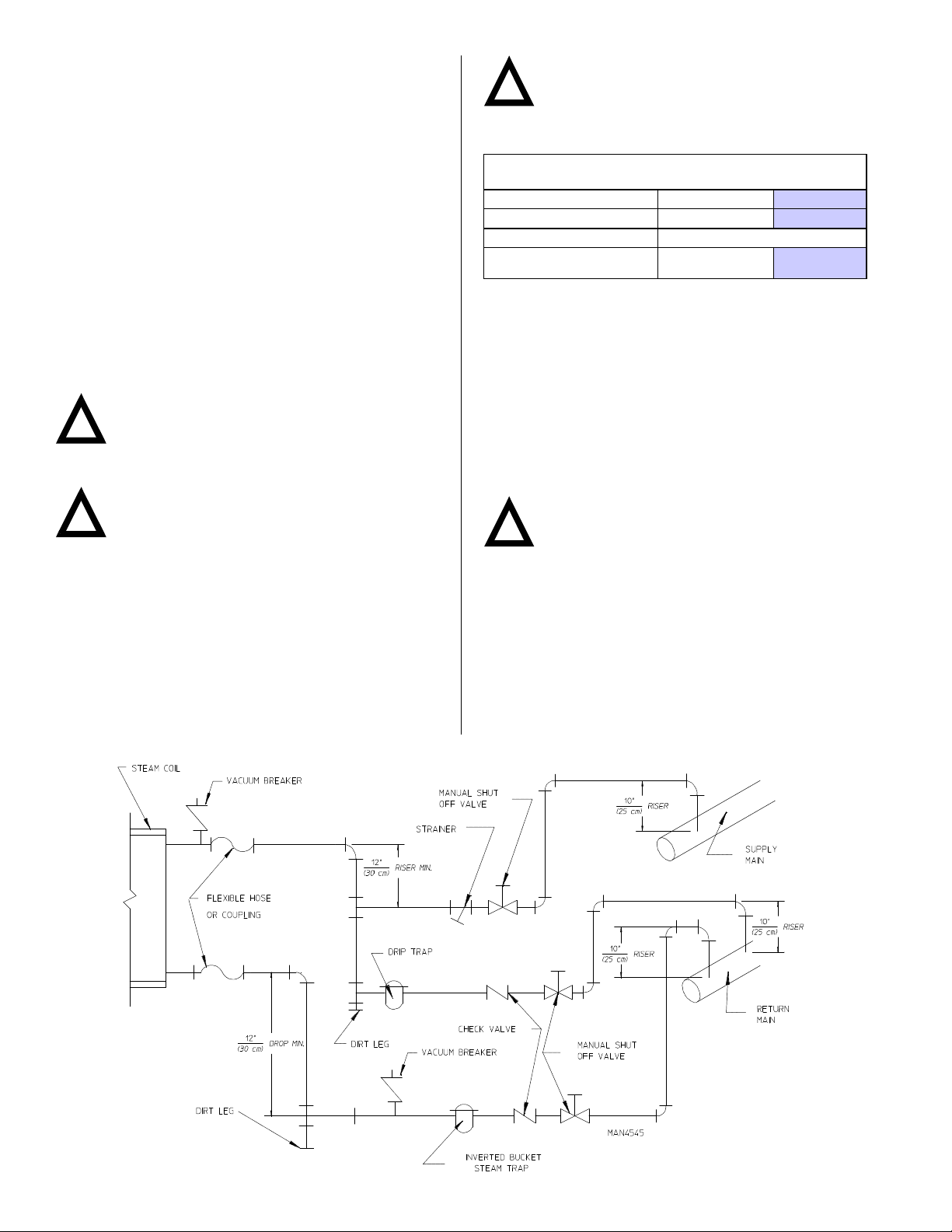

The steam supply line to the dryer must include a 12-inch (30.48 cm) riser along with a drip trap and check valve. This will prevent any condensate from entering the steam coil.

16 113242-3

Page 17

Flexible hoses or couplings must be used. The dryer vibrates slightly when it runs and this will cause the steam coil connections to crack if they are hard piped to the supply and return mains.

Shutoff valves for each dryer should be installed in the supply line, return line, and drip trap return line. This will allow the dryer to be isolated from the supply main and the return main if the dryer needs maintenance work.

Install an inverted bucket steam trap and check valve at least 12-inches (30.48 cm) below the steam coil as close to the coil as possible.

A trap with a capacity of 350 lbs (160 kg) of condensate per hour at 125 psi (8.61 bar) is needed for each unit.

The supply line and the return line should be insulated. This will save energy and provide for the safety of the operator and maintenance personnel.

Water pockets in the supply line, caused by low points, will provide wet steam to the coil possibly causing steam coil damage. All horizontal runs of steam supply piping should be pitched 1/4-inch for every 1 foot (0.30 meters) back towards the steam supply header causing the condensate in the line to drain to the header. Install a bypass trap in any low point to eliminate wet steam.

Important

Flexible hoses/couplings must be used. Coil

failure due to hard plumbing connections will void

the warranty.

Compressed

Air Supply

Normal 80 psi Minimum Supply 70 psi Maximum Supply 90 psi

Shaded areas are stated in metric equivalents

Air Connection

Air connection to system – 1/8” N.P.T.

Air Regulation

No air regulator or filtration is provided with the dryer. External regulation/filtration of 80 psi (5.51 bar) must be provided. It is suggested that a regulator/filter gauge arrangement be added to the compressed air line just before the dryer connection. This is necessary to ensure that correct and clean air pressure is achieved.

Air Pressure

5.51 bar

4.82 bar

6.21 bar

Steam Damper Air System Connections

This dryer is manufactured with a pneumatic (piston) damper system, which requires an external supply of compressed air. The air connection is made to the steam damper solenoid valve, which is located at the rear inner top area of the dryer just in front of the electric service relay box.

Air Requirements

There is no air requirement for dryers with the Electromechanical Steam Damper Option.

113242-3 17

Page 18

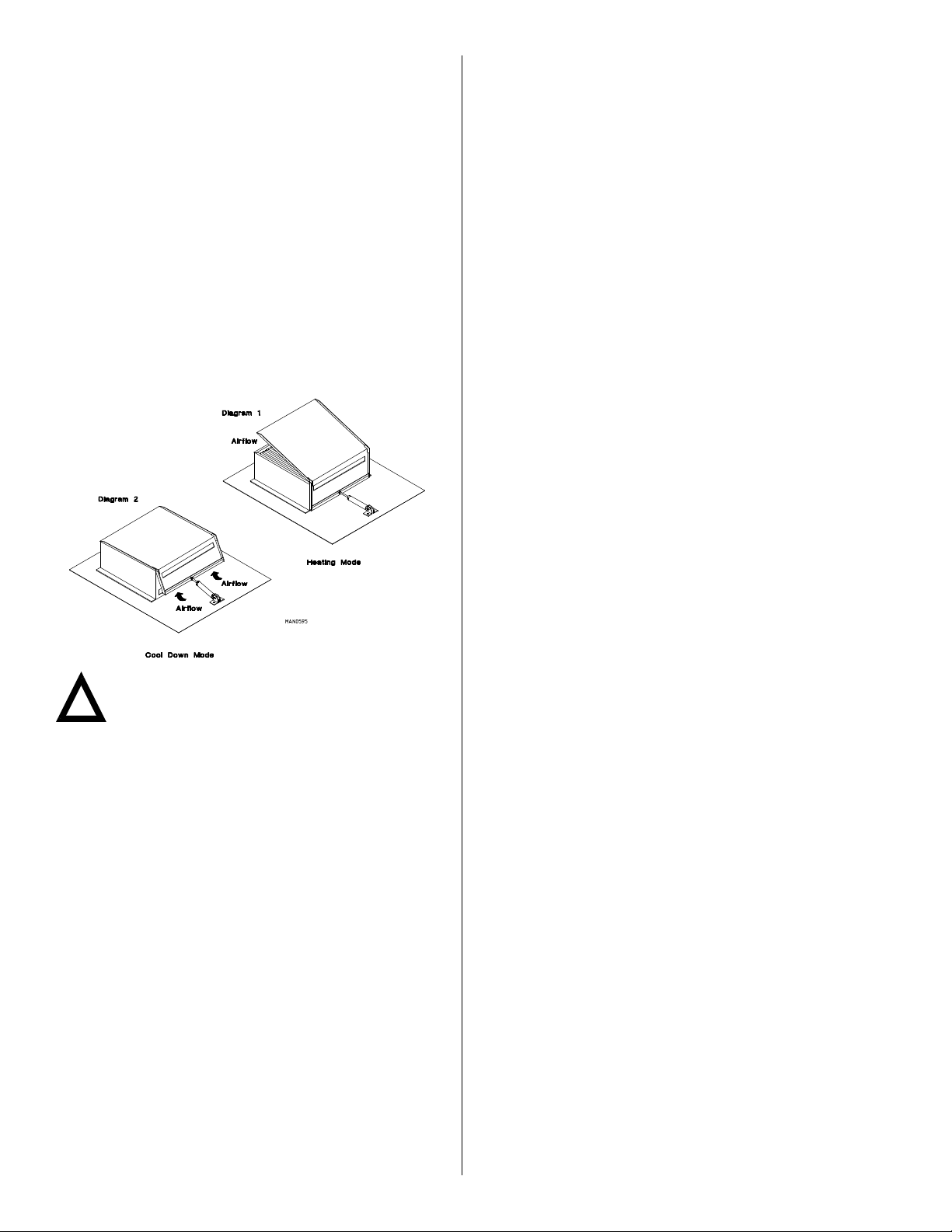

Steam Damper System Operation

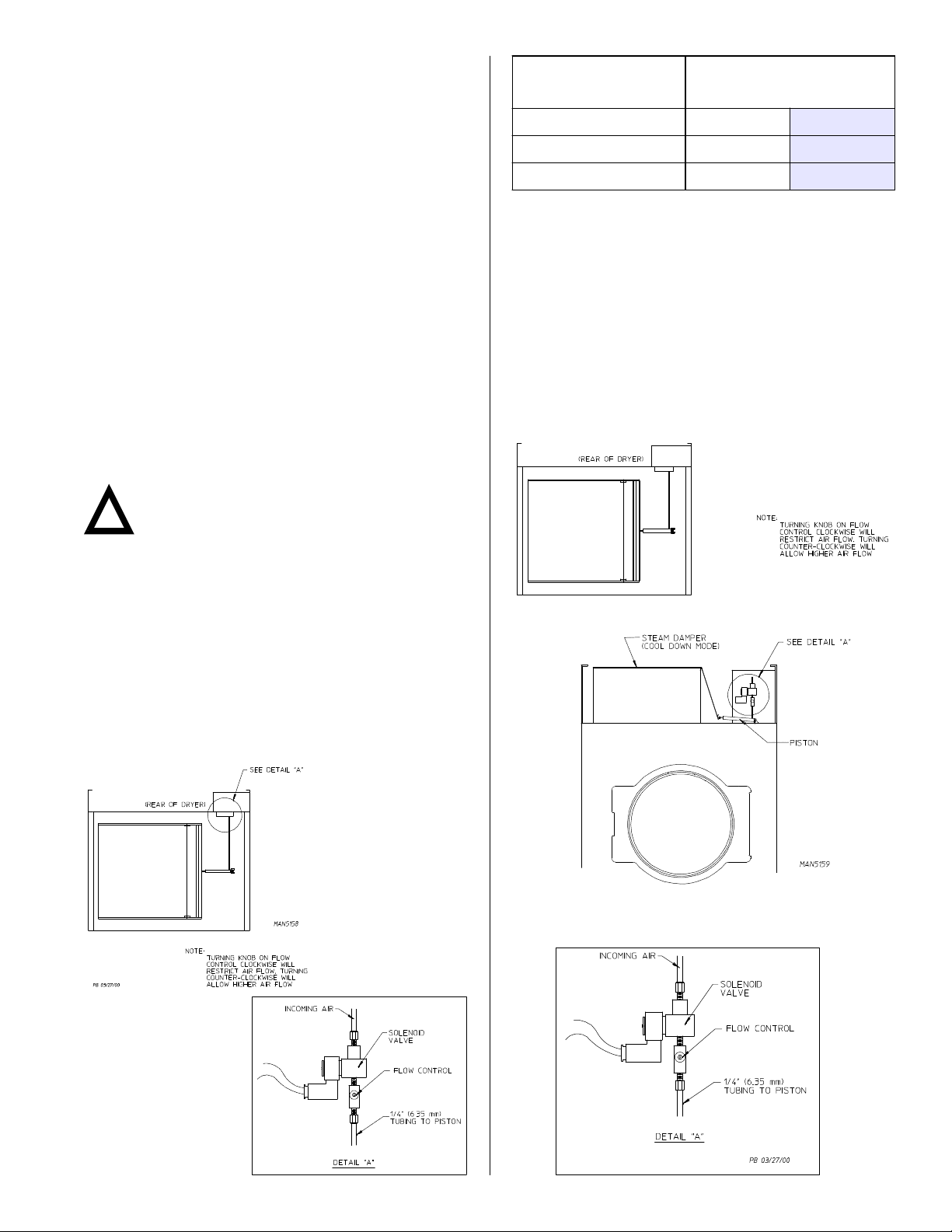

The steam damper, as shown in the illustration (above right), allows the coil to stay constantly charged eliminating repeated expansion and contraction. When the damper is opened, the air immediately passes through the already hot coil, providing instant heat to start the drying process. When the damper is closed, ambient air is drawn directly into the basket (tumbler), allowing a rapid cool down.

Steam Damper Air Piston (Flow Control) Operation Adjustment

Damper operation was tested and adjusted prior to shipping at 80 psi (5.51 bar). If damper air adjustment is necessary, locate the flow control valve and make the necessary adjustments as noted below. Diagram 1 shows the damper in the heating (open) mode, allowing heat into the basket (tumbler).

Diagram 2 shows the damper in the cool down (closed) mode, pulling ambient air directly into the basket (tumbler) without passing through the coils.

Notes _________________________________

_______________________________________

Note

Diagram 2.

With the dryer off or with no air supply, the steam damper is in cool down mode as shown in

_______________________________________

18 113242-3

Page 19

Water Information ___________________

Before You Start!

Check Local Codes and Permits

Call your local water company or the proper municipal authority for information regarding local codes.

Important

It is your responsibility to have all plumbing

connections made by a qualified professional to ensure that the plumbing installation is adequate and conforms to local, state, and federal regulations or codes.

It is the installation or owner’s responsibility to see that the necessary or required water, water pressure, pipe size, or connections are provided. The manufacturer assumes no responsibility if the fire suppression system is not connected, installed, or maintained properly.

Installation ___________________________

Requirements

The fire suppression system must be supplied with a minimum water pipe size of 1/2” and be provided with 40 psi +/- 20 psi (2.75 bar +/- 1.37 bar) of pressure. For use of optional manual bypass, a second source with the same piping and pressure requirements is required.

Flexible 1/2 feeds must be provided to avoid damage to electric water solenoid valve by vibration.

Water Connections __________________

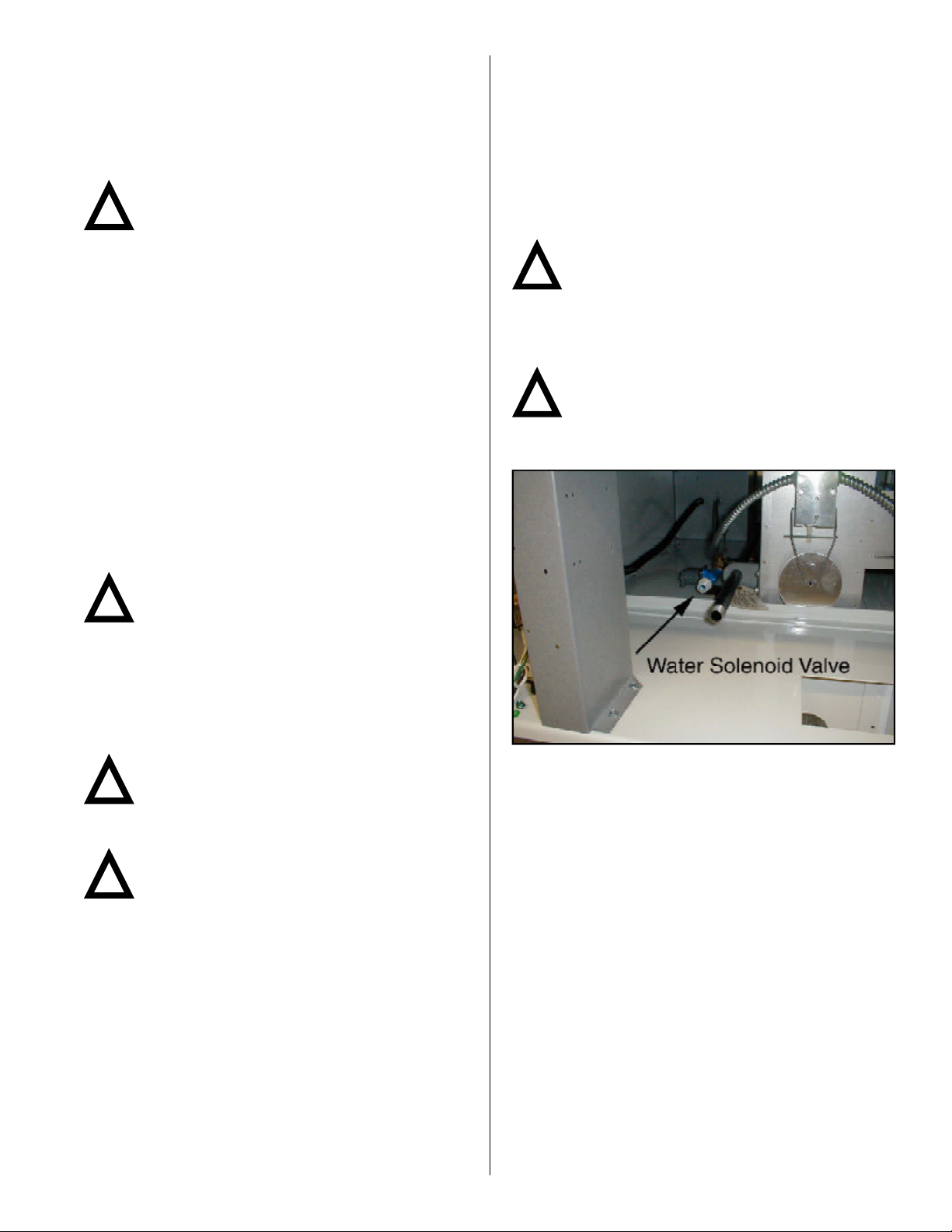

The water connection is made to the 3/4”-11.5 NH hose adapter of the electric water solenoid valve, located at the rear upper midsection of the dryer (refer to the photograph).

The water solenoid valve has a 3/8” M.P.T. connection supplied with a 3/4”-11.5 NH hose adapter to provide the minimum 1/2-inch supply (feed) line. Flexible supply line/coupling must be used in an effort to avoid damaging the electric water solenoid valve.

Note

The 3/4”-11.5 NH is a standard hose coupling

screw thread. It is not to be confused with 3/4” N.P.T. The sealing of an NH connection is made with a washer opposed to the mating threads of an N.P.T. assembly. The two (2) thread designs are not compatible.

Important

Flexible supply line/coupling must be used.

Solenoid valve failure due to hard plumbing connections will void warranty. It is recommended that a filter or strainer be installed in the water supply line.

Important

Flexible supply line/coupling must be used.

Solenoid valve failure due to hard plumbing

connections will void warranty.

If the rear area of the dryer, or the water supply is located in an area where it will be exposed to cold/freezing temperatures, provisions must be made to protect these water lines from freezing.

Warning

If the water in the supply line or water solenoid

valve freezes, the fire suppression system will be

INOPERATIVE!!

Important

Appliance is to be connected to the water mains

using a new hose-set and the old hose-sets

should not be reused.

113242-3 19

Page 20

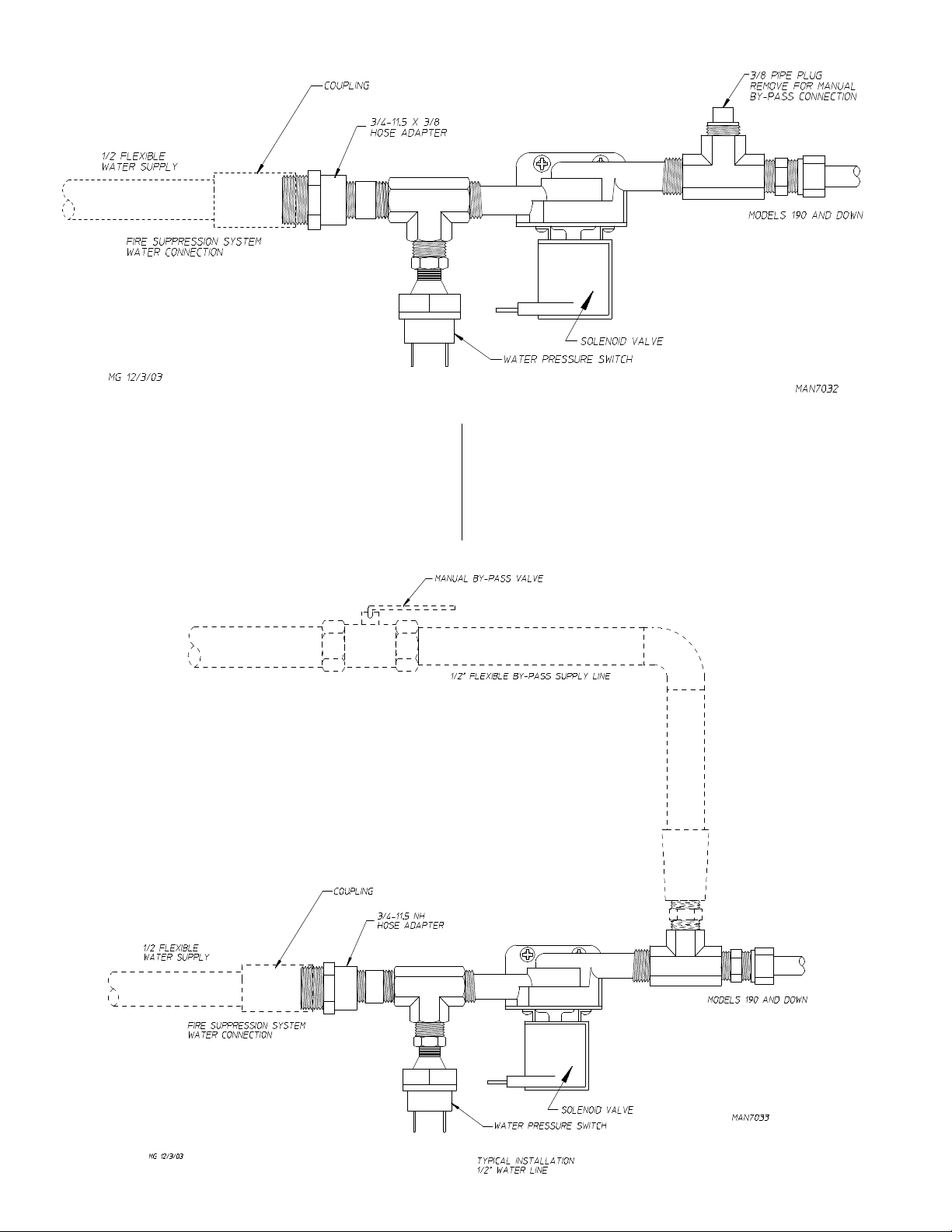

Typical Water Supply:

Optional Manual Bypass _____________

Provisions are made in the dryer’s fire suppression system for the installation of an optional manual bypass. Depending on the model dryer, the connections for the manual bypass are made at the “T” or “four way” fitting located in the outlet supply side of the water solenoid valve. The use and connections of this manual bypass are at the option or discretion of the owner.

The water connection for the manual bypass is made to the “T” or “four way” fitting which has a 3/8” F.P.T. and a coupling must be used to provide the minimum 1/2” supply (feed) line.

If the rear area of the dryer, or the water supply is located in an area where it will be exposed to cold/freezing temperatures, provisions must be made to protect these water lines from freezing.

20 113242-3

Page 21

Warning

If the water in the supply line or water solenoid

The manual ball cock shutoff valve must be located outside of the dryer at a distance from the dryer where it is easily accessible.

valve freezes, the fire suppression system will be inoperative!!

Electrical Requirements _____________

No independent external power source or supply connection is necessary. The 24 volt power to operate the fire suppression system is accomplished internally in the dryer (from the dryer controls).

Warning

Electrical power must be provided to the dryer at

all times. If the main electrical power supply to the dryer is disconnected, the fire suppression system is INOPERATIVE!!

Preparation for Operation/Start-Up___

The following items should be checked before attempting to operate the dryer:

• Read all “CAUTION,” “WARNING,” and “DIRECTION” labels attached to the dryer.

• Check incoming supply voltage to be sure that it is the same as indicated on the dryer data label.

• Gas Models – check to ensure that the dryer is connected to the type of heat/gas indicated on the dryer data label.

• Gas and Electric Models – the sail switch damper assembly was installed and adjusted at the factory prior to shipping. However, each sail switch adjustment must be checked to ensure that this important safety control is functioning.

• Check bolts, nuts, screws, terminals, and fittings for tightness and security.

• Gas Models – be sure that all gas shutoff valves are in the open position.

• Check that all back guard panels and service box covers have been replaced.

• Check the lint drawer to ensure that it is closed and secured in place.

• Rotate the basket (tumbler/drum) by hand to be sure it moves freely.

• Steam Models – check to ensure that a clean, dry, regulated air supply (80 psi [5.51 bar]) is on the dryer (with air-operated damper system only).

• Steam Models – check to ensure all steam shutoff valves are open.

• Steam Models – check steam damper operation.

• Check basket (tumbler) bearing setscrews to ensure that they are all tight.

• Check vent is connected to the dryer and is exhausted to the outdoors.

113242-3 21

Page 22

Preoperational Tests ________________

All dryers are thoroughly tested and inspected before leaving the factory. However, a preoperational test should be performed before the dryer is publicly used. It is possible that adjustments have changed in transit or due to marginal location (installation) conditions.

Turn on electric power to the dryer. Refer to the Operating Instructions for starting your particular

model dryer.

Gas Models Only

When a gas dryer is first started (during initial start-up), it has a tendency not to ignite on the first ignition attempt. This is because the gas supply piping is filled with air, so it may take a few minutes for the air to be purged from the lines.

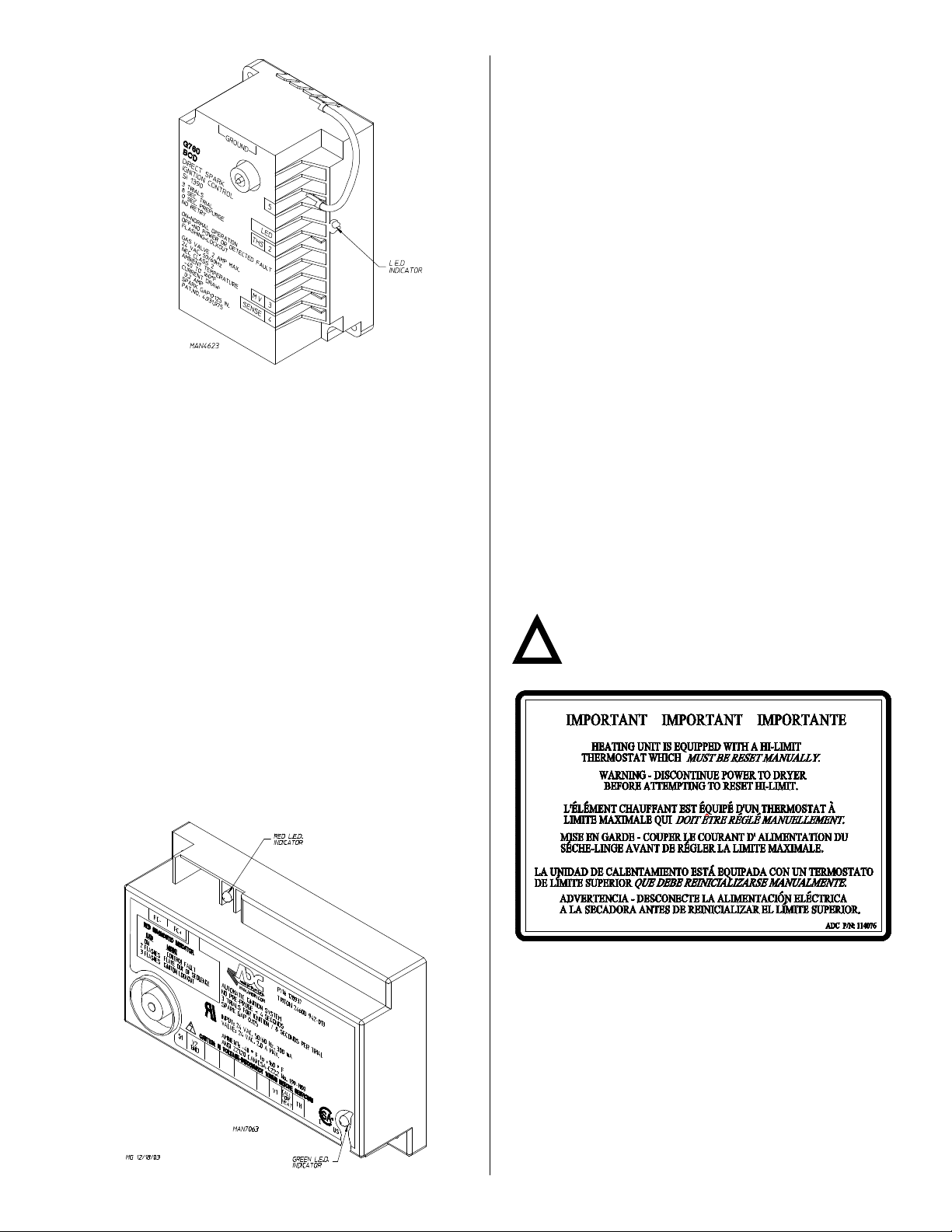

The dryer is equipped with a Direct Spark Ignition (DSI) system, the DSI control module has internal diagnostics. If ignition is not established within three (3) attempts, the heat circuit in the DSI control module will “LOCK OUT” until manually reset. To reset the DSI system, open and close the main door and restart the dryer.

Note

Water column (W.C.) pressure requirements

(measured at the pressure tap of the gas valve body): Natural Gas ______________ 3.5 Inches (8.7 mb) W.C. Liquid Propane (L.P.) Gas ___ 10.5 Inches (26.1 mb) W.C.

Important

There is no regulator provided in a liquid propane

(L.P.) dryer. The water column pressure must be regulated at the source (L.P. tank), or an external regulator must be added to each dryer.

Make a complete operational check of all safety related circuits:

• Door Switch(es)

• Hi-Limit Thermostats

• Cycling Thermostat

Basket Coating

The basket (tumbler) is treated with a protective coating. We suggest dampening old garments or cloth material with a solution of water and nonflammable mild detergent and tumbling them in the basket (tumbler) to remove this coating.

Check the electric service phase sequence (3-phase [3ø] models only). While the dryer is operating, check to see if the blower wheel (impellor/fan) is rotating in the proper direction. Looking from the front, the blower wheel (impellor/fan) should spin in the clockwise (CW) direction. If it is, the phasing is correct. If the phasing is incorrect, reverse two (2) of the three (3) leads at connections L1, L2, and L3 of the power supply to the dryer.

Important

If the blower wheel (impellor/fan) is rotating in the

wrong direction, this will not only drastically reduce drying efficiency, but it can also cause premature component failure.

Preoperational Instructions _________

Coin Models

Microprocessor Controller (Computer)

When the microprocessor controller (computer) is in the ready state, the liquid crystal display (L.C.D.) screen will display “Ready, Insert $XX.XX (amount) to Start”.

Insert coin(s). Once the correct “Amount to Start” has been inserted, the L.C.D. will display “Select Temperature”.

Select temperature by pressing “HI,” “MED,” or “LO.” The cycle will start and the L.C.D. will display the Dry Cycle selected and the remaining time.

The dryer will continue through the drying and cooling cycles, until the vended time has expired.

Note

To stop the dryer, open main door or press the

pause key. Continuation of the cycle will resume only after the door has been closed and any of the three (3) temperature selection is pressed.

Gas and Electric Models Only – Sail Switch

Note

The sail switch can be checked for proper

operation by opening the lint drawer. While pushing the lint drawer switch in, start a drying cycle. The heating unit should not activate (wait 30-seconds). If heat does activate, make the necessary adjustments to the sail switch.

Make a complete operational check of all operating controls.

Note

If computer program changes are required, refer

to the computer programming section of the

manual supplied with the dryer.

The dryer should be operated through one (1) complete cycle to ensure that no further adjustments are necessary and that all components are functioning properly.

22 113242-3

Upon completion of the drying and cooling cycles, the tone (buzzer) will sound and the dryer will go into the Anti-Wrinkle Mode for 99 minutes, or until the main door has been opened.

Important

For more detailed information regarding the

microprocessor controller (computer) on your dryer, refer to the microprocessor user’s manual included with the dryer.

Mechanical Drop/Rotary Coin Meter or Slide Coin Meter

Insert coin and turn knob (rotary type meter), or for slide meter unit, push in coin chute.

Select temperature. Push the “Start” button. To stop the dryer, open the main door.

Page 23

Non-Coin Models

The light emitting diode (L.E.D.) display reads “READY” (no cycle in progress).

Press the letter on the keyboard (touch pad) corresponding to the cycle desired (i.e., key “D”).

Note

“0-40” will require the “start/enter” key to be

pressed after the number is selected in order to

accept the selection and start drying.

The dryer will then start. (I.E., blower, basket [tumbler], and heat).

The L.E.D. display will read MANUAL DRYING CYCLE D, 00:00 MIN REMAIN.

Note

Press and hold the “UP ARROW” to view the

basket (tumbler) temperature at any time.

The dryer can be stopped at any time by pressing the “STOP/CLEAR” key, at this time the dryer will go into a cycle pause. If the “STOP/CLEAR” key is pressed again at this point, the cycle that was in progress will be cancelled and returned to the “READY” state.

Press and hold the “DOWN ARROW” to view the basket (tumbler) RPM.

When the programmed drying time has expired, the Phase 7 non-coin microprocessor controller (computer) will proceed into the Cool Down Cycle.

Once the Cool Down Cycle begins at the end of the heat cycle, the L.E.D. display will read COOL DOWN TEMP ___/ ___ MINUTES REMAINING. At the end of the heat cycle, the dryer will shut off the heat and continue the fan and basket (tumbler) until the Cool Down Time or temperature is reached.

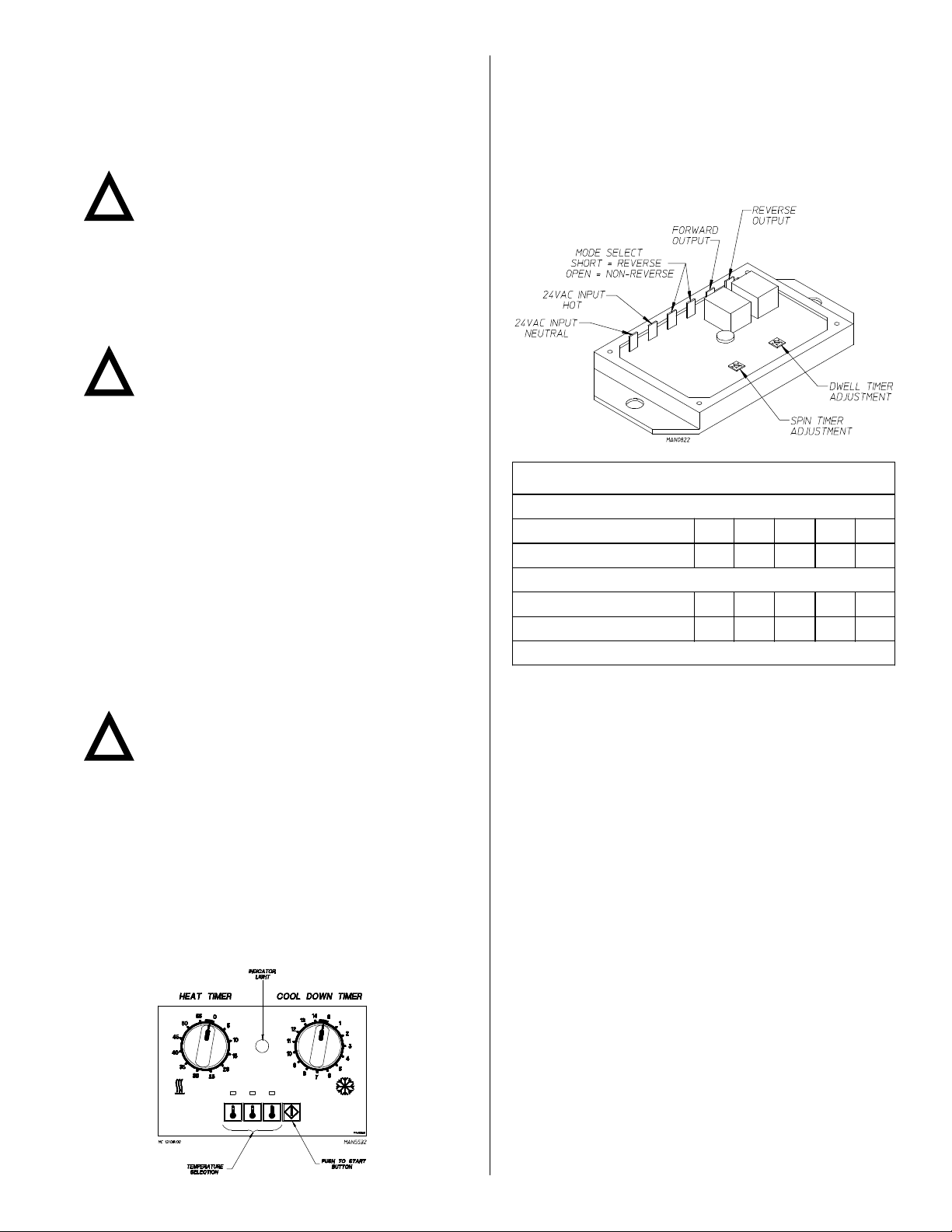

Reversing Timer Spin/Dwell Adjustments

Timer models have an electronic reversing timer in the electrical service box, which is located in the upper left rear area of the dryer.

Both the Dwell (stop) Time and the basket (tumbler) Spin Time are adjustable by mode selection switches located on the electronic timer (as noted in the illustration below).

TIMING LEGEND

SPIN TIME

Adjustment Position Number 1 2 3 4 5 Time in Seconds* 30 60 90 120 150

DWELL (STOP) TIME

Adjustment Position Number 1 2 3 4 5 Time in Seconds* 5 6.3 7.6 8.9 10.2 * Values shown are +/- 1-second.

Important

For more detailed information regarding the

microprocessor controller (computer) on your dryer, refer to the microprocessor user’s manual included with the dryer.

Dual Timer Dryers

Turn drying timer knob for a time of 20 minutes. Select “High Temp.” Push “Push to Start” switch. To stop the dryer, open the main door. Spin and dwell (stop) times are adjustable at the reversing

timer.

Shutdown Instructions ______________

If the dryer is to be shutdown (taken out of service) for a period of time, the following must be performed:

Discontinue power to the dryer either at the external disconnect switch or the circuit breaker.

Discontinue the heat supply: Gas Models – discontinue the gas supply. SHUT OFF external gas supply shutoff valve. SHUT OFF internal gas supply shutoff valve located in the

gas valve burner area.

Steam Models – discontinue the steam supply. SHUT OFF external (location furnished) shutoff valve. SHUT OFF internal steam valves in the supply lines and the

return lines.

113242-3 23

Page 24

Service/Parts Information ___________

Service

Service must be performed by a qualified trained technician, service agency, or gas supplier. If service is required, contact the reseller from whom the equipment was purchased. If the reseller cannot be contacted or is unknown, contact the Service Department for a reseller in your area.

Note

When contacting the Service Department, be sure

to give them the correct model number and serial number so that your inquiry is handled in an expeditious manner.

Parts

Replacement parts should be purchased from the reseller from whom the equipment was purchased. If the reseller cannot be contacted or is unknown, contact the Parts Department for a reseller in your area. Parts may also be purchased directly from Parts Department by calling 01422 822282 or you may FAX in your order at 01422 824390.

Note

When ordering replacement parts from the

reseller or the manufacturer, be sure to give them the correct model number and serial number so that your parts order can be processed in an expeditious manner.

Routine Maintenance ________________

Cleaning

A program and/or schedule should be established for periodic inspection, cleaning, and removal of lint from various areas of the dryer, as well as throughout the ductwork system. The frequency of cleaning can best be determined from experience at each location. Maximum operating efficiency is dependent upon proper air circulation. The accumulation of lint can restrict this airflow. If the guidelines in this section are met, a JLA dryer will provide many years of efficient, trouble free, and most importantly safe operation.

Warning

Lint from most fabrics is highly combustible. The

accumulation of lint can create a potential fire

hazard.

Keep dryer area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.

Note

Suggested time intervals shown are for average

usage which is considered six (6) to eight (8)

operational (running) hours per day.

Important

Dryer produces combustible lint and must be

exhausted to the outdoors. Every 6 months,

inspect the exhaust ducting and remove any lint buildup.

Warranty Information ________________

Returning Warranty Cards

Before any dryer leaves the factory test area, a warranty card is placed on the back side of the main door glass. These warranty cards are intended to serve the customer where we record the individual installation date and warranty information to better serve you should you file a warranty claim.

If a warranty card did not come with your dryer, contact the JLA Warranty Department.

Important

A separate warranty card must be completed and

returned for each individual dryer.

Note

Be sure to include the installation date when

returning the warranty card(s).

Warranty

For a copy of the JLA commercial warranty covering your particular dryer(s), contact the JLA reseller from whom you purchased the equipment and request a dryer warranty form. If the reseller cannot be contacted or is unknown, warranty information can be obtained from JLA by contacting the JLA Warranty Department.

Note

Whenever contacting JLA for warranty

information, be sure to have the dryer’s model number and serial number available so that your inquiry can be handled in an expeditious manner.

Suggested Cleaning Schedule

Every Third or Fourth Load

Clean the lint screen every third or fourth load. A clogged lint screen will cause poor dryer performance. The lint screen is located in a drawer below the main door. Open the lint drawer, brush or vacuum the lint off the lint screen, and remove the lint. Inspect lint screen and replace if torn.

Note

The frequency of cleaning the lint screen can best

be determined from experience at each location.

Weekly

Clean lint accumulation from lint chamber, thermostat, and microprocessor temperature sensor (sensor bracket) area.

Warning

To avoid the hazard of electrical shock,

discontinue electrical supply to the dryer.

Steam Dryers

Clean the steam coil fins. We suggest using compressed air and a vacuum cleaner with brush attachment.

Warning

When cleaning steam coil fins, be careful not to

bend the fins. If fins are bent, straighten by using a fin comb, which is available from local air conditioning supply houses.

24 113242-3

Page 25

90 Days

Inspect and remove lint accumulation in customer furnished exhaust ductwork system and from dryer’s internal exhaust ducting.

Warning

The accumulation of lint in the exhaust ductwork

can create a potential fire hazard.

Do not obstruct the flow of combustion and ventilation air.

Inspect and remove any lint accumulation, which can cause the back draft damper to bind or stick.

Note

A back draft damper that is sticking partially

closed can result in slow drying and shutdown of

heat circuit safety switches or thermostats.

When cleaning the dryer cabinet(s), avoid using harsh abrasives. A product intended for the cleaning of appliances is recommended.

Adjustments _________________________

7 Days After Installation and Every 6 Months Thereafter

Inspect bolts, nuts, screws, setscrews, grounding connections, and nonpermanent gas connections (unions, shutoff valves, and orifices). Motor and drive belts should be examined. Cracked or seriously frayed belts should be replaced. Tighten loose V-belts when necessary. Complete operational check of controls and valves. Complete operational check of all safety devices (door switches, lint drawer switch, sail switch, burner, and hi-limit thermostats).

Data Label Information ______________

When contacting JLA, certain information is required to ensure proper service/parts information from JLA. This information is on the data label affixed to the left side panel area behind the top control (access) door. When contacting JLA please have the model number and serial number available.

Lubrication ___________________________

The motor bearings, idler bearings, and under normal/most conditions the basket (tumbler) bearings are permanently lubricated. It is physically possible to relubricate the basket (tumbler) bearings if you choose to do so even though this practice is not necessary. Use Shell Alvania #2 or its equivalent. The basket (tumbler) bearings used in the dryer do not have a grease fitting. Provisions are made in the bearing housing for the addition of a grease fitting which can be obtained elsewhere, or by ordering kit Part No. 882159, which includes two (2) fittings.

Lint Drawer Removal_________

To remove the lint drawer from the dryer pull drawer out approximately halfway. Rotate/move lint drawer stop hinge (refer to the illustration) downward and pull the drawer out.

Important

After replacing

the lint drawer back into the dryer, be sure to rotate/move hinge back to the upward stop

1. Model Number – Describes the size of the dryer and the type of heat (gas, electric, or steam).

2. Serial Number – Allows the manufacturer to gather information on your particular dryer.

3. Manufacturing Code Number – The number issued by the manufacturer, which describes all possible options on your particular model.

4. Type of Heat – This describes the type of heat for your particular dryer, gas (either natural gas or liquid propane [L.P.] gas), electric, or steam.

5. Heat Input (for GAS DRYERS) – This describes the heat input in British Thermal Units per Hour (Btu/hr).

6. Orifice Size (for GAS DRYERS) – Gives the number drill size used.

7. Electric Service – This describes the electric service for your particular model.

8. Gas Manifold Pressure (for GAS DRYERS) – This describes the manifold pressure taken at the gas valve tap.

113242-3 25

Page 26

Procedure for Functional Check of Replacement Components _______

Microprocessor Controller (Computer) Board

Phase 7 Coin Models

Upon completing installation of the replacement microprocessor controller (computer) board, reestablish power to the dryer.

Start the drying cycle by pressing any temperature selection keys (HI, MED, or LO).

Phase 7 Non-Coin Models

Upon completing installation of the replacement microprocessor controller (computer) board, reestablish power to the dryer.

Start the drying cycle by pressing any of the preset cycles in letters A-F.

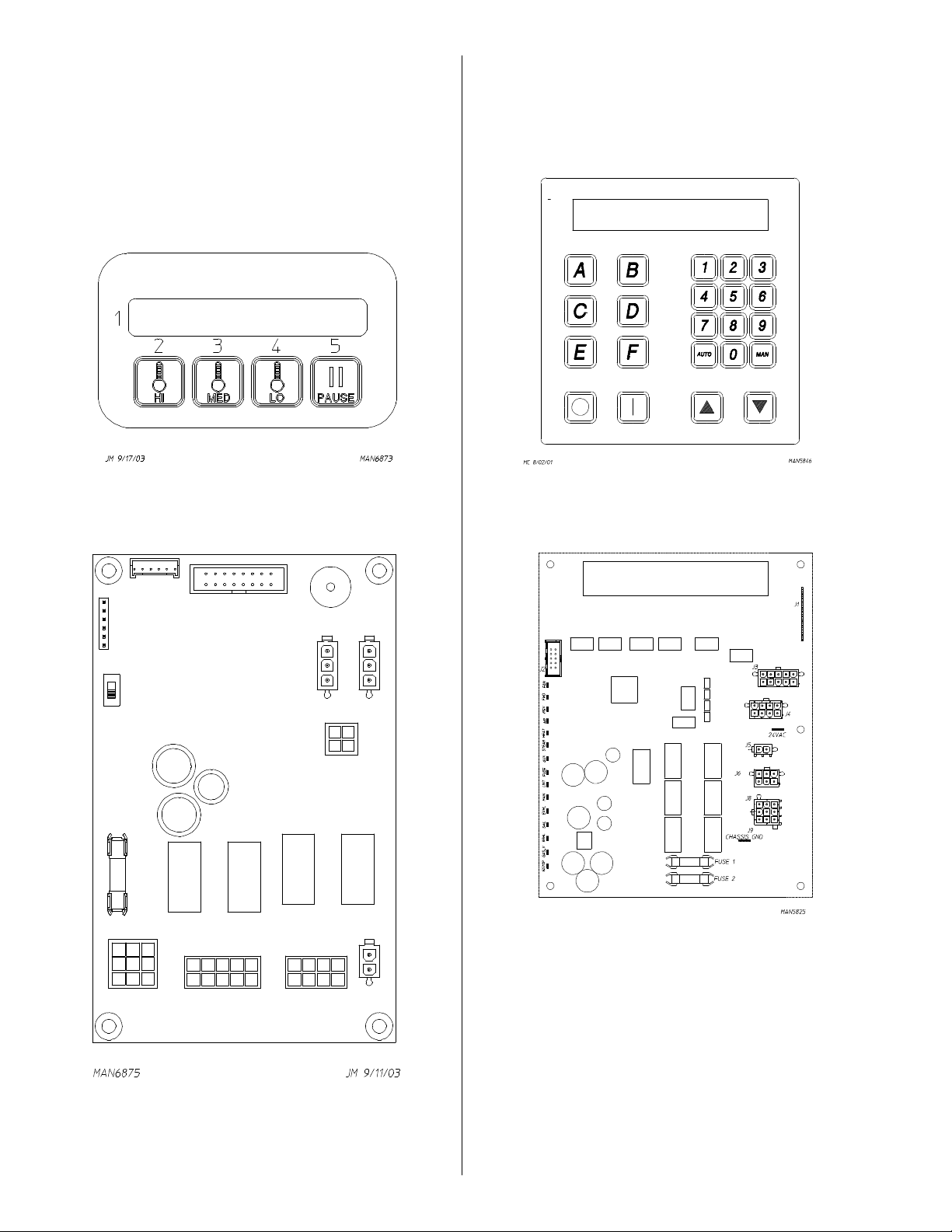

Verify that the applicable indicator lights on the microprocessor controller (computer) board are lit. (Refer to the illustration below.)

For Models with Johnson Direct Spark Ignition (DSI) Controller (G760)

Theory of Operation:

Start the drying cycle. When the gas burner ignites within the chosen trial for ignition time (6-seconds), the flame sensor detects gas burner flame and signals the DSI module to keep the gas valve open as long as there is a call for heat. The DSI module will “LOCK OUT” if the gas burner flame is not sensed at the end of the trial for ignition period. The trial for ignition period will be repeated for a total of three (3) retries/trials (the initial try and two [2] more retries/trials). If the flame is not sensed at the end of the third retry/trial (interpurge period of 30-seconds) the DSI module will “LOCK OUT”

26 113242-3

Page 27

(light emitting diode [L.E.D.] diagnostic indicator flashes). A steady light emitting diode (L.E.D.) indicator indicates

normal operation. No L.E.D. indicator indicates a power or an internal failure

has occurred.

For Models with Fenwal Controls Direct Spark Ignition (DSI) Module (128937)

Theory of Operation – Start the drying cycle. When the

gas burner ignites within the chosen trial for ignition time (8-seconds), the flame sensor detects gas burner flame and signals the DSI module to keep the gas valve open as long as there is a call for heat. The DSI module will “LOCK OUT” if the gas burner flame is not sensed at the end of the trial for ignition period. The trial for ignition period will be repeated for a total of three (3) retries/trials (the initial try and two [2] more retries/trials). If the flame is not sensed at the end of the third retry/trial (inter-purge period of 30-seconds), the DSI module will “LOCK OUT” (a red L.E.D. diagnostic indicator will flash).

An unlit red L.E.D. diagnostic indicator indicates normal operation.

A lit green L.E.D. diagnostic indicator indicates dryer controller is calling for heat and that all interlocks have been satisfied.

Manual Reset Burner Hi-limit Instructions __________________________

Phase 7

This dryer was manufactured with a manual reset burner hi-limit thermostat, which is monitored by the Phase 7 computer. If the burner hi-limit is open prior to the start of the drying cycle, the dryer will start momentarily and then shut down, the Phase 7 computer will display “BURNER HIGH LIMIT FAULT” with an audio indication.

If the burner hi-limit opens during a drying cycle, the Phase 7 computer will also display the same error code described above, along with an audio indication. If the drum temperature is above 100° F (38° C), the dryer will continue to run with no heat for 3 minutes or until the drum temperature has dropped below 100° F (38° C). The clear/stop button on the Phase 7 keyboard (touch pad) must be pressed to clear the error condition. The open burner hi-limit must be reset “manually” prior to the start of the next cycle.

Dual Timer

This dryer was manufactured with a manual reset burner hi-limit thermostat. If the burner hi-limit is open prior to the start of the drying cycle, or during the cycle, the dryer will not recognize the open state of the burner hi-limit and will start or continue through the drying cycle with no heat. Manual reset hi-limit must be reset manually.

This hi-temperature condition may be caused due to a restricted exhaust, poor airflow, or improper burner operation.

The location of the burner hi-limit is on the right side of the burner box, looking at the burner from the back of the dryer.

Warning

Discontinue power to dryer before attempting to

reset hi-limit.

113242-3 27

Page 28

JLA 113242 3 - 8/20/04-0
