Jewell Instruments DMS Specifications

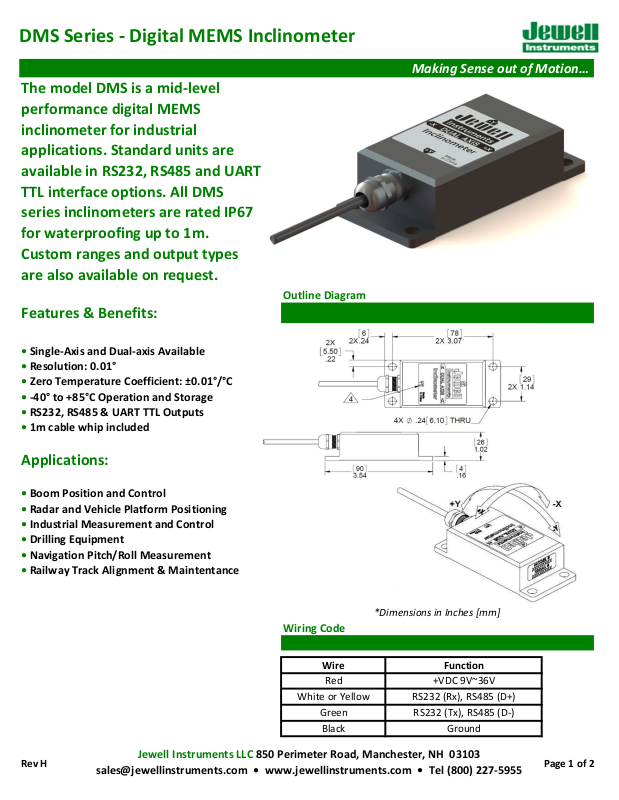

DMS Series - Digital MEMS Inclinometer
Features & Benefits:
•
Single-Axis and Dual-axis Available
•
Resolution: 0.01
°
•
Zero Temperature Coefficient:
±0.01°/°C
• -40° to +85°C Operation and Storage
•
RS232, RS485 & UART TTL Outputs
•
1m cable whip included
Applications:
•
Boom Position and Control
•
Radar and Vehicle Platform Positioning
•
Industrial Measurement and Control
•
Drilling Equipment
•
Navigation Pitch/Roll Measurement
•
Railway Track Alignment & Maintentance
Wiring Code
Rev H
Page 1 of 2
*Dimensions in Inches [mm]
The model DMS is a mid-level
performance digital MEMS
inclinometer for industrial
applications. Standard units are
available in RS232, RS485 and UART
TTL interface options. All DMS
series inclinometers are rated IP67
for waterproofing up to 1m.
Custom ranges and output types
are also available on request.
Outline Diagram
Making Sense out of Motion…
Jewell Instruments LLC 850 Perimeter Road, Manchester, NH 03103
sales@jewellinstruments.com • www.jewellinstruments.com • Tel (800) 227-5955
Wire
Red
White or Yellow
Green
Black
Function
+VDC 9V~36V
RS232 (Rx), RS485 (D+)
RS232 (Tx), RS485 (D-)
Ground
DMS Series - Digital MEMS Inclinometer
Performance Specifications
STATIC/DYNAMIC
*
ELECTRICAL AND ENVIRONMENTAL
Rev H
Page 2 of 2
Making Sense out of Motion…
Angular Range, °
Resolution, °
Hysteresis, ° 0.02 0.05 0.08 0.1
Zero Offset Tolerance (°)
Zero Temperature Coefficient, (°/°C)
Scale Factor Tolerance (%)
Scale Factor Temperature Coefficient, (ppm/°C)
Warm up, s 0.5 0.5 0.5 0.5
Time Constant, s 0.05 0.05 0.05 0.05
Output Rate
Output Type
Electromagnetic Compatability
Impact Resistance
Vibration Resistance
Temperature Rating , Operation
Temperature Rating, Storage
Seal
Cables
Weight
Power Requirements
Notes: * - Custom ranges available, please see model number structure below.
Specifications subject to change without notice on account of continued product development.
±10° ±30° ±60° ±90°
0.01 0.01 0.01 0.01
0.56 0.56 0.56 0.56
±0.01 ±0.01 ±0.01 ±0.01
0.7 1.4 2.8 3
≤200 ≤200 ≤200 ≤200
5Hz, 15Hz, 35Hz, 50Hz
RS232/RS485/TTL
EN61000 and GBT17626
100g@11ms, 3 Times/Axis (1/2 sinusoid)
10grms, 10~1000 Hz
-40 to +85°C
-55 to +125°C
IP67
1m Cable (standard)
150g
9-36 VDC @ 60mA
Jewell Instruments LLC 850 Perimeter Road, Manchester, NH 03103
sales@jewellinstruments.com • www.jewellinstruments.com • Tel (800) 227-5955
