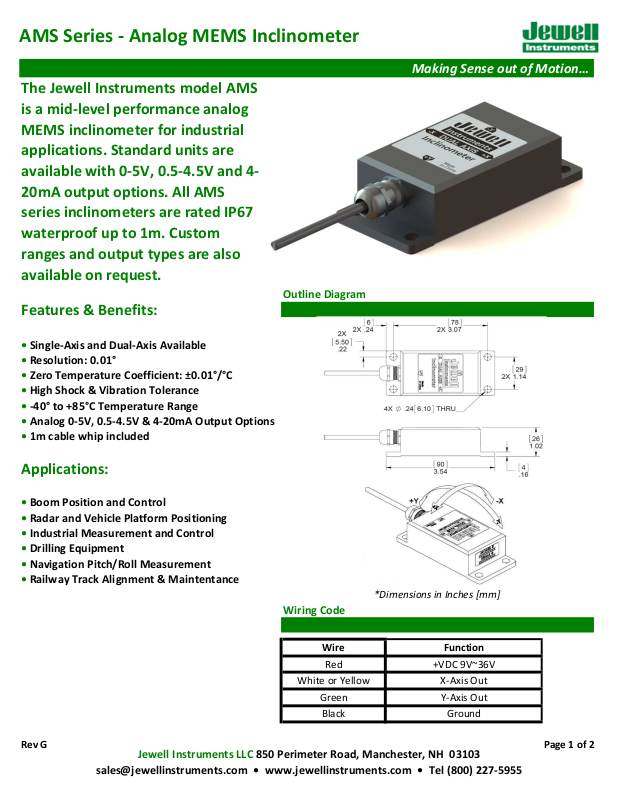

Jewell Instruments AMSs Specifications
AMS Series - Analog MEMS Inclinometer
Features & Benefits:
•
Single-Axis and Dual-Axis Available
•
Resolution: 0.01
°
•
Zero Temperature Coefficient:
±0.01°/°C
•
High Shock & Vibration Tolerance
• -40° to +85°C Temperature Range
•
Analog 0-5V, 0.5-4.5V &
4-20mA Output Options
•
1m cable whip included
•
Boom Position and Control
•
Radar and Vehicle Platform Positioning
•
Industrial Measurement and Control
•
Drilling Equipment
•
Navigation Pitch/Roll Measurement
•
Railway Track Alignment & Maintentance
Wiring Code
Rev G
Page 1 of 2
The Jewell Instruments model AMS
is a mid-level performance analog
MEMS inclinometer for industrial
applications. Standard units are
available with 0-5V, 0.5-4.5V and 420mA output options. All AMS
series inclinometers are rated IP67
waterproof up to 1m. Custom
ranges and output types are also
available on request.
Outline Diagram
Making Sense out of Motion…
Applications:
sales@jewellinstruments.com • www.jewellinstruments.com • Tel (800) 227-5955
*Dimensions in Inches [mm]
Wire
Red
White or Yellow
Green
Black
Jewell Instruments LLC 850 Perimeter Road, Manchester, NH 03103
Function
+VDC 9V~36V
X-Axis Out
Y-Axis Out
Ground
AMS Series - Analog MEMS Inclinometer
Performance Specifications
STATIC/DYNAMIC
*
ELECTRICAL AND ENVIRONMENTAL
Rev G
Page 2 of 2
Making Sense out of Motion…
Angular Range, °
Resolution, °
Hysteresis, ° 0.02 0.05 0.08 0.1
Zero Offset Tolerance (°)
Zero Temperature Coefficient, °/°C
Scale Factor Tolerance (%)
Scale Factor Temperature Coefficient, ppm/°C
Warm Up, s 0.5 0.5 0.5 0.5
Time Constant, s 0.05 0.05 0.05 0.05
Output
Electromagnetic Compatability
Impact Resistance
Vibration Resistance
Temperature Rating , Operation
Temperature Rating, Storage
Seal
Cables
Weight
Power Requirements
Notes: * - Custom ranges available, please see model number structure below.
Specifications subject to change without notice due to continued product development
±10° ±30° ±60° ±90°
0.01 0.01 0.01 0.01
0.56 0.56 0.56 0.56
±0.01 ±0.01 ±0.01 ±0.01
0.7 1.4 2.8 3
≤200 ≤200 ≤200 ≤200
0-5V, 0.5 - 4.5V or 4-20mA
EN61000 and GBT17626
100g@11ms, 3 times/axis (1/2 sinusoid)
10grms @ 10-1000Hz
-40 to +85°C
-55 to +125°C
IP67
1m Cable (standard)
120g (without cable)
9-36 VDC @ 60mA
Jewell Instruments LLC 850 Perimeter Road, Manchester, NH 03103
sales@jewellinstruments.com • www.jewellinstruments.com • Tel (800) 227-5955
