Jewell Instruments AMLs Specifications
AML Series - Low Cost Analog MEMS Inclinometer
•
Single and Dual-Axis Available
•
Resolution: 0.05
°
•
Zero Temperature Coefficient:
±0.02°/°C
•
High Shock & Vibration Tolerance
• -40° to +85°C Temperature Range
•
Analog 0-5V, 0.5-4.5V &
4-20mA Output Options
•
1m cable whip included
•
Solar Tracking & Panel Positioning
•
Vehicle Wheel Alignment
•
Industrial Automation & Control
•
Radar/Antenna Mast Alignment
•
Platform Leveling
•
Navigation Pitch/Roll Measurement
Wiring Code
Wire
Page 1 of 2
Making Sense out of Motion…

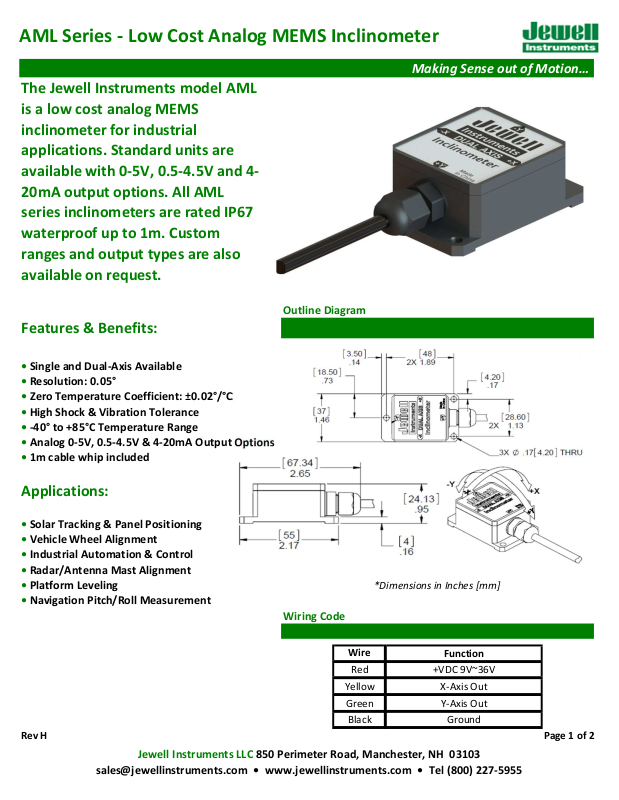

The Jewell Instruments model AML
is a low cost analog MEMS
inclinometer for industrial
applications. Standard units are
available with 0-5V, 0.5-4.5V and 420mA output options. All AML
series inclinometers are rated IP67
waterproof up to 1m. Custom
ranges and output types are also
available on request.
Outline Diagram
Features & Benefits:
Applications:
Rev H
sales@jewellinstruments.com • www.jewellinstruments.com • Tel (800) 227-5955
*Dimensions in Inches [mm]
Function
Red
Yellow
Green
Black
Jewell Instruments LLC 850 Perimeter Road, Manchester, NH 03103
+VDC 9V~36V
X-Axis Out
Y-Axis Out
Ground
AML Series - Low Cost Analog MEMS Inclinometer
Performance Specifications
STATIC/DYNAMIC
*
ELECTRICAL AND ENVIRONMENTAL
Rev H
Page 2 of 2
Making Sense out of Motion…
Angular Range, °
Resolution, °
Hysteresis, ° 0.1 0.2 0.2 0.2
Zero Offset Tolerance (°) 0.56 0.56 0.56 0.56
Zero Temperature Coefficient, °/°C
Scale Factor Tolerance (%)
Scale Factor Temperature Coefficient, ppm/°C
Warm Up, s 0.5 0.5 0.5 0.5
Time Constant, s 0.05 0.05 0.05 0.05
Output
Electromagnetic Compatability
Impact Resistance
Vibration Resistance
Temperature Rating , Operation
Temperature Rating, Storage
Seal
Cables
Weight
Power Requirements
±10° ±30° ±60° ±90°
0.05 0.05 0.05 0.05
±0.02 ±0.02 ±0.02 ±0.02
0.7 1.4 2.8 3
≤350 ≤350 ≤350 ≤350
0-5V, 0.5 - 4.5V or 4-20mA
EN61000 and GBT17626
100g@11ms, 3 times/axis (1/2 sinusoid)
10grms @ 10-1000Hz
-40 to +85°C
-55 to +100°C
IP67
1m Cable (standard)
90g (without cable)
9-36 VDC @ 60mA
Notes: * - Custom ranges available, please see model number structure below.
Specifications subject to change without notice on account of continued product development
Jewell Instruments LLC 850 Perimeter Road, Manchester, NH 03103
sales@jewellinstruments.com • www.jewellinstruments.com • Tel (800) 227-5955
