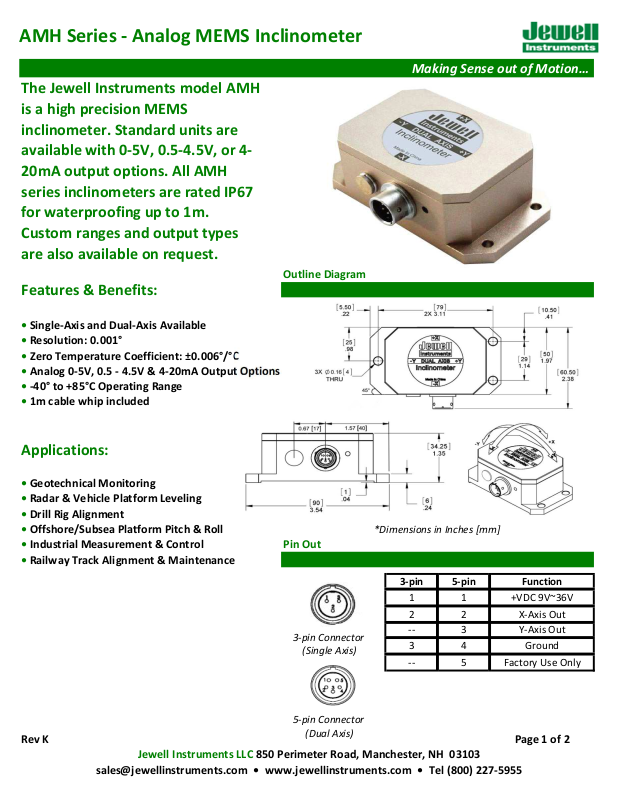

Jewell Instruments AMHs Specifications
AMH Series - Analog MEMS Inclinometer
Features & Benefits:
•
Single-Axis and Dual-Axis Available
•
Resolution: 0.001
°
•
Zero Temperature Coefficient:
±0.006°/°C
•
Analog 0-5V, 0.5 - 4.5V &
4-20mA Output Options
• -40° to +85°C Operating Range
•
1m cable whip included
•
Geotechnical Monitoring
•
Radar & Vehicle Platform Leveling
•
Drill Rig Alignment
•
Offshore/Subsea Platform Pitch & Roll
•
Industrial Measurement & Control
Pin Out
•
Railway Track Alignment & Maintenance
--
3
Rev K
Y-Axis Out
The Jewell Instruments model AMH
is a high precision MEMS
inclinometer. Standard units are
available with 0-5V, 0.5-4.5V, or 420mA output options. All AMH
series inclinometers are rated IP67
for waterproofing up to 1m.
Custom ranges and output types
are also available on request.
Outline Diagram
Making Sense out of Motion…
Applications:
sales@jewellinstruments.com • www.jewellinstruments.com • Tel (800) 227-5955
*Dimensions in Inches [mm]
3-pin 5-pin
1 1
2 2
3-pin Connector
(Single Axis)
5-pin Connector
(Dual Axis)
Jewell Instruments LLC 850 Perimeter Road, Manchester, NH 03103
3 4
-- 5
Function
+VDC 9V~36V
X-Axis Out
Ground
Factory Use Only
Page 1 of 2
AMH Series - Analog MEMS Inclinometer
Performance Specifications
STATIC/DYNAMIC
*
ELECTRICAL AND ENVIRONMENTAL
Rev K
Making Sense out of Motion…
Angular Range, °
Resolution, °
Hysteresis, ° 0.005 0.008 0.01
Zero Tolerance (°)
Zero Temperature Coefficient, °/°C
Scale Factor Tolerance (%)
Scale Factor Temperature Coefficient, ppm/°C
Warm Up, s 0.5 0.5 0.5
Time Constant, s 0.05 0.05 0.05
Output
Electromagnetic Compatibility
Impact Resistance
Vibration Resistance
Temperature Rating , Operation
Temperature Rating, Storage
Enclosure
Seal
Cables
Weight
Power Requirements
Notes: * - Custom ranges available, please see model number structure below.
Specifications subject to change without notice on account of continued product development
±10° ±30° ±60°
0.001 0.001 0.001
0.01 0.01 0.01
±0.006 ±0.006 ±0.006
0.7 1.4 2.8
≤200 ≤200 ≤200
0-5V, 0.5 - 4.5V or 4-20mA
EN61000 and GBT17626
100g@11ms, 3 times/axis (1/2 sinusoid)
10grms @ 10-1000Hz
-40 to +85°C
-55 to +100°C
Anodized Aluminum
IP67
1m Cable (standard)
150g (without cable)
9-36 VDC @ 60mA
Jewell Instruments LLC 850 Perimeter Road, Manchester, NH 03103
sales@jewellinstruments.com • www.jewellinstruments.com • Tel (800) 227-5955
Page 2 of 2
