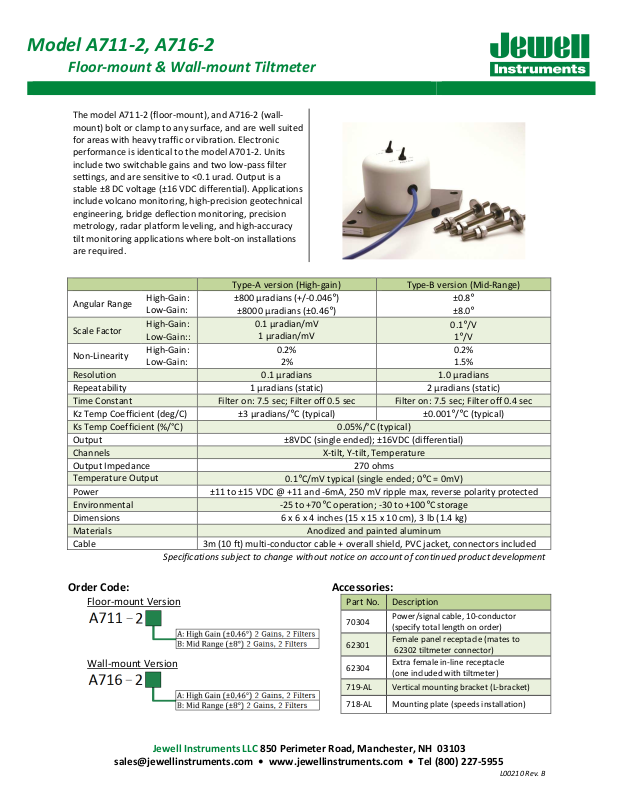

Model A711-2, A716-2

Floor

-

mount

Version

Wall

-

mount Version

Floor-mount & Wall-mount Tiltmeter

The model A711-2 (floor-mount), and A716-2 (wall­mount) bolt or clamp to any surface, and are well suited
for areas with heavy traffic or vibration. Electronic
performance is identical to the model A701-2. Units
include two switchable gains and two low-pass filter
settings, and are sensitive to <0.1 urad. Output is a
stable ±8 DC voltage (±16 VDC differential). Applications
include volcano monitoring, high-precision geotechnical
engineering, bridge deflection monitoring, precision
metrology, radar platform leveling, and high-accuracy
tilt monitoring applications where bolt-on installations
are required.

Type-A version (High-gain) Type-B version (Mid-Range)

Angular Range

Scale Factor

Non-Linearity

Resolution 0.1 μradians 1.0 μradians
Repeatability 1 μradians (static) 2 μradians (static)
Time Constant Filter on: 7.5 sec; Filter off 0.5 sec Filter on: 7.5 sec; Filter off 0.4 sec
Kz Temp Coefficient (deg/C)
Ks Temp Coefficient (%/°C) 0.05%/°C (typical)
Output ±8VDC (single ended); ±16VDC (differential)
Channels X-tilt, Y-tilt, Temperature
Output Impedance 270 ohms
Temperature Output
Power ±11 to ±15 VDC @ +11 and -6mA, 250 mV ripple max, reverse polarity protected
Environmental
Dimensions 6 x 6 x 4 inches (15 x 15 x 10 cm), 3 lb (1.4 kg)
Materials Anodized and painted aluminum
Cable 3m (10 ft) multi-conductor cable + overall shield, PVC jacket, connectors included

High-Gain:
Low-Gain:

High-Gain:
Low-Gain::
High-Gain:
Low-Gain:

Specifications subject to change without notice on account of continued product development

±800 μradians (+/-0.046°)

±8000 μradians (±0.46°)

0.1 μradian/mV
1 μradian/mV

0.2%
2%

±3 μradians/°C (typical) ±0.001°/°C (typical)

0.1°C/mV typical (single ended; 0°C = 0mV)

-25 to +70°C operation; -30 to +100°C storage

±0.8°
±8.0°

0.1°/V
1°/V

0.2%

1.5%

Order Code: Accessories:

Part No. Description

Jewell Instruments LLC 850 Perimeter Road, Manchester, NH 03103

[e-mail] • www.jewellinstruments.com • Tel [phone]

70304

62301

62304

719-AL Vertical mounting bracket (L-bracket)

718-AL Mounting plate (speeds installation)

Power/signal cable, 10-conductor
(specify total length on order)
Female panel receptacle (mates to
62302 tiltmeter connector)
Extra female in-line receptacle
(one included with tiltmeter)

L00210 Rev. B

Model A711-2, A716-2

Floor-mount & Wall-mount Tiltmeter

Dimensions:

Top view

Side view

Wiring/Pin-out:

[e-mail] • www.jewellinstruments.com • Tel [phone]

Wire Color Function Bendix Connector

Red +12 to +15V Power H

Black Power Ground A

Violet -12 to -15V Power B

Blue +Y-tilt out G

Brown -Y-tilt out K

Gray -X-tilt out J
Green +X-tilt out C
White Signal ground E

Yellow Temperature out D
