JETWAY NF591 Technical Manual

Technical Manu al

Of

Intel Braswell Series CPU

Based Mini-ITX M/B

NO.G03-NF591-F

Revision: 2.0

Release date: Octob er 1, 2019

Trademark:

* Specifications and Information contained in t his docu ment ation ar e furnish ed for i nfo r mation u se only, and are

subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Environmental Prote cti on Announcement

Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protect ion of mother earth, please recyc l e.

ii

TABLE OF CONTENT

ENVIRONMENTAL SAFETY INSTRUCTION ........................................................................... iv

USER’S NOTICE ....................................................................................................................... v

MANUAL REVISION INFORMATION ....................................................................................... v

ITEM CHECKLIST ..................................................................................................................... v

CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD

1-1 FEATURE OF MOTHERBOARD ................................................................................ 1

1-2 SPECIFICATION ......................................................................................................... 2

1-3 LAYOUT DIAGRAM .................................................................................................... 3

CHAPTER 2 HARDWARE INSTALLATION

2-1 JUMPER SETTING ..................................................................................................... 8

2-2 CONNECTORS AND HEADERS ................................................................................ 15

2-2-1 CONNECTORS ............................................................................................. 15

2-2-2 HEADERS ..................................................................................................... 18

CHAPTER 3 INTRODUCING BIOS

3-1 ENTERING SETUP ..................................................................................................... 26

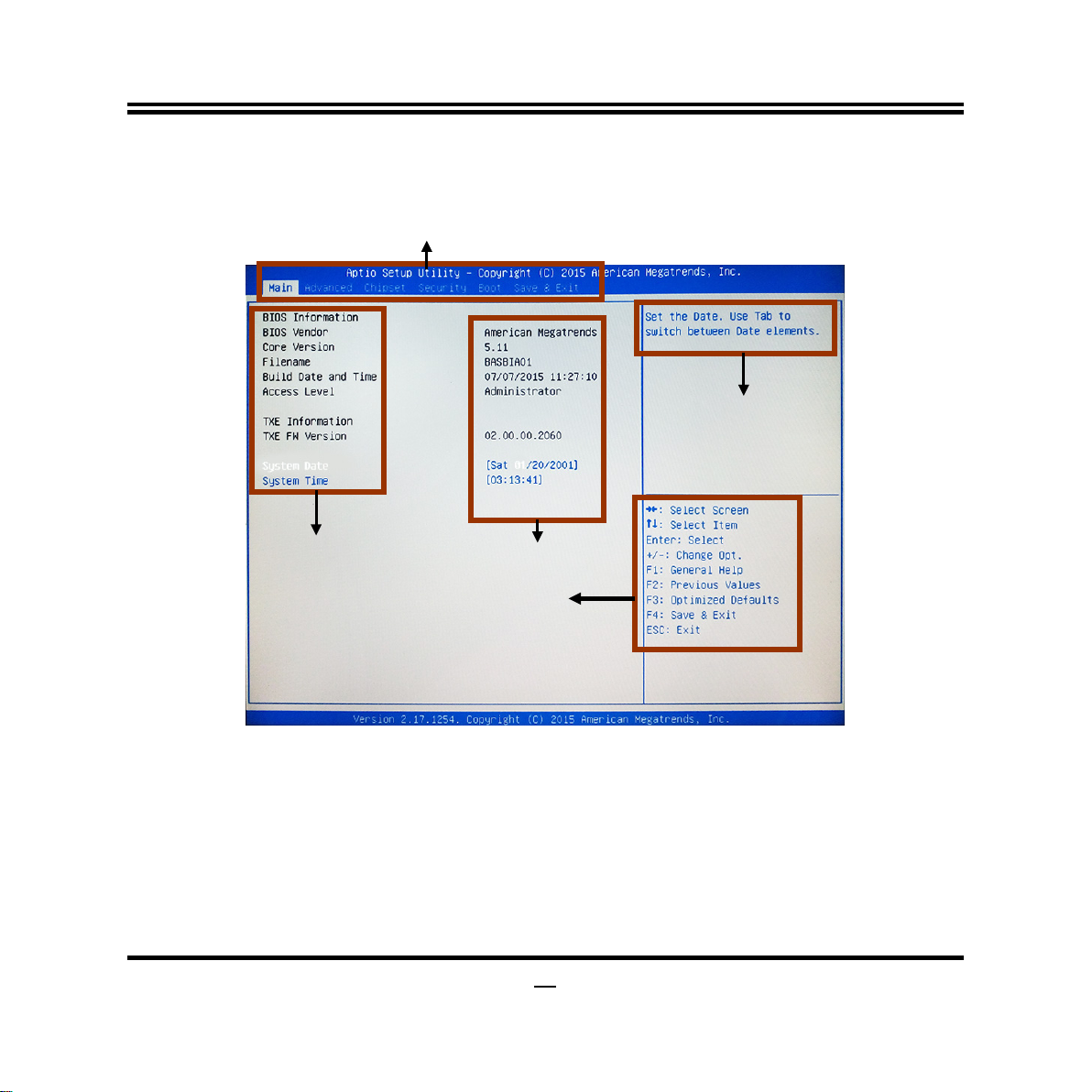

3-2 BIOS MENU SCREEN ................................................................................................ 27

3-3 FUNCTION KEYS ....................................................................................................... 27

3-4 GETTING HELP .......................................................................................................... 28

3-5 MEMU BARS ............................................................................................................... 28

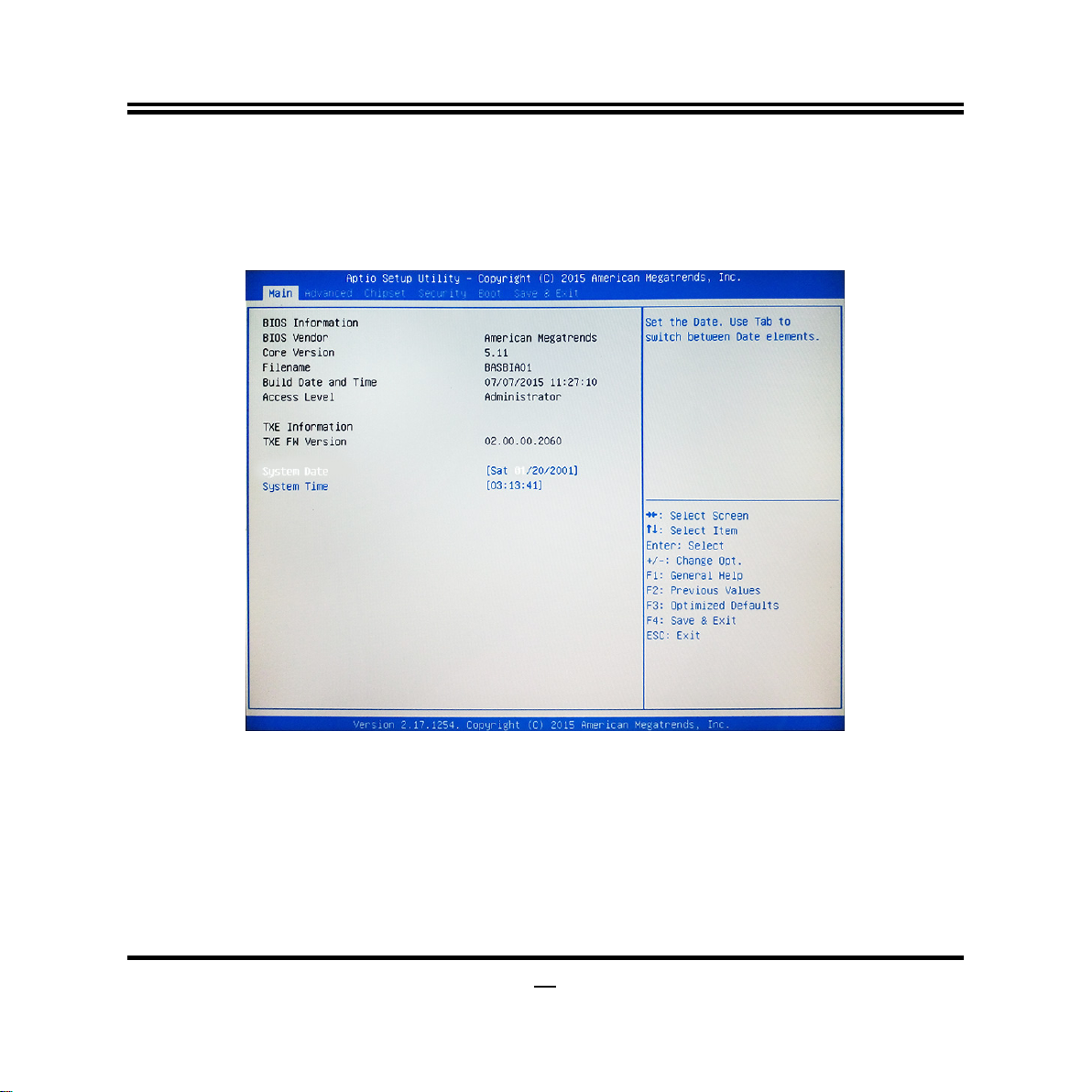

3-6 MAIN MENU ................................................................................................................ 29

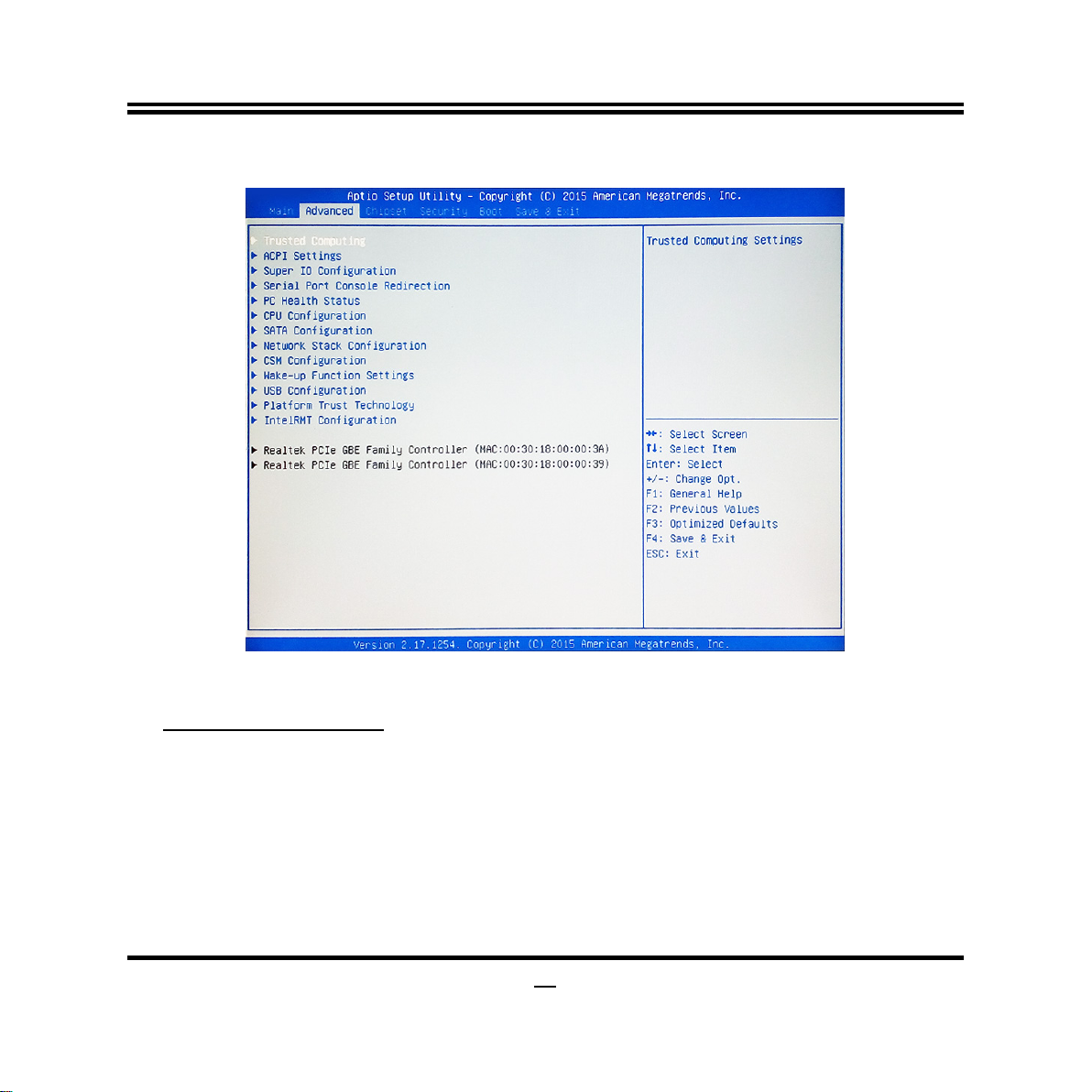

3-7 ADVANCED MENU ..................................................................................................... 30

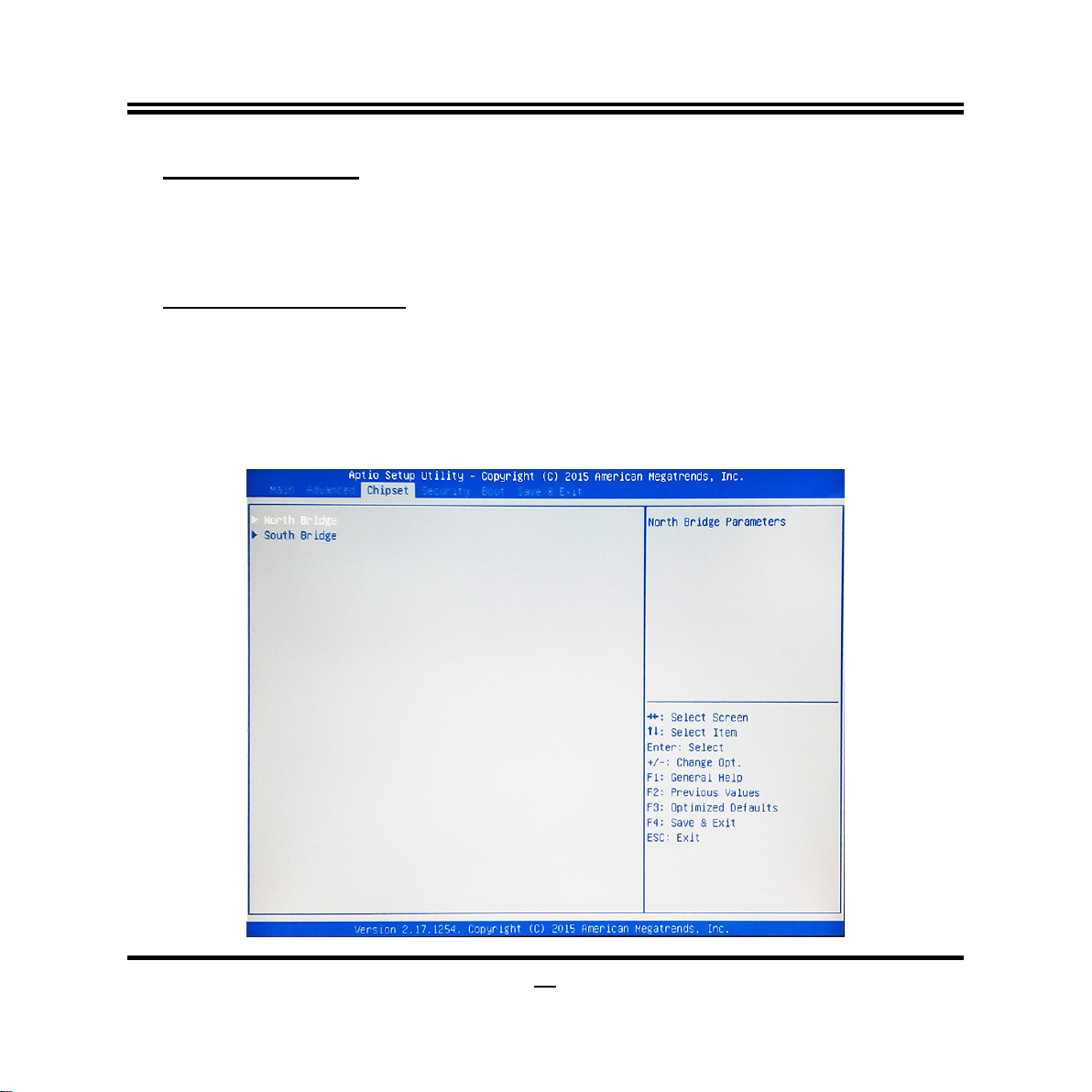

3-8 CHIPSET MENU .......................................................................................................... 40

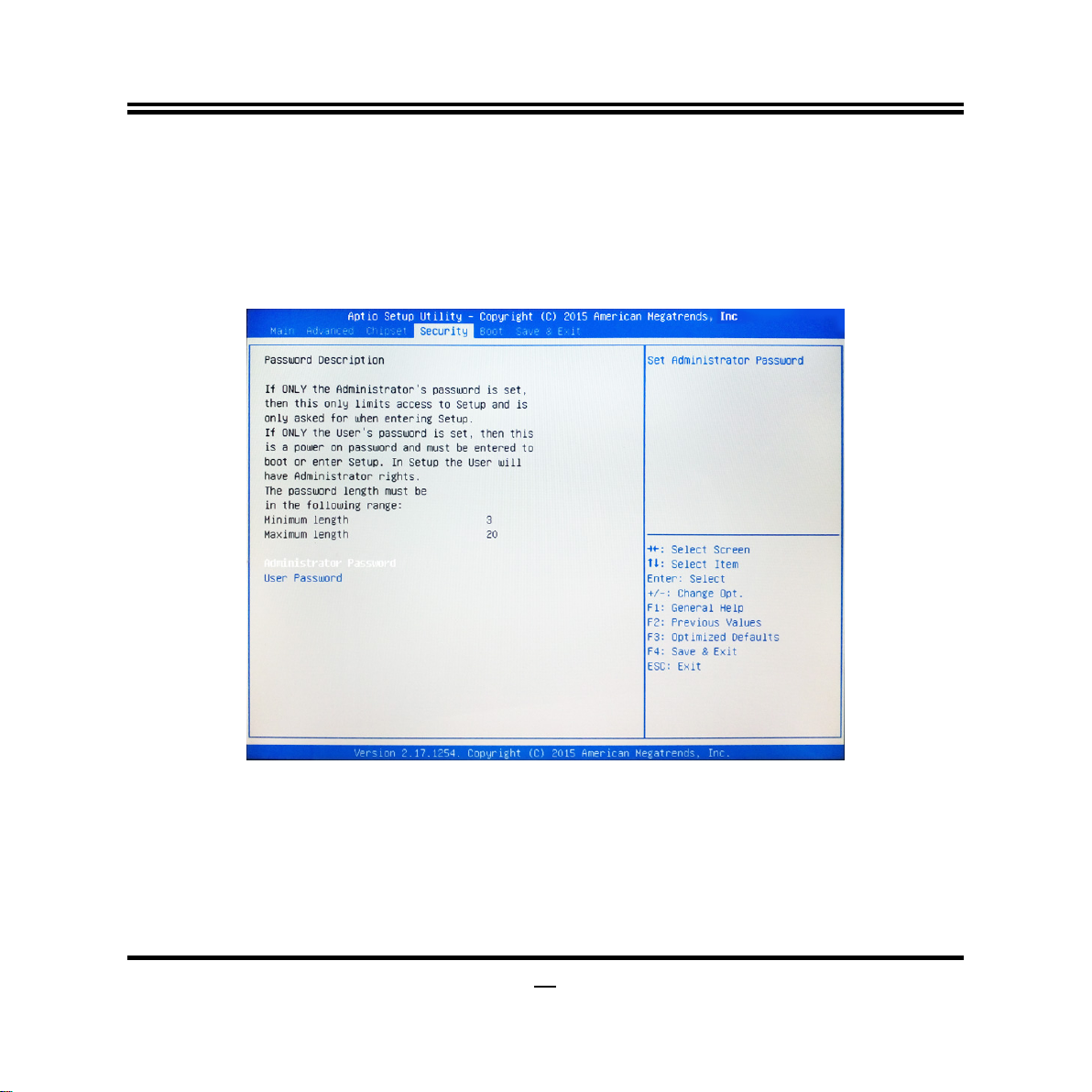

3-9 SECURITY MENU ....................................................................................................... 43

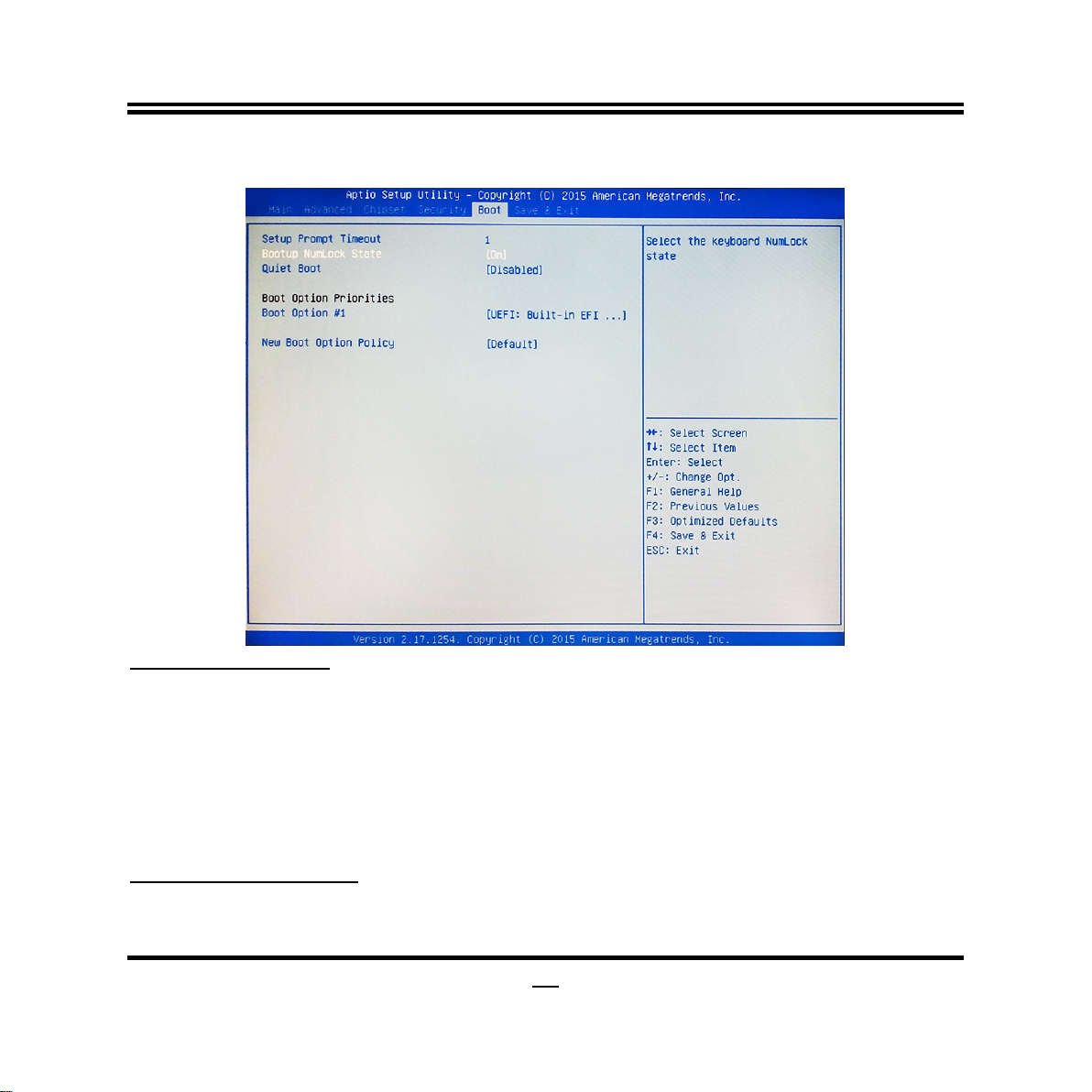

3-10 BOOT MENU ............................................................................................................... 44

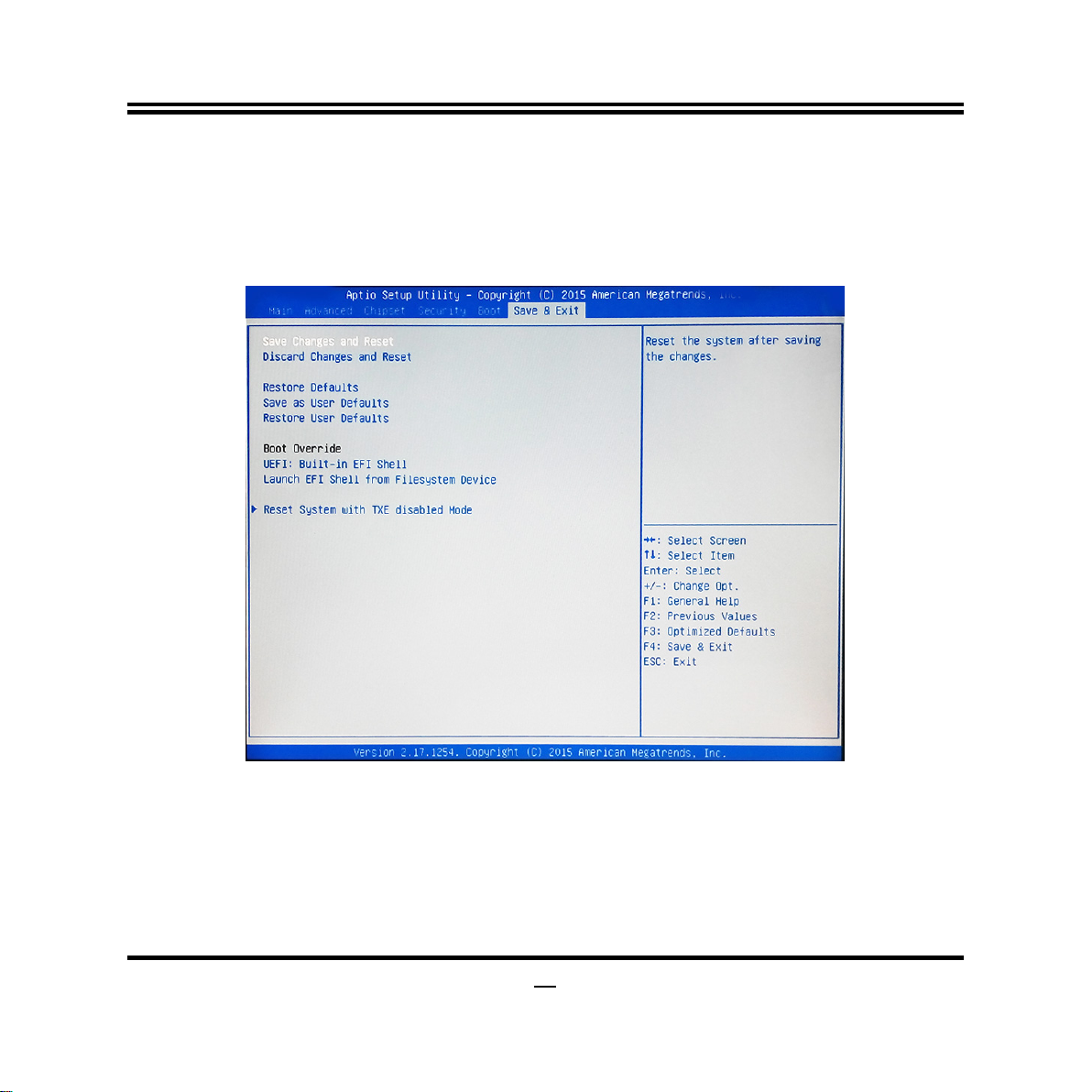

3-11 SAVE & EXIT MENU ................................................................................................... 45

iii

Environmental Safety Instruction

 Avoid the dusty, humidity and temperature extremes. Do not place the product in

any area where it may become wet.

 0 to 60 centigrade is th e suitabl e tem perat ure. (The fig ure c omes from the r eques t

of the main chipset)

 Generally speaking, dramatic changes in temperature may lead to contact

malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor a s computer instabi lity resulted fr om corrosio n and oxi dation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.

 The increasing temperature of the capacitor may decrease the life of computer.

Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.

 Attention to the heat sink when you over-clocking. The higher temperature may

decrease the life of the device and burned the capacitor.

iv

USER’S NOTICE

COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPROD UCED, TR ANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.

THIS MANUAL CONTAINS ALL INFORMATION RE QU IRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).

PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.

Manual Revision Information

Reversion Revision History Date

2.0 Second Edition October 1, 2019

Item Checklist



Motherboard



Cable(s)

v

1

Chapter 1

Introduction of the Motherboard

1-1 Fea ture of Motherboard

Onboard Intel® Braswell series SoC Processor, with low power consumption



never denies high performance

Support 2* DDR3L 1600 MHz SO-DIMM, up to 8GB



Onboard 2 * RJ-45 gigabit Ether net LAN port



Support 2 * SATAIII device



Support USB 3.0 data transport demand



Support DVI-D, VGA & LVDS multi-display



Onboard 1* full-size Mini-PCIE slot



Onboard 1* M.2 slot (M key-2242/2260/2280 SATA interface for SSD device)



1* SIM card slot



Support CPU Over-Temperature protection



Support CPU Over-Current/Under Voltage prot ecti o n



Support DRAM Over-Current/Under Voltage protection



Amplifier implement to support 3W Speaker



Support Smart FAN



Compliance with ErP standard



Support Watchdog function



2

Spec

Description

Design



6 layers; PCB size: 17x 17 cm



Intel® Braswell *SoC CPU

dealer for more information of onboard CPU.



2 * DDR3L SODIMM Slot for un-buffered *DDR3L 1600 MHz
Dual-channel functio n supp or t ed



1* Full-size Mini-PCIE slot



1* PCIE x1 slot



Integrated with 2* Realtek RTL8111G PCI-E Gigabi t LAN chip

10/100/1000Mbps Ethernet data transfer rate



2* SATAI II port (SATA1/2)



1*M.2 M-key 2242/2260/2280 slot (*share with SATA2 port)



AMI 64MB Flash ROM



1* 12V DC-in system power Jack

2* RJ-45 LAN port



1* 2-Pin Internal 12V DC-in power connector

2* LAN LED activity header

1-2 Specification

Embedded CPU

Memory Slot

*CPU model varies from different IPC options. Please consult your

SDRAM, expandable to 8GB



Expansion Slot

Support Fast Ethernet LAN func ti on of prov i ding

LAN Chip



Storage
BIOS

4* USB 3.0 port



1* DVI-D port

Rear I/O



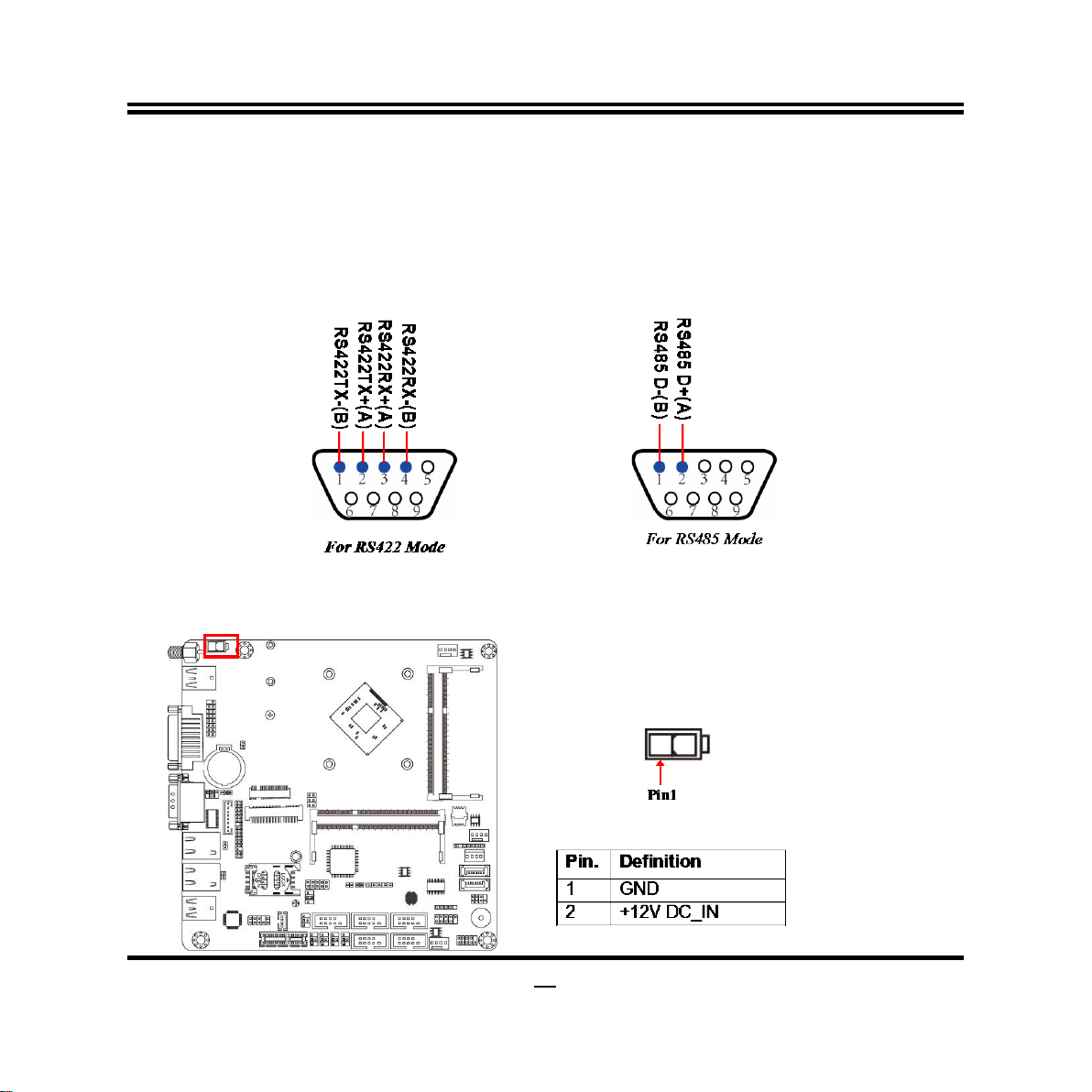

1* RS232/422/485 serial port (COM1)




1* SATA Power-out connector



1* CPUFAN header



2* SYSFAN header

Internal I/O



1* Front panel audio header



1* SPEAK_CON header




3



1* 4-pin USB 2.0 header (Expansible to 1* USB 2.0 port)



1* Front panel VGA header

USB 3.0 Ports

RJ-45 LAN Ports

USB 3.0 Ports

DVI-D Port

COM1

Serial Port

DC-in 12V

1* 9-pin USB 2.0 header (Expansible to 2* USB 2.0 ports)



1* Front panel header



1* Power LED & speaker header



1* PS/2 keyboard & mouse header



1* SMBUS header



1* GPIO_CON header



5* RS232 serial port header(COM2/3/4/5/6)



1* LVDS header



1* LVDS inverter header



* Note: 1. Many PCs now include XHCI USB controllers which allow for the support of USB 3.0 and higher USB
speeds. This inclusion of XHCI controllers has lessened the need for EHCI USB controllers within platforms.
However, legacy operating systems (OS) may not natively recognize XHCI controllers. You might need to
pre-install XHCI driver while desiring to install a non-xHCI OS (ex.Windows* 7) on Intel platforms which do not
include EHCI controllers. Please contact your representative for more details. 2. Braswell SOC will support
memory speed at 1600 MHz and 1066 MHz only. If 1333 MHz DIMM is installed, it will run at 1066 MHz. It is not
validated while installing 1066MHz DIMM with this SOC.

1-3 Layout Diagram

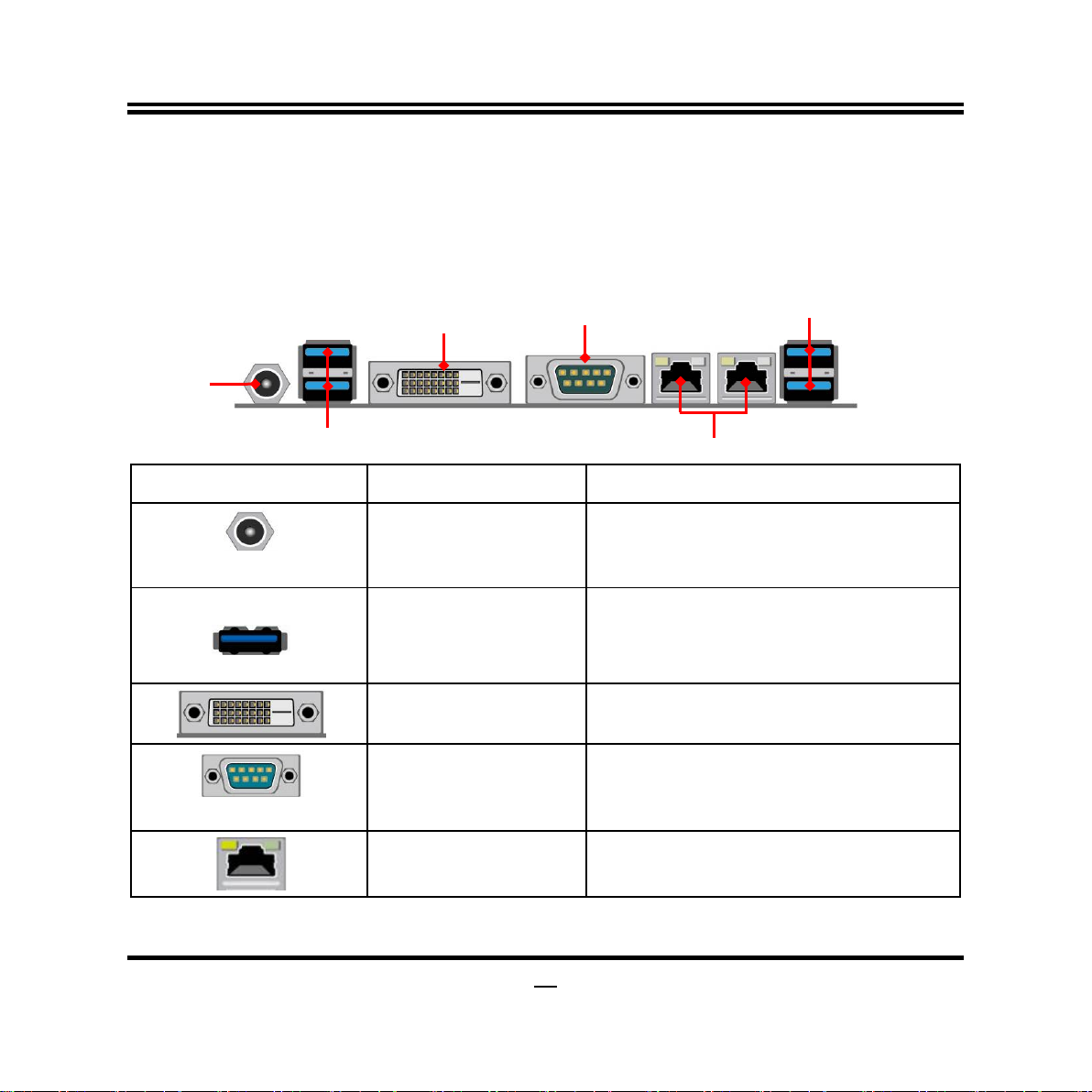

Rear IO Panel Diagram:

Power

Connector

Warning!

The board has a DC 12V power connector (DCIN) in I/O back panel and an internal ATX12V
(ATX2P) power connector. User can only connect one type of compatible power supp l y to one
of them to power the system.

4

12V DC -in

Power Conne c t or

DVI-D Port

COM1

Serial Port

RJ-45 LAN Ports

USB 3.0 Ports

USB 3.0 Ports

PCI Express x1 Slot

Intel CPU

SYSFAN1 Header

*DDR3L SODIMM Slot

(SODIMM1)

Internal 12V DC-in

Power connector

SMBUS Header

*DDR3L SODIMM Slot

(SODIMM2)

CPUFAN Header

SYSFAN2 Header

VGA Port

Header

PS2KBMS Header

Speaker Header

Front Panel

Audio Header

GPIO Header

SATAIII Ports

(SATA1/2)

M Key-2242/2260/2280

Full-size

*SIM Card Slot

Serial Port Headers

(COM5/6)

USB 2.0 Headers

Serial Port Headers

LVDS Inverter

LVDS Header

SATA Hard Disk

Front Panel

Header

LANLED Headers

Power LED Header &

Motherboard Internal Diagram

Connector (*M2)

Mini-PCIE
Slot (MPE)

Power-Out Connector

(COM2/3/4)

Speaker Header

Note: 1. SODIMM1 must be used for single DIMM use case; the module should be 1.35V DDRIII
SODIMM and not exceeding 8GB total capacity. 2. M2 slot shares function with SATA2 port; i.e. only
one can function at a ti me; M2 slot functions as M K ey interface and can only support SATA SSD
device, not PCI-E NAND device.

5

JP1

JBAT

JP6

JP7

JP8

JP9

JP5

COPEN

AT_MODE

RTC_RST

JP3

JP4

Jumper Position:

6

Jumper

Name

Description

JP1

COM1 Port Pin9 Function Select

4-Pin Block

JP3

COM2 Header Pin9 Function Sel ec t

4-Pin Block

JP6

COM3 Header Pin9 Function Sel ec t

4-Pin Block

JP7

COM4 Header Pin9 Functi on Sel ect

4-Pin Block

JP8

COM5 Header Pin9 Function Select

4-Pin Block

JP9

COM6 Header Pin9 Function Sel ec t

4-Pin Block

JP5

LVDS Panel VCC 3.3V /5V/12V Select

4-Pin Block

JP4

INVERTER Back Light 5V/12V Select

3-Pin Block

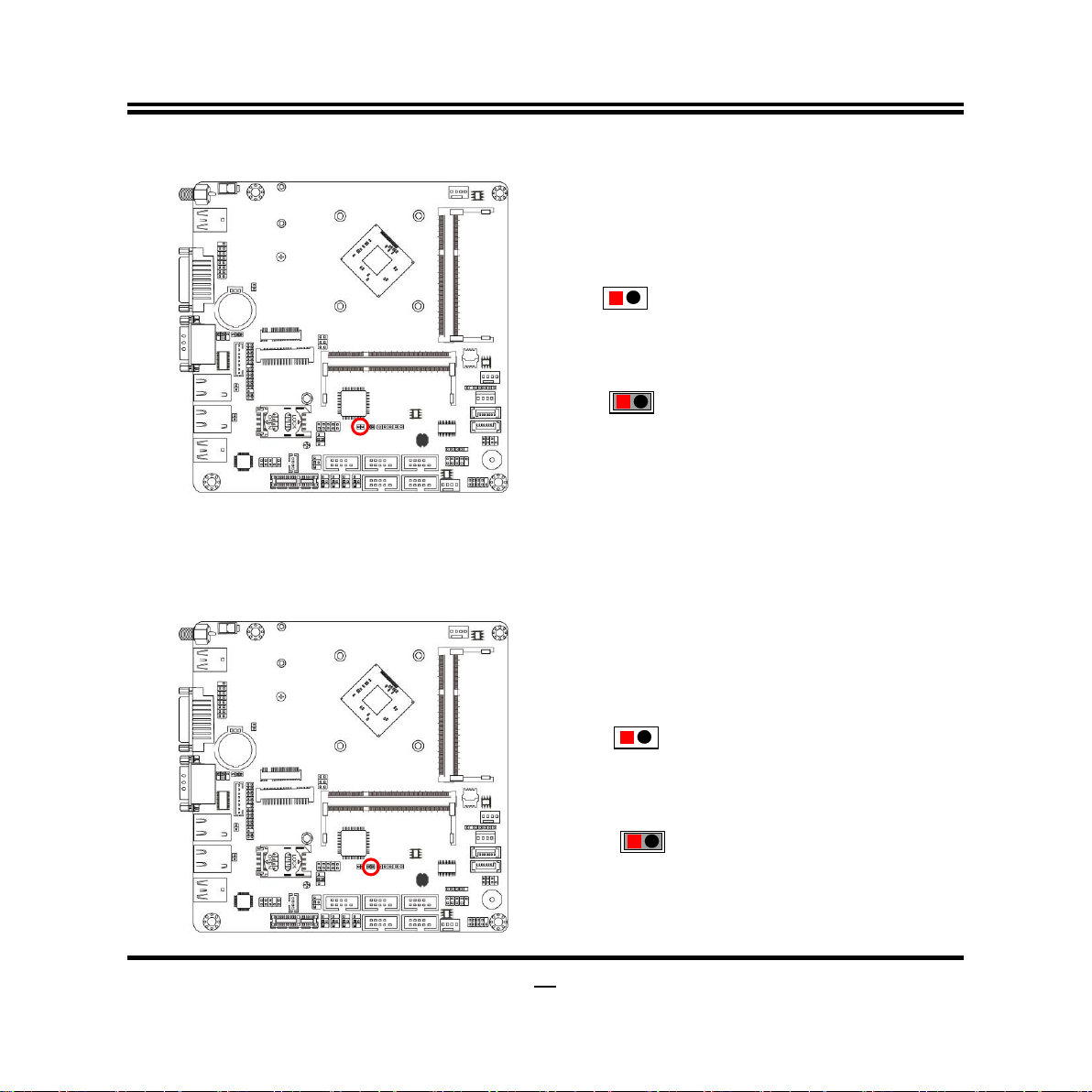

COPEN

Case Open Message Display Function

2-Pin Block

AT_MODE

ATX Mode / AT Mode Select

2-Pin Block

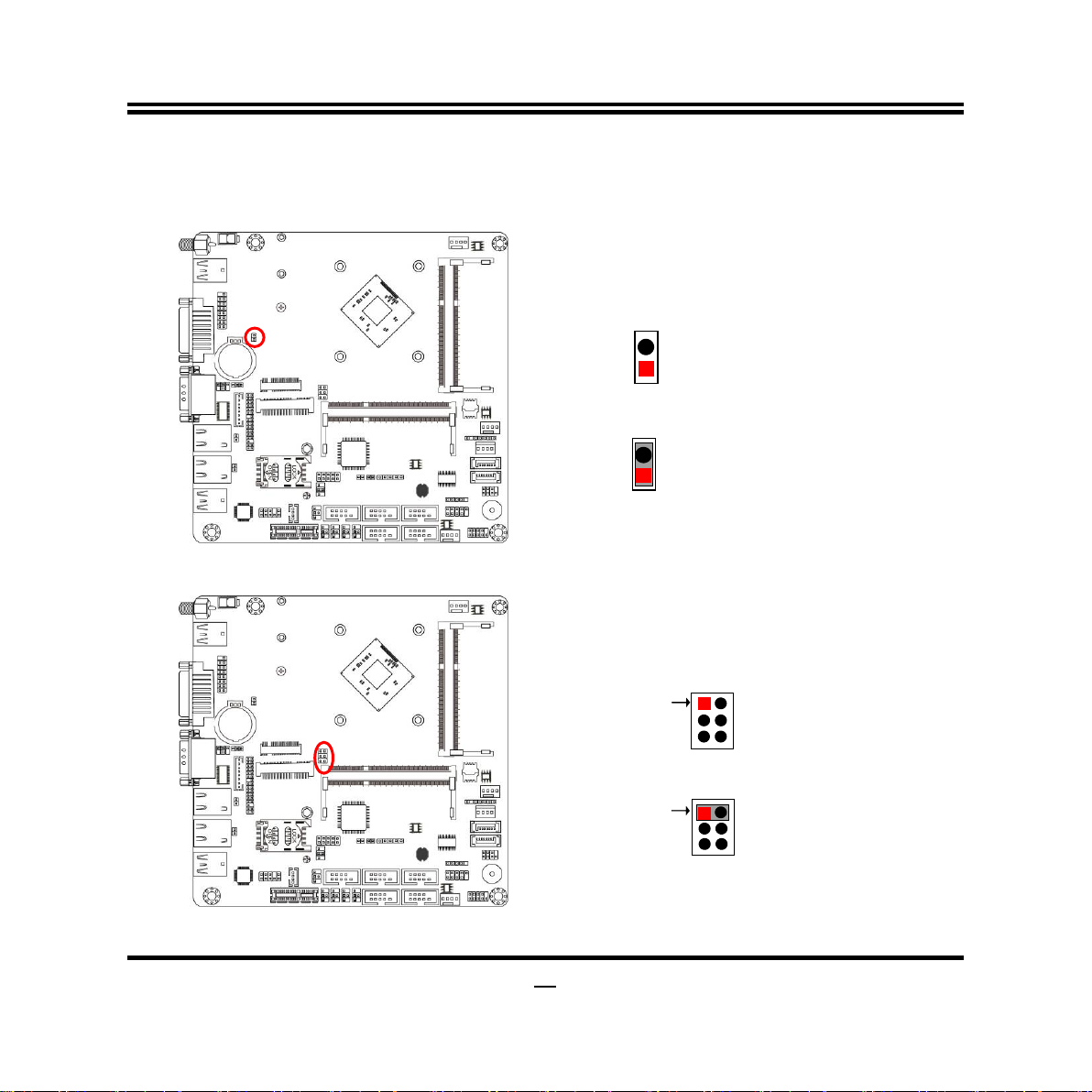

RTC_RST

Reset all RTC register bits

2-Pin Block

JBAT

Pin (1&2): Flash Descriptor Security Override
Pin (5&6): ODD Present Setting

6-Pin Block

Connector

Name

DCIN

DC 12V System Power–in Connector

ATX2P

Internal DC 12V System Power–in Connector

USB30/USB31

USB 3.0 Port Connector X2

DVI

DVI-D Port Connector

COM1

Serial Port Connector

LAN1/LAN2

RJ-45 LAN Port Connector X2

SATA1/2

SATAIII Port Connector X2

SATAPW

SATA Power out Connector

CPUFAN

CPUFAN Connector

SYSFAN1/SYSFAN2

SYSFAN Connector X2

Jumper

Pin (3&4): Clear CMOS RAM Function Setting

Connectors

7

Header

Name

Description

FP_AUDIO

Front Panel Audio Header

9-pin Block

SPEAK_CON

Speaker Header

4-pin Block

LAN1_LED/LAN2LED

LAN Activity LED Header

2-pin Block

FP_USB21

USB 2.0 Header

4-pin Block

FP_USB20

USB 2.0 Header

9-pin Block

JW_FP

Front Panel Header(PWR LED/

9-pin Block
SPK-LED

Power LED & Speaker Header

7-pin Block

PS2KBMS

PS/2 Keyboard & Mouse Header

6-pin Block

SMBUS

SMBUS Header

5-pin Block

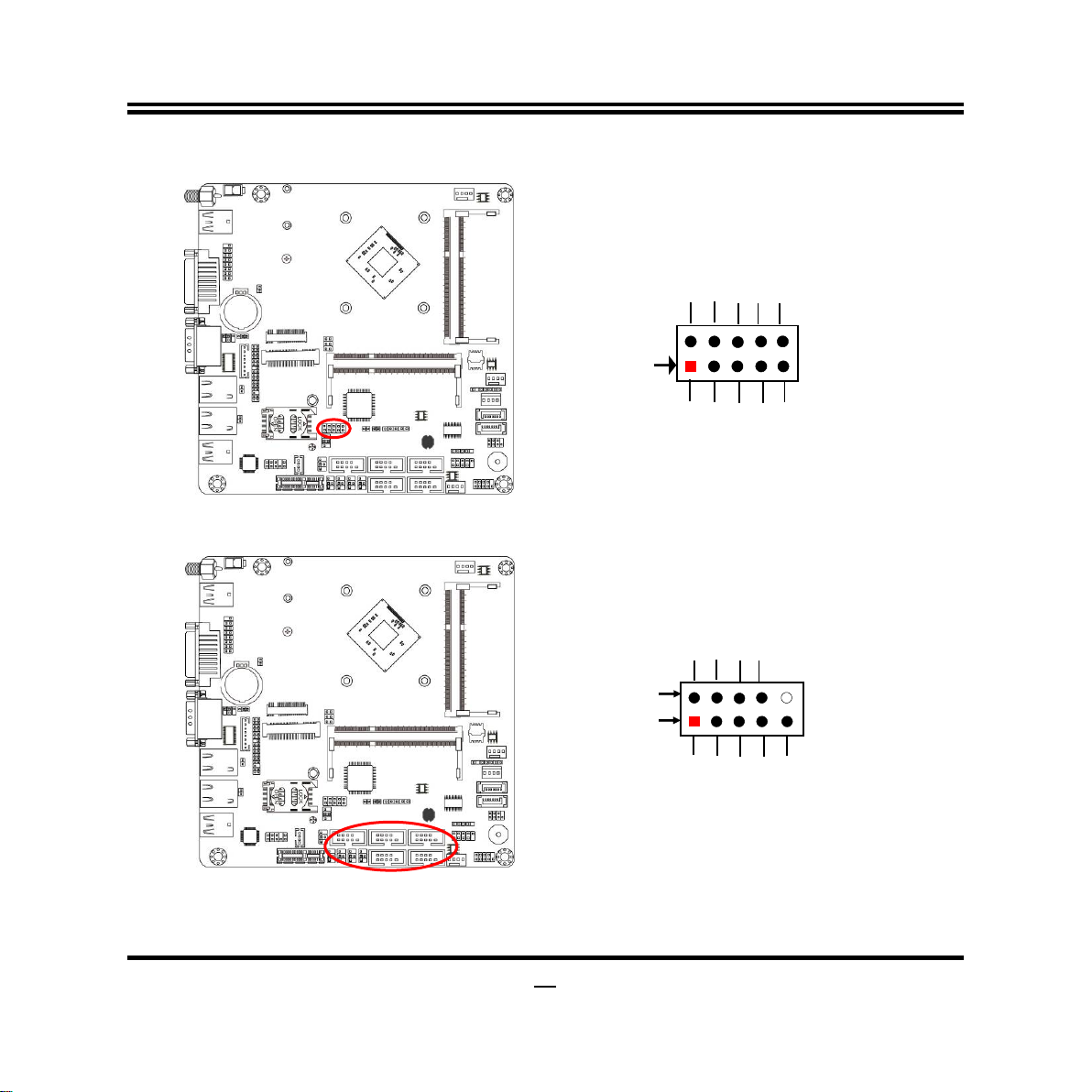

GPIO_CON

GPIO Header

10-pin Block

COM2/3/4/5/6

Serial Port Header X5

9-pin Block

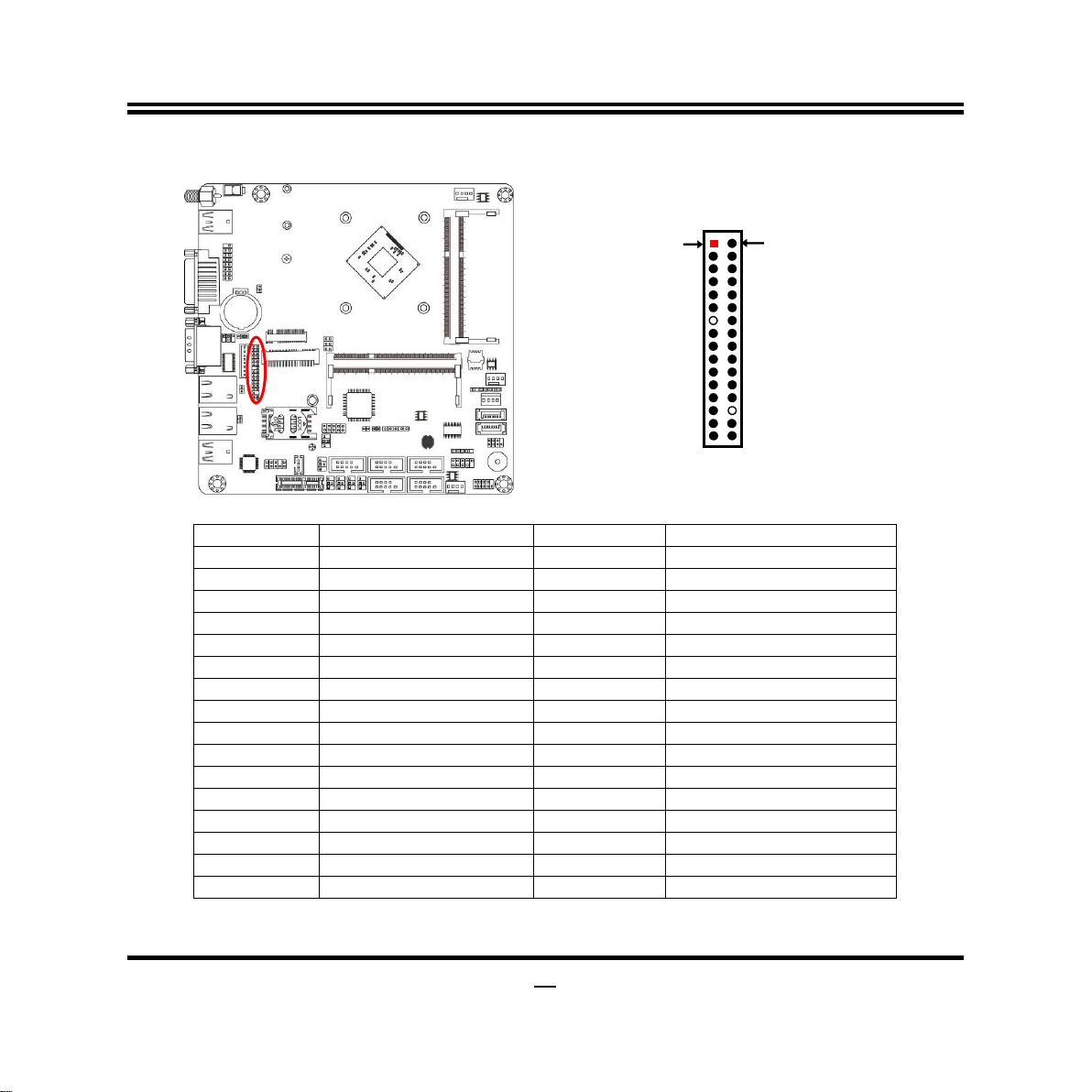

LVDS

LVDS Header

30-pin Block

INVERTER

LVDS Inverter

8-pin Block

FP_VGA

Front Panel VGA Header

15-pin Block

Headers

HDD LED/Power Button /Reset)

8

JP

1→COM1 Port Pin-9

6 4 2

3

1

5

2-4 Closed:

RI=RS232(Default);

3-4 Closed:

RI= 5V;

4-6 Closed:

RI= 12V.

1 3 5

2

4

6

1

3

5

2

4

6

JP3→COM2 Header Pin-9

4-6 Closed:

RI= +12V.

1

3

5

3-4 Closed:

RI= +5V;

2-4 Closed:

RI=RS232;

4

6

2

6

5

3

1

4

2

5

3

1

6

4

2

Chapter 2

Hardware Installation

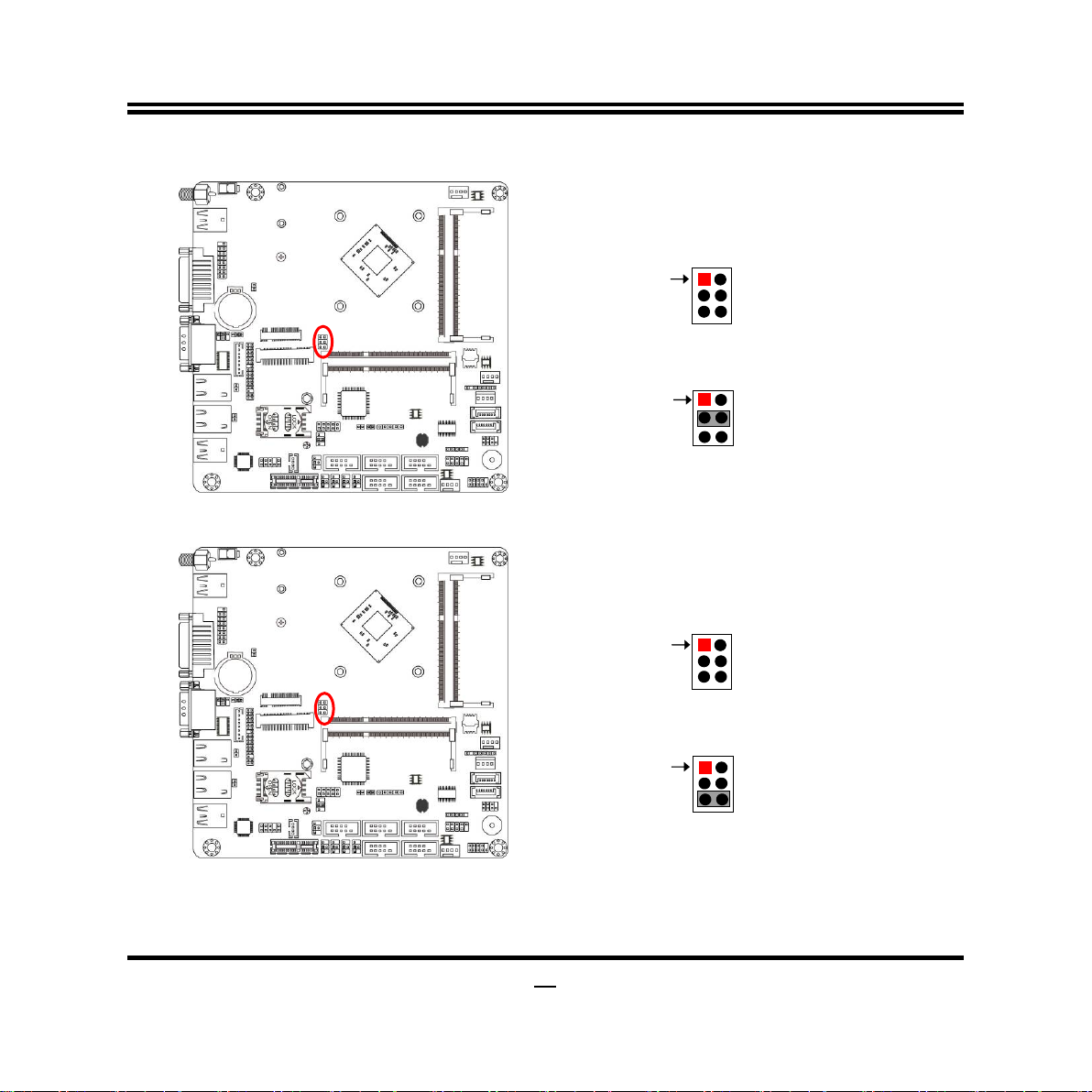

2-1 Jumper Setting

JP1 (4-pin): COM1 Port Pin9 Function Select

JP3 (4-pin): COM2 Header Pin9 Function Select

9

JP6→COM3 Header Pin-9

4-6 Closed:

RI= +12V.

1

3

5

3-

4 Closed:

RI= +5V;

2-4 Closed:

RI=RS232;

4

6

2

6

5

3

1

4

2

5

3

1

6

4

2

JP7→COM4 Header Pin-9

4-6 C

losed:

RI= +12V.

1

3

5

3-4 Closed

:

RI= +5V;

2-4 Closed:

RI=RS232;

4

6

2 6 5

3

1

4

2

5

3

1

6

4

2

JP6 (4-pin): COM3 Header Pin9 Function Select

JP7 (4-pin): COM4 Header Pin9 Function Select

10

JP8→COM5 Header Pin-9

4-6 Closed:

RI= +12V.

1

3

5

3-

4 Closed:

RI= +5V;

2-4 Closed:

RI=RS232;

4

6

2

6

5

3

1

4

2

5

3

1

6

4

2

JP9→COM6 Header Pin-9

4-6 C

losed:

RI= +12V.

1

3

5

3-4 Closed

:

RI= +5V;

2-4 Closed:

RI=RS232;

4

6

2 6 5

3

1

4

2

5

3

1

6

4

2

JP8 (4-pin): COM5 Header Pin9 Function Select

JP9 (4-pin): COM6 Header Pin9 Function Select

11

JP5→LVDS Panel VCC

1

3

5

4

6

2

6

5

3

1

4

2

5

3 1 6

4

2

2-4 Closed:

VCC=3.3V;

3-4 Closed:

VCC= 5V

(Default);

4-6 Closed:

VCC= 12V.

2-3 Close: INVERTER Back Light 12V Selected(Default).

JP4→INVERTER Back Light VCC

1-2 Close: INVERTER Back Light 5V Selected;

1

3

JP5 (4-pin): LVDS Panel VCC 3.3V/5V/12V Select

JP4 (3-pin): INVERTER Back Light VCC 5V/12V Select

12

COPEN

1-2 Open: Normal(Defualt);

1

1

1-2 Closed: Case Open Function
Selected(One Touch).

1

1

AT_MODE

1-2 Open: ATX Mode Selected;

1-2 Closed：AT Mode Selected.

COPEN (2-pin): Case Open Message Display Function Select

Pin 1-2 Close: When Case open function pin short to GND, the Case open function
was detected. When Used, needs to enter BIOS and enable ‘Case Open Detect’
function. In this cas e if your case is removed, next ti me when you restar t your computer,
a message will be displayed on screen to inform you of this.

AT_MODE (2-pin): ATX Mode/AT Mode Select

13

RTC_RST

1

-2 Close:

RTC Reset.

1-2 Open: Normal(Default)

;

1

1

Pin 1-2 of JBAT→ Flash Desciptor Security Override

2

Pin 1

1-2 Open: Normal (Default);

Pin 1

1-2 Closed: Flash Descriptor Security Override.

2

*ATX Mode Selected: Press power button to power on after power input ready;
AT Mode Selected: Directly power on as power input ready.

RTC_RST (2-pin): Reset All RTC Register Bits

Pin 1 & 2 of JBAT (6-pin): Flash Descriptor Security Override

14

Pin 3-4 of JBAT→Clear CMOS

2

Pin1

Pin1

2

4

3

3

4

3-4 Open: Normal(Default);

3-4 Closed: Clear CMOS(One Touch).

Pin 5-6 of JBAT→ODD Present Select

2

Pin1

Pin1

2

4

3

3

4

5-6 Open: Normal (Default);

5-6 Closed: ODD Present.

5

6

5

6

Pin 3 & 4 of JBAT (6-pin): Clear CMOS Setting

Pin 5&6 of JBAT (6-pin): ODD Present Select

15

transfer rate.

USB 3.0 Ports

RJ-45 LAN Ports

USB 3.0 Ports

DVI-D Port

COM1

Serial Port

DC-in 12V

2-2 Connectors and Headers 2-2-1 Connectors

(1) Rear I/O Connectors

Power

Connector

Icon Name Function

12V DC-in Power

Connector

USB 3.0 Port

DVI-D Port

COM1:

RS232/422/485
Serial Port

RJ-45 LAN Port

For user to connect compatible power
adapter to provide power supply for the
system.

To connect USB keyboard, mouse or other
devices compatible with USB specification.
USB 3.0 ports supports up to 5Gbps data

To connect display device that support DVI
specification.

Mainly for user to connect external MODEM
or other devices that supports
Serial Communications Interface.

This connector is standard RJ-45 LAN jack
for Network connection.

16

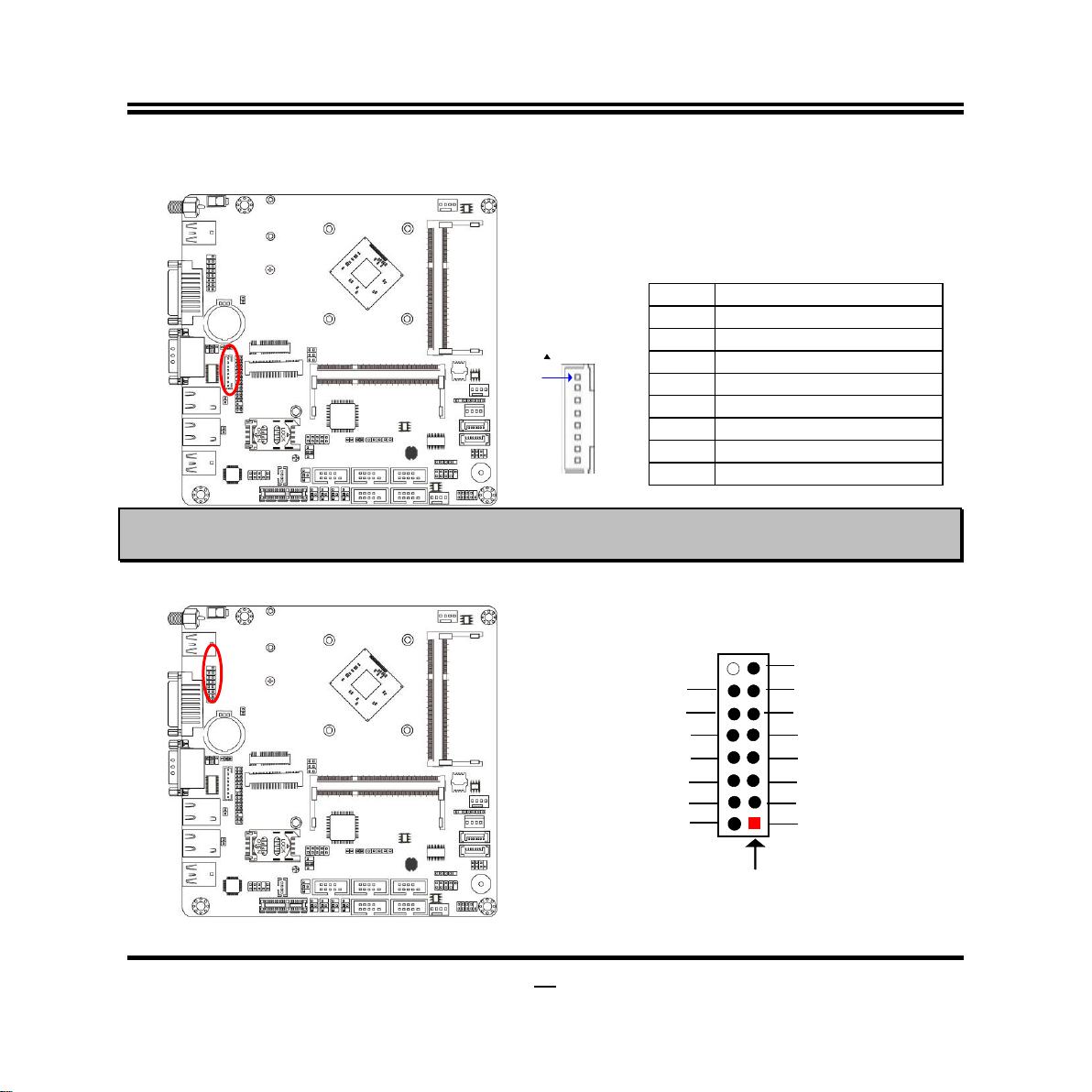

(2) COM1 (9-pin Block): RS232/422/485 Port

COM1 port can function as RS232/422/485 port. In normal settings COM1 functions
as RS232 port. With compatible COM cable COM1 can function as RS422 or RS 485
port.
User also needs to g o t o BIOS t o set ‘T ran smissi on M ode Se lect’ for COM1 (refer to
Page 31) at first, before using specialized cable to connect different pins of this port.

(3) ATX2P (2-pin Block): Internal 12V DC-in Power Connector

17

Pin No.

Definition

1

GND
2

TXP
3

TXN
4

GND
5

RXN
6

RXP
7

GND

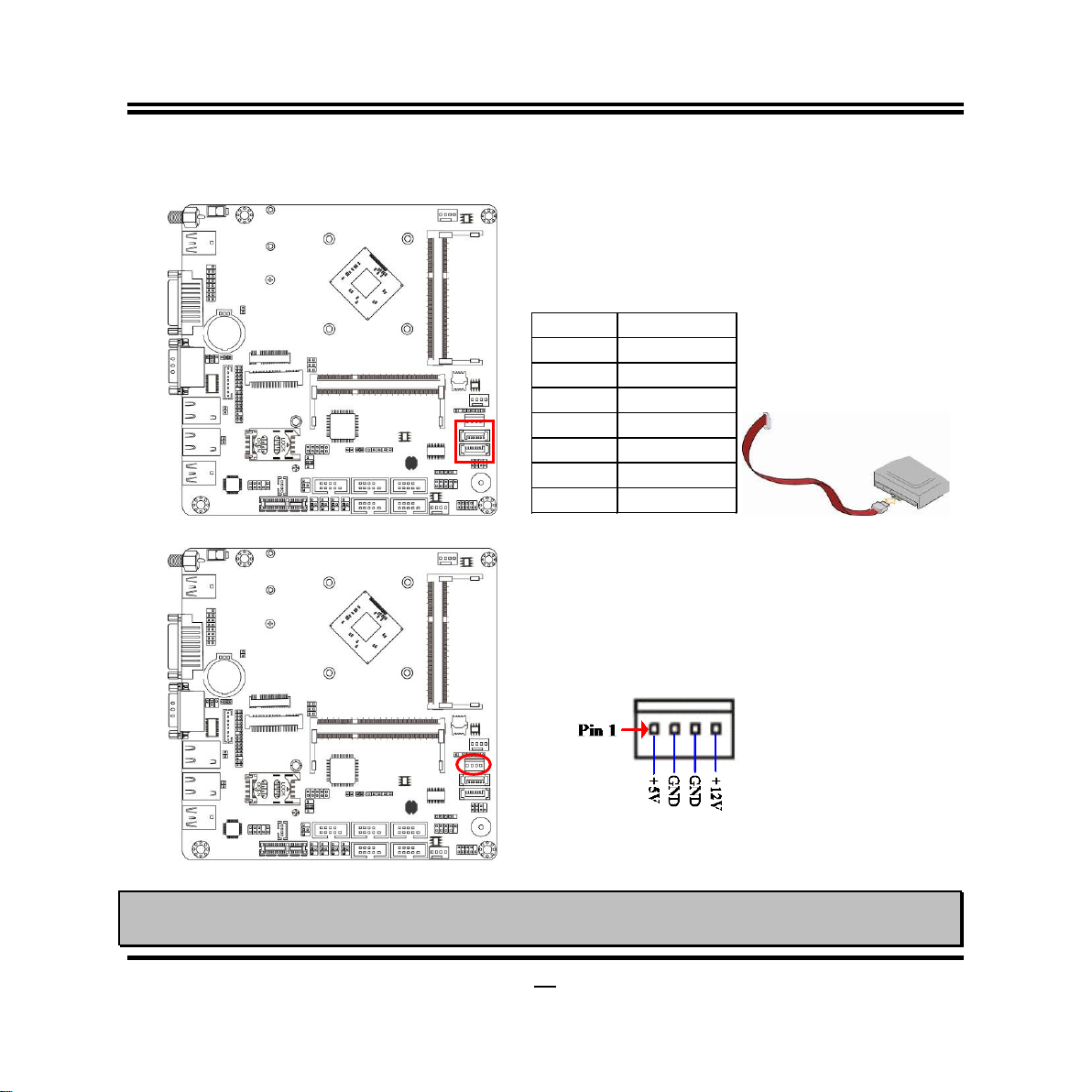

(4) SATA1/SATA2(7-pin Block): SATAIII Port connector

These are high-speed SATAIII ports that support 6GB/s transfer rate.

(5) SATAPW (4-pin): SATA Power O ut Connector

Warning: Make sure that Pin-1 of co mpatible SATA Power conn ector is inserted into correspondi ng
Pin-1 of PWOUT to avoid possible damage to the board and hard disk driver!

18

Line-Out, MIC Header

Pin 1

MIC2-L

LINE OUT-L

MIC2-R

LINE OUT-R

SENSE

GND

LINE_OUT_JD

MIC_JD

DETECT

2

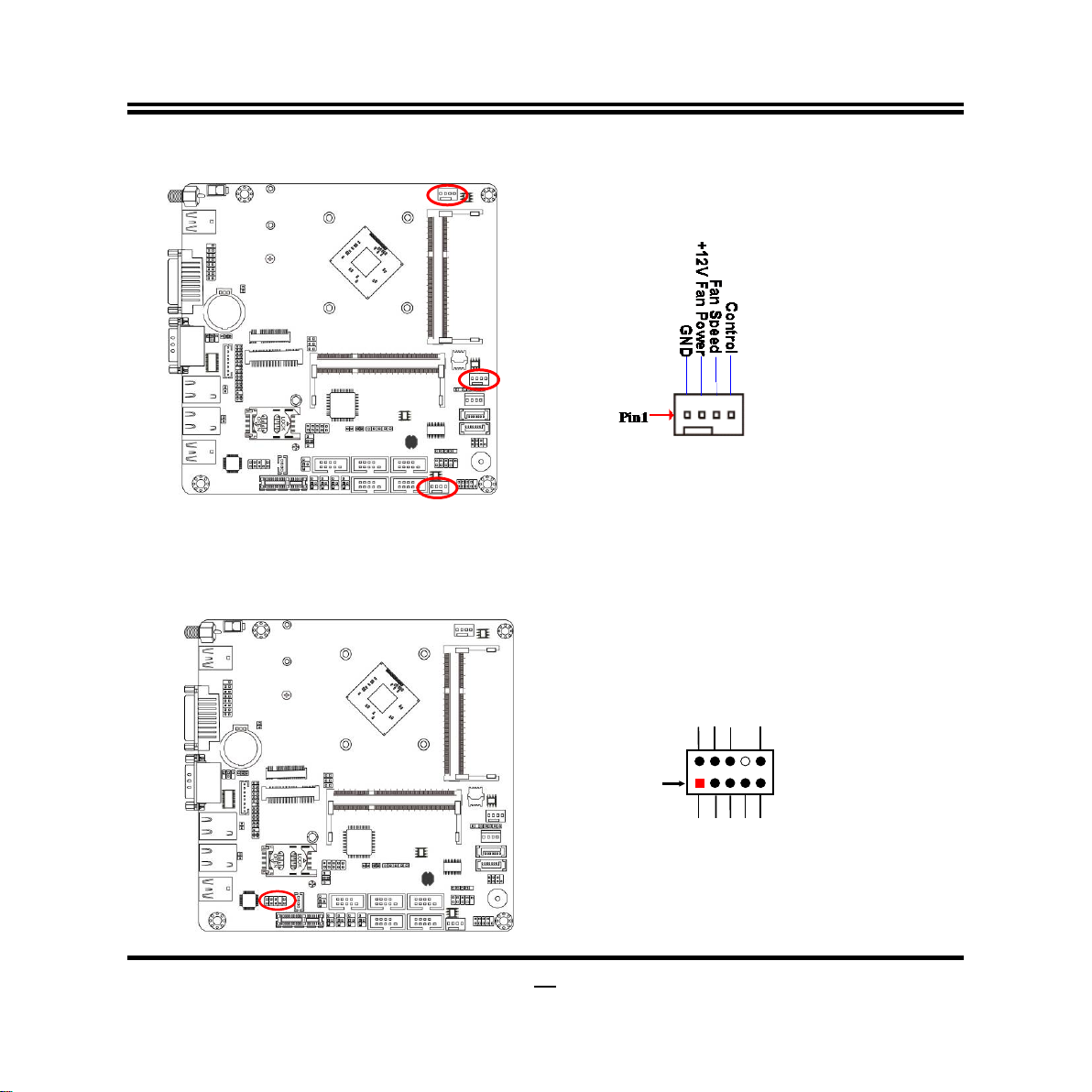

(6) CPUFAN1/SYSFAN1/SYSFAN2 Connector (4-pin): FAN Connectors

2-2-2 Headers

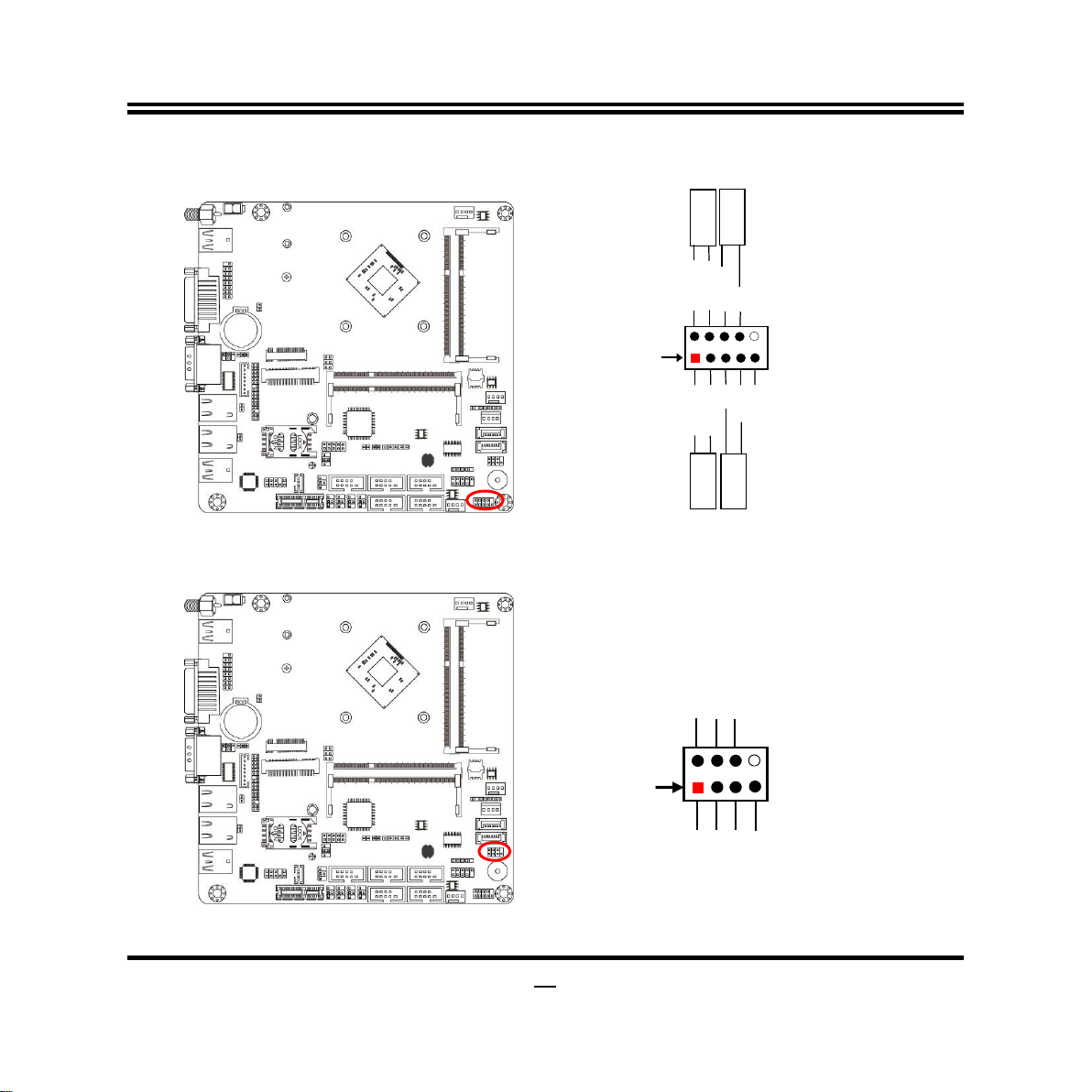

(1) FP_AUDIO (9-pin): Line-Out, MIC-In Header
This header connects to Front Panel Line-out, MIC-In connector with cable.

19

Pin No.

Definition

1

L­2 L+
3

R+
4

R-

LED-

Pin 1

LED+

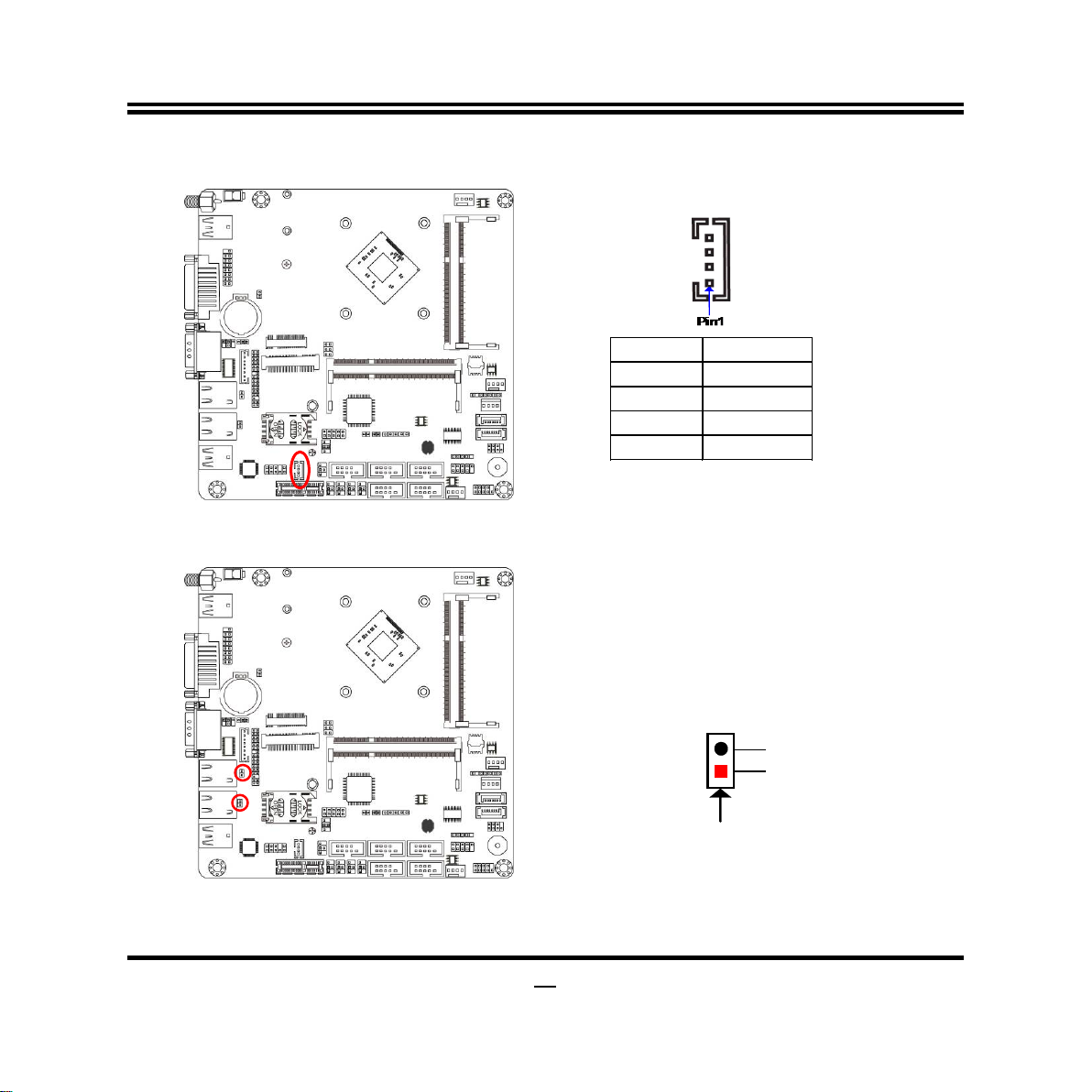

(2) SPEAK_CON (4-pin): Speaker Connector

(3) LAN1_LED/LAN2_LED (2-pin): LAN Activity LED Header

20

Pin 1

VCC

-DATA

GND

+DATA

Pin 1

VCC

-DATA

GND

+DATA

VCC

NC

-DATA

GND

+DATA

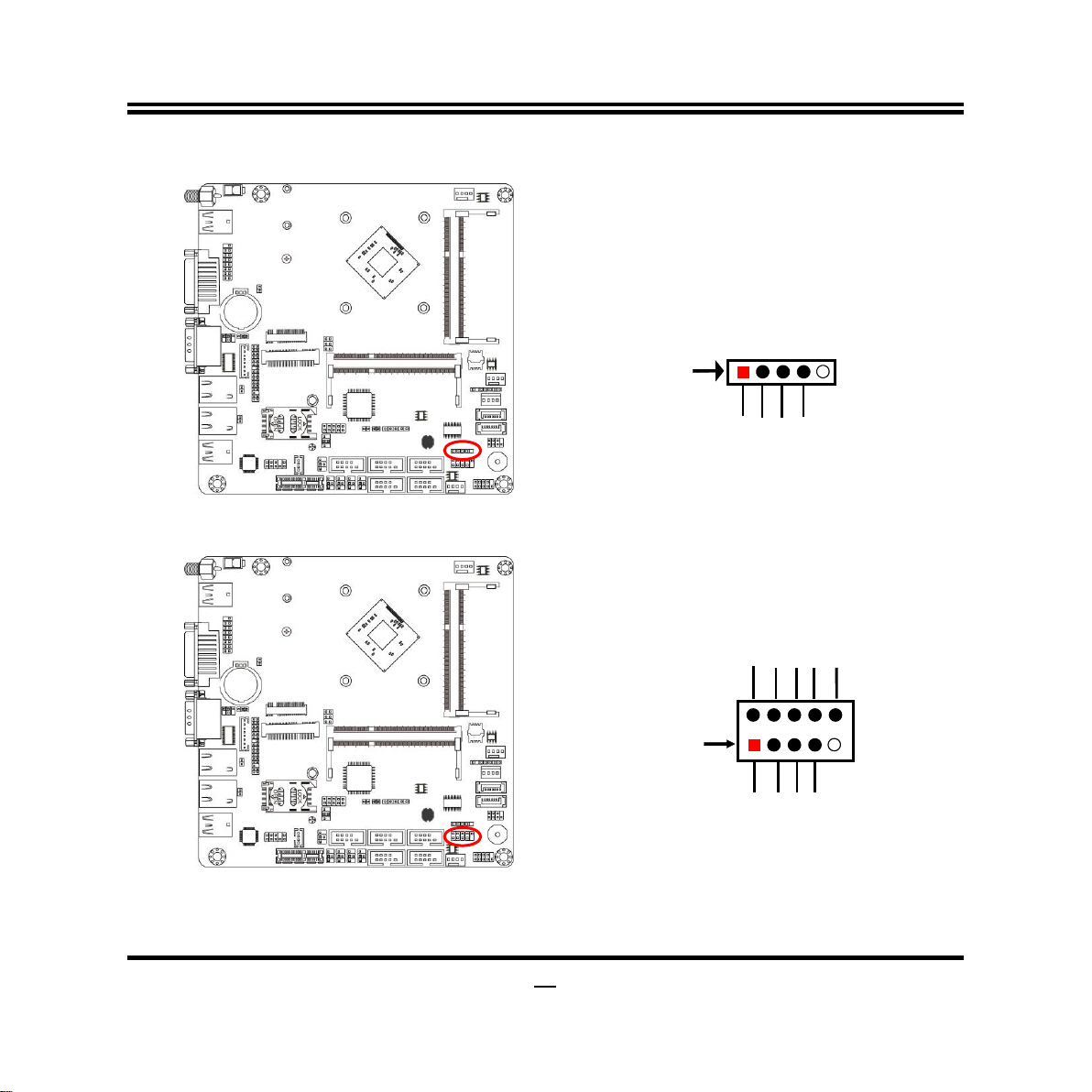

(4) FP_USB21 (4-pin): USB 2.0 Port Header

(5) FP_USB20 (9-pin): USB 2.0 Port Header

21

HDLED

RESET

HDDLED+

GND

PWRLED+

PWRBTN

GND

PWRLED-

HDDLED-

RSTSW

VCC

PWRBT

Pin 1

2

PWR LED

SPK+

NC

NC

PWRLED-

2

Pin 1

SPK-

PWRLED+

PWRLED-

(6) JW_FP (9-pin): Front Panel Header

(7) SPK-LED (7-pin): Speaker Header & PWR LED Header

22

GND

KB_CLK

KB_DATA

Pin1

MS_DATA

VCC

MS_CLK

SMBUS_CLK

3VSB

Pin1

SMBUS_DATA

GND

NC

(8) PS2KBMS (6-pin): PS2 Keyboard & Mouse Header

(9) SMBUS (5-Pin): SM BUS Header

23

GPIO80

Pin1

2

GPIO82

GPIO84

GPIO86

GND

GPIO81

GPIO83

GPIO85

GPIO87
VCC

DCD#

Pin1

Pin6

SIN

SOUT

DTR#

GND

DSR#

RTS#

CTS#
RI#

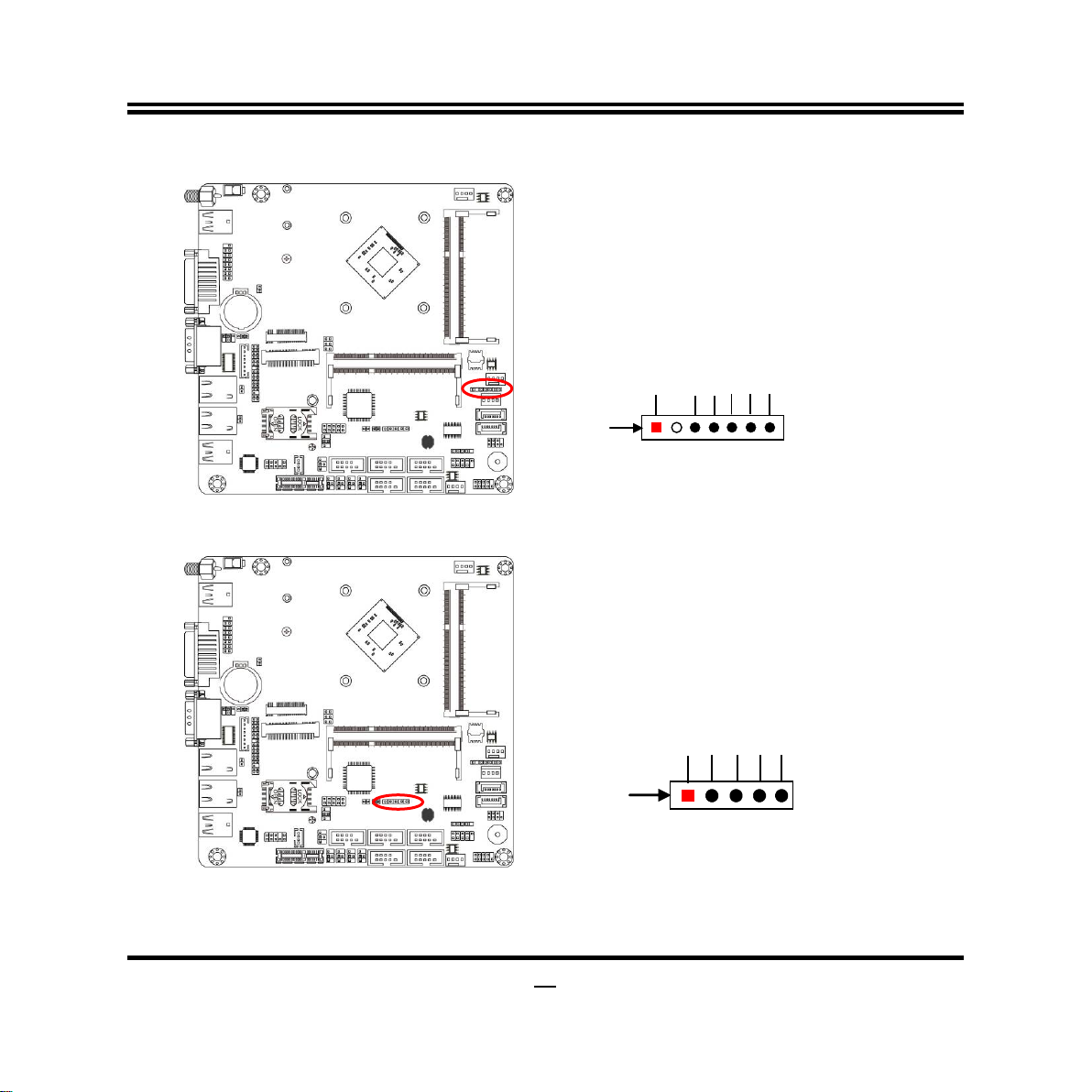

(10) GPIO_CON (10-pin): GPIO Header

(11) COM2/3/4/5 (9-pin): Serial Port Header

24

Pin 1

Pin2

Pin NO.

Pin Define

Pin NO.

Pin Define

Pin 1

LVDSB_DATAN3

Pin 2

LVDSB_DATAP3

Pin 3

LVDS_CLKBN

Pin 4

LVDS_CLKBP

Pin 5

LVDSB_DATAN2

Pin 6

LVDSB_DATAP2

Pin 7

LVDSB_DATAN1

Pin 8

LVDSB_DATAP1

Pin 9

LVDSB_DATAN0

Pin 10

LVDSB_DATAP0

Pin 11

LVDS_DDC_DAT

Pin 12

LVDS_DDC_CLK

Pin 13

N/A

Pin 14

GND

Pin 15

GND

Pin 16

GND

Pin 17

LVDSA_DATAP3

Pin 18

LVDSA_DATAN3

Pin 19

LVDS_CLKAP

Pin 20

LVDS_CLKAN

Pin 21

LVDSA_DATAP2

Pin 22

LVDSA_DATAN2

Pin 23

LVDSA_DATAP1

Pin 24

LVDSA_DATAN1

Pin 25

LVDSA_DATAP0

Pin 26

LVDSA_DATAN0

Pin 27

PVDD

Pin 28

N/A

Pin 29

PVDD

Pin 30

PVDD

Pin 31

GND

Pin 32

GND

(12) LVDS (30-pin): 24-bit Dual Channel LVDS Header

25

Pin1

Pin No.

Definition

1

Backlight Enable
2

Backlight PWM
3

Backlight VCC
4

Backlight VCC
5

GND
6

GND
7

Backlight Brightness Up SW
8

Backlight Brightness Down SW

VCC

BLUE

GND

GND

GND

NC

GND

Pin 1

GND

2

RED

GREEN

NC

HSYNC

DCC_CLK

DCC_DATA

VSYNC

(13) INVERTER (8-pin): LVDS Inverter Connector

Warning! Find Pi n-1 location of the inver ter and make sure that the installation direc tion is correct!
Otherwise serious harm will occur to the board/display panel!!

(14) FP_VGA(15-pin): VGA Port Header

26

Chapter 3

Introducing BIOS

Notice! The BIOS options in this manual are for reference only. Different

configurations may lead to difference in BIOS screen and BIOS
screens in manual s ar e usu ally the first BIOS v ersion w hen th e b oar d is
released and may be different from your purchased motherboard.
Users are welcome to download the latest BIOS version form our
official website.

The BIOS is a program located o n a Fl ash Me mory on the mot herbo ard. T his pr ogr am
is a bridge between motherboard and operating system. When you start the computer,
the BIOS program will gain control. The BIOS first operates an auto-diagnostic test
called POST (power on self test) for all the necessary hardware, it detects the entire
hardware device and configures the parameters of the hardware synchronization.
Only when these tasks are completed done it gives up control of the computer to
operating system (OS). Since the BIOS is the only channel for hardware and software
to communicate, it is the key factor for system stability, and in ensuring that your
system performance as its best.

3-1 Entering Setup

Power on the comput er and by pr essi ng < Del> immedi ately allow s you to ent er Set up.
If the message disappears before your respond and you still wish to enter Setup,
restart the system to try again by turning it OFF then ON or pressing the “RESET”
button on the system case. You may also restart by simultaneously pressing <Ctrl>,
<Alt> and <Delete> keys. If you do not press the keys at the correct time and the
system does not boot, an err or messag e w ill be display ed and y ou w ill ag ain be as ked
to
Press <Del> to enter Setup; press < F7> to enter pop-up Boot menu.

27

Menu Bar

Menu Items

Current Setting Value

3-2 BIOS Menu Screen

The following diagram show a general BIOS menu screen:

General Help Items

3-3 Function Keys

In the above BIOS Setup main menu of, you can see several options. We will explain
these options step by step in the following pages of this chapter, but let us first see a
short description of the function keys you may use here:

Press←→ (left, right) t o select screen;



Press ↑↓ (up, down) to choose, in the main menu, the option you want to confirm



or to modify.

Press <Enter> to select.



Function Keys

28

Main

To change system basic configuration

Advanced

To change system advanced configuration

Chipset

To change chipset configuration

Security

Password settings

Boot

To change boot settings

Save & Exit

Save setting, loading and exit options.

Press <+>/<–> keys when you want to modify the BIOS parameters for the active



option.

[F1]: General help.



[F2]: Previous value.



[F3]: Optimized defaults.



[F4]: Save & Exit.



[F7]: To enter pop-up boot menu to select boot device.



Press <Esc> to quit the BIOS Setup.



3-4 Getting Help

Main Menu

The on-line description of the highlighted setup function is displayed at the top right
corner the screen.

Status Page Setup Menu/Option Page Setup Menu

Press [F1] to pop up a small help window that describes the appropriate keys to use
and the possible selections for the highlighted item. To exit the Help Window, press
<Esc>.

3-5 Menu Bars

There are six menu bars on top of BIOS screen:

User can press the right or left arrow key on the keyboard to switch from menu bar.
The selected one is highlighted.

29

3-6 Main Menu

Main menu screen includes some basic system information. Highlight the item and
then use the <+> or <-> and numerical keyboard keys to select the value you want in
each item.

System Date

Set the date. Please use [Tab] to switch between dat a ele m ents .

System Time

Set the time. Please use [Tab] to switch between time elements.

30

3-7 Advanced Menu

 Trusted Computing

Press [Enter] to enable or disable Security Device Support.

TPM20 Device Found

Security Device Support

Use this item to enable or disable BIOS support for security device. TCG EFI
protocol and INT1A interface will not be available.
The optional settings: [Disabled]; [Enabled].

HashPolicy

Use this item to enable or disable the Hash policy to use. SHA-2 is most secure
but might not be supported by all operating systems.
The optional settings: [Sha-1]; [Sha-2].

31

 ACPI Settings

Press [Enter] to make setti ng s for t he fol lowing sub-item:

ACPI Settings

ACPI Sleep State

Use this item to select the highest ACPI sleep state the system will enter when the
suspend button is pressed.
The optional settings are: [Suspend Disabled]; [S3 (Suspend to RAM)].

 Super I/O Configuration

Press [Enter] to make setti ng s for t he fol lowing sub-items:

Super IO Configuration

 Serial Port 1 Configuration
Press [Enter] to make settings for the fol l owing items:

Serial Port

Use this item to enable or disable serial port (COM).

Change Settings

Use this item to select an optimal setting for super IO device.

Transmission Mode Select

The optional settings are: [RS422]; [RS232]; [RS485].

Mode Speed Select

The optional settings are: [RS232/RS422/RS485=250kbps]; [RS232=1Mbps,
RS422/RS485=10Mbps].

Serial Port FIF0 Mode

The optional setting s a re: [16-Byte FIF0]; [32-Byte FIF0]; [64-Byte FI F0]; [128-Byte
FIF0].

 Serial Port 2 Configuration/ Serial Port 3 Configuration/ Serial Port 4

Configuration/ Serial Port 5 Configuration/ Serial Port 6 Configuration

Press [Enter] to make settings for the fol l owing items:
Serial Port

Use this item to enable or disable serial port (COM).

Change Settings

32

Use this item to select an optimal setting for super IO device.

Serial Port FIF0 Mode

The optional setting s a re: [16-Byte FIF0]; [32-Byte FIF0]; [64-Byte FI F0]; [128-Byte
FIF0].

OS Select for Serial Port

The optional settings: [Windows]; [LINUX].

ERP Support

The optional settings: [Disabled]; [Enabled].
This item should be set as [Disabled] if you wish to have all active wake-up
functions.

Case Open Detect

This item controls detect case open function.
The optional settings: [Disabled]; [Enabled].

WatchDog Reset Timer

Use this item to enable or disable WatchDog Timer reset function. When set as
[Enabled], the following sub-items shall appear:

WatchDog Reset Timer Value

User can set a value in the range of [10] to [255].

WatchDog Reset Timer Unit

The optional settings are: [Sec.]; [Min.].

WatchDog Wake-up Timer

This item support WDT wake-up while ERP function is set as [Enabled].
The optional settings: [Disabled]; [Enabled].
When set as [Enabled], the following sub-items shall appear:

WatchDog Wake-up Timer Value

The setting range is [10] ~ [4095] seconds, or [1] ~ [4095] minutes.

WatchDog Wake-up Timer Unit

The optional settings are: [Sec.]; [Min.].

ATX Power Emulate AT Power

33

This item displays current Emulate AT Power Status, motherboard power On/Off
control by power supply. User needs to select ‘AT or AT X Mode’ on MB jumper at
first (refer to Page 9, Pin (1&2) of J1 for ATX Mode & AT Mode Select).

 Serial Port Console Redirection

Press [Enter] to make setti ng s for t he fol lowing sub-items:

COM1

Console Redirection

Use this item to enable or disable COM1 Console Redirection.
The optional settings are: [Disabled]; [Enabled].

When set as [Enabled], user can make further settings in the ‘Console
Redirection Settings’ screen:

 Console Redirection Settings
The settings specify how the host computer and the remote computer (which the
user is using) will exchange data. Both computers should have the same or
compatible settings.
Press [Enter] to make setti ng s for t he fol lowing sub-items.

Terminal Type

The optional settings are: [VT100]; [VT100+]; [VT-UTF8]; [ANSI].

Bits per second

The optional settings are: [9600]; [19200]; [38400]; [57600]; [115200].

Data Bits

The optional settings are: [7]; [8].

Parity

The optional settings are: [None]; [Even]; [Odd];[Mark]; [Space].

Stop Bits

The optional settings are: [1]; [2].

Flow Control

The optional settings are: [None]; [Hardware RTS/CTS].

VT-UTF8 Combo Key Support

The optional settings are:[Disabled]; [Enabled].

34

Recorder Mode

The optional settings are: [Disabled]; [Enabled].

Resolution 100x31

The optional settings are:[Disabled]; [Enabled].

Legacy OS Redirection Resolution

The optional settings are: [80x24]; [80x25].

Putty Keyp ad

The optional settings are: [VT100]; [LINUX]; [XTERMR6]; [SCO]; [ESCN];
[VT400].

Redirection After BIOS POST

The optional settings are: [Always Enable]; [BootLoader].

Serial Port for Out-of-Band Management/
Windows Emergency Management Services (EMS)

Console Redirection

The optional settings: [Disabled]; [Enabled].
When set a s [Enabled], user can make further settings in ‘Console Redirection
Settings’:

 Console Redirection Settings
The settings specify how the host computer and the remote computer (which the
user is using) will exchange data. Both computers should have the same or
compatible settings.
Press [Enter] to make setti ng s for t he fol lowing sub-items.

Out-of-Band Mgmt Port

The default setting is: [COM1].

Terminal Type

The optional settings are: [VT100]; [VT100+]; [VT-UTF8]; [ANSI].

Bits per second

The optional settings are: [9600]; [19200]; [57600]; [115200].

Flow Control

The optional settings are: [None]; [Hardware RTS/CTS]; [Software Xon/Xoff].

35

Data Bits

The default setting is: [8].

*This item may or may not show up, depending on different configuration.

Parity

The default setting is: [None].

*This item may or may not show up, depending on different configuration.

Stop Bits

The default setting is: [1].

*This item may or may not show up, depending on different configuration.

 PC Health Status

Press [Enter] to v iew current hardware health status , set shu tdow n t emperat ure, or
make further settings in ‘SmartFan Configuration’.

 SmartFAN Configuration
Press [Enter] to make setti ng s for SmartFAN Configuration:

CPUFAN / SYSFAN1/SYSFAN2 Smart Mode

The optional settings: [Disabled]; [Enabled].
When set as [Enabled], the following sub-items shall appear:
CPUFAN / SYSFAN1/SYSFAN2 Full-Speed Temperature
Use this item to set CPUFAN/SYSFAN1/ SYSFAN2 full speed temperature. Fan
will run at full speed when above the pres et temperature.
CPUFAN / SYSFAN1/SYSFAN2 Full-Speed Duty
Use this item to set CPUFAN/SYSFAN1/ SYSFAN2 full speed duty. Fan will run at
full speed when above the pre-set duty.
CPUFAN / SYSFAN1/SYSFAN2 Idle-Speed Temperature
Use this item to set CPUFAN/SYSFAN1/ SYSFAN2 idle speed temperature. Fan
will run at idle speed when below the pre-set temperature.
CPUFAN / SYSFAN1/SYSFAN2 Idle-Speed Duty
Use this item to set CPUFAN/SYSFAN1/ SYSFAN2 idle speed duty.. Fan will run
at idle speed when below the pre-set duty.

Shutdown Temperature Configuration

36

Use this item to select system shutdown temperature.
The optional settings are: [Disabled]; [65oC/148oF]; [70oC/156oF]; [75oC/164oF];
[80oC/172oF]; [85oC/180oF].

 CPU Configuration

Press [Enter] to v iew curr ent CPU con figurati on and make settings for the followi ng
sub-items:

Limit CPUID Maximum

The optional settings: [Disabled]; [Enabled].
This item should be set as [Disabled] for Windows XP.

Intel Virtualization Technology

The optional settings: [Enabled]; [Disabled].
When set as [Enabled], a VMM can utilize the additional hardware capabilities
provided by Vanderpool Technology.

EIST

The optional settings: [Disabled]; [Enabled].
Use this item to enable or disable Intel SpeedStep.

CPU C State Report

Use this item to enable or disable CPU C state report to OS.
The optional settings: [Disabled]; [Enabled].

When set as [Enabled], the following item shall appear:

Max CPU C State

This item controls Max C state that the processor will support.
The optional settings: [C7]; [C6]; [C1].

 SATA Configuration

Press [Enter] to make setti ng s for t he fol lowing sub-items:

SATA Configuration

SATA Controller

The optional settings are: [Enabled]; [Disabled].

When set as [Enabled], the following items shall appear:

SATA Mode Selection

The default setting is: [AHCI].

37

SATA Interface Speed

The item is for user to set the maximum speed the SATA controller can support.
The optional settings are: [Gen1]; [Gen2]; [Gen3].

SATA Port1/ SATA Port2

Port1/ Port2

The optional settings are: [Enabled]; [Disabled].

 Network Stack Configuration

Press [Enter] to go to ‘Network Stack’ screen to make further settings.

Network S t ack

The optional settings are: [Enabled]; [Disabled].
When set a s [Enabled], the following sub-items shall appear:

Ipv4 PXE Support

The optional settings are: [Disabled]; [Enabled].
Use this item to enable Ipv4 PXE Boot Support. When set as [Disabled], Ipv4 boot
optional will not be created.

Ipv6 PXE Support

The optional settings are: [Disabled]; [Enabled].
Use this item to enable Ipv6 PXE Boot Support. When set as [Disabled], Ipv4 boot
optional will not be created.

PXE boot wait time

Use this item to set wait time to press [ESC] key to abort the PXE boot.

Media Detect Count

Use this item to set number of times presence of media will be checked.
The optional settings range from [1] to [50].

 CSM Configuration

Press [Enter] to make settings for the fol l owing sub-items:

Compatibility Support Module Configuration

Boot Option Filter

This item controls Legacy/UEFI ROMs priority.
The optional settings are: [UEFI and Legacy ]; [Legacy only]; [UEFI only].

Network

38

This item controls the execution of UEFI and legacy PXE OpROM.
The optional settings are: [Do not launch]; [UEFI only]; [Legacy].

Storage

This item controls the execution of UEFI and Legacy Storage OpROM.
The optional settings are: [Do not launch]; [UEFI only]; [Legacy].

Other PCI devices

This item determines OpROM execution policy for devices other than Network,
storage or video.
The optional settings are: [Do not launch]; [UEFI only]; [Legacy].

 Wake-up Function Settings

Press [Enter] to make setti ng s for t he fol lowing sub-items:

Wake-up System with Fixed Time

Use this item to enable or disable system wake-up by RTC alarm.
The optional settings: [Disabled]; [Enabled].
When set a s [Enabled], system will wake on the hour/min/sec specified.

Wake-up System with Dynamic Time

Use this item to enable or disable system wake-up by RTC alarm.
The optional settings: [Disabled]; [Enabled].
When set as [Enabled], system will wake on the current time + increased
minute(s).The settings range is from [1] ~ [60] minute(s).

PS2 KB/MS Wake-up from S3-S5

Use this item to enable or disable USB Wake-up from S3-S5.
The optional settings: [Disabled]; [Enabled].

*This item is only supported when ‘ERP Support’ is set as [Disabled]. Please
disable ERP before activating this function in S4 or S5 state .

 USB Configuration

Press [Enter] to make setti ng s for t he fol lowing sub-items:

USB Configuration

Legacy USB Support

The optional settings are: [Enabled]; [Disabled]; [Auto].
[Enabled]: To enable legacy USB support.

39

[Disabled]: To keep USB devices available only for EFI specification,
[Auto]: To disable legacy support if no USB devices are connected.
XHCI Hand-off

This is a workaround for OSes without XHCI hand-off support. The XHCI
ownership change should be claimed by XHCI driver.
The optional settings are: [Enabled]; [Disabled].

EHCI Hand-off

This is a workaround for OSes without EHCI hand-off support. The EHCI
ownership change should be claimed by EHCI driver.
The optional settings are: [Disabled]; [Enabled].

USB Mass Storage Driver Support

The optional settings are: [Disabled]; [Enabled].

USB Hardware Delays and Time-outs:

USB Transfer Time-out

Use this item to set the time-out value for control, bulk, and interrupt transfers.
The optional settings are: [1 sec]; [5 sec]; [10 sec]; [20 sec].

Device Reset Time-out

Use this item to set USB mass storage device start unit command time-out.
The optional settings are: [10 sec]; [20 sec]; [30 sec]; [40 sec].

Device Power-up Delay

Use this item to set maximum time the device will take before it properly reports
itself to the host controller.
The optional settings: [Auto]; [Manual].
‘Auto’ uses default value: for a root port it is 100 ms, for a hub port the delay is
taken from hub descriptor.
Select [Manual] you can set value for the following sub-item: ‘Device Power-up

Delay in Seconds’.
Device Power-up Delay in Seconds

The delay range is from [1] to [40] seconds, in one second increments.

 Platform Trust Technology

Press [Enter] to make setting s for the fol l owing sub-item:

40

TPM Configuration

fTPM

The optional settings are: [Enabled]; [Disabled].

 IntelRMT Configuration

Press [Enter] to make setti ng s for t he fol lowing sub-item:

IntelRMT Configuration

Intel RMT Support

The optional settings are: [Enabled]; [Disabled].

When set as [Enabled], user can make further settings in the f oll o w i ng item:

HW Notification

The optional settings are: [Disabled]; [Enabled].

3-8 Chipset Menu

41

 North Bridge

Press [Enter] to view memory configurations or make settings for the following
sub-items:

PAVC

Use this item to enable or disable protected audio video control.
The optional settings are: [Disabled]; [Enabled].

DVMT Pre-Allocated

Use this item to select DVMT 5.0 pre-allocated (fixed) graphics memory size used
by the internal graphics device.
The optional settings are: [32M]; [64M]; [96M]; [128M]; [160M]; [192M]; [224M];
[256M]; [288M]; [320M]; [352M]; [384M]; [416M]; [448M]; [480M]; [512M].

DVMT Total Gfx Mem

Use this item to select DVMT 5.0 total graphics memory size used by the internal
graphics device.
The optional settings are: [128M]; [256M]; [MAX].

Aperture Size

The optional settings are: [128MB]; [256MB]; [512MB].

GTT Size

The optional settings are: [2MB]; [4MB]; [8MB].

Primary IGFX Boot Display

The optional settings are: [Auto]; [DVI].

Secondary IGFX Boot Display

The optional settings are: [Disabled]; [DVI].

Active LFP

The optional settings are: [Disabled]; [Enabled].
[Disable]: VBIOS disable LVDS .
[Enable]: VBIOS enable LVDS.

* Note: When set as ‘Enabled’, user can make further settings in ‘LCD Panel
Type’.

LCD Panel Type

Use this item to manually select LVDS panel type.

42

The optional setting are: [800x 480 1ch 18-bit]; [800x 600 1ch18-bit]; [800x 600
1ch 24-bit]; [1024 x 600 1ch 18-bit]; [1024 x 768 1ch 18-bit]; [1024 x 768 1ch
24-bit]; [1280 x 768 1ch 24-bit]; [1280 x 800 1ch 18-bit]; [1280 x 800 1ch 24-bit];
[1366 x 768 1ch 18-bit]; [1366 x 768 1ch 24-bit]; [1440 x 900 2ch 18-bit]; [1440 x
900 2ch 24-bit]; [1280 x 1024 2ch 24-bit]; [1680 x 1050 2ch 24-bit]; [1920 x 1080
2ch 24-bit].

LVDS FW Protect

The optional settings are: [Enabled]; [Disabled].

DDC Pass to CRT

The optional settings are: [Enabled]; [Disabled].

 South Bridge

Press [Enter] to further setting USB device configuration.

Mini PCIE

The optional settings are: [Enabled]; [Disabled].

Mini PCIE Speed

The optional settings are: [Auto]; [Gen 2]; [Gen 1].

Onboard PCIE LAN1

The optional settings are: [Enabled]; [Disabled].

Onboard PCIE LAN2

The optional settings are: [Enabled]; [Disabled].

Audio Controller

Use this item to control detection of the Azalia device.
The optional settings are: [Disabled]; [Enabled].
[Disabled]: Azalia will be unconditionally disabled;
[Enabled]: Azalia will be unconditionally enabled.

Azalia HDMI Codec

Use this item to enable or disable internal HDMI codec for Azalia.
The optional settings are: [Disabled]; [Enabled].

PWR Status after PWR Failure

Use this item to select AC power state when power is re-applied after a power
failure.

43

The optional settings are: [Always Off]; [Always On]; [Former Sta te].

* The option [Always On] and [Former State] are affected by ERP function. Please
disable ERP to support [Always On] and [Former State] function.

3-9 Security Menu

Security menu allow users to change administrator password and user password
settings.

44

3-10 Boot Menu

Boot Configuration

Setup Prompt Timeout

Use this item to set number of seconds to wait for setup activation key.

Bootup Numlock State

Use this item to select keyboard numlock state.
The optional settings are: [On]; [Off].

Quiet Boot

The optional settings are: [Disabled]; [Enabled].

Boot Option Priorities

Boot Option #1/ Boot Option #2…

Use this item to decide system boot order from available options.

45

New Boot Option Policy

This item controls the placement of newly detected UEFI boot options.
The optional settings are: [Default]; [Place First]; [Place Last].

3-11 Save & Exit Menu

Save Changes and Reset

This item allows user to reset the system after saving the changes.

Discard Changes and Reset

This item allows user to reset the system without saving any changes.

Restore Defaults

Use this item to restore /load default values for all the setup options.

Save as User Defaults

46

Use this item to save the changes done so far as user defaults.

Restore User Defaults

Use this item to restore the user defaults to all the setup options.

Boot Override

Boot Override
UEFI:xx/…

Press this item to select the device as boot disk after save configuration and reset.

Launch EFI Shell from filesystem device

This item is used for attempts to launch EFI shell application from one of the available
file system devices.

Reset System with TXE disable Mode

Press [Enter] for TXE to run into the temporary disable mode. Ignore if TXE Ignition
FM.
