JET JJP-8BT Operating Instructions and Parts Manual

Download

This .pdf document is bookmarked

Operating Instructions and Parts Manual

JJP-8B T 8" Jo inter-P laner

WALTER MEIER (Manuf acturing) Inc.

427 New Sanford Road LaVergne, Tennessee 37086 Part No. M- 707400

W arranty and Service

Walter Meier (Manufacturing) Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier Authorized Service Centers can authori ze warranty repair, assist you in obtaining parts, or perfor m routine

maintenance and major repair on your JET 1-800-274-6848.

MORE INFORMATION

Walter Meier is consistently adding new products to the line. For complete, up-to-date product infor mation, check with your local Walter Meier distributor, or visit waltermeier.com.

WARRANTY

JET products carry a limited warranty which varies in duration based upon the product (MW stands for Metalworking, WW stands for Woodworking).

WHAT IS COVERED?

This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.

WHO IS COVERED?

This warranty covers only the initial purchaser of the product.

WHAT IS THE PERIOD OF COVERAGE?

The general JET warranty lasts for the time period specified in the product literature of each product.

WHAT IS NOT COVERED?

Three Year, Five Year and Lifetime Warranties do not cover products used for industrial or educational purposes. Products with Three Year, Five Year or Lifetime Warranties that are used for industrial or education purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.

HOW TO GET SERVICE

The product or part must be returned for e xamination, postage prepaid, to a location designated by us. For the na me of the location nearest you, please call 1-800-274-6848.

You must provide proof of initial purchase date and an explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price, at our option. We will return the repaired product or replacement at our expense unless it is determined by us that there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will, at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be responsible for the shipping and handling costs of the return.

HOW STATE LAW APPLIES

This warranty gives you specific legal rights; you may also have other rights which vary from state to state.

LIMITATIONS ON THIS WARRANTY

WALTER MEIER (MANUFACTURING) INC., LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

WALTER MEIER SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERT Y, OR FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

Walter Meier sells through distributors only. The specifications in Walter Meier catalogs are given as general infor mation and are not binding. Members of Walter Meier reserve the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may dee m necessary for any reason whatsoever. JET products are not sold in Canada by Walter Meier.

tools. For the name of an Authorized Service Center in your area call

branded

Warranty and Service................................................................................................................................2

Table of Contents .....................................................................................................................................3

Warnings..................................................................................................................................................4

Fea ture s ..................................................................................................................................................7

Spe cifi cation s ...........................................................................................................................................7

Optional Accessories ................................................................................................................................7

Unpacking ................................................................................................................................................8

Stan d .......................................................................................................................................................9

Ass embly ............................................................................................................................................... 10

Jointer Setup .......................................................................................................................................... 12

Planer Setup .......................................................................................................................................... 12

Operating Controls.................................................................................................................................. 13

Adju s tmen ts ........................................................................................................................................... 15

Basic Operations .................................................................................................................................... 18

Mai nten ance .......................................................................................................................................... 22

Lu bri cati on ............................................................................................................................................. 22

Troubleshooting ...................................................................................................................................... 23

Parts ...................................................................................................................................................... 26

Electrical Connect io n .............................................................................................................................. 40

The specifications in this manual are given as general information and are not binding. Walter Meier (Manufacturing) Inc., reserves the right to effect, at any time and without prior notice, changes or alterations to parts, fitt ings, and accessory equipme nt deemed necessary f or any reason whats oever .

Warnings

1. Read and understand t he entire owner's ma nual before at t empting assemb ly or oper ation.

2. Read and understand the war nings post ed on the machine and in this manual. Fa ilure t o comply with all of these warnings may cause serio us injury.

3. Replace the warning labels if they become obscured or removed.

4. This Woodworking Jointer-planer is designed and intended for use by properly trained and experienced personnel only. If you are not familiar with the proper and safe operation of a woodw or king jointer or planer, do not use until proper tr aining and knowledge have been obtained.

5. Do not use this for other than its intended use. If used for other purposes, Walter Meier (Manufacturing) Inc., disclaims any real or implied w arranty and holds itself harmless f rom any injury that may result from that use.

6. Always wear approved safety glasses/face shields while using this woodworking jointer-planer. Everyday eyeglasses o nly have impact r esist ant lenses; t hey are not safet y glasses.

7. Before operat ing this woodw orking joi nter- pla ner, remove tie, ri ngs, w atches and other jewelry, and roll sleeves up past the elbows. Remove all loose clot hing and confine long hair. No n-slip footw ear or anti-skid floor str ips are r ecommended. Do not w ear gloves.

8. Wear ear pr otect or s (plugs or muffs) duri ng exte nded periods of oper at io n.

9. Some dust created by power sanding, sawing, grinding, drilling and other construction activities contain chemicals k nown to cause cancer, birt h defects or ot her reproductive harm. Some e xamples of these chemicals are:

• Lead from lead based paint.

• Crystalline silica from bricks, cement and ot her masonry products.

• Arsenic and chromium fr om chemically treated lumber.

Your risk of exposure varies, depending on how often you do this type of work. To reduce your exposure to these chemicals, work in a well-ventilated area and work with approved safety equipment, such as face or dust masks that are specifically designed to filter out microscopic particles.

10. Do not operate this machine while tired or under the influence of drugs, alcohol or any medication.

11. Make cer t ain the switch is in the OFF position before connecti ng the mac hine to t he power source.

12. Make cer t ain the machine is properly grounded.

13. Make all machine adjustme nts or maintenance with the machine unplugged from the power source.

14. Remove adjusting keys and wrenches. Form a habit of checking to see that keys and adjusting wrenches are removed from the mac hine before tur ning it on.

15. Keep safety guards in place at all times when the machine is in use. If removed for maintenance purposes, use extreme cautio n and replace t he guards immed iately.

16. Make sure the woodw or king jointer- planer is firmly secured to t he floor or benc h before use.

17. Check damaged parts. Before further use of the machine, a guard or ot her part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignme nt of moving part s, binding of moving part s, break age of part s, mounting and any other condit ions t hat may affect its oper ation. A guard or other part that is damaged s hould be properly repaired or r eplaced.

18. Provide for adequate space surrounding work area and non-glare, overhead lighti ng.

19. Keep the floor around t he machine clean and free of sc r ap material, oil and grease.

20. Keep visitors a saf e dist ance from the wor k ar ea. Keep children away.

21. Make your workshop child proof with padlocks, master switches or by removing start er keys.

22. Give your work undivided att ention. Looking aro und, carrying on a conversat ion and “horse-play” are careless acts that can result in serious injury.

23. Maintain a balanced stance at all t imes so that you do not fall or lean against the cutterhead or other moving parts. Do not overreac h or use excessive for c e t o perfor m any machine operation.

24. Use the right tool at t he correc t speed and feed rate. Do not force a tool or at t achment to do a jo b f or which it was not designed. The r ight t o ol will do t he job b e tter a nd sa fer.

25. Use recommended accessor ies; improper acc essor ies may be ha zardo us.

26. Maintain too ls with care. Keep knives sharp and clean for t he best a nd safest performance. Follow instructions for lubricat ing and changi ng accessori es.

27. Turn off t he mac hine bef or e cleaning. Us e a br ush or co mpres sed air t o r emove chips or debris — do not use your hand s.

28. Do not stand on the machine. Serio us injury co uld occur if the machine tips over.

29. Never lea ve the machine r unni ng unattended. Turn the power off and do not leave the machine until it comes to a complete stop.

30. Befor e turni ng on mac hine, r emove all e xtra equip ment suc h as key s, wrenches, scrap, stock, and cleaning rags aw ay from the machine.

31. Always use a hold-dow n or p ush block when s urfacing stock less t han 12" inches lo ng, or 3 i nches wide, or 3 inc hes thick.

32. Do not perform joi nting oper ations on material shorter than 8", narrow er than 3/4" or less than 1/4" thick.

33. The hands must never be closer t han 3 inches t o the cutter head (see Figure).

34. Never apply pressure to stock directly over the cutterhead. This may res ult in the stock tipp ing into the cutterhead along with the operator's fingers. Position hands away f r om extreme ends of stoc k, and push thro ugh with a s moot h, even motion. Never back workpiece t ow ar d the infeed table.

35. To avoid kickback, the grain must run in the same direction you are cutting. Before attempting to joint, or plane, each work piece must be caref ully examined for stock co ndition and grain orientation.

36. When w or king w ith a swirl grai n wood or burls, making it necessary t o plane against the grai n, use a lesser depth of cut and a slow rate of feed.

37. Move the hands in an alternate motion from back to front as the work continues through the cut. Never pass the hands directly o ver the cutt er k nife. As o ne hand appr oaches t he k nives remove it from the st ock in a n arc mot io n and place it back o n t he stock in a positi on beyo nd t he cutter k nife (Fi g . 2).

38. At all times hold the stock f irmly.

39. Do not use this for other than it intended use. If used for other purposes, Walter Meier (Manufacturing) I nc.disclaims any real or impl ied warranty a nd holds itself harmless for a ny injury or damage which may result fr om that use.

Familiarize yourself with the following safety notices used in this manual:

This means that if precautions are not heeded, it may result in minor injury and/or

possible machine damage.

even death.

This means that if pr ecautions are not heeded, it may result in serious injury or possibly

- - SAVE THESE I NSTRUCTI ONS - -

Read and understand the entire contents of this manual before attempting

assembly or operation! Failure to comply may cause serious injury!

Features

Specifications

Model number ......................................................................................................................... JJP-8BT

Stock number ........................................................................................................................... 707400

Cutterhead speed ................................................................................................................... 9000rpm

Number of knives................................................................................................................................ 2

Cutter knife length........................................................................................................................ 8-1/4"

Cutter knife thickness .................................................................................................................. 0.060"

Dust port diameter ............................................................................................................... 2-1/2" or 4”

Jointer table ........................................................................................................................ 29" x 8-1/4”

Max stock removal .......................................................................................................................... 1/8”

Max cutting width ...............................................................................................................................8"

Fen ce ................................................................................................................................ 4-1/8" x 21”

Fence tilt .............................................................................................................................. 90°- 45° R

Fence positive stop ................................................................................................................ 90°, 45°R

Planer table ...................................................................................................................10-5/8" x 8-1/2"

Planer capacity

Maximum cutting thickness ........................................................................................................ 4-1/2"

Max depth of cut ........................................................................................................................... 5/64”

Min length of work piece.....................................................................................................................6"

Feed rate ................................................................................................................................19. 5 f pm

Motor

Voltage ................................................................................................................... 120V, 60Hz, 13A

Switch ...................................................................................... Toggle switch with overload pr ot ec t ion

Overall Dimensions (LxWxH) ............................................................................... 31" x 16-1/2" x 18-1/2"

Net weight ................................................................................................................................... 58 lbs

Optional Accessories

Stock No. Description

707401 8" Jointer/Pla ner Blades 707402 8" Jointer Planer Stand

Unpacking

Remove all contents from the shipping carton. Do not discard the carton or packing material until your Model JJP-8BT Jointer-Planer is assembled a nd is running satisfact or ily.

Compare the conte nts of the cart on against the list of parts in Contents of Shipping Container (below). The letter identification in the list

corresponds to t he items s hown at rig ht. This is your key for identifying the parts used throughout the Assembly section for easy reference.

Remove the prot ective coating t hat is app lied to the table with a house hold grease and spot remover.

Contents of t he M ain Cart on

01 Jointer Fence (A) 01 Dust Chute (B) 01 Cutter head Guard (C) 01 Jointer-Planer (D) 01 2-1/ 2" t o 4" Hose Adapter (E) 01 Planer Outfeed Table E xtensio n (F) 01 Owner's Ma nual (G) 02 Push Block ( H)

Knobs and Handles

01 Lock Knob (J) 01 Lock Knob (K) 01 He i ght Adj ust Handle (L) 01 Flat Washer (M ) 01 Lock Handle ( N)

Figure 2 – Knobs and Handl es

Hardware

02 Pan Head Machine Screw ( O) 02 Hex Nut (P) 02 Socket Head Cap Screw ( Q) 03 Socket Head Cap Screw ( R) 05 Lock Washer (S) 06 Flat Washer (T) 03 Hex Nut (U)

Figure 1 – Contents of the Mai n Carton

Figure 3 – Har dware

Tools Included

01 Knife Sett ing Gauge (V) 01 3, 5, 6mm hex wrenches (set of 3) (W) 01 8/10mm Ope n-e nd Wrench (X)

Figure 4 – Tools Included

Stand

The stand is not included but is an optional ite m available for purc hase. To purchase, call Customer Service at the pho ne number on the co ver of t his manual. The following instructions are included if you have purchas ed the stand or will purchase one at a later date.

Compare the contents of the carto n agai nst the list of part s in Con tents of Stand Carton (below).

Contents of St and Cart on

02 Long Support Plate( SA) 02 Short Support Plate ( SB) 02 Long Stand Top Support ( SC) 02 Short St and Top Support ( SD) 04 Stand Leg (SE)

Stand Hardware

04 Hex Cap Screw ( SF)

24 Carriage Bolt (SG) 28 Flat Washer (SH) 24 Lock Washer (SJ) 28 Hex Nut (SK)

04 Socket Head Cap Screw ( SM) 04 Flat Washer (SN) 04 Lock Washer (SP) 04 Rubber Foot ( SQ)

Figure 5 – Contents of Stand Carton

Figure 6 – Stand Hardware

Assembly

For assembly convenience, the item letter designators us ed thr oughout t he Assembly sectio n are the same as those used to identify shipping content and hardware components on pages 8–9.

Stan d Assembly

Note: If you do not plan to use a standat t his t i me,

skip this page and proceed to Jointer-Planer Assembly on the following page.

Referring to Figure 7:

1. Select two legs (SE), one short stand top support (SD) and one short support plate (SB).

2. Attach one end of the stand top support (SD) to the top of the first leg with two carriage bolts (SG), f lat washers (SH), l ock washers (SJ) and

hex nuts (SK). Attach the other end of the stand top suppor t (SD) to the second le g i n t he

same manner. Hand-tig hte n only at this time.

3. Attach a support plate (SB) to each leg (SE) in the same manner with two c arri age bolts (SG),

flat washers (SH), lock washers (SJ) and hex nuts (SK). Hand-tig hten only at t his time.

4. Repeat steps 1–3 using the remaining legs, short stand top support and support plat e.

5. Complete the stand construction by attaching

long stand top supports (SE) and long suppor t plates (SA) to the leg assemblies constructed

in steps 1–4. Hand-tighten all hardwar e only at this time.

6. Place a rubber f oot (SQ) on a hex cap screw (SF), then insert t he threaded end of the screw through the opening on the bott om of the leg.

7. Secure with fl a t wa s h er (SH) and hex nut (SK).

8. Attach rubber feet to remaining legs in the same manner.

9. Place stand upright. Ensure that the stand is on a level surface and all four legs are contacting the surface.

10. Tighten all hex nuts with the 10mm wrench (U, Fig. 4) provided.

M ou nting Joi nter-Planer to St and

Referring to Figure 8:

1. Place the Jointer-Planer (D) onto the assembl ed stand and secure with 4 socket head cap

screws (SM), lock washers (SP), and flat washers (SN).

Figure 7

2. Tighten all socket head cap screws (SM) with the 5mm hex wrench (W, Fig. 4) provided.

Figure 8

Joi nter-Planer Assemb ly

Referring to Figure 9:

Fence

1. Attach jointer fence (A) to back of jointer outfeed table (D3) wit h two each socket head cap screws (Q) and lock washers (S). Tighten

screw s with 5mm hex wrench (provided).

Lock Knobs

The JJP-8BT Jointer-Planer co mes equipped wit h two lock knobs to secure the pos ition of the jointer infeed table.

2. Install jointer infeed table lock k nobs (K, T). Note: The shaft lengt h of eac h lock knob (refer

to Figure 2) are different. Be sure to install each in the correct locat ion.

Exten sion Table

3. At tach the planer outfeed extension table (F) to the planer table (D5) with thre e socket head cap

screws (R), six flat washers (T), three lock washers (S) and three hex nuts (U).

Screws (R) and flat washers T1 are inserted through the extension table (F) and planer table (D5), t hen fastened fr om inside t he planer table (D5) with flat washers (T2), lock washers

(S) and hex nuts (U).

4. Tighten screws with 5mm hex wrench and 10mm open end wrench.

Exten sion Tabl e A dj ustment

Two setscrews located underneath the extension table (F) are used to adj ust t he height positio n of

the outer (pr otruding) edge, w hich must be slig htly higher than the main table (D5) in order t o minimize snipe (see Avoidi ng Sni pe on page 21).

Figure 9

Important: It is extremely important that spring action ca uses the cutterguard (C) to r et r act against the fence (A), concealing the cutterhead (A1). If spring return tension is not enough, adjust the spring located on the cutterhead pivot shaft accordingly.

5. Using a 4mm hex wrench (provided), turn setscrews slightly clockwise to rais e the table or counterclockwise t o low er the table.

Lock Handle

Referring to Figure 10: Attach planer table lock handle (N ) and flat washer (M).

Cutterhead G uar d

6. Install cutterhead guard (C) by securing the bracket (C1) to the side of the jointer infeed table (D5) with two each pan head machine screws (O) and hex nuts (P).

Figure 10

Jointer Setup

Disconnect machine from

power sourc e before making any a djustments. Failure to comply may cause ser ious injury.

Referring to Figure 11:

1. Loosen lock handle (N).

2. In st all planer tabl e height adj ustment hand l e (L) .

3. Turn handle (L) counterclockwise and lower planer table (D1) all the w a y .

4. Remove hex nut (B1) and fl at wash er (B2) from dust chute (B).

5. Orient the dust chu te (B) as s hown and i nstall into the infeed opening.

Position the chu te (B) such that the two positioning keys a nd o ne t hreaded posit ioning screw under neath the chute meshes with t hree

positioning holes o n the table (D1).

Figure 11

6. Raise the table (tur n handle L clockw ise) unti l the dust chute (B) is held firmly in place between the planer infeed table (D1) and jointer outfeet table (D2). Do not overtighten.

7. Tighten lock handle (L).

Step 8 is optional.

8. Further secure the dust chute by reinstalling the hex nut (B1) and flat washer (B2) from underneath the planer infeed table (D1).

9. Remove handle (L).

Planer Setup

If the machine is currently set up for jointer operation, remove the dust chute (B, Fig. 11). Refer to the Jointer Se tu p sect io n above.

Referring to Figure 12:

1. Swing cutterguard (C) away from fence (A), which will e xpose t he cutte rhead.

Cutterhead knives are dangerous ly sharp. Use extreme caution whe n working around them. Failure to comply may cause serious injury .

2. Orient the dust chute (B) as shown. Install onto

the jointer outfeed table (D2) and secure by tightening l oc k knobs (B4).

Important: Dust chute (B) must be properly installed i n bot h Jointer set up and Planer setup. If improper installation fails to activate a microsw itch, t he machine will not s tart.

Figure 12

Operating Controls

Disconnect machine from power sourc e before making any a djustments. Failure to comply may cause ser ious injury.

Power

Plug power cord into outlet. Referring to Figure 13:

Start/Stop

Pull the red switch (A) out to start. Push in to stop.

Safety Key

Removing the safety key (B) will render the start/stop switch inoperable. The machine can continue to operate without the key, but upon stopping cannot be r est arted until it is reinstalled.

Rese t Swit ch

If the machine should come to an unexpected stop during operatio n due to o verload or ja mmed wor kpiece, etc. :

1. Set the start/stop switch (A) set to stop

(pushed in).

2. Momentarily press, then release the reset

switch (C).

3. Restart machine.

Planer Controls and Adjustments

Referring to Figure 14:

Table Lock

Turn the lock handle (A) counterclockwise to release and permit table adjustment. T urn the lock handle (A) clockwise to sec ure t he planer tabl e (D) in its s e le c ted pos ition.

Table Height Adjustment

The planer table height is set as f ollows:

1. Unlock the table lock (A).

Figure 13

2. Install the removeable adjustment handle (C)

onto the shaft (B).

3. Rotate the adjustmen t handl e (C) clockwise to

raise the planer table ( D), counterclockwise to lower.

Each revolution of the adjustment handle (C) re sul ts in a 3/32" up or down movement of the table (D). A scale indicates the amount of table travel. The pointer (E) indicates the table position on t he scale relative to the cutt erhead.

Figure 14

Joi nter Cont rols and Ad justmen t s

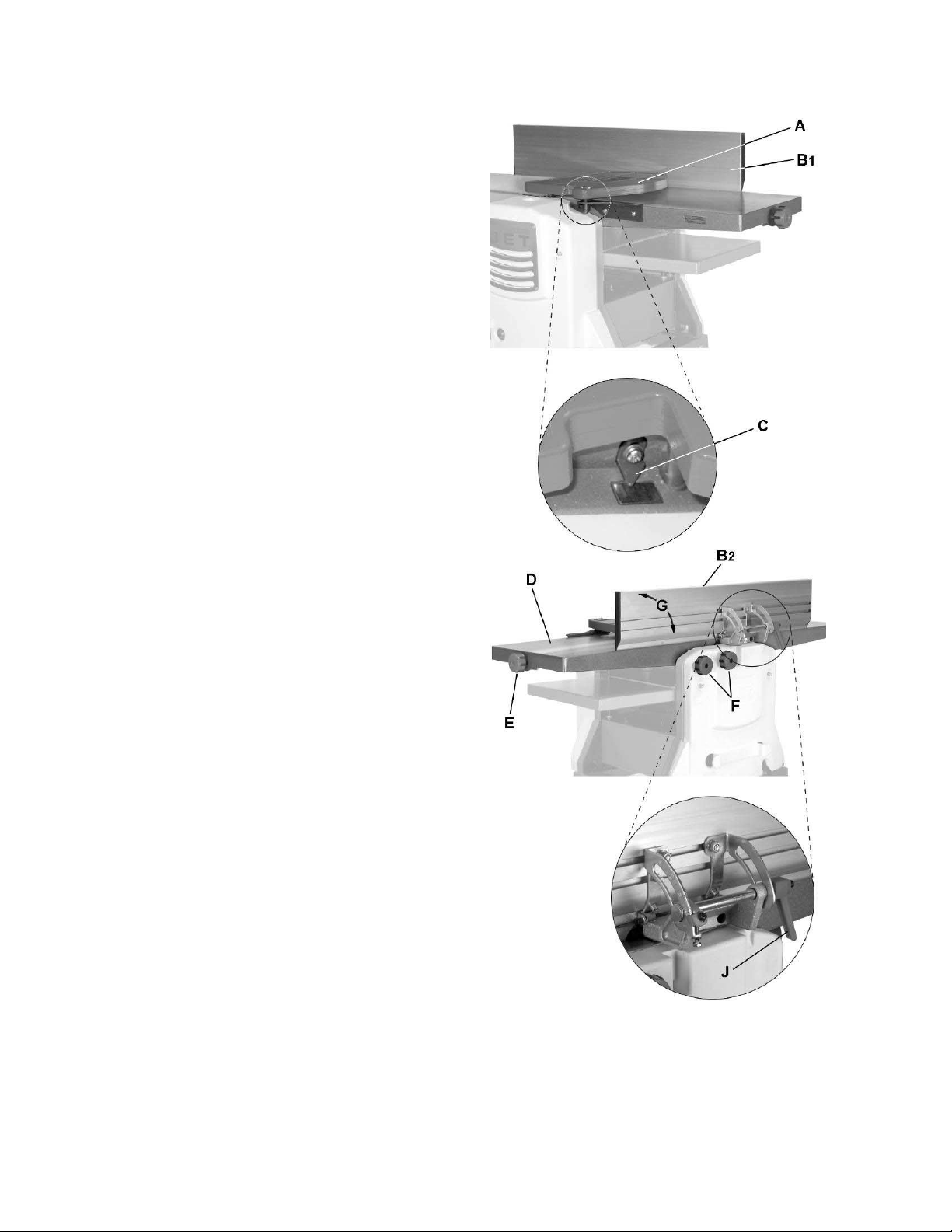

Refer to Figure 15.

Infeed Tabl e Hei ght Adj ustment

Two l ock knobs (F) and a height adjustment knob (E) control the height adjustment of the infeed table (D).

To adjust:

1. Loosen lock knobs (F).

2. Turn the height adjustmen t knob (E) clockwise

to raise the infeed table (D) or counterclockwise to low er the table.

The amount of table adjustment can be read on the scale (C).

3. Tighten the lock knobs (F). Note: A depth of cut of 1/16" or less is recom-

mended.

Cutterhead G uar d

Properly positioned, the cutterhead guard (A) should rest against the fence (B1).

Fence Bevel Adjustment

The fence (B2) can be tilted backward (G) up to 45° (that is, f or a tot al included a ngle of 135° f rom table surface) as f ollows:

1. Loosen lock handle (J).

2. Tilt the fence (B2) back to the desired angle up

to 135 degrees (G). Or you can place your beveled reference piece on the table and against the fe nce, adj usting the fe nce until the angle of the fence matches the bevel of your gauge piece.

3. Tighten the lock handle (J).

Figure 15

Adjustments

Cutt erhead Kni f e Adjust ment

Cutterhead knives are dangerous ly sharp! Use extre me caution whe n inspecting, removing, sharpening or replacing knives into the cutterhead. Failure to comply may cause serious injury!

Determining if adjustment is necessary:

1. Disconnect machi ne from the power s ource.

2. Remove the cutterhead guar d. Referring to Figures 16 and 17:

Note: To rotate the cutterhead the cutterhead pulley must be turned. This requir es removing the panel on the front of the cabinet for access.

3. Rotate the cutterhead (E) until o ne k nife is i n

the 12 o'clock position. T he 12 o'clock position is the highest point a blade will reach in the cutting arc (C, Fig. 17).

4. Place the knife setting gauge (J) on the

outfeed table (F). One end of the ga uge s hould be positioned over the cutting knife (C) towar ds the near the end of t he blade (G).

Use care when handl i ng the knife setting gauge near the blades to prevent damage.

Note the position of the knife blade with respect t o the gauge, then move t he gauge t o the other side of the table towards the fence (H) and again note the position of the knife blade with respect t o t he gauge.

The blade must be at the same height at each end and must also be at the same height as the outfeed table (bottom of gauge). If this is not the case, adjustment is required as f ollows:

Adj ustment procedure

Figure 16

5. Slightly loosen six gib lock screws (A) by

turning into the lock bar (B), clockwise as viewed fr om the infeed tabl e (K).

6. Adj ust the blade height by t ur ning jack screws

(D) upon which the blade rests. To lower the blade, turn t he screw clockwise. To raise, t ur n the screw counter- clockwise.

7. When the blade is at the proper height,

alternately tighten the six gib lock screws (A).

Repeat steps 3 – 7 to adjust the remaining blade. Note: The most common c ause for unsatisfact ory

cutting perfor ma nce is i mproper ly s et knives. Many after market devices are avaialable to f urther assist in the accurate setting of knives.

Figure 17

Repl aci ng Cut t er Knives

Disconnect machine from power sourc e before making any a djustments. Failure to comply may cause ser ious injury.

1. Disconnect machi ne from the power s ource.

2. Remove the cutterhead guar d.

Cutterhead knives are

dangerous ly sharp. Use extreme caution whe n inspecting, r emov ing, sharpening, or r eplacing knives into the cutterhead. Failure to comply may cause serious injury.

Referring to Figures 16 and 17 (page 15):

3. Turn all six gib lock screws (A) into the lock bar

(B) by turning in a clockwise direction as viewed fr om the infeed tabl e (K).

4. Carefully remove the cutter knife (C) and lock

bar (B).

5. Repeat for the remaining knife.

6. Thoroughly clean all surfaces of the

cutterhead, knife slots and lock bars of any dust or debris.

7. Insert the first replacement knife (C) into the

knife slot, making sure it faces the proper direction.

8. Insert lock bar (B) and tighten just enough to

hold in place.

9. Repeat for other the remaining blade. Following i nstallation, t he kni ves must be ad justed

as described in Cutterhead Knive Adjustment on page 15.

Joi nter Fence Adjust ment

Referring to Figure 18: The jointer fence (A) can be adjusted from a full

forward position (90º to table, corresponding to a scale reading of 0º) t o a full back-tilted position of 135 º (scale reading of 45 º).

If setting to maximum positions do not stop the fence at 0º or 90º, make adjustments as follows:

Fence 90º Adjustment

1. Loosen lock handle (H) and bring fence fully forw ar d. Using a square, deter mine if t he fence is 90º to the table.

If adjustment is required:

2. Loosen jam nut (E) and adjust stop screw (D) in or out until a fence postion of 90º with respect to the table is achieved.

3. Secure the jam nut (E).

Check the scale indication. If the indicator (C) does not point to zero:

4. Loosen screw (B), adjust accordingly, then retighten screw.

Fence 45º Adjustment

Verify that the fence and scale indication is accurate at 90º as outlined in Fence 90º Adjustment above.

1. Loosen lock handle (H) and set the fence all the way back. Using a sq uar e, determine if the fence is 135º to the table.

If adjustment is required:

2. Loosen jam nut (G ) and adjust stop screw (F) in or out until a fence postion of 135º with

respect to the table is achieved. Note: The screw head stops a gainst the fe nce mo unting bracket.

3. Secure the jam nut (G).

Figure 18

Belt Replacement

Refer to Fig ure 19 whe n installing or r eplacing the the feed-roller (A) or cutterhead drive (D) belts.

Disconnect machine from power sourc e before making any a djustments. Failure to comply may cause ser ious injury.

Feed-rol l er Bel t Replacement

Cutterhead knives are dangerous ly sharp. Use extreme caution whe n replacing any belt. Contact with cutterhead knives will cause serious in jury.

1. Remove the front panel. This is the panel

where the Start/Stop switch is located.

2. Remove feed-roller belt (A) from pulley (B)

whil e manually rota ting pulley (C). When this is accomplished, belt will fall away

from pulley (C).

3. Loop the new belt around pulley (C), then

around pulley (B) while manually rotating pulley (C ).

4. When installed, continue to manually rotate

pulley (C) and verify that belt is properly seated on both pulleys.

5. Replace front cover.

Cutterhead D r i ve Belt Repl acement

Cutterhead knives are dangerous ly sharp. Use extreme caution whe n replacing any belt. Contact with cutterhead knives will cause serious in jury.

The cutterhead drive belt should seldom if ever, require replacement. Follow the procedure below if, however, the belt should req uire replace me nt.

1. Remove the feed-roller belt as described in

Feed-rol ler Belt Replacement above.

2. Remove the bottom portion of the cutterhead

drive belt (D) from pulley (E) while manually rotating pulley (F).

Use extreme caution to avoid

contact with cutterhead knives while performing this step. Contact with cutterhead knives will cause serious in jury.

3. Remove top por tion of be lt (D) from p ulley F,

then work it under the chain and past pulley B to remove completely.

Figure 19

4. Install new belt by first feeding the low er loop downward be hind t he gear (H) and pulley (C).

This w ill pr operly positio n the lower loop of the belt in close proximity t o pulley (E ).

5. Slide the top loop of the belt aro und and past pulley (B), sliding it underneat h and past chain (G); t hen loop around pulley (F).

6. Loop belt around pulley (E) while manually rotating pulley (F).

Use extreme caution to avoid

contact with cutterhead knives while performing this step. Contact with cutterhead knives will cause serious in jury.

7. Manually rotate pulley (F) to verify that the grooves in the belt are properly meshed wit h the grooves on both pulleys.

This completes the cutterhead drive belt installation.

8. Replace the feed-roller belt (Feed-roller Belt Replacement section steps 3–5).

Basic Operations

Hand pla cement

Dust Collection

Before initial operation, the machine must be connected to a dust collector.

Important: If a dust collection system is not used, t he qualit y o f your cut will s uffer s e ver e ly .

Initial Startup

After the assembly and adjustments are complete t he pla ner is ready to be t ested. Plug in and start the machine. Keep your finger on the Stop button in case of a problem. The machine should run smoothly with little or no vibration or rubbing noises. Investigate and correct the source of any problems before further operatio n.

DO NOT attempt to inves-

tigate or adjust the pl aner while it is running. Wait until the machine is turned off, unplugged a nd all work ing parts have co me to a complete standstill.

Always wear ANSI-approved

safety glasses or goggles when operating equipment.

Never pass hands directly

over the cutt er head.

Referring to Figure 20: At the start of the cut, the left hand holds the

workpiece firmly against the infeed table and fence w hile the right ha nd pushes the workpiece in a smooth, even motion towar d t he cutt er head. After t he cut is under way, the new surface r es t s firmly on the outfeed table. The left hand is transferred to the outfeed side (Figure 18) and presses down on this part of the workpiece, at the same time maintaining flat contact with the fence. The right hand presses the workpiece forward and before the right hand reaches the cutterhead it should be moved to the work on the outfeed table.

Surfac ing

The purpose of surfacing on a jointer is to produce one flat surface (Figure 21). The ot her side can then be milled to precise, final dimensions on a t hickness planer res ulting i n a board that is smoot h and flat on bot h sides a nd each side parallel to t he other.

If the wood to be jointed is cupped or bowed, place the concave side down, and take light cuts until the surface is flat.

Changing Mode of Operation

When changing the operating mode (planer to jointer and back) t he machine must be turned off, unplugged, and come to a complete stand-still. To change the mode of operation, see sections Jointer Se tu p and Planer Setup on page 12.

Joi nter Operations

Correct operat i ng position

The operator must be positioned offset to the infeed table (Fig ure 20).

Figure 20

Never s urface pieces shorter t han 12 inches or thinner tha n 3/8 inch wit hout the use of a special work holding fi xture.

Never s urface pieces thinner t han 3 inches without the use of a push block.

Cuts of appr oximately 1/ 16" or less at a t ime are recom me nded, which pro vides f or bet t er control over the material being surfaced. More passes c an t hen be made to reac h t he desired depth.

Figure 21

Di re ction of Grain

Avoid feeding work into the jointer against the grain (Figure 22).

Figure 22

This may result in chipped and splintered edges. Feed with the gra in to obt ain a sm ooth s urface,

as shown in F ig ure 23.

Edge Jointi ng

Jointing (or edging) is t he process of cr eating a finished, flat edge surface that is suitable for

joinery or finishing (Figure 24). It is also a necessary step prior t o ripping stock t o width on a table saw.

Never edge a board that is less than 3 inches wide, l ess than 1/4 inch t hick, or 12 inches long, without usi ng a push block.

When edging wood wider than 3 inches lap the fingers over the top of the wood, extending them back over the fence such that they will act as a s top for the hands in the event of a kickback.

When workpiece is twice the

length of the jointer inf eed or out f eed t able use an infeed or outf eed suppor t .

To edge:

1. Make sure the fence is set to 90°. Double check it with a square.

2. Inspect stock for soundness and grain direction (refer to Direction of Grain on

previous page).

Figure 23

Figure 24

3. If the board is bowed (curved), place the concave edge down on the infeed table.

4. Set the infeed table for a cut of approximately 1/16 inch.

5. Hold the st ock firmly against t he fence a nd table, f eed the stock slowly a nd evenly over the cutterhead.

Beveling

Beveling an edge is the same operatio n as edge jointing, except that the fence is tilted to a specified angle.

Make cert ain material be ing beveled is over 12 inches lo ng, mor e t han 1/4 inch thick and 1 inc h wide.

To bevel:

1. Use a bevel ga uge to determine t he desired angle. Then set the fence to the same angle.

2. Inspect stock for soundness and grain direction (refer to Direction of Grain on

previous page).

3. Set the infeed table for a cut of approximately 1/ 16.

4. If the board is bowed (curved), place the concave edge down on the infeed table.

5. Feed the stock through the cutterhead, making sure the face of the stock is completely flat against the fence and the edge is making solid contact on the infeed and outfeed tables (Fig ure 25).

For wood wider than 3 inches – hold with fingers close together near the top of the stock, lapping over the board and exte nding over the fence.

For wood less than 3 inches wide – use beveled push blocks and apply pressure toward the fence. Keep fingers near top of push block.

Several passes may be req uired to achieve f ull bevel.

lowering the planer table (D, Fig.14) using the adjustable handle (C, Fig. 14).

The quality of thickness p laning depe nds on the operator's judgment about the depth of cut.

The depth of cut depends on the width, hardness, dampness, grain direction and grain structure of t he wood.

The maximum thickness of wood that can be removed in one pass is 5/64" for planing operations on workpieces up to 5-1/2” wide. The workpiece must be positioned away from the center tab on the rollercase to cut 1/8”.

The maximum thickness of wood that can be removed in one pass is 1/16” for planing operations o n work pieces fr om 5-1/2” up to 8" wide.

For optimum planing performance, the dept h of cut should be less than 1/16”.

The board should be planed with shallow cuts until t he work has a level si de. Once a level surface has been created, flip the lumber and create parallel sides.

Plane alternate s ides unti l the desired t hickness is obtained. W he n half of the total cut has been taken from each side, the board will have a uniform, moisture content and additional drying will not c ause it to warp.

The depth of c ut should be sha llower w he n the workpiece is wider.

When planing hardwood, take light cuts or plane the wood in thin widths.

Make a test cut wit h a test piece and verify the thickness produced.

Figure 25

Planer Operatio ns

Dept h of Cut

Thickness planing refers to the sizing of lumber to a desired thickness while creating a level surface parallel to the opposite side of the board. Board thickness that the pla ner will pr oduce is indicate d by the scale (see Table Height Adjustment on page 13). Preset the planer to the desired thickness of the finished workpiece using the gauge. The depth-of- cut is adjusted by raising or

Check the accuracy of the test cut before working on the finished product.

Precautions

A thickness planer is a precision woodworking machine and should be used on quality lumber only.

Do not plane dirty boards; dirt and small stones are abrasive and will wear out the blade.

Remove nails a nd stapl es. Use the planer t o cut wood only.

Avoid knots. Heavily cross-grained wood makes knots hard. Knots can come lose a nd jam the blade. Any article that encounters planer blades may be forcibly ejected from the planer creati ng a risk of injury.

Preparing t he W ork

A thickness planer works best when the lumber has at least one flat s urf ace. Use a jointer to cr eat e a flat surface.

Twisted or severely w arped boards ca n ja m the planer. Rip the lumber i n half t o reduce the magnitude of t he warp.

The work should be fed i nto the planer in t he same direction as the grain of the wood. Sometimes t he wood w ill change direct ions in the midd le of t he board. I n such cases, if possible, cut t he board in the midd le so the grain direct io n is correct.

4. Slide t he workpiece into the infeed side of the planer until the infeed roller begins to advance the workpiece.

5. Let go of the workpiece and allow the automatic feed t o advance the workpiece.

6. Do not push or p ull on the workpiece. Move to the rear and rece ive the planed lumber by grasping it in the same manner that it was fed.

To avoid the risk of injury due to kickbacks, do not stand directly in line with the front or r ear of the planer.

Do not p lane a board that is less than 6" long. It is recommended that when planing short boards you butt them end to end to avoid kickback and reduce snipe.

Feeding the W ork

The planer is supplied with planer blades mounted in the c utterhead. Feed direc tion is left ot right (see Figure 12). The planer feed is automatic; it will vary slightly depending on the type of wood.

Preparation:

Feed rate refers to the rate at which the lumber travels thro ugh the planer.

The operator is respo nsible for aligning t he wo r k s o it will feed properly.

Raise or lower the table to get the depth of cut desired.

The s urfac e t hat t he pla ner pro duce s w ill be smoother if a shallower depth of cut is used.

Stand on the front side of the machine.

7. Do not grasp any portion of the board that has not gone past the infeed r ol ler.

8. Repeat this operation on all of the boards that need to be the same thickness.

Avoiding Sni pe

Snipe refers t o a depression at either end of the board caused by an uneven force on the cutterhead w hen t he work is e ntering or leavi ng the planer.

Snipe will occur when the boards are not supported prop erly or w hen o nly o ne feed roller is in contact with the work at the beginning or end of the cut.

Precautions for avoiding snipe:

Push the board up while feeding the work until the outfeed roller st ar t s advancing it.

Move to the rear and receive the planed board by pushi ng it up when the i nfeed roller looses contact with the board.

When planing more t han o ne board of the same thickness, butt t he boards toget her to avoid snipe.

Boards longer than 24” should have additional support from free standing material stands. These can be purchased from JET – Stock # 709207. See Optional Accessories on page 7.

Planing

1. Position the workpiece with the face to be planed on top.

Note: Feed direction is left to right (see Figure 12).

2. Turn the planer on.

3. Rest the boar d end on t he i nfeed side of t he table and direct the board into the planer.

Make shallow c uts. Snipe is more app arent when deeper cuts are taken.

Feed t he work i n the directio n of the grain. Work fed against the grain will have chipped, splintered edges.

Maintenance

the stone's surface is flush with the knife bevel.

Blad e Care

Blades are extr emely sharp!

Use caution when cleaning or changing. Failure to comply may cause ser io u s injur y !

The condition of the blades will affect the precision of the cut. Observe the quality of the cut that the machine prod uces to check the condition of the blades.

Dull blades will tear, rather than cut the wood fibers and produce a fuzzy appearance.

Raised grain will occur when dull blades pound on wood that has varying de nsity. A raised edge will also be pr oduced where the blades have been nicked.

When gum and pitch collect on the blades, carefully remove with a strong solvent. Failure to remove gum and pitch build up may result in excessive frict ion, blade wear and overheating.

When blades become dull, they should be replaced, or touched up – see Sharpening the Knives.

Sharpenin g the Knives

Blades are extr emely sharp! Use caution when ha ndling.

Failure to comply may cause ser ious injury!

1. Disconnect the machine from the power

source.

2. Remove the blade guard and belt cover.

3. To protect the infeed table from scratches,

partially cover the sharpening stone with paper (Figure 26).

4. Lay the stone on the infeed t able.

5. Lower the infeed table and turn the

cutterhead by t urning t he cutter head pulley. The infeed table height is set proper ly when

6. Keep the cutterhead from rotating by grasping t he cutt erhead p ulley w hile s lid ing the stone back and forth across t he table.

7. Take t he same amount of passes f or all two blades.

When the blades have been sharpe ned and still are not cutting efficiently, trying to touch up the blades f urther will o nly ca use the formatio n of a second beveled edge. When this starts to happen, it is time to replace blades w ith another set. It is recommended t o keep a second set of blades on hand so that they may be installed while the first set is being professionally sharpened.

Figure 26

Lubrication

Use a good grade of light grease on the steel adjust ing screws located i n t he raisi ng and lowering mechanisms of the work tables.

The cutterhead ball bearings are lifetime lubricated a nd need no further care.

Troubleshooting

Alig

Performance Troubleshooting – Jointer

Trouble Probable Cause Remedy

Finishe d stock is concave on back end.

Finishe d stock is concave on front end. Outf eed t able is higher t han knife.

Chip out. Cutting against t he grain. Cut with the grain whenever possible.

Fuzzy grain.

Cutterhead slows while operating.

Knife is higher than outfeed table.

Dull knives. Sharpen or replace knives. Feeding workpiece too fast. Use slower rate of feed. Cutting too deeply. Make shallower cuts.

Knots, imperfections in wood.

Wood has high moist ure content.

Dull knives. Sharpen or replace knives. Feeding workpiece t oo quickly, or

applying too much pressure to workpiece.

Align cutterhead kni ves with outf eed table. See Cutterhead Knife Adjustment o n page 15.

Inspect wood closely for imperfections; use different stock if necessary.

Allow wood to dr y or use different stock.

Feed more slowly, or apply less pressure to w or kpiece.

“Chatter” marks on workpiece.

Uneven knife marks on workpiece.

Set knives properly as described in

Knives incorrectly set.

Feeding workpiece t oo f ast .

Cutting too deeply. Make shallower cuts. Knives are nicked, or out of

alignment.

the Cutterhead Knife Adjus tment on page 15. Check that knife slots are clean and free of dust or debris.

Feed workpiece slow ly and consistently.

n knives per the Cutterhead Knife Adjustment o n page 15. Replace nicked knives.

Performance Troubleshooting – Planer

Adj

Trouble Probable Cause Remedy

Snipe

Note: Snipe can be minimized but not eliminated

Fuzzy Grai n

Torn Grain

Rough/Raised Grain

Rounded, glossy surface

Inadequate support of long boards. Support long boards with exte nsion

rollers.

Dull knives. Sharpen knives. Lumber not butted proper ly. Butt end to end each piece of stock

as they pass through.

Planing wood w ith high moisture content.

Dull knives. Sharpen or replace. Too heavy a cut. Adjust proper dept h of cut Knives cutting against gr ai n. Cut along the grain. Dull knives. Sharpen knives. Dull knives. Sharpen knives. Too heavy a cut. Adjust proper dept h. Moisture content too high. Remove high moisture content from

Dull knives. Sharpen or replace knives. Feed speed too slow. Increase speed.

Remove high moisture content from wood by dry ing.

wood by dry ing.

Uneven dept h of cut side to side. Board thickness does not match depth of cut scale. “Chatter” marks on workpiece.

Cutting depth too shallow. Increase depth. Planer bed rough or dirty. Clean pitch and resid ue, and wax

planer table.

Surface of feed r ollers clogged. Clear chips off of rollers. Knife incorrectly set. Adjust knives.

Depth of cut scale incorrect.

Knives incorrectly set.

Cutting too deeply. Make shallower cuts.

ust depth of cut scale.

Set knives properly as described in the Cutterhead Knife Adjus tment on

page 15. Check that knife slots are clean and free of dust or debris.

M echanical Troubl eshooting – P laner/Jointer

Adj

Trouble Probable Cause Remedy

Mac hi n e will not start/ restar t or repeatedly trips circuit breaker or blows fuses.

No inco m ing power.

Planer frequently trips.

Building cir cuit breaker t r ips or fuse blows.

Motor failure. If electric motor is suspect, have a qualified electrician test the

Dust chute not seated proper ly on either Jointer Infeed or Planer Table

1. Verify unit is connected t o pow er and Start / St op switch is in the Start position (see Power on page 13) .

2. Verify unit is co nnected to power. Set the St art/ Stop sw itch to the Stop positio n, depress and release t he reset swit ch, t he n reset the Start/Stop switch to the Start positio n (see Power on

page 13). One cause of overloading trips, whic h are not electrical in nature,

is too heavy a cut. The soluti o n is to take a lighter cut. Verify that planer is on a circuit of cor r ect size. If circuit size is

correct , t here is probably a loose electrical lead.

motor for function or take the machine to a service center and have it tested.

ust the dust chute, making sure that the key on the dust chute

depresses t he micro-switch on machi ne.

Parts

Ordering Repl acement P art s

To order par t s or reach our service depar t me nt, call 1-800-274- 6848 between 7:30am a nd 5:30pm (CST) , Monday through Friday. Having t he Model Number and Serial Number of y our machi ne available w hen you call

Joi nter/Pl aner – Parts List

Note: Parts without part numbers are for refer ence only and cannot be purchased individually.

Index No. Part No. Descript ion Size Qt y

1 .............. JJP8BT-1 ................C hain Support Bracket ........................................................................ 1

2 .............. JJ P 8 B T-2 ................Spro ck e t ............................................................................ ................ 1

3 .............. JJP 8BT-3 ................E -Cli p...............................................................Ø6 ............................. 1

4 .............. TS-2361051 ............Lock Wash er ....................................................M5 ........................... 40

5 .............. TS-1540031 ............Hex Nut............................................................M5 ............................. 9

6 .............. TS-1550031 ............Flat Wash er......................................................M5 ........................... 22

7 .............. JJP8BT-7 ................Corner Sprocket ................................................................................. 4

8 .............. JJP8BT-8 ................Chain ................................................................................................. 1

9 .............. JJP8BT-9 ................Base .................................................................................................. 1

10 ............ JJP8BT-10 ..............Infeed Pointer Label ............................................................................ 1

11 ............ TS-1502031 ............Socket Head Cap Screw ...................................M5x12........................ 3

12 ............ JJP8BT-12 ..............Driven Lead Screw ............................................................................. 3

13 ............ JJP8BT-13 ..............Drive Lead Screw ............................................................................... 1

14 ............ JJP8BT-14 ..............Ex tension Table .................................................................................. 1

15 ............ TS-1503021 ............Socket Head Cap Screw ...................................M6x10........................ 3

16 ............ JJP8BT-16 ..............Crank Arm Bushing ............................................................................. 1

18 ............ JJP8BT-18 ..............Main Table ......................................................................................... 1

19 ............ JJP8BT-19 ..............Crank Arm.......................................................................................... 1

20 ............ JJP8BT-20 ..............Guide Rail .......................................................................................... 2

21 ............ TS-1503041 ............Socket Head Cap Screw ...................................M6x16........................ 4

23 ............ JJP8BT-23 ..............Knob Screw ........................................................................................ 1

24 ............ JJP8BT-24 ..............Knob .................................................................................................. 1

25 ............ JJP8BT-25 ..............Locking Handle................................................................................... 2

27 ............ TS-1532032 ............Pan Head Mac hi ne Screw .................................M4x10........................ 3

28 ............ TS-2361041 ............Lock Washer ....................................................M4 ............................. 3

29 ............ JJP8BT-29 ..............Pointer ............................................................................................... 1

31 ............ TS-1540021 ............Hex Nut............................................................M4 ............................. 2

32 ............ JJP8BT-32 ..............Cord Clamp ........................................................................................ 1

33 ............ TS-1532052 ............Pan Head Mac hi ne Screw .................................M4x16........................ 2

34 ............ JJP8BT-34 ..............Cover ................................................................................................. 2

35 ............ JJP8BT-35 ..............Rear Support ...................................................................................... 1

36 ............ JJP8BT-36 ..............Self-Tapping Screw ..........................................S T4 .2x 10 ................. 10

37 ............ JJP 8B T-3 7 ..............Scal e ................................................................................................. 1

38 ............ TS-1502011 ............Socket Head Cap Screw ...................................M5x8 ....................... 13

39 ............ JJP8BT-39 ..............Power Cord Protector.......................................................................... 1

40 ............ JJP8BT-40 ..............Rear Support Cover ............................................................................ 1

41 ............ JJP8BT-41 ..............Pin ..................................................................................................... 2

42 ............ JJP8BT-42 ..............Self-Tapping Screw ..........................................S T4 .2x 20 ................... 4

43 ............ JJP8BT-43 ..............Power Cord ........................................................................................ 1

44 ............ JJP 8B T-4 4 ..............Screw ................................................................................. ............... 2

45 ............ JJP8BT-45 ..............Spring ................................................................................................ 2

46 ............ TS-1550031 ............Flat Washer......................................................M5 ............................. 4

47 ............ TS-2331051 ............Cap Nut ...........................................................M5 ............................. 4

48 ............ JJP8BT-48 ..............Th read Lock B ushing .......................................................................... 4

49 ............ TS-1540031 ............Hex Nut............................................................M5 ............................. 2

Joi nter/Pl aner – Parts List

Index No. Part No. Descript ion Size Qt y

50 ............ JJP8BT-50 ..............Outfeed Table Spacer ......................................................................... 4

51 ............ JJP8BT-51 ..............Infeed Table Spacer............................................................................ 4

52 ............ JJP8BT-52 ..............Bearing .............................................................................................. 1

53 ............ JJP8BT-53 ..............Spring ................................................................................................ 2

54 ............ JJP 8 BT-5 4 ..............B ushing Bloc k .................................................................................... 5

55 ............ JJP8BT-55 ..............Spring ................................................................................................ 1

56 ............ JJP8BT-56 ..............Roller ................................................................................................. 2

57 ............ 707401....................Knife .................................................................................................. 2

58 ............ JJP8BT-58 ..............Hose Adapter ..................................................................................... 1

59 ............ JJP8BT-59 ..............Pin ..................................................................................................... 4

60 ............ JJP8BT-60 ..............Knife Gib ............................................................................................ 2

61 ............ JJP 8B T-6 1 ..............Screw ................................................................................. ............. 12

62 ............ JJP8BT-62 ..............Cutterh ead ......................................................................................... 1

63 ............ TS-1540041 ............Hex Nut............................................................M6 ............................. 9

64 ............ JJP8BT-64 ..............Outfeed Table .................................................................................... 1

65 ............ TS-1550021 ............Flat Washer......................................................M4 ............................. 3

66 ............ TS-1501041 ............Socket Head Cap Screw ...................................M4x12........................ 2

67 ............ JJP8BT-67 ..............Fence Support .................................................................................... 1

68 ............ TS-1550041 ............Flat Washer......................................................M6 ............................. 8

69 ............ TS-2361061 ............Lock Washer ....................................................M6 ............................. 9

70 ............ TS-1482021 ............Hex Cap Screw ................................................M6x12........................ 2

71 ............ JJP8BT-71 ..............Fence Bracket .................................................................................... 1

72 ............ JJP 8B T-7 2 ..............Screw ................................................................................. ............... 2

73 ............ TS-1503061 ............Socket Head Cap Screw ...................................M6x25........................ 2

74 ............ JJP8 BT-7 4 ..............Wash er ............................................................Ø6 ............................. 6

75 ............ JJP8BT-75 ..............Locking Nut ........................................................................................ 2

76 ............ JJP8BT-76 ..............Angle Pointer...................................................................................... 1

77 ............ JJP8BT-77 ..............Pin ..................................................................................................... 1

78 ............ JJP8BT-78 ..............Shaft .................................................................................................. 1

80 ............ JJP8BT-80 ..............Hex Cap Screw ................................................M4x15........................ 2

81 ............ JJP8BT-81 ..............Angle Marked Fence Support .............................................................. 1

82 ............ JJP 8B T-8 2 ..............Fen ce ................................................................................................ 1

83 ............ JJP8BT-83 ..............Dust Chute ......................................................................................... 1

84 ............ JJP8BT-84 ..............Knob .................................................................................................. 2

85 ............ JJP8BT-85 ..............Dust H ousing...................................................................................... 1

86 ............ JJP8 BT-3 ................E-C li p...............................................................Ø6 .............. ............... 2

87 ............ JJP8BT-87 ..............Pointer ............................................................................................... 1

88 ............ JJP8BT-88 ..............Infeed Direction Label ......................................................................... 1

89 ............ TS-1533042 ............Pan Head Mac hi ne Screw .................................M5x12........................ 3

90 ............ JJP8BT-90 ..............Knob .................................................................................................. 1

91 ............ JJP8BT-91 ..............Adjusting Rod ..................................................................................... 1

92 ............ TS-1541031 ............Nylon Insert Lock Nut .......................................................................... 2

93 ............ JJP8BT-93 ..............Shaft .................................................................................................. 1

94 ............ JJP 8B T-9 4 ..............Brack et .............................................................................................. 1

95 ............ JJP 8B T-9 5 ..............Cush ion Bl ock .................................................................................... 1

96 ............ JJP8BT-96 ..............Cutterh ead G uard ............................................................................... 1

97 ............ TS-2245081 ............Flat Head Screw ...............................................M5x8 ......................... 2

98 ............ JJP8BT-98 ..............Post ................................................................................................... 1

99 ............ JJP8BT-99 ..............Spring ................................................................................................ 1

100 .......... JJ P 8 BT-1 0 0 ............Support Bracket .................................................................................. 1

101 .......... TS-1534052 ............Pan Head Machi ne Screw .................................M6x16........................ 2

102 .......... JJ P 8 BT-1 0 2 ............Re ta ining Ring .................................................................................... 1

103 .......... TS-2361081 ............Lock Washer ....................................................M8 ............................. 2

104 .......... TS-1504051 ............Socket Head Cap Screw ...................................M8x25........................ 2

107 .......... JJ P 8 BT-1 0 7 ............Sh ield ...................................................................................... .......... 1

108 .......... JJ P 8 BT-1 0 8 ............Sh a ft .................................................................................................. 1

Joi nter/Pl aner – Parts List

Index No. Part No. Descript ion Size Qt y

109 .......... JJ P 8 BT-1 0 9 ............Was her ............................................................................................ 28

110 .......... JJ P 8 BT-1 1 0 ............Anti-Kickb a c k Finger ......................................................................... 54

111 .......... JJ P 8 BT-1 1 1 ............Be a ring Cover ............................................................................... ..... 1

112 .......... JJ P 8 BT-1 1 2 ............Be a ring .............................................................................................. 1

113 .......... JJ P 8 BT-1 1 3 ............Fro nt Support ..................................................................................... 1

114 .......... JJ P 8 BT-1 1 4 ............Cu t De p th Scal e Label ........................................................................ 1

115 .......... JJ P 8 BT-1 1 5 ............Sp ring ................................................................................................ 1

116 .......... TS-1502021 ............Socket Head Cap Screw ...................................M5x10........................ 6

117 .......... JJ P 8 BT-1 1 7 ............Switch Mount...................................................................................... 1

118 .......... JJ P 8 BT-1 1 8 ............Switch ................................................................................................ 1

119 .......... JJ P 8 BT-1 1 9 ............Pu lle y................................................................................................. 1

120 .......... JJ P 8 BT-1 2 0 ............Be lt .................................................................................................... 1

121 .......... JJ P 8 BT-1 2 1 ............Sp a c e r ............................................................................................... 1

122 .......... JJ P 8 BT-1 2 2 ............Sp ro c k e t .................................................................................... ........ 2

123 .......... JJP8BT-123 ............Socket Head Cap Screw ...................................M6x15........................ 2

124 .......... JJ P 8 BT-1 2 4 ............Dr ive Chain ................................................................................. ....... 1

125 .......... JJ P 8 BT-1 2 5 ............Gea r ........................................................................................ .......... 1

126 .......... JJ P 8 BT-1 2 6 ............Pu lle y................................................................................................. 1

127 .......... TS-1533062 ............Pan Head Machi ne Screw .................................M5x20........................ 3

128 .......... JJ P 8 BT-1 2 8 ............Ke y .................................................................................................... 1

129 .......... JJ P 8 BT-1 2 9 ............Be lt .................................................................................................... 1

130 .......... JJ P 8 BT-1 3 0 ............Sh a ft .................................................................................................. 2

131 .......... JJ P 8 BT-1 3 1 ............Fro nt Support Cover ........................................................................... 1

132 .......... JJ P 8 BT-1 3 2 ............JE T Na meplate................................................................................... 1

133 .......... JJ P 8 BT-1 3 3 ............Ke y .................................................................................................... 1

134 .......... JJ P 8 BT-1 3 4 ............Was her .............................................................................................. 1

135 .......... JJ P 8 BT-1 3 5 ............Sp ro c k e t .................................................................................... ........ 1

136 .......... JJ P 8 BT-1 3 6 ............Square Sp a c e r ............................................................................... .... 1

137 .......... JJ P 8 BT-1 3 7 ............Gea r ........................................................................................ .......... 1

138 .......... JJ P 8 BT-1 3 8 ............Gea r Bra c ke t ...................................................................................... 1

139 .......... JJ P 8 BT-1 3 9 ............Sp ring ................................................................................................ 1

140 .......... JJ P 8 BT-1 4 0 ............Ke y .................................................................................................... 1

141 .......... JJ P 8 BT-1 4 1 ............Pan Head Machine Screw .................................M3x18........................ 2

142 .......... TS-2361031 ............Lock Washer ....................................................M3 ............................. 2

143 .......... TS-1550011 ............Flat Washer ......................................................M3 ............................. 2

144 .......... JJ P 8 BT-1 4 4 ............Wi re Clam p .................................................................................. ...... 1

145 .......... JJ P 8 BT-1 4 5 ............Wi re ................................................................................................... 1

146 .......... JJ P 8 BT-1 4 6 ............Moto r Pul l e y ....................................................................................... 1

147 .......... JJ P 8 BT-1 4 7 ............Sc re w ................................................................................................ 1

148 .......... JJ P 8 BT-1 4 8 ............Bra c k e t .............................................................................................. 1

149 .......... JJ P 8 BT-1 4 9 ............Was her .............................................................................................. 1

150 .......... TS-2361081 ............Lock Washer ....................................................M8 ............................. 1

151 .......... JJP8BT-151 ............Socket Head Cap Screw ...................................M8x15........................ 1

152 .......... JJ P 8 BT-1 5 2 ............Moto r ................................................................................................. 1

153 .......... JJ P 8 BT-1 5 3 ............Cover ................................................................................................. 2

154 .......... JJ P 8 BT-1 5 4 ............Sta r Was he r .....................................................M4 ............................. 1

155 .......... JJ P 8 BT-1 5 5 ............Stra in Relie f ....................................................................................... 2

156 .......... JJ P 8 BT-1 5 6 ............Switch Box ......................................................................................... 1

157 .......... TS-1533032 ............Pan Head Machi ne Screw .................................M5x10........................ 2

158 .......... JJ P 8 BT-1 5 8 ............Ov e r l oad Switch ................................................................................. 1

159 .......... JJ P 8 BT-1 5 9 ............Switch Box Cover ............................................................................... 1

160 .......... JJ P 8 BT-1 6 0 ............Se lf-Tapping Screw ..........................................S T4.2 x 15 ................... 4

161 .......... JJ P 8 BT-1 6 1 ............Nut .................................................................................................... 1

162 .......... JJ P 8 BT-1 6 2 ............On/Off Swi tc h ..................................................................................... 1

................ JJP 8 B T-162-1 .........Switch Safety Key (not shown) ............................................................ 1

163 .......... JJ P 8 BT-1 6 3 ............Sh a ft .................................................................................................. 1

Joi nter/Pl aner – Parts List

Index No. Part No. Descript ion Size Qt y

164 .......... JJ P 8 BT-1 6 4 ............Infeed Table ....................................................................................... 1

165 .......... TS-1521051 ............Set Screw ........................................................M4x12........................ 2

166 .......... ...............................Cord Clamp ........................................................................................ 1

167 .......... ...............................Moto r Housin g .................................................................................... 1

168 .......... JJ P 8 BT-1 6 8 ............Brush Holde r ...................................................................................... 2

169 .......... JJ P 8 BT-1 6 9 ............Brush ................................................................................................. 2

170 .......... JJ P 8 BT-1 7 0 ............Brush Cap .......................................................................................... 2

171 .......... ...............................B e a ring .............................................................................................. 1

172 .......... ...............................Indu cto r ............................................................................ .................. 1

173 .......... ...............................S ta to r Insu lati on Pan............................................................... ............ 1

174 .......... ...............................A rmature ............................................................................................ 1

175 .......... ...............................Stator ................................................................................................. 1

176 .......... ...............................S ta to r Insu lati on Pan............................................................... ............ 1

177 .......... ...............................S e l f-Tapping Screw ..........................................ST 5x 56 ...................... 2

178 .......... JJ P 8 BT-1 7 8 ............Fa n .................................................................................................... 1

179 .......... ...............................B e a ring .............................................................................................. 1

180 .......... JJ P 8 BT-1 8 0 ............Moto r Co ver ....................................................................................... 1

181 .......... JJ P 8 BT-1 8 1 ............Switch Box Fac e pl a te ......................................................................... . 1

182 .......... JJ P 8 BT-1 8 2 ............Ja ck Sc re w ................................................................................... ...... 4

183 .......... JJ P 8 BT-1 8 3 ............Rive t ................................................................Ø3x10 ........................ 4

185 .......... JJ P 8 BT-1 8 5 ............Lo c k Sha ft 1 ....................................................................................... 1

186 .......... JJP8BT-186 ............Fence End Cover 1 ............................................................................. 1

187 .......... JJP8BT-187 ............Fence End Cover 2 ............................................................................. 1

188 .......... JJ P 8 BT-1 8 8 ............Lo c k Sha ft 2 ....................................................................................... 1

189 .......... JJ P 8 BT-1 8 9 ............Ro d ......................................................................................... .......... 2

................ 708815....................Push Block (not shown)....................................................................... 2

................ JJP 8 B T-KS G ...........Kni fe /B lade Setting Gauge (not show n) ................................................ 1

Assemb ly Drawing Ind ex

Planer Tabl e Assembly

Motor

Fro nt Frame Assembly

143

Chai n Drive Assemb ly

Fro nt Cover Assembly

Cutt erhead Gu ard Assembly

Dust Cover Assembly

Joi nter Inf eed Table Assemb ly

Joi nter Outfeed Table Assembly

Cutt er Head/Feed Roller Assembl y

Joi nter Fence Assembly

Rear Fra m e and Cover Assembly

Joi nter/Pl aner Stand*

Index No. Part No. Descript ion Size Qty

1 .............. JJP8BT-901 ............Stand Top Support, Short .................................................................... 2

2 .............. JJP10BT-902...........Leg .................................................................................................... 4

3 .............. JJP10BT-903...........Support Plate, Long ............................................................................ 2

4 .............. JJ P 8 B T-90 4 ............Support Plate, Short............................................................................ 2

5 .............. JJP10BT-905...........Stand Top Support, Long .................................................................... 2

6 .............. TS-1540041 ............Hex Nu t............................................................M6 ........................... 24

7 .............. TS-2361061 ............Lock Wash er ....................................................M6 ........................... 24

8 .............. TS-1550041 ............Flat Wash er......................................................M6 ........................... 24

9 .............. 708315-63 ...............Carriage Bolt ....................................................M6x 12...................... 24

10 ............ TS-1540041 ............Hex Nut............................................................M6 ............................. 4

11 ............ TS-1550041 ............Flat Washer......................................................M6 ............................. 4

12 ............ JJP10BT-912...........Rubber Foot ....................................................................................... 4

13 ............ TS-1482041 ............Hex Cap Screw ................................................M6x20........................ 4

14 ............ TS-1550061 ............Flat Washer......................................................M8 ............................. 4

15 ............ TS-2361081 ............Lock Washer ....................................................M8 ............................. 4

16 ............ TS-1504041 ............Socket Head Cap Screw ...................................M8x20........................ 4

* This item is an optional accessor y. To order, c all our service departme nt at 1- 800-274-6848 betw een 7:30am and 5:30pm (CST), Monday t hro ugh Friday a nd ask for St and - Model No. JJP-8BT, Stoc k #

707402.

Electrical Connection

0.33uF/275V

Start

Stator

Rotor

Stop

(Yellow and green wire)

Power Switch

Switch

Power Cord Plug

Overload Switch

WALER MEIER (Manufacturing) Inc.

427 New Sanford Road

LaVergne, Tennessee 37086

Phone: 800-274-6848

www.waltermeier.com

Outlet

JET JJP-8BT Operating Instructions and Parts Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

JJP-8B T 8" Jo inter-P laner

W arranty and Service

Table of Contents

Warnings

Features

Specifications

Optional Accessories

Unpacking

Assembly

Jointer Setup

Planer Setup

Operating Controls

Adjustments

Cutt erhead Kni f e Adjust ment

Repl aci ng Cut t er Knives

Joi nter Fence Adjust ment

Belt Replacement

Basic Operations

Maintenance

Lubrication

Performance Troubleshooting – Jointer

Performance Troubleshooting – Planer

M echanical Troubl eshooting – P laner/Jointer

Parts

Joi nter/Pl aner – Parts List

Assemb ly Drawing Ind ex

Planer Tabl e Assembly

Motor

Fro nt Frame Assembly

Chai n Drive Assemb ly

Fro nt Cover Assembly

Cutt erhead Gu ard Assembly

Dust Cover Assembly

Joi nter Inf eed Table Assemb ly

Joi nter Outfeed Table Assembly

Cutt er Head/Feed Roller Assembl y

Joi nter Fence Assembly

Rear Fra m e and Cover Assembly

Electrical Connection
