JET J-1600R, J-1600R-4 User Manual

This .pdf document is bookmarked

Operating Instructions and Parts Manual

5-ft. Radial Arm Drill Press

Models J-1 60 0R , J- 160 0R - 4

JET

427 New Sanford Road

LaVergne, Tennessee 37086 Part No. M-320038

1.0 Warranty and Service

JET warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please

contact Technical Service by calling 1-800-274-6846, 8AM to 5PM CST, Monday through Friday. Warranty Period

The general warranty lasts for the time period specified in the literature included with your product or on the official JET branded website.

• JET products carry a limited warranty which varies in duration based upon the product. (See chart below)

• Accessories carry a limited warranty of one year from the date of receipt.

• Consumable items are defined as expendable parts or accessories expected to become inoperable within a

reasonable amount of use and are covered by a 90 day limited warranty against manufacturer’s defects.

Who is Covered

This warranty covers only the initial purchaser of the product from the date of delivery.

What is Co vered

This warranty covers any defects in workmanship or materials subject to the limitations stated below. This warranty does not cover failures due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair, alterations or lack of maintenance.

Warranty Limitations

Woodworking products with a Five Year Warranty that are used for commercial or industrial purposes default to a

Two Year Warranty. Please contact Technical Service at 1-800-274-6846 for further clarification.

How to Get Technical Support Please contact Technical Service by calling 1-800-274-6846. Please note that you will be asked to provid e pr o of of initia l p u rch a s e whe n calling. If a product requires further inspection, the Technical Service representative will

explain and assist with any additional action needed. JET has Authorized Service Centers located throughout the

United States. For the name of an Authorized Service Center in your area call 1-800-274-6846 or use the Service

Center Locator on the JET website.

More Information

JET is constantly adding new products. For complete, up-to-date product information, check with your local distributor or visit the JET website.

How S tat e Law A pplies

This warranty gives you specific legal rights, subject to applicable state law.

Limitations on This Warranty

JET LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

JET SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever. JET

Product Listing with Warranty Period

90 Days – Parts; Consumable items; Light-Duty Air Tools 1 Year – Motors; Machine Accessories; Heavy-Duty Air Tools; Pro-Duty Air Tools 2 Year – Metalworking Machinery; Electric Hoists, Electric Hoist Accessories; Woodworking Machinery used for industrial or commercial purposes 5 Year – Woodworking Machinery Limited Lifetime – JET Parallel clamps; VOLT Series Electric Hoists; Manual Hoists; Manual Hoist Accessories; Shop Tools; Warehouse & Dock products; Hand Tools

NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries, Inc., or any of its successors in interest to the JET brand.

branded products are not sold in Canada by JPW Industries, Inc.

2.0 Table of Contents

Section Page

1.0 Warranty and Service ..................................................................................................................................... 1

2.0 Table of Contents ........................................................................................................................................... 3

3.0 Safety ............................................................................................................................................................. 5

3.1 Machinery General Safety Warnings .......................................................................................................... 5

3.2 General Electrical Cautions ........................................................................................................................ 6

3.3 Safety Instructions for Drill Presses ........................................................................................................... 6

4.0 Specifications ................................................................................................................................................. 7

4.1 Machining Capacities ................................................................................................................................. 8

4.2 Machine Environment ................................................................................................................................. 8

4.3 Power Supply Requirements ...................................................................................................................... 8

4.4 Overall Dimensions, J-1600R ........................................................................................................................ 9

5.0 General Features and Terminology, J-1600R .............................................................................................. 10

6.0 Set-Up and Assembly .................................................................................................................................. 12

6.1 Floor Diagrams for J-1600R ..................................................................................................................... 12

6.2 Unpacking ................................................................................................................................................ 13

6.3 Machine Set-Up ........................................................................................................................................ 14

6.4 Electrical Connections .............................................................................................................................. 15

7.0 Operating Controls ....................................................................................................................................... 16

8.0 Operation ..................................................................................................................................................... 17

8.1 Clamping workpieces ............................................................................................................................... 17

8.2 Tool insertion ............................................................................................................................................ 17

8.3 Tool positioning over workpiece ............................................................................................................... 17

8.4 Unlocking arm and column mechanisms .................................................................................................. 17

8.5 Raising and lowering radial arm ............................................................................................................... 18

8.6 Moving drill head along arm ..................................................................................................................... 18

8.7 Rotating arm on support column .............................................................................................................. 18

8.8 Setting spindle speed ............................................................................................................................... 18

8.9 Feed rate and depth of cut ....................................................................................................................... 19

8.10 Setting feed rate ..................................................................................................................................... 19

8.11 Feed methods ........................................................................................................................................ 19

8.12 Setting depth of cut using power feed system ........................................................................................ 19

8.13 Spindle direction and power feed ........................................................................................................... 20

8.14 Hand feed – roughing operations ........................................................................................................... 20

8.15 Fine hand feed using power feed system ............................................................................................... 20

8.16 Tapping .................................................................................................................................................. 20

8.17 Power ON/OFF ....................................................................................................................................... 20

8.18 Coolant control ....................................................................................................................................... 21

8.19 Spindle motor controls ............................................................................................................................ 21

8.20 Turning off spindle drive ......................................................................................................................... 21

8.21 Resetting STOP switch .......................................................................................................................... 21

8.22 Using load ammeter ............................................................................................................................... 21

8.23 Tapping operations ................................................................................................................................. 21

8.24 Arm/spindle control lever ........................................................................................................................ 22

9.0 Adjustments ................................................................................................................................................. 22

9.1 Clamping device ....................................................................................................................................... 22

9.2 Head/rail backlash .................................................................................................................................... 22

9.3 Clutch adjustment ..................................................................................................................................... 23

9.4 Hydraulic pressure adjustment ................................................................................................................. 23

10.0 Troubleshooting the J-1600R ..................................................................................................................... 24

11.0 Spindle speed chart (J-1600R) .................................................................................................................. 25

12.0 Maintenance for J-1600R ........................................................................................................................... 26

12.1 General Cleaning ................................................................................................................................... 26

11.2 Lubrication .............................................................................................................................................. 26

13.0 Replacement Parts – J-1600R Radial Arm Drill ......................................................................................... 28

13.1.1 Riser Mechanism: Exploded View ....................................................................................................... 28

13.1.2 Riser Mechanism: Parts List ................................................................................................................ 29

13.2.1 Column and Base: Exploded View ...................................................................................................... 30

13.2.2 Column and Base: Parts List ............................................................................................................... 31

13.3.1 Coolant System: Exploded View ......................................................................................................... 33

13.3.2 Coolant System: Parts List .................................................................................................................. 33

13.4.1 Gearbox Assembly (Upper Section): Exploded View .......................................................................... 34

13.4.2 Gearbox Assembly (Upper Section): Parts List ................................................................................... 35

13.5.1 Gearbox Assembly (Lower Section): Exploded View .......................................................................... 37

13.5.2 Gearbox Assembly (Lower Section): Parts List ................................................................................... 38

13.6.1 Rear of Head: Exploded View ............................................................................................................. 42

13.6.2 Rear of Head: Parts List ...................................................................................................................... 43

13.7.1 Feed Change Mechanism: Exploded View ......................................................................................... 45

13.7.2 Feed Change Mechanism: Parts List .................................................................................................. 45

13.8.1 Hydraulic Clamping Mechanism: Exploded View ................................................................................ 47

13.8.2 Hydraulic Clamping Mechanism: Parts List ......................................................................................... 48

13.9.1 Hydraulic System: Exploded View ....................................................................................................... 50

13.9.2 Hydraulic System: Parts List ............................................................................................................... 51

14.0 Electrical Connections for J-1600R ............................................................................................................ 52

14.1 Electrical Connections for J-1600R: Parts List ....................................................................................... 53

15.0 Hydraulic system of J-1600R ..................................................................................................................... 54

Familiarize yourself with the following safety notices used in this manual:

This means that if precautions are not heeded, it may result in minor injury and/or possible

machine damage.

This means that if precautions are not heeded, it may result in serious or even fatal injury.

3.0 Safety

- Misuse of this machine can cause serious injury.

- For safety, machine must be set up, used and serviced properly.

- Read, understand and follow instructions in the operator’s and parts manual which was shipped with your machine.

When setting up machine:

- Always avoid using machine in damp or poorly lighted work areas.

- Always be sure machine is securely anchored to the floor.

- Always keep machine guards in place.

- Always put start switch in “OFF” position before plugging in machine.

When using machine:

-Never operate with machine guards missing.

-Always wear safety glasses with side shields (See ANSI Z87.1)

-Never wear loose clothing or jewelry.

-Never overreach — you may slip and fall into the machine.

-Never leave machine running while you are away from it.

-Always shut off the machine when not in use.

When servicing machine:

-Always unplug machine from electrical power while servicing.

-Always follow instructions in operator’s and parts manual when changing accessory tools or parts.

-Never modify the machine without consulting JET

Read and follow these simple rules for best results and full benefits from your machine. Used properly, JET machinery is among the best in design and safety. However, any machine used improperly can be rendered inefficient and unsafe. It is mandatory that those who use our products be properly trained in how to use them correctly. They should read and understand the Operating Instructions and Parts Manual as well as all labels affixed to the machine. Failure to follow all of these warnings can cause serious injuries.

3.1 Machinery General Safety Warnings

1. Always wear protective eye wear when operating machinery. Eye wear shall be impact resistant, protective safety glasses with side shields which comply with ANSI Z87.1 specifications. Use of eye wear which does not comply with ANSI Z87.1 specifications could result in severe injury from breakage of eye protection.

2. Wear proper apparel. No loose clothing or jewelry which can get caught in moving parts. Contain long hair. Rubber soled footwear is recommended for best footing.

3. Do not overreach. Failure to maintain proper working position can cause you to fall into the machine or cause your clothing to get caught — pulling you into the machine.

4. Keep guards in place and in proper working order. Do not operate the machine with guards removed.

5. Avoid dangerous working environments. Do not use stationary machine tools in wet or damp locations, or in an explosive environment. Keep work areas clean and well lit. Special electrics should be used when working on flammable materials.

6. Avoid accidental starts by being sure the start switch is “OFF” before plugging in the machine.

7. Machinery must be anchored to the floor.

8. Never leave the machine running while unattended. Machine shall be shut off whenever it is not in operation.

9. Disconnect electrical power before servicing. Whenever changing accessories or general maintenance is done on the machine, electrical power to the machine must be disconnected before work is done.

10. Maintain all machine tools with care. Follow all maintenance instructions for lubricating and the changing of accessories. No attempt shall be made to modify or have makeshift repairs done to the machine. This not only voids the warranty but also renders the machine unsafe.

11. Secure work. Use clamps or a vise to hold work, when practical. It is safer than using your hands and it frees both hands to operate the machine.

12. Never brush away chips while the machine is in operation.

13. Keep work area clean. Cluttered areas invite accidents.

14. Remove adjusting keys and wrenches before turning machine on.

15. Use the right tool. Don’t force a tool or attachment to do a job for which it was not designed.

16. Use only recommended accessories and follow manufacturer’s instructions pertaining to them.

17. Keep hands in sight and clear of all moving parts and cutting surfaces.

18. All visitors should be kept a safe distance from the work area. Make workshop completely

safe by using padlocks, master switches, or by removing starter keys.

19. Know the tool you are using; its application, limitations, and potential hazards.

3.2 General Electrical Cautions

This machine must be grounded in accordance with the National Electrical Code and local codes and ordinances. This work should be done by a qualified electrician. The machine must be grounded to protect the user from electrical shock.

Caution: For circuits which are far away from the electrical service box, the wire size must be increased in

order to deliver ample voltage to the motor. To minimize power losses and to prevent motor overheating and burnout, the use of wire sizes for branch circuits or electrical extension cords according to the following table is

recommended:

Conductor Length

0 – 50 Ft. No. 14 No. 14

50 – 100 Ft. No. 14 No. 12

Over 100 Ft. No. 12 No. 8

240 Volt Lines 120 Volt Lines

Table 1

AWG Number

3.3 Safety Instructions for Drill Presses

1. All work shall be secured using either clamps or a vise to the drill press table. It is unsafe to use your hands to hold any workpiece being drilled.

2. Drill press head and table shall be securely locked to the column before operating the drill press. This must always be checked prior to starting the machine.

3. Always use the correct tooling. Tooling shall always be maintained and properly sharpened. All tooling must be run at the proper speeds and feeds as they apply to the job. Use only recommended accessories and follow those manufacturer’s instructions pertaining to them. Tooling shall not be forced into any workpiece but fed according to the proper specifications. Failure to follow these instructions will not only ruin the tooling as well as the machine, but can cause serious injury.

4. Never brush away shavings or chips while the machine is in operation. All clean up should be done after the machine is stopped.

5. Keep hands in sight. Do not put hands or fingers around, on, or below any rotating cutting tools. Leather safety gloves should be used when handling any sharp objects or cutting tools. See Figure 1A.

6. Always use protective eyewear when operating, servicing or adjusting machinery. Eyewear shall be impact resistant, protective safety glasses with side shields complying with ANSI Z87.1 specifications. Use of eye wear which does not comply with ANSI Z87.1 specifications could result in severe injury from breakage of eye protection. See Figure 1B.

7. When drilling in material which causes dust, a dust mask shall be worn. See Figure 1C.

8. Avoid contact with coolant, especially guarding the eyes.

9. Non-slip footwear and safety shoes are recommended. See Figure 1D.

10. Wear ear protectors (plugs or muffs) during extended periods of operation. See Figure 1E.

Figure 1

4.0 Specifications

The JET Model J-1600R is a powerful and versatile radial arm drill press. The drill head is mounted on an arm and can slide along the arm to position the spindle over the work piece. The arm itself can be rotated on its support column to allow centering the spindle over the work piece.

Drilling can be performed manually or with power feed assistance. In addition, parameters of RPM, power feed rate and drilling depth can be pre-set by the operator, using controls conveniently positioned on the drill head. The drill has an automatic tool ejector, and hydraulic head and column clamping system.

The power train gears and spline shaft are made of high quality heat-treated and ground nickel chrome steel, offering greater strength and smoothness to high-torque loads. The spindle is of case hardened steel and supported by dual row taper roller and thrust ball bearings at the nose, with thrust and radial axis bearings at the top. The frame is made of Meehanite® and high-tensile strength cast iron.

A precision machined box table allows convenient positioning and clamping of smaller work pieces. The box table can be removed from the base to allow larger workpieces to be clamped on the base itself. Both table and base have multiple T-slots for clamping set-ups.

Model number .......................................................................................................................................... J-1600R

(J-1600R-4 is the same machine but pre-wired for 460V operation)

Stock numbers:

J-1600R .................................................................................................................................................. 320038

J-1600R-4 .............................................................................................................................................. 320039

Head and Spindle:

Push button controls .................................................................................................................................. 110V

Spindle motor (model J-1600R) ......................................................... TEFC Induction, 7.5 HP (5.5 kW), 3 PH,

230/460V (pre-wired 230V), 19/9.5 A, 60Hz

Spindle motor (model J-1600R-4) ...................................................... TEFC Induction, 7.5 HP (5.5 kW), 3 PH,

230/460V (pre-wired 460V), 19/9.5 A, 60Hz

Control circuits ........................................................................................................................................... 115V

Spindle taper .............................................................................................................................................. MT-5

Spindle speeds.......................................................................................... twelve speeds, within 40-1920 RPM

Quill (spindle) travel ............................................................................................................. 14-9/16” (370 mm)

Quill (spindle) travel with powerfeed engaged ............................................................................. 13” (330 mm)

Spindle travel along arm, total.............................................................................................. 44-7/8” (1140 mm)

Feed rates (distance per revolution) .......................................................................... six at 0.003 - 0.038 in/rev

Base surface to spindle, maximum (no tooling) ......................................................................... 63” (1600 mm)

Base surface to spindle, minimum (no tooling) ............................................................................ 15” (380 mm)

Column to spindle center distance, maximum ..................................................................... 62-1/4” (1580 mm)

Column to spindle center distance, minimum ......................................................................... 13-3/8” (334mm)

Noise emission (approx. 3-1/4 ft./1m from spindle head) * ..................... 82 dB at 1500 rpm; 79 dB at 88 RPM

Arm and Column:

Column diameter .......................................................................................................................... 17” (432 mm)

Arm vertical travel on column ............................................................................................ 33-15/32”. (850 mm)

Arm elevating motor .................................................... TEFC, 2 HP (1.5 kW), 3 PH, 230/460V, 3.2/1.6A, 60Hz

Clamping motor .......................................................... TEFC, 1 HP (0.75kW), 3 PH, 230/460V, 3.2/1.6A, 60Hz

Base and Table:

Box table dimensions ..........................................................27-1/2”L x 19-3/4”W x 16”H (700 x 500 x 415 mm)

T-slots in Table (6) ............................................................ 1-1/2”W x 3/4" D, 7/8” W opening (38 x 19, 22 mm)

Base dimensions ..............................................................103-1/4”L x 40-1/4”W x 8”H (2623 x 1022 x 203mm)

T-slots in Base (3) .............................................................. 1-1/2”W x 3/4 D”, 7/8”W opening (38 x 19, 22 mm)

Additional specifications:

Coolant pump motor.................................................. TEFC, 1/8 HP (0.1kW), 3 PH, 220/440V, 0.2/0.1A, 60Hz

Machine height (floor to motor at maximum elevation) ............................................................. 125” (3175mm)

Shipping Dimensions .............................................................. 110”L x 57”W x 115”H(2794 x 1448 x 2921mm)

Net weight ........................................................................................................................... 11,000 lb / 4990 kg

Shipping weight ................................................................................................................... 11,240 lb / 5098 kg

* Measur ed under test condi tions SS41 ma terial, 32mm thick, Ø32mm tool.

4.1 Machining Capacities

Drilling Tapping Boring

Mild Steel 2-1/2 in. (mm) 2” (mm) 5” (mm)

Cast iron 2-5/16 in. (58.75mm) 2-3/8” (mm) 7-3/8” (mm)

Table 2

4.2 Machine Environment

1. Do not position the machine where it receives direct sunlight.

2. Normal ambient temperature should be between +5°C (41°F) and 40°C (104°F).

3. Humidity: Between 30% and 95%. At maximum temperature of 40°C/104°F, relative humidity should not be over 50%. Higher humidity is acceptable at relative lower temperatures (e.g. 90% humidity at 20C°).

4. Keep machine away from gasoline, chemical substances, dust, acid, sulfides, magnetic interference and explosive environments.

5. Keep machine away from electrical interference sources such as welding machines and EDM (Electric Discharge Machining).

6. Illumination of work area should be greater than 500lux.

7. Work area must have adequate ventilation.

8. Floor must be flat.

9. Keep floor around machine free of hydraulic splash to prevent hazard of slipping and falling.

4.3 Power Supply Requirements

1. Acceptable voltage fluctuation: normally +/- 10%

2. Acceptable frequency fluctuation: +/- 1Hz (50/60Hz)

3. Acceptable momentary power-off duration: less than 10m.sec

4. Acceptable voltage impulse:

Peak value: 200% or less than the line voltage of the actual value (rms.value).

Duration: 1.5m.sec or less.

5. Acceptable AC voltage of the waveform distortion.

6. Acceptable imbalance of the line voltage: 5% or less.

7. Power capacity:

Main motor: 5.625 Kw (7.5HP)

Arm elevating motor: 1.5kW (2HP)

Clamping motor: 0.75kW (1HP)

Coolant pump motor: 0.1kW (1/8HP)

Total power requirement: 20.203 KVA

4.4 Overall Dimensions, J-1600R

Figure 2

The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations.

5.0 General Features and Terminology, J-1600R

Figure 3

1. Column cover (encloses arm elevating motor)

2. Elevating lead screw

3. Column

4. Locking nuts

5. One shot lube unit

6. Machine identification plate

7. Column clamping indicators

8. Base

9. Box table

10. Coolant nozzle

11. Spindle

12. Work lamp

13. Arm rotation handle

14. Rack

15. Arm rail

16. Spindle speed chart

17. Sight glass (and clutch access)

18. Drill head/gearbox *

*See Figure 10 for details on drill head controls.

19. Spindle motor, 7-1/2HP

20. Leveling screws

21. Work lamp toggle switch

22. Support block (for shipping only)

23. Brace (for shipping only)

24. Coolant pump

25. Arm clamping cylinder

26. Guard panel

27. Electrical cabinet

28. Counterweight system

29. Hydraulic clamping motor, 1HP

30. Hydraulic tank

31. Pressure gauge

32. Solenoid valves

33. Clamping cylinder

34. Guide bar

General Features and Terminology, J-1600R (cont.)

Figure 4

Figure 5

6.0 Set-Up and Assembly

6.1 Floor Diagrams for J-1600R

Figure 6

Figure 6 shows spacing for the 360° rotational path of the arm, plus 1000mm (approx. 40 inches) of general maintenance area on each side.

Distance column center to arm limit Maintenance area (A) Total space required (B)

2087mm (82 in.) 1000mm (40 in.) 6174mm (243 in./20-1/4 ft.)

Figure 7

(all dimensions in millimeters unless ot herw ise not ed )

6.2 Unpacking

Remove any remnants of shipping crate and check for shipping damage. Report any damage immediately to your distributor and shipping agent. Do not discard any shipping material until the Radial Arm Drill Press is installed and running properly.

Compare the contents of your container with the following parts list to make sure all parts are intact. Missing parts, if any, should be reported to your distributor. Read the instruction manual thoroughly for assembly, maintenance and safety instructions.

Contents of Shipping Container

(see Figure 8)

1 Radial Arm Drill Press (not shown) 6 Leveling Pads 1 Tool Box, containing:

1 Grease gun 1 Oil bottle 1 Tapered drift 1 Adjustable wrench

1 Set of hex keys 1 Flat blade screwdriver 1 Cross point screwdriver 1 Instructions and Parts Manual (not shown) 1 Warranty Card (not shown) 1 Manufacturer’s Test Chart (not shown)

Figure 8: Tools provided

Read and understand the entire contents of this manual before attem pting set-up or

operation! Failure to comply may cause serious injury.

6.3 Machine Set-Up

1. After dismantling crate, remove toolbox and any accessory items from around machine.

2. Place lifting straps as shown in Figure 9. Use cushioning to protect machine surfaces.

Figure 9: Method of lifting

3. Remove the bolts holding machine to pallet.

the support brace. Remove shipping block and wood platform from box table. Remove shipping brace from base. (Retain these support pieces if machine is to be transported in future.)

9. Surfaces of the machine have been treated with a protective coating for shipment; remove this with mineral spirits or a cleaner/degreaser. Then apply a light coating of oil to exposed

metal surfaces. See section 12.0 Maintenance,

for details.

10. Inspect all sight glasses on machine to be certain they are filled to their level lines. If low, add fluid as necessary according to

instructions in section 12.2 Lubrication.

11. Perform a lubrication check at all points

recommended in section 12.0.

Verify that the machine is

properly lubricated at all points before operating.

12. Follow directions in section 8.0, Operation, to

check all operation functions of drill press. If coolant is being used, put coolant in the sump and test coolant delivery.

All lifting equipment must

be rated appropriately to safely sustain weight of drill press. Do not allow anyone near or beneath machine while it is being moved.

4. Lift machine and position it over anchor bolts in an area with good lighting, and a level and well-supported floor.

5. Place provided leveling pads beneath base, using appropriate spacing. Place a level (its tolerance should be within 0.02mm/m) on box table and level the machine.

6. The drill press MUST be anchored to floor. Use layout diagram in Section 6.1 as a guide, and mount the nuts to the ground bolts.

Failure to anchor machine

properly, according to t he diagrams, could result in machine tipping over and consequent damage to machine and possible injury to machine operator and bystanders.

7. Connect electrical service branch to machine according to instructions which follow in

section 6.4, Electrical Connections. This work

should be done only by a qualified and licensed electrician who is familiar with machine service and national and local codes.

13. When all of the above operations are complete, the machine is ready for service.

8. Turn on drill press (see section 8.0, Operation), push the unlock button, and move

arm/spindle control lever to UP, until quill clears the shipping block and the arm clears

6.4 Electrical Connections

Electrical set-up should be

performed only by a licensed electrician who is familiar with national and local electrical codes. This machine must be properly grounded to help prevent electrical shock and possible fatal injury.

Model J-1600R radial drills are tested before shipping for all functions and circuits under electrical power specified for the machine and motors. The only hook-up requirement should be for correct connection to an appropriate cutout on an appropriate service branch.

Where the following instructions do not agree with local electrical codes and procedures, the applicable codes and procedures should be followed, exclusively.

Wiring diagram

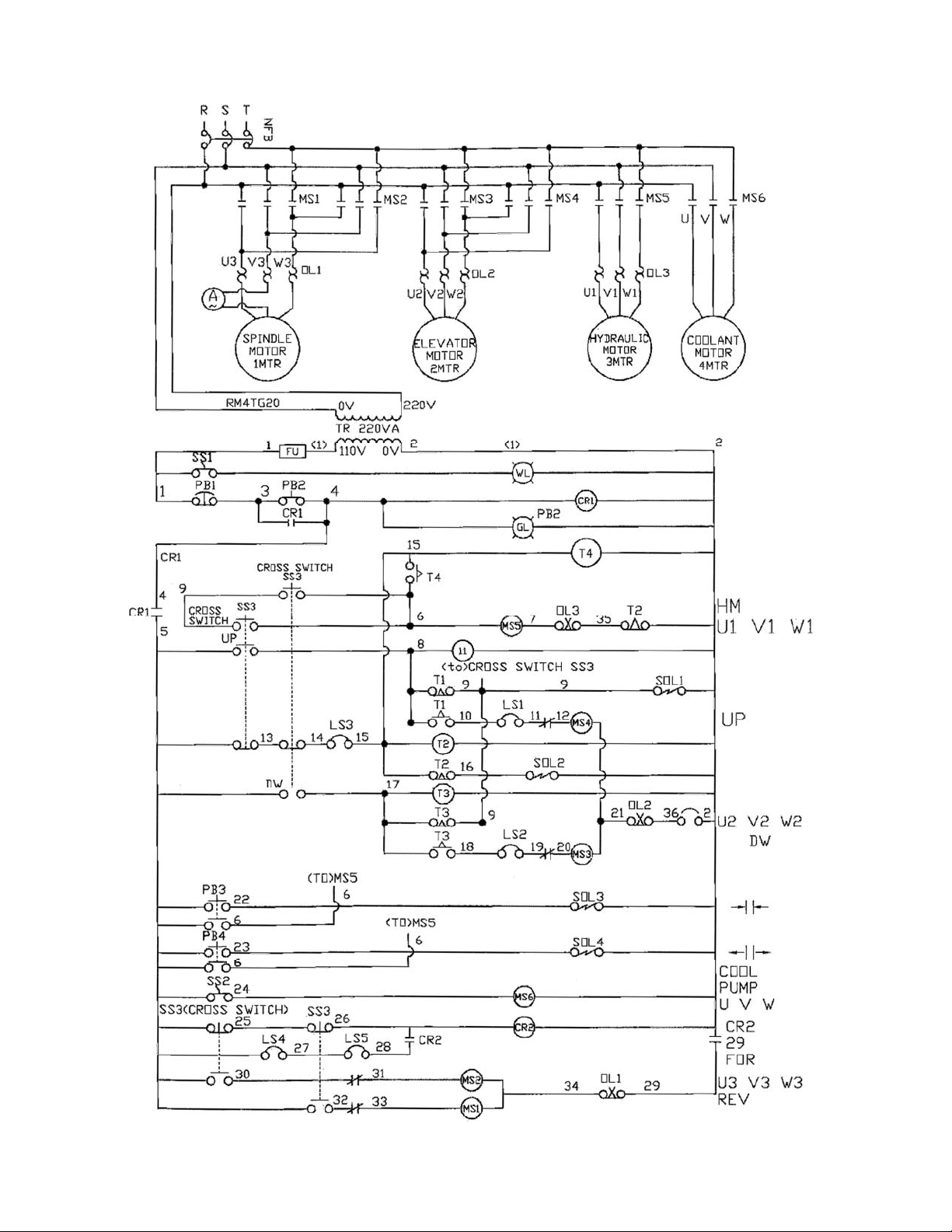

A wiring diagram for the drill press is found inside the door of the electrical cabinet. A similar diagram is shown in back of this manual. This diagram is for reference by your licensed installing or servicing electrician.

All three motors on the J-1600R are 3-phase motors of the same voltage value. All control circuits are 110 volt circuits. The motor’s circuit is

NOT fused. Thus, fuses for each leg of the 3phase service branch must be supplied by the installing electrician. If a service disconnect with

a fuse for each leg of the 3-phase branch is not supplied, then none of the motors are protected from electrical faults.

In addition to using a licensed electrician for connection to the drill press service branch, the servicing of components and circuits inside the control box should be serviced only by a qualified electrician. This includes fuse replacement, if required. If any of these fuses, upon replacement, should continue to fail at short service intervals, the electrician should be asked to check all machine components for excessive loads, short circuits or other failures.

Electrical branch service

The machine is wired for either a 230V or 460V, 3phase service branch. The cable supplying the drill press will be tagged with the voltage at which the machine was tested and corresponding to the customer's order.

If the tag has been lost, it will be necessary for you to open the electrical cabinet on the rear of the drill press and examine the connections on the transformer found inside the box. The transformer can be connected to either a 230 or 460 volt source and its taps are labeled for voltage. By locating the source tap on the transformer you will be able to determine the branch voltage required.

A service disconnect is recommended. The use of fuses or circuit breakers for each of the voltage supply wires is required. Use fuses or circuit breakers which are appropriate to the voltage for the motor system delivered.

A positive cut-out/lock-out lever or rocker switch should be located on the outside of the service disconnect to allow the machine operator to disconnect from the branch circuit when working with tooling on the machine.

It is recommended that the 230 volt Drill Press be

connected to a dedicated 25 amp circuit with a 25 amp circuit breaker or time delay fuse. Connect the

460 volt drill press to a dedicated, 15 amp circuit

with 15 amp circuit breaker or time delay fuse.

Local codes take precedence over recommendations.

Connecting br anc h to drill p ress

1. Disconnect service branch to machine by moving lever or rocker switch on cutout box to OFF.

2. Connect the green wire (or green with white trace) to the branch ground.

3. Connect the remaining three wires in the cable (labeled R, S and T) to the three power lines in the branch.

4. Turn power to the machine ON at the cutout box.

5. Turn coolant switch (See Figure 10) to ON position.

Make sure there is coola nt

in flood coolant system before operating pump. Failure to comply may cause damage to pump.

6. Observe rotation through glass atop pump. The shaft should be rotating in direction of arrow cast into pump assembly. If shaft is rotating wrong direction, the power leads need to be switched. Correct as follows:

7. Disconnect power to machine by turning it off at cutout box.

8. Reverse any two of the power lead

connections, R, S or T.

9. Repeat steps 4, 5, and 6, above, and you should observe pump shaft turning in proper direction. Electrical service to machine is now complete.

7.0 Operating Controls

Figure 10: Operating Controls

8.0 Operation

8. Re-establish power to machine, and the drill is ready to use.

8.1 Clamping workpieces

To load/unload heavier workpieces, unlock arm and rotate it out of the way. Lift the workpiece with slings or other properly rated lifting equipment.

Both the box table and base surface are slotted to accept a suitably sized T-slot clamp. Before beginning any work on the drill press, anchor the work piece, and box table if used, to be certain that workpiece and/or box table will not move when tool enters workpiece.

If box table will not be used, simply remove the nuts at the base, and move table off using proper lifting equipment.

Failure to properly anchor

workpiece and box table could result in damage to machine, damage to workpiece, a nd severe injury to machine operator. Never work on drill press without clamping the materials using a T-slot system set-up.

8.2 Tool insertion

The Model J-1600R uses a No. 5 Morse taper in the spindle to secure tooling. Any drill, milling cutter, or tool holder with an MT-5 can be inserted into the quill.

The first step in removing or

inserting any tooling is to be absolutely certain

the machine cannot be accidentally started during the insertion or removal operation. The

only way to be certain of this fact is to disconnect power to machine. The service box should have a cut-out switch or lever on the outside of the box. Position switch or lever in the OFF position before

inserting or removing tooling.

To insert tooling:

1. Verify that machine is disconnected from power.

2. Be certain the spindle is clean, free from oil, and ready to accept the shank of any tooling.

3. Check the shank of tooling to be certain the tooling is free from dirt, nicks or burrs. If nicks or burrs are discovered, file or stone the shank until it is smooth.

4. Pull the tooling ejection handle out to be

certain the tooling can be inserted. See Figure

10.

5. Be certain quill is in full UP position.

6. Slide shank of tooling into spindle until it seats.

7. Use a soft-faced mallet (such as lead, plastic, brass, etc.) to give the tooling a sharp tap on its tip. This will secure the tooling in the taper.

To remove tooling:

9. Verify that machine is disconnected from power.

10. Place a wood block under the tooling in spindle, to prevent it being damaged should it fall out during the removal process.

11. Use the feed levers to lower quill enough to allow tooling ejection handle to be pushed fully

inward.

12. While using leather gloves to hold the tooling and prevent it from falling loosely out of the spindle taper, use the feed levers to give the quill a sharp upward stroke against the top of its travel and the tooling will be released from the taper in the spindle.

13. Remove tooling and pull tooling ejection

handle out to allow new tooling to be inserted.

8.3 Tool positioning over workpi ece

After workpiece has been clamped to base or table, position the tooling over workpiece, using any or all of the following methods:

1. Adjusting height of arm on support column.

2. Moving drill head along arm.

3. Rotating column upon which arm and head are attached.

8.4 Unlocking arm and column

mechanisms

A motorized locking system is used to lock the head to the arm, the arm to the column, and the column to the base.

The buttons which control the locks are located in

center of drill head handw heel (see Figure 10).

Press and hold UNLOCK (green) button until arrow (Figure 11) points to “B”. Release button. Clamping device is now disengaged. When locking, press and hold LOCK (red) button until arrow points to “A”. Clamping device is now re-engaged.

NOTE: When you push UNLOCK, all of the locks are disengaged. When you push LOCK, all of the

locks are engaged.

Always be certain the locks

are engaged before using drill press. Pull on arm handle and try to rotate handwheel at front of head, before star ti ng spindle. Fai l ure to have all locks secure may result in damage to tooling, damage to workpiece, and possible injury to operator.

+ 39 hidden pages
