Operating Instructions and Parts Manual
This .pdf document is bookmarked
Horizontal Band Saw
Models EHB-1018VM | EHB-1018VMH
®
JET
427 New Sanford Road
LaVergne, Tennessee 37086
www.jettools.com
Ph.: 855-336-4032
Part No. M-891070
REV D 07/2020
Copyright © 2018 JET
1
1.0 WARRANTY AND SERVICE
JET® warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please
contact Technical Service by calling 1-855-336-4032, 8AM to 5PM CST, Monday through Friday.
WARRANTY PERIOD
The general warranty lasts for the time period specifi ed in the literature included with your product or on the offi cial JET
branded website, jettools.com.
WHO IS COVERED?
This warranty covers only the initial purchaser of the product from the date of delivery.
WHAT IS COVERED?
This warranty covers any defects in workmanship or materials subject to the limitations stated below. This warranty does not
cover failures due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair,
alterations or lack of maintenance.
HOW TO GET TECHNICAL SUPPORT
Please contact Technical Service by calling 1-855-336-4032. Please note that you will be asked to provide proof of initial
purchase when calling. If a product requires further inspection, the Technical Service representative will explain and assist
with any additional action needed. JET has Authorized Service Centers located throughout the United States. For the name
of an Authorized Service Center in your area call 1-855-336-4032 or use the Service Center Locator on the JET website.
2
Horizontal Band Saw
MORE INFORMATION
JET® is constantly adding new products. For complete, up-to-date product information, check with your local distributor or
visit the JET website, jettools.com.
HOW STATE LAW APPLIES
This warranty gives you specifi c legal rights, subject to applicable state law.
LIMITATIONS ON THIS WARRANTY
JET LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT.
EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
JET SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL,
CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
JET sells through distributors only. The specifi cations listed in JET printed materials and on offi cial JET website are given as
general information and are not binding. JET reserves the right to eff ect at any time, without prior notice, those alterations
to parts, fi ttings, and accessory equipment which they may deem necessary for any reason whatsoever. JET® branded
products are not sold in Canada by JPW Industries, Inc.
NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries, Inc., or
any of its successors in interest to the JET brand.
EHB-1018VM | EHB-1018VMH
3
2.0 TABLE OF CONTENTS
1.0 WARRANTY AND SERVICE .........................................................................................................................................2
2.0 TABLE OF CONTENTS .................................................................................................................................................4
3.0 SAFETY WARNINGS ....................................................................................................................................................4
4.0 INTRODUCTION ...........................................................................................................................................................6
5.0 SPECIFICATIONS .........................................................................................................................................................6
6.0 UNCRATING AND ASSEMBLY .....................................................................................................................................7
7.0 INSTALLATION .............................................................................................................................................................7
8.0 ELECTRICAL CONNECTIONS .....................................................................................................................................7
9.0 CONTROLS...................................................................................................................................................................7
10.0 AUXILIARY COOLANT HOSE.....................................................................................................................................8
11.0 PRIOR TO OPERATION ..............................................................................................................................................8
12.0 OPERATING CONTROLS AND ADJUSTMENTS .......................................................................................................8
12.1 REMOVING AND INSTALLING THE BLADE ..........................................................................................................8
12.2 ADJUSTING BLADE GUIDE BRACKETS ...............................................................................................................9
12.3 ADJUSTING BLADE GUIDE ROLLER BEARINGS ................................................................................................9
12.4 CHANGING BLADE SPEED .................................................................................................................................10
12.5 OPERATING VISE ................................................................................................................................................10
12.5.1 HYDRAULIC VISE .........................................................................................................................................10
12.6 BOW WEIGHT ADJUSTMENT .............................................................................................................................. 11
12.7 ADJUSTING STOCK ADVANCE STOP ................................................................................................................ 11
12.8 SETTING UP THE MACHINE FOR OPERATION ................................................................................................. 11
12.9 AUTOMATIC SHUT-OFF .......................................................................................................................................12
12.10 GEAR CASE ........................................................................................................................................................12
12.11 ADJUST BLADE TENSION AND BLADE TRACKING ADJUSTMENT ................................................................12
12.12 SAFETY DEVICE FOR BROKEN SAW BLADE ..................................................................................................13
12.13 CLAMPING VISE POSITION LOCKING LEVER ................................................................................................13
12.14 MITER ANGLE ADJUSTMENT ...........................................................................................................................13
13.0 MAINTENANCE ........................................................................................................................................................14
14.0 LUBRICATION ...........................................................................................................................................................14
15.0 REPLACEMENT PARTS ...........................................................................................................................................14

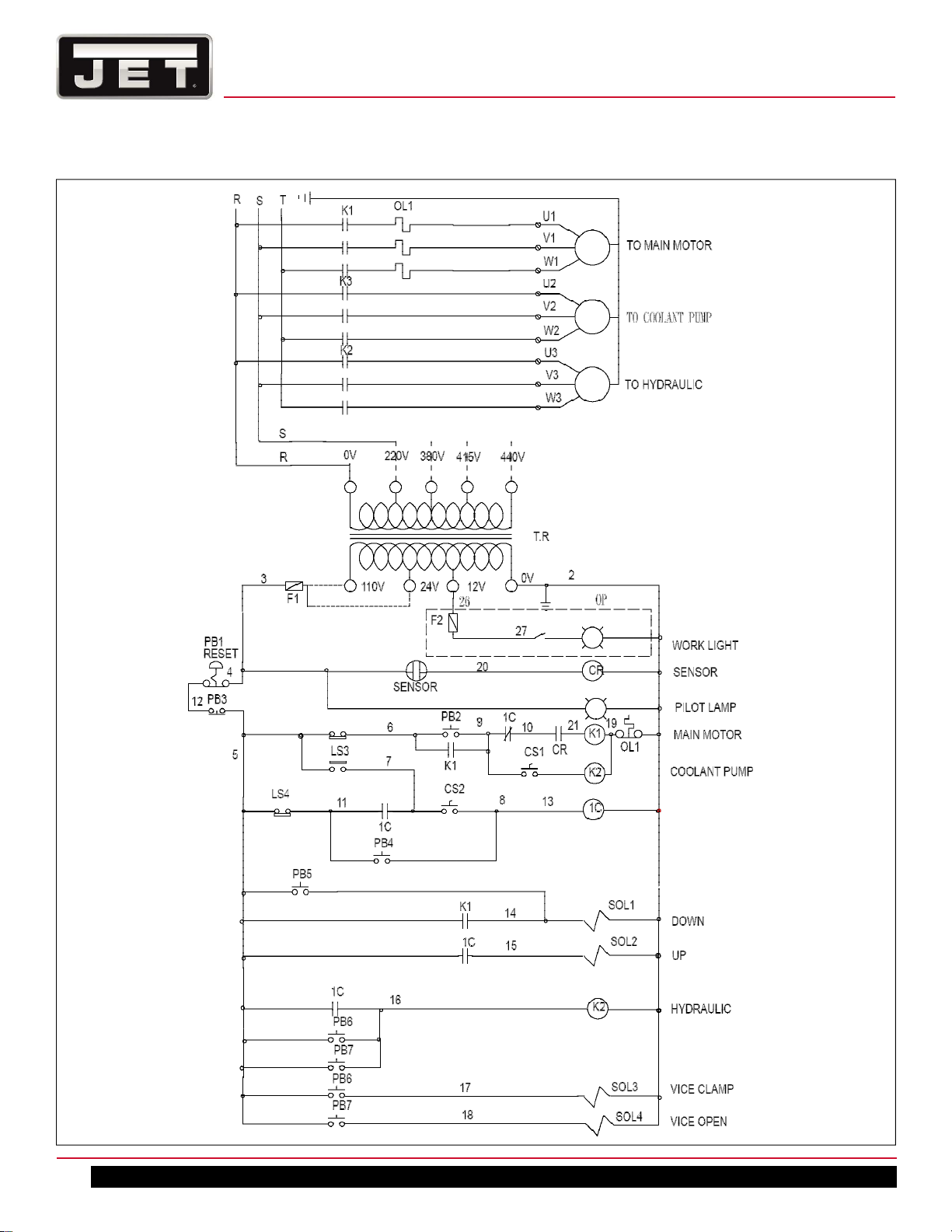

16.0 WIRING DIAGRAM ............................................................................................................................................. 27-28
3.0 SAFETY WARNINGS
1. Read and understand the entire owner’s manual before attempting assembly or operation.
2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with all of these warnings may cause
serious injury.
3. Replace the warning labels if they become obscured or removed.
4. This band saw is designed and intended for use by properly trained and experienced personnel only. If you are not familiar with the
proper and safe operation of a band saw, do not use until proper training and knowledge have been obtained.
5. Do not use this band saw for other than its intended use. If used for other purposes, JET®, disclaims any real or implied warranty and
holds itself harmless from any injury that may result from that use.
6. Always wear approved safety glasses/face shields while using this band saw. Everyday eyeglasses only have impact resistant
lenses; they are not safety glasses.
7. Before operating this band saw, remove tie, rings, watches and other jewelry, and roll sleeves up past the elbows. Remove all loose
clothing and confine long hair. Non-slip footwear or anti-skid floor strips are recommended. Do not wear gloves.
8. Wear ear protectors (plugs or muffs) during extended periods of operation.
9. Do not operate this machine while tired or under the influence of drugs, alcohol or any medication.
4
Horizontal Band Saw
10. Make certain the switch is in the OFF position before connecting the machine to the power supply.
11. Make certain the machine is properly grounded.
12. Make all machine adjustments or maintenance with the machine unplugged from the power source.
13. Remove adjusting keys and wrenches. Form a habit of checking to see that keys and adjusting wrenches are removed from the
machine before turning it on.
14. Avoid contact with coolant, especially guarding your eyes.
15. Always keeps hands and fingers away from the blade when the machine is running.
16. Never hand hold the material. Always use the vise and clamp it securely.
17. Always provide adequate support for long and heavy material.
18. Keep safety guards in place at all times when the machine is in use. If removed for maintenance purposes, use extreme caution and
replace the guards immediately after maintenance is complete.
19. Check damaged parts. Before further use of the machine, a guard or other part that is damaged should be carefully checked to
determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts,
breakage of parts, mounting and any other conditions that may affect its operation. A guard or other part that is damaged should be
properly repaired or replaced.
Do not use power tools in damp/wet locations or other dangerous environments. Do not expose them to rain. Keep work area well
20.
lighted. Provide for adequate space surrounding work area and non-glare overhead lighting.
21. Keep the floor around the machine clean and free of scrap material, oil and grease.
Keep visitors a safe distance from the work area. Keep children away. Workshop should be childproof; padlocks, master switches,
22.
remove starter keys.
23. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are careless acts that can result in
serious injury.
24. Maintain a balanced stance at all times so that you do not fall or lean against the blade or other moving parts. Do not overreach or
use excessive force to perform any machine operation.
25. Use the right tool at the correct speed and feed rate. Do not force a tool or attachment to do a job for which it was not designed. The
right tool will do the job better and more safely.
26. Use recommended accessories; improper accessories may be hazardous.
27. Maintain tools with care. Keep blade sharp and clean for the best and safest performance. Follow instructions for lubricating and
changing accessories.
28. Maintain proper adjustment of blade tension, blade guides and thrust bearings.
29. Turn off the machine and disconnect from power before cleaning. Use a brush to remove chips or debris — do not use your hands.
30. Do not stand on the machine. Serious injury could occur if the machine tips over.
31. Never leave the machine running unattended. Turn the power off and do not leave the machine until it comes to a complete stop.
32. Be sure that the blade is not in contact with the workpiece when the motor is started. The motor shall be started and you should allow
the saw to come up to full speed before bringing the saw blade into contact with the workpiece.
33. Adjust upper guide to clear workpiece. Hold workpiece fi rmly against table.
34. Direction of feed — feed work into a blade or cutter against the direction of rotation of the blade or cutter only.
35. Installation work and electrical wiring must be done by qualifi ed electrician in accordance with all applicable codes and standards.
36. Do not remove jammed pieces until blade has stopped.
WARNING: This product can expose you to chemicals including lead and benzene which are known to the State of California to
cause cancer and birth defects or other reproductive harm. For more information go to http://www.p65warnings.ca.gov.
WARNING: Some dust, fumes and gases created by power sanding, sawing, grinding, drilling, welding and other construction
activities contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Some
examples of these chemicals are:
• lead from lead based paint
• crystalline silica from bricks, cement and other masonry products
• arsenic and chromium from chemically treated lumber
Your risk of exposure varies, depending on how often you do this type of work. To reduce your exposure to these chemicals, work
in a well-ventilated area and work with approved safety equipment, such as dust masks that are specifically designed to filter out
microscopic particles. For more information go to http://www.p65warnings.ca.gov/ and http://www.p65warnings.ca.gov/wood.
EHB-1018VM | EHB-1018VMH
5
Familiarize yourself with the following safety notices used in this manual:
This means that if precautions are not heeded, it
may result in minor injury and/or possible machine
damage.
This means that if precautions are not heeded, it
may result in serious or even fatal injury.
4.0 INTRODUCTION
This manual is provided by JET® covering the safe operation and maintenance procedures for a JET Model EHB-1018VM
or EHB-1018VMH. This manual contains instructions on installation, safety precautions, general operating procedures,
maintenance instructions and parts breakdown. Your machine has been designed and constructed to provide consistent,
long-term operation if used in accordance with the instructions as set forth in this document.
5.0 SPECIFICATIONS
Model Number EHB-1018VM EHB-1018VMH
Stock Number 891070 891080
Capacity (in.):
Round at 90° 10 10
Round at 60° 6 6
Round at 45° 10 10
Rectangle at 90° 10x17 10x17
Rectangle at 60° 6x5 6x5
Rectangle at 45° 10x12 10x12
Square at 90° 10x10 10x10
Square at 60° 5-1/2x5-1/2 5-1/2x5-1/2
Square at 45° 10x10 10x10
Vise Swivel (°) 0 0
Head Movement (°) 60 R, 45 L 60 R, 45 L
Blade Size (in.) 1 x .035 x 144 1 x .035 x 144
Blade Wheel Diameter (in.) 14 14
Blade Wheel Speed (SFPM) Variable 50-275 Variable 50-275
Bed Height (in.) 27 27
Motor (HP) 2 HP, 230/460V 3 Phase
CSA/CUS Certifi ed
Overall Dimensions (in.) 85 x 40 x 44 85 x 40 x 44
Net Weight - approx. (lbs.) 1,166 1,210
Shipping Weight - approx. (lbs.) 1,276 1,320
2 HP, 230/460V 3 Phase
CSA/CUS Certifi ed
The specifi cations in this manual were current at time of publication, but because of our
policy of continuous improvement, JET, reserves the right to change specifi cations at any
time and without prior notice, without incurring obligations.
6
Horizontal Band Saw
6.0 UNCRATING AND ASSEMBLY
Note: Read and understand the entire manual before
attempting setup or operation.
8.0 ELECTRICAL CONNECTIONS
1. Finish uncrating the saw and inspect for damage.
Should any have occurred, contact your local distribu tor.
2. Remove all bolts attaching machine to shipping base.
3. Leave packing material between vise clamps and saw
head intact until band saw has been lifted to its fi nal
position.
4. Clean all rust protected surfaces with kerosene or
diesel oil to remove protective coating. Do not use
gasoline, paint thinner, mineral spirits, etc. These may
damage painted surfaces.
5. Lubricate all slideways with SAE 10W oil.
7.0 INSTALLATION
For best performance, the band saw should be located on
a solid and level foundation. Allow room for servicing and
for moving large stock around the band saw when deciding a location for the machine.
1. Using lifting straps that are isolated from the band
saw’s fi nished surfaces, lift machine and place in
desired location. See Figure 1 for strap placement.
2. Install four leveling bolts with lock nuts on both sides
of the base as shown in the parts breakdown on page
16, items 2 and 3.
3. Place a level on the table surface and check side-to-
side and front-to-back.
4. Adjust leveling screws until machine is level in both
directions and tighten locking nuts.
All electrical connections must be done by a
qualifi ed electrician. All adjustments or repairs must
be done with machine disconnected from power
source. Failure to comply may cause serious injury.
The EHB-1018VM/VMH is rated at 230/460V, 3 phase.
Confi rm that power available at the saw’s location matches that for which the saw is wired.
If the saw runs backward, disconnect from power and
switch any two of the three power leads.
9.0 CONTROLS
Refer to Figure 2.
Power Indicator Light (A) – lit whenever machine is
running.
Start Button (B) – press to start band saw.
Stop Button (C) – press to stop band saw.
Emergency Stop Button (D) – press to immediately stop
all machine functions.
Blade Up Button (E) – when in automatic mode, press to
raise saw head.
Blade Down Button (F) – when in Automatic mode, press
to lower saw head.
Coolant Switch (G) – Turn arrow to “I” to turn on coolant
fl ow. Turn arrow to “O” to stop coolant fl ow.
Manual/Auto Switch (H) – due to saw head weight, use
the auto mode to raise and lower saw head.
Hydraulic Vise Closed Button (I) – press to close vise.
Hydraulic Vise Open Button (J) – press to open vise.
Saw Head Down Feed Speed Control (K) – this knob is
used to set the amount of downward force that is applied
to the saw blade. The feed rate is proportional to the
opening of the valve. When set to zero, the saw head is
locked in the raised position. Increasing the valve opening
(counterclockwise adjustment) increases the feed rate;
decreasing the valve opening (clockwise adjustment)
reduces the feed rate.
EHB-1018VM | EHB-1018VMH
Fig. 1
7
D
A
G
E
I
K
12.0 OPERATING CONTROLS AND
ADJUSTMENTS
12.1 REMOVING AND INSTALLING THE BLADE
1. Disconnect the machine from the power source.
C
H
B
F
J
Fig. 2
10.0 AUXILIARY COOLANT HOSE
Your saw is equipped with an auxiliary coolant hose. This
can be used when a large amount of coolant needs to be
directed at the work piece.
11.0 PRIOR TO OPERATION
1. Check that blade tooth direction matches diagram on
blade guides.
2. Check to see that blade is properly seated on wheels
after applying correct tension (approximately 25,000
lbs.).
3. Set blade holder guides for approximately .003” to
.005” clearance between guides and blade.
4. Check for slight clearance between back up rollers
and back of blade.
5. Position blade guides as close to workpiece as pos-
sible.
6. Select proper speed and feed rate for material being
cut.
7. Material to be cut must be securely held in vise.
8. Check to see that coolant level is adequate and turn
on coolant pump if material to be cut requires it.
Machine should be fi lled with four gallons of the
proper coolant mixture. Follow the directions on the
product maker’s label and fi ll the coolant tank
through the chip tray area.
9. Do not start cut on a sharp edge.
10. Keep machine lubricated. See “Lubrication” section.
2. Raise the saw frame about 6” and close the feed rate
lever by turning it clockwise as far as it will go.
3. Open both wheel covers and clean the swarf out of
the machine.
4. Release blade tension by turning the blade tension
handwheel (C) Fig. 3 counterclockwise.
5. Remove the blade from both wheels and out of each
blade guide.
6. Make sure the teeth of the new blade are pointing in
the direction of travel. If necessary, turn the
blade inside out.
7. Place the blade in place on the wheels (A) and
through the upper blade guard (B) Fig. 3 is shown
with the wheel covers removed for clarity.
8. Work the blade (F) all the way up into the blade guide
roller bearings (D) with the back of the blade against
the back-up bearing (E), as shown in Fig. 4.
NOTE: If roller bearings need adjusting refer to
the section ADJUSTING BLADE GUIDE ROLLER
BEARINGS.
A
B
C
A
Fig. 3
8
Horizontal Band Saw
12.2 ADJUSTING BLADE GUIDE BRACKETS
The blade guides should be set as close to the vise jaw as
possible. The right blade guide bracket (A) Fig. 6, is not
E
F
D
Fig. 4
adjustable and is set at the factory to clear the right hand
vise jaw. The left blade guide bracket (B) can be moved
to the left or right depending on the position of the left
hand vise jaw (C).
To move the left blade guide bracket (B), loosen hand
knob (D), position blade guide bracket (B) and tighten
hand knob (D).
9. Put light tension on the blade and work it on both
wheels, as shown in Fig. 5.
MAKE SURE THAT THE BACK OF THE BLADE
IS AGAINST THE WHEEL FLANGES OF
BOTH WHEELS. THIS IS VERY IMPORTANT.
10. When you are sure the back of the blade is against
the wheel fl anges of both wheels and properly insert ed into the guides, fi nish putting tension on the blade.
11. Jog the power “on” and “off ” to be sure the blade is in
place and tracking properly.
If blade is not tracking properly refer to the section
“Tracking the Blade”.
Fig. 5
B
D
C
A
Fig. 6
12.3 ADJUSTING BLADE GUIDE ROLLER BEARINGS
The back of the blade (A) Fig. 7, should ride against the
back-up support bearing (B) which is positioned at an
angle so as to provide greater bearing support, eliminating
bearing wear and extending blade life.
The saw blade (A) should also ride between the two roller
bearings (C) and (D) Fig. 7.
The rear bearing (C) on the left hand blade guide can be
easily adjusted to suit blade thickness by loosening nut
(E). The bearing (C) is on an eccentric which enables it to
be adjusted for blade thickness in the same manner with
the exception that the adjustable roller bearing is in the
forward position.
Part (F) shown Fig. 8 is a tungsten carbide block, after
completing the adjustments shown in Fig. 7, tighten the
Part (F) onto the surface of the saw blade.
EHB-1018VM | EHB-1018VMH
9
B
Speed Adjuster Knob
C
E
D
A
E
C
Fig. 7
F
Fig. 8
12.4 CHANGING BLADE SPEED
Only adjust speed with power on and blade turning.
Fig. 9
12.5 OPERATING VISE
The workpiece is placed between the vise jaws with the
required amount to be cut-off extending out past the blade.
To position the moveable vise jaw (B) instantly, simply turn
vise handknob (A) Fig. 10, counterclockwise 1/2 turn and
move the vise jaw (B) to the desired position.
A
Then tighten vise by turning the knob (A) clockwise.
The vise can be adjusted to cut any angle from 0° to 45°
by loosening the two bolts (C) Fig, 10, on each vise jaw.
Position the vise jaws to the desired angle and tighten the
bolts. It is also necessary, when angle cutting, to move
the right hand vise jaw (D) to the left until the workpiece
and right hand vise jaw clears the right hand guide arm.
12.5.1 HYDRAULIC VISE
The 1018VMH is equipped with a hydraulic vise. This
feature allows the operator to make repeated cuts much
quicker than saws with manual vise.
To use the hydraulic vise, load material as normal and
manually advance the mobile vise jaw against the work
piece then use the vise close and open fuctions located on
the control panel.
1. Raise cutting head approximately six inches above
work piece and turn feed rate knob to zero.
2. Turn power on and turn speed adjuster knob (as in
Figure 9) to match appropriate material.
10
Horizontal Band Saw
A
D
B
C
A
Fig. 10
12.6 BOW WEIGHT ADJUSTMENT
Bow weight is one of the most important adjustments of
the saw. If the bow weight is not set properly, one can
expect poor performance, crooked cuts, tooth stripping,
stalling, and the blade popping off the blade wheels. The
hydraulic feed rate unit will not compensate for improper
bow weight. Bow weight has been set at the factory and
should not need any adjustment. If adjustment becomes
necessary:
1. Disconnect machine from power source.
2. Turn on hydraulic valve (F, Figure 2).
3. Turn cutting pressure control valve (E, Figure 2)
counterclockwise until it stops.
4. Place one end of a fi sh-type scale under the blade
tension handle and lift the saw with the other end.
The scale should indicate approximately 22-24 lbs.
for the EHB-1018VM/VMH.
5. Adjust tension to approximately 22-24 lbs. by turn
ing the adjustable C-bolt found at the end of the coil
spring on the rear of the band saw.
6. Connect the machine to the power source.
B
C
Fig. 11
12.8 SETTING UP THE MACHINE FOR OPERATION
1. Select the proper speed and blade for the type of
material you are cutting.
2. Make sure blade tension is adjusted properly.
3. Lift the saw frame up and turn the feed rate knob to
zero.
4. Place the stock between the vise jaws, set the stock
for the desired width of cut and tighten the vise.
5. Make sure the left blade guide bracket (A) is adjusted
as close as possible to the left vise jaw (B) Fig. 12.
6. Turn the machine on adjust coolant fl ow by turning
knob (G) Fig. 2.
7. Turn the feed rate control (K) Fig 2, counterclock
wise until the saw blade begins to lower the desired
rate of speed.
8. Proceed to cut throughout the workpiece, as shown in
Fig. 12. The machine will turn off at the completion of
the cut.
A
12.7 ADJUSTING STOCK ADVANCE STOP
The Stock Advance Stop is used mainly when more than
one piece is to be cut to the same length. Simply position
the stop block (A) Fig.11, the desired distance away from
the blade.
The stop may be repositioned by loosening screw (B) and
moving the rod (C) accordingly. To move the stop block
(A) out of the way simply push it to the down position.
EHB-1018VM | EHB-1018VMH
B
Fig. 12
11
12.9 AUTOMATIC SHUT-OFF
Each machine and any accessories which are wired
into the electrical system are controlled by the start-stop
buttons. The machine will automatically shut off when the
cut is completed. The lever (A) Fig. 13, for the automatic
shut-off , contacts the top of the hydraulic cylinder (B) and
shuts off the machine.
LUBRICATION OF HYDRAULIC SYSTEM
If it is necessary to fi ll the hydraulic cylinder with oil,
proceed as follows:
1. Lift the saw frame slightly (about 15°), place a block
underneath the saw frame to hold it.
2. Turn cover (B) shown in Fig. 13 counterclockwise,
then fi ll hydraulic oil or equivalent until it is full.
A
B
Fig. 13
A
Fig. 14
12.11 ADJUST BLADE TENSION & BLADE
TRACKING ADJUSTMENT
Blade tension has been preset at the factory; however
if the tension should need to be increased, this can be
accomplished by turning the handwheel (A) clockwise until
the tension limiter (B) slips. Please note that one does not
need to press the handwheel, simply turn. For purposes
of proper blade tracking, the back of th blade should be
located against the fl ange of the blade wheel. If it is not,
the tracking can be adjusted by loosening the screw (C)
in Fig. 15, and adjusting screw (D) in Fig. 15, until the
blade is tracking properly, When adjustment is complete,
retighten screw (C).
12.10 GEAR CASE
After the fi rst 50 hours of use the gear case should be
drained and refi lled. Remove drain plug (A) Fig. 14 drain
all of the oil out of the gearbox. Remove oil fi ller plug
located underneath the right wheel and fi ll the gear case
with 850ml of multi-function gearbox oil or equivalent.
12
D
C
A
B
Fig. 15
Horizontal Band Saw

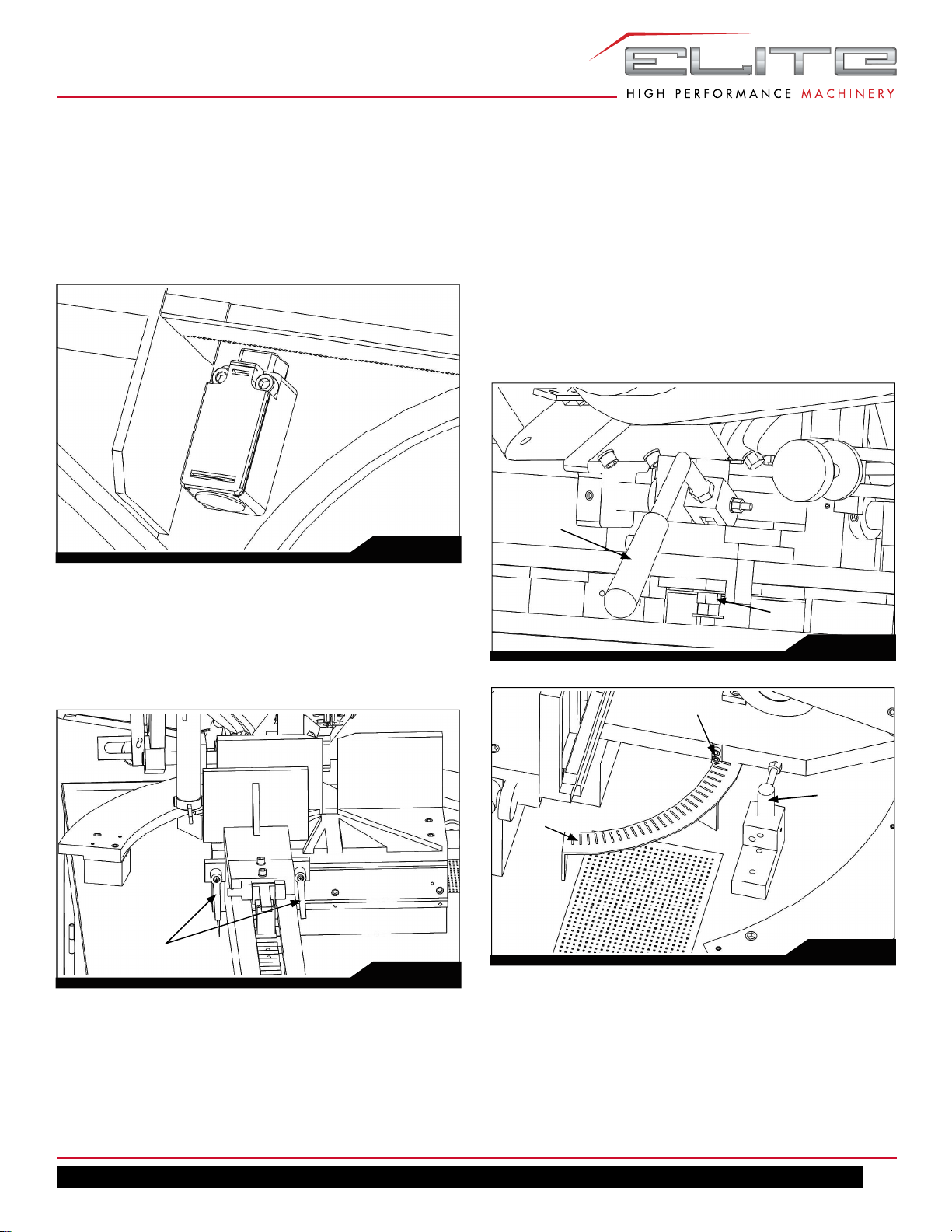

12.12 SAFETY DEVICE FOR BROKEN SAW BLADE
When the saw blade breaks during operation, the limit
switch shown in Fig. 16, will automatically shut the
machine off .
Fig. 16
12.14 MITER ANGLE ADJUSTMENT
In order to use the mitering function of this saw, fi rst you
must release the tension on lever (A) Fig. 18 by pulling
the lever up. Then remove the 90 deg pin (A) Fig. 19 to
allow the frame to swing. Set the indicator (B) Fig. 19 to
the desired angle on the scale (C) Fig. 19. After the proper
angle has been set, push the lever down to hold the saw
in place. if the lever does not adequately hold the saw,
the tension can be adjusted by tightening the bolt (B)
under the lever.
A
12.13 CLAMPING VISE POSITION LOCKING LEVER
Due to the mitering function of this saw, the vise can be
moved fore and aft. Make sure to tighten both workpiece
levers (A) in Fig. 17, before clamping the workpiece.
A
Fig. 17
B
Fig. 18
B
A
C
Fig. 19
EHB-1018VM | EHB-1018VMH
13
13.0 MAINTENANCE
Before doing maintenance on the machine, disconnect it from the electrical supply by pulling out the
plug or switching off the main switch! Failure to
comply may cause serious injury.
Keep the band saw and the motor clean.
If the power cord is worn, cut, or damaged in any way,
have it replaced immediately.
14.0 LUBRICATION
All ball bearings are permanently lubricated and sealed.
They require no further attention.
The gear box lubricant should be changed after the fi rst 50
hours of operation. Change lubricant from then on every
250 hours of operation.
To check level of gear box lubricant, place saw arm in
down position and allow a few minutes to pass so that oil
drains down. Check level in sight glass on side of gear
casing. Correct level is the dot in the middle of sight glass.
To change gear box lubricant:
1. Disconnect the machine from the power source.
2. Open drain plug and allow lubricant to drain
completely. Drain plug may be found on lower front of
gear case under right wheel cover. Remove drain plug
with a hex wrench.
3. Replace drain plug.
4. Remove fi ller cap (A, Figure 12) and fi ll gear box with
Mobil DTE® Oil Heavy Medium until level reaches dot
in middle of sight glass.
5. Replace fi ller cap.
6. Connect machine to the power source.
Use a light machine oil to lubricate all other moving parts
as needed.
15.0 REPLACEMENT PARTS — EHB 1018VM and EHB 1018VMH
Replacement parts are listed on the following pages.
To order parts or reach our service department, call
1-855-336-4032, Monday through Friday (see our website
for business hours, www.jettools.com). Having the Model
Number and Serial Number of your machine available
when you call will allow us to serve you quickly and
accurately.
®
JET
427 New Sanford Road
LaVergne, Tennessee 37086
www.jettools.com
Phone: 855-336-4032
14
Horizontal Band Saw
SAW STAND AND BED ASSEMBLY — EHB 1018VM, 1018VMH
EHB-1018VM | EHB-1018VMH
15
PARTS LIST EHB-1018VM, EHB-1018VMH
Index No. Part No. Description Size Qty.
1 EHB916V-64 Fitting 2
2 EHB916V-65 Tubing 5/16"× 65" 2
3 EHB1018VM-66 Valve 1
4 EHB1018VM-67 Feed Knob 1
5 TS-0209071 Socket Head Cap Screw 3/8 × 1-1/2" 2
6 EHB1018VM-191 Rack block 1
7 EHB1018VM-192 Vise jaw Bracket 1
8 TS-0267041 Set Screw 1/4-20 × 3/8" 1
9 EHB1018VM-194 Rack block 1
10 EHB1018VM-195 Acme Nut Assembly 1
11 EHB1018VM-196 Fixed Pin 1
12 EHB1018VM-197 Rack 1
13 TS-0081031 Hex Cap Screw 5/16-18 × 3/4" 2
14 EHB1018VM-199 Moveable Bed 1
15 EHB1018VM-200 Adjustable Handle 1
16 TS-0680041 Flat Washer 3/8" 1
17 EHB1018VM-202 Vise Jaw Bracket (fi xed) 1
18 TS-0208071 Socket Head Cap Screw 5/16"-18 × 1-1/4" 4
19 TS-0060081 Hex Cap Screw 3/8-16 × 1-3/4" 1
20 TS-0561031 Hex Nut 3/8" 1
21 EHB916V-206 Limit Switch 1
22 EHB1018VM-207 Limit Switch Seat(Ser No.13080024 and
lower)
EHB1018VM-207N Limit Switch Seat(Ser No.xxxx0025 and
higher)
23 EHB1018VM-208 Limit Switch 1
24 EHB1018VM-209 Bracket 1
24-1 EHB916V-209-1 Knob 1
24-2 EHB916V-191 Special Washer 1
24-3 EHB1018VM-209-3 Screw 1
24-4 TS-0561011 Nut 1
24-5 EHB1018VM-209-5 Block 1
24-6 EHB1018VM-209-6 Screw 2
24-7 EHB1018VM-209-7 Screw 2
24-8 EHB916V-225 Screw 3
24-9 EHB1018VM-209-9 Ring 1
EHB1018VM-OHCA Oil Hydraulic Cylinder Assembly (includes #
25-33,35)
25 EHB916V-210 Cap 1
25-1 EHB1018VM-25-1 Air Flow Brass
26 EHB916V-211 Oil Seal 20.35.7 1
27 EHB1018VM-213 Rod 1
28 TS-0680031 Flat Washer 5/16" 1
29 EHB1018VM-215 Piston 1
30 EHB916V-216 Seal 1
31 EHB1018VM-217 O-Ring 1
32 TS-0561021 Hex Nut 5/16" x 18T 2
33 EHB1018VM-219 Tube Assembly 1
1
1
1
16
Horizontal Band Saw
Index No. Part No. Description Size Qty.
35 EHB916V-222 Tube Fitting 1
36 EHB916V-223 Retaining Ring S-17 1
37 EHB1018VM-224 Pivot Shaft 1
38 EHB916V-225 Socket Set Screw 3/8"-16T × 3/8" 1
39 TS-0680031 Flat Washer 5/16" 4
40 TS-0051051 Hex Cap Screw 5/16 × 1" 4
41 EHB916V-232 Motor Plate 1
42 EHB1018V-233 Rear Pivot Bracket 1
43 EHB916V-234 Socket Set Screw 1/2" x 2" 2
44 EHB916V-235 Hex Nut 1/2"-12 2
45 TS-0209081 Socket Head Cap Screw 3/8"-16T × 1-3/4" 3
46 TS-0680041 Flat Washer 3/8" 3
47 TS-0271051 Set Screw 3/8"-16 × 1/2" 1
48 EHB1018VM-241 Eccentric 1
49 TS-0051081 Hex Cap Screw 5/16 x 1-3/4" 1
50 TS-0680031 Flat Washer 5/16" 1
51 TS-0561021 Hex Nut 5/16 x 18T 1
52 TS-0561071 Hex Nut. 5/8" 1
53 EHB1018VM-247 Handle 1
54 EHB916V-248 Pin (not show) 1
55 EHB916V-249 Hand Wheel 1
55-1 EHB916V-249-1 Handle 1
56 EHB1018VM-250 Seat (1018VM only) 1
56-1 TS-0051051 Hex Cap Screw (1018VM only) 5/16"-18 × 1" 2
56-2 TS-0720081 Lock Washer (1018VM only) 5/16" 2
57 EHB1018VM-252 Acme Screw(1018VM only) 1
57 EHB1018VMH-252 Acme Screw(1018VMH only)(not shown) 1
57-1 EHB916V-252-1 Collar 1
58 EHB916V-253 Roll Pin 6 ø ×30 ø 1
59 EHB1018VM-254 Locking screw 1
60 EHB1018VM-255 Special Washer 1
61 EHB1018VM-256 Locking pieces 1
62 TS-0680061 Flat Washer 1/2" 1
63 TS-0561051 Hex Nut. 1/2"-12 2
64 TS-0267121 Socket Set Screw 1/4 x 3/4" 1
65 EHB1018VM-260 Table 1
66 TS-0208061 Socket Head Cap Screw 5/16" × 1" 4
67 EHB1018VM-262 Block 1
68 EHB1018VM-263 Swiveling Seat 1
68-1 EHB1018VM-263-1 Support Seat 1
68-2 TS-0070161 Hex Cap Screw 1/2 x 5-1/2 1
68-3 TS-0640111 Hex Nut 1/2" 1
68-4 TS-0060071 Hex Cap Screw 3/8 x 1-1/2 1
68-5 TS-0570031 Hex Nut. 3/8"-16 1
69 TS-0050031 Hex Cap Screw 1/4" × 3/4" 2
70 EHB916V-265 Collar 2
71 TS-0271031 Socket Set Screw 3/8-16T ×3/8" 4
72 EHB916V-267 Copper 2
EHB-1018VM | EHB-1018VMH
17
Index No. Part No. Description Size Qty.
73 TS-0271031 Socket Set Screw 3/8-16T ×3/8" 2
74 EHB916V-269 Pivot Shaft 1
75 EHB1018VM-270 Spindle 1
76 EHB1018VM-271 Base Assembly 1
76-1 EHB1018VM-271-1 Base Lid 1
76-2 EHB1018VM-271-2 Base Lid 1
76-3 EHB1018VM-271-3 Door 1
76-4 EHB1018VM-271-4 Wiring box 1
77 EHB1018VM-272 Sliding Surface 1
78 TS-0267071 Socket Set Screw 1/4-20 × 3/4" 6
79 TS-0208061 Socket Head Cap Screw 5/16"-18 × 1" 3
80 EHB1018VM-276 Seat 1
81 EHB1018VM-277 Movable Pin 1
82 EHB916V-278 Gun Set 1
82-1 EHB916V-278-1 Hook 1
82-2 EHB916V-278-2 Hex Cap Screw 2
83 TS-0051051 Hex Cap Screw 5/16"-18 × 1" 2
84 TS-0561051 Hex Nut 1/2"-12T 4
85 EHB1018VM-281 Coolant Tank 1
85-1 EHB1018VM-281-1 Coolant Pump 1
85-2 EHB916V-281-2 Pan Head Machine Screw 4
85-3 EHB916V-96 3 Way Coolant Block 1
85-4 EHB916V-281-4 Lock W/Key 1
85-5 EHB916V-281-5 Lock W/o Key 2
86 EHB1018VM-282 Bracket 1
87 TS-0070051 Hex Cap Screw 1/2"-12 × 2" 4
88 TS-0208071 Socket Head Cap Screw 5/16' x 1-1/4" 8
89 TS-0267071 Set Screw 1/4"-20 × 3/4" 8
90 EHB1018VM-286 Strap 1
91 EHB916V-26 Special Washer 1
92 TS-0680021 Flat Washer 1/4" 2
93 TS-0050031 Hex Cap Screw 1/4"-20 × 3/4" 2
94 EHB916V-245 Knob 1
EHB1018VM-SA Adj. Stock Stop Assembly
(includes #95-98,#101)
95 EHB1018V-258 Shaft 7/8” 1
96 EHB1018VM-292 Stop Bracket 1
97 EHB1018V-260 Bar 1
98 EHB916V-257 Knob 2
99 EHB1018VM-295 Arch Seat 1
100 EHB1018VM-296 Support Block 1
100-1 EHB1018VM-296-1 Socket Head Cap Screw 2
100-2 EHB1018VM-296-2 Screw w/Nut 1
101 EHB916V-257 Knob 1
102 EHB1018VM-298 Scale 1
103 EHB1018VM-299 Indicator 1
104 EHB1018VM-300 Nameplate 1
105 EHB1018VM-301 Start Switch 1
1
18
Horizontal Band Saw
Index No. Part No. Description Size Qty.
105-1 EHB1018VM-301-1 Raise/Lower/Vise Clamp/Vise Unclamp
Switch
106 EHB1018VM-302 Stop Switch 1
107 EHB1018VM-303 Selection Switch 2
108 EHB1018VM-304 Emergency Switch 1
109 EHB916V-305 Indication Light For Power 1
110 EHB1018VM-306 Control Box 1
110-1 EHB1018VM-306-1 Tube 1
111 EHB1018VM-307 Screw 3/16" x 3/8" 9
112 EHB1018VM-311 Acme Leadscrew Seat 1
113 TS-0680031 Flat Washer 5/16" 2
114 TS-0208061 Socket Head Cap Screw 5/16-18 × 1" 2
115 EHB1018VM-314 Fixing Rod for Spring 1
116 TS-0211071 Socket Head Cap Screw 1/2" × 1-1/2" 1
117 EHB1018VM-316 Spring 1
118 EHB1018VM-317 Spring Cover 1
119 EHB1018VM-318 Bracket 1
120 EHB1018VM-319 Spindle 1
120-1 EHB1018VM-319-1 Open Pin 1/8” x1” 2
121 EHB1018VMH-320 Hydraulic Vise Assembly (includes
#121-1~121-5) (1018VMH only)
121-1 EHB1018VMH-320-1 O-Ring 40.46 2
121-2 EHB1018VMH-320-2 Oil Scraping Ring UHS70 2
121-3 EHB1018VMH-320-3 Upper Cap 1
121-4 EHB1018VMH-320-4 Lower Cap 1
121-5 EHB1018VMH-320-5 Special Screw M10 4
122 EHB1018VM-321 Hydraulic Motor 1/4 HP 1
123 EHB1018VMH-322 Direction Valve (1018VMH only) 1
124 EHB1018VMH-323 Reducing Valve (1018VMH only) 1
125 EHB1018VMH-324 Manifold Block (1018VMH only) 1
126 EHB1018VM-325 Hydraulic Pump 1
127 EHB1018VM-326 Oil Box 1
128 EHB1018VM-327 Solenoid Valve 1
129 EHB1018VM-129 Sight Glass (not shown) 1
326-1 EHB1018VMH-326-1 Vise Pressure Gauge (1018VMH only) 1
326-2 EHB1018VMH-326-2 Fitting (1018VMH only) 1
326-3 EHB1018VMH-326-3 Fitting (1018VMH only) 1
326-4 EHB1018VMH-326-4 Fitting (1018VMH only) 1
326-5 EHB1018VMH-326-5 Fitting (1018VMH only) 1
EHB1018VM-25-1 Air Flow Brass (not shown) 1
4
1
EHB-1018VM | EHB-1018VMH
19
SAW ARM ASSEMBLY — EHB 1018VM, 1018VMH
20
Horizontal Band Saw
PARTS LIST SAW ARM — EHB 1018VM, 1018VMH
Index No. Part No. Description Size Qty.
1 EHB916V-01 Handwheel 1
1-1 EHB916V-01-1 Handwheel handle 2
2 EHB916V-20 Lock Nut 1
3 EHB916V-03 Shaft 1
4 EHB916V-04 Bracket 1
5 EHB916V-05 Slide 1
6 EHB916V-06 Gib 2
7 EHB916V-07 Collar 1
8 EHB916V-08 Roll pin 5x30 2
8-1 EHB916V-08-1 Roll pin 5x40 1
9 TS-0081031 Hex Cap Screw 5/16 x 3/4 4
10 EHB916V-10 Adjusting Screw 3/4 x 1-1/2 1
11 TS-0060111 Hex Cap Screw 3/8 x 2-1/2 1
12 TS-0271031 Set Screw 3/8" x 3/8 1
13 EHB916V-13 Spindle 1
14 BB-51103 Thrust bearing BB51103 2
15 TS-0060061 Hex Cap Screw 3/8 x 1-1/4 1
16 EHB916V-16 Roll Pin 5 x 30 1
17 TS-0732061 Lock Washer 3/8" 1
18 EHB916V-18 Driven 1
19 EHB916V-19 Thrust Bearing Housing 1
20 EHB916V-02 Collar 1
21 EHB916V-21 Disc Spring 6
22 EHB916V-22 Copper 1
23 TS-0267041 Set Screw 1/4 x 3/8 1
24 TS-0720081 Lock Washer 5/16" 1
25 TS-0060051 Hex Cap Screw 3/8" x 1" 1
26 EHB916V-26 Special Washer 1
28 EHB916V-28 Wheel L.H. 1
29 BB6306ZZ Bearing BB6306ZZ 2
31 EHB916V-31 Output Shaft 1
32 EHB916V-32 Oil Seal 32.42.7 1
33 BB-30207 Bearing 1
34 EHB916V-34 Oil Plug 1/4" 1
35 EHB916V-35 Gear Box Housing 1
35-1 EHB916V-35-1 Cover 1
EHB916V-GBCA Gear Box Cover Assembly (includes
35, 35-1)
36 TS-0060081 Hex Cap Screw 3/8-16 × 3/4" 3
37 TS-0732061 Lock Washer 3/8" 3
38 EHB916V-38 Worm Gear 1
39 EHB916V-39 Key 7 x 7 x 35 1
40 BB-30206 Bearing 1
41 TS-0267121 Set Screw 1/4" × 3/4" 3
42 EHB916V-42 Cap 1
43 TS-0732061 Lock Washer 3/8" 3
1
EHB-1018VM | EHB-1018VMH
21
Index No. Part No. Description Size Qty.
44 TS-0060071 Hex Cap Screw 3/8"-16 × 1-1/2" 3
45 TS-0207021 Socket Head Cap Screw 1/4"-20 × 5/8" 3
46 TS-0561011 Hex Nut 1/4” 3
47 EHB916V-47 Cap 1
48 SB-3/16 Steel Ball 3/16” 2
49 TS-0270061 Set Screw 5/16"-18 × 5/8" 1
50 TS-0207021 Socket Head Cap Screw 1/4"-20 × 5/8" 4
51 BB-6004 Bearing BB6004 1
52 EHB916V-52 Input Shaft 1
55 BB-3205 Bearing 3205 1
56 EHB916V-56 Oil Seal 25.35.7 1
57 EHB916V-57 Cap 1
58 TS-0207021 Socket Head Cap Screw 1/4"-20 × 5/8" 4
68 EHB1018VM-68 Bow Frame 1
68-1 EHB916V-68-1 Frame Handle 1
70 TS-0081031 Hex Cap Screw 5/16" x 3/4" 2
71 TS-0680031 Flat Washer 5/16" 2
73 EHB916V-73 Tube Retainer 2
74 EHB916V-74 Round Head Screw 3/16" x 3/8" 2
75 EHB916V-75 Bracket 1
76 TS-0680031 Flat Washer 5/16" 2
77 TS-0081031 Hex Cap Screw 5/16" x 3/4" 2
78 TS-0081031 Hex Cap Screw 5/16" x 3/4" 2
79 TS-0680031 Flat Washer 5/16" 2
80 EHB916V-80 Drive Wheel. 1
81 TS-0271032 Socket Set Screw 3/8-24 ×3/8" 1
82 EHB916V-82 Key 7 x 7 x 40 1
83 TS-0081031 Hex Cap Screw 5/16-18 ×3/4" 2
84 TS-0720081 Lock Washer 5/16" 2
85 EHB916V-85 Bracket 1
86 EHB916V-86 Sensor 1
86-1 EHB916V-86-1 Sensor seat 1
86-2 EHB916V-86-2 Screw 2
87 EHB916V-75 Bracket 1
88 EHB916V-88 Knob 2
89 EHB916V-88 Knob 1
90 EHB916V-90 Blade Tension Gauge 1
90-1 EHB916V-90-1 Pin 1
91 EHB1018V-91 Front Pivot Bracket 1
92 TS-0732061 Lock Washer 3/8" 3
93 TS-0060081 Hex Cap Screw 3/8-16 ×3/4" 3
94 TS-0271051 Socket Set Screw 3/8-16 ×1/2" 1
95 EHB1018VM-95 Motor 2Hp,230/460V 1
96 EHB916V-96 3 Way Coolant Block 1
97 EHB1018VM-97 Hose 2
98 EHB916V-98 Valve 2
99 EHB1018V-99 Hose Clamp 2
22
Horizontal Band Saw
Index No. Part No. Description Size Qty.
100 EHB1018VM-100 Belt (for 1018VM/1018VMH) 1
101 EHB916V-101 Cable Glands(not show) PG-11 5
103 EHB916V-103 Upper Guard 1
109 EHB916V-109 Lower Guard 1
110 EHB916V-110 Motor Pulley 1
111 TS-0270021 Socket Set Screw 5/16-18 ×5/16" 1
112 EHB916V-112 Pulley 1
113 TS-0270021 Socket Set Screw 5/16-18 ×5/16" 1
114 EHB916V-114 Key 5 x 5 x 40 1
118 TS-0720081 Lock Washer 5/16" 2
119 EHB916V-119 Hex Head Screw 5/16”-20 ×3/4" 2
121 EHB916V-121 Round Head Screw 10-3/16 ×3/8" 4
122 EHB1018VM-122 Cover R.H. 1
123 TS-0680041 Lock Washer 3/8" 4
126 TS-0680041 Lock Washer 3/8" 3
127 TS-0060081 Hex Cap Screw 3/8 ×16 ×3/4" 3
128 EHB1018V-128 Stationary plate 2
129 EHB1018V-129 Bracket 1
130 TS-0209061 Socket Head Cap Screw 3/8"-16 ×1-1/4" 2
131 TS-0267071 Set Screw 1/4"-20 ×3/4" 4
132 TS-0270061 Set Screw 5/16"-18 ×5/8" 1
133 EHB1018V-133 Bracket-R.H. 4
134 EHB1018VM-134 Slide 1
134-1 EHB916V-134-1 Scale 1
135 EHB916V-135 Screw 3/16"-24 × 7/8" 4
136 EHB916V-136 Carbide Guide 4
137 EHB1018V-137 Collar 2
138 TS-0267021 Set Screw 1/4"×1/4" 2
139 EHB916V-139 Wire Brush 1
140 EHB1018V-140 Bracket 1
141 TS-0207021 Socket Head Cap Screw 1/4"-20 × 5/8" 2
142 TS-0680021 Flat Washer 1/4" x 19 x 2.0 2
144 EHB916V-144 Guide, Right 1
EHB916V-144-1 Guide, Left 1
145 TS-0561021 Hex Nut 5/16"-18T 2
146 TS-0680041 Flat Washer 3/8" 4
147 BB6200ZZ Bearing 6200 ZZ 1
148 EHB916V-148 Special Screw M10 x 30 1
149 BB6200ZZ Bearing 6200 ZZ 2
150 EHB916V-150 Special Screw 1
151 EHB916V-151 Special Screw 1
153 EHB916V-153 Adjustable Handle 1
154 EHB916V-154 Guide Cover 1
154-1 EHB916V-154-1 Screw 3/16” x 3/8” 2
154-2 TS-0680011 Washer 2
155 EHB1018V-155 Bracket-L.H. 4
156 EHB916V-156 Bladecover 1
156-1 EHB916V-156-1 Screw 2
EHB-1018VM | EHB-1018VMH
23
Index No. Part No. Description Size Qty.
156-2 TS-0680011 Washer 2
157 EHB916V-157 Blade cover 1
158 EHB916V-158 Special Knob 2
159 TS-0680041 Flat Washer 3/8" 1
160 TS-0060031 Hex Head Screw 3/8 x 16 x 3/4” 3
161 EHB1018V-161 Bracket 1
165 EHB916V-165 Round Head Screw 3/16 ×3/8" 4
166 EHB916V-166 Cover L.H. 1
167 EHB916V-167 Handle 2
168 TS-081F051 Phillips Screw 1/4”-20 × 3/4” 4
169 891097 Blade 1 “x0.035”x 144” (4/6T) 1
24
Horizontal Band Saw
ELECTRICAL BOX ASSEMBLY — EHB 1018VM
PARTS LIST ELECTRICAL BOX — EHB 1018VM
Index No. Part No. Description Size Qty.
308-1 EHB1018VM-308-1 Transformer 230/460/12/24/110V 1
308-2 EHB1018VM-308-2 Fuse Blocks 32A 600V 1
308-2-1 EHB1018VM-308-2-1 Fuse 5A 1
308-3 EHB1018VM-308-3 Relay 250V 10A 1
308-4 EHB1018VM-308-4 Relay Socket 1
308-5 EHB1018VM-308-5 Terminal Block 9
308-6 EHB1018VM-308-6 Electrical Plate 1
308-7 EHB1018VM-308-7 Round Head Screw 3/16” x 3/8” 54
308-8 TS-0680011 Washer 3/16” 54
308-9 EHB1018VM-308-9 Power Cable 1
308-10 EHB1018VM-308-10 Control Wire 1
308-11 EHB1018VM-308-11 Ground Cable Yellow/Green 1
308-12 EHB1018VM-308-12 Overload Relay (4.5-6.5A) RHU-10K1 1
308-13 EHB1018VM-308-13 Magnetic Contactor CU-11 110V 3
308-15 EHB1018VM-308-15 Motor Cable 1
308-16 EHB1018VM-308-16 Pump Cable 1
308-17 EHB1018VM-308-17 Hydraulic Cable 1
308-18 EHB1018VM-308-18 Limit Switch Cable 1
308-19 EHB1018VM-308-19 Limit Switch Cable 1
EHB-1018VM | EHB-1018VMH
25
ELECTRICAL BOX ASSEMBLY — EHB 1018VMH
PARTS LIST ELECTRICAL BOX — EHB 1018VMH
Index No. Part No. Description Size Qty.
308-1 EHB1018VM-308-1 Transformer 230/460/12/24/110V 1
308-2 EHB1018VM-308-2 Fuse Blocks 32A 600V 1
308-2-1 EHB1018VM-308-2-1 Fuse 5A 1
308-3 EHB1018VM-308-3 Relay 250V 10A 1
308-4 EHB1018VM-308-4 Relay Socket 1
308-5 EHB1018VM-308-5 Terminal Block 11
308-6 EHB1018VMH-308-6 Electrical Plate 1
308-7 EHB1018VM-308-7 Round Head Screw 3/16” x 3/8” 62
308-8 TS-0680011 Washer 3/16” 62
308-9 EHB1018VM-308-9 Power Cable 1
308-10 EHB1018VM-308-10 Control Wire 1
308-11 EHB1018VM-308-11 Ground Cable Yellow/Green 1
308-12 EHB1018VM-308-12 Overload Relay RHU-10K1 1
308-13 EHB1018VM-308-13 Magnetic Contactor CU-11 110V 4
308-14 EHB1018VMH-308-14 Terminal 1
308-15 EHB1018VM-308-15 Motor Cable 1
308-16 EHB1018VM-308-16 Pump Cable 1
308-17 EHB1018VM-308-17 Hydraulic Cable 1
308-18 EHB1018VM-308-18 Limit Switch Cable 1
308-19 EHB1018VM-308-19 Limit Switch Cable 1
308-20 EHB1018VM-308-20 Hydraulic Cable 1
26
Horizontal Band Saw
16.0 WIRING DIAGRAM — EHB 1018VM
EHB-1018VM | EHB-1018VMH
27
WIRING DIAGRAM — EHB 1018VMH
28
Horizontal Band Saw
NOTES
EHB-1018VM | EHB-1018VMH
29
NOTES
30
Horizontal Band Saw
NOTES
EHB-1018VM | EHB-1018VMH
31
NOTES
32
Horizontal Band Saw
Loading...
