JET DC-1100 User Manual

DC-1100A

Original:

GB
Operating Instructions

Translations:

D
Gebrauchsanleitung

F
Mode d´emploi

Dust Collector

Walter Meier (Tool) AG

Tämperlistrasse 5
CH-8117 Fällanden
Switzerland
Phone [phone]
Fax [phone]
[e-mail]
www.jettools.com

M-708639M/T, 2010-06-25

CE-Conformity Declaration

Product: Dust Collector

DC-1100A

Stock Number: 708639M, 708639T

Brand: JET

Manufacturer:

Walter Meier (Tool) AG, Tämperlistrasse 5, CH-8117 Fällanden, Switzerland

On our own responsibility we hereby declare that this product complies

with the regulations

* 2006/42/EC Machinery Directive
* 2004/108/EC EMC Directive (Electro Magnetic Compatibility)
* 2006/95/EC Low Voltage Directive
* 2002/95/EC RoHS Directive (Reduction of Hazardous Substances)

designed in consideration of the standards

** EN 12100-1, EN 12100-2, EN 294, - EN 349, EN 55014, EN 60204-1

VDI 0165, VDI 3677, ZH 1/487

Technical file compiled by: Bruno Bergmann, Product Management

2010-06-25 Carl Müller, General Manager

Walter Meier (Tool) AG, Tämperlistrasse 5, CH-8117 Fällanden, Switzerland

2

GB - ENGLISH

Operating Instructions

Dear Customer,
Many thanks for the confidence you have shown in us with the purchase of your new JET-product. This manual has been

prepared for the owner and operators of a JET DC-1100A dust collector to promote safety during installation, operation and
maintenance procedures. Please read and understand the information contained in these operating instructions and the
accompanying documents. To obtain maximum life and efficiency from your dust collector, and to use it safely, read this
manual thoroughly and follow instructions carefully.

…Table of Contents

1. Declaration of conformity

2. Warranty

3. Safety

Authorized use
General safety notes
Remaining hazards

4. Machine specifications
Technical data
Noise emission
Contents of delivery

5. Assembly and start up
Assembly
Dust collection
Mains connection

6. Machine operation

7. Maintenance and inspection

Cleaning filter
Changing collector bag

8. Trouble shooting

9. Available accessories

10. Environmental protection

1. Declaration of conformity

On our own responsibility we hereby
declare that this product complies with
the regulations* listed on page 2.
Designed in consideration with the
standards**.

2. Warranty

The Seller guarantees that the
supplied product is free from material
defects and manufacturing faults. This
warranty does not cover any defects
which are caused, either directly or
indirectly, by incorrect use,
carelessness, accidental damage,
repair, inadequate maintenance or
cleaning and normal wear and tear.

Guarantee and/or warranty claims
must be made within twelve months
from the date of purchase (date of
invoice). Any further claims shall be
excluded.

This warranty includes all guarantee
obligations of the Seller and replaces
all previous declarations and
agreements concerning warranties.

The warranty period is valid for eight
hours of daily use. If this is exceeded,
the warranty period shall be reduced
in proportion to the excess use, but to
no less than three months.

Returning rejected goods requires the
prior express consent of the Seller and
is at the Buyer’s risk and expense.

Further warranty details can be found
in the General Terms and Conditions
(GTC). The GTC can be viewed at
www.jettools.com or can be sent by
post upon request.

The Seller reserves the right to make
changes to the product and
accessories at any time.

3. Safety

3.1 Authorized use

This dust collector is designed for
sucking wood dust only. Any other
application is not permitted and may
be carried out in specific cases only
after consulting with the manufacturer.

Materials such as liquids, metal
shavings, metal dust, screws, glass,
plastic or rock can cause sparks
and/or damage when coming into
contact with any part of the dust
collector.

The product is not suitable for use in
wet or humid environment.

Don’t use appliance in places with a
risk of explosion.

The proper use also includes
compliance with the operating and
maintenance instructions given in this
manual.

The dust collector must be operated
only by persons familiar with its
operation and maintenance and who
are familiar with its hazards.

The required minimum age must be
observed.

The dust collector must only be used
in a technically perfect condition.

Before connecting the dust collector to
electric power, all safety mechanisms
and covers must be mounted.

In addition to the safety requirements
contained in these operating
instructions and your country’s
applicable regulations, you should
observe the generally recognized
technical rules concerning the dust
collection on woodworking machines.

Any other use exceeds authorization.
In the event of unauthorized use of the
product, the manufacturer renounces
all liability and the responsibility is
transferred exclusively to the operator.

3.2 General safety notes

Read and understand the entire
instruction manual before attempting
assembly or operation of the air
cleaner.

3

Keep this operating instruction close
by the product, protected from dirt and
humidity, and pass it over to the new
owner if you part with the tool.

No changes to the dust collector may
be made.

Daily inspect the function and
existence of the safety appliances
before you start the air cleaner.
Do not attempt operation in this case,
protect the dust collector by
unplugging the power cord.

Always disconnect the dust collector
from the power source (unplug) before
servicing or changing filters.

During the changing or cleaning of the
filters it’s necessary to use a mask
(mask with filtration).

Never reach into the machine while it
is operating or running down.

To reduce the risk of injury from
moving parts, always keep inlet port
covered with the caps provided, if they
are not connected to a hose.

Make sure that the power cord does
not impede work and cause people to
trip.

Do not operate the machine under the
influence of drugs, alcohol or any
medication. Be aware that medication
can change your behaviour.

Keep children and visitors a safe
distance from the work area.

Never leave a running machine
unattended. Before you leave the
workplace switch off the unit.

Do not operate the electric tool near
inflammable liquids or gases.
Observe the fire fighting and fire alert
options, for example the fire
extinguisher operation and place.

Do not use the dust collector in a
dump environment and do not expose
it to rain.

Do not use this equipment to filter
volatile fumes or smoke.

Wood dust is explosive and can also
represent a risk to health.
Dust form some tropical woods in
particular, and from hardwoods like
beach and oak, is classified as a
carcinogenic substance.

Connection and repair work on the
electrical installation may be carried
out by a qualified electrician only.

Have a damaged or worn power cord
replaced immediately.

3.3 Remaining hazards

When using the machine according to
regulations some remaining hazards
may still exist.

Dust can cause injuries.
The use of incorrect mains supply or a

damaged power cord can lead to
injuries caused by electricity.

Danger of explosion if not properly
grounded.

4. Machine specifications

4.1 Technical data

Dust inlet Ø150mm (2xØ100mm)
Air flow Ø150 1620 m³/h
Air flow Ø100 1150 m³/h
Vacuum pressure 1700Pa
Collector bag capacity 200L

Overall DC-1100A:
(LxWxH) 940x510x2000mm
Net weight 48 kg

Mains 230V ~1/N/PE 50Hz
Output power 1,1kW (1,5HP) S1
Reference current 4.8 A
Extension cord (H07RN-F)3x1,5mm²
Installation fuse protection 10A

Mains 400V ~3L/PE 50Hz
Output power 1,1kW (1,5HP) S1
Reference current 2 A
Extension cord (H07RN-F)4x1,5mm²
Installation fuse protection 10A

4.2 Noise emission

Acoustic pressure level (EN ISO

3744):
80 dB (A).

The specified values are emission
levels and are not necessarily to be
seen as safe operating levels.
As workplace conditions vary, this
information is intended to allow the
user to make a better estimation of the
hazards and risks involved only.

4.3 Content of delivery

Filter bag (DC-1100A)
Canister filter (DC-1100CK)
Mobile casters
Dust inlet 2 x 100 mm
Set of 5 collection bags

5. Assembly and start up

5.1 Assembly

If you notice transport damage while
unpacking, notify your supplier
immediately. Do not operate the unit!

Dispose of the packing in an
environmentally friendly manner.

Base:

Install four casters to the under side of
the base with lock washer and nut (Fig

1)

Fig 1

Motor and fan assembly:

Attach the motor and fan assembly
(A) to the base, using 4 hex cap
screws (B) and flat washers.

Fig 2

Attach inlet guard (A, Fig 3) to fan
housing using 8 pan head screws (B).

4

Fig 3

Press the inlet port (C) and secure
with provided screw.

Attention:

To reduce the risk of injury from
moving parts, always keep inlet port
covered with the caps provided, if they
are not connected to a hose.

Connector Housing:

Attach 3 support brackets (A, Fig 4) to
the base using 6 hex cap screws and
washers.

Fig 6

Collector bag:

Fold the plastic bag over the top of the
snap ring (E, Fig 7).

Fig 9

Install the filter bag with retainer strap
(D).

Canister filter (DC-1100CK):

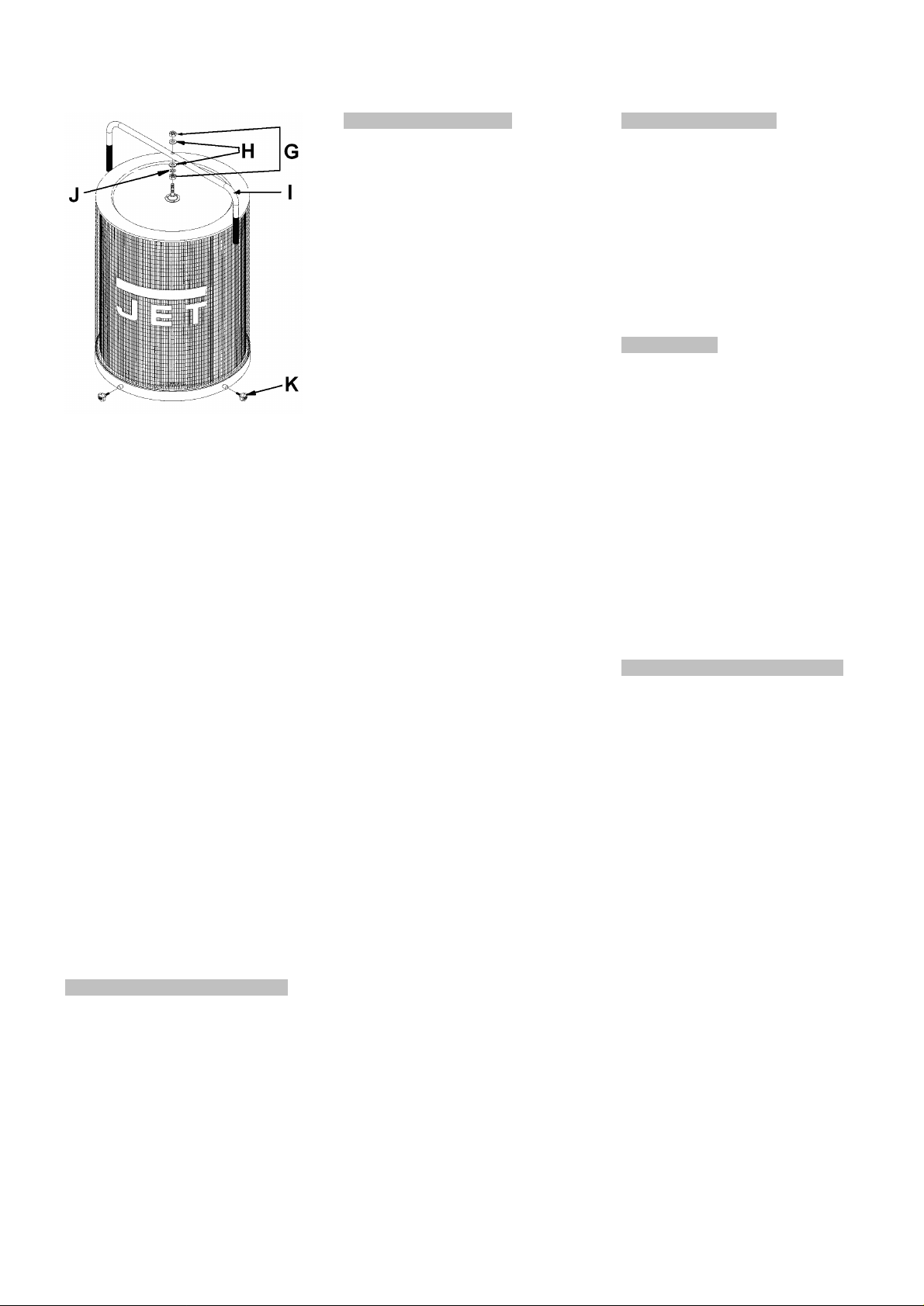

Mount the handle (I, Fig 10) with 2 hex
nuts (G), flat wasshers (H) and a lock
washer (J).

Fig 4

Install the housing (A, Fig 5) with 6
hex cap screws.

Fig 5

Hose:

Attach the hose (A, Fig 6) with 2
provided clamps (B).

Fig 7

Insert the snap ring (E) of the collector
bag into the bottom of the housing at
an angle. Pull down until it engages in
the grove (F, Fig 8)

Fig 8

Filter bag (DC-1100A):

Attach the bag support rods (A, B Fig

9).

5

Fig 10

Mount the canister filter with 4 knobs
(K) on the collector housing.

5.2 Dust connection

The hose or ductwork you use to
connect the tool to the dust collector
must be grounded for avoiding
explosion.
(JET Dust Collector Grounding Kit,
Article Number: JW1053).
