Operating Instructions and Parts Manual
Manual Cold Saws
Models CS-275, CS-315
JET
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-414226
Ph.: 800-274-6848 Revision D 01/2016
www.jettools.com Copyright © 2016 JET
model CS-275-1 shown
16.2.1 CS-315 Cold Saw (Machine Assembly) – Exploded View
22
16.2.2 CS-315 Cold Saw (Machine Assembly) – Parts List
Index No. Part No. Description Size Qty
1 ................ CS275-1G ................. Lock Handle ............................................................. ...................................... 1
2 ................ CS275-2 .................... Lock Nut................................................................... ...................................... 1
3 ................ CS275-3 .................... Sh aft ........................................................................ ...................................... 1
4 ................ CS275-4G ................. Machine Base .......................................................... ...................................... 1
5 ................ CS275-5 .................... Roller Bracket .......................................................... ...................................... 1
6-1 ............. TS-1492021 .............. Hex Cap Screw ........................................................ M12x30 ......................... 2
7 ................ CS275-7 .................... Rol ler ....................................................................... ...................................... 1
9 ................ TS-1504041 .............. Socket Head Cap Screw.......................................... M8x20 ........................... 3
10 .............. TS-0680031 .............. Flat Washer ............................................................. 5/16” .............................. 1
11 .............. CS275-11 .................. Hand Wheel ............................................................. ...................................... 1
12 .............. CS275-12 .................. Pin............................................................................ ...................................... 1
13 .............. CS275-13 .................. Bearing Bushing ...................................................... ...................................... 1
14 .............. CS275-14 .................. Bearing .................................................................... ...................................... 1
15 .............. CS275-15 .................. Bushing .................................................................... ...................................... 1
16 .............. CS275-16 .................. Lead Screw .............................................................. ...................................... 1
17 .............. CS275-17 .................. Lock Handle ............................................................. ...................................... 1
18 .............. CS275-18 .................. Vise, Moveable ........................................................ ...................................... 1
19 .............. CS275-19 .................. Washer .................................................................... ...................................... 1
20 .............. CS275-20 .................. Spring ...................................................................... ...................................... 1
21 .............. CS275-21 .................. Plate......................................................................... ...................................... 1
22 .............. TS-1506021 .............. Socket Head Cap Screw.......................................... M12x25 ......................... 3
23 .............. TS-0680031 .............. Flat Washer ............................................................. 5/16” .............................. 2
24 .............. TS-1504041 .............. Socket Head Cap Screw.......................................... M8x20 ........................... 1
25 .............. CS315-25 .................. Spring ...................................................................... ...................................... 1
26 .............. TS-0680031 .............. Flat Washer ............................................................. 5/16” .............................. 1
27 .............. TS-1504041 .............. Socket Head Cap Screw.......................................... M8x20 ........................... 1
28 .............. CS315-28 .................. Switching Handle ..................................................... ...................................... 1
29 .............. TS-0680021 .............. Flat Washer ............................................................. 1/4" ................................ 1
30 .............. TS-1503031 .............. Socket Head Cap Screw.......................................... M6x12 ........................... 1
31 .............. TS-0680031 .............. Flat Washer ............................................................. 5/16” .............................. 1
32 .............. TS-1540061 .............. Hex Nut .................................................................... M8 ................................. 1
33 .............. CS315-33 .................. Switching Plate ........................................................ ...................................... 1
34 .............. CS275-34 .................. Retaining Ring ......................................................... S-60 .............................. 1
35 .............. CS315-35 .................. Blade Shield............................................................. ...................................... 1
36 .............. TS-2245102 .............. Button Head Socket Screw ...................................... M5x10 ......................... 14
37 .............. CS275-37 .................. Plate......................................................................... ...................................... 2
38 .............. CS315-38G ............... Blade Cover ............................................................. ...................................... 1
39 .............. CS275-39 .................. Socket Head Cap Screw (left hand thread) ............. M12x35LH..................... 1
40 .............. CS275-40 .................. Flange ...................................................................... ...................................... 1
41 .............. CS315-41 .................. Saw Blade................................................................ ...................................... 1
42 .............. CS275-42 .................. Spindle ..................................................................... ...................................... 1
43 .............. CS275-43 .................. Worm Gear .............................................................. ...................................... 1
44 .............. CS275-44 .................. Lock Nut................................................................... ...................................... 1
45 .............. CS275-45 .................. Stop ......................................................................... ...................................... 1
46 .............. CS315-46 .................. Vise, Stationary........................................................ ...................................... 1
47 .............. TS-1502061 .............. Socket Head Cap Screw.......................................... M5x25 ........................... 3
48 .............. CS315-48G ............... Base Swing Arm ...................................................... ...................................... 1
49 .............. CS275-49 .................. Support Rod............................................................. ...................................... 1
50 .............. CS275-50 .................. Vise Jaw Insert ........................................................ ...................................... 1
51 .............. CS275-51 .................. Serrated Jaw Insert.................................................. ...................................... 1
52 .............. CS275-52 .................. Small Serrated Jaw Insert........................................ ...................................... 1
53 .............. CS275-53 .................. Handle Grip with Trigger Switch .............................. ...................................... 1
.................. CS275-53N ............... Handle Grip with Trigger Switch (s/n 1312XXXX and higher) ........................ 1
55 .............. CS315-55 .................. Handle .................................................................... ...................................... 1
.................. CS315-55N ............... Handle (s/n 1312XXXX and higher)......................... ...................................... 1
56 .............. TS-2310201 .............. Hex Nut .................................................................... M20 ............................... 1
58 .............. CS315-58G ............... Machine Head.......................................................... ...................................... 1
59 .............. BB-6301ZZ ................ Ball Bearing ............................................................. 6301ZZ.......................... 1
60 .............. BB-6205ZZ ................ Ball Bearing ............................................................. 6205ZZ.......................... 2
23
Index No. Part No. Description Size Qty
61 .............. CS275-61 .................. Rubber Gasket......................................................... ...................................... 1
62 .............. TS-1490031 .............. Hex Cap Screw ........................................................ M8x 20 ........................... 4
63 .............. TS-0680031 .............. Flat Washer ............................................................. 5/16” .............................. 4
64 .............. CS275-64G ............... Flange ...................................................................... ...................................... 1
65 .............. CS275-65 .................. Oil Seal .................................................................... 25x45x10 ...................... 1
66 .............. CS315-66 .................. Worm Shaft .............................................................. ...................................... 1
67 .............. CS275-67 .................. Coupling................................................................... ...................................... 1
68 .............. CS315-68 .................. Motor........................................................................ 2HP, 220V, 3Ph ............ 1
.................. CS315-68-1 ............... Motor........................................................................ 2HP, 220V, 1Ph ............ 1
69 .............. CS275-69 .................. Wire Terminal Clamp ............................................... ...................................... 4
70 .............. CS275-70 .................. Control Wire ............................................................. ...................................... 1
71 .............. TS-1490031 .............. Hex Cap Screw ........................................................ M8x 20 ........................... 4
72 .............. TS-0680031 .............. Flat Washer ............................................................. 5/16” .............................. 4
73 .............. CS275-73 .................. Oil Plug .................................................................... 1/2” PT .......................... 1
74 .............. TS-0271031 .............. Socket Set Screw .................................................... 3/8”-16x3/8 .................... 2
75 .............. CS315-75 .................. Shaft ........................................................................ ...................................... 1
76 .............. CS315-76 .................. Bushing .................................................................... ...................................... 1
77 .............. CS315-77 .................. Hex Cap Screw ........................................................ M12x55 ......................... 2
78 .............. TS-1540081 .............. Hex Nut .................................................................... M12 ............................... 2
79 .............. CS275-79 .................. Locking Knob ........................................................... M8x20 ........................... 1
80 .............. CS275-80 .................. Length Setting Rod Bracket ..................................... ...................................... 1
81 .............. CS275-81 .................. Upper Length Setting Rod ....................................... ...................................... 1
82 .............. CS275-82 .................. Lower Length Setting Rod ....................................... ...................................... 1
83 .............. TS-1540081 .............. Hex Nut .................................................................... M12 ............................... 1
84 .............. CS275-84 .................. Locking Knob ........................................................... M8x18 ........................... 1
85 .............. CS275-85 .................. Filter ......................................................................... ...................................... 1
87 .............. CS275-87 .................. Drain Cover.............................................................. ...................................... 1
88 .............. TS-0680031 .............. Flat Washer ............................................................. 5/16” .............................. 2
89 .............. TS-1504051 .............. Socket Head Cap Screw.......................................... M8x25 ........................... 2
90 .............. TS-1504071 .............. Socket Head Cap Screw.......................................... M8x35 ........................... 1
91 .............. CS275-91G ............... Support .................................................................... ...................................... 1
92 .............. TS-0680031 .............. Flat Washer ............................................................. 5/16” .............................. 2
93 .............. TS-1504041 .............. Socket Head Cap Screw.......................................... M8x20 ........................... 2
94 .............. TS-1533032 .............. Pan Head Machine Screw ....................................... M5x10 ........................... 4
95 .............. CS275-95 .................. Stop Push Button ..................................................... ...................................... 1
96 .............. CS275-96 .................. Start Push Button..................................................... ...................................... 1
97 .............. CS275-97 .................. Emergency Stop ...................................................... ...................................... 1
98 .............. CS275-98 .................. 2/4P Selection Switch .............................................. (3ph only) ...................... 1
99 .............. CS275-99 .................. Pump Selection Switch ............................................ ...................................... 1
100 ............ CS275-100 ................ Control Box Panel .................................................... (3ph).............................. 1
.................. CS275-100-1 ............. Control Box Panel .................................................... (1ph).............................. 1
101 ............ TS-0680031 .............. Flat Washer ............................................................. 5/16” .............................. 2
102 ............ TS-1490021 .............. Hex Cap Screw ........................................................ M8x 16 ........................... 2
103 ............ CS275-103G ............. Electrical Control Box .............................................. ...................................... 1
104 ............ CS275-104 ................ Control Box Bottom Plate ........................................ ...................................... 1
105 ............ CS275-105 ................ Magnetic Contactor.................................................. 12D (3ph) ...................... 1
.................. CS275-105-1 ............. Magnetic Contactor.................................................. 18D (1ph) ...................... 1
106 ............ CS275-106 ................ Fuse Set .................................................................. (3ph).............................. 4
.................. CS275-106-1 ............. Fuse Set .................................................................. (1ph).............................. 4
.................. CS315-106-2 ............. Fuse (not shown) ..................................................... 15A (3ph) ...................... 3
.................. CS275-106-3 ............. Fuse (not shown) ..................................................... 2A (3ph/1ph) ................. 1
.................. CS275-106-4 ............. Fuse (not shown) ..................................................... 20A (1ph) ...................... 3
107 ............ CS275-107G ............. Cover Plate .............................................................. ...................................... 1
.................. CS275-107-1G .......... Cover Plate .............................................................. (1ph).............................. 1
108 ............ CS275-108 ................ Transformer ............................................................. ...................................... 1
109 ............ CS275-109 ................ Relay........................................................................ ...................................... 1
110 ............ CS275-110 ................ Plate......................................................................... ...................................... 2
111 ............ CS275-111 ................ Support Plate ........................................................... ...................................... 2
112 ............ TS-0680031 .............. Flat Washer ............................................................. 5/16” .............................. 4
113 ............ TS-1504031 .............. Socket Head Cap Screw.......................................... M8x16 ........................... 4
114 ............ CS275-114 ................ Screw ....................................................................... M5x6 ............................. 4
117 ............ CS275-77 .................. Cover ....................................................................... ...................................... 1
24
Index No. Part No. Description Size Qty
118 ............ TS-1504031 .............. Socket Head Cap Screw.......................................... M8x16 ........................... 2
119 ............ CS275-119 ................ Oil Seal .................................................................... 35x47x8 ........................ 1
120 ............ CS275-120 ................ Rubber Gasket......................................................... ...................................... 1
121 ............ CS275-121 ................ Rubber Sheet........................................................... ...................................... 2
122 ............ CS275-122 ................ Holder Plate ............................................................. ...................................... 1
123 ............ CS275-123 ................ Anti-Dust Plate ......................................................... ...................................... 1
125 ............ CS275-125 ................ Stopper .................................................................... ...................................... 2
126 ............ CS275-126 ................ Angle Scale.............................................................. ...................................... 1
25

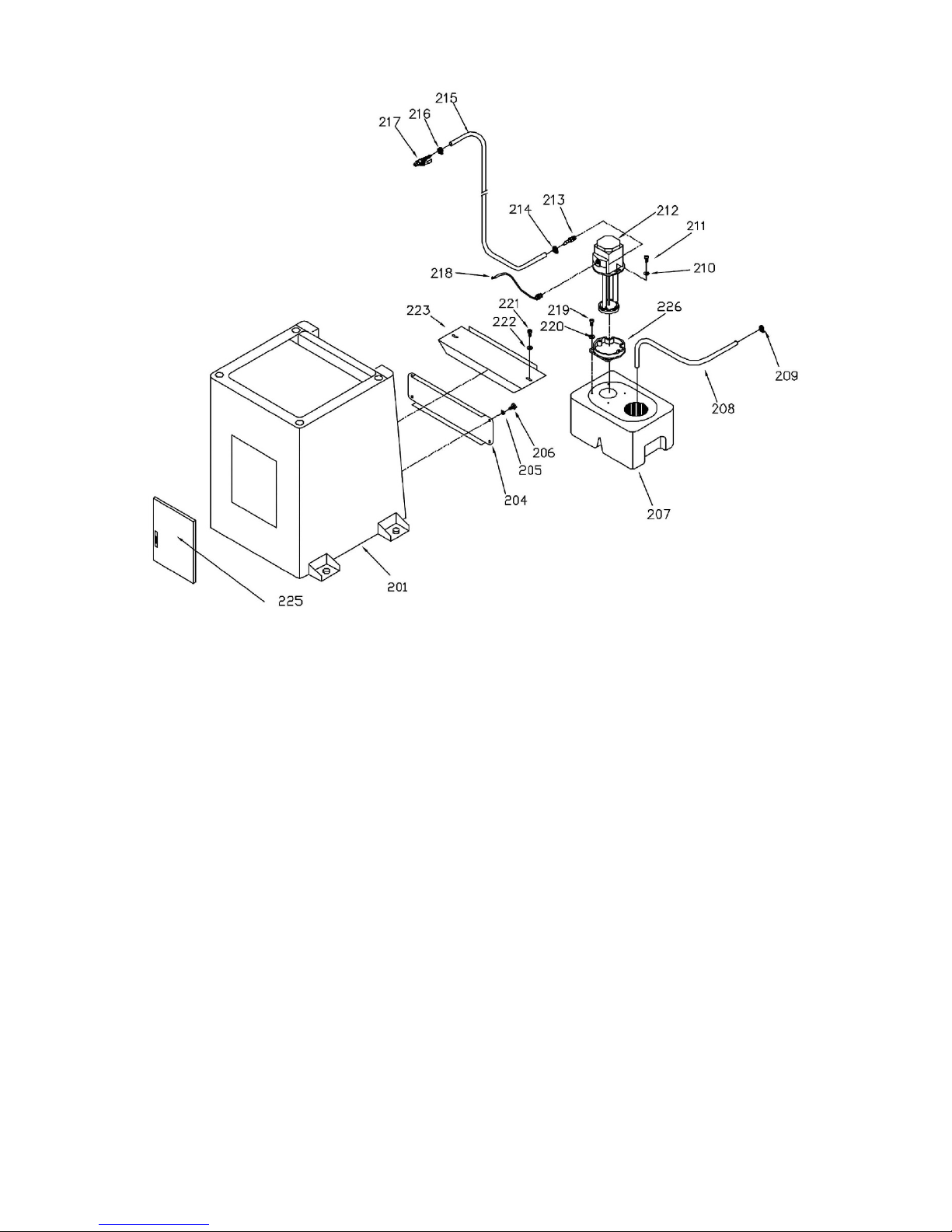

16.3.1 CS-275 and CS-315 Cold Saws (Stand Assembly) – Exploded View
16.3.2 CS-275 and CS-315 Cold Saws (Stand Assembly) – Parts List
Index No. Part No. Description Size Qty
201 ............ CS275-201G ............. Stand ....................................................................... ...................................... 1
204 ............ CS275-204G ............. Support Plate ........................................................... ...................................... 1
205 ............ TS-0680031 .............. Flat Washer ............................................................. 5/16” .............................. 4
206 ............ TS-1490021 .............. Hex Cap Screw ........................................................ M8x 16 ........................... 4
207 ............ CS275-207 ................ Coolant Tank ........................................................... ...................................... 1
208 ............ CS275-208 ................ Hose ........................................................................ 1/2” ................................ 1
209 ............ CS275-209 ................ Hose Clamp ............................................................. 1” ................................... 1
210 ............ TS-1550021 .............. Flat Washer ............................................................. M4 ................................. 2
211 ............ CS275-211 ................ Socket Head Cap Screw.......................................... M4x18 ........................... 2
212 ............ CS275-212 ................ Coolant Pump .......................................................... 230V, 1Ph ..................... 1
.................. CS275-212-1 ............. Coolant Pump .......................................................... 115/230V, 1Ph .............. 1
213 ............ CS275-213 ................ Connecting Bolt ....................................................... ...................................... 1
214 ............ CS275-214 ................ Hose Clamp ............................................................. ...................................... 1
215 ............ CS275-215 ................ Hose ........................................................................ 5/16” .............................. 1
216 ............ CS275-216 ................ Hose Clamp ............................................................. 1/4" ................................ 1
217 ............ CS275-217 ................ Valve ........................................................................ ...................................... 1
218 ............ CS275-218 ................ Wire ......................................................................... ...................................... 1
219 ............ TS-0050011 .............. Hex Cap Screw ........................................................ 1/4"-20x1/2” .................. 4
220 ............ TS-0680021 .............. Flat Washer ............................................................. 1/4" ................................ 4
221 ............ TS-1490021 .............. Hex Cap Screw ........................................................ M8x 16 ........................... 2
222 ............ TS-0680031 .............. Flat Washer ............................................................. 5/16” .............................. 2
223 ............ CS275-223G ............. Support Plate ........................................................... ...................................... 1
225 ............ CS275-225G ............. Door and Latch ........................................................ ...................................... 1
226 ............ CS275-226 ................ Collar ....................................................................... ...................................... 1
26
427 New Sanford Road
LaVergne, TN 37086
Phone: 800-274-6848
www.jettools.com
32
Loading...
