Operating Instructions and Parts Manual
AFS-1000C Air Filtration System
JET
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-713000
Ph.: 800-274-6848 Edition 3 01/2022
www.jettools.com Copyright © 2022 JET
2
1.0 IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic
precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE USING THIS
AIR FILTRATION UNIT.
To reduce the risk of fire,
electric shock, or injury:
1. Read and understand the entire owner's
manual before attempting assembly or
operation.
2. Read and understand the warnings posted
on the machine and in this manual. Failure
to comply with all of these warnings may
cause serious injury.
3. Replace the warning labels if they become
obscured or removed.
4. Do not use this air filtration system for other
than its intended use. If used for other
purposes, JET disclaims any real or implied
warranty and holds itself harmless from any
injury that may result from that use.
5. Never duct a machine directly into the air
filtration unit.
6. To avoid a potentially dangerous situation,
do not use this equipment to filter volatile
fumes or smoke.
7. Do not use this equipment to filter
flammable vapors. This air filtration unit is
designed and intended for the filtration of
air borne dust only. It is neither designed
nor intended for any other purpose
whatsoever.
8. Keep visitors a safe distance from the work
area. Keep children away.
9. Make your workshop child proof with
padlocks, master switches or by removing
starter keys.
10. DRUGS, ALCOHOL, MEDICATION. Do
not operate tool while under the influence
of drugs, alcohol or any medication.
11. Make certain the switch is in the OFF
position before connecting the machine to
the power supply.
12. Make certain the machine is properly
grounded.
13. Use recommended accessories; improper
accessories may be hazardous.
14. GROUND ALL TOOLS. If tool is equipped
with three prong plug, it should be plugged
into a three-hole electrical receptacle. If an
adapter is used to accommodate a twoprong receptacle, the adapter lug must be
attached to a known ground. Never remove
the third prong.
15. WARNING: Drilling, sawing, sanding or
machining wood products generates wood
dust and other substances known to the
State of California to cause cancer. Avoid
inhaling dust generated from wood
products or use a dust mask or other
safeguards to avoid inhaling dust
generated from wood products. Wood
products emit chemicals known to the State
of California to cause birth defects or other
reproductive harm. (California Health and
Safety Code Section 25249.6)
16. Keep safety guards, panels, and doors in
place, secured, and always closed when
the machine is in use. If removed for
maintenance purposes, use extreme
caution and replace the guards, install the
panels and close the doors immediately
after completion of maintenance.
17. Maintain tools with care. Keep filters clean
for the best and safest performance.
18. Turn off the machine before cleaning. Use
a brush or compressed air to remove chips
or debris — do not use your hands.
19. Do not use this air filtration unit with a
damaged cord or plug. If the unit is not
working as it should, has been dropped,
damaged, left outdoors, or dropped into
water, return it to a service center.
20. When ceiling mounted, bottom of filtration
unit must be at least 7 feet from the floor.
The mounts must be anchored to building
structure which will support the weight of
the air filtration unit. Never mount to
surfaces such as dry wall or false ceiling
grids.
21. When bench top mounted, do not place this
unit on an unstable surface, or where there
is a risk of tipping over. Serious injury could
occur if the unit tips over.
22. To reduce risk of electric shock, do not
expose filtration unit to water or rain.
23. Do not use in high humidity environments.
Doing so may cause electric shock and/or
decreased performance of the unit.
24. WARNING: Not suitable for use with solidstate speed controls.
25. Suitable for commercial or industrial use
only.
3
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the
device.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation,
Sciences et Développement économique Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes :
L’appareil ne doit pas produire de brouillage;
L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
Cet équipement est conforme aux limites d’exposition aux radiations IC CNR-102 établies pour un
environnement non contrôlé.
Familiarize yourself with the following safety notices used in this manual:
This means that if precautions are not heeded, it may result in minor injury and/or
possible machine damage.
This means that if precautions are not heeded, it may result in serious, or possibly even
fatal, injury.
SAVE THESE INSTRUCTIONS
WARNING: Some dust, fumes and gases created by power sanding, sawing, grinding, drilling, welding and
other construction activities contain chemicals known to the State of California to cause cancer and birth defects
or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paint
• crystalline silica from bricks, cement and other masonry products
• arsenic and chromium from chemically treated lumber
Your risk of exposure varies, depending on how often you do this type of work. To reduce your exposure to
these chemicals, work in a well-ventilated area and work with approved safety equipment, such as dust masks
that are specifically designed to filter out microscopic particles. For more information go to
http://www.p65warnings.ca.gov/ and http://www. p65warnings.ca.gov/wood.
4
2.0 Table of contents
Section Page
1.0 IMPORTANT SAFETY INSTRUCTIONS ....................................................................................................... 2
2.0 Table of contents ............................................................................................................................................ 4
3.0 About this manual .......................................................................................................................................... 5
4.0 Features ......................................................................................................................................................... 6
5.0 Specifications ................................................................................................................................................. 7
6.0 Setup .............................................................................................................................................................. 9
6.1 Unpacking and cleanup .............................................................................................................................. 9
6.2 Shipping contents ....................................................................................................................................... 9
6.3 Battery installation ...................................................................................................................................... 9
6.4 Installation .................................................................................................................................................. 9
7.0 Electrical connections .................................................................................................................................. 10
7.1 GROUNDING INSTRUCTIONS ............................................................................................................... 10
7.2 Extension cords ........................................................................................................................................ 10
8.0 Controls Functions ....................................................................................................................................... 11
8.1 Control Panel Buttons .............................................................................................................................. 11
8.2 RF Remote Control .................................................................................................................................. 11
9.0 Operation ..................................................................................................................................................... 12
10.0 User-maintenance ...................................................................................................................................... 13
10.1 Changing the Filters ............................................................................................................................... 13
10.2 Cleaning the Filters ................................................................................................................................ 13
10.2.1 Washable Filters .................................................................................................................................. 13
10.2.2 Dry Filters ............................................................................................................................................ 14
10.3 RF Remote Control Replacement .......................................................................................................... 14
10.4 Cleaning Sensors ................................................................................................................................... 14
10.5 Sensor Replacement .............................................................................................................................. 14
10.6 Control Board Replacement ................................................................................................................... 14
11.0 Troubleshooting ......................................................................................................................................... 15
12.0 Replacement Parts ..................................................................................................................................... 16
12.1.1 AFS Unit – Exploded View .................................................................................................................. 16
12.1.2 AFS Unit – Parts List ........................................................................................................................... 17
12.2.1 Display Module Assembly – Exploded View ....................................................................................... 18
12.2.2 Display Module Assembly – Parts List ................................................................................................ 18
12.3.1 Remote Control Assembly – Exploded View ....................................................................................... 19
12.3.2 Remote Control Assembly – Parts List ................................................................................................ 19
13.0 Electrical Connections 115V ...................................................................................................................... 20
14.0 Warranty and service ................................................................................................................................. 21
5
3.0 About this manual
This manual is provided by JET, covering the safe operation and maintenance procedures for a JET Model AFS1000C Air Filtration System. This manual contains instructions on installation, safety precautions, general
operating procedures, maintenance instructions and parts breakdown. Your machine has been designed and
constructed to provide consistent, long-term operation if used in accordance with the instructions as set forth in
this document.
This manual is not intended to be an exhaustive guide to air filtration systems. Additional knowledge can be
obtained from experienced users or trade articles. Whatever accepted methods are used, always make personal
safety a priority.
If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our
web site: www.jettools.com.
Retain this manual for future reference. If the machine transfers ownership, the manual should accompany it.
Read and understand the entire contents of this manual before attempting assembly or
operation! Failure to comply may cause serious injury!
Register your product online -
http://www.jettools.com/us/en/service-and-support/warranty/registration/
6
4.0 Features
• Two-filter system with air diffuser disperses outgoing air into a broader pattern
• Disposable electrostatic outer filter attracts more dust particles than standard filters
• Inner pocket filter is removable for easy cleaning
• Can be either bench-top or ceiling mounted
o Four eye bolts provided for ceiling mount

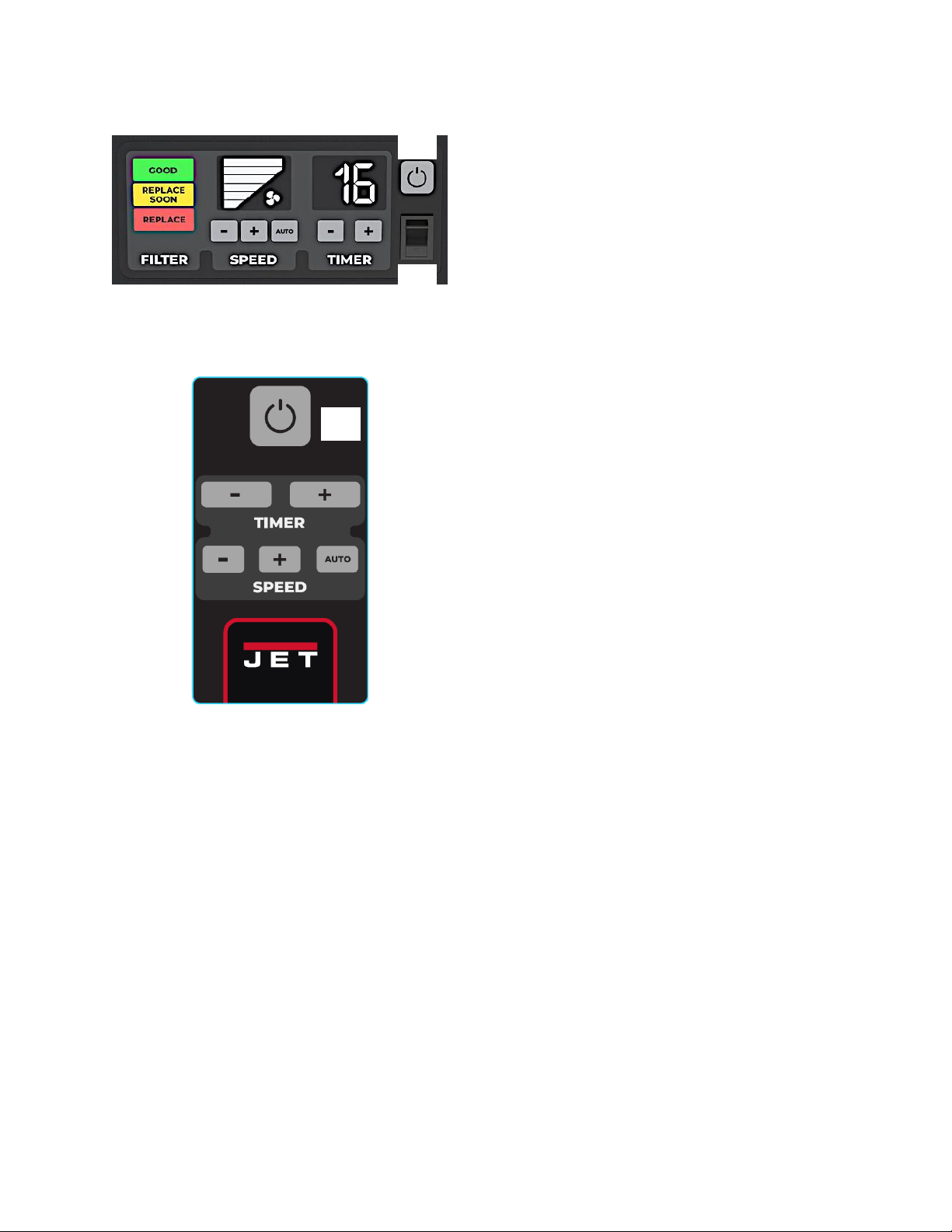

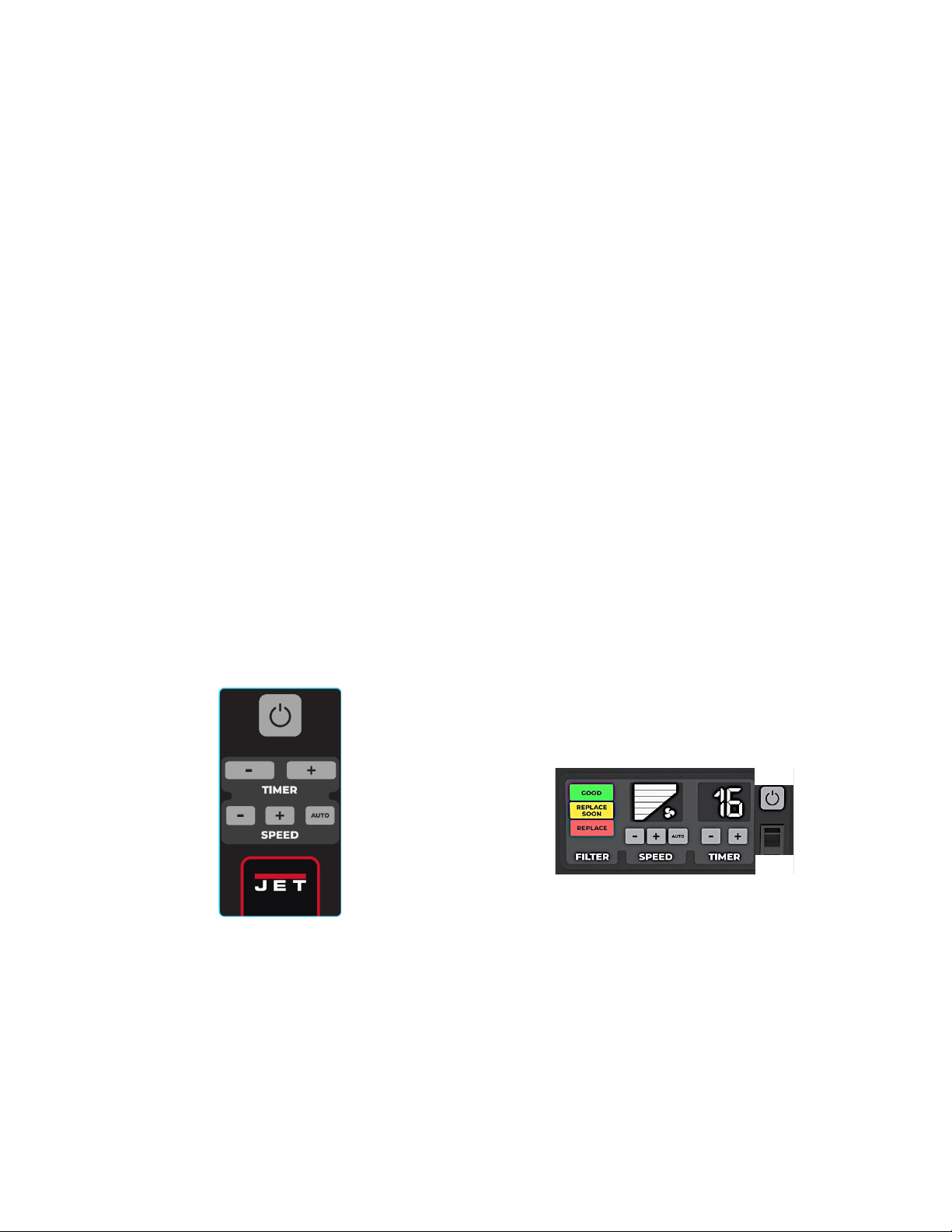

• Large easy to read display panel clearly shows:
o Filter Status
▪ Patent Pending system monitors the condition of the filters
▪ Bright LED indicators notify the user of the filter status
• GOOD
• REPLACE SOON
• REPLACE
o Fan Speed – 6 levels
o Timer setting
▪ 1 to 16 hours in 1-hour increments
▪ automatically shuts off when timer runs out
• High-efficiency Brushless DC motor
o Improved durability
o Quieter operation
o More energy efficient
• Auto Mode:
o In Auto Mode the unit monitors ambient air quality using an integrated PM2.5
sensor and adjusts fan speed to compensate
o More air flow when it’s needed to quickly improve air quality
o Save energy and filter life when dust levels are low
• Patent Pending air flow design not only increases air volume but also decreases noise.
• High strength plastic construction:
o Reduced weight for ease of installation compared to sheet metal construction
o Absorbs vibration for quieter operation
o Impact resistant
7
5.0 Specifications
Table 1
Model No.
AFS-1000C
Stock No.
713000
SPECIFICATION
Motor:
Motor type
BLDC (Brushless Direct Current Motor)
Horsepower
1/3HP
Phase
3PH
Electrical:
Voltage
120V input, single phase only
Frequency
60Hz
Listed FLA (full load amps)
3.8 A
Motor speed range
600~1,100 RPM
Power cord
SJT 18 AWG x 3C, 6 ft,
Power plug
American Type NEMA (10A/125V)
Overload protector
5A
Performance:
Fan Speed
Air flow without filter
(CFM) 1
Sound rating @ 1m 1
1
450 ±10%
51dB
2
560 ±10%
56dB
3
670 ±10%
60dB
4
780 ±10%
63dB
5
890 ±10%
66dB
6
1000 ±10%
67dB
Control Panel:
On/off switch
Rocker switch
Speed control
Six selectable speeds
Timer Setting (Hour)
1 ~ 16 (LED display)
Display
LED module
Digital Remote Control:
Transmitter
Radio Frequency
Battery
CR2032.3 Volt Button Cell
Filters:
Outer Filter (stock # 708731)
5 Micron Replacement Electrostatic Out Filter (carton frame)
Inner Filter (stock # 708733)
1 Micron Replacement Inner Filter
8
Table 1 (cont.)
Dimensions and Weight:
Overall Dimensions (L x W x H / in)
30-1/8" x 24-1/4" x 15-3/8"
(765 x 615 x 390 /mm)
Packing Dimensions (L x W x H / in)
32-11/16" x 27-1/8" x 19-5/16"
(830 x 688 x 490 /mm)
Packing Material
Corrugated Box and Styrofoam
Net Weight
33 Ib (15 kg)
Gross Weight
41.8 lb (19 kg)
1
Variable of ±10%, for general information only, not to be viewed as fixed parameters for inspection purposes.
L = length, W = width, H = height
n/a = not applicable
The specifications in this manual were current at time of publication, but because of our policy of continuous
improvement, JET reserves the right to change specifications at any time and without prior notice, without
incurring obligations.
Loading...
