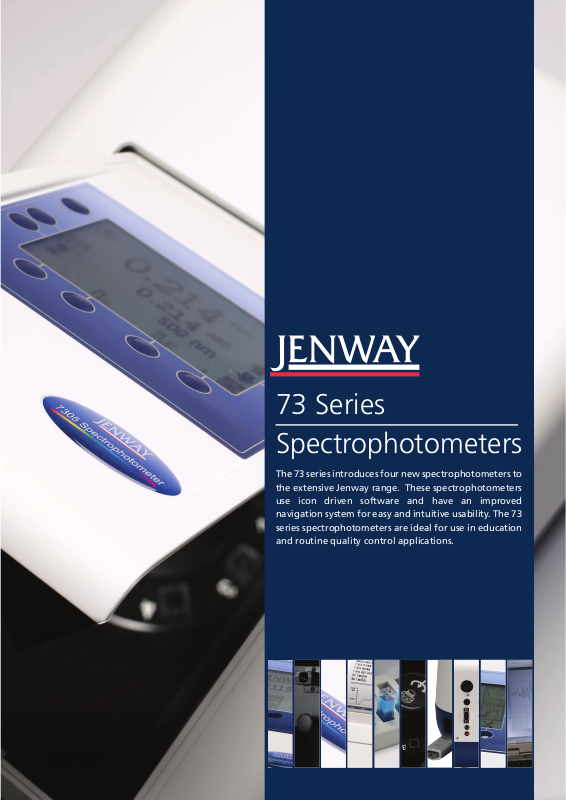

Page 1
73 Series
Spectrophotometers
The 73 series introduces four new spectrophotometers to
the extensive Jenway range. These spectrophotometers
use icon driven software and have an improved
navigation system for easy and intuitive usability. The 73
series spectrophotometers are ideal for use in education
and routine quality control applications.
Page 2
Introducing the 73 series
Key features
The four new spectrophotometers in the 73 series
range include models 7300 and 7310 which cover
the visible region of the spectrum; the 7305 and
7315 models use a flash xenon lamp to extend
the wavelength range into the UV region of the
spectrum.
The basic models, 7300 and 7305, feature
measurement modes for % transmittance,
absorbance and concentration. The advanced
models, 7310 and 7315, introduce additional
measurement modes such as scanning, kinetics and
quantitation.
• 5nm spectral bandwidth
• Absorbance range -0.3 to 2.5 Abs
• Icon driven software
• Results and method saving to USB
memory stick (models 7310/7315 only)
• Autologging capabilities
• Free bi-directional PC software
• 3 year warranty including xenon lamp
• Extensive range of accessories
Improved optics Advanced communications
The new 73 series have improved optics
resulting in all four models having a narrow
spectral bandwidth of 5nm and an absorbance
range of -0.3 to 2.5 Abs.
The 7305 and 7315 models use a ‘press to read’,
xenon lamp to give more accurate readings and
extend lamp life. The xenon lamp is covered by
a three year warranty.
The 7300 and 7310 models have a tungsten
halogen lamp with a lamp save feature which
enables the lamp to be turned off automatically
after periods of inactivity.
The entire range has been designed with
improved communication in mind. All of the
units have an RS232 serial port for connection
to a PC or a serial printer. All of the models are
supplied with free bi-directional PC software,
enabling the instrument to be controlled via the
PC. The PC software suite provides enhanced
post measurement tools and easy exportation
of results to Microsoft Excel
The 7310 and 7315 models have the additional
feature of an easy access USB port on the front
of the unit which enables results to be stored
directly to a USB memory stick, for easy transfer
of data. The advanced models can store up to
240 methods which can be copied from one unit
to another using the USB capability, effectively
cloning the instrument.
®
.
Page 3
Ready to go...
All 73 series spectrophotometers are fitted with
a single 10x10mm cuvette holder and supplied
with 100 disposable cuvettes, instruction manual,
universal power supply, PC software on CD ROM
and an interface cable. The 7310 and 7315 models
are also supplied with a 2GB USB memory stick.
Free software upgrades are also available to
download from www.jenway.com.
All units are covered by a 3 year warranty.
Instrument design Enhanced features
The design of the 73 series spectrophotometers
cleverly minimises the overall footprint by
encompassing the large, graphical display into
the lid of the unit. The easy to read display
is ideal for demonstrations and enables live
spectrum and kinetics scans to be clearly viewed.
To save additional space all the units have the
option of an integrated printer. All of the units
use icon driven software for easy, intuitive
navigation.
The advanced 7310 and 7315 models have
enhanced security features enabling the
instrument and methods to be locked,
preventing unauthorised changes to the
instrument settings and method parameters.
The home page can also be customised
to provide a personalised menu. Selected
modes can be deactivated which is ideal for
teaching laboratories where access to certain
measurement modes needs to be restricted.
All four units have autologging capabilities
which enable repeat measurements of the
same sample to be performed with a selected
time interval between each measurement. The
results can quickly and easily be printed using
the optional integrated printer, or an external
serial printer; results can also be saved directly to
the USB memory stick (models 7310/7315 only).
Page 4
73 series accessories
Accessory features
The 73 series has been designed to enhance
productivity by offering an extensive range of
accessories. Available active accessories include an
automated 8 position cuvette holder, sipper pump,
Peltier and a combined sipper Peltier pump. A
full range of passive accessories can also be fitted
including adjustable path length (10 to 100mm)
cuvette holders, single water heated cuvette holders,
test tube holders and micro-cuvette holders.
• Multiple sample measurement
• Reproducible sample volumes
• Temperature control
• Instant results
• Variable path length
• Printers and PC Software
1. 2. 3.
Automatic 8 position cuvette holder
To increase productivity and throughput rate
there is an automated 8 position cuvette
holder (1) for multiple sample measurement.
The automated cuvette holder accepts standard
10x10mm path length cuvettes.
Part code: 735 401
Temperature control
Sipper pump
For safe and effective sample handling Jenway
offer a sipper pump (2) which circulates samples
and can be programmed to deliver reproducible
sample volumes. A flow through cuvette must
be used with the sipper pump.
Part code: 735 201
Combined sipper Peltier
For applications where the temperature of the
sample needs to be controlled Jenway offer
two options. The first is an electronic Peltier
accessory (3) which enables sample temperature
to be controlled between 20°C to 50°C. The
second option is a single water heated cuvette
holder (6) which requires a circulating water
bath and has an operating temperature range
of 5°C to 50°C.
Part code: 735 301
Part code: 736 201
The combined sipper Peltier pump combines
the functionality of both the sipper pump and
the Peltier enabling sample temperature to be
controlled while the sample is being circulated.
Part code: 735 701
Page 5
Accessory product codes
Part Code Description
660 101 Internal printer
735 401 Automatic 8 position cuvette holder
735 201 Sipper pump
735 301 Peltier
735 701 Combined Sipper/Peltier pump
735 801 10x10mm path length cuvette holder
736 001 10 to 100mm path length cuvette holder
735 901 16/24mm test tube holder
736 101 Micro-cuvette holder with reduced aperture
736 201 Water heated 10x10mm path length cuvette
holder
735 601 Boiling tube holder
735 001 Dust cover
019 146 2GB USB Memory stick for extended memory
(7310/7315 only)
Passive accessories
Jenway also offer an extensive range of
passive accessories to use with the 73 series
spectrophotometers.
For cuvettes with a variable path length
between 10 and 100mm we offer an adjustable
path length cuvette holder. Part code: 736 001
For small sample volumes down to 50µl we
offer a micro-cuvette holder. Part code: 736 101
4. 5. 6.
Cuvettes
Jenway offer a range of glass and quartz
cuvettes as well as disposable plastic cuvettes.
The glass and quartz cuvettes are available in
a range of path lengths from 10 to 100mm.
Jenway also offer a range of glass and quartz
flow-through and micro-volume cuvettes.
Printer
For large sample volumes we offer a test tube
holder (4) which can hold test tubes up to
100mm in height with diameters of 13, 16 and
24mm. Jenway also offer a boiling tube holder
which can hold boiling tubes up to 150mm in
height with a diameter of 25mm.
Part code: 735 901
Part code: 735 601
For instant results Jenway offer a printer
which can be easily fitted into the top of the
spectrophotometer to save bench space. The
integrated printer enables spectrum and
kinetics curves to be printed as well as results
tables and analysis summary. The user name and
method parameters are printed on all results.
Part code: 660 101
Page 6
73 series PC software
Every spectrophotometer in the 73 series range is
supplied with free bi-directional PC software which
enables the instrument to be controlled via the PC.
The PC software suite features measurement modes
for photometrics, concentration, spectrum scanning,
quantitation and kinetics as well as enhanced data
manipulation tools. Results can easily be exported
to Excel® and charts can simply be copied. The
PC software suite increases the number of results
and methods which can be stored and it enables
multiple results to be displayed simultaneously as
well as spectrum and kinetics curves.
Easy to use, anywhere!
Through RS232 connection to PC, the software
provides full emulation of all the instrument’s
functions and enables the instrument to be
directly driven from a PC. The PC software also
enables any optional accessories to be driven
from a PC.
The settings menu in each measurement mode
enables easy and simple set up of method
parameters which can be saved for future use.
The print options menu enables printouts to
be customised to your requirements. Options
available include results tables, spectrum
and kinetics curves and analysis results. The
user login identification and summary of the
method parameters is also printed to enable
traceability of results.
So f tw a re up g ra d es ar e a v ai l ab l e t o d ow n lo a d f ro m w w w. je n wa y. c om .
Page 7
7300 7305 7310 7315
Wavelength
Range 320 to 1000nm 198 to 1000nm 320 to 1000nm 198 to 1000nm
Light source Tungsten halogen lamp Xenon lamp Tungsten halogen lamp Xenon lamp
Resolution ---------------------------------------------------------------------- 1nm ------------------------------------------------------------
Accuracy -------------------------------------------------------------------- ±2nm ------------------------------------------------------------
Repeatibility ------------------------------------------------------------------- ±0.5nm ----------------------------------------------------------
Spectral bandwidth ---------------------------------------------------------------------- 5nm ------------------------------------------------------------
Photometrics
Transmittance ---------------------------------------------------------------- 0 to 199.9%--------------------------------------------------------
Absorbance -------------------------------------------------------------- -0.300 to 2.500A----------------------------------------------------
Accuracy ----------------------------------------------- ±1%T, ±0.01Abs at 1.000 Absorbance -------------------------------------
Resolution --------------------------------------------------------------- 0.1%T, 0.001A -----------------------------------------------------
Concentration
Range --------------------------------------------------------------- -300 to 9999 -------------------------------------------------------
Resolution ---------------------------------------------------- Selectable 1/0.1/0.01/0.001------------------------------------------------
Calibration -------------------------------------------- Blank with a single standard or factor ---------------------------------------
Factor ------------------------------------------------------------- 0.001 to 10000 -------------------------------------------------------
Standard -------------------------------------------------------------- 0.001 to 1000 -------------------------------------------------------
Units no units, %, ppm, EBC, SRM, mEq/l, mEq, M, mM, µM, nM, U, U/l, U/ml, g/l, mg/l, µg/l, ng/l, g/dl,
mg/dl, µg/dl, mg/ml, µg/ml, ng/ml, µg/µl, ng/µl, mol/l, mmol/l
Quantitation
Range - - ----------------------- -300 to 9999 -------------------------
Resolution - - Selectable 1/0.1/0.01/0.001
Calibration - - Blank with up to 6 standards
Curve fit statistics - - Quadratic, quadratic through zero, linear,
linear through zero, interpolate
Kinetics
Measurement time - - -------------------- 2 to 9999 seconds --------------------
Calibration - - Blank with a single standard or factor
Resolution - - Sele ctable 1/0.1/0.01/0.001
Display - - Graphical and concentration
Analysis - - Concentration, rate of change, initial and final
absorbance or % transmittance
Spectrum
Scan interval - - Selectable 1, 2 or 5nm
Analysis - - Absorbance or % transmittance and peak and
valleys
Other
GLP - - Current time and date, user ID,
instrument lock and method lock
Method storage - - 240
Results storage - - Limited by attached USB
Removable media - - USB (supplied)
Outputs Analogue, RS232, Integral printer USB, Analogue, RS232, Integral printer
Size (w x d x h) ------------------------------------------------------- 275 x 400 x 220mm ------------------------------------------------------
Weight ----------------------------------------------------------- --- 6kg --------------------------------------------------------------------
Page 8
Ordering information
Part Code Description
730 001 7300 spectrophotometer fitted with 10x10mm cuvette holder
730 501 7305 spectrophotometer fitted with 10x10mm cuvette holder
731 001 7310 spectrophotometer fitted with 10x10mm cuvette holder
731 501 7315 spectrophotometer fitted with 10x10mm cuvette holder
Bibby Scientific - UK (Group HQ)
Beacon Road, Stone, Staffordshire,
ST15 0SA, United Kingdom
Tel: +44 (0)1785 812121
Fax: +44 (0)1785 813748
e-mail: sales@bibby-scientific.com
w w w . t h e b e s t s p e c t r o p h o t o m e t e r . c o m
Jenway are proud to announce the launch of the new microsite
www.thebestspectrophotometer.com. The microsite is dedicated to
the extensive range of spectrophotometers and accessories offered
by Jenway.
Visit www.thebestspectrophotometer.com to view the exciting
videos for the 73 series spectrophotometers. The videos demonstrate
how easy it is to navigate the icon driven software and fit the
optional printer. There is also a video demonstrating how to change
the standard 10x10mm path length cuvette holder to the automatic
8 position cuvette holder.
Jenway are proud to announce the launch of the official FaceBook
page. Become a fan of Jenway on Facebook and receive all the latest
product information, images and updates for all Jenway’s products.
The 73 series videos can also be viewed on the Jenway Facebook
page as well as on the Bibby Scientific channel on YouTube.
Jenway is also on Twitter so follow us to receive all the latest news
and special offers for the whole Jenway product range.
Follow Jenway equip ment on F aceBook!
www.facebook.com/pages/Jenway-Equipment/124905670901803
Fo ll o w J en wa y e q ui pm e nt on Twi tt er!
w w w. t w i t t e r. c o m / j e n w a y e q u i p m e n t
Bibby Scientific France SAS ZI du Rocher Vert BP 79 77793 Nemours Cedex
Tél: +33 (0)1 64 45 13 13
Fax: +33 (0)1 64 45 13 00
e- mail : bsf@bibby-scientific.fr
Bibby Scientific Italia S.r.l.
Via Alcide De Gasperi n. 56
20070 Riozzo di Cerro al Lambro (MI)
Tel: +39 029 812 9917
+39 029 823 6266
Fax: +39 029 823 0211
+39 029 811 9288
e-mail: marketing@bibby-scientific.it
Bibby Scientific - US
3 Terri Lane, Suite 10, Burlington, NJ
08016, USA
Tel: +1 609 589 2560
Fax: +1 609 589 2571
e-mail: [email protected]
Bibby Scientific - Middle East
PO Box 27842 Engomi 2433 Nicosia
Cyprus
Tel: + 357 22 660 423
Fax: + 357 22 660 424
e-mail: sales@bibby-scientific.me
Je nw a y v id eo s n o w on You t ub e !
w w w. y o u t u b e . c o m / b i b b y s c i e n t i f i c
w w w . j e n w a y. c o m
Loading...
