Jenn-Air JCD2389DES, MSD2354FRW, JSD2989AEA, MSD2756AEA, JSD2789AEA User Manual

Side by Side

Refrigerator Guide

UE?1ELIII1LJENN=AIR

Introduction . . . . . . . . . . .

Safety Instructions . . . . . .

Installation Instructions .

. .
. .
. .

. . . 1
. . . 2

. . . 3

Features at a Glance . . . . .

Temperature Controls . . . .

Interior Designs . . . . . . . .

Ice Service . . . . . . . . . . . . .

Ice and Water Service . . . . . . .

Water Filter Information . . . .

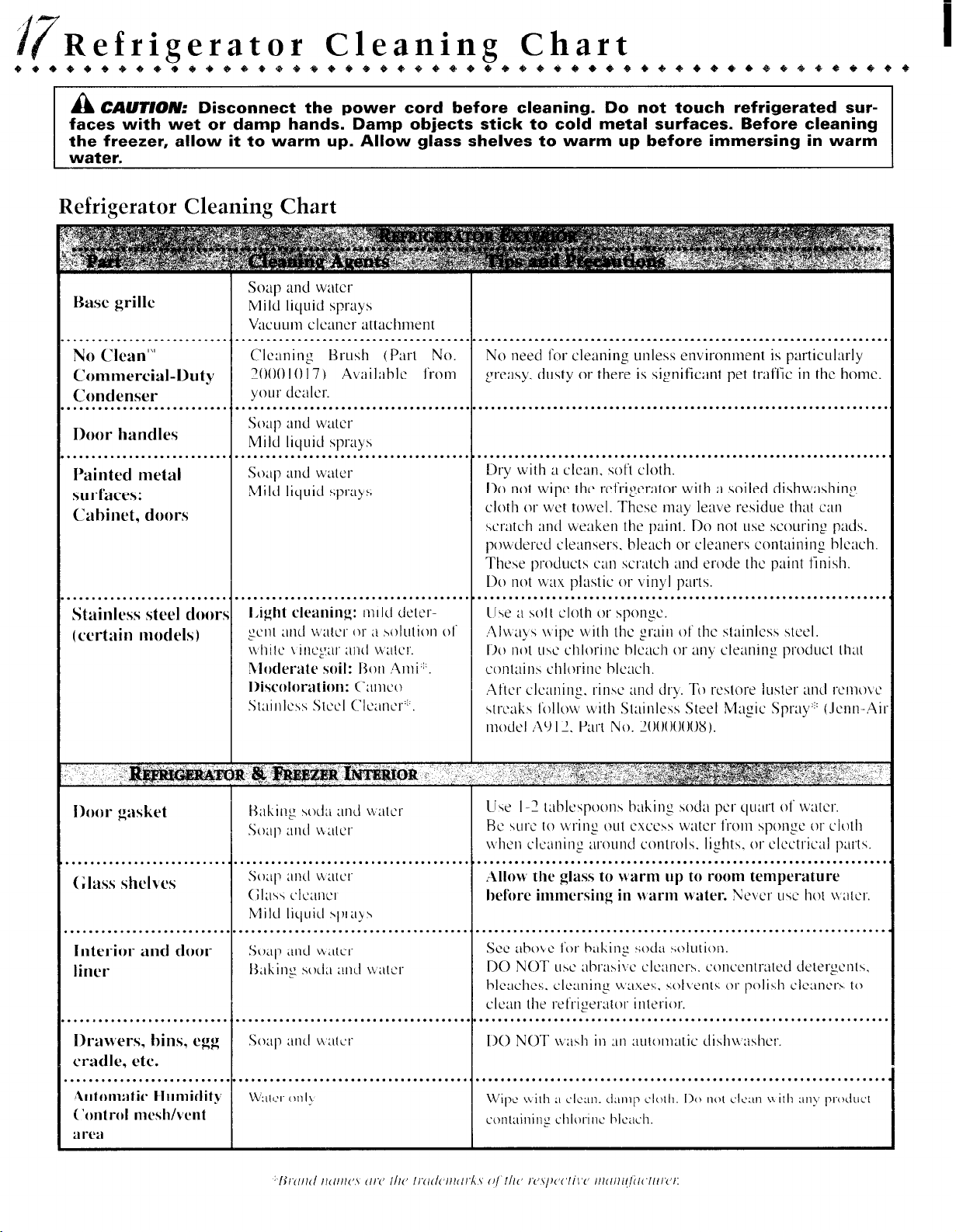

Refrigerator Cleaning Chart . .
Storage and Maintenance . . .

Food Storage Tips . . . . . . . . . ,

Food Storage Chart . . . . . . . . .

Before You Call . . . . . . . . . . . .

Notes . . . . . . . . . . . . . . . . . . ,

Warranty . . . . . , . . . . . . . . . . .

. .

. . .

. .

. . . 5

. .

.6-l 1

. . . 12

.

.13-14

.

.14-16

. . . .

. . . .

. . . *

. . . .

. . . .

. . . . .

. . . . .

4

17
28

19
20
21
22
23

++++++++++++++++e

MCsQh

61004965

Form No. B/l l/O0

Part No. 111072-l

1

Introduction

444444444444444444444444444444444444444444444444444

Congratulations on the pur­chase of a Jenn-Air refrigera­tor!

We appreciate your purchase
decision and feel confident you
will be happy with this appli­ance for years to come. For best
results, we suggest reading this
guide carefully. You will find
instructions on the proper oper­ation and maintenance of your
refrigerator. Additionally, food
storage information has been
included for you.

Should you ever need our future assistance with your
refrigerator, a complete model and serial number recorded
in the spaces below will be extremely helpful. These num­bers are found on a data plate inside the refrigerator com­partment on the upper surface.

Please keep your sales slip or cancelled check. Should any
warranty service be required, proof of original date of pur­chase is needed. For additional questions, please contact
us:

Jenn-Air Customer Assistance
Maytag Appliances Sales Company
Attn: CAIRO Center
P.O. Box 2370
Cleveland, TN 37320-2370

l-800-688-1100 USA and CANADA

l-800-688-2080 TTY USA
(Mon.-Fri., 8am-8pm Eastern Time)
Internet: http://www.jennair.com

In our continuing effort to improve the quality of our

refrigerators, it may be necessary to make changes to

the appliance without revising this guide.

Model Number

Serial Number

Revision Number

Important Safety Instructions

Important Safety Instructions

a844444444*4444444444444444444444~4444444444444~~44

WARNING WARNING - When using your appliance, always follow basic precautions, including - When using your appliance, always follow basic precautions, including

a

a

the following: the following:

l

Use the refrigerator only for its intended purpose.

l

To prevent possibility of hazard due to electrical shock,
never plug the refrigerator into a receptacle which has
not been grounded adequately and in accordance with
the local and national electrical codes. See the a warn­ing and grounding instructions below.

l

Unplug the refrigerator before cleaning or replacing a

light bulb.

l

In cast of power failure, minimize door openings. If the
power failure is of a long duration, protect the food by
placing blocks of dry ice on top of the packages or check
with a local frozen foods locker about temporary stor­age. Frozen foods which have thawed completely should
not be refrozen and should be discarded.

l

Any electrical service cord that becomes frayed or dam­aged should be immediately repaired or replaced. Never
unplug your appliance by pulling on the power cord.

Important: Child entrapment and suffocation are
not problems of the past. Junked or abandoned
refrigerators are still dangerous.. . even if they will
sit for “just a few days.” If you are getting rid of
your old refrigerator, please follow the instructions
below to help prevent accidents.

l

Take off the doors.

l

Leave

the shelves in place so that children may not

easily climb inside.

/

l

Your refrigerator should not be operated in the presence

of explosive fumes.

l

Children should not climb, hang or stand on the shelves
of this refrigerator.

WARNING

a

- This appliance is designed to open
line. There should be a separate, grounded circuit
extension cord. Do not use any device that will alter

This appliance is equipped with a three-pronged grounding plug for
your protection against possible electrical shock hazards. It must be
plugged into a grounding receptacle. Where a standard two-prong
wall receptacle is encountered, it is the personal responsibility and
obligation of the customer to have it replaced with a properly
grounded three-prong wall receptacle. Do not under any circum­stances, cut or remove the third (ground) prong from the power cord.
Do not use an adapter plug. Do not use an extension cord.

\

:e on a normal 115 volt, 15 amp, 60 cycle
Irving this appliance only. Do not use an
ie electrical performance of this appliance.

POWER SUPPLY CORD

WITH 3-PRONG

GROUNDING PLUG

Save These Instructions

GROUNdlNG TYPE

WALL RECEPTACLE

s

Installation Instructions

Your new refrigerator was packed carefully for shipment. Remove and discard shelf packing clips (if used) located just
above each shelf where they hook onto the frame. To remove plastic clips wiggle the clips sideways and pull straight out.

Location of Your
Refrigerator

l

Allow for a free flow of air through the front base grille.

l

Install the refrigerator where the room temperature will
not go below 55” E With temperatures below 55”, the
refrigerator will not run frequently enough to maintain
proper temperature in the freezer.

l

Allow a minimum l/2” clearance on the sides, top and
back for ease of installation. If the refrigerator is placed
with the door hinge side against a wall, you may want to
allow additional space so the door can be opened wider.

l

Use caution when installing the

unit

on vinyl or hard­wood tloors so as not to mark or otherwise damage the
flooring. A piece of plywood, a rug or other material
should he used to protect the floor while positioning the
unit.

Energy Saving Tips

Leveling is Important

To enhance appearance and to maintain optimal perfor­mance, the refrigerator must be level. Your refrigerator has
wheels which can be adjusted for leveling:

l

Remove the lower hinge covers (see fig. 1). To do this,
grasp each cover near the hinge and apply pressure. The
attachment tabs will snap out, allowing removal of the
covers.

l

Adjust the wheels with a screwdriver (see fig. 2).

l

To lock the cabinet in place, turn down both
leveling/lock feet, located near the front wheels (see fig.

3). Rear leveling/lock feet are not required.

l

Replace the hinge covers.

l

If the floor is not level and it is necessary to raise the
rear of the cabinet, we suggest rolling the rear wheels
onto a piece of plywood or other shim material.

,g.B----.a ---

--==-

i-

_-

I

i

1

l

Locate the refrigerator away from heat producing appli­ances such as the range or dishwasher, heat vents and
direct sunlight.

l

Level the refrigerator and do not block ventilation
around the front grille.

l

Keep the freezer full to near capacity so less cold air will
escape during door openings. When the freezer is less
than two-thirds full, place milk cartons half full of water
in the freezer.

l

Let hot dishes cool slightly before putting into the
refrigerator or freezer.

l

Cover liquids.

l

Wipe moisture from the outside of containers before
placing them into the refrigerator.

l

Avoid opening the doors too often.

Fig. 1

TURN CLOCKWISE TO

RAISE CABINET CORNER

TURN COUNTER-CLOCKWISE

TO LOWER CABINET

Fig. 2

Fig. 3

Features at a Glance

4

444444444444444444444444444444444444444444444444444

PuriClean”

Twin Fresh”
Slide Control

ice Bin

Freezer

Light

Freezer

Shelf

Half Freezer

Basket

Drop Down

Freezer

Door

Baskets

Dairy

- Compartment
With Keeper

- Butter Dish

-ChillKeeper’”

> Elevator m

Shelves

Lift Off
Door Bins

7

- Shelf

Tender

- Tall Bottle

Retainer

Fixed Door

Bins

StairStep”

Freezer

P~.T!lr.x+r

Lower Hinge Covers

Crispers

Features may vary according to model.

- Tilt out
Door Bins

2Temperature Controls

Your refrigerator has Twin Fresh’” Climate Control. The controls for setting the temperature in the fresh and frozen food
compartments are located at the top front of the fresh food compartment.

To adjust the controls, move the slide to the left or right as desired

Twin Fresh’” Climate
Control Settings

l

The refrigerator control has settings from warmest to
coldest. Initially set this control at the midpoint.

l

The freezer control has settings from off/warmest to
coldest. Initially set this control at the midpoint.

l

Let the refrigerator run at least 8- 12 hours before adding
food.

TWIN

Refrigerator too Warm

I.....

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..a

Refrigerator too Cold

b.....

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..a

I.....

I.....

Freezer too Warm

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Freezer too Cold

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..a

Turn Refrigerator Off

FRESH’*

. . . . .

. . . . .

. . . . .

. . . . .

CLIMATE CONTROL GUIDE

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Adjusting the Twin Fresh’”

Climate Controls

l

24 hours after adding food, you may decide that one or
both compartments should be colder or warmer. If so,
adjust the control(s) as indicated in the table below.

l

Except when starting the refrigerator, do not change either
control more than one setting at a time.

l

Allow 24 hours for temperatures to stabilize before reset­ting.

l

Changing either control will have some effect on the tem­perature of the other compartment.

Slide the refrigerator control to next higher setting.
Slide the refrigerator control to next lower setting.
Slide the freezer control to next higher setting.
Slide the freezer control to next lower setting.
Slide freezer control to OFF.

I

Note: Sliding the freezer control to OFF stops cooling in BOTH compartments. It does not shut off

power to the refrigerator.

Warm Cabinet Surfaces

At times, the front of the refrigerator cabinet may be warm
to the touch. This is a normal occurrence that helps prevent
moisture from condensing on the cabinet. The condition
will be more noticeable when you first start the refrigera­tor, during hot weather and after excessive or lengthy door
openings.

No Defrosting

Your refrigerator is designed to defrost automatically.

Note: During the automatic defrost cycle, you may notice

a red glow/reflection in the vents on the back wall of the
freezer compartment and you may hear the sound of
droplets coming into contact with the defrost heater. This
is normal during the defrost cycle.

water

Interior Designs

6

444444444444444444444444444444444444444444444444444

Shelves

Fresh Food Compartment

and

Door

Elevator’” Shelf

The Elevator’” shelf is equipped with a spill-retaining edge
and the Easy Glide slide-out feature. It can be adjusted up
or down without unloading. To slide out, grasp the front of
the shelf and pull forward. Push the shelf in to return to
original position.

To adjust the Elevator’” shelf: Pull out the knob on the
crank handle. Rotate the crank clockwise to raise the shelf,
and counterclockwise to lower the height of the shelf.

To remove: To remove the ElevatoirM shelf for occasional
cleaning, completely unload the shelf and pull the shelf for­ward. When the shelf stops, press up on the tabs located
underneath its outside edges, then continue pulling for­ward, clear of the frame.

To replace: Align the shelf to the frame and push it all the
way back. It is not necessary to depress the tabs for rein­stallation.

In ordinary use, the Elevator’” shelf frame assembly does
NOT require removal. Though unlikely, and not recom­mended, the correct removal procedure is as follows:

l

Unload the shelf completely.

l

Slide the shelf forward about two inches and manually
move the two rear latches toward the shelf center.

l

While supporting the entire shelf and frame from
underneath, lift slightly and rotate the assembly
approximately 30” to allow the rear mechanism to clear
the vertical rear side rails.

l

The entire assembly can then be moved forward and
clear of the refrigerator compartment.

l

To reinstall, reverse the removal procedure. Be sure the
shelf is in a level position. When the sliding shelf is
pushed to the rear, it will reposition the rear latches to
their correct operating position.

The fresh food compartment also may be equipped with
adjustable, Spill-Catcher’” shelves. These shelves have a
spill retainer edge for easy clean up.

In some models, these shelves have the slide out feature.
To slide out, simply grasp the front of the shelf and pull.
Gently push in to return the shelf to the original position.

These shelves can be moved for varying food storage
needs.

To remove a shelf:

l

completely unload the shelf

l

slightly lift up the rear of the shelf

l

pull the shelf straight out

To lock a shelf into another position:

l

tilt up the front edge of the shelf

l

insert the hooks into the desired frame openings

l

let the shelf settle into place

l

be sure the shelf is securely locked at the rear before
reloading

.

VERTICAL RAILS

REAR GUIDES

, LATCHES \

ImI FRAME ASSEMBLY’I~I ’ PUuC UU 1

(Style may vary)

SHELF

The Lift Off Door Bins are roomy enough to handle gal-

lon-plus sized containers. They are adjustable and can be

easily removed.
To remove:

l

Lift the shelf front up until it clears the retainers on the
door liner.

l

Pull the bin straight out

To replace:

l

Reverse the above procedure.

In some models the bottom door bin is fixed, so it is not
adjustable.

l **************

A Shelf Tender is located in one refrigerator door bin (cer­tain models have two tenders). Shelf tenders secure bottles

I

and other containers in their upright position and are easi­ly adjusted by sliding sideways.

l **************

The Tall Bottle Retainer is designed to prevent tall bot­tles from tipping forward. It is easily adjusted by sliding
from side to side.

l *********+****

The Tilt Out Refrigerator Door Bin (certain models) is
ideal for storing awkward containers such as liter bottles
and bagged items. By tilting the bin outward, space is
opened up to conveniently load or retrieve contents.

Freezer Compartment

The freezer of the model you have chosen has either wire
or glass shelves. The shelves rest on support rails which
are molded into the wall of the freezer. Some models have
freezer shelves that slide forward for easier access to the
rear of the shelf.

To remove a freezer shelf:

l

Empty the shelf of its contents & lift straight up.

l

Tilt the shelf sideways & pull it straight out.
To replace the freezer shelf, reverse the removal procedure.
The freezer compartment also has one or more freezer bas-

kets for food storage. These baskets slide out for more
convenient access to the frozen foods. They rest and slide
on support rails which are molded into the wall of the
freezer.

To remove a freezer basket:

l

Slide basket out until it stops.

l

Depress tabs located at the rear of each side of the bas­ket.

l

Continue sliding the basket out.

To replace a freezer basket:

l

Line the basket up to the appropriate support rails.

l

Slide it into place.

l **************

StairStep’” Freezer Baskets

Certain models feature StairStep”’ baskets for the bottom
two freezer baskets. These two baskets interact for total
accessibility to their contents.

To use:

l

Pull the lower basket forward to gain access to its con­tents. Continue pulling the lower basket to open the
upper basket as well. Reverse the action to close both
baskets.

l

Pulling forward the upper basket provides access to its
contents. The lower basket will also move forward
but will not open.

To remove the baskets:

l

Pull forward on the upper basket until it stops.

l

Lift up slightly and continue pulling forward.

l

The baskets are removed together.

To replace:

l

Reverse the above procedure.

Drop Down Freezer Door Baskets

Two drop down freezer door baskets provide convenient
storage for items that tend to shift or slide (such as bagged
vegetables) when the door is opened and closed.

Specialized Storage Areas

Your refrigerator has an Adjusti-Temp’” meat storage
drawer. This drawer is designed to provide a short term
storage area for fresh meats, cheeses and luncheon
meats.

The Adjusti-Temp’” Drawer is the top drawer in the
fresh food compartment.

The temperature control for
this drawer is located on the shelf front above the draw­er. Slide the control left or right to achieve the desired
internal temperature of the drawer. The “cool” setting
provides a temperature similar to that of the surrounding
fresh food compartment. The “cold” setting provides a
lower temperature within the drawer which is recom­mended when storing fresh meat, poultry or fish.

l **************

The Crispers are ideal for storage of fruit and vegetables.
They are equipped with an automatic humidity control sys­tem.

Automatic Humidity Control

To remove this drawer for cleaning:

l

pull the drawer out until it stops

l

lift the drawer up slightly and pull it out

To replace the drawer:

* reverse above procedure

For best results, keep this drawer closed tightly.

*Maytag Automatic Humidity Control system features a unique, patent-

ed material called Shape Memory Polymer (SMP) that when laminated
to fabric, becomes DIAPLEX. DIAPLEX is manufactured by
Mitsubishi.

DiAPLEi

A fabric-like material* covers small air vents in the shelf
insert above the crispers.

This material controls the flow of moisture out of the crisper
to provide the optimum environment for your food. If a
food spill should occur on the air vent or fabric-like
material, wipe with a clean, damp cloth.

l **************

To remove a crisper drawer for cleaning:

l

pull out the crisper until it stops

l

tilt the drawer front up and pull it out

To replace a crisper drawer:

l

align the drawer in the tracks

l

lift the drawer front and slide in

For best results, keep the crispers tightly closed.

I

The sealed cover of the top drawer serves as the lower refrigerator shelf.
To remove the cover:

l

lift the front edge of the shelf

l

pull the shelf straight out

To replace the cover:

l

set the rear bars on the support

l

push the shelf back until the front edge can be lowered
into place

I

ChillKeeper’”

Use the main compartment of the ChillKeeper” (certain
models) to quick chill items and to store your favorite cold
drinks.

To open the compartment, grasp the opening on the right
side of the compartment cover and swing to the left. The
compartment will automatically latch when the compart­ment cover is gently closed. If the latching mechanism is
accidentally dislocated, place the eraser end of a pencil
next to the latch and apply gentle pressure to the right.

There is a control for the ChillKeeper’” located on the left
wall of the fresh food compartment. The slide control
allows customization of the temperature within this com­partmcnt. The “Cool” setting provides a more moderate
temperature. Sliding the control to “Cold” will provide
colder temperatures within the compartment.

The ChillKeeper’” shelf can be used to create a 2 tier stor­age area within the compartment. If unneeded, the shelf
can be detached, inverted and snapped onto the upper-most
tabs, out of the way. This creates a larger storage space
within the compartment.

There is a utility drawer located at the bottom of the
ChillKeeper”‘. The lock for this drawer is located on the
left side of the drawer. To open the drawer, move the pin
to the “Unlock” position and the drawer will slide open. To

close, gently slide the drawer back in and move the pin into

the “Lock” position.

+**************

Dairy Compartment

To use the roomy Dairy Compartment, simply raise the
cover. Depending on which model you have chosen, this
compartment may come equipped with a Tender to secure
compartment contents in place or a Butter Dish.

Slide the Tender from side to side for desired placement.

l ********++****

Egg Caddy

The Egg Caddy (style may vary) holds a “dozen-plus”
eggs. It can be removed to be washed or carried to a work
area.

Nondispenser Models

The freezer compartment of your refrigerator is equipped
with ice cube trays and an ice storage bin. The bin is
designed to stack neatly on top of the stacked ice cube
trays. To release the ice cubes from a tray, hold the tray
upside down over the bin and twist both ends.

Your refrigerator is automatic ice maker ready. The number
for the ice maker kit you need appears on the data plate (see
page 1).

Dispenser Models

Automatic Ice Maker

After your refrigerator has been connected to the water sup­ply, move the wire lever arm into the down position. This
will start its operation. The ice maker will fill with water
when the freezer reaches the proper temperature. It may be
8 to 12 hours before the ice maker furnishes any usable ice
cubes.

To check the ice level or gain access to the ice bin, lift open
the door on the ice bin.

To remove the bin, first turn off the ice maker. This is done
by opening the door on the ice bin and moving the ice maker
wire lever up to the “off’ position. Then reach under the bin
front and pull down on the back edge. After it snaps free,
pull the bin straight forward. To replace the ice bin, align
the bottom rails to the corresponding shelf grooves and
push it straight back until it stops and latches. Make sure
the tabs, at the back of the bin, that turn the spiral auger are
positioned between the prongs from the auger motor. Turn
the ice maker on by lowering the wire arm.

Beverages and foods should not be placed in the ice storage
bin for quick chilling. These items can block the wire lever
arm, causing the ice maker to malfunction.

Discard all the cubes from the first two or three batches

made. These initial ice cubes may be irregularly shaped,
discolored, or contain impurities from the new water supply
piping.

When the ice cubes are ejected it is normal for several cubes
to be joined together at the ends. They can easily be broken
apart. The ice maker will continue to make ice until the sup-

ply of ice cubes raises the wire lever arm, shutting the ice

maker off.
To manually stop the operation of the ice maker, move the

wire lever arm into the up position.

Certain sounds may accompany the various cycles of the ice

maker.

l

buzzing of the water valve

l

running of the water as the tray tills

l

rattling of the ice cubes falling into an empty ice bin.

If the ice is not used frequently, the ice cubes will become
cloudy, shrink, stick together and taste stale. Empty the ice

storage bin periodically and wash it in lukewarm water. Be
sure to dry the bin before replacing it or the ice cubes will
stick to the metal auger.

For Your Safety

Do

not place fingers or hands on the automatic ice

making mechanism while the refrigerator is plugged

in. This will help protect you from possible injury. It

will also prevent interference with moving parts of the

ejector mechanism and the heating element that
releases the cubes.

Under certain rare circumstances, ice cubes may be
discolored, usually appearing with a green-bluish hue.

The cause of this unusual discoloration is apparently a

combination of factors such as certain characteristics of
local waters, household plumbing and the accumula-

tion of copper salts in an inactive water supply line

which feeds the ice maker.

Continued consumption of such discolored ice cubes

may be injurious to health. If such discoloration is
observed, discard the ice cubes and contact your deal­er from whom the refrigerator was purchased.

Automatic Ice and Water Dispenser (certain models)

Dispensing Water and Ice

To dispense ice or water, position a glass against the top
portion of the actuator pad and press. Hold the glass high
in the dispenser opening to avoid spills.

To stop dispensing, release the pressure on the actuator pad
and hold the container in position momentarily to catch the

last pieces of ice or the last drops of water. The ice deliv­ery door will remain open for a short time. When it clos­es, a closing sound can be heard.

The control key pads are located on the dispenser control
panel. To select the desired function, press the appropriate
pad. When ice cubes, crushed ice or water are selected, a

light above the selection glows.

Crush

Water from the dispenser is not as cold as ice water. For
colder water, simply add ice before dispensing the water.
The first glass or two of water dispensed each time may be
warmer than subsequent glasses. A full glass of water will
be cooler than a partial glass. To prevent splashing, fill the
glass with ice before adding water.

NOTE: When using the ice dispenser for the first time,
discard the first two or three dozen cubes. When using the
water dispenser for the first time, press the actuator pad for

10 minutes to bleed the air from the water line. Discard the
first live to six glasses of water dispensed. This will insure
pure and fresh water for drinking.

Cube

Dispenser

When the actuator pad is pressed, the dispenser light auto­matically illuminates. To manually turn the light on, press
the

-:Q-

Light

pad.

0

To turn the light off, press the pad again.

Dispenser Lock

To interrupt power to the water and ice dispenser so it can­not be used, press the
onds.

Dl

An indicator light above the lock pad is illuminated when
the dispenser is locked. Press the pad 3 times within 10
seconds again to unlock the ice and water service.

Water Filter Change Reminder (select models)

This feature monitors the life of the PuriClean’” change
Filter. The light on the dispenser pad will illumi­nate after a filter has filtered for 12 months, or 416
gallons (whichever happens first). When the light
illuminates, replace the filter and manually reset the
control light.

To reset the control light: Press and hold the Dispenser
Light and Lock key pads on the dispenser control panel for
3 seconds until the light flashes. At this point, release the
keys and the control will be reset for another 12 months or
416 gallons.

NOTE: Water Filter Change Reminder light will oper­ate even if filter bypass is in place.

pad 3 times within 10 sec-

$,

Q

Spill Tray

Do not pour water into the grille at the bottom of the dis-

penser area. This is a spill area, NOT a drain. Normal,

small spills will evaporate.
up with a soft cloth or sponge. The grille slides out for
clean up. It is recommended to clean the spill area occa­sionally to prevent mineral deposits.

Larger spills should be wiped

TUATOR

PAD

SPILL
TRAY

Ice Dispensing Tips

l

Some crushed ice may be dispensed even though cubed
ice was selected. This happens occasionally when a few
cubes are accidentally channeled into the crusher.

* Likewise, when changing from crushed ice to cubes,

some crushed ice may be dispensed. This may also hap­pen if irregular sized cubes or ice chips are in the storage
bin.

l

If the ice dispenser is not used frequently, ice cubes may
clump together and may need to be broken apart or dis­carded.

l

A slight pause may be noticed when dispensing crushed

ice. This is normal because the ice is being channeled to

Water Filter

the crusher. Crushed ice pieces will vary in size and
shape.

l

Do not add ice to the storage bin which was not pro­duced by your ice maker, it may not crush and/or dis­pense properly.

l

Avoid operating the ice dispenser continuously for more
than five minutes. Simply remove large quantities from
the bin by hand.

l

Avoid dispensing ice directly into fine china or delicate
crystal. The pressure of pressing against the actuator pad

and the ice dropping into the container can cause crack­ing or chipping of delicate items.

14

Water Filter

(select models)

The water filter mounts in the upper fresh food compart-

ment, on the underside of the Twin Fresh”’ control housing.

Change the filter cartridge every year, or sooner, if the
water flow to the dispenser or icemaker decidedly decreas­es, if an objectionable taste or odor returns or the water fi­ter change reminder illuminates.

Your refrigerator was delivered from the factory with a fi­ter bypass in place. The filter cartridge can be found pack-

aged inside of the refrigerator. It can be easily installed

without using any additional parts, screws or fasteners.

Note: The ice and water dispenser and the icemaker

should not be operated unless either the filter bypass or
a filter is in place.

Special Notices

It is essential that operation, maintenance and filter

replacement requirements be carried out as scheduled.
This product is for cold water use only.

Do not use with water that is microbiologically unsafe, or

of unknown quality without adequate disinfection before

or after the system. Systems certified for cyst reduction

may be used on disinfected water that may contain filter-

able cysts.

For your own knowledge and safety, it is recommended

that your water quality be periodically tested. This infor-

mation also identifies the optimal replacement filter choice

for your refrigerator.

The contaminants or other substances removed or reduced

by this water treatment system are not necessarily in your

water.

Initial Filter Cartridge Installation

and installing filters or plugs; this will prevent water

1. Twist the cap of the filter bypass l/4 turn counter-clock­wise (as viewed from the bottom) so the ears on the

plug can disengage. Remove the filter bypass from the
filter head apparatus.

Do Not dispose of this filter bypass. It should be stored
for future use, in the event that you choose to use the
water and ice dispenser without a filter.

2. Carefully remove the filter from its packaging.

3. Apply the month sticker to the cartridge as a reminder
to replace the filter within a year.

4. Remove the red cap from the filter.

5. Lubricate the O-ring with food grade vegetable oil.

6. Line up the cartridge ears so it can be inserted into the
filter head. The unlocked symbol will line up with the
indicator line that is molded into the light shield area.

Rotate the cartridge into the head. Twist the cartridge

l/4 turn clockwise to lock it into place. You will feel a

stop and the locked symbol should now be lined up with

the indicator line.

7. Dispense water through the dispenser for 10 minutes.

8. Carefully check for leaks.

Note: A newly installed water filter cartridge may
cause water to temporarily spurt from the dispenser

The feed water connection must conform to applicable
plumbing codes.

0

Water Filter

Replacing the Filter Cartridge

1 Note: Leave the refrigerator door open while removing. 1

and installing filters or plugs; this will prevent water from
flowing through the system and running into the fresh
food compartment.

1. Twist the filter cartridge l/4 turn counterclockwise (as
viewed from the bottom) so that ears on the cartridge are
able to disengage from the head. The unlocked symbol
will be lined up with the indicator line that is molded
into the light shield area. Twist gently until the cartridge
is free from the head, but DO NOT pull. Avoid tipping
the cartridge to prevent spillage. Dispose of the used
cartridge.

2. Carefully remove the replacement filter from its packag­ing. (Read the label carefully to be sure you have the
correct replacement filter cartridge).

3. Follow steps 3 through 8 under Initial Filter Cartridge
Installation. (See page 14).

r

Note: A newly-installed water filter cartridge may cause

water to temporarily spurt from the dispenser.

Periods of Non-Use

If the refrigerator has been out of use for more than 2
weeks (ie: placed in storage or has been moved) the filter
should be replaced when the refrigerator is put back into
service.

Replacement Filter Cartridges

For replacement filter cartridges or for service, contact
your local dealer or Maytag Appliances Sales Company,

Jenn-Air Customer Assistance, 1-800-688-l 100:

Replacement Filter Model Number:

UKF7002AXX - Taste, odor, chlorine, cysts, and lead

Note: Filter life may be affected by abnormal feed water
conditions or unusual incidents such as hydrant flushes,
reservoir turnover, or varying local water conditions.

US LABEL

The PuriClean’” Water Filter is manufactured for Maytag
Appliances by:

Cuno Incorporated

400 Research Parkway

Meriden, CT 06450

Rated Flow:

Min. Op. Temp:
Max. Op. Temp:
Min. Op. Press:
Max. Op. Press:

.5 gpm (1.9 L)

33” F (.6” C)

100” F (38” C)

30 psi (207 KPa)

125psi (862 KPa)

The filter listed below has been test-

ed and certified

to

NSF International
under ANSI/NSF Standards 42 and
53 for the reduction of impurities as
indicated:

@
Taste/Odor
Chlorine

UKF'IOOZAXX

Yes
Yes

Class 1

Std.42

Turbidity Yes

Std.53
Particulate

Std. 42
cyst

Yes

(Class I)

Yes

Std. 53
Lead

Yes

Std. 53
Capacity

Function

416 gal.
(1574 L)

Chemical
Mechanical

See accompanying Product
mation on the filter.

Data Sheet for

further

infor-

Refrigerator Cleaning Chart

I

9*89*~*QQ+9144*44**0~~444~~Q444~QO~Q44444Q44~~44~Q44

CAUTION= Disconnect the power cord before cleaning. Do not touch refrigerated sur-

a

faces with wet or damp hands. Damp objects stick to cold metal surfaces. Before cleaning
the freezer, allow it to warm up. Allow glass shelves to warm up before immersing in warm
water.

Refrigerator Cleaning Chart

Soap and water

Base grille

. . . . . . . . . . . . . . . . . . . . . . . .

No Clean”’
Commercial-Duty
Condenser

. . . . . . . . . . . . . . . . . . . . . . . .

Door handles

. . . . . ..*.................

Painted metal

surfaces:

Cabinet. doors

. . . . . . . . . . . . ..-.........<

Stainless steel door:
(certain models)

Mild liquid sprays
Vac~ium clcancr attachment

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..a

Cleaning Brush (Part No.
2000 10 17) Availahlc from
your dealer.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

soap and walcl-

Mild liquid sprays

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

soap ~llld wale1
Mild liquid sprays

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

I,ight cleaning:

~‘c‘nl and waler or :I solution 01‘

Z
\z bile \ ino~at- md M atcr.

hloderate soil:
Ikcoloratiorn: (‘a~lico

Stairlless Steel cle~lncl-:~:.

mild deter-

Bon Ami.:‘.

,..............................................*.................,

No need for cleaning unless environment is particularly
c~asy, dustv or there is significant pet traflic in the hornc.

c? i

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Dry with ;L clean, sofi cloth.
Do

not

wipe the rcf‘rigttrator with ;I soiled dishwashing
cloth or wet towel. These may leave residue that can
xaratch
powdered cleansers. bleach or cleaners containing hleach.
These products

Do not wax plastic or vinyl parts.

,..........................................................~......

! J\e a soft cloth or

Al\\~a~ s \L ipe with the ~

Do not

contains chloriiic bleach.
After cleaning. rinse

strcahs

model :I9 12. Part No. 20000008).

and

weaken the paint. Do not

can

scratch

spon~c.

iiw

chlorine hlcach

IOllow with Stainless Steel Magic Spray::’ (Jenn-Ail

and

(Trail1 of the stainless steel.

or any

:und dry.

To restore luster and

use

scouring pads,

erode the paint finish.

cleaning product that

I-CIIIOLC

. . . . . . . . . . . . . . . . . . . ...“..

(;lass shelves

,........................

Interior and door
liner

. . . . . . . . . . . . . . . . . . . . . . . .

I)rawers, hins, egg
cradle, etc.

I........................

Automatic ~luniiditj
~‘ontrol mesh/vent
area

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

so;q and Mater
c;1;1\4

I.Ic;LI1cl

Mild liquid sprat>\

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Soap and \h';ltcl

U\r l-2 tablespoons b&in,

Hc \LI~ to Lvrinf out cxccss \vatcr

when cleaning around controls. light?.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..*...............................

(7 soda pc:r qu;trt of water.

from sponge 01‘

or

electrical pat\.

cloth

:Ulow the glass to Flat-m np to room temperature
hefore immersing in bfarm water.

. . . ..I...........................................................

SW above for baking \oda solution.

DO NOT use abrasi\c cltxncrs. conamrated detergent\.
hlexlies. cleaning ~x’ie\. ~l\ent\ or poli41 cleaner4 to
clean the I-ei‘rigerator interior.

,...............................~................................,

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..~...

Ne\er LIP hot u atcr.

Storage and Maintenance

1’8

1

******+******************j**************44444444444

Cleaning Under the Refrigerator

Your refrigerator can be rolled out for cleaning the floor
underneath. Raise the leveling feet if engaged (see page

3). Pull the refrigerator straight out from the wall.

Vacations

If you will be gone for a month or less, leave the controls
at the usual settings.

During longer absences:

remove all food,

4

shut off the ice maker (if installed) and the valve where

b)

you tapped into the water line to supply the refrigerator,
disconnect the refrigerator from the electrical outlet,

c)

remove the filter cartridge (certain models) and install

4

the filter bypass (see page 14-15). Dispose of the used

cartridge. A new cartridge can be installed when the
refrigerator is put back in service.

Note: Disconnecting power to the refrigerator will sus­pend the 12 month countdown for the water filter change
reminder (select models).

e) clean and dry the refrigerator thoroughly,

f) leave the doors open to prevent odors.

Moving

When moving, follow steps a-f under Vacations. In addi-

tion, remove and carefully pack any items that are easily

removable. Ship the refrigerator in an upright position with

the doors taped shut.

Replacing a Light Bulb

a CAUTION: Disconnect the power cord before replacing light bulb(s). Wear gloves as
protection against possible broken glass.

Always use a standard 40 or 60 watt appliance bulb when replacing a fresh food or freez-

er compartment bulb.

Refrigerator

There are two light bulbs located at the top of the refriger­ator compartment, on the underside of the Twin Fresh”’
control housing.

To replace a lightbulb( remove the control cover from
the control housing:

grasp the control cover at the two rear “finger tabs”.
These are located at the upper rear of the fresh food
compartment, behind the light shields.

pull down slightly to clear the retainer tabs and slide the
cover forward until it is free.

replace the bulb(s) with a 60-watt, standard base appli-

ance bulb(s).

After replacing the bulb(s), align the control cover on to
the ribs on the control housing and slide it straight back
until it snaps onto the retainer tabs.

On certain models, there is an additional light located

behind the top drawer. To replace:

l

remove the top drawer and cover as explained on page 10.

l

carefully reach into the bulb cover and unscrew the

lightbulb.

Freezer

The freezer light is located on the back wall of the freezer
compartment.

To replace:

unhook the tabs on the top of the light shield by press­ing in with the thumb on the center top of the light
shield.

pivot the shield down.

unscrew the bulb when cool and replace it with a stan­dard 40-watt appliance bulb.

replace the bulb cover by pivoting it back into place and
snapping the tabs into the appropriate slots.

Dispenser Light (dispenser models only)

To replace:

l

Locate the lightbulb in the dispenser area to the left of
the actuator.

l

Unscrew the used bulb and remove.

l

Replace the bulb, using a 12OV, 7-watt bulb.

l

replace the bulb with a 60-watt appliance bulb.

f9

Food Storage Tips

Fresh Food Storage

Fruit and Vegetables

l

.41\27a\~s

so tli;, otlor ttoc~s not trailsfiv to other timls.

\vt-at’ otlor011s fids SllCh as onions ad Glthlg~

Frozen Food Storage

l

A fi-wzu- opcratc~s mow eflici(wtlv \vlivii it is at Icast
h\wtliirtls

Packaging Foods for Freezing

l

To Irlillinrize delndration and qualitv clcltc~1-ionttiolI use
atuiiriniim foil, 1Ywwr wrap. free& tqgs or airtiglit
cr)ntaillers. Force as ~I~~IC’I~ air ollt of‘ tlw pxkagw as
possihlr a~ltl lw s11rc‘ tlrcy arc’ tiglltl\. seatrd. Trapped ail
cali c31ise tlw food to dry out, ctia;igr~ color alid &~Y­op iiil off-flu\nr (lix~zer i)lirii).

l

Ovvrn-rap

\vrap prior to freezing.

l Do not refreeze meat that has completely thawed.

Loading the Freezer

filtt.

fresh mrats

and poiiltn witlr

siiithle freeze1

Meat and Cheese

l

occx~iollatl\~ lrloltt

c.II~Y~s~~s

(Swiss,

\\.ill

(~l~c~ltlar,

clcdop

l’ai-1rrc5air). C:iit of‘f’kit

011 th. slll-fllcc~

of' IlaId

least xi
ilrcdr ;L~OIIII(! NIP] I)(~lo\\~ tllcl 11rolt1\. area. Kwp \ollr
hlrif;, or illstrllltl(~llt ollt ol‘tll(~ 111ott1 itwlf’. Tlrc wnlain­illg C~]I(YW~ \vill lx, safi~ mrtl fla\d’ul to cat. 110

NOT tw

to s;L\‘(’ iiItli\~ittlial C~ICY~C~ slices, sof’t clic~w, cotta&
C’lI(‘(‘S(‘,

;lt’t”‘;l”s.

~‘l-(‘;llll, SOIl1’ ~‘I‘(‘;1111 or yyp-t \\h’ll

Dairy Food

l

hlost tlain, f’ootls SIICII as Irrilk, vo:qllrt, SOII~ c’rmnl ad
cx)ttagc) c*II(~(w Irau~ fi.c3llilcx clatcs on their cartons fi)r
:ippropi‘i;itc~ l(vi$ll of‘ storagc~. Store, tlrcw fids in tlw
origild c*;ii-toil aid i-c~l’rigwatc~ iirrirlcdiatc~l~~ aftw piir­cdiasiilg ;iirtt cxc*l~ iiso.

Refer to the Food Storage Chart on page 20 for
approximate storage times.

11101d

Food Storage Chart

temperature, and the qua1 it!

(Storage times are approximate and may vary depending on type of packaging, storage

J of the food when purchased. )

Butter

Milk & cream

Cream cheese, cheese spread

& cheese food

Cottage cheese

Sour cream
Hard cheese (Swiss, Cheddar

& Parmesan)

EGGS

Eggs in the shell.
Leftover yolks or whites

FRUIT

Apples

Bananas
Pears, plums, avocados

Berries, cherries, apricots
Grapes
Citrus fruits

VEGETABLES

Asparagus
Brussels sprouts, broccoli,

cauliflower, green peas, lima
beans, peppers

Cabbage, celery
Carrots, parsnips, beets, &

turnips
Lettuce

POULTRY & FISH

Chicken and Turkey, whole
Chicken and Turkey, pieces

Fish

MEATS

Bacon
Beef or lamb, ground

Beef or lamb, roast & steak
Ham, fully cooked, whole

half
slices

Luncheon meat
Pork, roast
Pork, chops
Sausage, ground

Sausage, smoked
Veal
Frankfurters

I month
I week

l-2 weeks

3-S days

IO days
I-2 months

3 weeks
2-4 days

I month

2-4 days

3-4 days
2-3 days
3-5 days

l-2 weeks

1 2-3 days

I

I-2 days

3-5 days

1-2 weeks
7- 10 days

7-10 days

l-2 days

l-2 days

l-2 days

7 days

l-2 days

3-5 days
7 days

5 days

3 days
3-5 days

3-5 days
3-5 days

I-2 days
7 days
3-5 days
7 days

6-9 months
Not recommended

Not recommended

Not recommended

4-6 months
May become crumbly

Not recommended
Y-12 months

8 months (cooked)
6 months

Not recommended
6 months

I month (whole)
Not recommended
6- I2 months Pineapples, cut

8-10 months
8- IO months

IO- I2 months
8- IO months

Not recommended

I2 months
9 months
2-6 months

I month
3-4 months

6-9 months

l-2 months

l-2 months

l-2 months

l-2 months
4-6 months

4 months

l-2 months
l-2 months

4-6 months

I month

(whole/peeled)

Wrap tightly or cover.
Check carton date. Close tightly. Don’t return unused portions to

original container. Don’t freeze cream unless whipped.
Wrap tightly.

Store in original carton. Check carton date.

Wrap tightly. Cut off any mold.

Refrigerate small ends down.
For each cup of yolks to be frozen, add I tsp. sugar for use in
sweet, or I tsp. salt for non-sweet dishes.

May also store unripe or hard apples at 60.70°F.
Ripen at room temperature before refrigerating. Bananas & avo-

cados darken when refrigerated.

May also store at 60.70°F. If refrigerated, store uncovered.
Will not ripen after purchase. Use quickly.

Don’t wash before refrigerating. Store in crisper.
Wrap odorous foods. Leave peas in pods. Store in crisper

Wrap odorous foods & refrigerate in crisper.
Remove tops. Wrap odorous foods & refrigerate in the crisper.

Store in crisper.

Keep in original packaging for refrigeration. When freezing
longer than 2 weeks, overwrap with freezer wrap.

Fresh meats can be kept in original packaging for refrigeration.
Place in the Meat and Cheese Drawer. When freezing longer
than 2 weeks, overwrap with freezer wrap.

Unopened, vacuum-packed luncheon meat may be kept up to 2
weeks in the Meat and Cheese Drawer.

Processed meats should be tightly wrapped and stored in the
Meat and Cheese Drawer.

Sources: United States Department of Agriculture; Food Marketing Institute; Cooperative Extension Service, Iowa State University

Before You Call

Won’t run

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Runs too long/ too
frequently

,..................................................

Noisy operation

,..................................................

Odor in cabinet

,..................................................

Warm air from cabinet bottom

I..................................~...............

Cabinet vibrates
Moisture on inside cabinet walls

l

the tenyratilre control turned to “Off

l

the power cord not plugged in

l

no power at the electrical outlet

l

the circuit I)rraker tripped or the house filse blown

l

refrigerator is

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

l

modem refrigerators are larger and run colder, which requires more running tilne

in automatic defrost

to provide nlore stable trqxvxtiires

l

prolonged door openings

l

tile hasr grille 1)lockrd

l

too many door o ,errill s

l

tile door not sea Ing (( II? to a package or II container holdir~g door oprn) f. F

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

l

the calCnct not levc~l

l

a wcxuk tloor

I

I................................................................................,

l

odor producii~g fhotls sli011ld lw coved or

l

tllv interior nc~ds cleaning

I

,................................................................................

l

110rm;d ait- flow for colrdcwsc~r circlll;hon

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

l

tire

cd,inc~t not lc~\vl

l

ii \vc~tk Iloor

uuppetl

Excessive moisture in crisper
Foods dry out

(fresh or frozen)

,..................................................

Cabinet light not working

,................................................

Kefrigerator compartment
too warm

,..................................................

Refrigerator compartment too cold

,..................................................

Freezer compartment too warm

,.................................................. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sizzling sound in freezer

,.................................................. . . . ..*..........................................................................

Visible glow in the freezer vents

,..................................................

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..~

I

l

111t\ IIIIII, IHIrlrcYl 011t

l

II0 p’\\“l- ,1t

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

l

tllcx u.ft-iL[(~ratot. c.011trol 5(4 too \\;wr1

.

p~-olwl~:cYl l1001 ~q”‘llll”:\

,................................................................................

l

tilt, t-(,I’t.il~c,l.;ltc,t- c~olltrol \tat too c~oltl

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

l

IIK. l1.(Y’/l.I (YHItrol WI too \\;,I’,,,

l

Ill~olwl~~‘~I (IlliJl. OIN~llill’_‘\

l

,t riorf11;11 UIIIIKI G~IIUYI In (l~~l't-c~\l \\:d(,r

ill(, oIItl(~t

clrifqCrr, 11 01, cld.cA lliWll‘ilil\lli

Freezer not freezing properly

,..................................................

\+‘atcr Filter C:hange I<etninder light (select

motlcls) comes

in place

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Ice cubes evaporate

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

,Automatic ice maker not

operating

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..*...............

I+?ont cabinet surface warm to the touch

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

on when the filter bypass is

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

l

CYIICI ;LII iIIo\iiIcq o\“I tllc, icv (.11lw\ c’,i1Iv’s ~I~I-IIIL,I~~~~. (~\lxG,dl\ \\ltll Illilittxl I~\;L~<z”.
I‘lli i5 1101.111dl

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

l

tlic, \tol, ;LI-III III OIcIc ~,111,1 phitloil

l

1lI(, \\;ltc,l’ \11pp1\ tlIrIcYI ol‘i’

l

tlw \\;tt<,1- ,““‘W’“’ IO0 IO\\

l

tll(‘ II-(T~L(~I- too \\ar711

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

l

Sl)wi,J tl(,\igII to lilillt c~oll(l~~lrs~ttic)t~ tlllrill< fx~t-iocl\ 01 Illqli Illlllliclit\.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

I

Ice dispenser not operating

Water dispenser not operating

Note: I;orfiwther as.si.stance contact Maytag Appliances Sales Company, Jerrn-Aw Customer Asmtance: I-WIJ-6X+ I J1JCJ

I

4444444444444444444444444444444444444444444444444444

8.7

I

4444444444444444444444444444444444444444444444444444

Refrigerator Warranty

Full One Year Warranty
For one (1) year from the date of original retail purchase, any part which fails in normal home use will be repaired or replaced free of charge.

Ice Maker - when purchased with the refrigerator and installed by the dealer the ice maker will be considered part of the refrigerator for warran-

ty purposes.
Limited Warranty

Second thru Fifth Year:

After the first year from the date of original retail purchase, through the end of the fifth year, Maytag Appliances will repair or replace, at
its option, free of charge for parts and labor, any part of the sealed refrigeration system (consisting of the compressor, evaporator, con­denser, drier and connecting tubing) and the cabinet liner (exclusive of the door liner) which fail in normal home use. Mileage and trans­portation charges, if required, shall be the responsibility of the owner.

Limited Warranty - PuriClean” Water Filter:

With regard to the water filter cartridge, Maytag Appliances will replace any part of the water filter cartridge which fails due to a defect
in workmanship or materials, for a period
this warranty period we will also provide free of charge, all labor and in-home service required to replace the defective part.

Limited Warranty - Other Parts:

Second Year:

Parts other than major refrigeration components which fail in normal home use during the second year following the date of original retail
purchase will be repaired or provided free of charge for the part itself, with the owner paying all other costs, including labor, mileage and
transportation.

Please note: The full warranty and the limited warranties apply when the refrigerator is located in the United States or Canada. Refrigerators

located elsewhere are covered by the limited warranties only including parts that fail during the first year.

LIMITATIONS OF LIABILITY
The warrantor shall not be liable for any incidental or consequential damages, including food loss. Some states do not allow the exclusion or lim-

itation of consequential damages, so the above limitation or exclusion may not apply to you.

- Major Refrigeration Components

of

Thirty Days from the date of original purchase.

This is a full 30 day warranty, and during

The specific warranties expressed above are the ONLY warranties provided by the manufacturer. This warranty gives you specific legal
rights, and you may also have other rights that vary from state to state.

To Receive Warranty Service

To locate an authorized service company in your area contact the Jenn-Air dealer from whom your appliance was purchased; or call Maytag
Appliances Sales Company, Jenn-Air Customer Assistance at the number listed below. Should you not receive satisfactory warranty service, please
call or write:

NOTE: When writing about an unsolved service problem, please include the following information:

(a) Your name, address and telephone number;
(b) Model number, serial number, and revision number (found on the top front interior of the refrigerator compartment);
(c) Name and address of your dealer and the date the appliance was bought;
(d) A clear description of the problem you are having.
(c) Proof of purchase (sales receipt).

What Is Not Covered By These Warranties:

1. Conditions and damages resulting from any of the following:
a. Improper installation, delivery, or maintenance.

h. Any repair, modification, alteration or adjustment not

authorized by the manufacturer or an authorized servicer.
c. Misuse, abuse, accidents, or unreasonable use.
d. Incorrect electric current, voltage or supply.
e. Improper setting of any control.

2. Warranties are void if the original serial numbers have been
removed, altered, or cannot be readily determined.

3. Light bulbs.

Maytag Appliances Sales Company
Attn: CAIR* Center

P.O. Box 2370
Cleveland, TN 37320-2370
U.S. and CANADA l-800-688-1100

U.S. customers using TTY for deaf, hearing impaired or speech impaired, call 1-800-688-2080.

4. Products purchased for commercial or industrial use.

5. The cost of service or service call to :
a. Correct installation errors.
b. Instruct the user on proper use of the product.
c. Transport the appliance to the servicer.

6. Consequential or incidental damages sustained by any person as

a result of any breach of these warranties.

Some states do not allow the exclusion or limitation of
consequential or incidental damages, so the above
exclusion may not apply.

User’s Guides, service manuals and parts catalogs are available from Maytag Appliances Sales Company, Maytag Customer Assistance.

Jenn-Air

l

403 West Fourth Street North

l

P.O. Box 39

l

Newton, Iowa 50208
