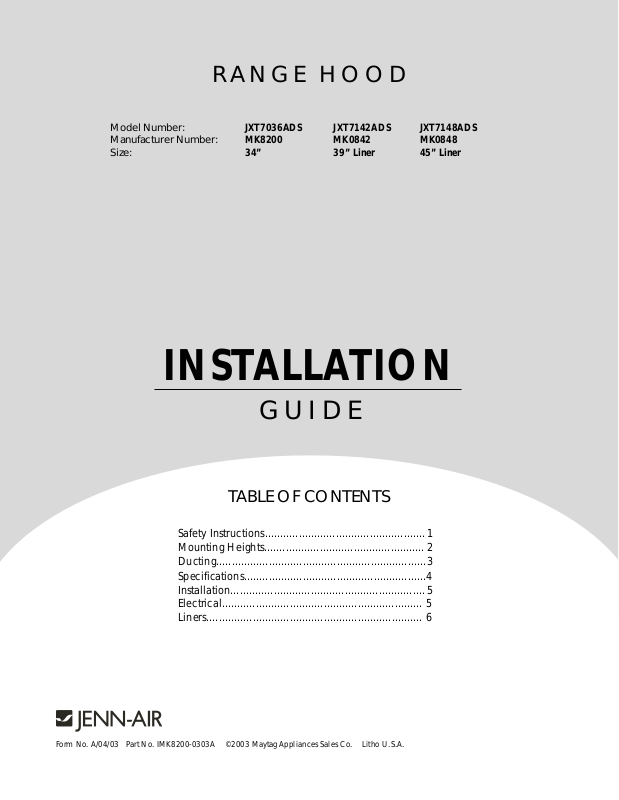

RANGE HOOD
INSTALLATION
GUIDE
Model Number: JXT7036ADS JXT7142ADS JXT7148ADS
Manufacturer Number: MK8200 MK0842 MK0848
Size: 34” 39” Liner 45” Liner
TABLE OF CONTENTS
Safety Instructions....................................................1
Mounting Heights....................................................2
Ducting.................................................................... 3
Specifications...........................................................4
Installation...............................................................5
Electrical................................................................. 5
Liners...................................................................... 6
Form No. A/04/03 Part No. IMK8200-0303A ©2003 Maytag Appliances Sales Co. Litho U.S.A.
INSTALLATION GUIDE
Read all Instructions before Installing and operating this appliance
MODELS: JXT7036ADS JXT7142ADS JXT7148ADS
Installation
The installation in this manual is intended for qualified installers,service technicians or persons
with similar qualified background.DO NOT attempt to install this appliance yourself. Injury could
result from installing the unit due to lack of appropriate electrical and technical background.
All electrical wiring must be properly installed, insulated and grounded. Overly accumulated
grease in old duct work should be cleaned out or duct work should be replaced if necessary to
avoid the possibility of a grease fire. Check all joints on duct work to insure proper connection
and all joints should be properly taped.
* Please check for latest specification revisions before any custom work or cutouts.
IMPORTANT SAFETY NOTICE
WARNING
INSTALLATION
2
MOUNTING HEIGHTS
DUCTING
Minimum mounting height between range top
to hood bottom should be no less than 24".
Maximum mounting height should be no
higher than 32".
It is important to install the hood at the
proper mounting height. Hoods mounted too
low could result in heat damage and fire
hazard; while hoods mounted too high will be
hard to reach and will lose performance and
efficiency.
If available, also refer to range manufacturer's
height clearance requirements and recommended hood mounting height above range.
A minimum of 8" round or 3-1/4” x 10"rectangular
duct must be used to maintain maximum air flow
efficiency.
Always use rigid-type metal ducts only.
Flexible ducts could restrict air flow by up to 50%.
Also use calculation (on right) to compute total
available duct run when using elbows, transitions
and caps.
ALWAYS,when possible, reduce the number of
transitions and turns. If long duct run is required,
increase duct size. If a reducer is used, install a
long reducer instead of a pancake reducer. Reduce
duct size as far away from opening as possible.
If turns or transitions are required:
Install as far away from opening and as far
apart, between 2, as possible.
*Minimum clearance of 24”hood above range
height.
** Maximum clearance 32" hood above range
height.
Minimum Duct Size:
Round:
8" minimum
Duct Run Calculation:
Maximum run
8"
Deduct:
each 90 Elbow used
each 45 elbow used
Side Wall Cap w/ damper
Roof Cap
100 FT
15 FT
9 FT
30 FT
30 FT
e.g.- 1 roof cap, 2x90 elbows, 1 45 elbow used:
=30' + 30' + 9' =69' used, 31' available for straight duct runs.
Min 24"-Max 32"
36"
INSTALLATION
DUCTING
NEVER exhaust air or terminate duct work into spaces between walls, cra wl spaces, ceiling, attics or
garages.All exhaust must be ducted to the outside.
Use Metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or DuctTape.
Some Ducting Options:
side wall cap
w/ gravity damper
side wall cap
w/ gravity damper
Soffit or crawl space
Roof Pitch w/
Flashing & Cap
3
WARNING FIRE HAZARD
INSTALLATION
4
SPECIFICATIONS
8"
15-1/4"
16-3/16"
33-3/8"
34-3/8", 39-3/8", 45-3/8"
2"
2-1/4"
34-3/8", 39-3/8", 45-3/8"
8"
1/2"Elec. K.O.
16-3/16"
C/L
15-3/8”
(cutout)
33-1/2", 38-1/2", 44-1/2" (cutout)
= cutout dimension
cut out dimension
Model:
JXT7036ADS
INSTALLATION
5
INSTALLATION
Mounting the Range Hood
1. Determine and mark the mounting
position of the range hood with a
pencil.
2. Cut out the opening where the
range hood will be installed.
3. Install ductwork and electrical.
Duct tape all duct connections
with certified duct or silver tape.
4. Position range hood into location.
Apring loaded latch on one side,
will lock into position to help
support the hood.
5. Supporting the other end of the
hood, fasten wood screws through
pre-drilled holes into wood frame
opening.
ELECTRICAL
Locking latch
Screw in place
Power supply cable
Entry into range hood
Ductwork connection
All Electrical work must by performed by qualified electrician or person with similar technical know how and
background.
For personal safety,remove house fuse or open circuit breaker before beginning installation.
Do not use extension cord or adapter plug with this appliance.
Follow National electrical codes or prevailing local codes and ordinances.
Electrical Supply:
This appliance requires a 120V 60Hz electrical supply and connected to an individual, properly grounded branch
circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/ ground.
Please also refer to Electrical Diagram labeled on product.
Cable Lock:
A cable locking connector (not
supplied) might also be required by
local codes. Check local
requirements and codes, purchase
and install appropriate connector
if necessary.
Cable Lock
WARNING
duct/silver
tape
INSTALLATION
6
LINERS
21"
39" or 45"
Optional Stainless Liner:
JXT7142ADS
JXT7148ADS
JXT7142ADS
24"
1 1/2"
1 1/2"
42" or 48"
Custom Canopy
JXT7148ADS
45"
39"
2"
3"
21"
21"
Optional stainless liners JXT7142ADS, JXT7148ADS, are available for lining custom canopies
before installing the JXT7036ADS power blower pack system.
