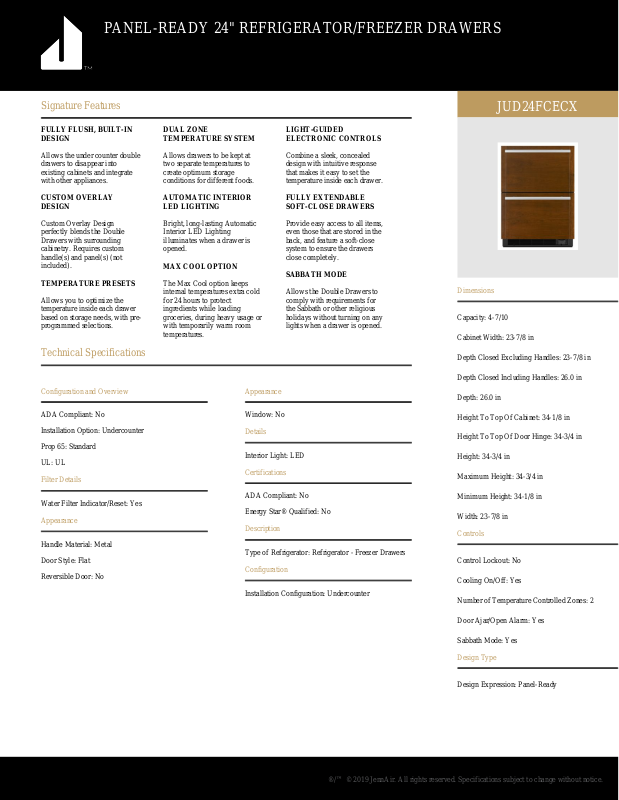

Jenn-Air JUD24FCECX Specifications

PANEL-READY 24" REFRIGERATOR/FREEZER DRAWERS

JUD24FCECX

Dimensions

Capacity: 4-7/10

Cabinet Width: 23-7/8 in

Depth Closed Excluding Handles: 23-7/8 in

Depth Closed Including Handles: 26.0 in

Depth: 26.0 in

Height To Top Of Cabinet: 34-1/8 in

Height To Top Of Door Hinge: 34-3/4 in

Height: 34-3/4 in

Maximum Height: 34-3/4 in

Minimum Height: 34-1/8 in

Width: 23-7/8 in

Controls

Control Lockout: No

Cooling On/Off: Yes

Number of Temperature Controlled Zones: 2

Door Ajar/Open Alarm: Yes

Sabbath Mode: Yes

Design Type

Design Expression: Panel-Ready

Signature Features

Technical Specifications

Appearance

Window: No

Details

Interior Light: LED

Certifications

ADA Compliant: No Energy Star® Qualified: No

Description

Type of Refrigerator: Refrigerator - Freezer Drawers

Configuration

Installation Configuration: Undercounter

Configuration and Overview

ADA Compliant: No Installation Option: Undercounter Prop 65: Standard UL: UL

Filter Details

Water Filter Indicator/Reset: Yes

Appearance

Handle Material: Metal Door Style: Flat Reversible Door: No

LIGHT-GUIDED ELECTRONIC CONTROLS

Combine a sleek, concealed design with intuitive response that makes it easy to set the temperature inside each drawer.

FULLY EXTENDABLE SOFT-CLOSE DRAWERS

Provide easy access to all items, even those that are stored in the back, and feature a soft-close system to ensure the drawers close completely.

SABBATH MODE

Allows the Double Drawers to comply with requirements for the Sabbath or other religious holidays without turning on any lights when a drawer is opened.

DUAL ZONE TEMPERATURE SYSTEM

Allows drawers to be kept at two separate temperatures to create optimum storage conditions for different foods.

AUTOMATIC INTERIOR LED LIGHTING

Bright, long-lasting Automatic Interior LED Lighting illuminates when a drawer is opened.

MAX COOL OPTION

The Max Cool option keeps internal temperatures extra cold for 24 hours to protect ingredients while loading groceries, during heavy usage or with temporarily warm room temperatures.

FULLY FLUSH, BUILT-IN DESIGN

Allows the under counter double drawers to disappear into existing cabinets and integrate with other appliances.

CUSTOM OVERLAY DESIGN

Custom Overlay Design perfectly blends the Double Drawers with surrounding cabinetry. Requires custom handle(s) and panel(s) (not included).

TEMPERATURE PRESETS

Allows you to optimize the temperature inside each drawer based on storage needs, with preprogrammed selections.
