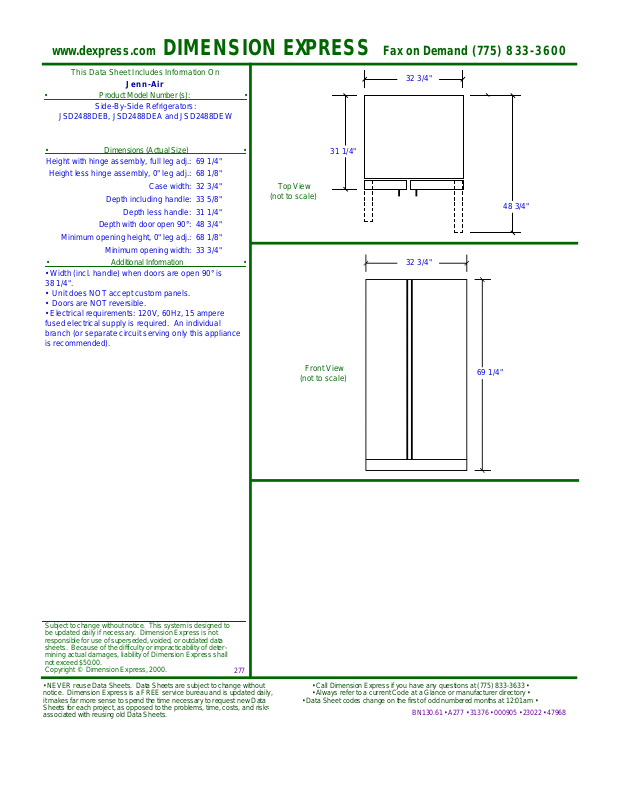

Jenn-Air JSD2488DEB, JSD2488DEA, JSD2488DEW Dimension Guide

www.dexpress.com DIMENSION EXPRESS Fax on Demand [phone]

This Data Sheet Includes Information On

Jenn-Air

• Product Model Number (s): •

Side-By-Side Refrigerators:

JSD2488DEB, JSD2488DEA and JSD2488DEW

32 3/4"

• Dimensions (Actual Size) •

Height with hinge assembly, full leg adj.:

Height less hinge assembly, 0" leg adj.:

Case width:

Depth including handle:

Depth less handle:

Depth with door open 90°:

Minimum opening height, 0" leg adj.:

Minimum opening width:

69 1/4"
68 1/8"
32 3/4"
33 5/8"
31 1/4"
48 3/4"
68 1/8"
33 3/4"

• Additional Information •

• Width (incl. handle) when doors are open 90° is

38 1/4".

• Unit does NOT accept custom panels.

• Doors are NOT reversible.

• Electrical requirements: 120V, 60Hz, 15 ampere

fused electrical supply is required. An individual
branch (or separate circuit serving only this appliance
is recommended).

Top View

(not to scale)

Front View

(not to scale)

31 1/4"

48 3/4"

32 3/4"

69 1/4"
