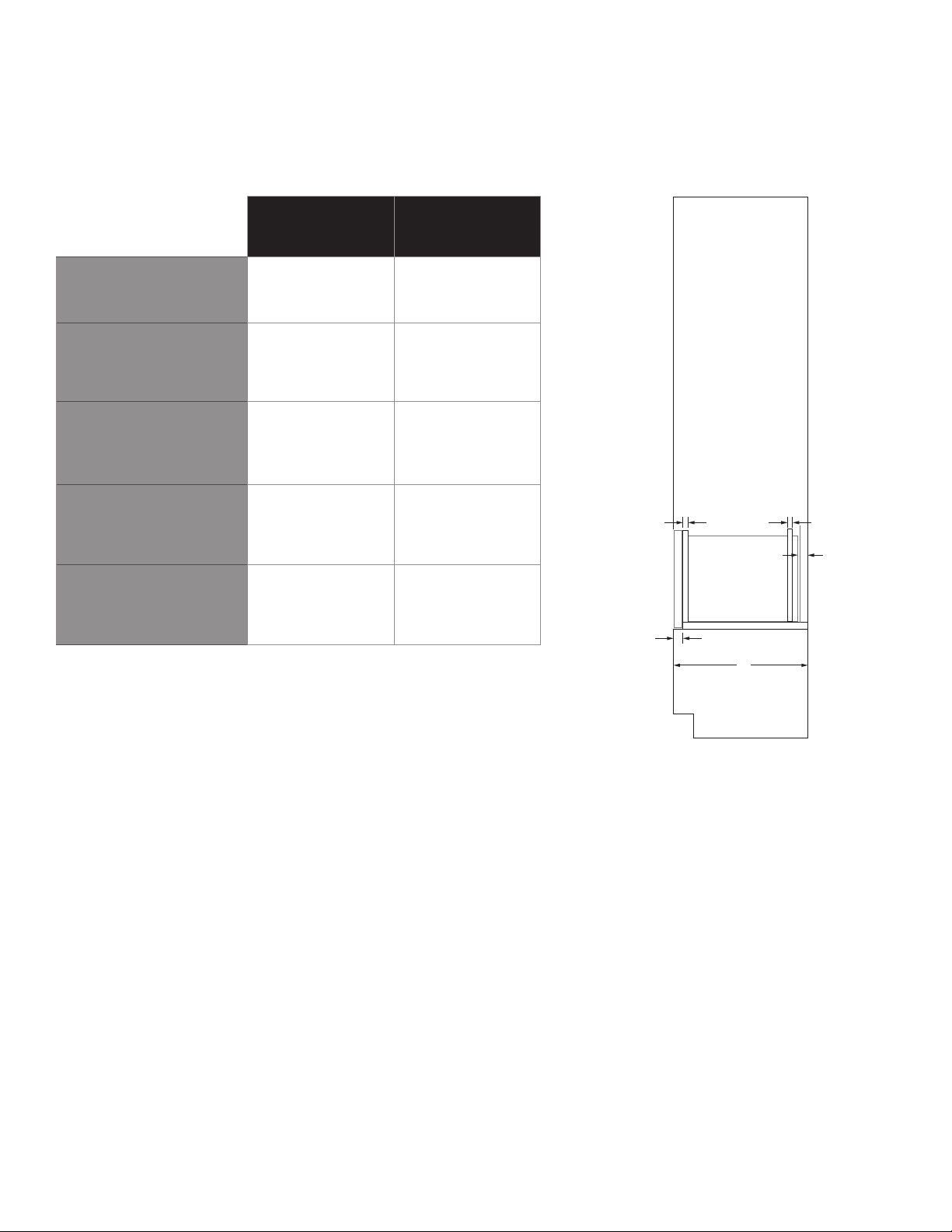

JENNAIR® DIMENSIONS
MICROWAVE DRAWERS
PRODUCT
24" STAINLESS
STEEL
Overall Width (A) 23-7/8" (60.6 cm) 23-7/8" (60.6 cm) 29-15/16" (76 cm) 29-15/16" (76 cm)
Control Panel
Height (B)
Drawer Height (C) 12-3/4" (32.4 cm) 12-11/16" (32.3 cm) 12-3/4" (32.4 cm) 12-11/16" (32.3 cm)
Control Panel to
Drawer Space (D)
Overall Height (E) 16" (40.6 cm) 16" (40.6 cm) 16" (40.6 cm) 16" (40.6 cm)
3" (7.6 cm) 3" (7.6 cm) 3" (7.6 cm) 3" (7.6 cm)
1/4" (0.6 cm) 1/4" (0.6 cm) 1/4" (0.6 cm) 1/4" (0.6 cm)
24" NOIR™
JMDFS24HM
30" RISE™
JMDFS30HL
30" NOIR™
JMDFS30HM
A
B
D
C
FRONT VIEW
IMPORTANT: Dimensional specifications are provided for planning purposes only. Do not make any cutouts based on this
information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning
installation. All JennAir® appliances are appropriately UL, CUL or CSA approved.
E
1
JENNAIR® DIMENSIONS
MICROWAVE DRAWERS
PRODUCT
24" STAINLESS
STEEL
Recessed Width (F) 21-5/8" (54.9 cm) 21-5/8" (54.9 cm) 21-5/8" (54.9 cm) 21-5/8" (54.9 cm)
Conduit Channel Width (G) 4-11/16" (11.9 cm) 4-11/16" (11.9 cm) 4-11/16" (11.9 cm) 4-11/16" (11.9 cm)
Depth without Drawer (H) 21-7/8" (55.6 cm) 21-7/8" (55.6 cm) 21-7/8" (55.6 cm) 21-7/8" (55.6 cm)
Depth with Drawer (I) 23-1/2" (59.7 cm) 23-11/16" (60.1 cm) 23-9/16" (58.9 cm) 23-11/16" (60.1 cm)
24" NOIR™
JMDFS24HM
30" RISE™
JMDFS30HL
30" NOIR™
JMDFS30HM
F
G
H
I
TOP VIEW
2
JENNAIR® DIMENSIONS
MICROWAVE DRAWERS
PRODUCT
24" STAINLESS
STEEL
Recessed Height (J) 14-5/8" (37.1 cm) 14-5/8" (37.1 cm) 14-5/8" (37.1 cm) 14-5/8" (37.1 cm)
Drawer Open Depth (K)
(Flush Receptacle)
Drawer Open Depth (K)
(Non-flush Receptacle)
Depth with Drawer (L)
(Flush Receptacle)
Depth with Drawer (L)
(Non-flush Receptacle)
Depth without Drawer
(M) (Flush Receptacle)
Depth without Drawer (M)
(Non-flush Receptacle)
38-5/16" (97.3 cm) 38-1/2" (97.8 cm) 38-3/8" (97.4 cm) 38-1/2" (97.8 cm)
42-13/16" (108.7 cm) 43" (109.2 cm) 42-13/16" (108.8 cm) 43" (109.2 cm)
23-5/16" (59.2 cm) 23-1/2" (59.7 cm) 23-3/8" (59.3 cm) 23-1/2" (59.7 cm)
27-13/16" (70.6 cm) 28" (71.1 cm) 27-13/16" (70.7 cm) 28" (71.1 cm)
21-7/8" (55.6 cm) 21-7/8" (55.6 cm) 21-7/8" (55.6 cm) 21-7/8" (55.6 cm)
26-3/8" (67 cm) 26-3/8" (67 cm) 26-3/8" (67 cm) 26-3/8" (67 cm)
24" NOIR™
JMDFS24HM
30" RISE™
JMDFS30HL
30" NOIR™
JMDFS30HM
Conduit Channel
Length (N)
Conduit Channel
Height (O)
4" (10.2 cm) 4" (10.2 cm) 4" (10.2 cm) 4" (10.2 cm)
1-3/4" (4.4 cm) 1-3/4" (4.4 cm) 1-3/4" (4.4 cm) 1-3/4" (4.4 cm)
K
L
M
N
O
J
Back of Cabinet
SIDE VIEW
3
JENNAIR® DIMENSIONS
MICROWAVE DRAWERS

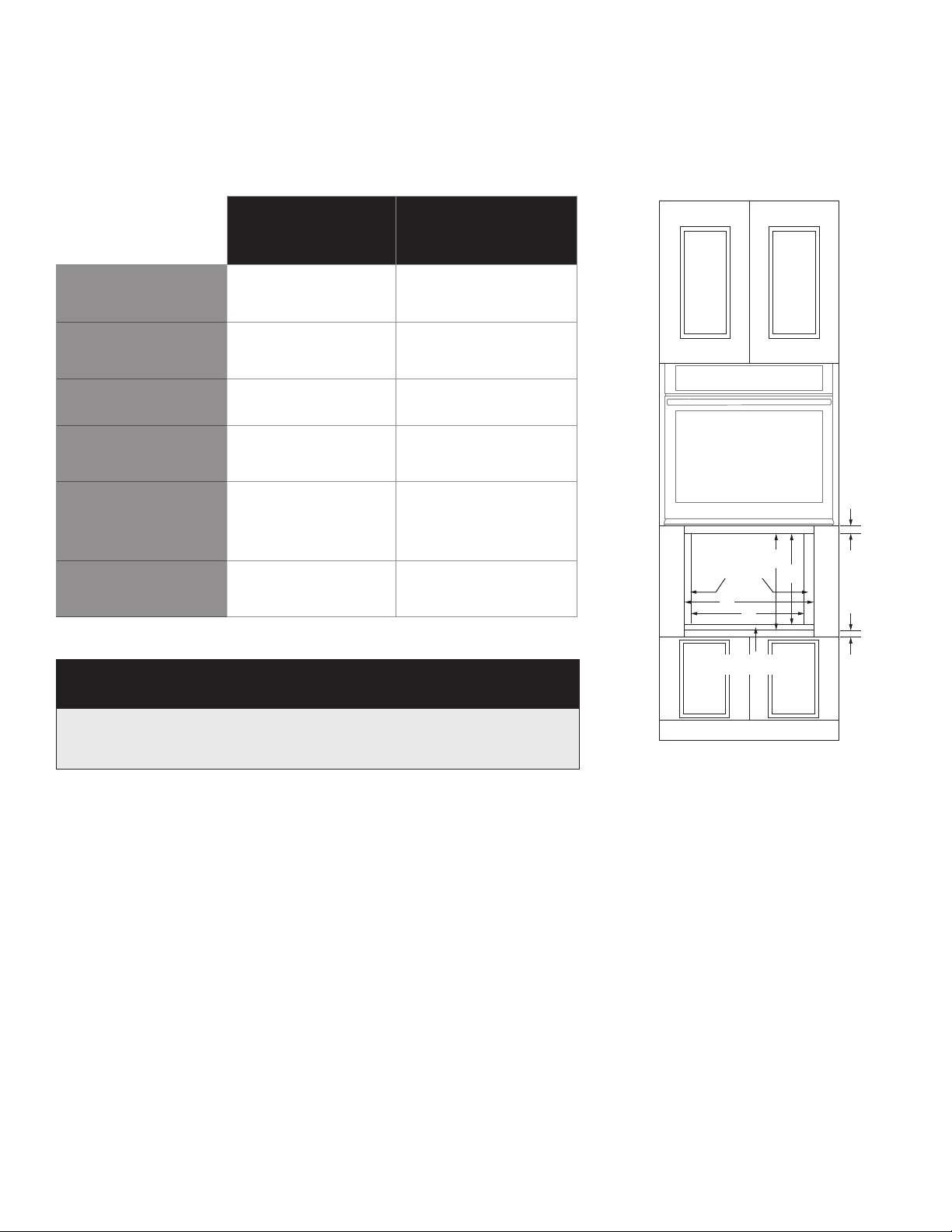

STANDARD OPENING AND CLEARANCE
24" STAINLESS
STEEL
Top Overlap Allowance (A) 9/16" (1.4 cm) 9/16" (1.4 cm)
Cutout Top to Oven or Countertop Bottom (B)
Cutout Height (C) 15-9/16" (39.5 cm) 15-9/16" (39.5 cm)
Side Overlap Allowance (D)
Cutout Width (E) 22-1/8" (56.2 cm) 22-1/8" (56.2 cm)
Bottom Overlap Allowance (F)
Cabinet Bottom to Cabinet Door Top (G)
2" (5.1 cm) min. 2" (5.1 cm) min.
7/8" (2.2 cm) 7/8" (2.2 cm)
3/4" (1.9 cm) 3/4" (1.9 cm)
2" (5.1 cm) min. 2" (5.1 cm) min.
24" NOIR™
JMDFS24HM
LOCATION REQUIREMENTS CHECKLIST
Support structure must be able to support 100 lb. (45.4 kg),
including microwave oven and contents.
A
C
D
E
F
D
FRONT VIEW
B
G
4
JENNAIR® DIMENSIONS
MICROWAVE DRAWERS

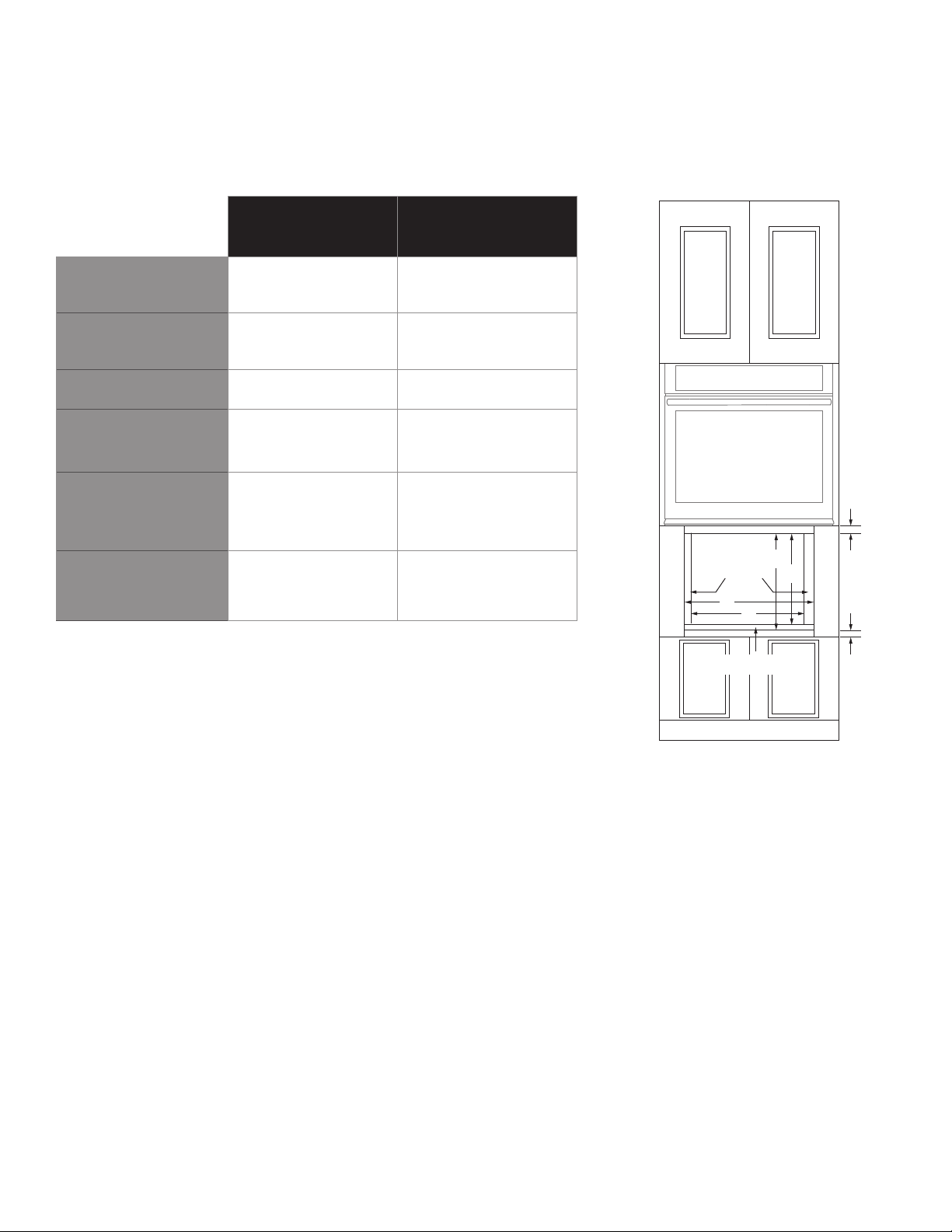

STANDARD OPENING AND CLEARANCE
30" RISE™
JMDFS30HL
Top Overlap Allowance (A) 9/16" (1.4 cm) 9/16" (1.4 cm)
Cutout Top to Oven or Countertop Bottom (B)
Cutout Height (C)
Side Overlap Allowance (D)
Cutout Width (E)
Bottom Overlap Allowance (F)
Cabinet Bottom to Cabinet Door Top (G)
2" (5.1 cm) min. 2" (5.1 cm) min.
15-9/16"
(39.5 cm)
11/16" (1.8 cm) 11/16" (1.8 cm)
22-1/8"–28-3/8"
(56.2–72 cm)
3/4" (1.9 cm)
min.
2" (5.1 cm) min. 2" (5.1 cm) min.
30" NOIR™
JMDFS30HM
15-9/16"
(39.5 cm)
22-1/8"–28-3/8"
(56.2–72 cm)
3/4" (1.9 cm)
min.
A
C
D
E
F
D
FRONT VIEW
B
G
5
JENNAIR® DIMENSIONS
MICROWAVE DRAWERS
STANDARD OPENING AND CLEARANCE
24"
STAINLESS
STEEL
24" NOIR™
JMDFS24HM
30" RISE™
JMDFS30HL
30" NOIR™
JMDFS30HM
Cutout Depth (H)
(Flush
Receptacle)
Cutout Depth (H)
(Non-flush
Receptacle)
Microwave Back
to Cabinet Back
Depth (I)
23-1/2"
(59.7 cm) min.
28"
(71.1 cm) min.
3-1/2" (8.9 cm) 3-1/2" (8.9 cm) 3-1/2" (8.9 cm) 3-1/2" (8.9 cm)
23-11/16"
(60.2 cm) min.
28-3/16"
(71.6 cm) min.
23-9/16"
(59.8 cm) min.
28-1/16"
(71.2 cm) min.
23-11/16"
(60.2 cm) min.
28-3/16"
(71.6 cm) min.
I
H
6
SIDE VIEW
JENNAIR® DIMENSIONS
MICROWAVE DRAWERS
FLUSH OPENING AND CLEARANCE
24" STAINLESS
STEEL
Cutout Width (A)
Width Between
Side Cleats (B)
Cutout Height (C) 17" (43.2 cm) 17" (43.2 cm)
Platform to Top of
Cutout Height (D)
Cutout Top to Oven
or Countertop
Bottom (E)
Cabinet Bottom to
Cabinet Door Top (F)
24-3/16"–24-1/2"
(61.4-62.2 cm) min.
22-1/8" (56.2 cm) 22-1/8" (56.2 cm)
16-1/8" (41 cm) min. 16-1/8" (41 cm) min.
2" (5.1 cm) 2" (5.1 cm)
2" (5.1 cm) 2" (5.1 cm)
24" NOIR™
JMDFS24HM
24-3/16"–24-1/2"
(61.4-62.2 cm) min.
LOCATION REQUIREMENTS CHECKLIST
C
Side
D
Cleat
A
B
Bottom Platform
E
D
F
Support structure must be able to support 100 lb. (45.4 kg),
including microwave oven and contents.
FRONT VIEW
7
JENNAIR® DIMENSIONS
MICROWAVE DRAWERS
FLUSH OPENING AND CLEARANCE
30" RISE™
JMDFS30HL
Cutout Width (A)
Width Between Side
Cleats (B)
Cutout Height (C) 17" (43.2 cm) 17" (43.2 cm)
Platform to Top of
Cutout Height (D)
Cutout Top to Oven
or Countertop
Bottom (E)
Cabinet Bottom to
Cabinet Door Top (F)
30-1/4"–30-9/16"
(76.8-77.6 cm) min.
28-7/16" (72.2 cm) 28-7/16" (72.2 cm)
16-1/8" (41 cm) min. 16-1/8" (41 cm) min.
2" (5.1 cm) 2" (5.1 cm)
2" (5.1 cm) 2" (5.1 cm)
30" NOIR™
JMDFS30HM
30-1/4"–30-9/16"
(76.8-77.6 cm) min.
C
Side
D
Cleat
A
B
Bottom Platform
E
D
F
8
FRONT VIEW
JENNAIR® DIMENSIONS
MICROWAVE DRAWERS
FLUSH OPENING AND CLEARANCE
24" STAINLESS STEEL
Side Cleat Depth (G) 1-9/16" (3.9cm) 1-9/16" (3.9cm)
Mirowave Back to
Cabinet Back Depth
(H)
Cabinet Face to Front
of Platform Depth (I)
Cutout Depth (J)
(Flush Receptacle)
Cutout Depth (J)
(Non-flush Receptacle)
3-1/2"
(8.9 cm)
1-7/8" (4.8 cm) 2-1/16" (5.3 cm)
23-1/2"
(59.7 cm) min.
28"
(71.1 cm)
24" NOIR™
JMDFS24HM
3-1/2"
(8.9 cm)
23-11/16"
(60.2 cm) min.
28-3/16"" (71.6 cm)
G G
H
I
J
9
SIDE VIEW
JENNAIR® DIMENSIONS
MICROWAVE DRAWERS
FLUSH OPENING AND CLEARANCE
30" RISE™
JMDFS30HL
Side Cleat Depth (G) 1/8" (0.39 cm) 1/8" (0.39 cm)
Microwave Back to
Cabinet Back Depth
(H)
Cabinet Face to Front
of Platform Depth (I)
Cutout Depth (J)
(Flush Receptacle)
Cutout Depth (J)
(Non-flush Receptacle)
3-1/2"
(8.9 cm)
1-15/16" (4.9 cm) 2-1/16" (5.3 cm)
23-9/16"
(59.8 cm) min.
28-1/16"
(71.2 cm)
30" NOIR™
JMDFS30HM
3-1/2"
(8.9 cm)
23-11/16"
(60.2 cm) min.
28-3/16"
(71.6 cm)
G G
H
I
J
10
SIDE VIEW
JENNAIR® DIMENSIONS
MICROWAVE DRAWERS
ELECTRICAL REQUIREMENTS
ELECTRIC REQUIREMENTS CHECKLIST
120 volt, 60 Hz, AC only, 15- or 20-amp
fused, grounded circuit is required.
A time-delay fuse or dedicated
circuit is recommended.
Do not use an extension cord.
RECOMMENDED ELECTRICAL ZONE
3"
7.6 cm
4-1/2"
11.4 cm
POWER SUPPLY LOCATION
IF YOU HAVE QUESTIONS ABOUT YOUR ELECTRICAL SUPPLY,
?
CALL A LICENSED, QUALIFIED ELECTRICIAN.
FRONT VIEW
BACK VIEW
11
