CONTROL PANEL PARTS
For Models:JMC8130DDR10
(Oil Bronze)
30" BUILT−IN MICROWAVE
02−08 Litho in U.S.A. (rek)
Illus. Part
No. No. DESCRIPTION
1 Literature
W10182897
53001218 Use & Care Guide
W10165850
2
3 53001241 Bracket, Control
4 53001245 Cushion
5 Panel, Control
W10179020
Installation
Instructions
Microcomputer
Oil Bronze
1
Part No. W10182984 Rev A
OVEN PARTS
For Models:JMC8130DDR10
(Oil Bronze)
W10182984
2
OVEN PARTS
For Models:JMC8130DDR10
(Oil Bronze)
Illus. Part
No. No. DESCRIPTION
1 R9800398 Cushion
2 Trim, Side
53001263 RH
53001262 LH
3 53001261 Cover, Back
4 Side, Chassis
53001268 Right Side
53001269 Left Side
5 53001264 Trim, Bottom
6 R9800360 Screw
7 53001267 Top, Chassis
8 Bracket, Back
53001270 LH
53001271 RH
9 R0131246 Screw
10 53001278 Base, Plate
11 53001273 Barrier
W10182900
12
13 53001289 Bracket, Cntrl
14 R0654178 Screw
15 R0654183 Screw
16 R0130667 Canopy, Mica
17 R0654182 Screw
Cushion
3
W10182984

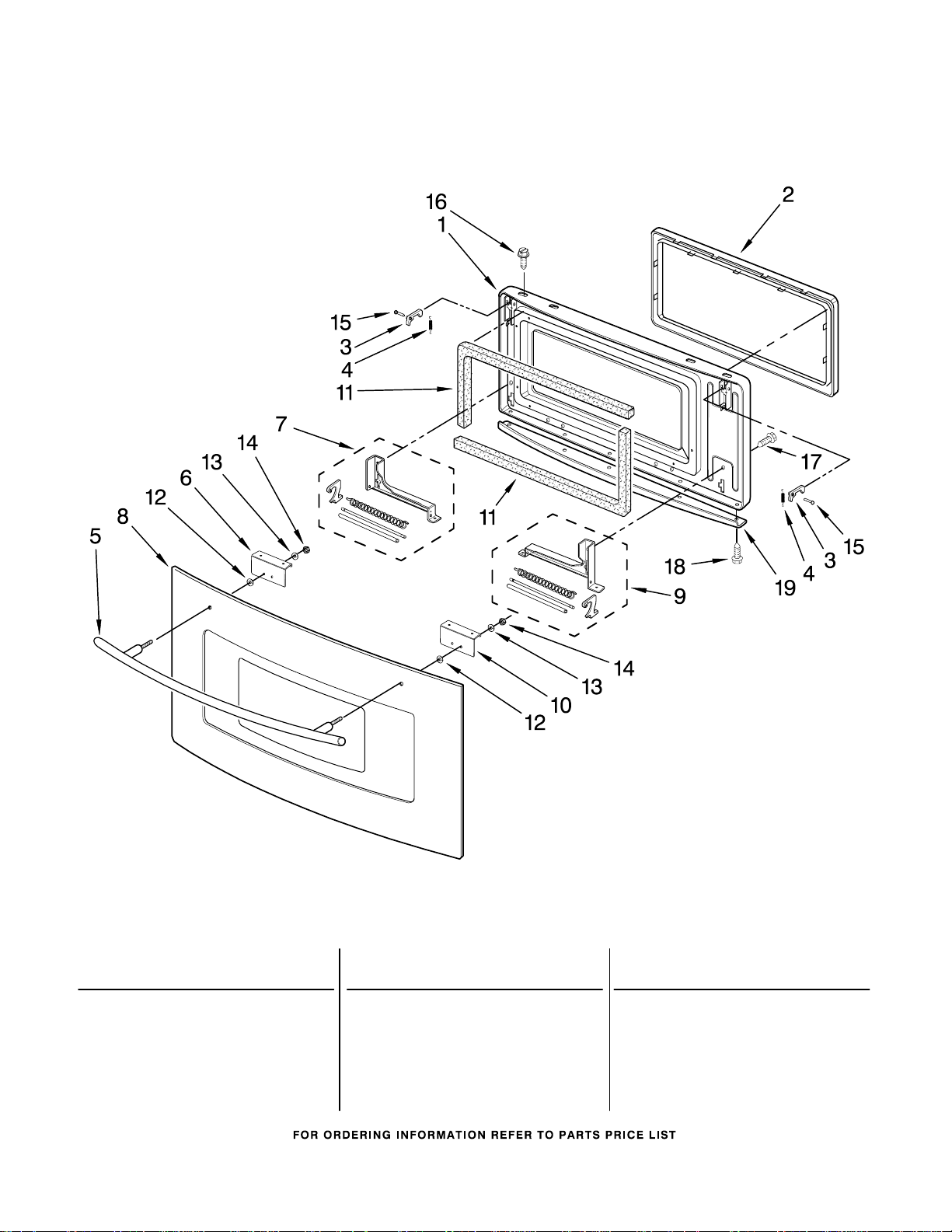

MICROWAVE DOOR PARTS
For Models:JMC8130DDR10
(Oil Bronze)
Illus. Part
No. No. DESCRIPTION
1 53001287 Frame, Door
2 53001219 Cover, Choke
3 53001220 Latch
4 53001221 Spring
5 53001222 Handle, Door
6 53001224 Bracket, LH
W10182984
Illus. Part
No. No. DESCRIPTION
7 53001225 Hinge, LH
W10179009
8
9 53001235 Hinge, RH
10 53001238 Bracket, RH
11 53001280 Cushion, Door
12 53001286 Washer
13 53001282 Washer, Sprg Lck
Glass, Door
4
Illus. Part
No. No. DESCRIPTION
14 53001283 Nut
15 53001281 Pin, Latch
16 53001284 Screw
17 53001285 Screw
18 R9800309 Screw, Tap
19 53001234 Trim, Door Btm
LATCH BOARD PARTS
For Models:JMC8130DDR10
For Models:JMC8130DDR10
(Oil Bronze)
(Oil Bronze)
Illus. Part
No. No. DESCRIPTION
1 53001246 Board, Latch
2 53001036 Switch, Micro
3 R0654095 Switch, Micro
4 53001247 Lever
5 53001249 Lever
6 R0654178 Screw
5
W10182984
OVEN INTERIOR PARTS
For Models:JMC8130DDR10
(Oil Bronze)
W10182984
6
OVEN INTERIOR PARTS
For Models:JMC8130DDR10
(Oil Bronze)
Illus. Part
No. No. DESCRIPTION
1
W10153234
2 53001266 Lamp, Assembly
3 59001168 Capacitor, H.V.
4 56001353 Fuse, 20 Amp
5 53001248 Bracket, Capacitor
6 53001250 Guide, Suction
7 53001251 Duct
8 53001252 Blade, Fan
9 53001253 Transformer, H.V.
10 R0654183 Screw
11 53001581 Magnetron
12 R0131029 Screw
13 53001254 Cord, Power
14 53001255 Sensor, Assembly
15 R0131307 Screw
16 53001256 Motor, Fan
17 R0131025 Thermostat
18 B8383102 Cable, Diode
19 R9800411 Screw
20 53001258 Bracket, Therm.
21 R9900293 Screw
22 53001259 Filter, Assembly
23 53001565 Filter, Choke
24 53001260 Guide, Air
25 53001272 Barrier
26 53001274 Barrier
27 53001275 Base, PCB
28 53001277 Bottom
29 53001291 Board, Power
30 53001276 Plate, Shield
31 R0131246 Screw
Tunnel, Air
7
W10182984
TURNTABLE PARTS
For Models:JMC8130DDR10
(Oil Bronze)
W10182984
Illus. Part
No. No. DESCRIPTION
1 8184853 Tray, Glass
2 R0130605 Shaft, Turntable
3 R0130677 Ring, Rotating
4 53001025 Motor, Turntable
5 R0654180 Screw
8
OPTIONAL PARTS
For Models:JMC8130DDR10
(Oil Bronze)
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
W10134193
WIRING HARNESS PARTS
53001257 Harness, Main
Oil Bronze
9
W10182984
